Description

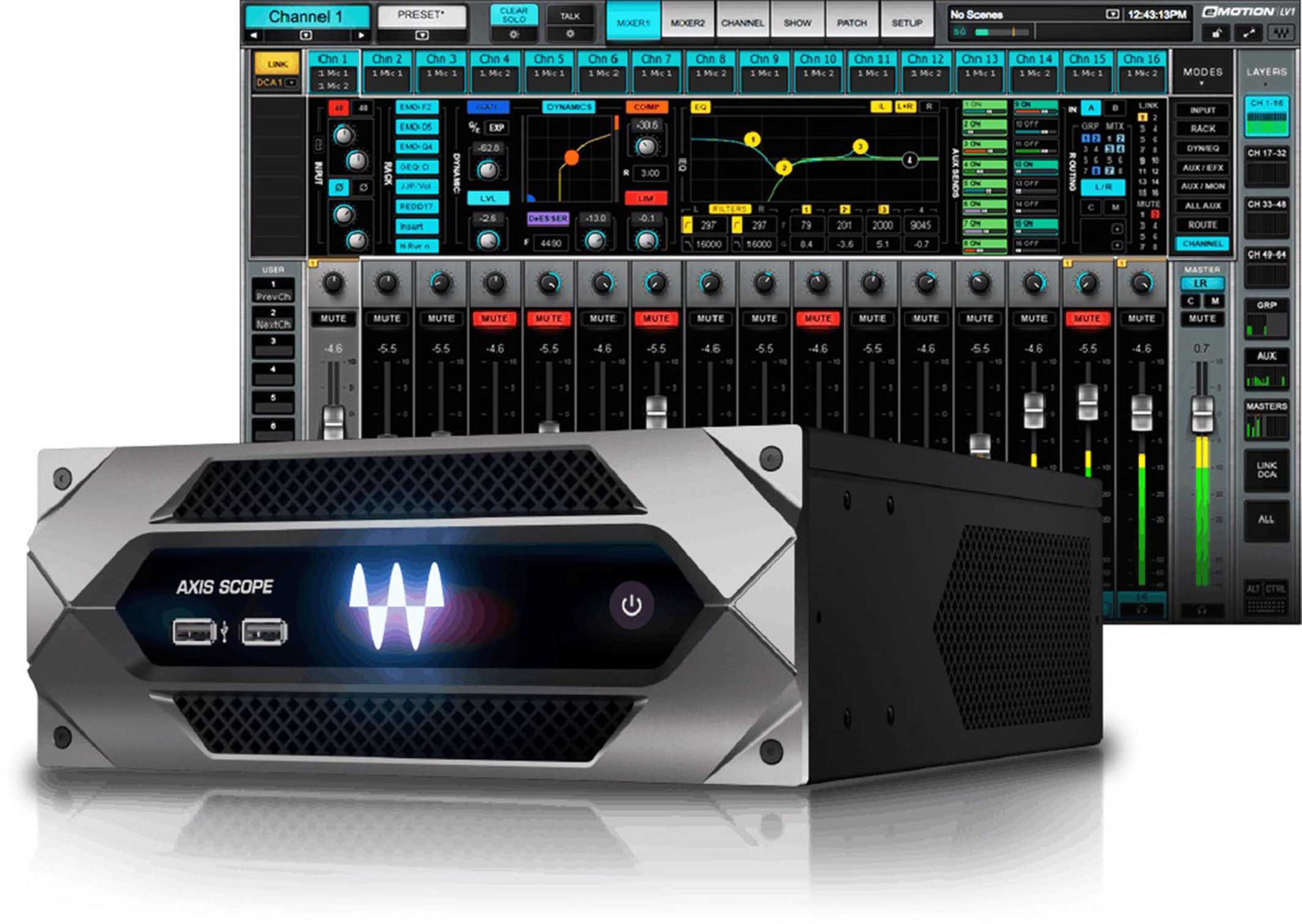

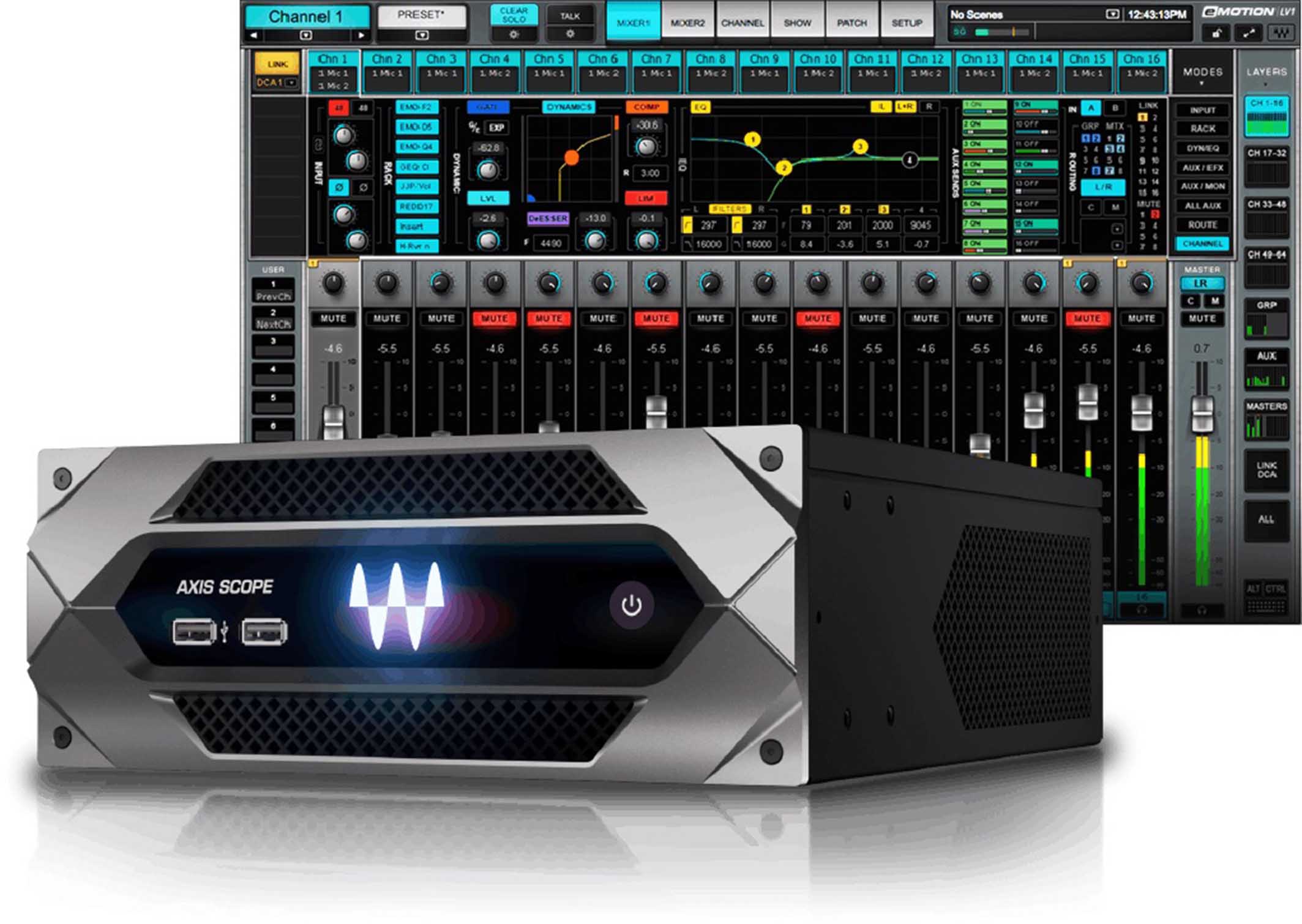

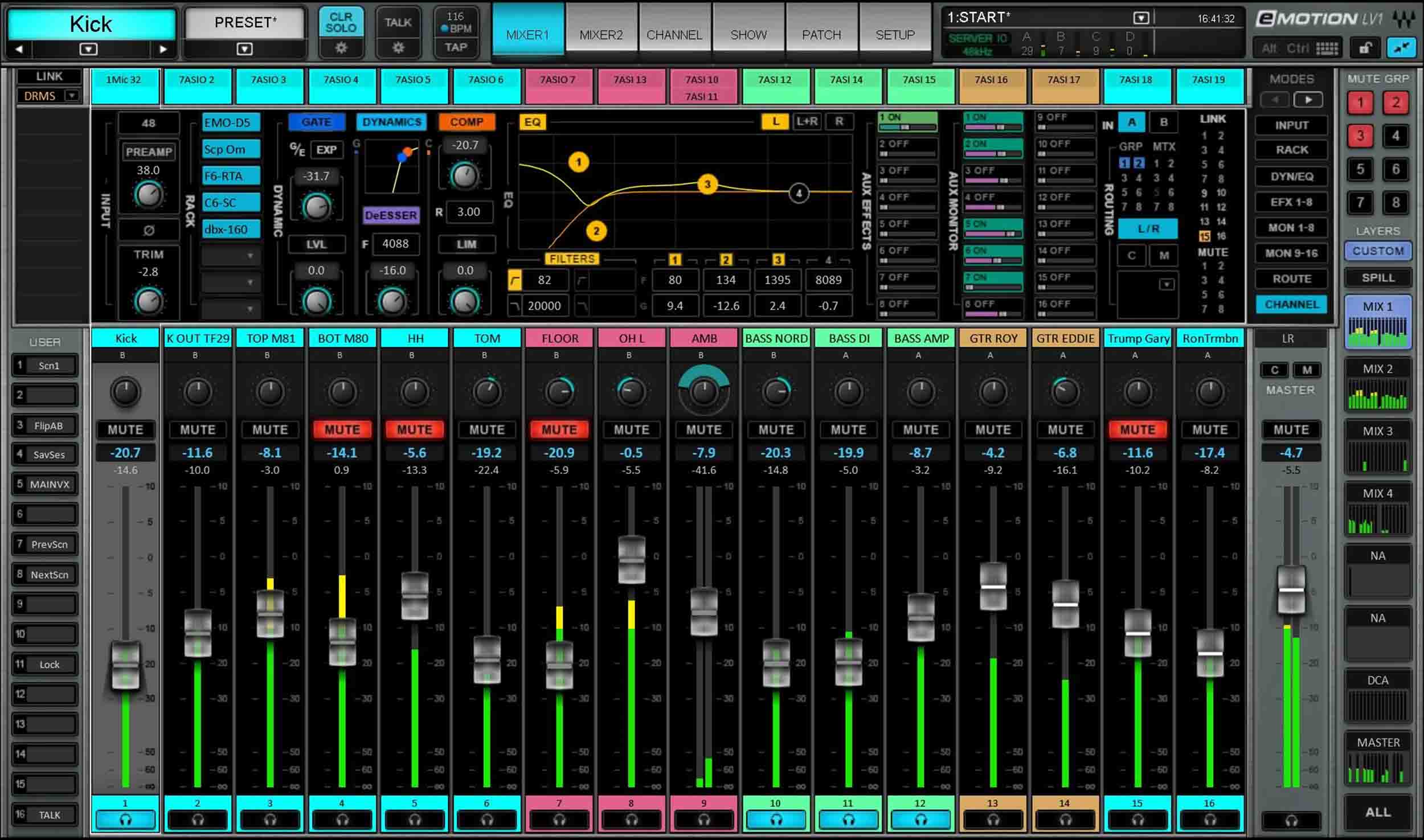

The Waves CMBAXISLV64 64-Channel Mixer with Axis One Custom Computer delivers the powerful core of a world-class live mixing system designed for large, professional environments such as concert venues, clubs, theaters, and houses of worship. At its heart is the eMotion LV1 live mixer software, offering 64 mono/stereo input channels, a 32-bit floating-point mix engine, sample rates up to 96 kHz, and ultra-low latency performance down to 0.8 ms. Built on the SoundGrid audio networking platform, it provides an intuitive, fast workflow with extensive routing, auxes, groups, matrices, scenes, and deep plug-in integration for demanding live sound applications.
The system is powered by the Waves Axis One custom-designed computer, purpose-built and rigorously tested to run Waves audio applications with maximum stability. Housed in a rugged rack-mountable chassis, Axis One features a six-core Intel i5 processor, 16 GB of RAM, and a fast 256 GB SSD, ensuring smooth performance even in high-pressure live scenarios. With support for up to three displays and extensive USB, Ethernet, and SoundGrid connectivity, it serves as the central control hub for front-of-house, monitor, broadcast, or studio environments.

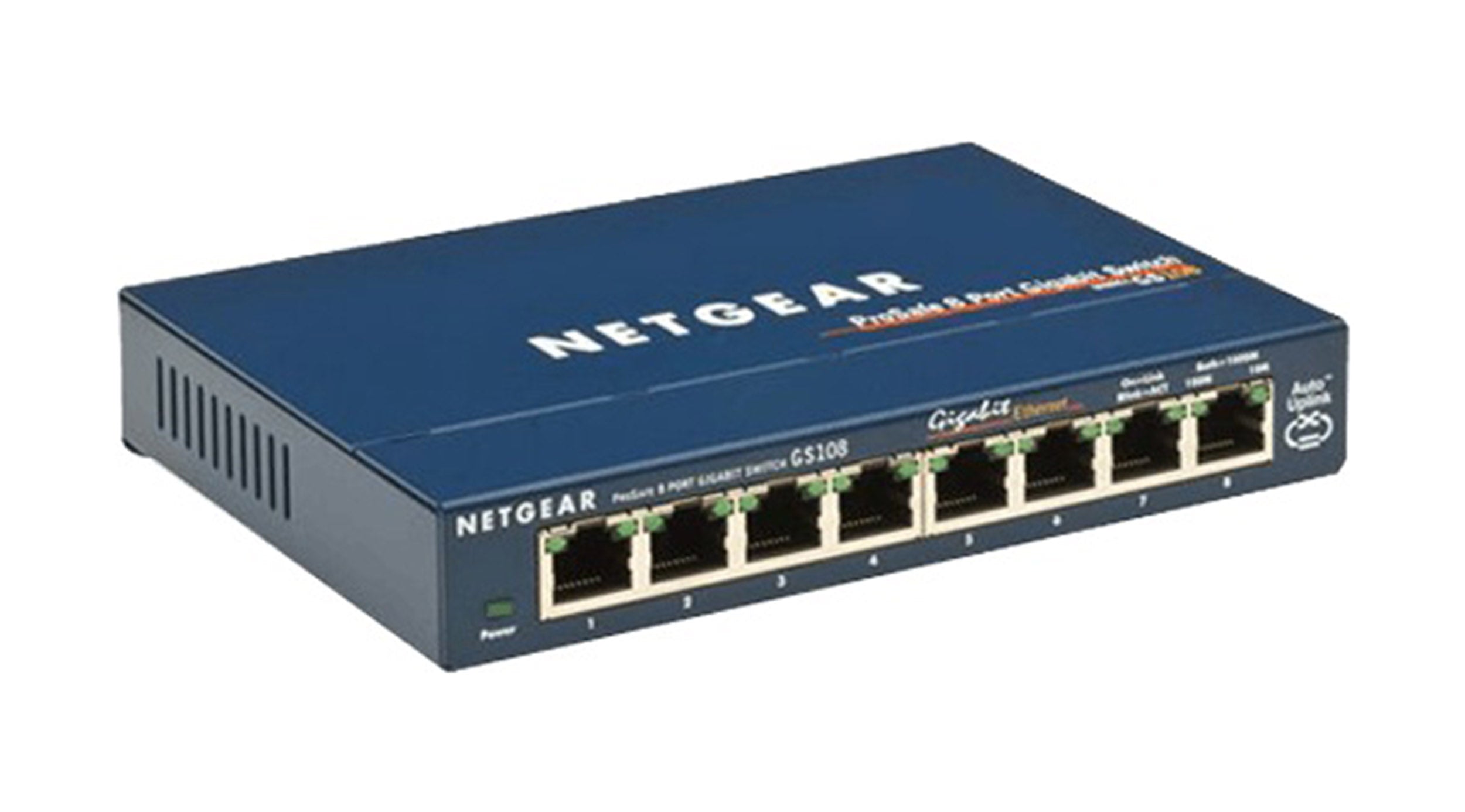

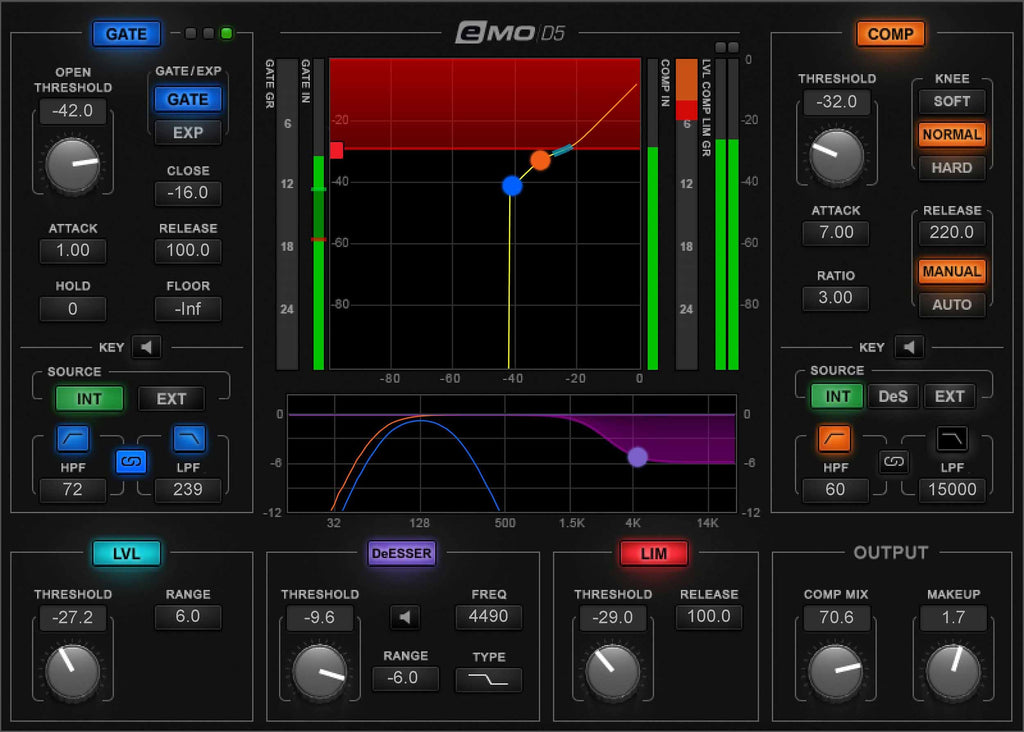

Completing the core system is a SoundGrid-approved Netgear 8-port Gigabit Ethernet switch and all required network cabling, providing reliable, low-latency connectivity between system components. The package also includes essential Waves eMo plug-ins for dynamics, filtering, tone shaping, and signal generation, enabling professional signal control straight out of the box. Together, these elements form a scalable, powerful, and flexible live mixing foundation capable of handling the most complex modern audio productions.
Product Specifications:
Channels: 64 stereo/mono input channels (up to 160 inputs with expansion upgrade).
Buses: 44 mix buses (expandable to 52).
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz.
Processing Engine: Double-precision 32-bit floating-point mix engine.
Latency: Ultra-low (SoundGrid system, typically <0.8 ms round-trip at 96 kHz).
Plugin Support: Full integration with Waves plugins; supports up to 8 plugins per channel (rack slots).
Mixing Capabilities: Channel strip with EQ, dynamics, and effects; matrix mixing, aux sends, groups,
DCAs; auto-mixing with Dugan Speech upgrade (up to 64 mics); scene recall, snapshot automation.
I/O Integration: Supports SoundGrid-compatible stageboxes (e.g., IONIC 16 with 16 preamps), up to 128
channels of recording/playback via external DAW.
Expansions: Optional upgrades for more channels/buses, additional DSP servers (up to 3 + backups), fader
banks, touch screens, and in-ear mixing apps.

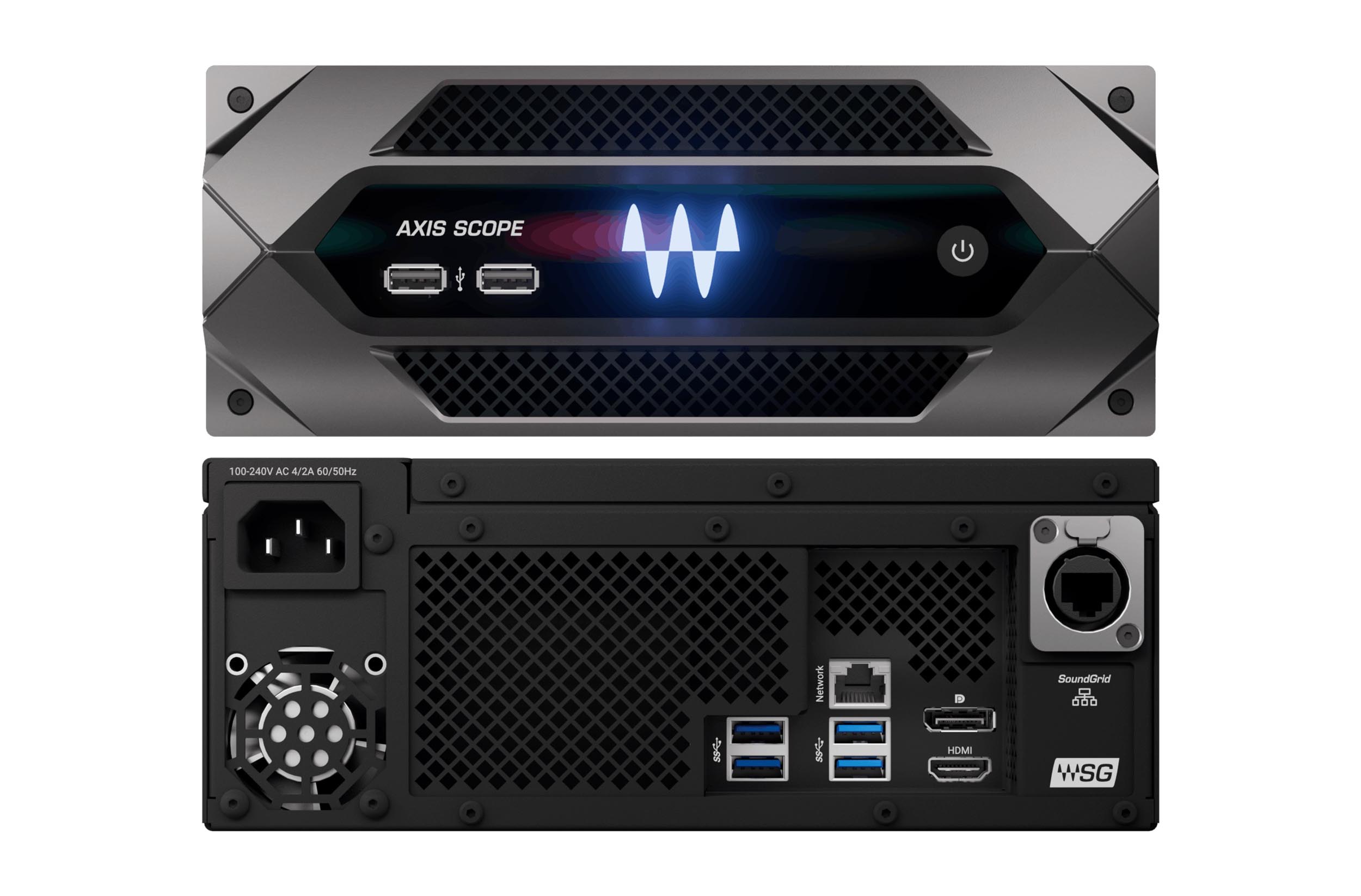

Axis Scope Computer Hardware
CPU: 3.3 GHz Intel Core i5-10600 (6-core, 10th Gen, up to 4.8 GHz turbo).
RAM: 16 GB DDR4.
Storage: 256 GB SSD.
Graphics: Integrated Intel UHD Graphics 630.
OS: Windows 10 (pre-installed and optimized for Waves applications).
Connectivity:
Network: 1 x SoundGrid EtherCon port (for low-latency audio networking), 1 x Gigabit Ethernet RJ45 port.
USB: 4 x USB 3.0 (rear), 2 x USB 2.0 (front).
Video: 1 x HDMI.
Form Factor: Compact 2U half-rack chassis (rack-mountable with optional rack ears or shelf).
Power: Standard IEC power input (universal voltage).
Product Weight: Approx. 10–12 lbs
Product Dimensions (L × W × H): 12" × 8.5" × 3.5"
