Waves CMBEXTCSB SuperRack SoundGrid Extreme-C Combo

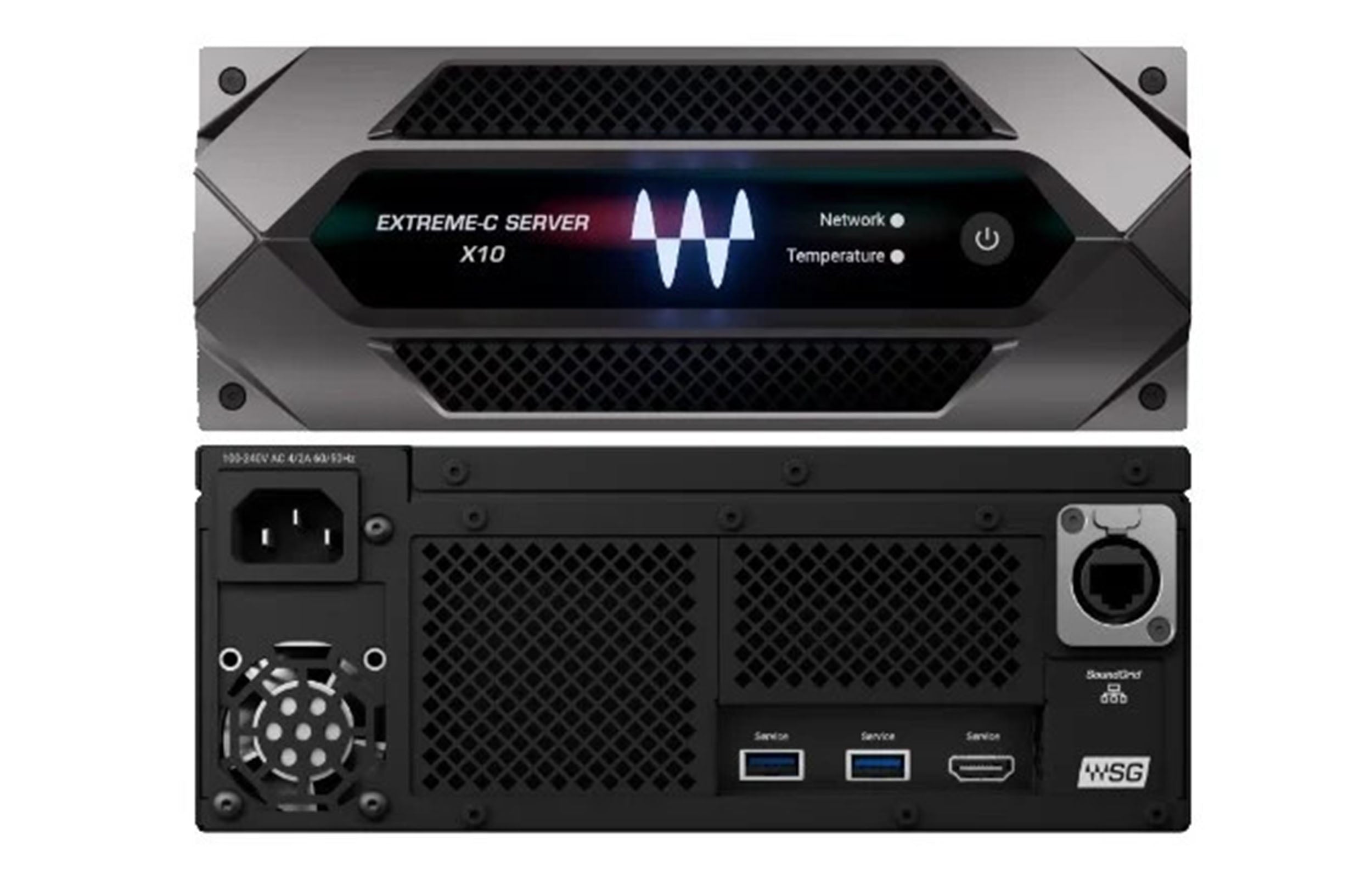

The Waves CMBEXTC combines massive processing power with a complete SoundGrid live system to handle heavy plug-in loads for concerts, theaters, houses of worship, and other live sound applications. At its core is the Extreme-C SoundGrid Server, a compact 2 RU half-rack DSP unit with a 10th-generation Intel Core i7 processor, 8GB of RAM, and ultralow latency as low as 0.8 ms. Designed for both live and studio environments, it can run hundreds of SoundGrid-compatible plug-ins in real time while maintaining a sleek, durable design with LED network and temperature monitoring, sturdy RAM positioning, and quick-install rack ears.

Included in the system is the Netgear GS108-400NAS ProSAFE 8-Port Gigabit Switch, allowing easy expansion of your network. This fanless switch automatically adjusts for network speed and cabling, providing reliable gigabit throughput with a non-blocking architecture and 16 Gbps total bandwidth. Energy-efficient and plug-and-play, it features traffic prioritization, front-panel LEDs for monitoring, and a durable metal case, ensuring stable and efficient operation for mission-critical live audio setups.

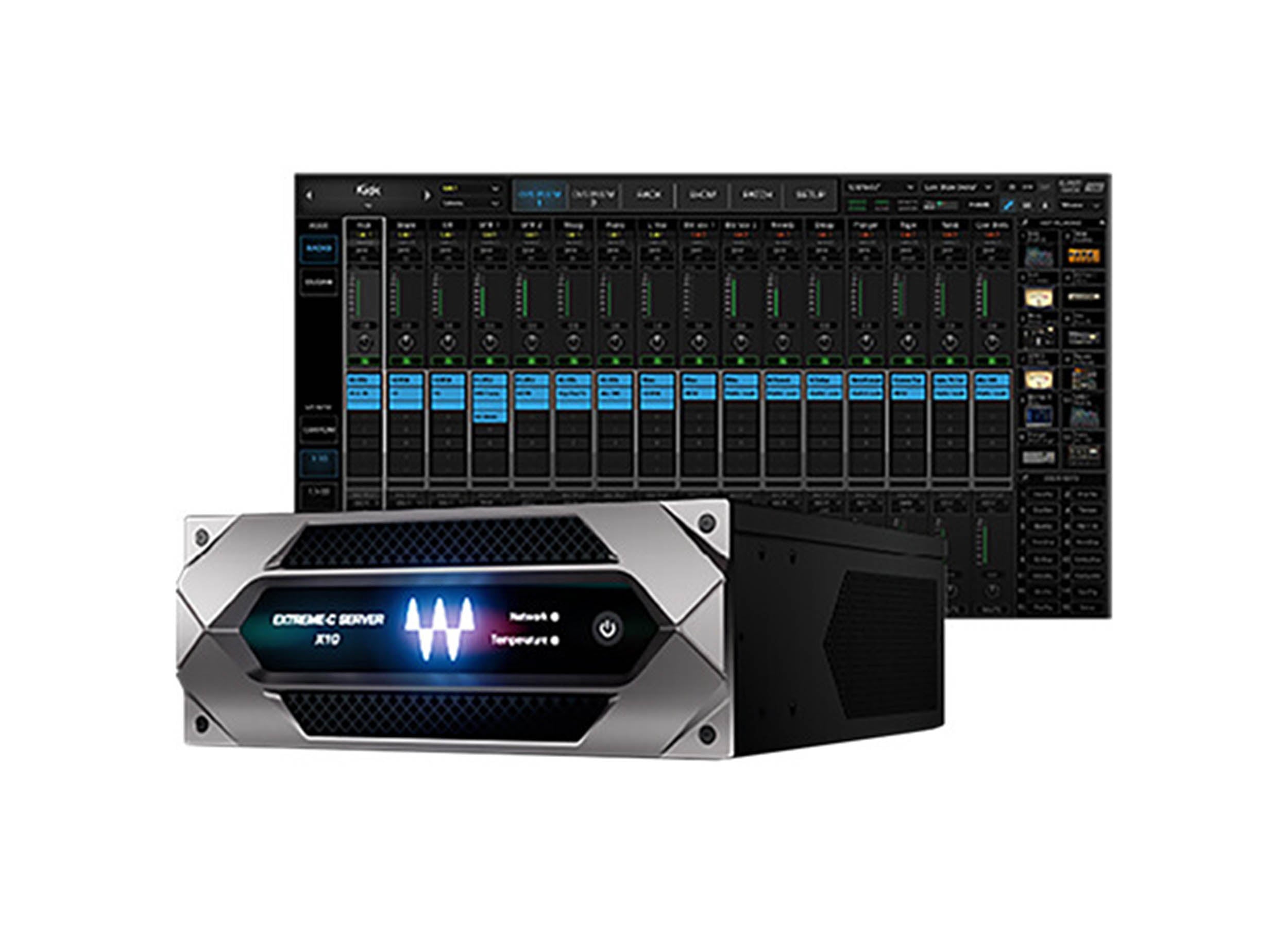

The Waves SuperRack host application completes the system, offering an advanced plug-in rack that supports up to 128 audio channels and near-zero latency using SoundGrid technology. SuperRack allows customizable workflow with snapshots, multitouch control, user-assignable keys, and linked racks for simultaneous adjustments. Its intuitive interface, Hot Plugins panel, and touch-and-slide fader provide precise control of all plug-in parameters, while network monitoring, event logs, and optional DSP redundancy ensure a reliable and professional live mixing experience.

Product Specifications:

CPU: 10th Generation Intel Core (specific models like i7-10700 in documentation).

RAM: Optimized for SoundGrid (typically 8–16 GB depending on exact revision).

Latency: 0.8 ms at 44.1–96 kHz.

Connectivity: Neutrik EtherCon SoundGrid port, network monitoring.

Form Factor: Compact 2U half-rack, rugged design (rack-mountable).

Maximum Sampling Rate: 96 kHz / 24-Bit

Sample Rates: 44.1 to 96 kHz

Power Requirements: AC Input

AC Input Power: 100 to 220 VAC, 50 / 60 Hz

Power Consumption: 65 W

Rackmount Size: 2 U (1/2-Rack)

Operating Conditions: 50 to 95°F / 10 to 35°C

Product Weight: 10.9 lbs / 4.9 kg

Product Dimensions: 11.2 x 8.7 x 3.4"
