Description

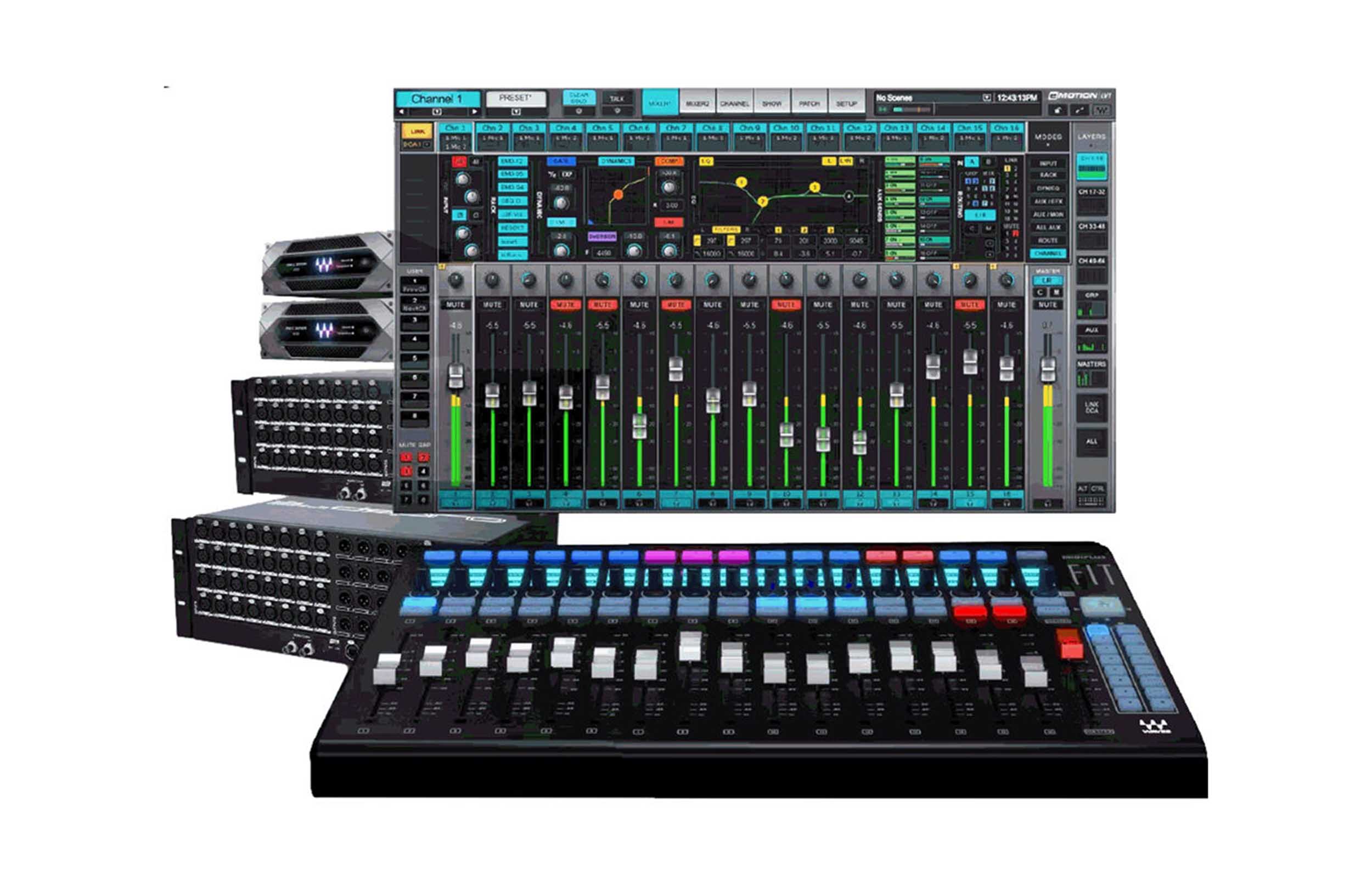

The Waves CMBLVDSP64R1 eMotion LV1 64-Channel Mixer System delivers hands-on, professional-grade live sound control for stages, concert venues, clubs, and houses of worship. Combining the 64-channel eMotion LV1 software mixer with digitally controlled high-end preamps, ultralow-latency performance, and powerful DSP processing, this system ensures precise workflow efficiency and exceptional sonic quality. Whether mixing live or recording, the system allows full command of every channel, effect, and output with unparalleled accuracy.
This complete setup includes the SoundGrid Extreme Server-C for intense real-time plug-in processing and two DSPRO StageGrid 4000 stageboxes providing 64 preamps and 32 outputs. The included Axis Scope Waves-optimized computer ensures peak performance for all Waves applications, offering multiple display support, reliable connectivity via SoundGrid EtherCon and Gigabit Ethernet, and 16GB of RAM with a fast SSD for smooth operation. The FIT Controller adds tactile, motorized fader control with 16+1 touch-sensitive faders, multifunction rotary encoders, and user-assignable functions for complete hands-on mixing.
For seamless integration, the system also comes with an 8-port Netgear Gigabit switch and Cat 6 Ethernet cables, along with a 2 RU rack shelf to mount the server and computer securely. The Waves Essentials 1-year subscription provides 110 high-quality plug-ins, while each LV1 channel can host up to 8 SoundGrid-compatible plug-ins, delivering near-zero latency of 0.8 ms for a flawless live mixing experience. Preloaded Waves eMo Live Sound plug-ins ensure you can start mixing right out of the box.
What’s Included:

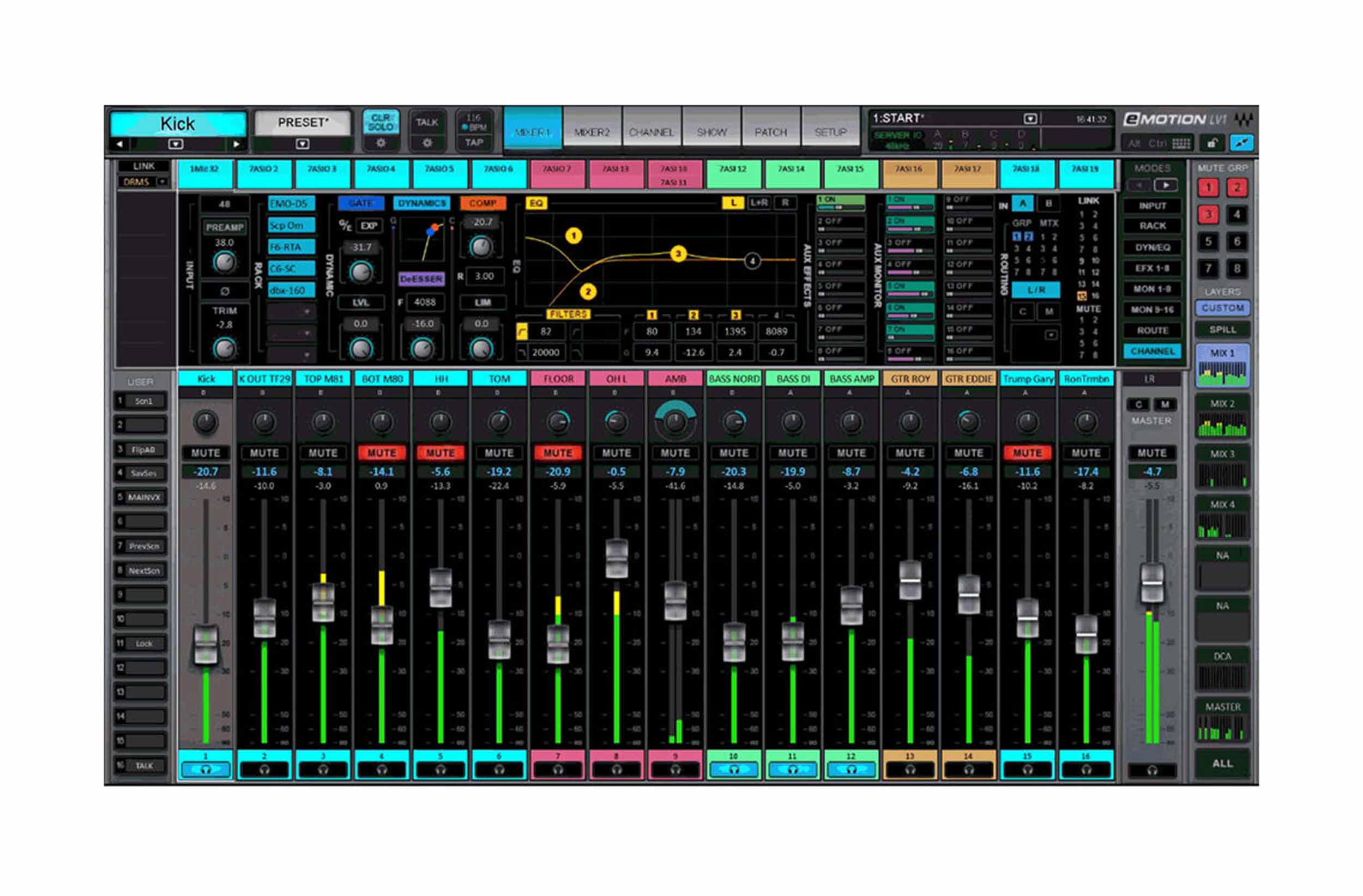

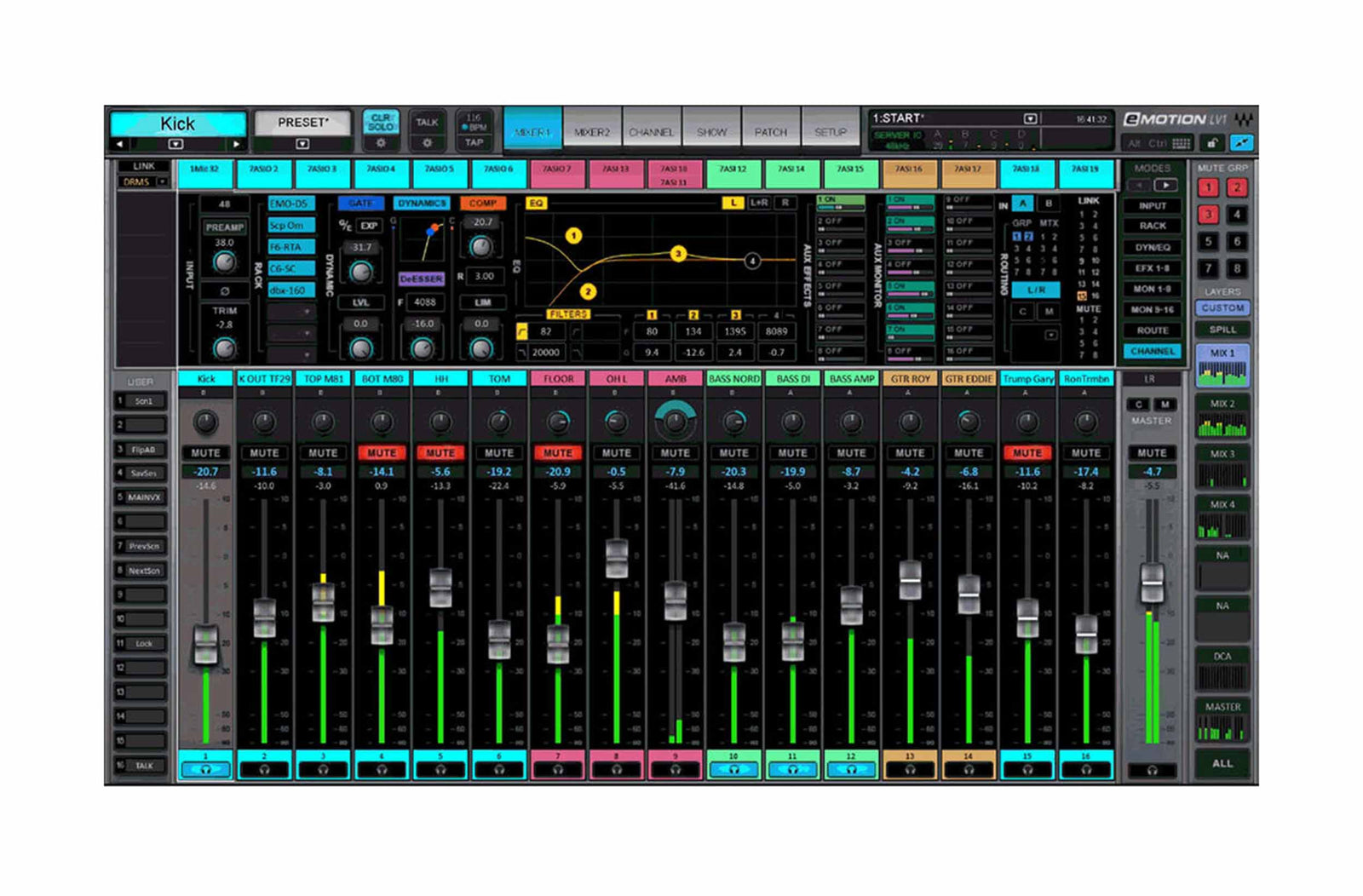

eMotion LV1 64-channel live mixer software (download)

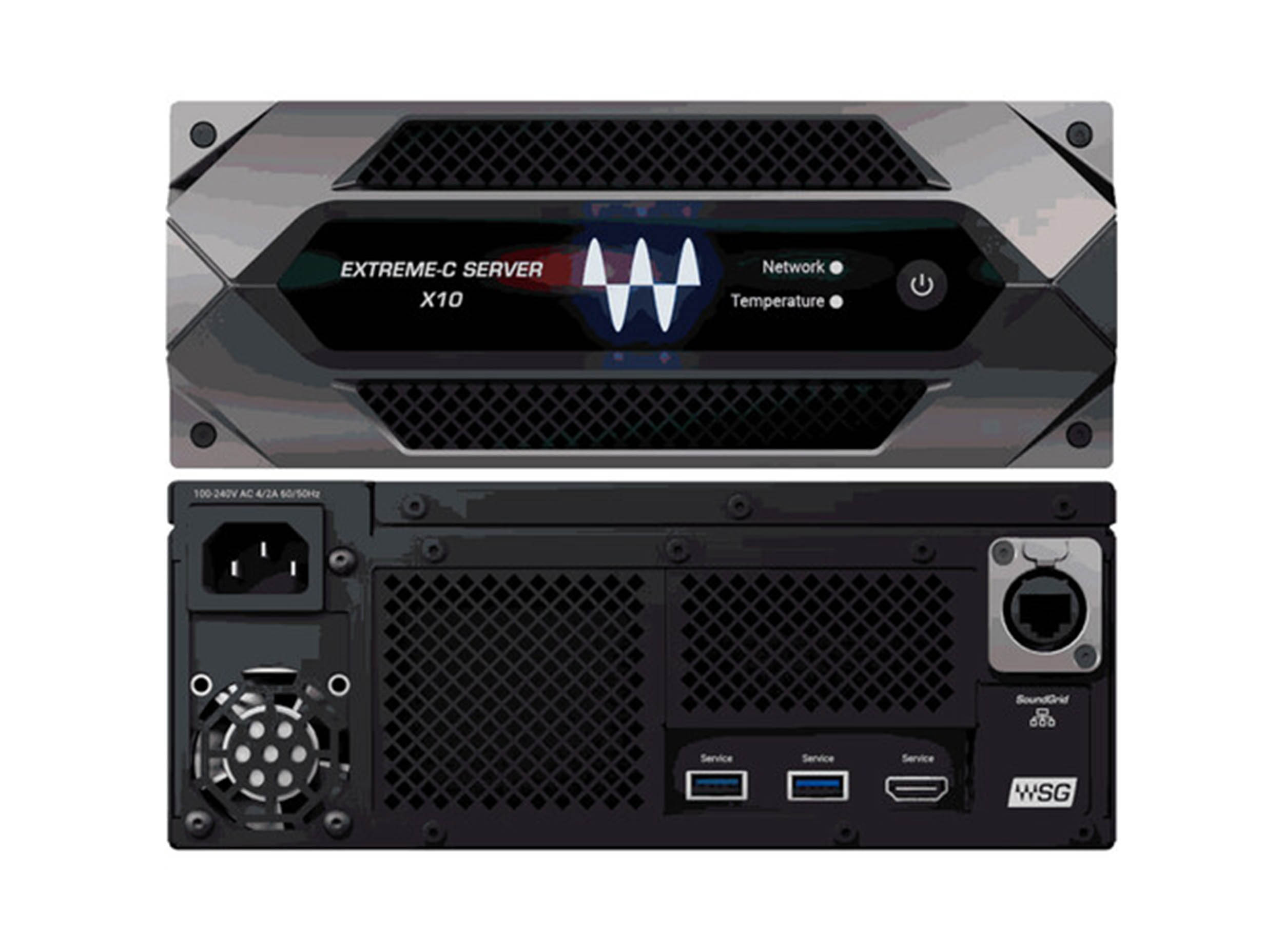

Waves SoundGrid Extreme Server-C (2 RU, half-rack)

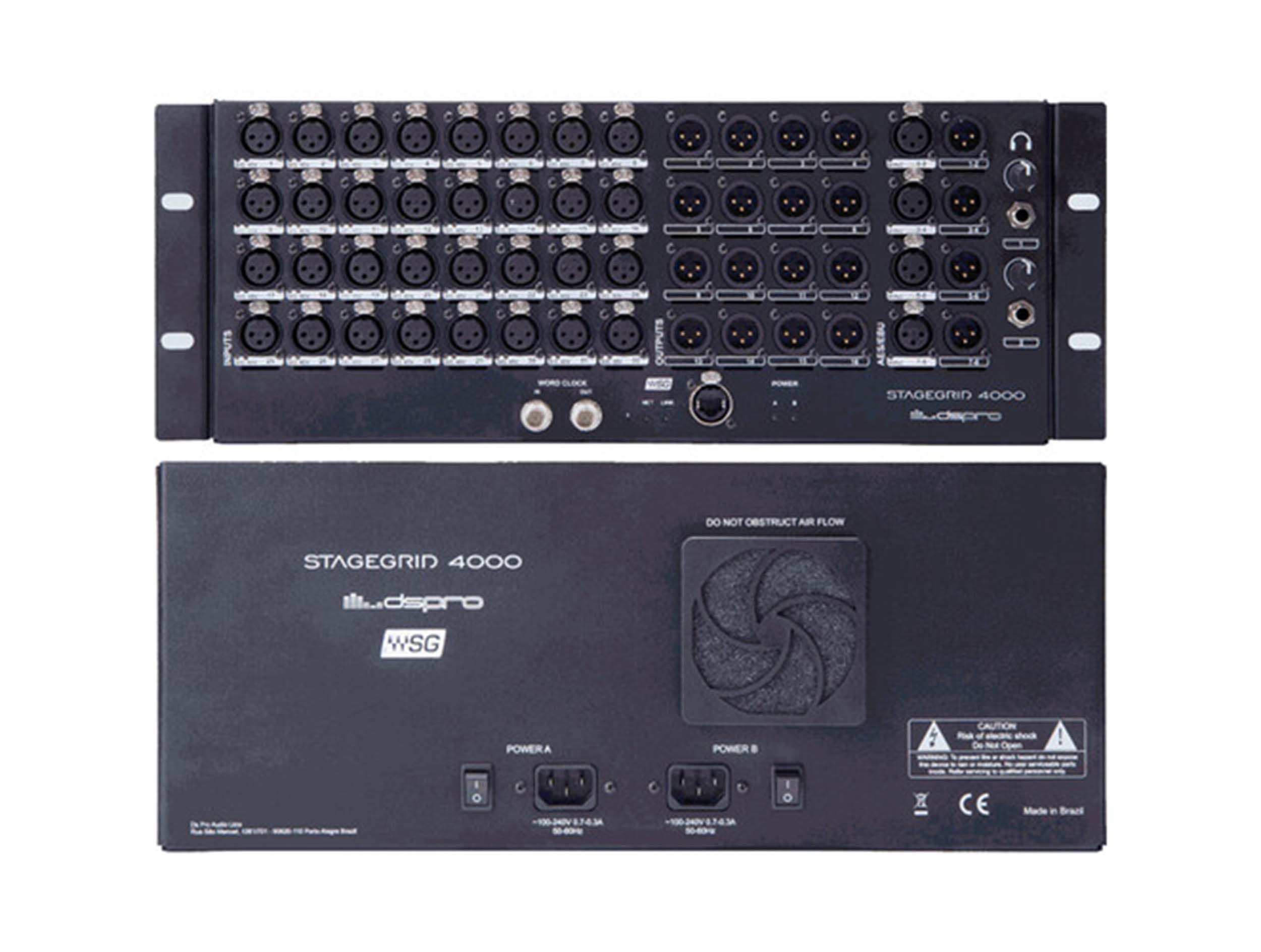

Two DSPRO StageGrid 4000 stageboxes (32 preamps / 16 outputs each)

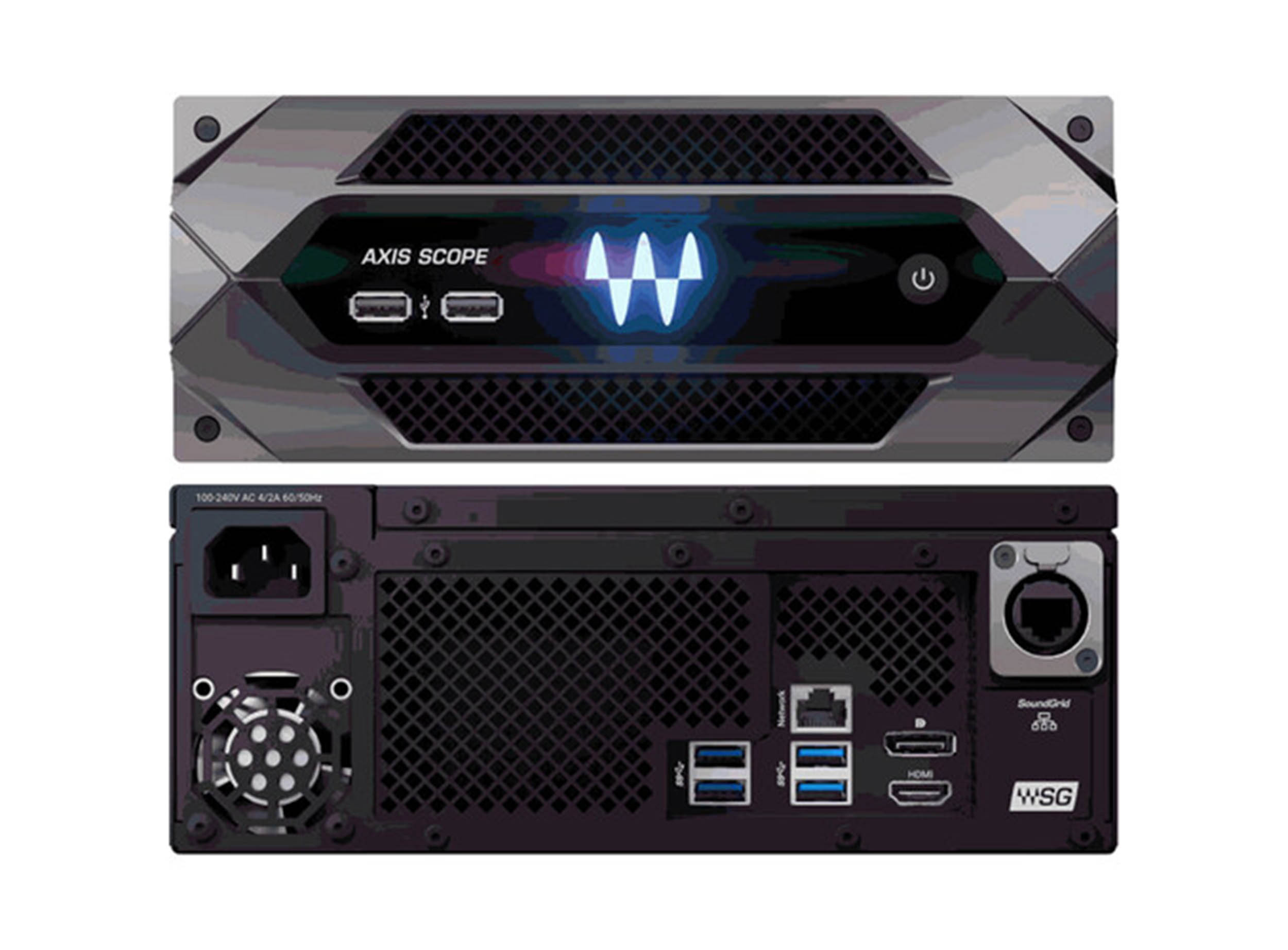

Axis Scope Waves-optimized desktop computer

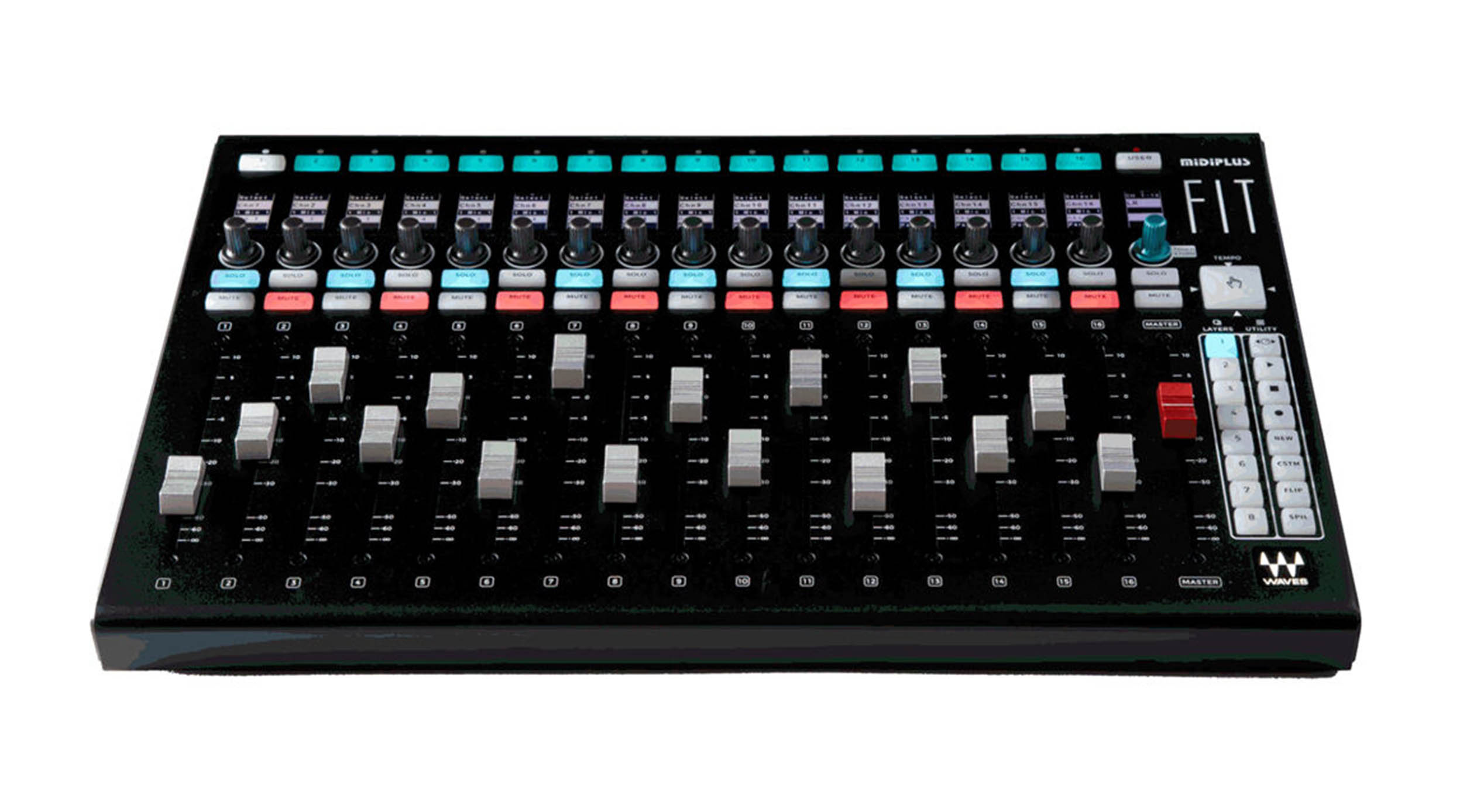

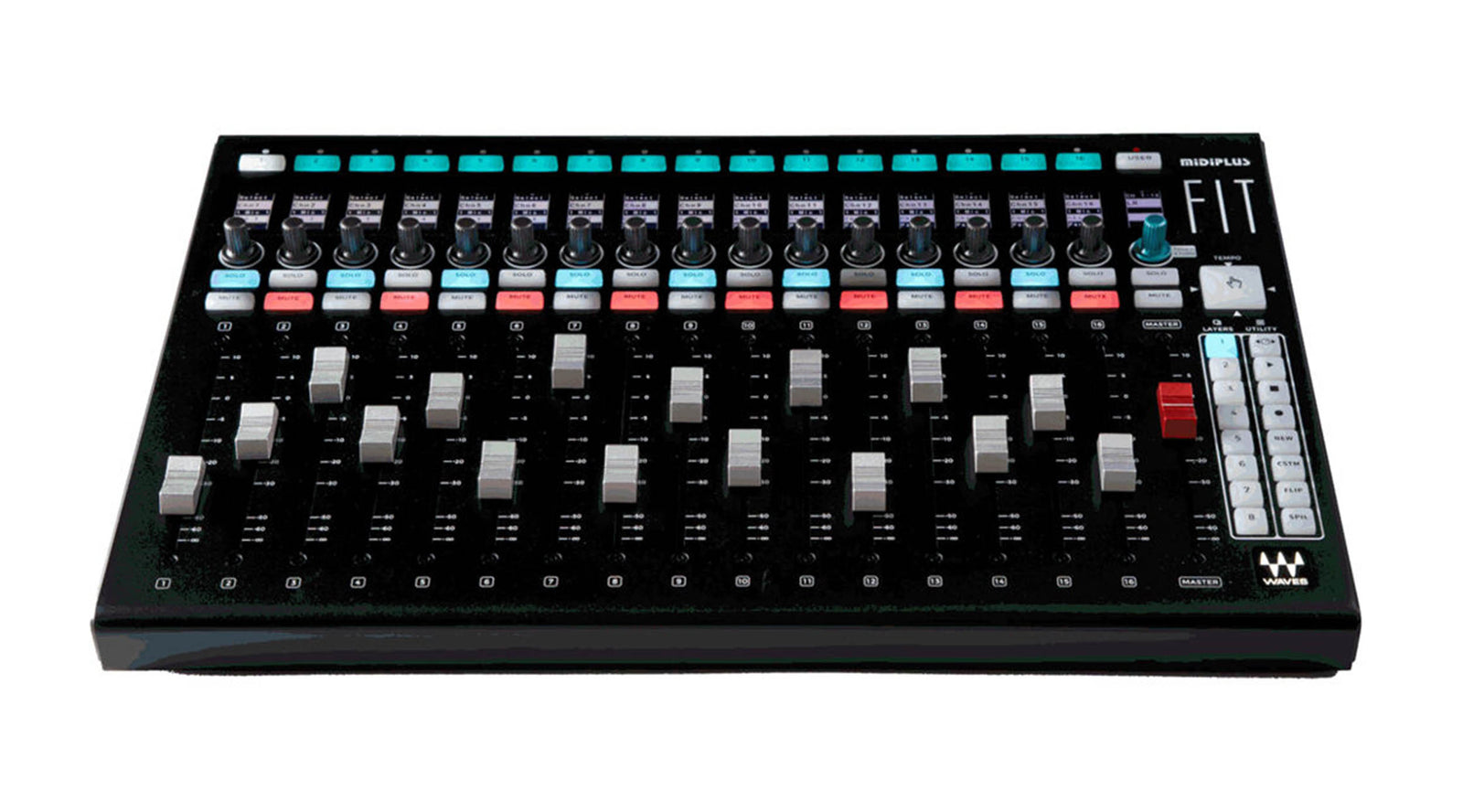

FIT motorized-fader controller (16+1 faders)

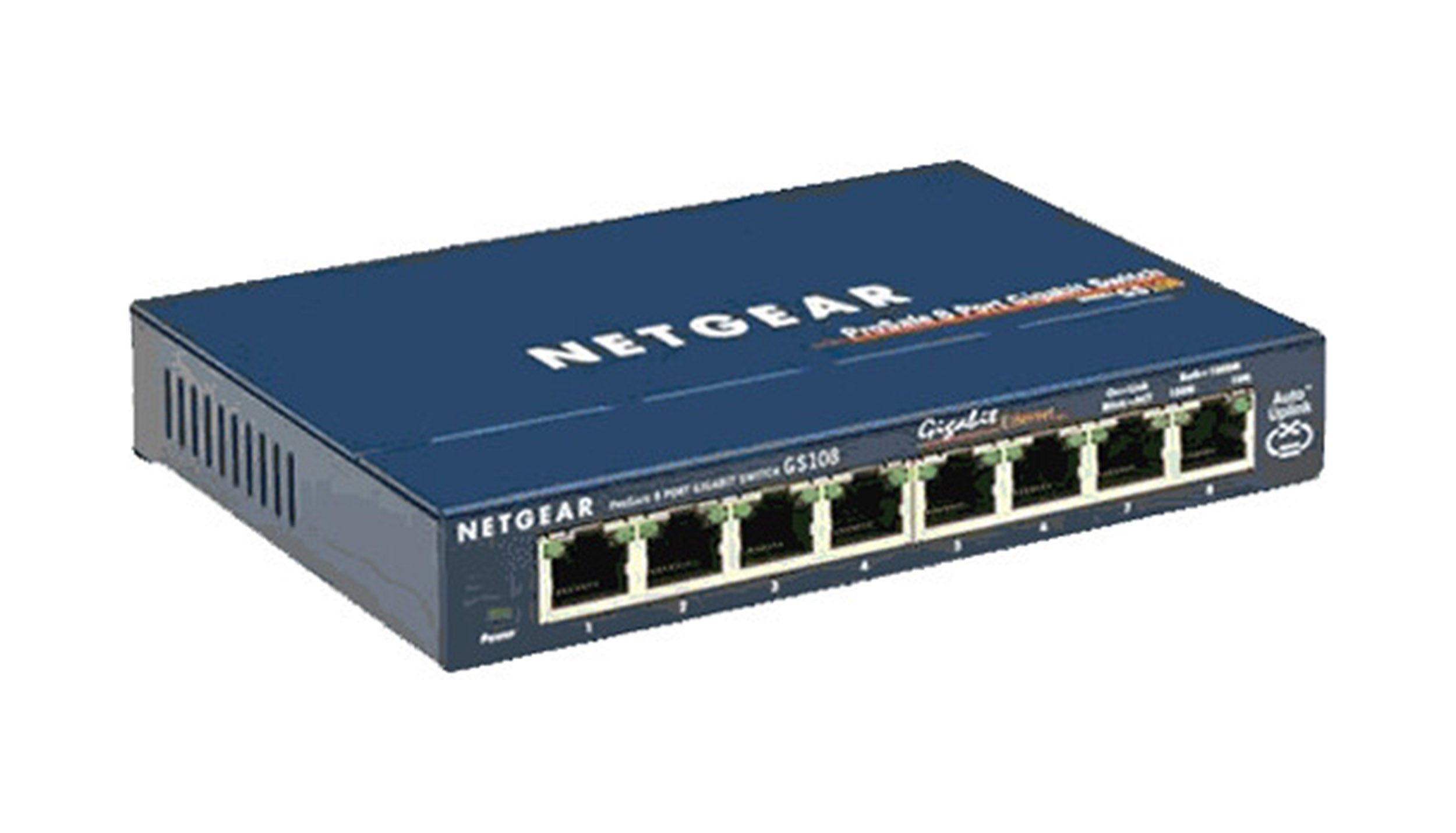

Netgear 8-port Gigabit network switch
Cat 6 Ethernet cables

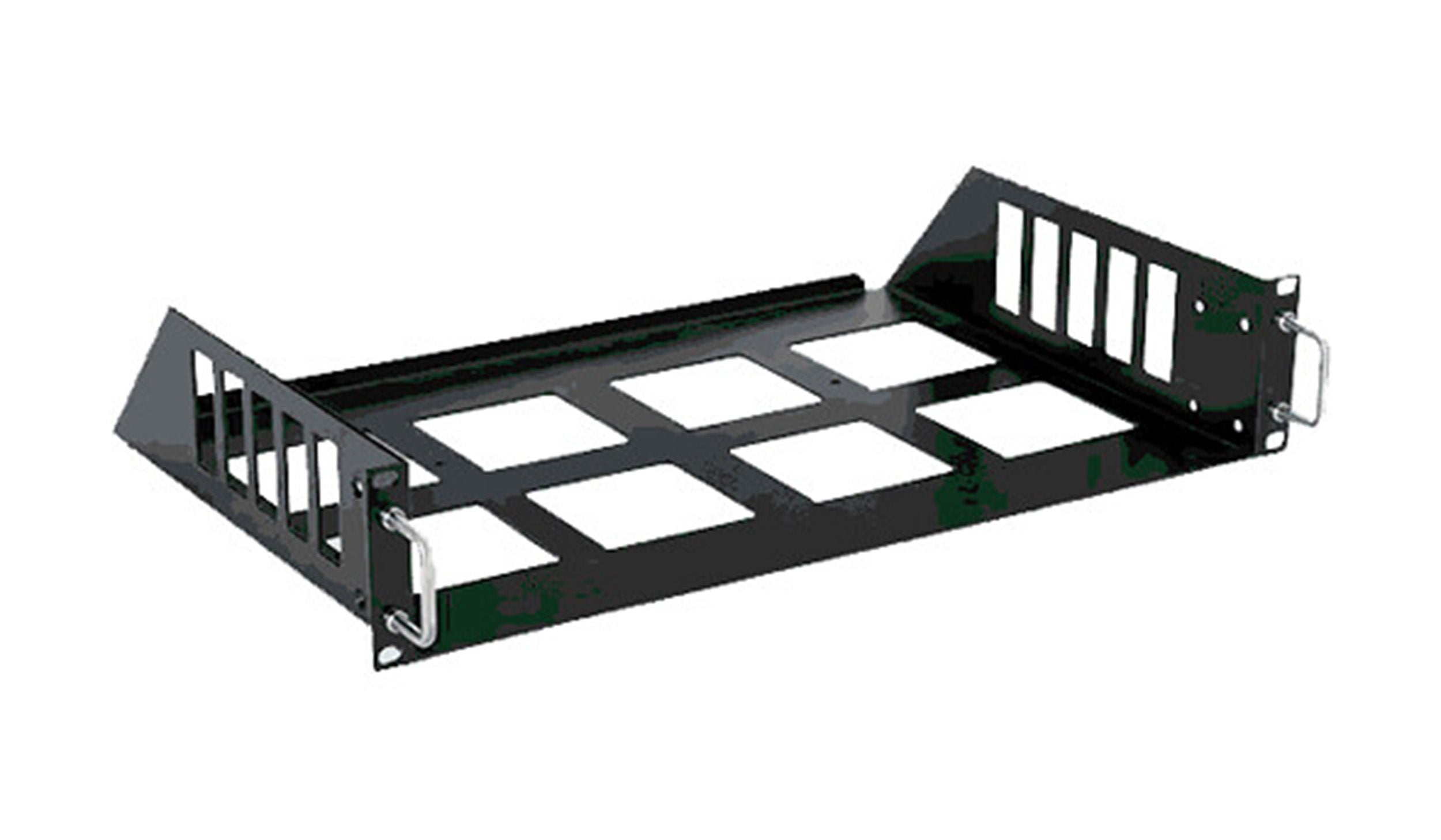

2 RU Waves rack shelf for mounting server and computer
Waves Essentials 1-year subscription (110 plug-ins)

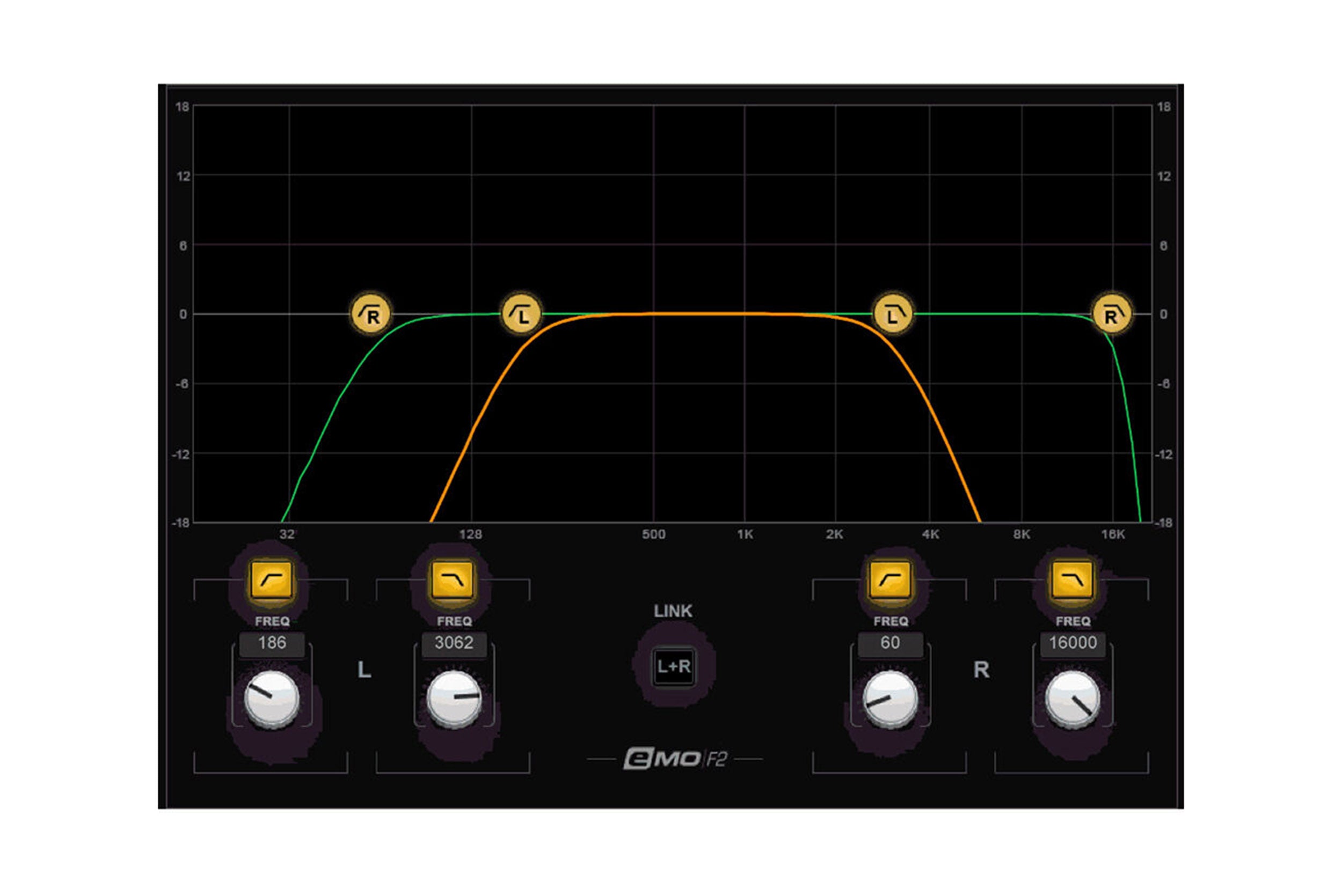

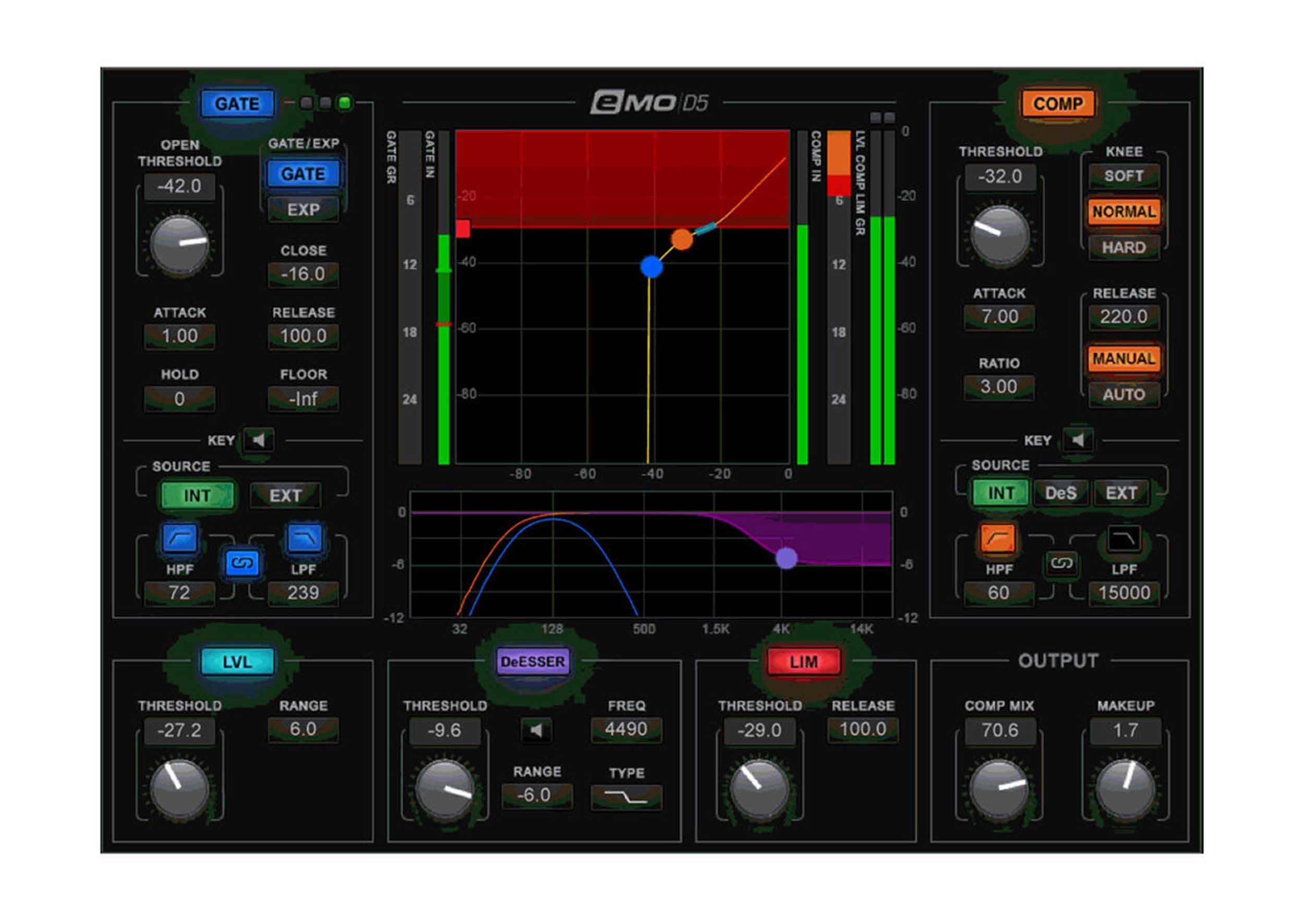

Preloaded Waves eMo Live Sound plug-ins
Product Specifications:
Operating System: Windows 10 Home
Processor: Intel Core i5-10600 (10th Gen), 6-Core: 3.3 to 4.8 GHz, L3 Cache 12 MB, CPU Socket LGA 1200
Chipset: Intel H410
Graphics: Intel UHD Graphics 630 (Integrated)
Installed RAM: 16 GB DDR4 SO-DIMM, 2 slots supporting up to 32 GB
Total Installed Storage: 256 GB M.2 NVMe SSD
PCI Expansion: 1x PCIe 3.0 x16, 1x M.2 2230 (E-Key)
Inputs/Outputs: 4x USB-A 3.0 / 3.1 / 3.2 Gen 1, 2x USB-A 2.0
Display I/O: 1x HDMI, 1x DisplayPort
Audio I/O: 2x 1/8" / 3.5 mm Line Output
Network I/O: 2x RJ45 Gigabit Ethernet
Bluetooth: 5.0
Security: Dedicated hardware TPM security chip
Input Power: 110 to 220 VAC, 50 / 60 Hz
Operating Conditions: 42 to 67°F / 10 to 35°C
Product Weight: 7.5 lb / 3.4 kg
Product Dimensions: 11.2 × 8.7 × 3.4 in
