Waves CMBPR Proton Server SuperRack Combo

The Waves Proton Server SuperRack Combo CMBPR delivers a compact, professional live-sound processing solution by combining the SoundGrid Proton Server’s dedicated low-latency DSP power, the Netgear GS108 ProSAFE Gigabit switch’s stable and reliable SoundGrid networking, and Waves SuperRack Advanced’s comprehensive plug-in hosting, snapshot recall, and control capabilities-making it an efficient, road-ready choice for FOH, monitor, broadcast, and touring applications.

What’s Included:

1 x SoundGrid Proton Server – Compact half-rack 1U DSP server for Waves plug-in processing

1 x SuperRack SoundGrid Software – Live plug-in hosting and control application

1 x 8-Port Gigabit Network Switch – Waves-qualified switch for stable SoundGrid networking

3 x Cat 6 Ethernet Cables – For server, switch, and console/host connections

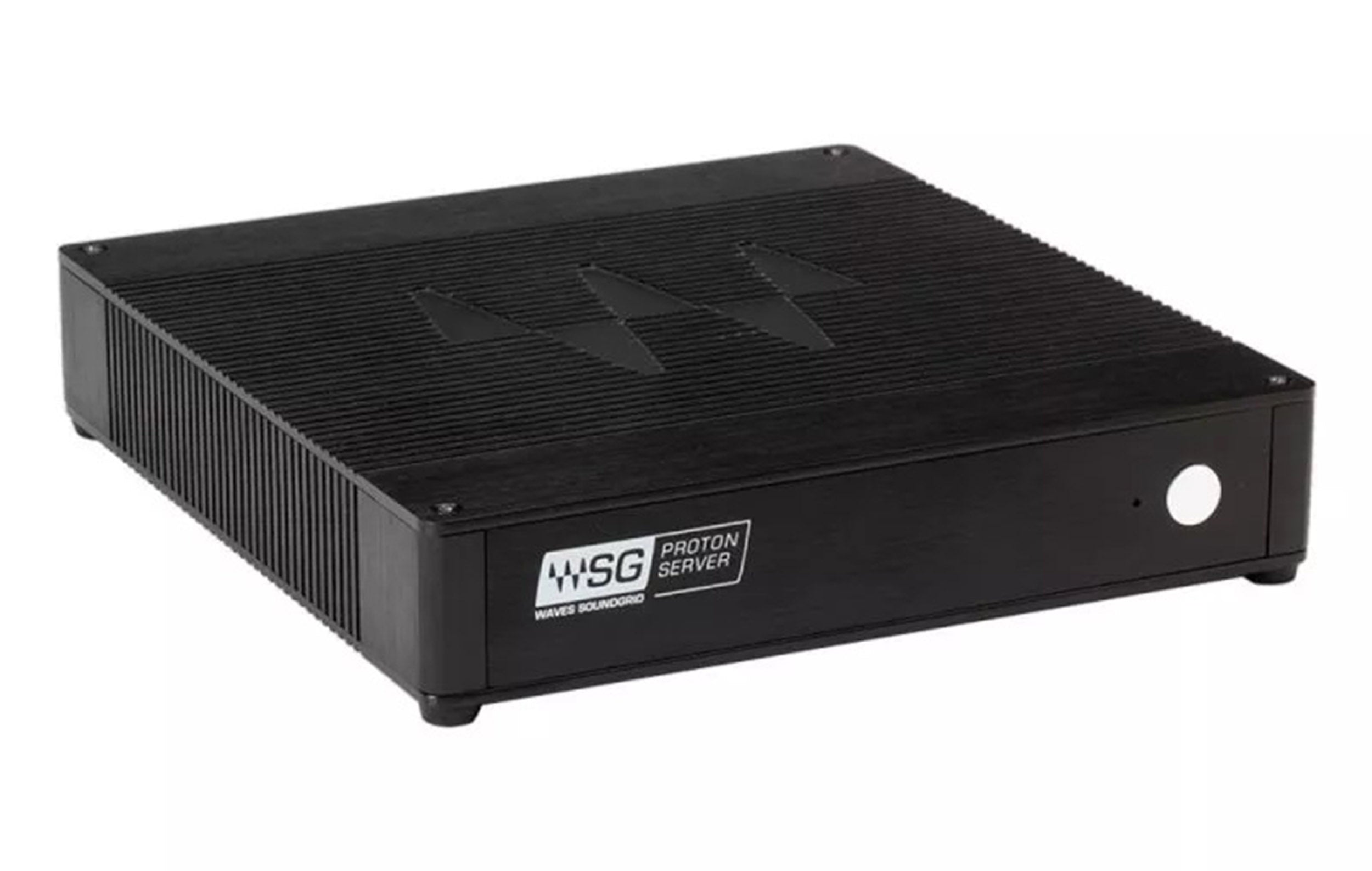

Waves SoundGrid Proton Server DSP Unit:

The Waves SoundGrid Proton Server is a compact, cost-effective DSP solution built for engineers who need reliable Waves plug-in processing in live sound, studio, broadcast, and mobile recording environments. Powered by an Intel Celeron quad-core CPU with 4 GB RAM, it offloads intensive plug-in processing from the host computer while delivering ultra-low latency performance down to 0.8 ms at sample rates up to 96 kHz. Its durable half-rack 1U aluminum enclosure makes it easy to transport and rackmount, while simple single-port Gigabit Ethernet connectivity ensures seamless integration with SoundGrid systems, SoundGrid-compatible consoles, and standard ASIO/Core Audio interfaces.

At the heart of system control is Waves SuperRack Advanced, a powerful plug-in host designed for live sound and broadcast professionals. Supporting up to 128 audio channels with near-zero latency over SoundGrid, SuperRack enables centralized control of multiple plug-in instances, snapshots, and workflows from a single interface. Features such as automatic device configuration, customizable layers, assignable keys, multitouch support for up to four screens, MIDI control, and advanced snapshot recall make it highly adaptable to demanding production environments, while built-in redundancy, mirroring, and network monitoring provide confidence in mission-critical shows.

Completing the system is a Waves-qualified 8-Port Gigabit Network Switch, ensuring stable, non-blocking SoundGrid networking with true Gigabit performance across all connected devices. Designed for plug-and-play operation, it automatically adapts to network speed and cabling while prioritizing critical audio traffic for consistent, low-latency performance. Together, the Proton Server, SuperRack Advanced, and Gigabit switch form a dependable, professional live-sound processing ecosystem suited for touring, venues, houses of worship, and broadcast applications.

Product Specifications:

Form Factor: Rackmount (rack-mountable with optional hardware, 1/2-rack, 1U)

Built-In DSP: 1 × 1.5 GHz Intel® Celeron® J4105 quad-core

Maximum Sampling Rate: 96 kHz / 24-bit

Latency: 0.8 ms at 48 kHz

Network I/O: 1 × RJ45 SoundGrid Ethernet

USB (Non-Host): 3 × USB-A

Other I/O: 1 × HDMI (service output)

Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz

Bit Depth: 24-bit

Operating Systems: macOS®, Windows®

Required Hardware: Available Ethernet port

Power Requirements: AC/DC power adapter (included)

AC Input Power: 100–240 VAC, 50/60 Hz

DC Output: 12 VDC, 3 A

Rackmount Size: 1U (with non-included hardware, 1/2-rack)

Operating Temperature: 50–95 °F (10–35 °C)

Certifications: CE, FCC, RoHS, UL

Dimensions (L × W × H): 11.2" × 8.7" × 3.4"

Weight: 2.3 lbs

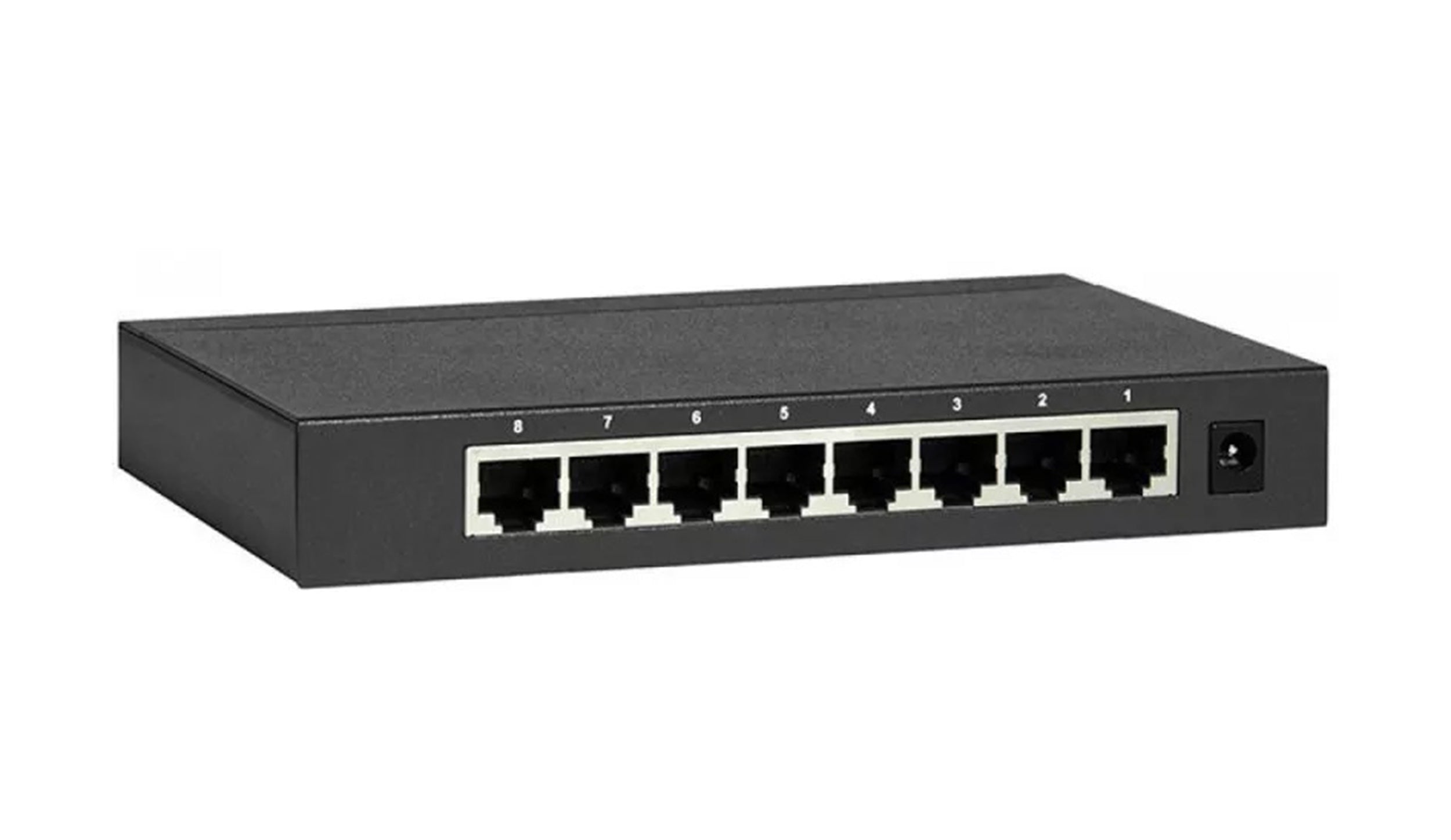

Netgear GS108-400NAS ProSAFE 8-Port Gigabit Switch:

The NETGEAR GS108-400NAS ProSAFE 8-Port Gigabit Switch is a reliable, high-performance networking solution designed to easily expand your network’s reach. With plug-and-play functionality, it integrates seamlessly into existing network setups, automatically adjusting for network speed and cabling type to prevent downtime. Its non-blocking port architecture delivers true Gigabit speeds from all ports with a total bandwidth of 16 Gbps, ensuring fast, stable data transfer for mission-critical applications like voice, video, and live audio. Front-panel LEDs provide clear status updates for power, link speed, and activity, simplifying network monitoring.

Built for durability and efficiency, the GS108 features a sturdy metal casing and long product life while supporting the energy-efficient Ethernet standard (IEEE 802.3az) to reduce power consumption during light traffic or inactive links. Traffic prioritization with IEEE 802.1p and DSCP-based QoS ensures that important data is always delivered on time. With lifetime online support and next-business-day replacement, this switch provides a dependable and energy-conscious solution for both professional and home network environments.

Product Specifications:

Inputs/Outputs: 8 × RJ45 Gigabit Ethernet

Switching Bandwidth: 16 Gb/s

Jumbo Frames Support: 9000 Bytes

MAC Address Table Size: 4K

Packet Buffer: 192 kB

Power Draw: 4.9 W (Max)

Storage Conditions: -4 to 158 °F / -20 to 70 °C

Cooling System: Passive

Indicator Lights: Yes

Dimensions (L × W × H): 4.0" × 6.2" × 1.1"

Weight: 1 lb

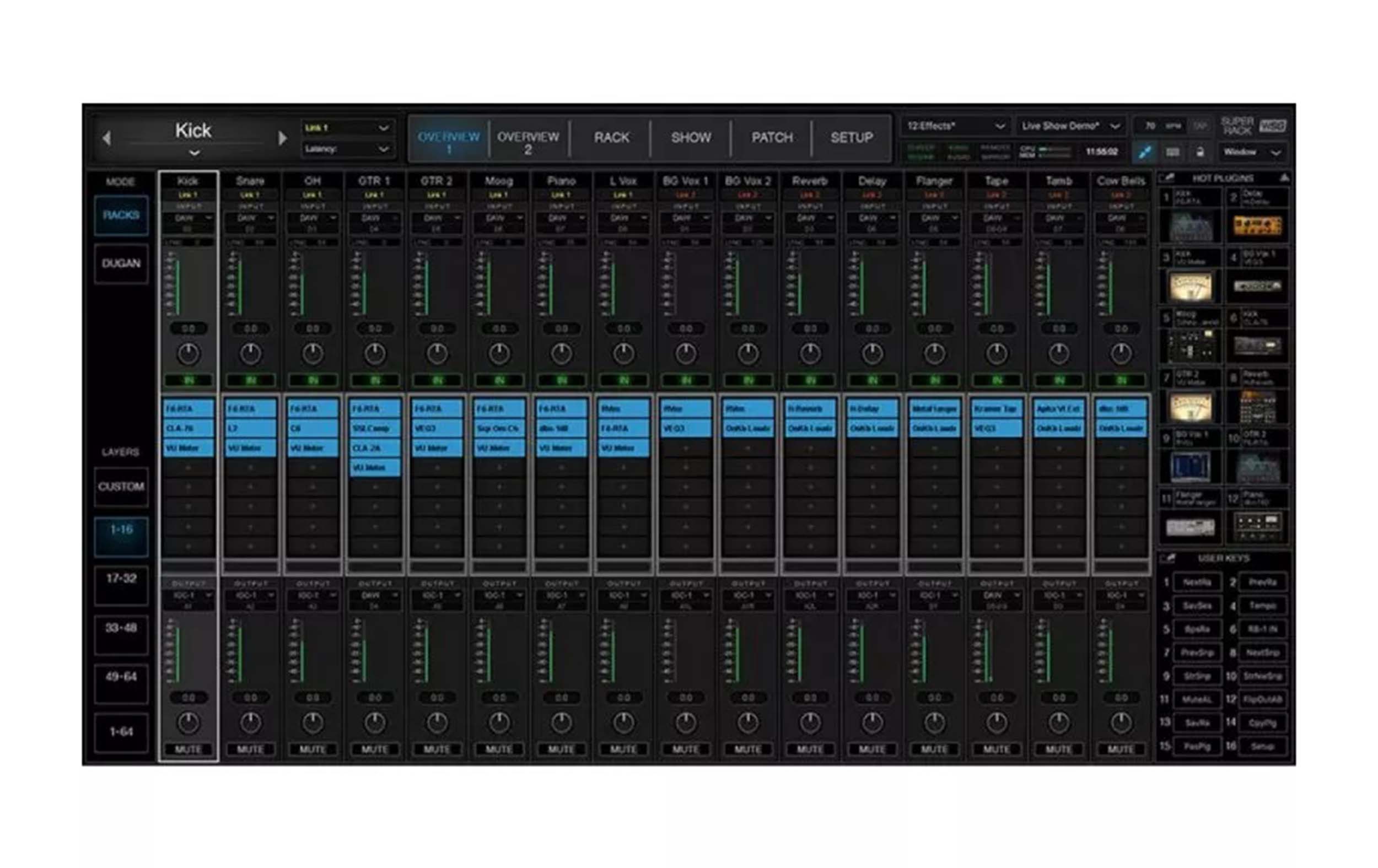

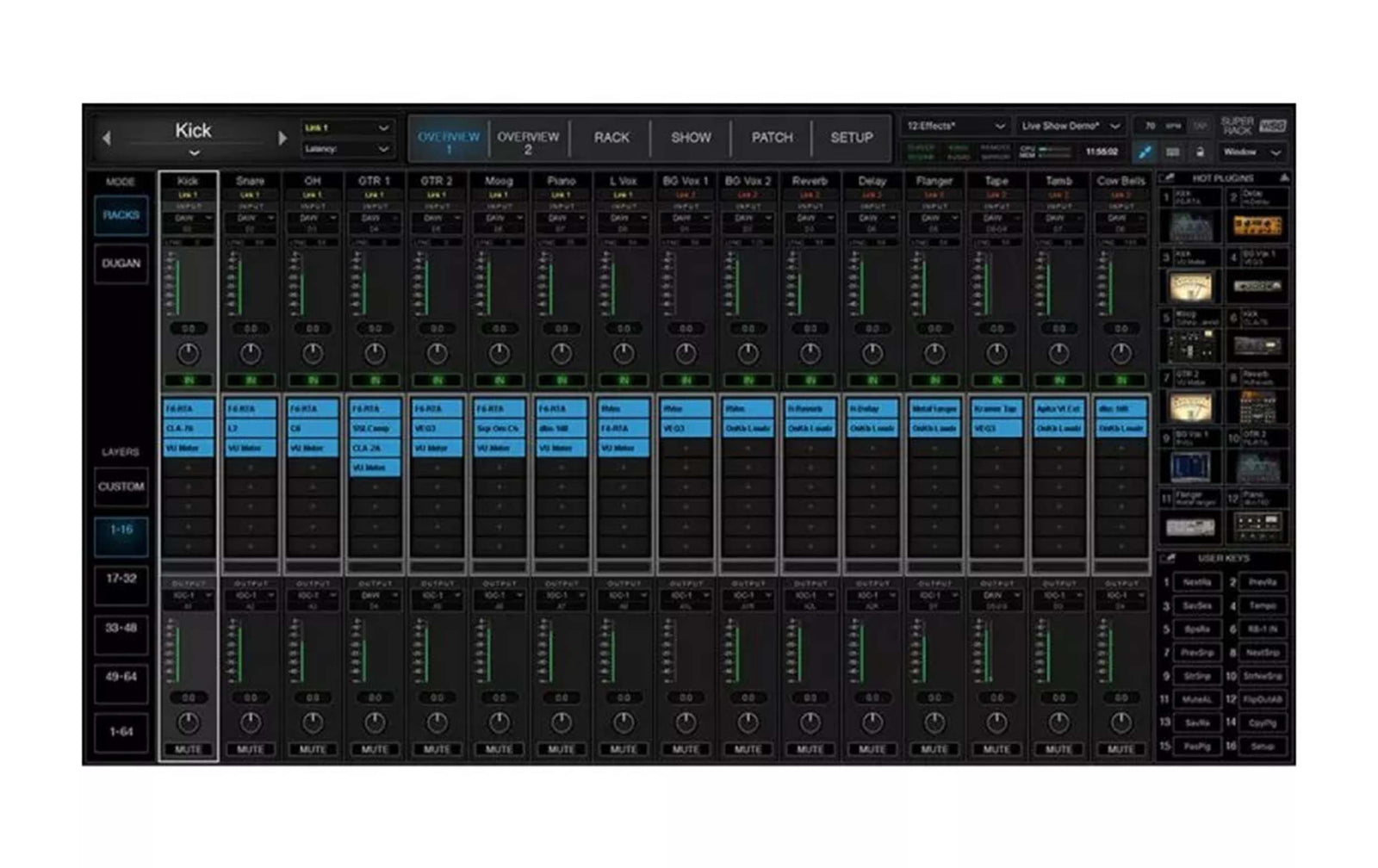

Waves SuperRack Advanced Plug-In Rack for Live Sound:

The Waves SuperRack Advanced is a professional plug-in rack designed for live sound and broadcast engineers using Waves plug-ins on SoundGrid or Native systems. Supporting up to 128 audio channels with near-zero latency, it allows users to view and control multiple plug-in instances simultaneously, utilize snapshots, and take advantage of multitouch functionality. The setup wizard automatically scans and configures connected devices, while the Hot Plugins panel provides quick access to up to 12 plug-ins per snapshot. With customizable layers, user-assignable keys, linkable racks, and support for up to four touchscreens, SuperRack offers extensive workflow personalization for any live or studio setup.

SuperRack also ensures reliability and efficiency during complex productions. Users can link multiple racks, switch plug-in order, copy presets, and add external hardware processors seamlessly. Advanced features like SoundGrid server redundancy, system mirroring, detailed network monitoring, and event logs provide stability and confidence for critical shows. Additional tools include MIDI and keyboard mapping, selective snapshot recall, latency alignment management, and the ability to import MultiRack sessions. With both SoundGrid and Native versions included, SuperRack delivers a flexible, touch-optimized, and professional solution for controlling and enhancing live sound workflows.

Product Specifications:

Delivery Format: Download

License Type: Standard: Perpetual License

User Support: 1 User / 1 Device

Standalone Operation: Yes

System Compatibility/Requirements: Operating System: Windows/macOS; Plug-In Formats: VST3 / AAX

(Native) / VST / AU
