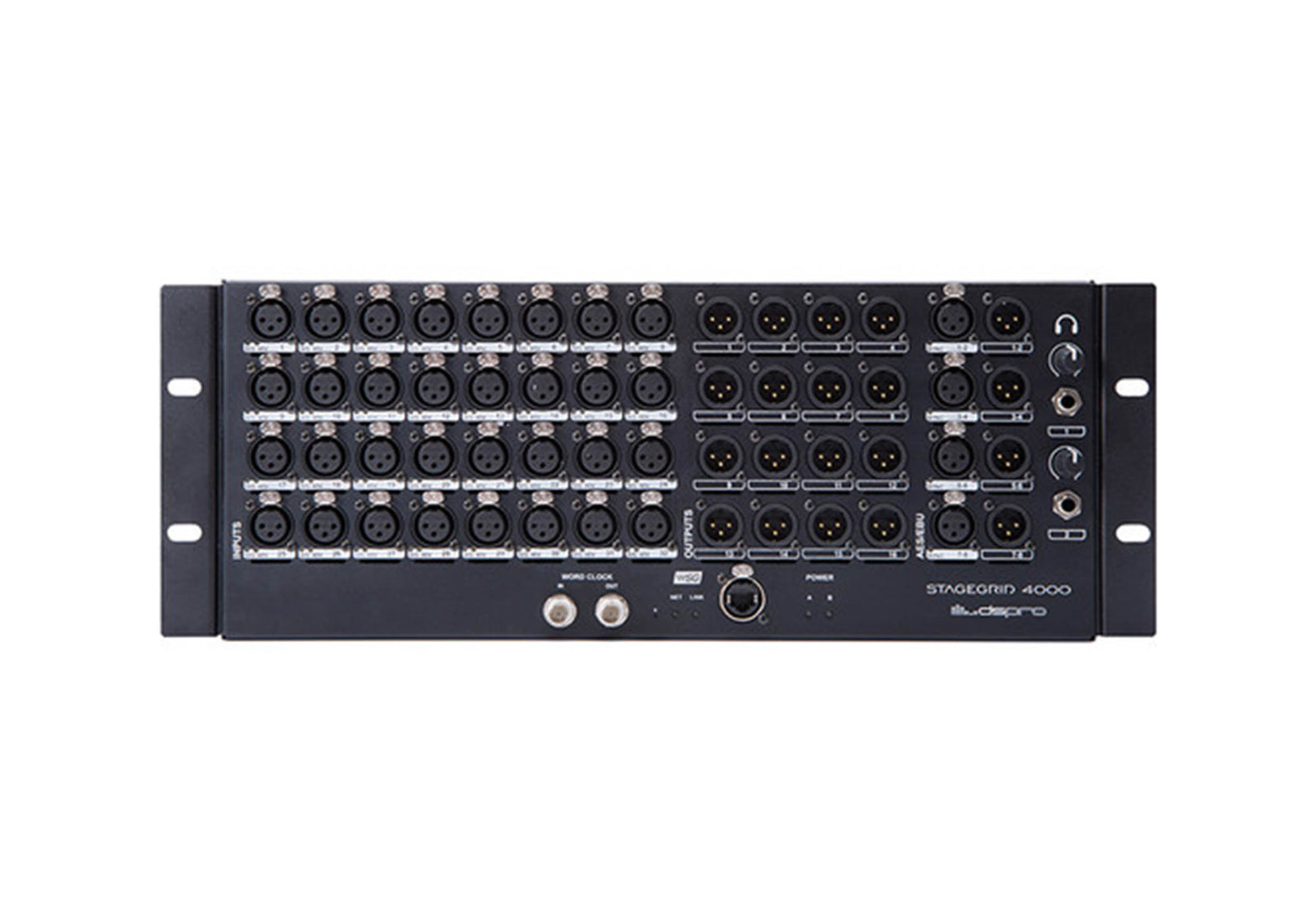

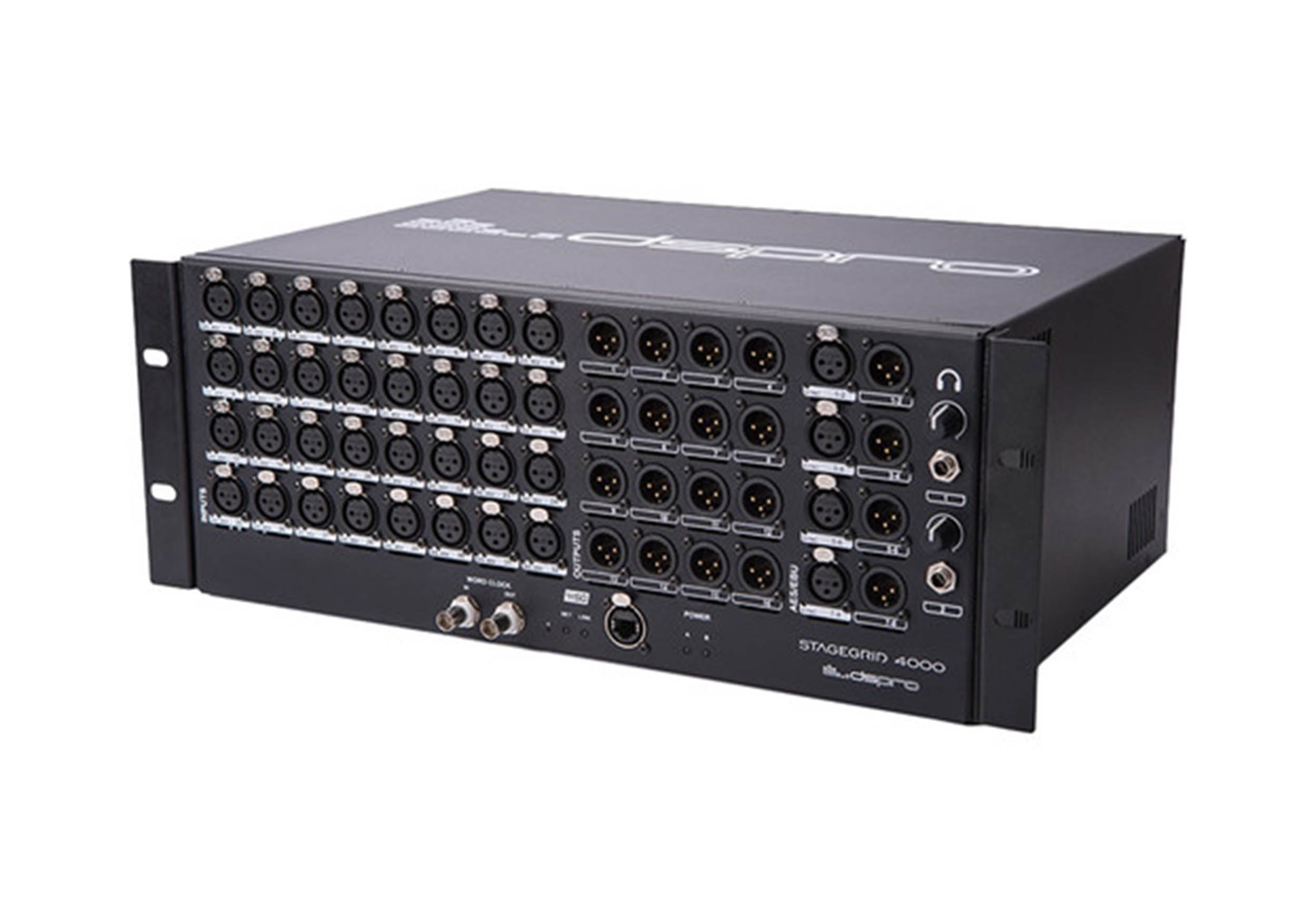

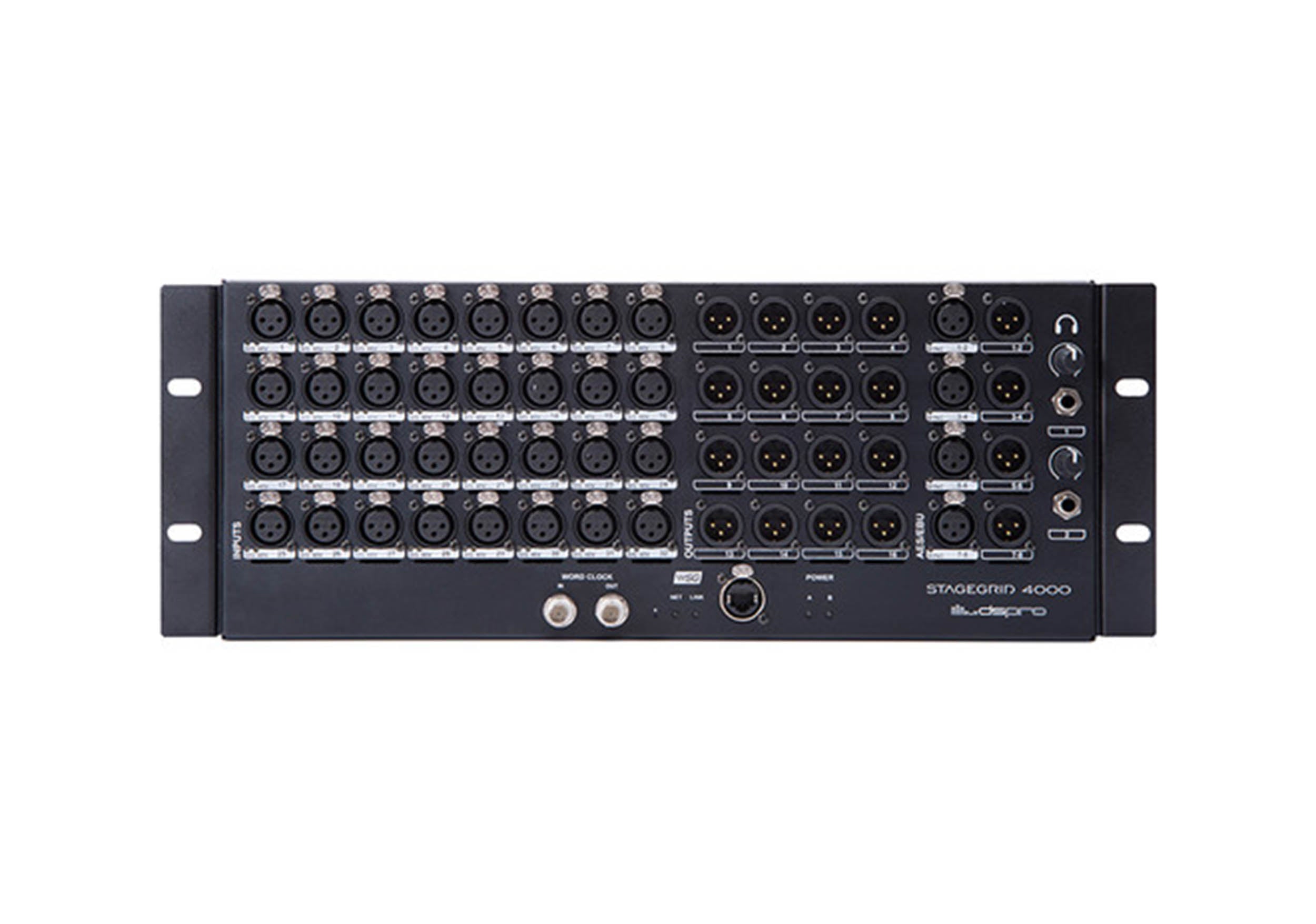

Waves DSPSGRD StageGrid 4000 Digital Stagebox w/ 32 Mic/Line Inputs

The Waves DSPSGRD Stagebox delivers professional-grade audio performance with high-quality preamps that ensure dynamic, clear sound for live applications. Designed to complement live mixers like the eMotion LV1, it offers 32 mic/line inputs, 16 analog outputs, and AES/EBU digital I/O, all digitally controlled for precision and flexibility. Housed in a rugged 4U chassis, the StageGrid 4000 is built to withstand the rigors of touring and live performance.

Engineered for seamless integration with the Waves ecosystem, the StageGrid 4000 leverages SoundGrid technology to provide modularity, speed, and reliability for complex live sound setups. Its versatile connectivity options, including Word Clock input/output and Ethernet for SoundGrid networking, make it a central hub for high-channel-count live mixing scenarios.

Additional features include 2 stereo headphone outputs with individual volume controls, redundant AC power for uninterrupted performance, and a robust 4U rack-mountable chassis built with premium components. Supporting sample rates from 44.1 kHz to 96 kHz and both analog and digital I/O, the StageGrid 4000 is an ideal solution for professional live sound engineers seeking power, flexibility, and reliability.

Product Specifications:

General:

Input: 32 Analog mic/line Inputs

Output: 16 Analog line outputs

4 Stereo AES / EBU Digital inputs

4 Stereo AES / EBU Digital outputs

Configurable Sample Rate: 44.1, 48, 88.2 and 96kHz

Two headphone outputs

Wordclock IN\OUT

A SoundGrid Ethernet port

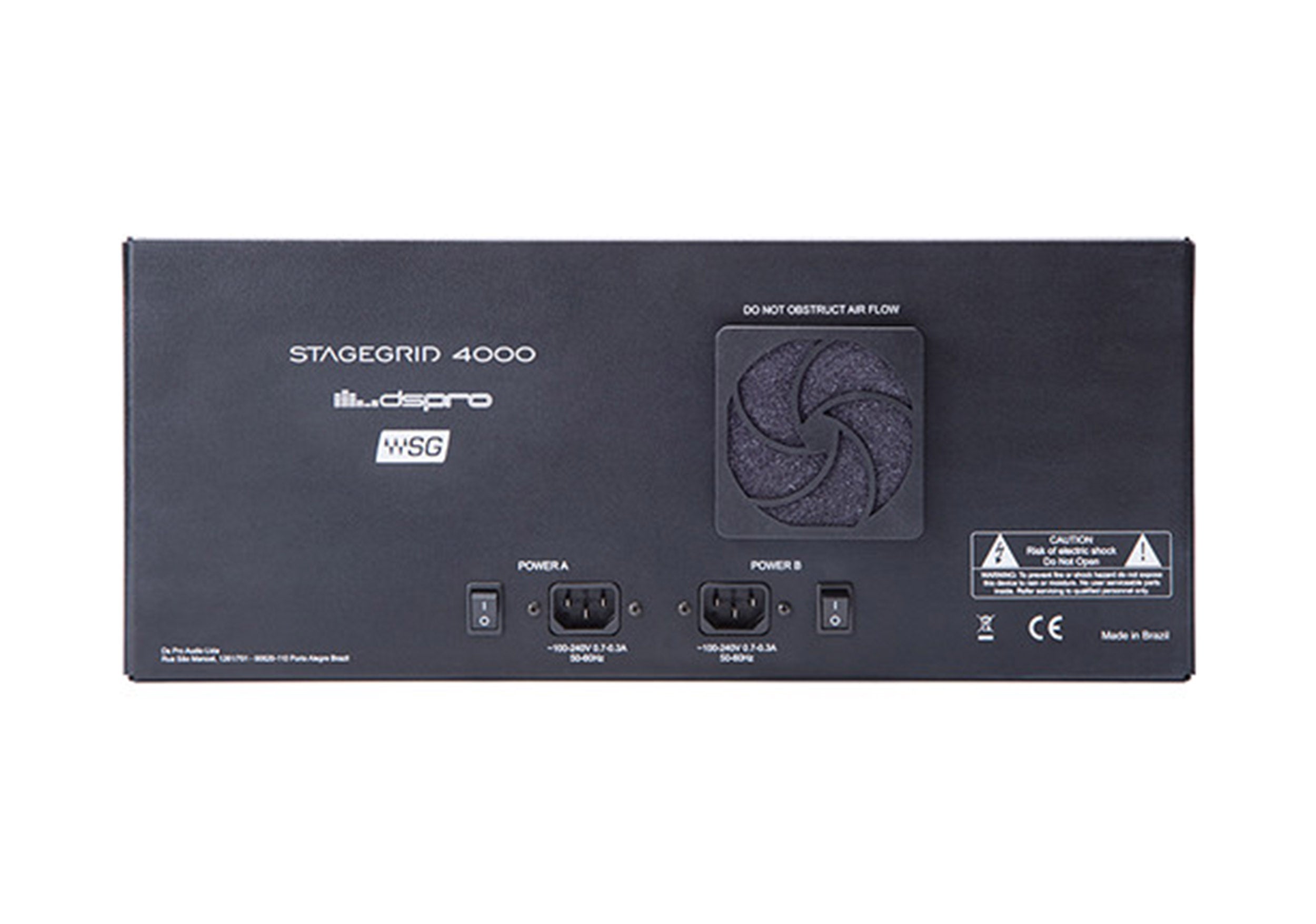

Redundant Power supply

Analog Inputs:

Impedance: 2.86 kOhms

Gain range: -4 dB to 60 dB

Max input level: 28 dBu (-4 dB gain)

Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)

THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)

Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)

Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)

Phase Shift: <10° at 20 Khz

Analog Outputs:

Output impedance: 50 ohms

Max output Level (0dBFS): 24 dBu

Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)

THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)

Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz) Phase shift: <5° at 20 Khz

AES/EBU IN/OUT:

Standard: AES3 (2009)

Sample rates: 44.1, 48, 88.2 and 96 kHz

Impedance: 110 ohms

Headphones:

Output Power: 150 mW per channel on 16 ohms

Dynamic range: 100 dB

SoundGrid:

Interface: Gigabit Ethernet

Connector: Neutrik EtherCON

Word Clock:

Connector: BNC

Impedance: 75 Ohms

Voltage level: 5V TTL

Power supply:

Voltage: 110 or 240 VAC

Frequency: 50 Hz or 60 Hz

Power: 60 W

Operating temperature: 0°C to 40°C

Relative humidity: Up to 90% non-condensing

Product Weight: 17.39 lbs

Product Dimensions (L × W × H): 11.81" × 19.92" × 6.92"
