Description

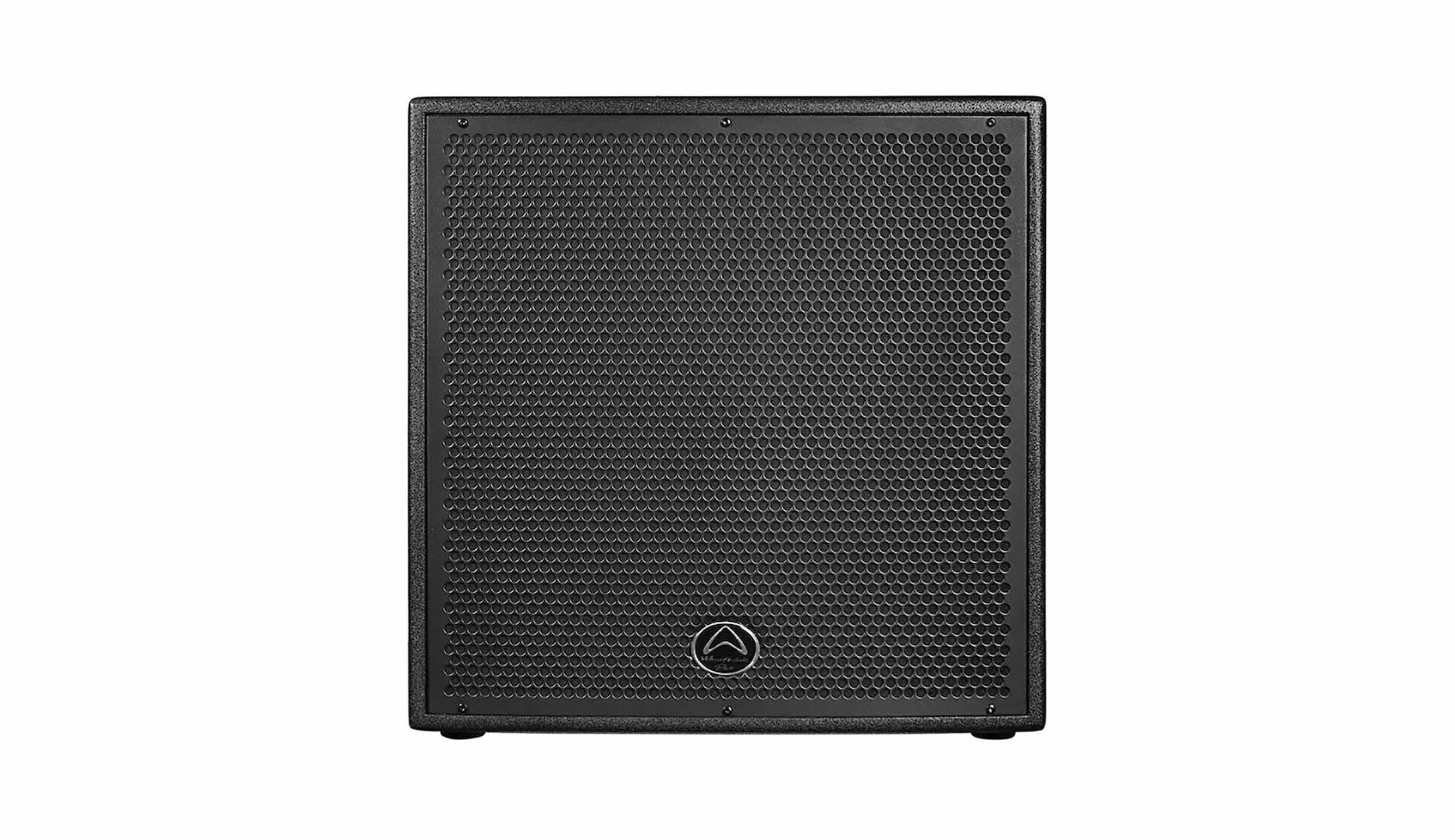

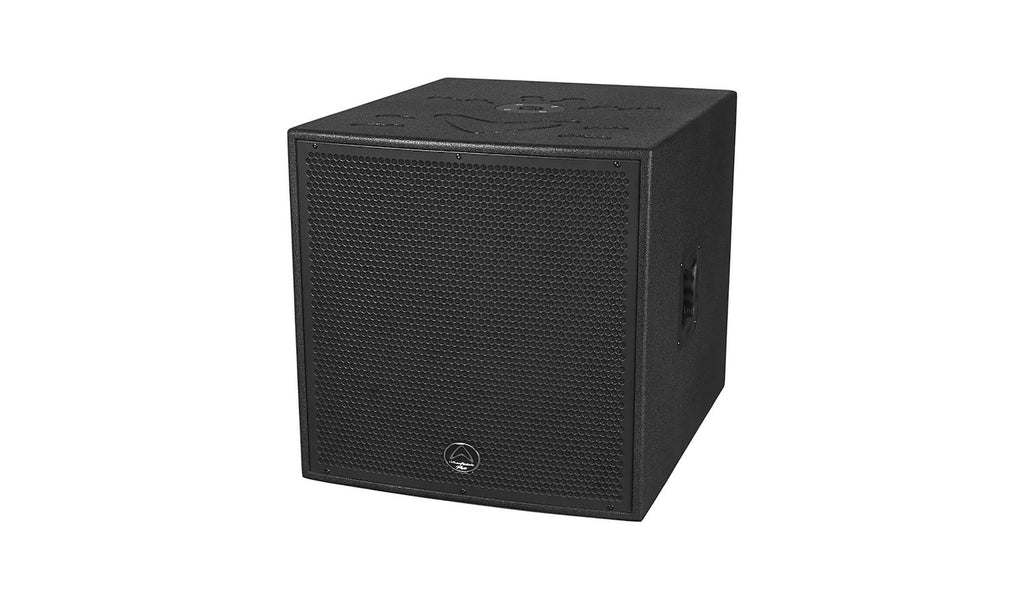

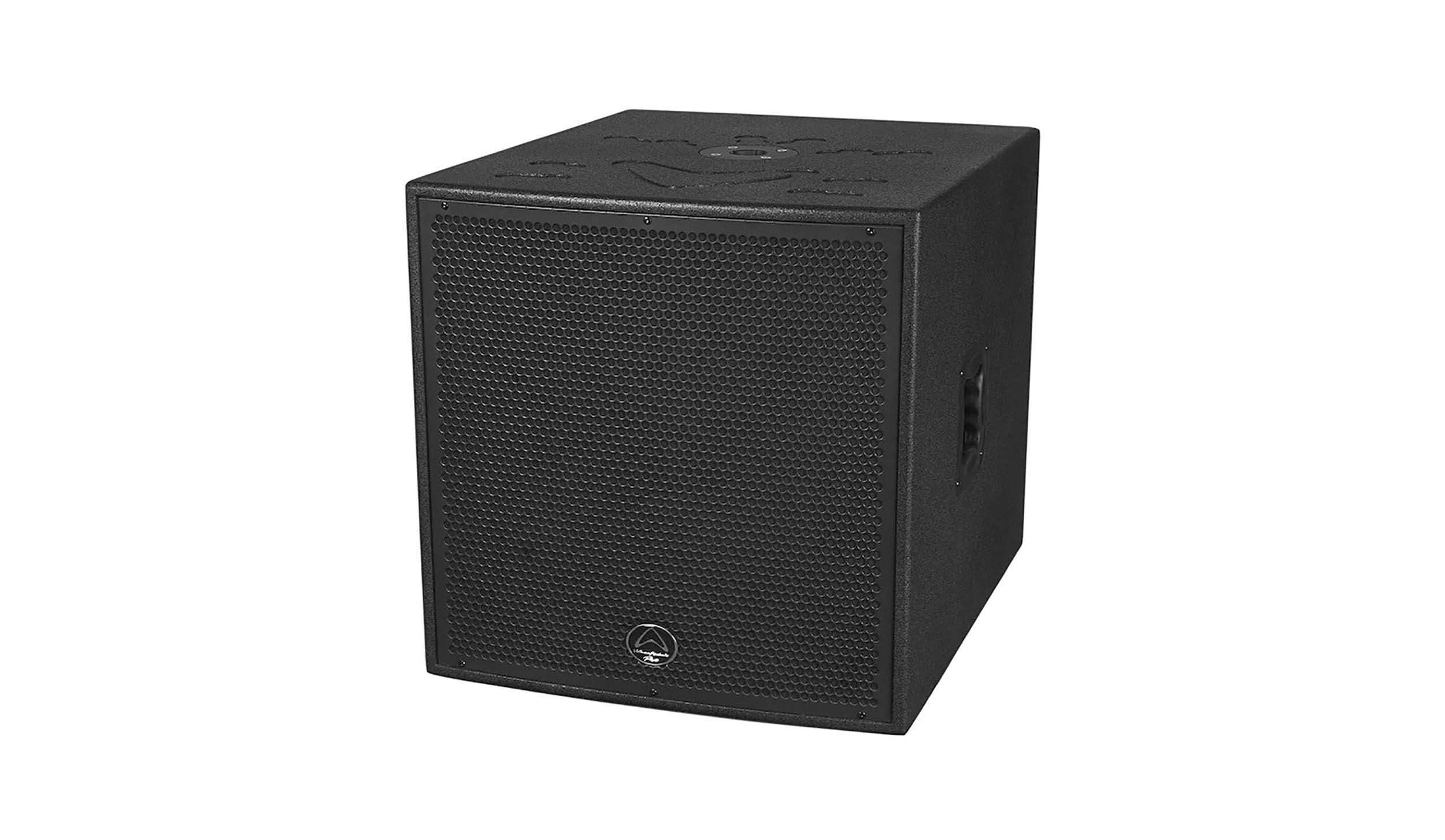

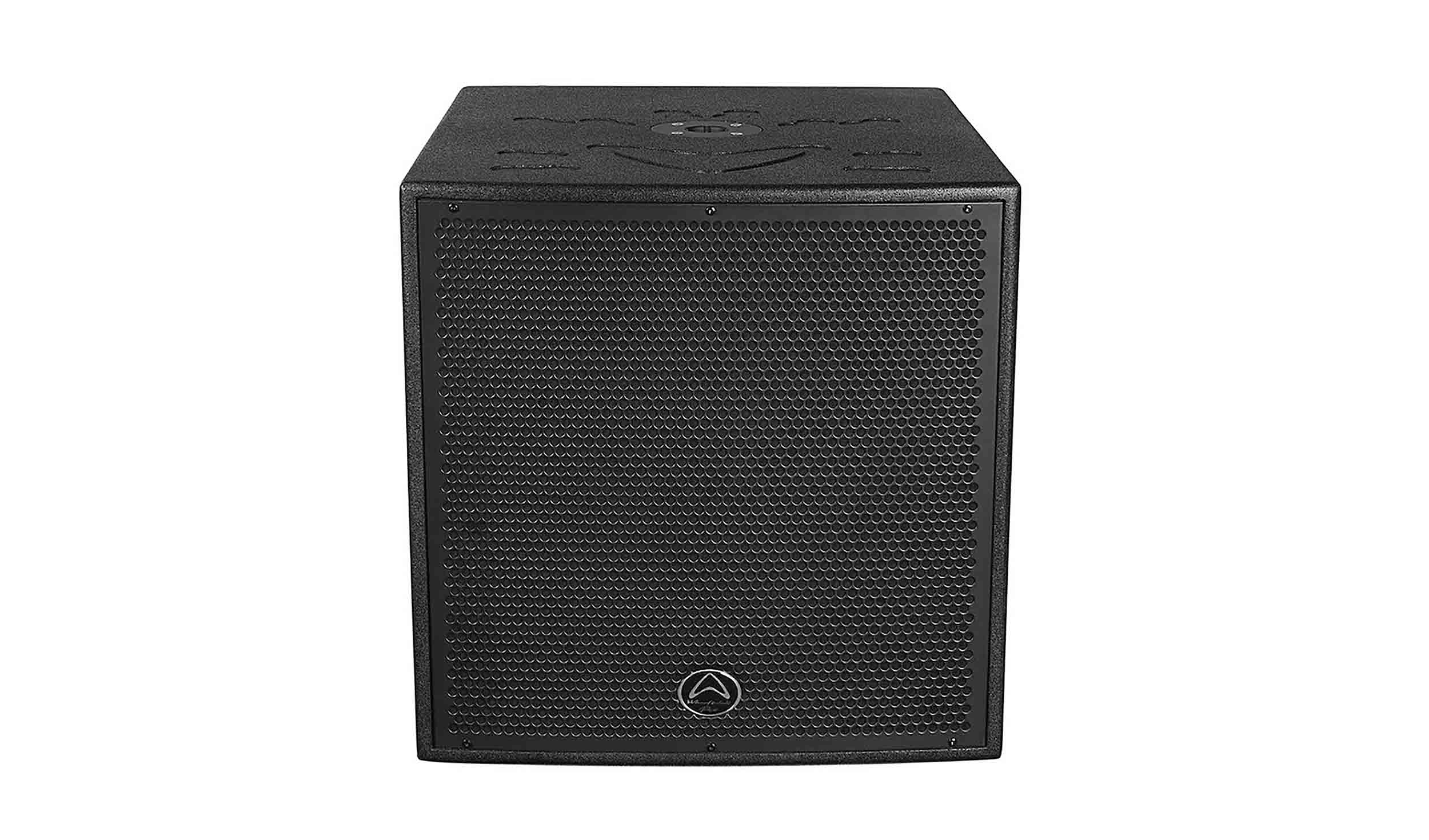

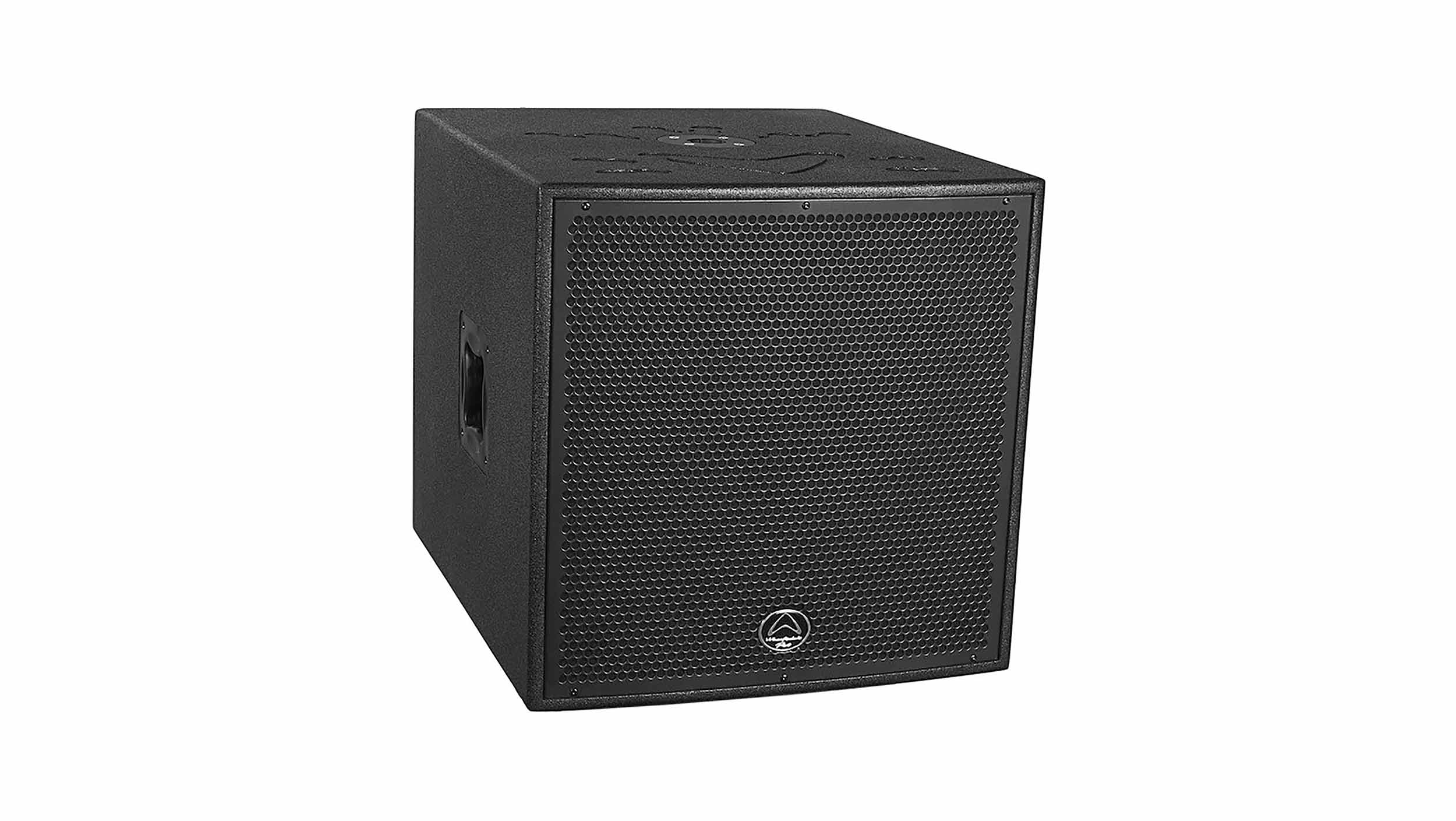

The Wharfedale Delta-AX18B is a high-performance 18-inch active subwoofer designed for delivering deep, powerful bass in professional audio setups. Built from premium Baltic birch plywood with a durable black paint finish, the cabinet is both sturdy and attractive, ensuring longevity even in demanding environments. The Delta-AX18B provides an impressive low-frequency output and is perfectly tuned to complement Wharfedale Pro's Delta-AXF series loudspeakers, enhancing the overall sound system with deep, impactful bass. Ideal for live events, installations, and mobile sound systems, the Delta-AX18B offers a seamless integration with full-range speakers for a complete, high-quality sound experience.
Birch Plywood
Delta-AXF models use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. Delta-AXF is also covered in our most durable and hard-wearing black paint finish. This ensures that a Delta-AXF will always look as good as the day you unboxed it.
Routed Logo
Delta-AX features a routed Wharfedale Pro logo. This fresh design helps to distinguish between the original Delta-A models and the updated Delta-AX models. It is also a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
Full Range
The full range models (Delta-AX12 and Delta-AX15) use 2 x Class D amplifiers. These are specifically tuned and selected to be the perfect match for the HF and LF drivers inside.
With multiple analogue inputs, Delta-AX full range models are ready to connect to whatever signal source you have.
Subwoofers
The 15″ and 18″ active subwoofers use a single Class D amplifier to drive the LF transducer.
Inside the Delta-AX subwoofers is a highly efficient Class D amplifier.
The amplifier has been perfectly matched to the custom low frequency driver. This perfect combination leads to maximum efficiency and supreme output SPL.
Product Specifications:
System Type: Active 18” Subwoofer
Frequency Response (+/-3 dB): 38 Hz – 200 Hz
Calculated Maximum SPL @1 m: 132 dB
Transducers:
Low-Frequency Transducer:
Size: 470 mm / 18″
Coil Size: 101.6 mm / 4″
Impedance: 8 Ω
Amplifiers:
Low-Frequency Power Amplifier RMS: 1000 W (Class D)
Amplifier Protection: Yes
Power on Protection: Power switch on/off mute
Thermal Protection: Amplifier Shut Down, Auto Reset
Low Line Voltage Shut Down: 80% Nominal Line Voltage
Driver Protection: Yes
DC and Short Protection: Yes
Clip Limiter: Turns on Approx @ 1000 W Output
Limiter Indicator: Red LED
Power Indicator: Green LED
Connectors:
Input A – Type: Balanced
Input Sensitivity: Line: 0 dBu
Maximum Input Level: 22 dBu
Input Connector: TRS jack and socket XLR
Input Impedance:
Balanced: 20 KΩ
Unbalanced: 10 KΩ
Line Output Connector: Pin XLR Connector
Impedance Balanced:
Balanced: 200 Ω
Unbalanced: 100 Ω
Loop Gain: 0 dB
AC Power Details:
Power Supply: High Efficiency SMPS
AC Power Options: AC100-120 V~ / 220-240 V~, 50/60 Hz
Power on Indicator: Green LED
Hardware:
Enclosure Material and Finish: 15 mm Plywood
Colour Options: Black Paint
Product Weight: 38.4 kg / 84.48 lbs.
Product Dimensions: 26″ x 21″ x 21″
Shipping Weight: 44.3 kg / 97.46 lbs.
Shipping Dimensions: 24" x 28” x 24” inches.
