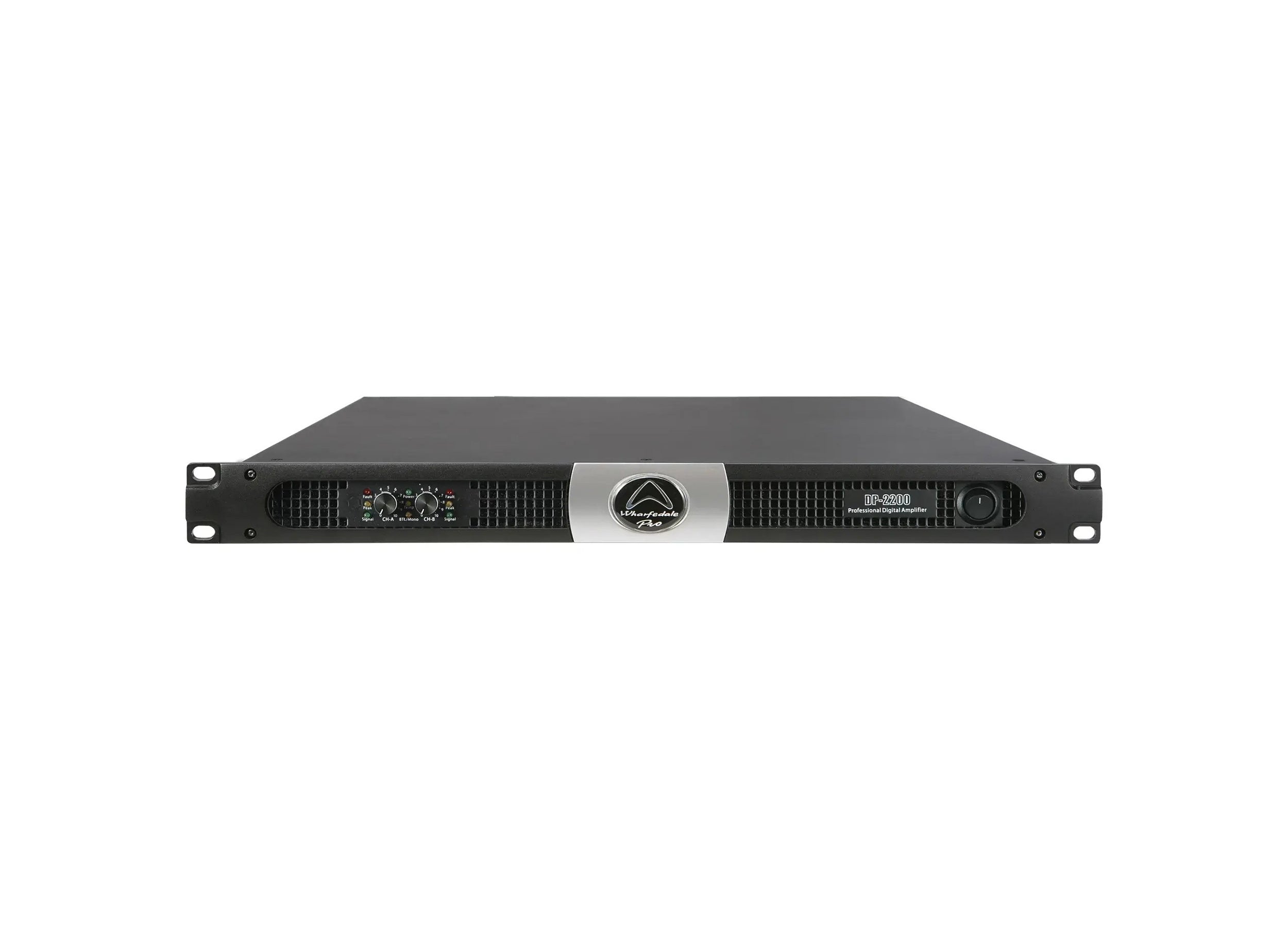

Wharfedale DP-2200, 2-Channels Class D Power Amplifier

The Wharfedale DP-2200 2-Channels Class D Power Amplifier is perfect choice for medium to large-sized venues. This power amp provides two channels with 3400 watts at 4 ohms or 2000 watts at 8 ohms, and when in bridged mono mode, it is capable of delivering 6800 watts at 4 ohms and 4000 watts at 16 ohms. With its Class D amplifier topology, the DP2200 ensures consistent power delivery and high headroom. Additionally, it is seamlessly integrated within any professional sound system thanks to the XLR input connectors and SpeakON-compatible output connectors. To protect both the amplifier and your speaker system, the DP2200 is equipped with built-in protection circuitry. Take advantage of the full sonic range of your speakers with the Wharfedale Pro DP2200 Power Amplifier.

Product Specifications:

Power Output:

Stereo power output 8: 2 x 2000w

Stereo power output 4: 2 x 3400w

Stereo power output 2: 2 x 4760w

Bridged mono output 16: 4000w

Bridged mono output 8: 6800w

Bridged mono output 4: 9520w

Input sensitivity & Impedance:

Sensitivity: selectable 41/38/35/32dB

Balanced XLR input: 20k

Max input level: 22dBu (9.7Vrms)

Voltage gain: 41dB

S/N: >112dB

Slew rate: >50V / s

Distortion (1W): <0.02%

Crosstalk: <-90dB

Frequency response:

+/-1dB @ 8: 20Hz - 20kHz

+/-3dB @ 8: 20Hz - 30kHz

Damping factor: >5000

Topology: Class D

Connectors:

Signal input: Female & Male XLR jacks

Power output: speakON compatible

Controls:

Front panel: AC Switch, CH and CH2 gain knobs

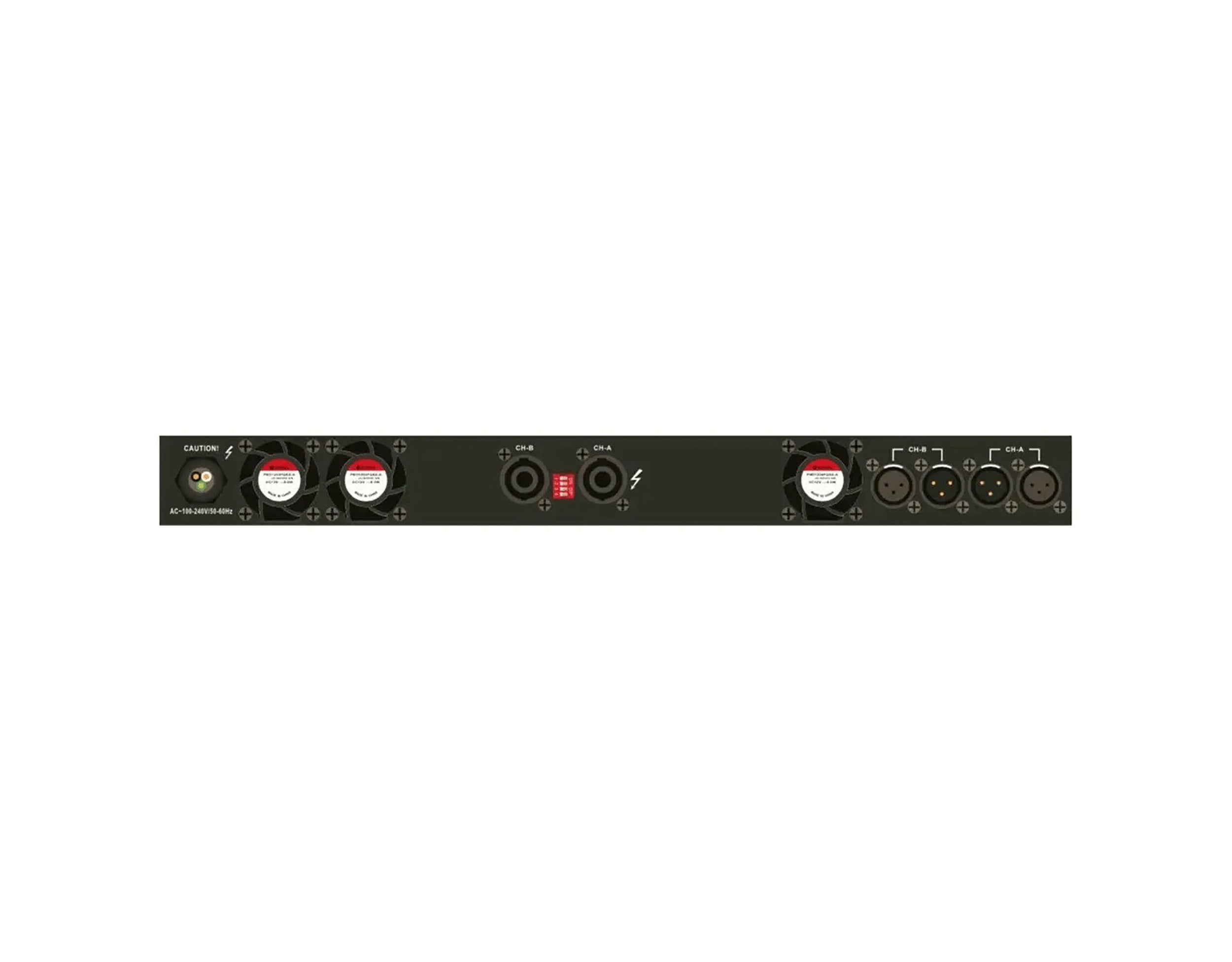

Rear panel: Parallel, Stereo & Bridge mode switch, Limiter switch

Thermal, Over-current, Output DC, Output short protect

Indicators: Power, Protect, Signal, Limiter

Cooling: Variable speed fan

AC Power: 100 ~ 240VAC, 50 ~ 60Hz

Dimensions: 44 * 485 * 370mm

Weight (Net): 9.28kg

Weight (Gross): 11.3kg
