Description

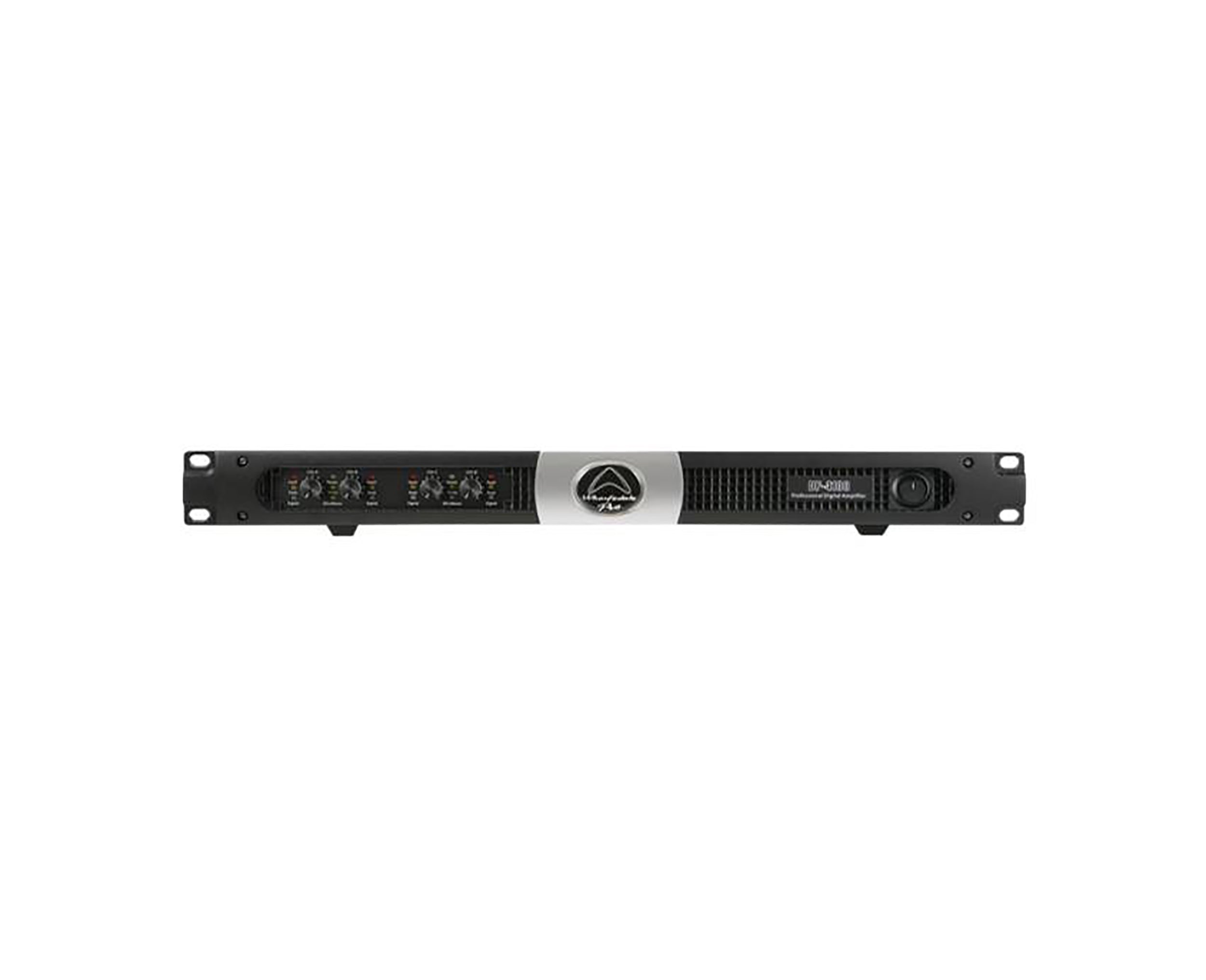

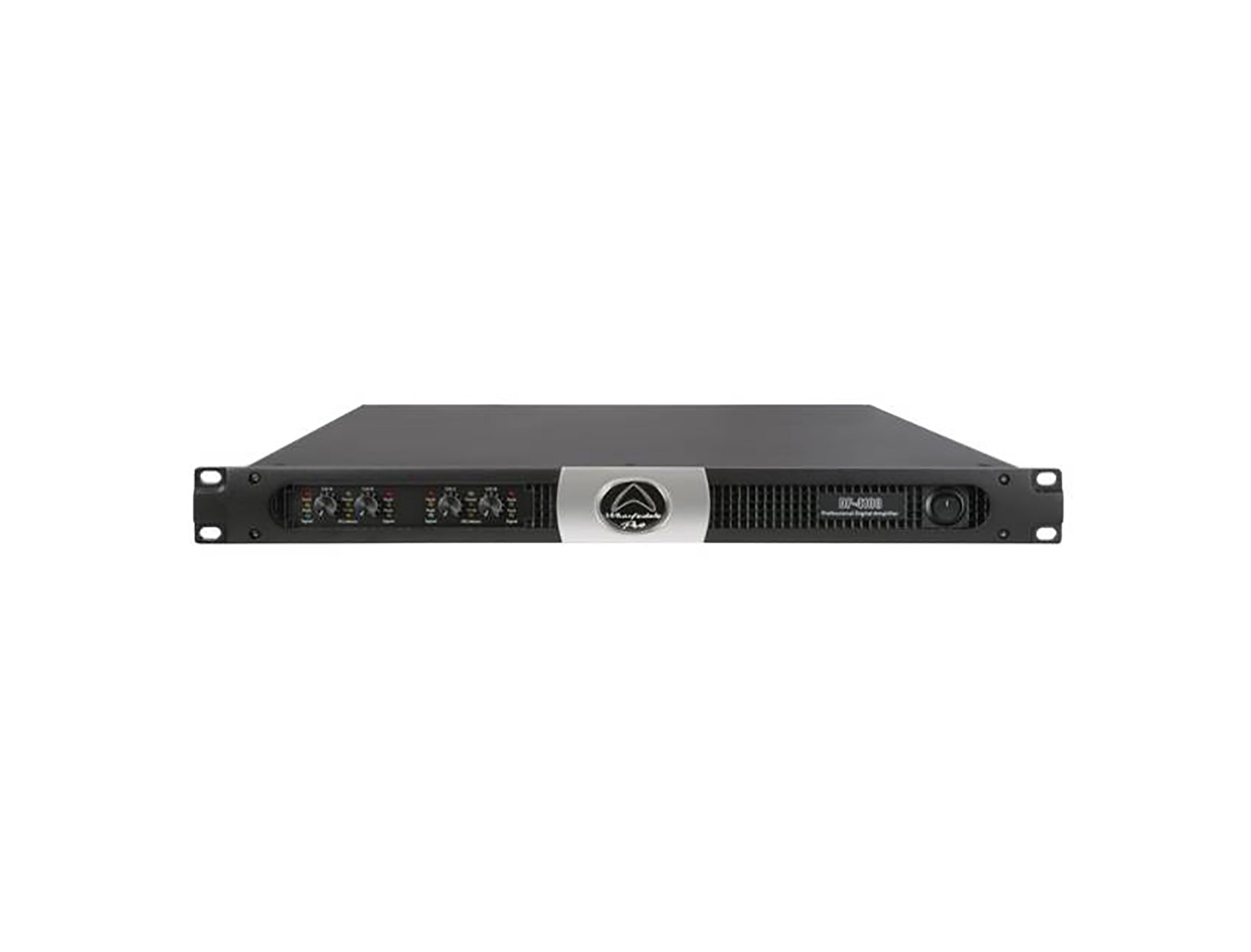

The Wharfedale DP-4100, 4-Channel Class-D Power Amplifier is suitable for professional live sound reinforcement or fixed installations. The 4-channel DP-4100 delivers extreme power from a lightweight box. Its advanced switch mode power supply and super-efficient Class D topology deliver high power with low distortion. With 4 discrete channels and multiple operating modes. It’s simple to configure into the most complex of installations or touring rigs. The Wharfedale  DP–4100 seamlessly integrated within any professional sound system thanks to the XLR input connectors and SpeakON-compatible output. Internally, the Wharfedale DP-4100 has A full suite of protection circuitry which includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long term system reliability and peace of mind should the worst ever happen
Product Specifications:
Power Output:
Stereo power output 8Ω x 2: 4 x 1000w
4Ω x 2: 4 x 1700w
Bridged mono output 16Ω: 2 x 2000w
Bridged mono output 8Ω: 2 x 3400w
Input sensitivity & Impedance:
Sensitivity: selectable 38/35/32/29dB
Balanced XLR input: 20KΩ
Max input level: 22dBu (9.7Vrms)
Voltage gain: 38dB
Slew rate: >50V / μs
Crosstalk: <-90dB
S/N: >109dB
Distortion (1W): <0.02%
Frequency response:
+/-1dB @ 8Ω 20Hz – 20kHz
+/-3dB @ 8Ω 20Hz – 30kHz
Damping factor: >5000
Topology: Class D
Connectors:
Signal input: Female XLR jacks
Power output: speakON compatible
Controls:
Front panel: AC Switch, 4 x channel gain knobs

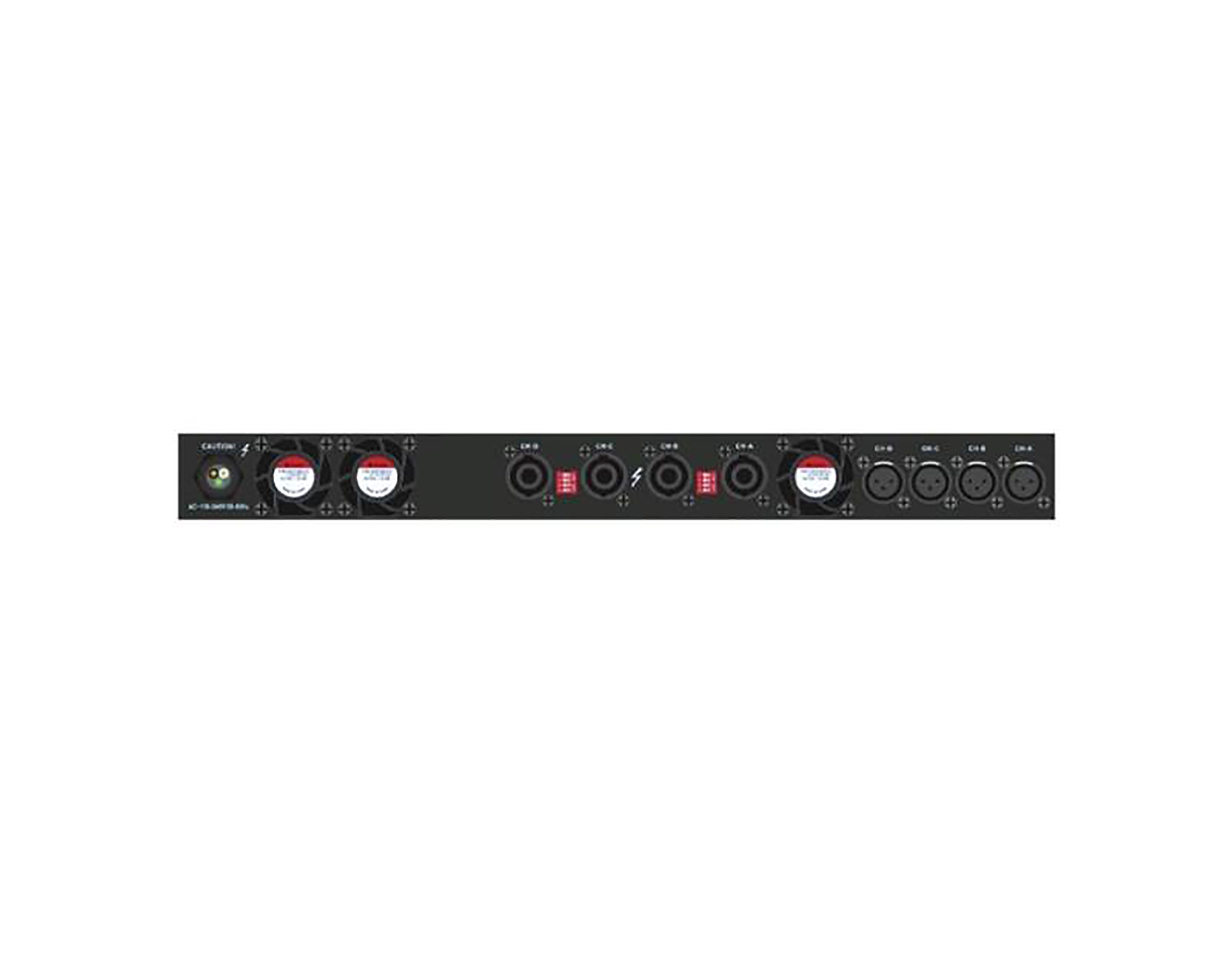

Rear panel: Parallel, Stereo & Bridge mode switch, Limiter switch
Protections: Thermal, Over-current, Output DC, Output short protect.
Indicators: Power, Protect, Signal, Limiter
Cooling: Variable speed fan
AC Power: 90 ~ 260VAC, 50 ~ 60Hz
Dimensions: 44 * 485 * 370mm
Weight (Net): 9.16kg
Weight (Gross): 11.1kg
