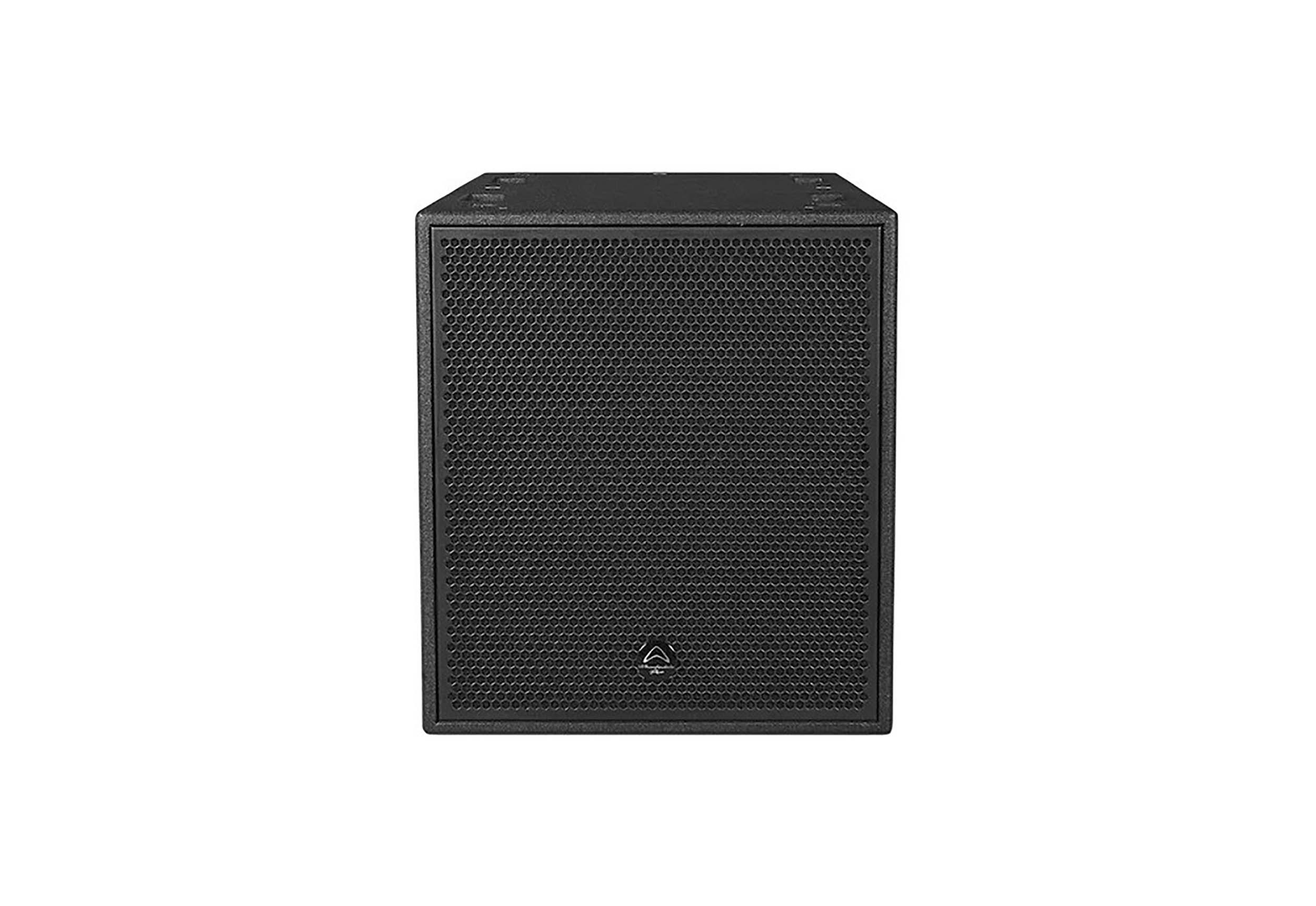

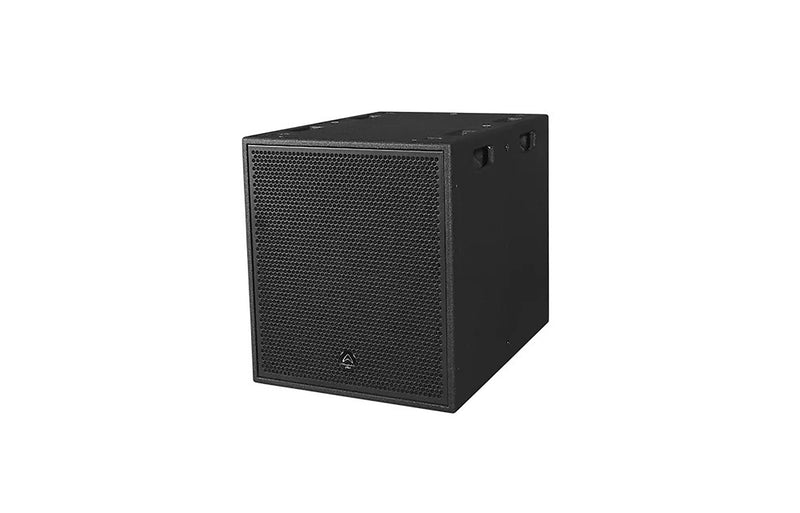

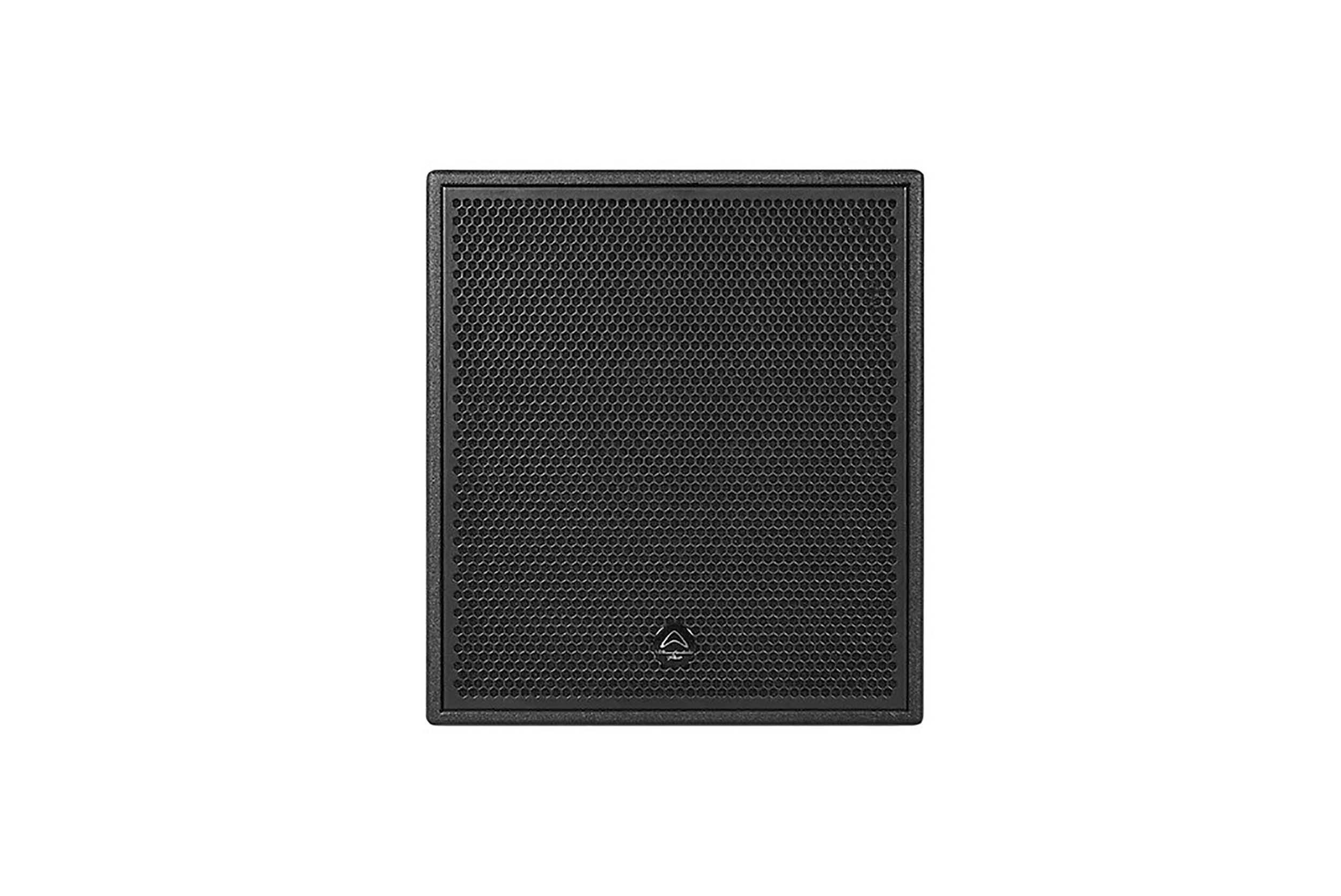

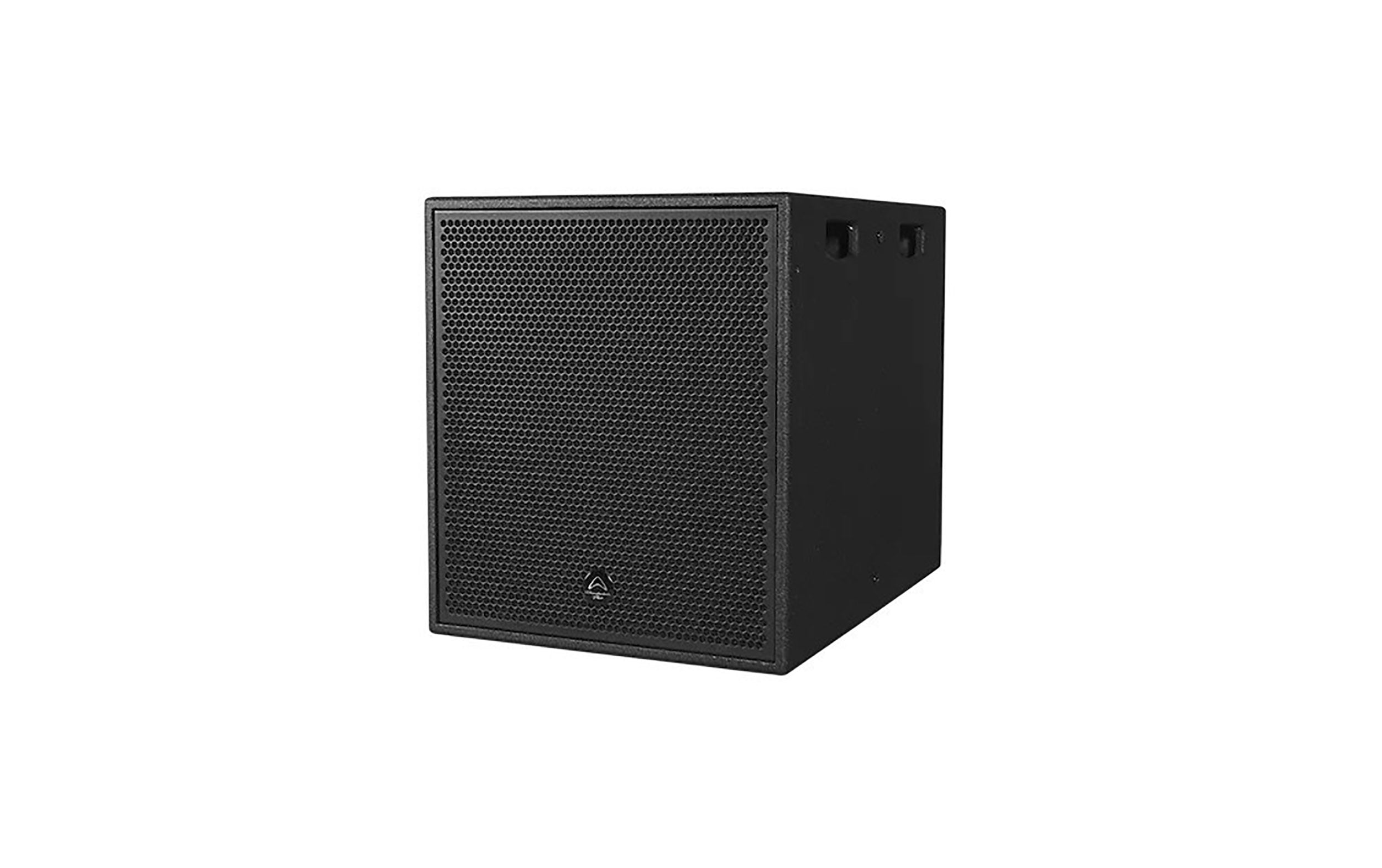

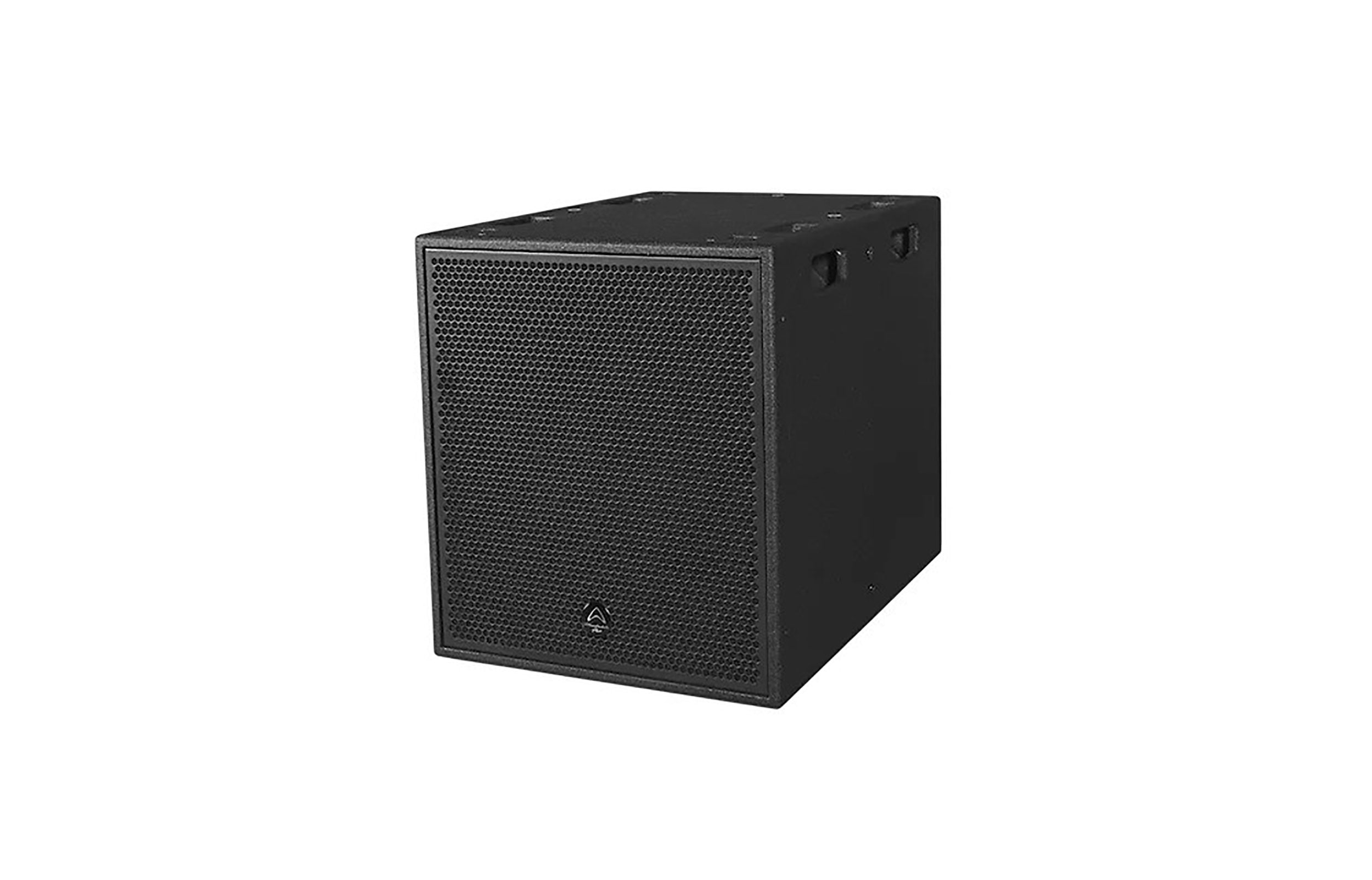

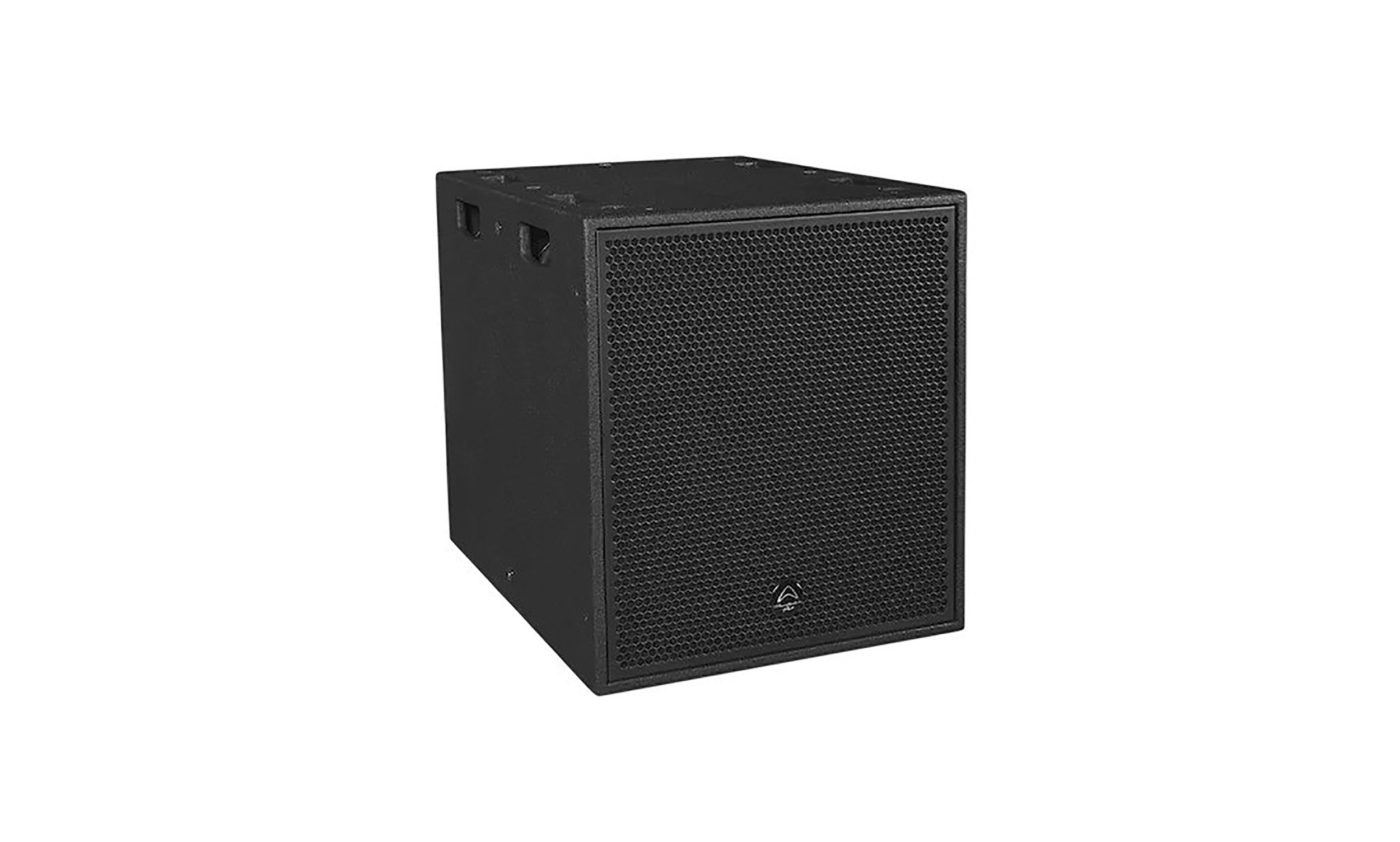

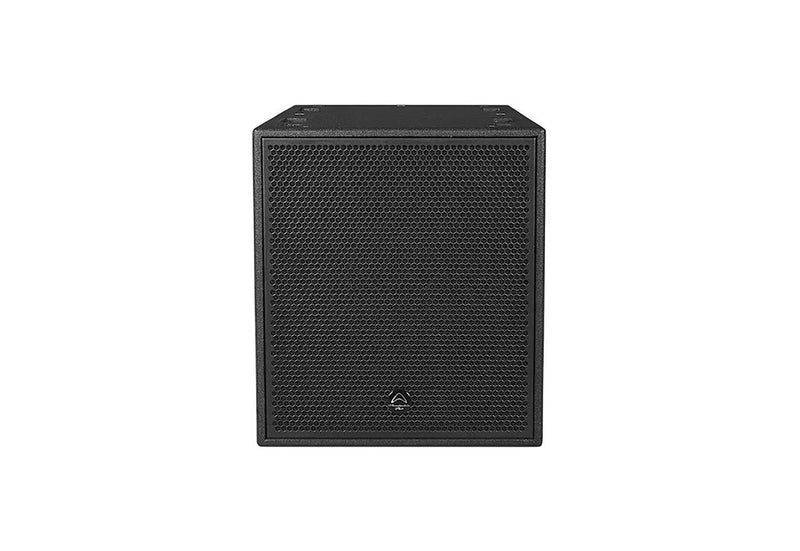

Wharfedale GPL-115B BK, 15-Inches Passive Subwoofer - 1400 Watt

The Wharfedale GPL-115B is a high-performance 15-inch passive subwoofer designed to deliver deep, powerful bass for professional audio systems. Built with durable materials and a robust enclosure, the GPL-115B ensures reliability and long-lasting performance, even in demanding environments. Its precision-engineered driver delivers exceptional low-frequency response, making it the perfect companion for full-range speakers in live sound, installations, and mobile setups. With its high-power handling and efficient performance, the GPL-115B enhances the overall sound experience by providing impactful and defined bass. Ideal for venues and events, it’s a versatile subwoofer for any professional sound system.

Birch Plywood

All GPL models use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. GPL is also covered in our most durable and hard-wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.

Installation Hardware

Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.

GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke.  GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke. These models are also compatible with PowerDrive Series 100 or Omni mount Series 60 installation brackets.

System Solutions

Building a system?  How about this one for inspiration? GPL is engineered for any scale of system.  Live or install, there is a GPL solution. The system in the diagram uses our Wharfedale Pro DP series amplifiers with downloadable presets for DP-N and DP-F models.

Product Specifications:

Model Name: GPL-115B

System Type: 15″ Subwoofer

Configuration: Single Bass-Reflex Subwoofer

Frequency Range (-10 dB) (DP-N preset): 32 Hz - 125 Hz

Sensitivity (2.83 V/1 m, half space): 104 dB

Calculated Maximum SPL @1 m (half space): 139 dB

System Peak SPL (half space): 145 dB

System Rated Impedance:

Impedance: 8 Ω

Low-Frequency Transducer:

Size: 404 mm / 15″

Voice Coil Size: 102 mm / 4″

LF Frame Material: Aluminum

Driver Brand: Wharfedale Pro

Power:

System Continuous Power (W): 700

System Programme Power (W): 1400

System Peak Power (W): 2800

Recommended HPF = BW 18 dB/oct.: 27 Hz

Input Connector:

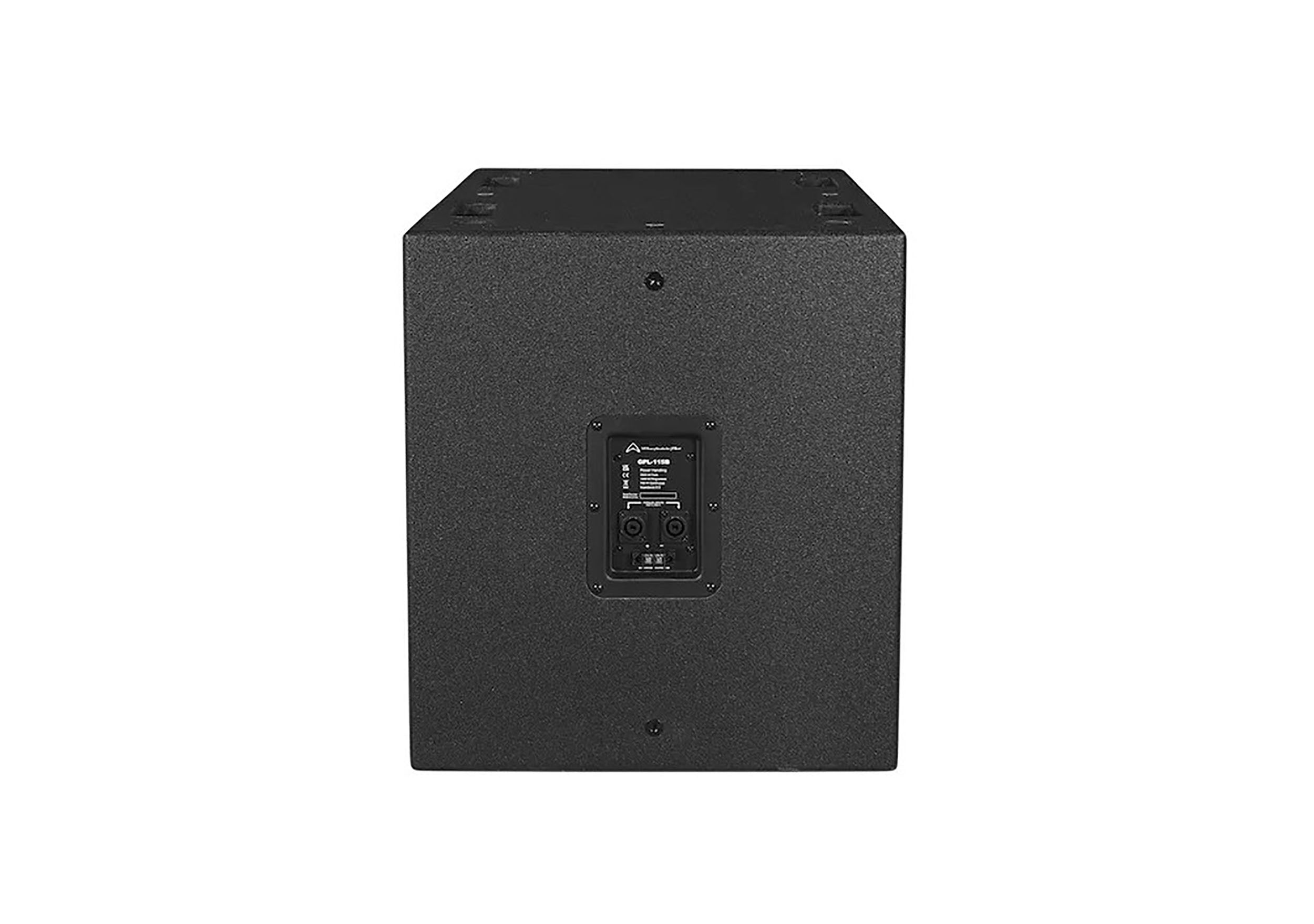

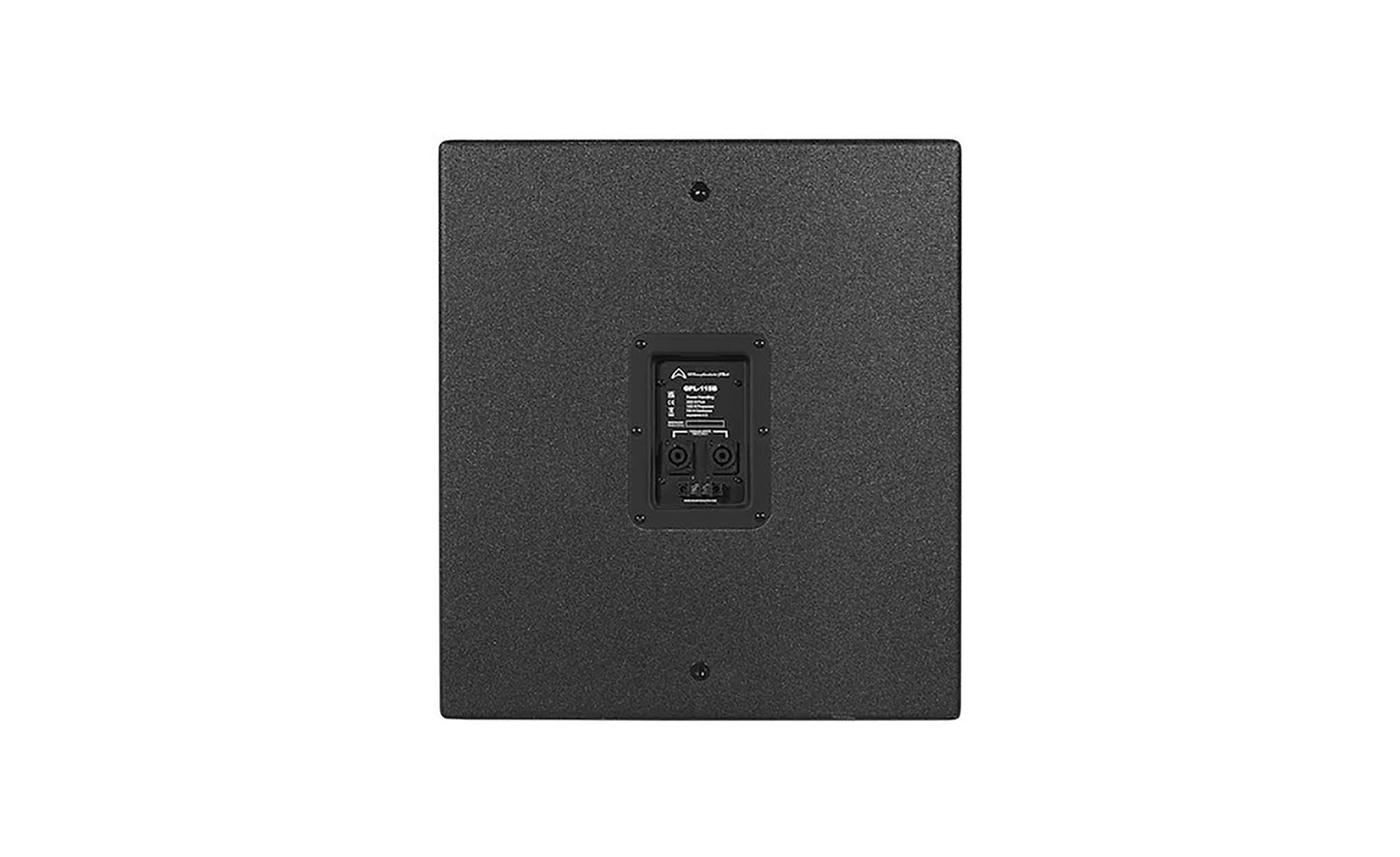

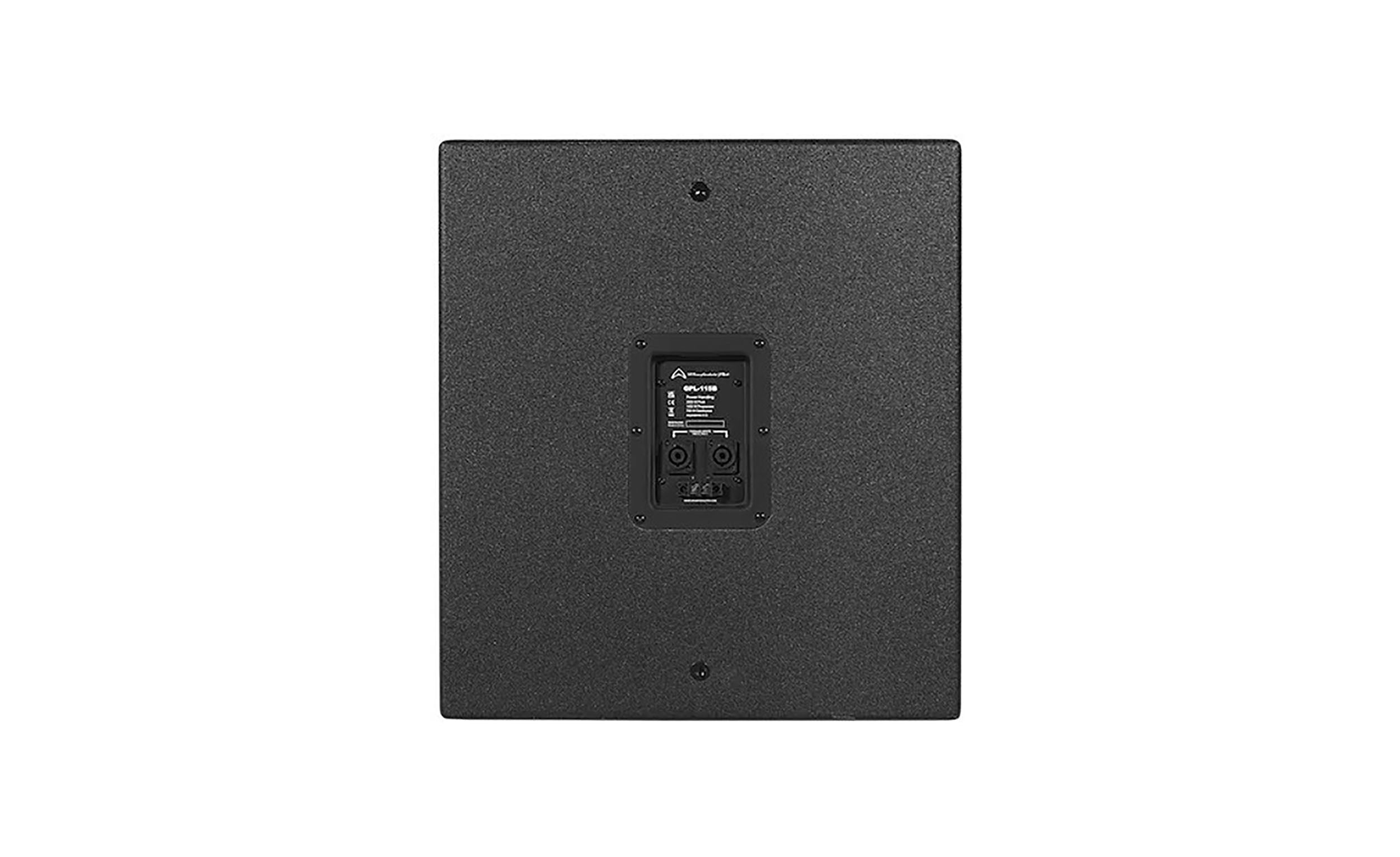

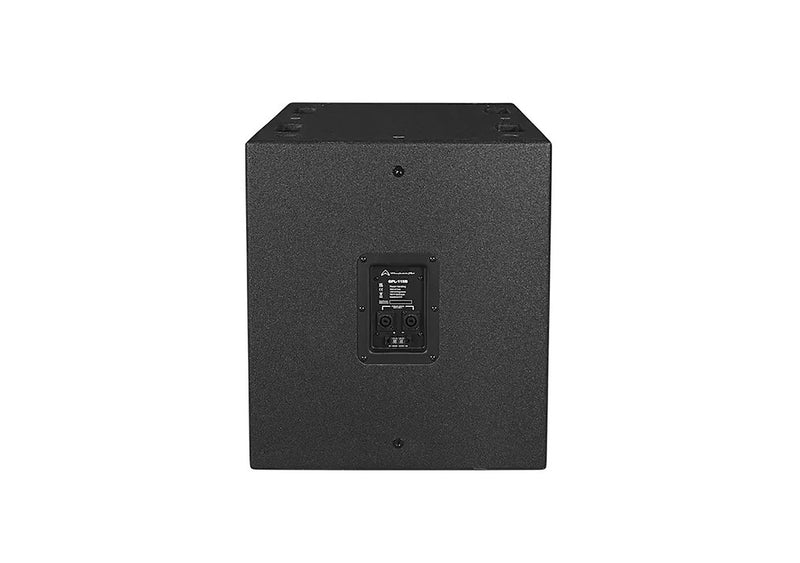

Connector Type: 2 x SpeakON compatible / 1 x Barrier Strip

Rigging & Hardware:

Rigging Points: 12 x M10 threaded rigging points

Handles:

Number of Handles: 4 on sides

Enclosure:

Cabinet Type: Rectangle

Material and Finish: 18 mm plywood / Rhino Rock

Color Options: Black paint, White on request

Grille Material:

Material & Finish: Powder coated steel

Product Weight: 32.5 kg / 71.5 lbs.

Product Dimensions: 25″ x 19″ x 21″

Shipping Weight: 36.0 kg / 79.2 lbs.

Shipping Dimensions: 27" x 21” x 24” inches.
