Description

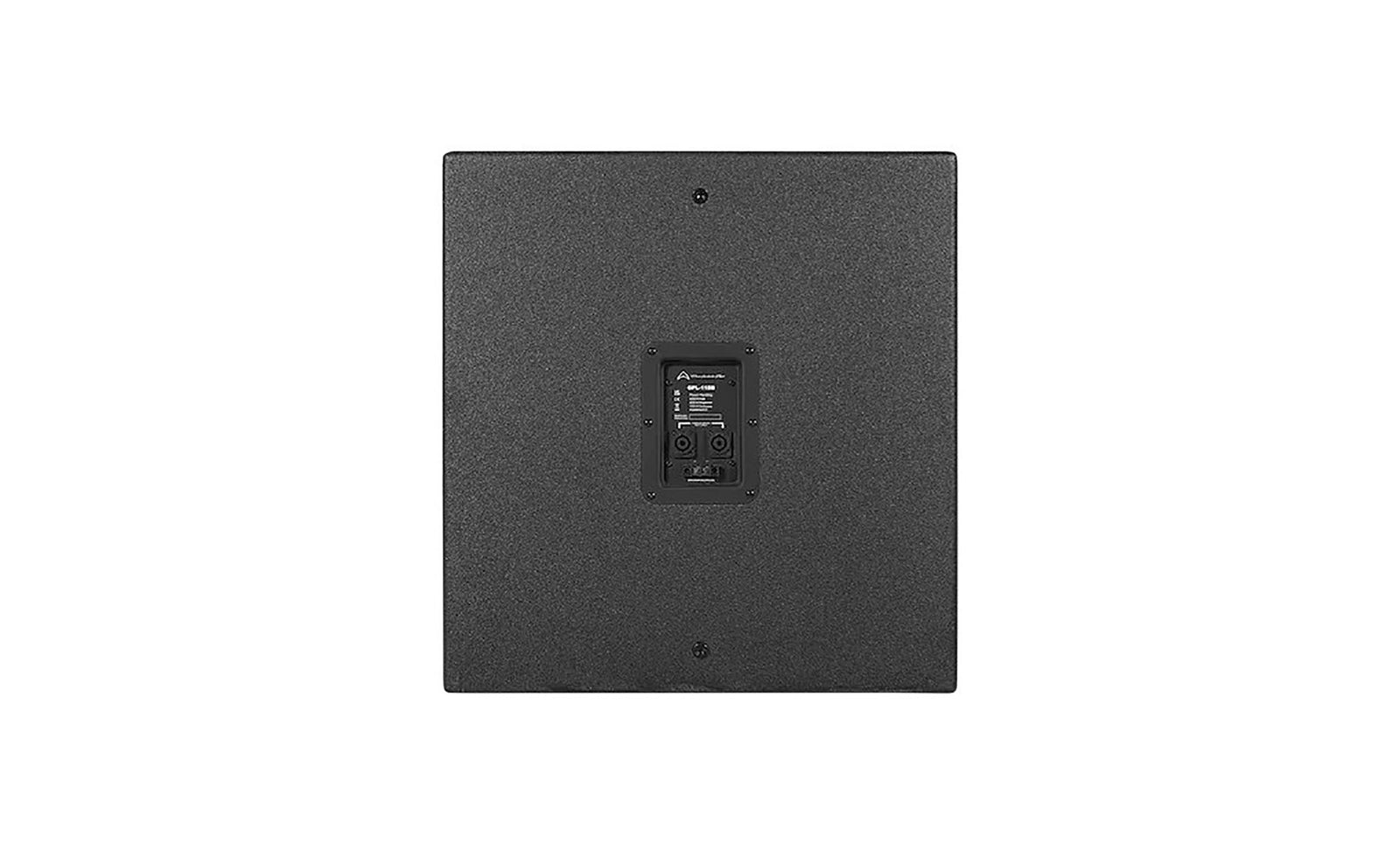

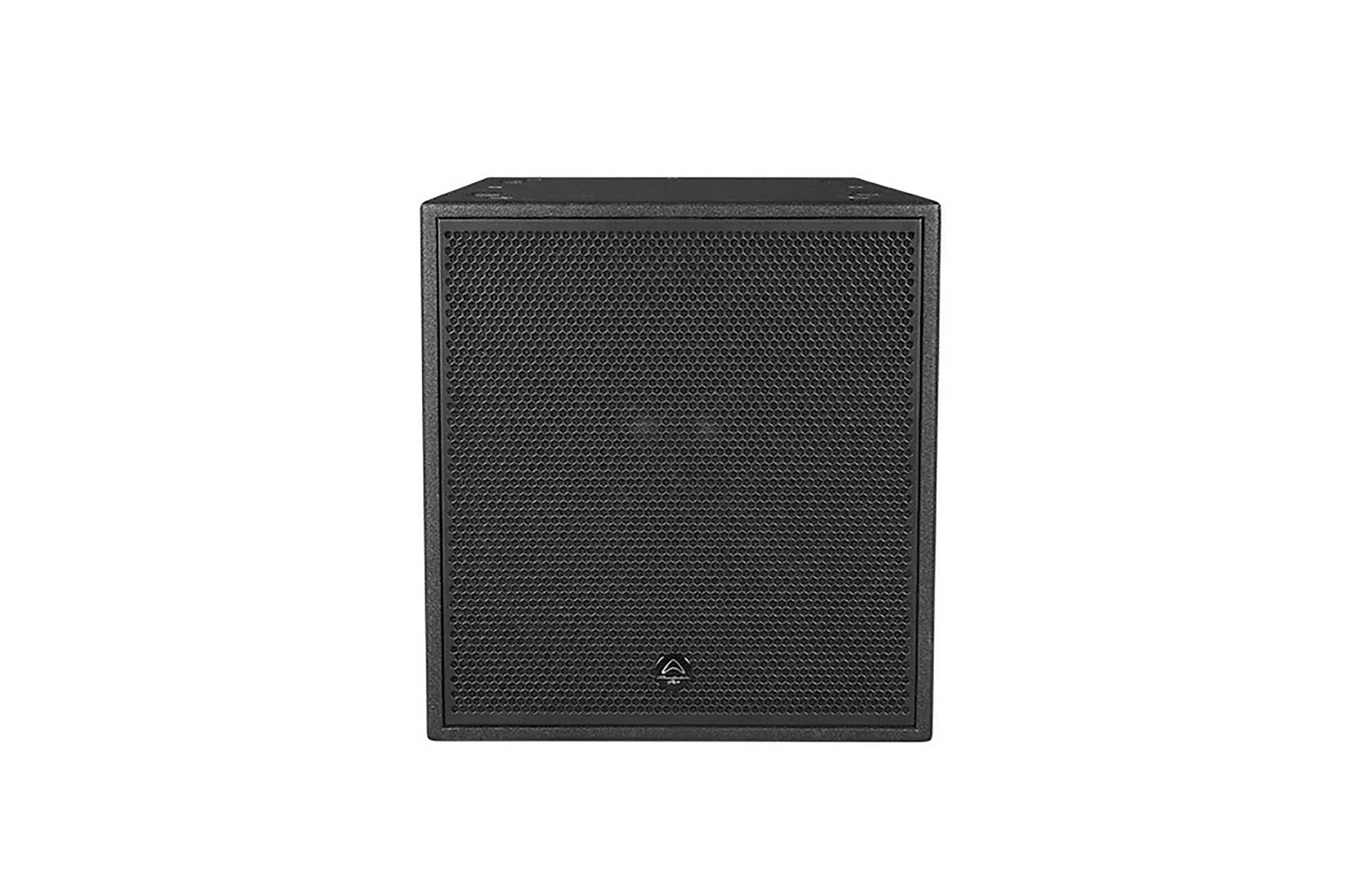

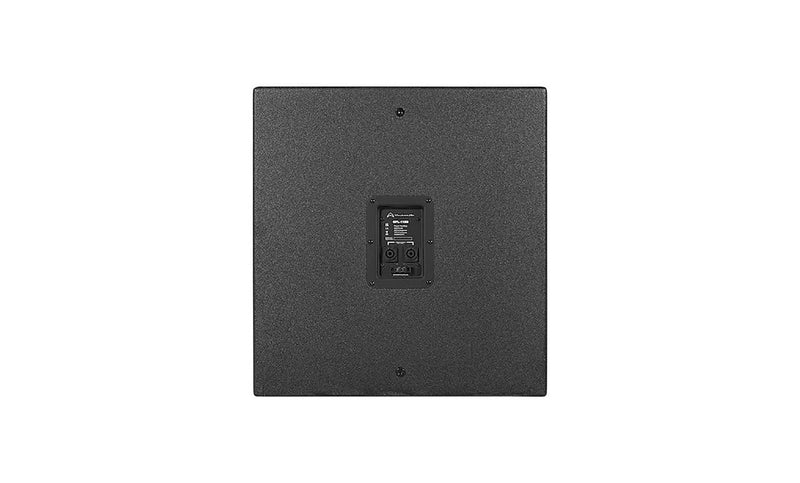

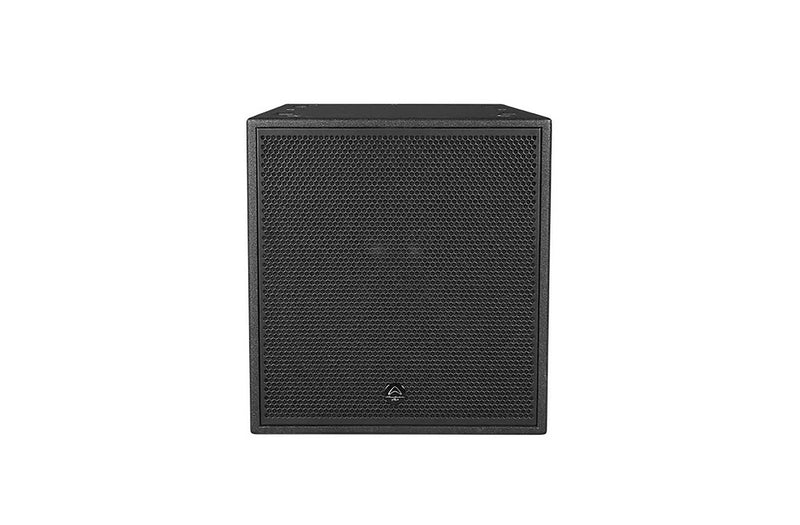

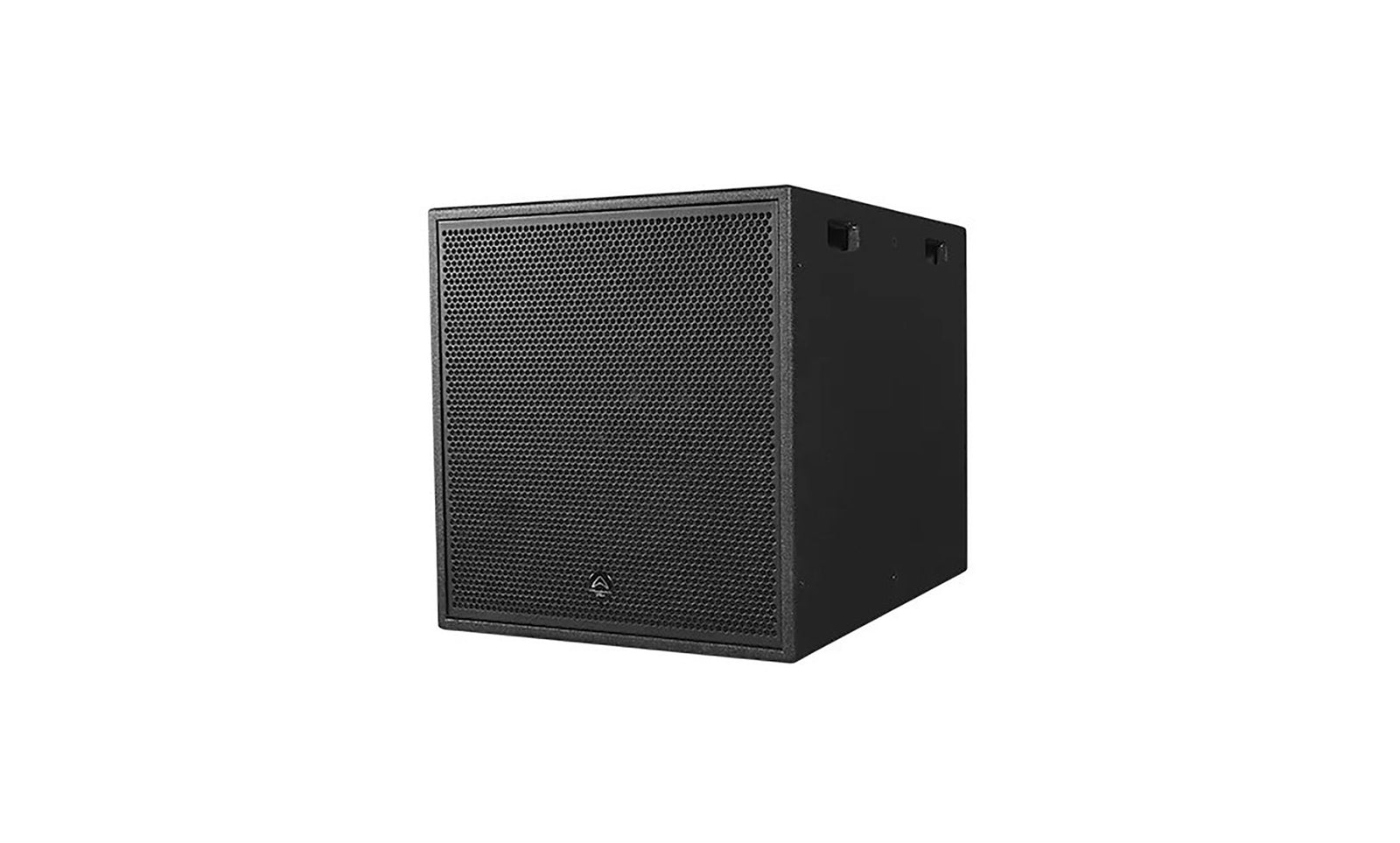

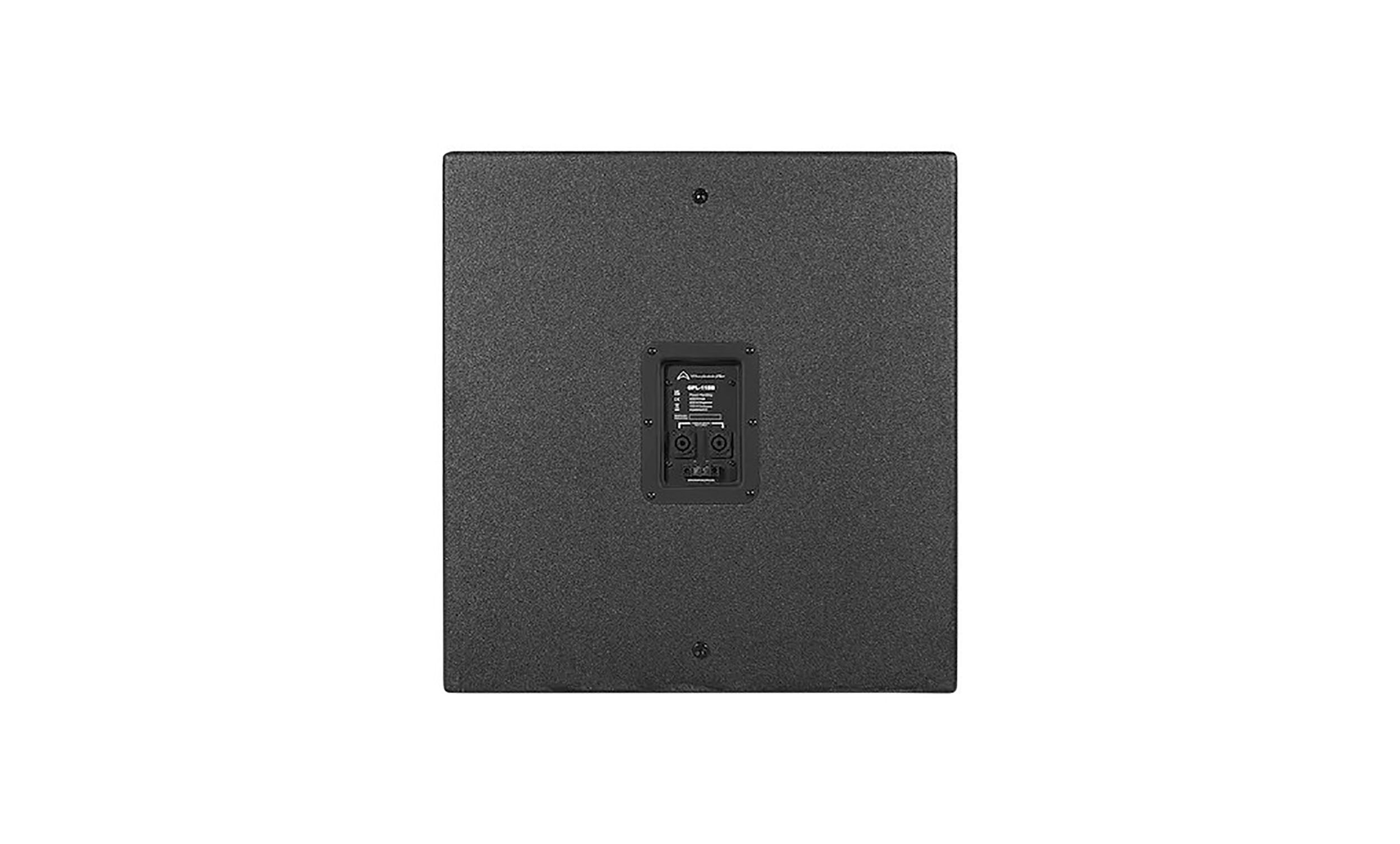

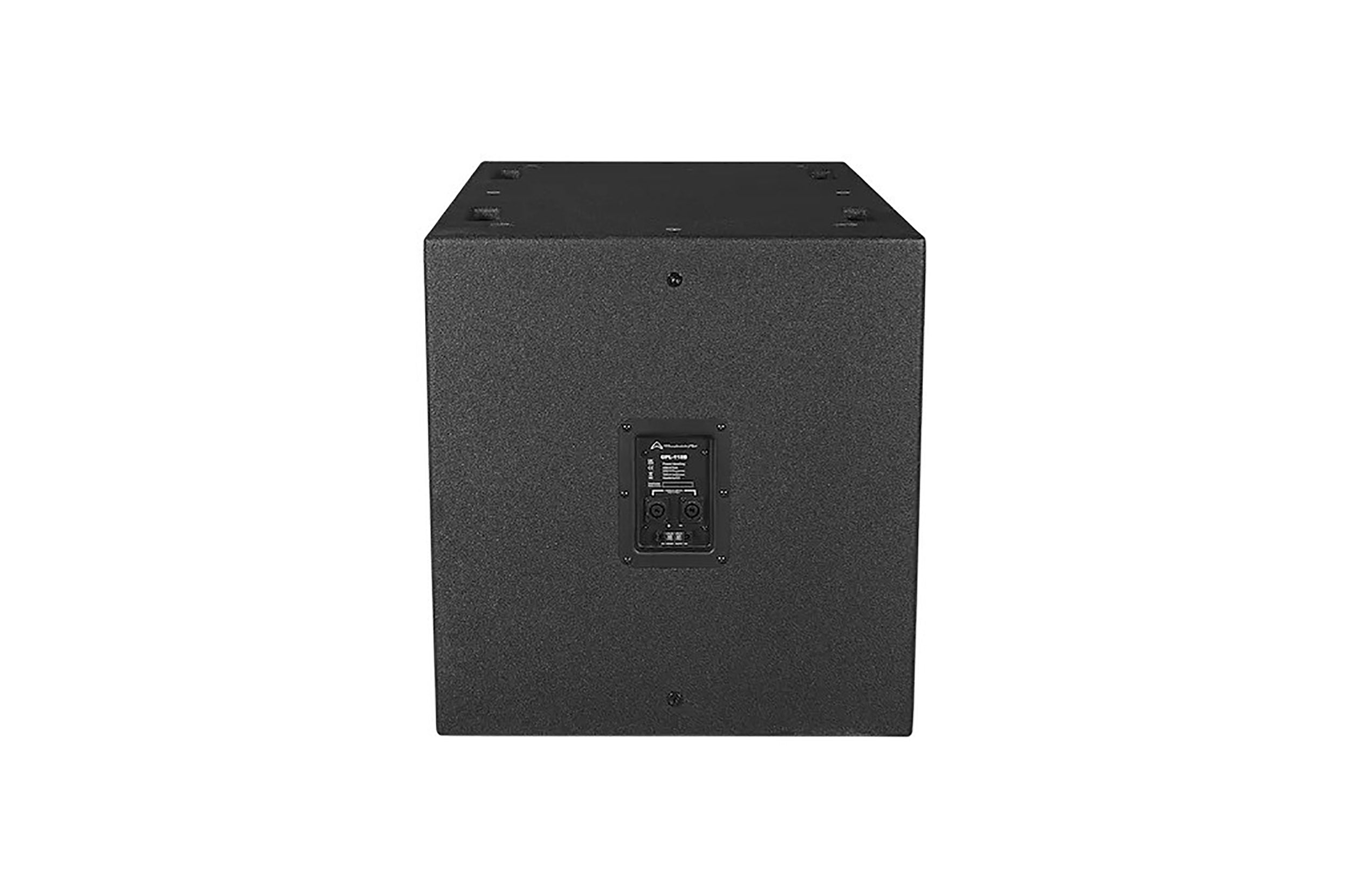

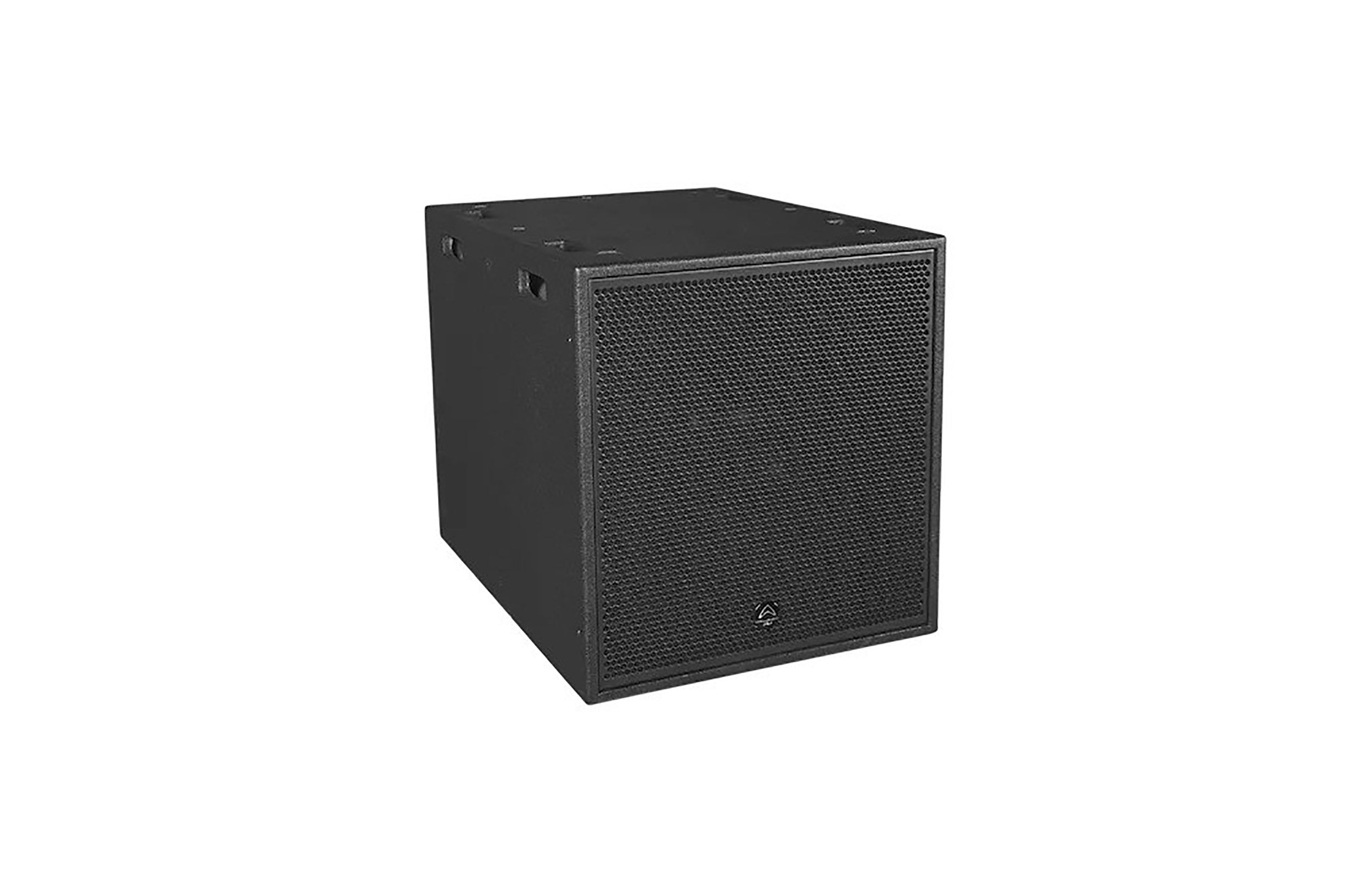

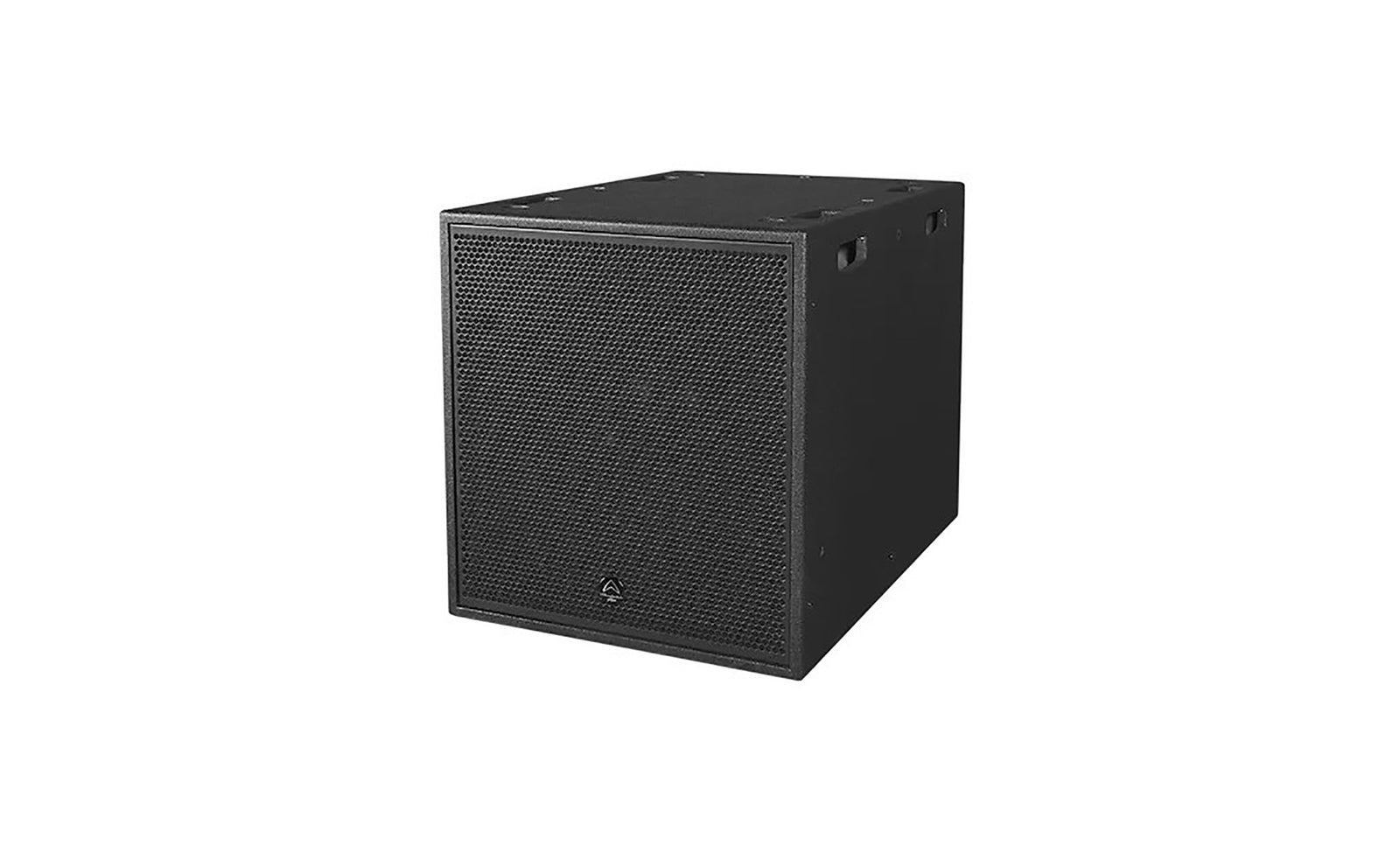

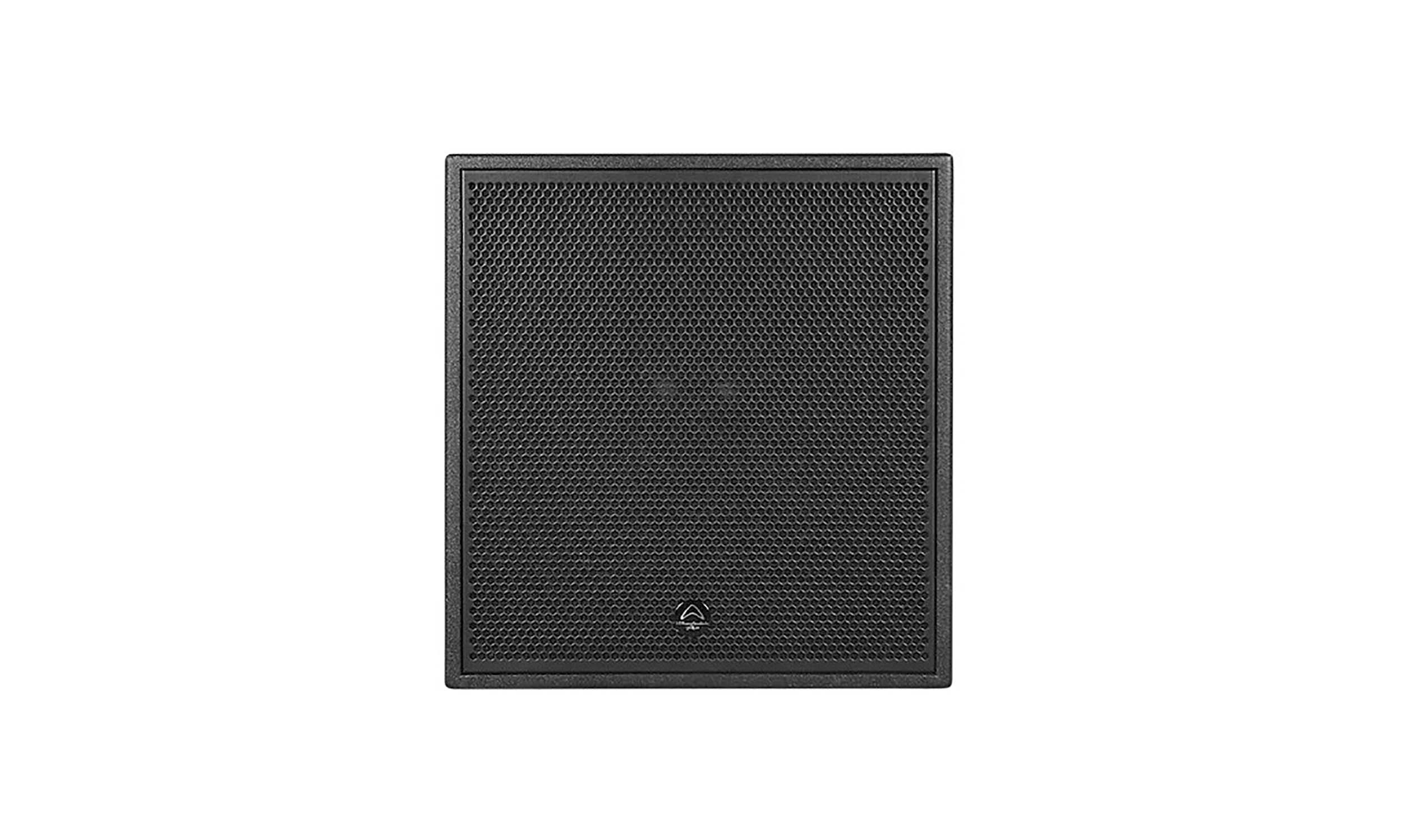

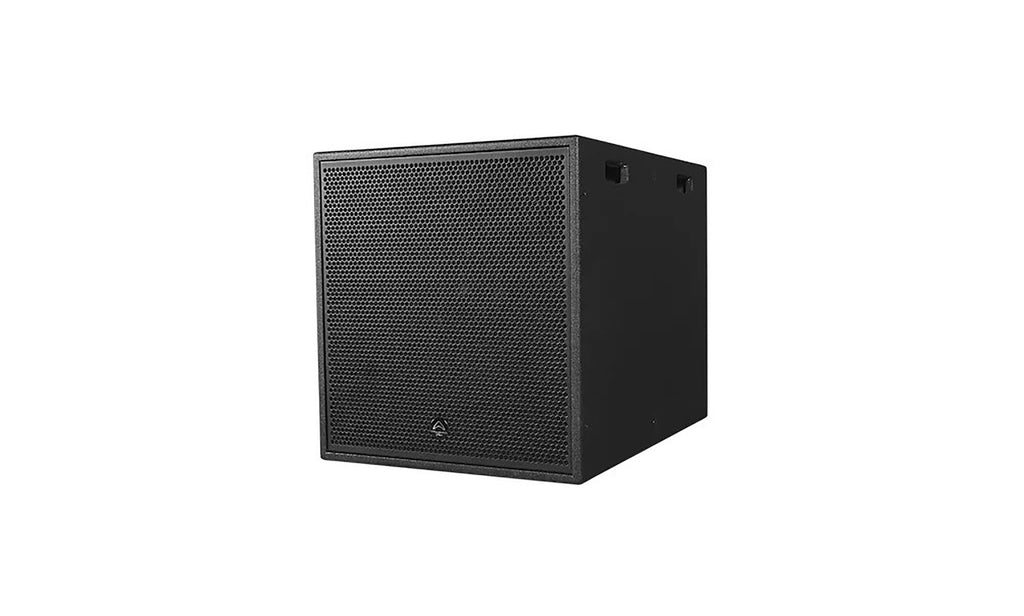

The Wharfedale GPL-118B is a powerful 18-inch passive subwoofer engineered to deliver deep, punchy bass for professional audio applications. Its rugged construction and durable enclosure ensure long-lasting performance, even under demanding conditions. Designed with a precision-engineered driver, the GPL-118B offers exceptional low-frequency response, making it an ideal choice for augmenting full-range speakers in live sound
Birch Plywood
All GPL models use premium Baltic birch plywood construction. Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character. GPL is also covered in our most durable and hard-wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.
Installation Hardware
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke. GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke. These models are also compatible with PowerDrive Series 100 or Omni mount Series 60 installation brackets.
System Solutions
Building a system? How about this one for inspiration? GPL is engineered for any scale of system. Live or install, there is a GPL solution. The system in the diagram uses our Wharfedale Pro DP series amplifiers with downloadable presets for DP-N and DP-F models.
Product Specifications:
System Type: 18″ Subwoofer
Configuration: Single Bass-Reflex Subwoofer
Frequency Range (-10 dB) (DP-N preset): 28 Hz – 100 Hz
Sensitivity (2.83 V/1 m, half space): 105 dB
Calculated Maximum SPL @1 m (half space): 140 dB
System Peak SPL (half space): 146 dB
System Rated Impedance:
Impedance: 8 Ω
Low-Frequency Transducer:
Size: 470 mm / 18″
Voice Coil Size: 102 mm / 4″
LF Frame Material: Aluminum
Driver Brand: Wharfedale Pro
Power:
System Continuous Power (W): 1000
System Programme Power (W): 2000
System Peak Power (W): 4000
Recommended HPF = BW 18 dB/oct.: 24 Hz
Input Connector:
Connector Type: 2 x SpeakON compatible / 1 x Barrier Strip
Rigging & Hardware:
Rigging Points: 12 x M10 threaded rigging points
Handles:
Number of Handles: 4 on sides
Enclosure:
Cabinet Type: Rectangle
Material and Finish: 18 mm plywood / Rhino Rock
Color Options: Black paint, White on request
Grille Material:
Material & Finish: Powder coated steel
Product Weight: 44.0 kg / 96.8 lbs.
Product Dimensions: 30″ x 22″ x 24″
Shipping Weight: 53.7 kg / 121.44 lbs.
Shipping Dimensions: 33" x 25” x 26” inches.
