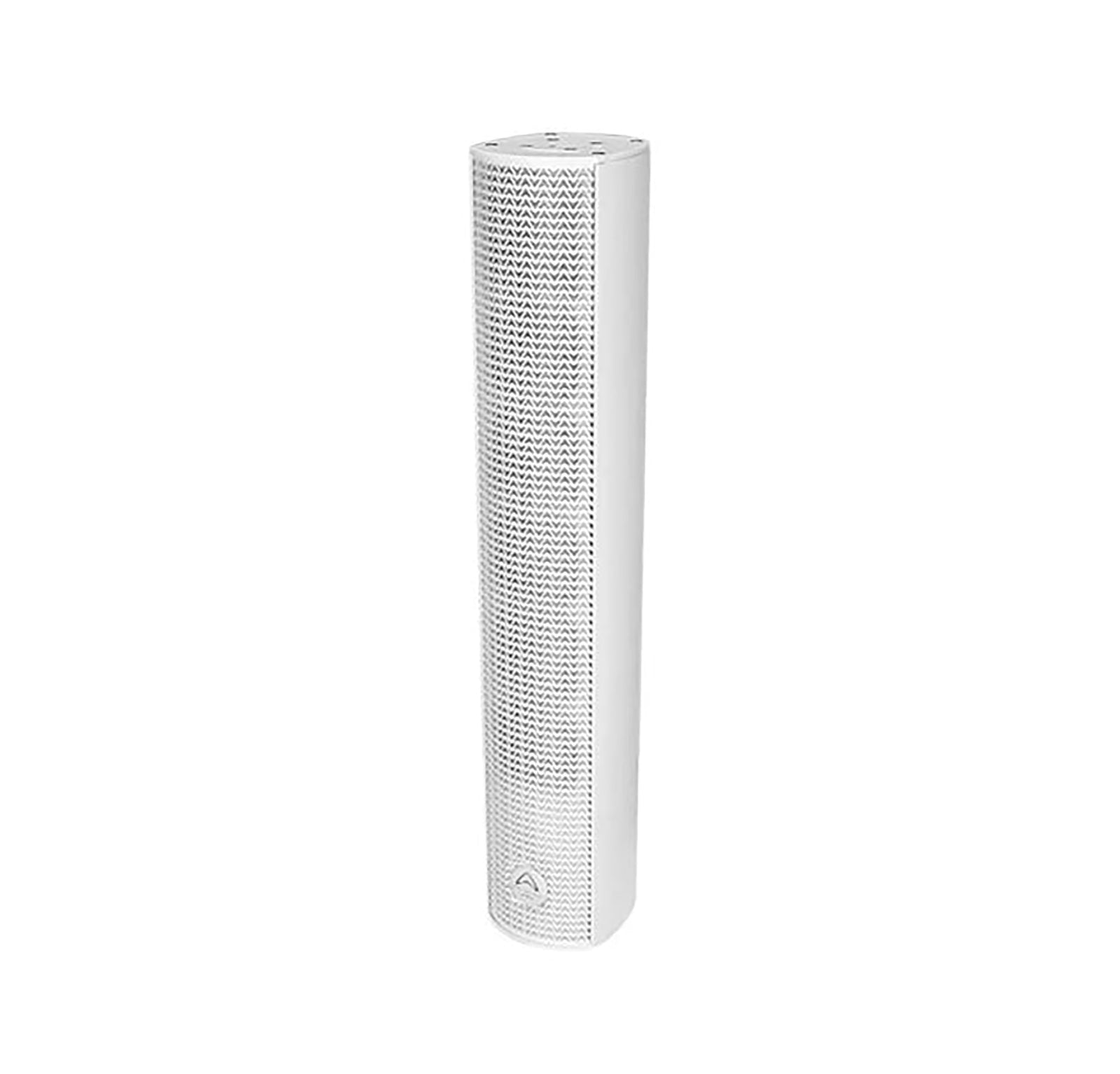

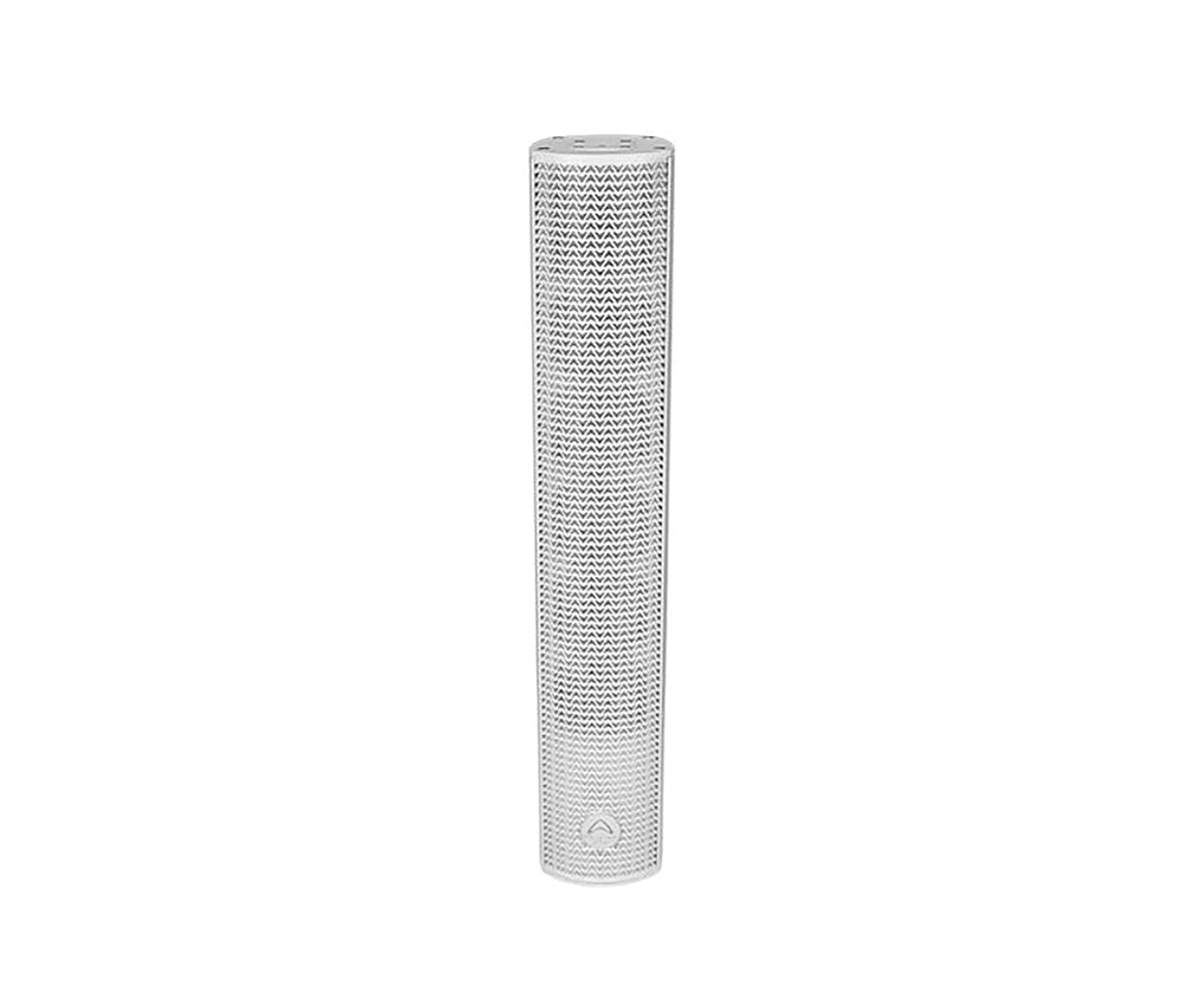

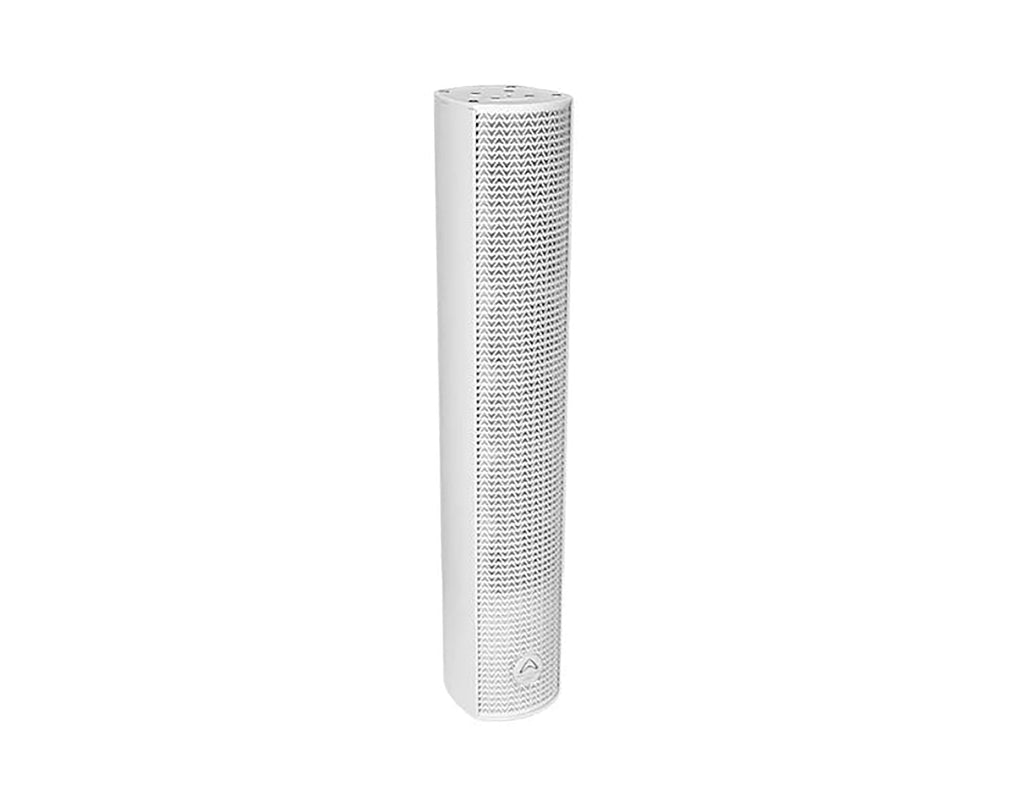

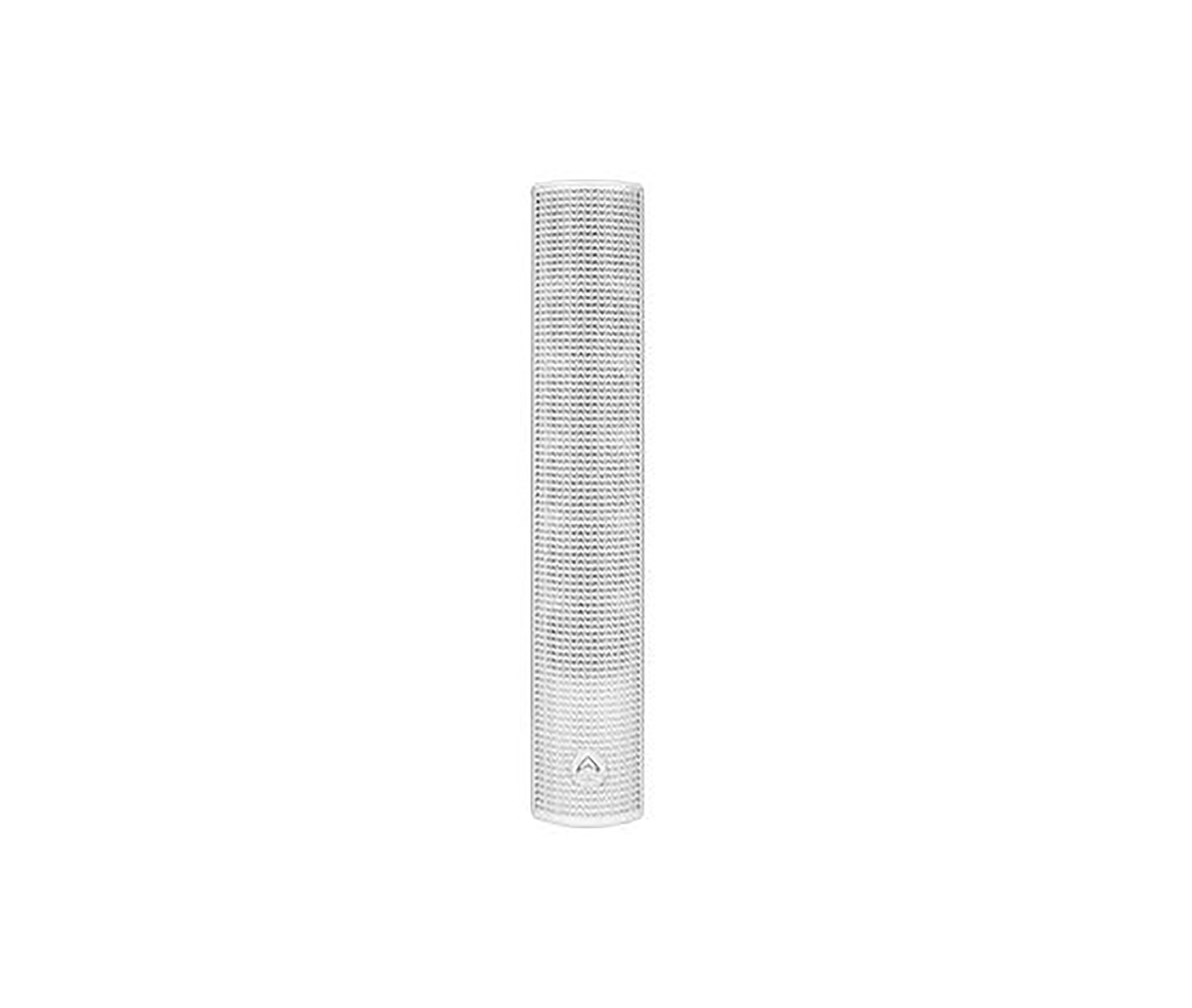

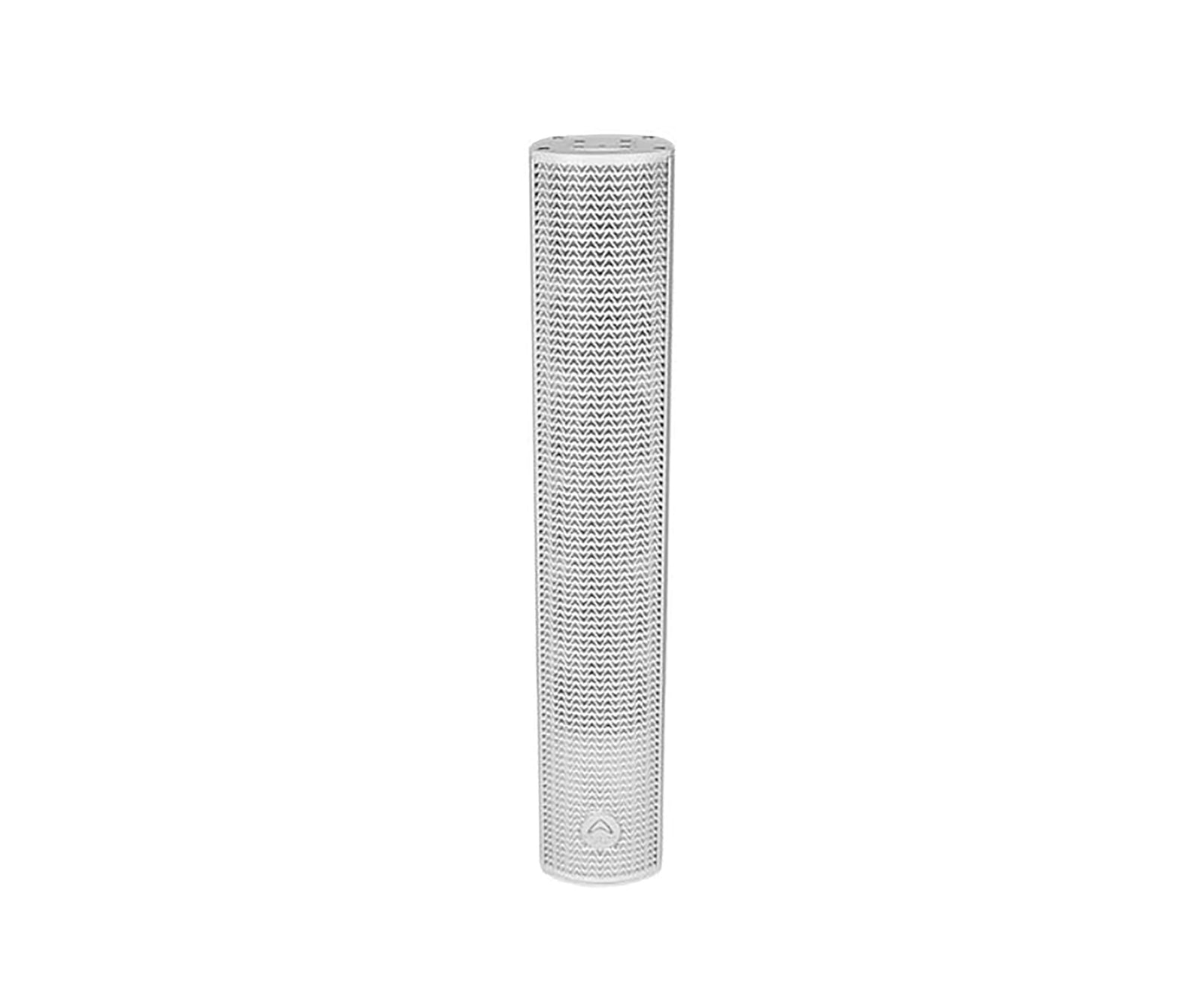

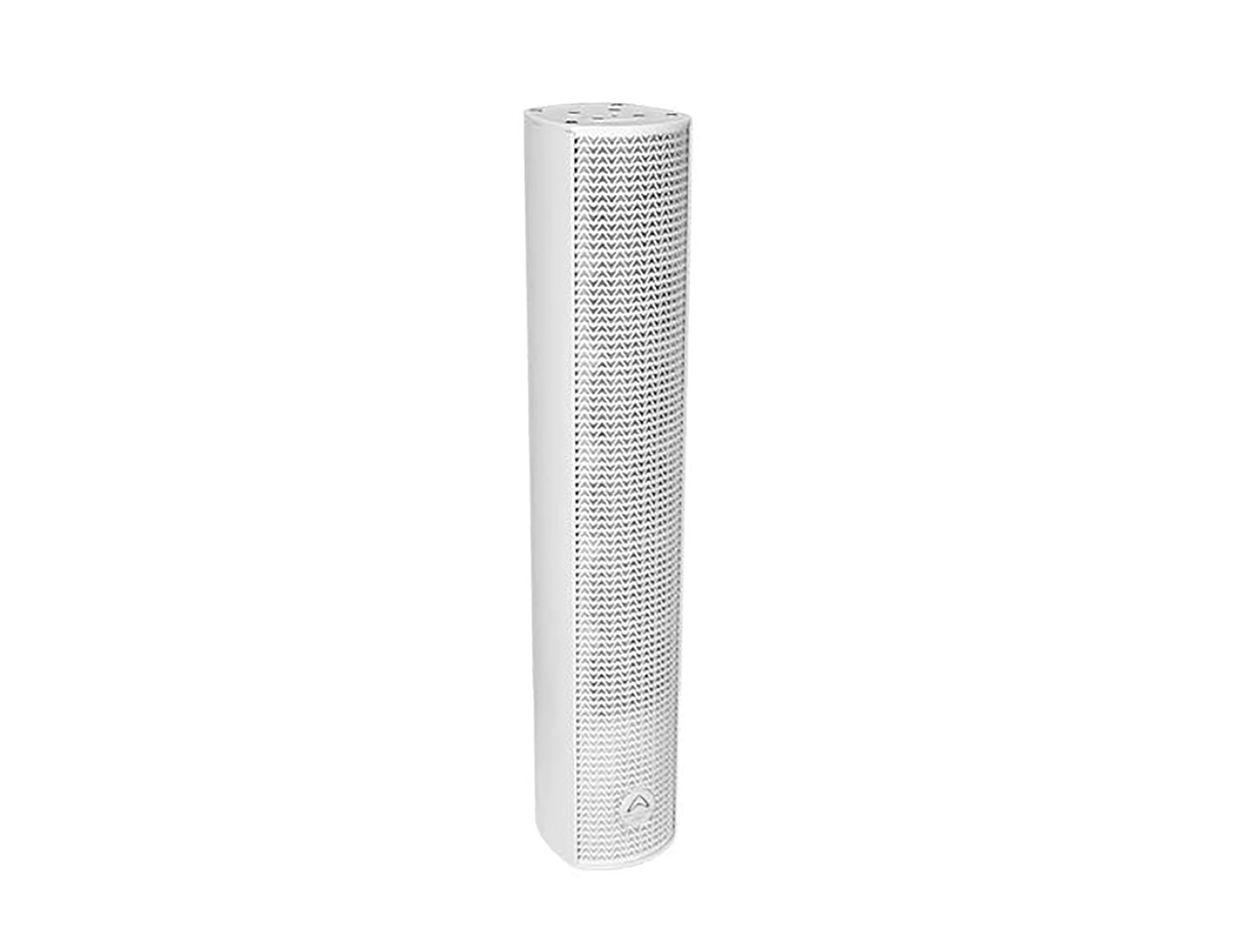

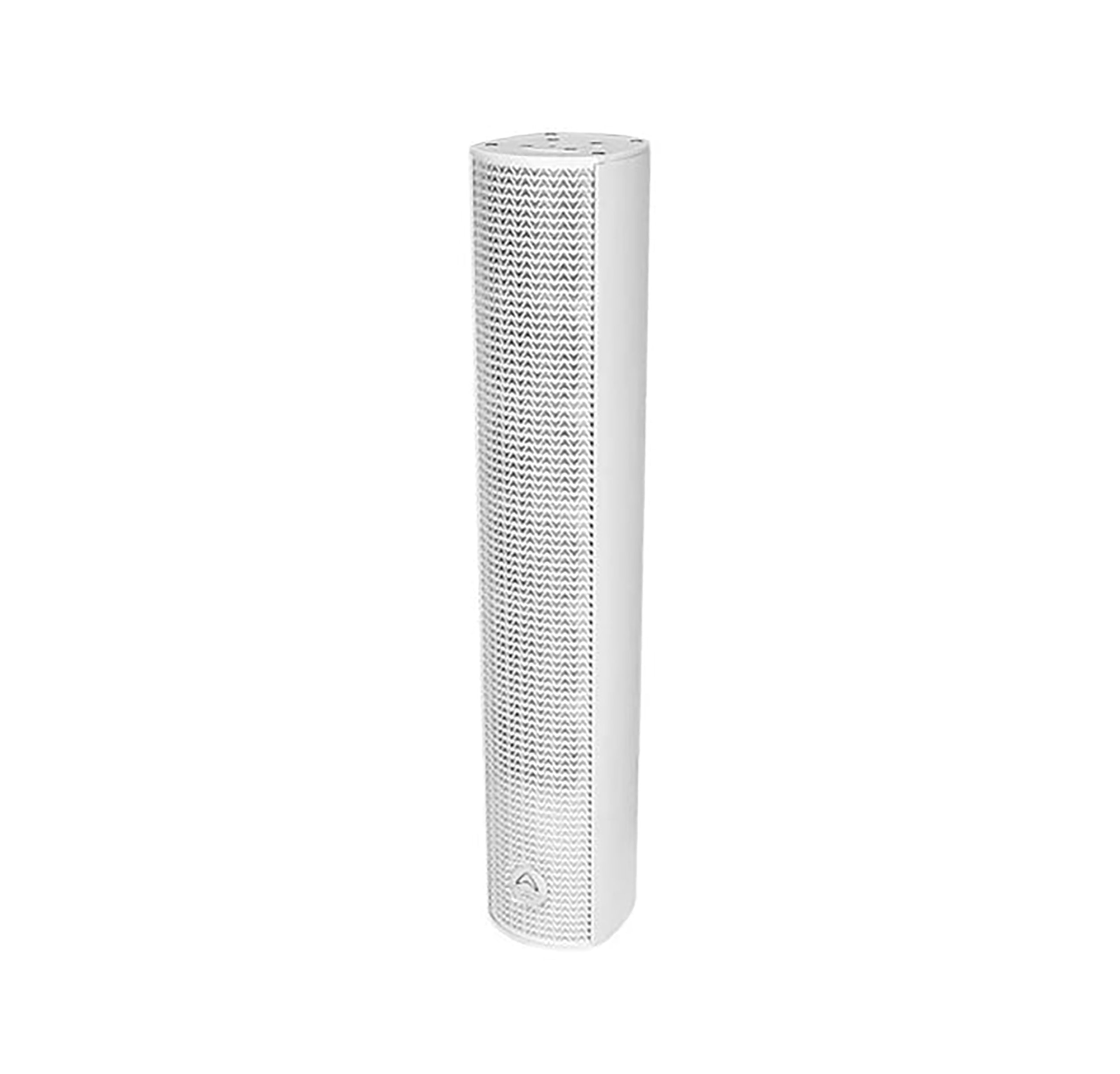

Wharfedale SIGMA-XV5T-WH Compact 5-Inch Passive Loudspeaker - White

The Wharfedale SIGMA-XV5T-WH is a compact yet powerful 5-inch passive loudspeaker designed for professional audio applications, offering clear and detailed sound in a sleek, lightweight package. This model features a custom-designed 5-inch driver for excellent midrange performance, combined with a high-frequency compression driver for crisp and precise treble. Its durable and lightweight construction makes it ideal for portable sound systems, installations, or fixed setups where space is limited. The SIGMA-XV5T-WH delivers balanced, full-range audio with great clarity, making it perfect for small to medium-sized venues, conferences, or monitoring applications. The speaker’s white finish ensures it can blend seamlessly into a variety of environments while maintaining a professional look.

Columns with Mini Evo-Fold

SIGMA-XV models feature the highly refined mini-EVO-Fold waveguide along with HF compression drivers.  For the SIGMA-XV5 there is one, while the SIGMA-XV9 features two compression drivers, each with a mini-EVO-Fold waveguide. This mini-EVO-Fold design provides consistent dispersion coverage on both the horizontal and vertical planes with the sound radiating from one, singular and coherent, source.

Easy Install

Installations can be complicated enough, so we have made SIGMA-X series as easy as possible. For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.

Product Specifications:

System Type: Passive

Configuration: Two-Way

Frequency Response (+/-3 dB): 160 Hz – 18 KHz

Frequency Range (-10 dB): 150 Hz – 20 KHz

Sensitivity 2.83 V / 1 m: 95 dB

Calculated Maximum SPL @1 m: 123 dB

System Rated Impedance: 8 Ω

Low Frequency Transducer:

Size (mm / inches): 5 x 75 mm / 3″

Voice Coil Size (mm / inches): 33 mm / 1.3″

Rated Impedance: 4 Ω

LF Power re:

AES2-2012: 40 W

High Frequency Transducer:

HF Driver Type: 1 x 1″ High Frequency driver

Coil Size (mm / inches): 25.4 mm / 1″

Exit Size (mm / inches): 25.4 mm / 1″

Diaphragm Material: PEI

Rated Impedance: n/a

HF Power re:

AES2-2012: n/a

Waveguide Type: Mini EVO-Fold

Nominal Coverage (H x V): 120˚ x 30˚

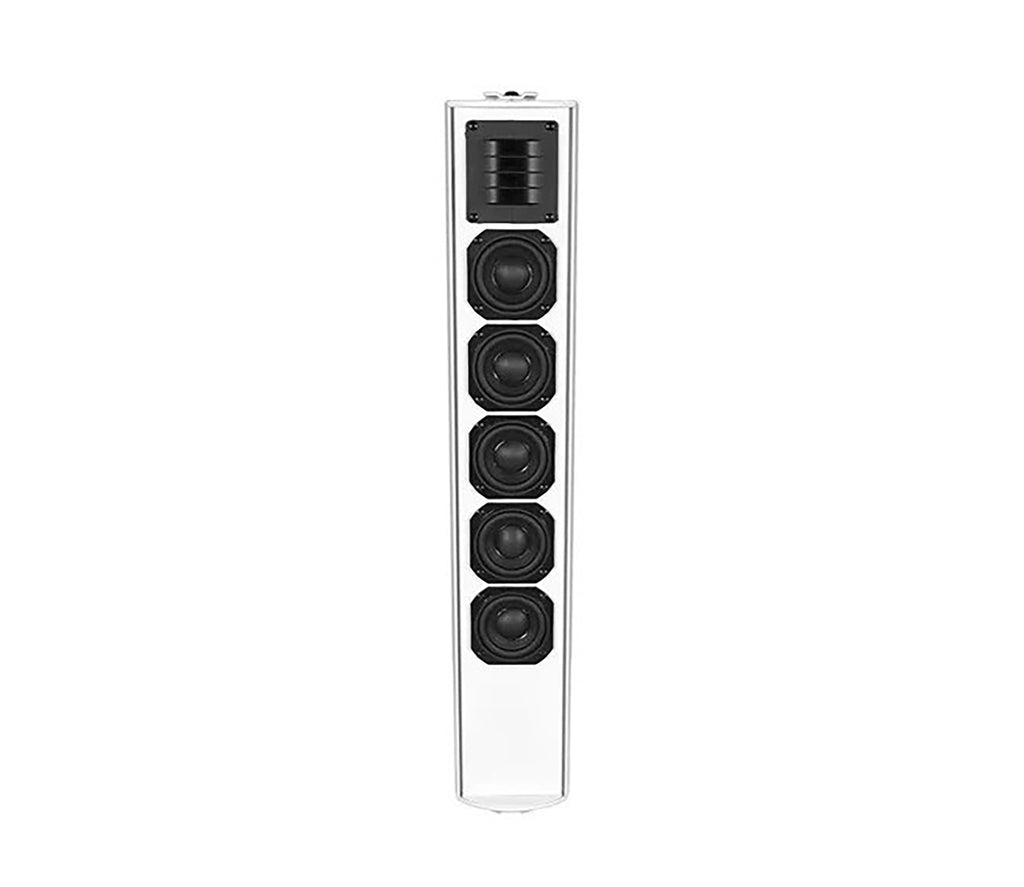

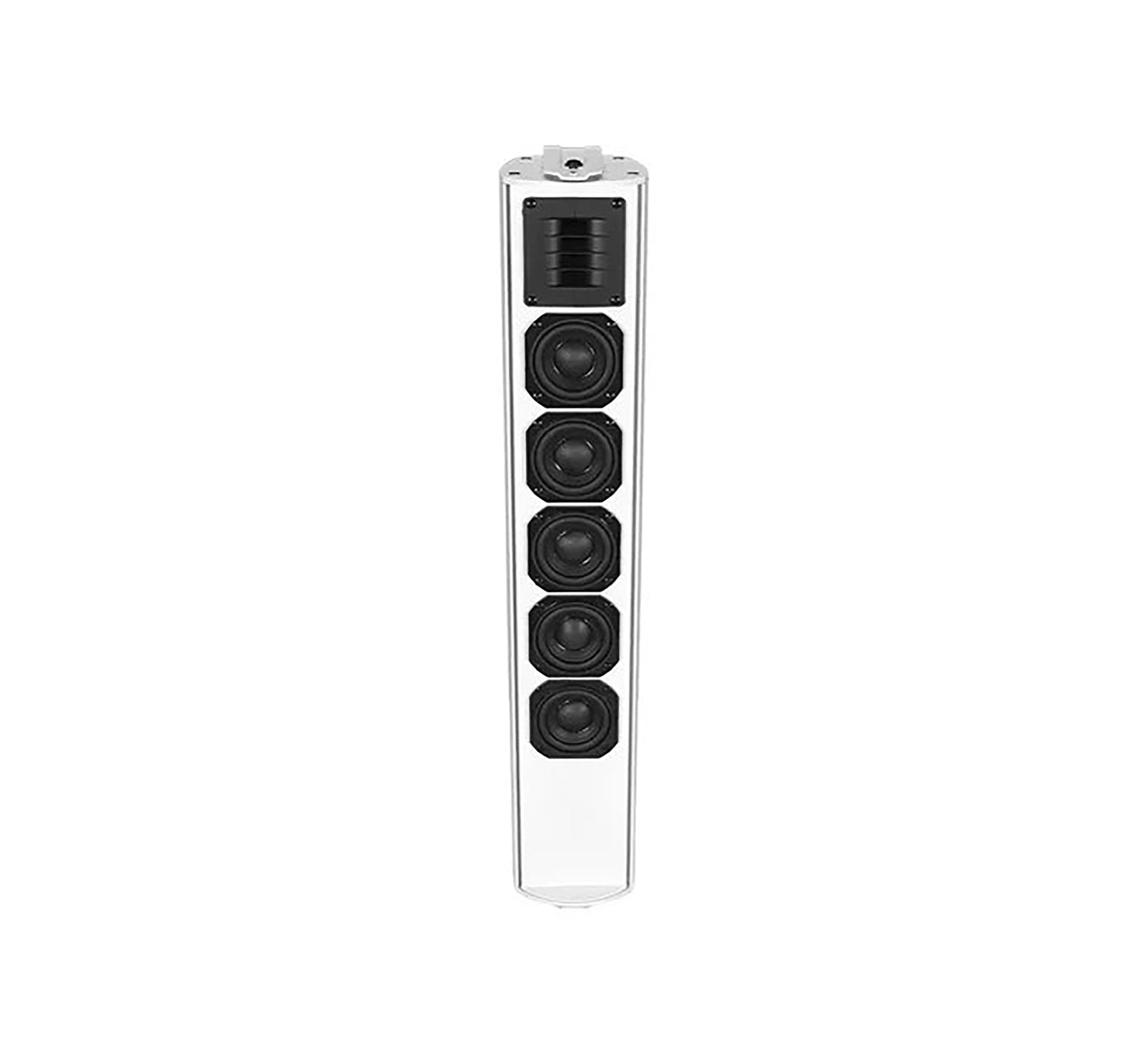

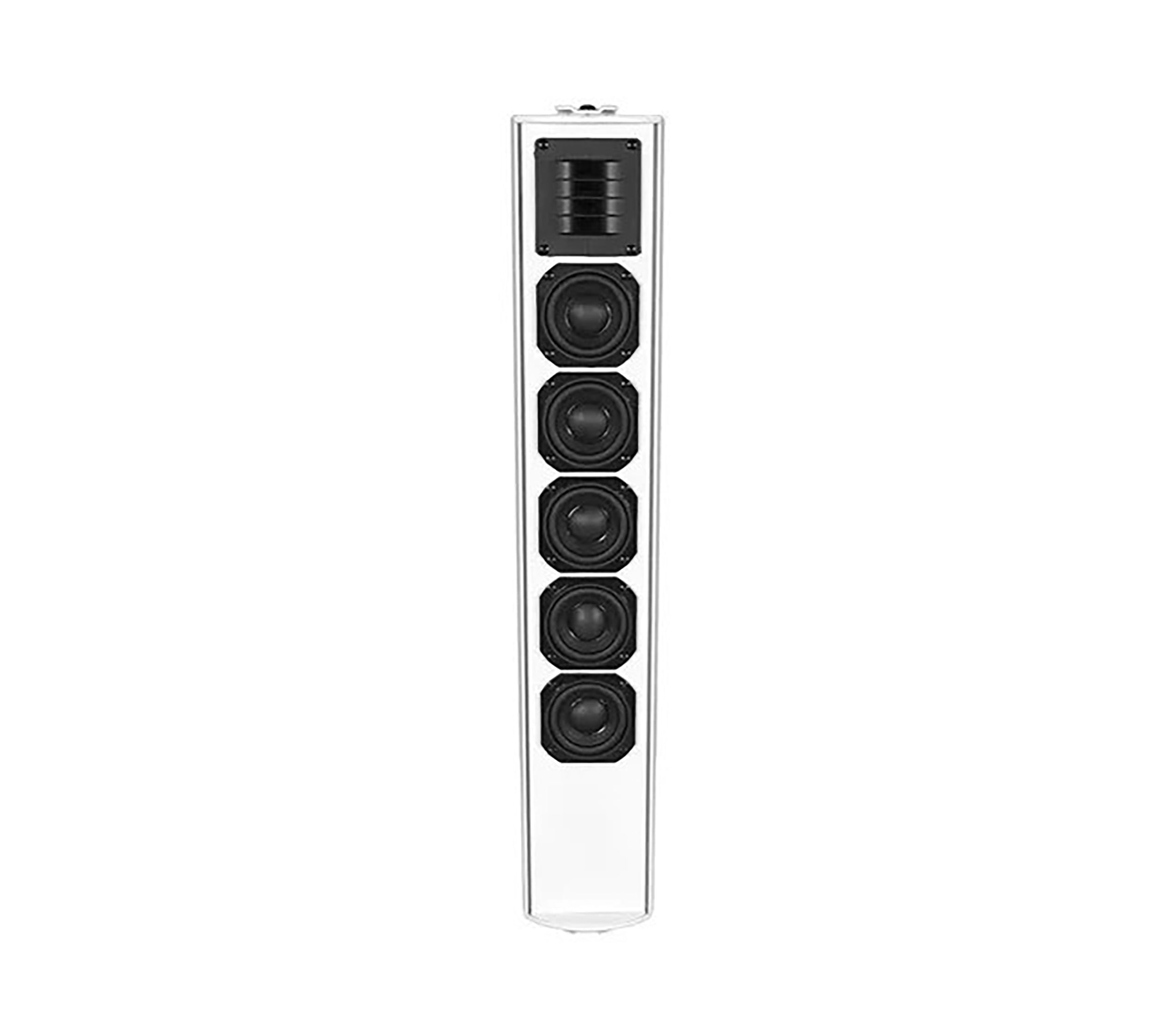

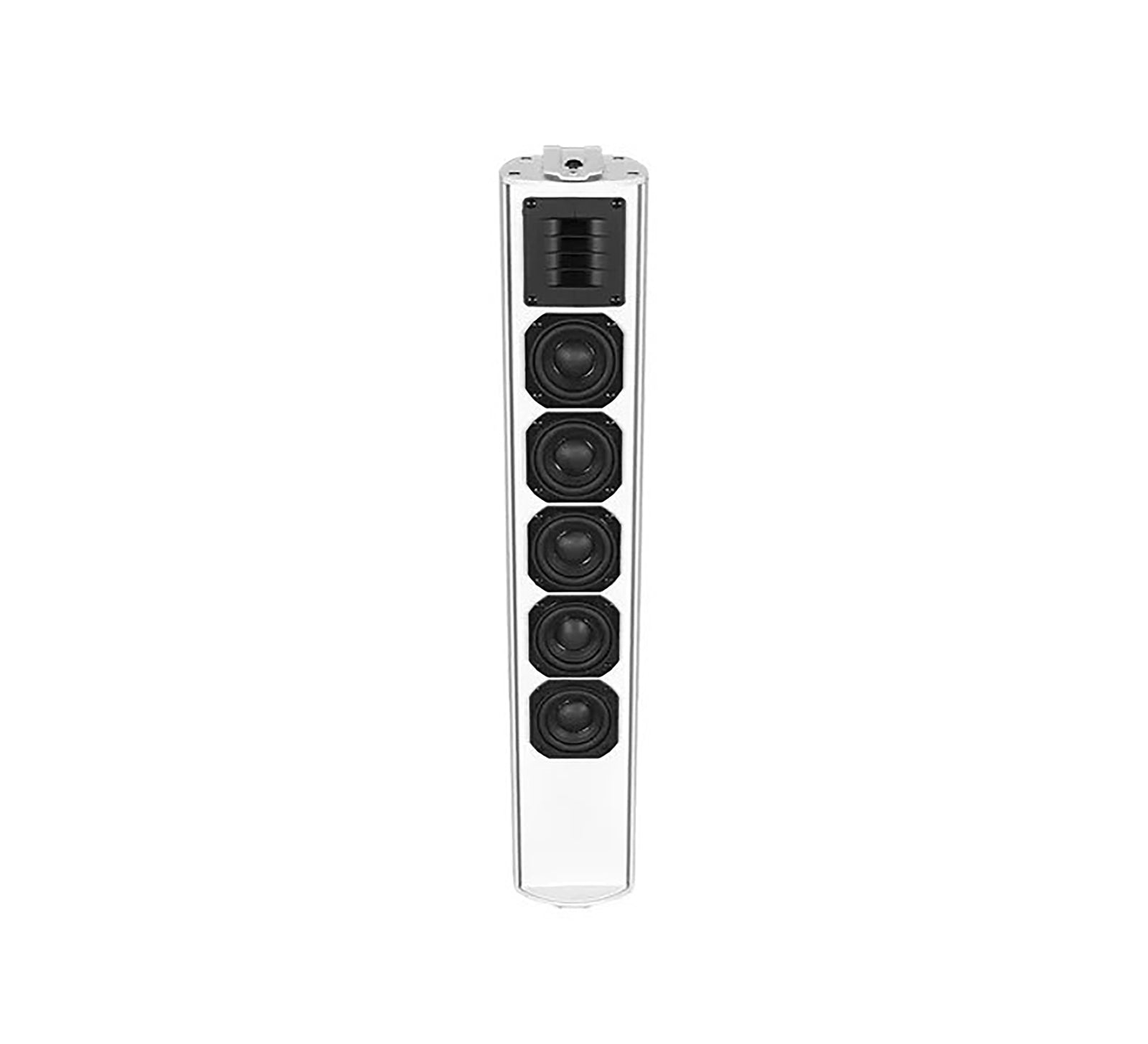

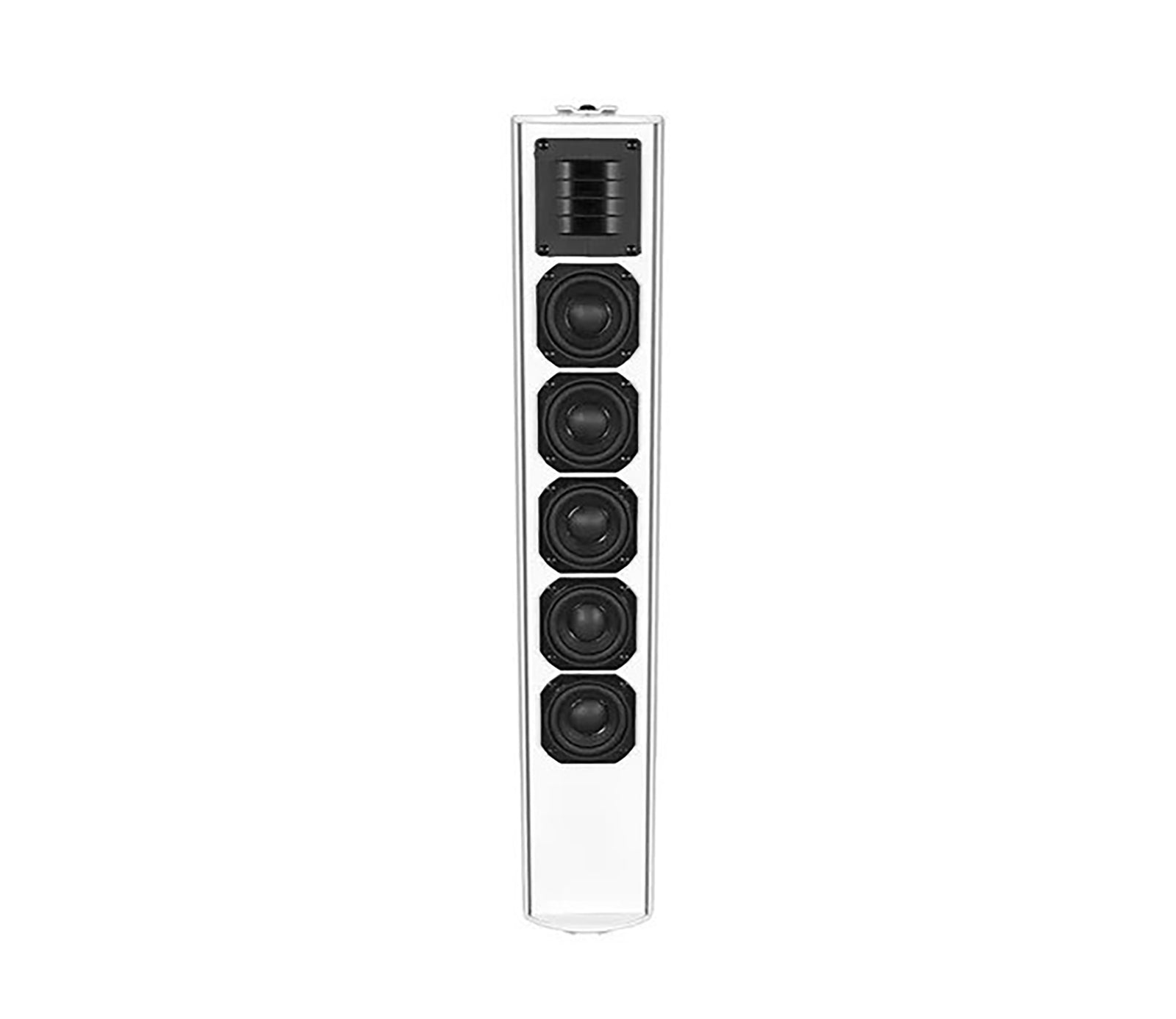

LF Driver: 5 x 3″

HF Driver: 1 x 1″ PEI EVO-Fold Driver

Power:

System Continuous Power: 180 W

System Programme Power: 360 W

System Peak Power: 720 W

Transformer (T): 100 V / 70 V

Transformer Taps (70 V): 7.5,15,30,60 W

Transformer Taps (100 V): 15,30,60 W

Crossover frequency: 2.5 KHz

Recommended HPF = BW 18 dB/oct.: 160 Hz

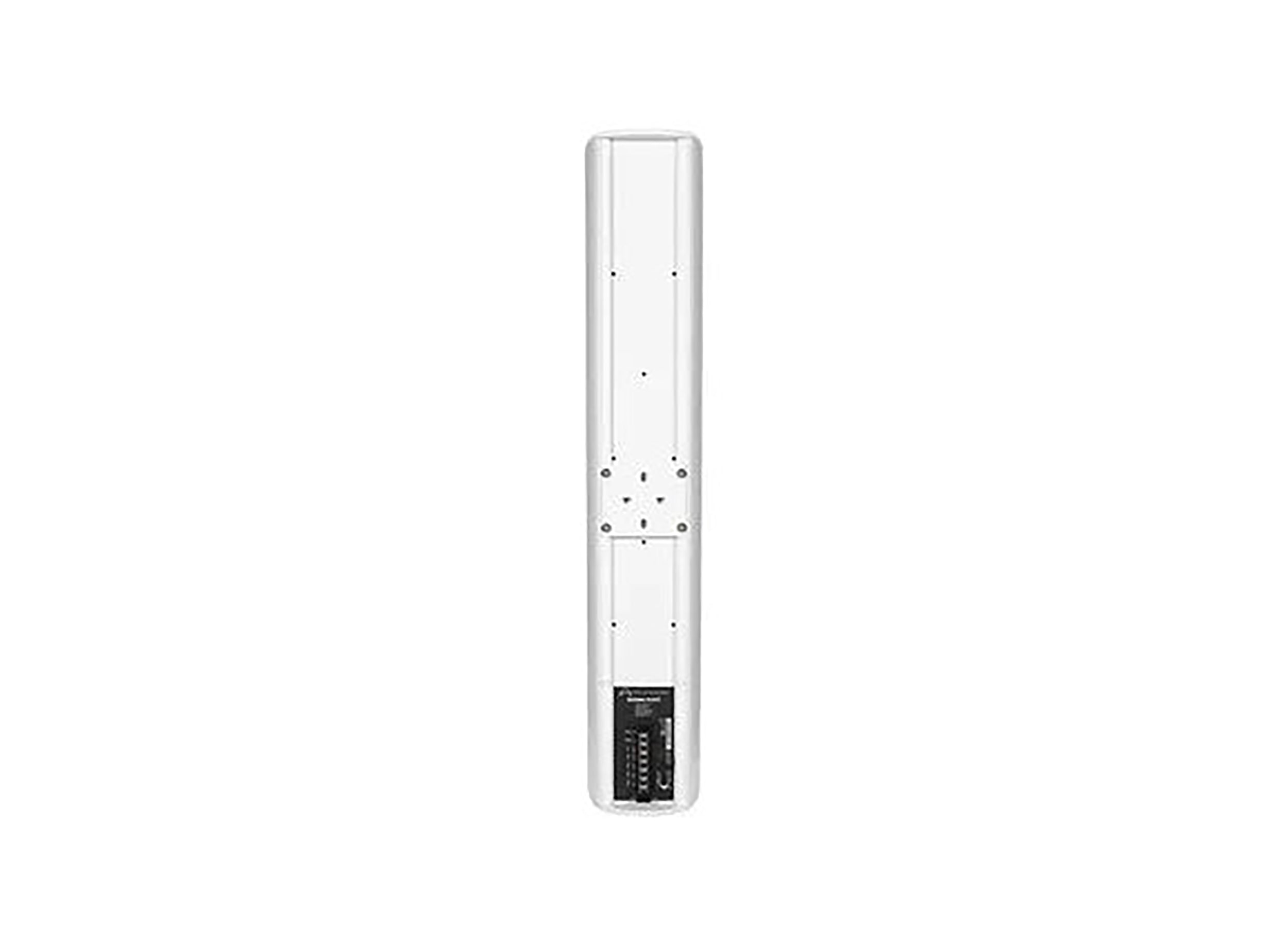

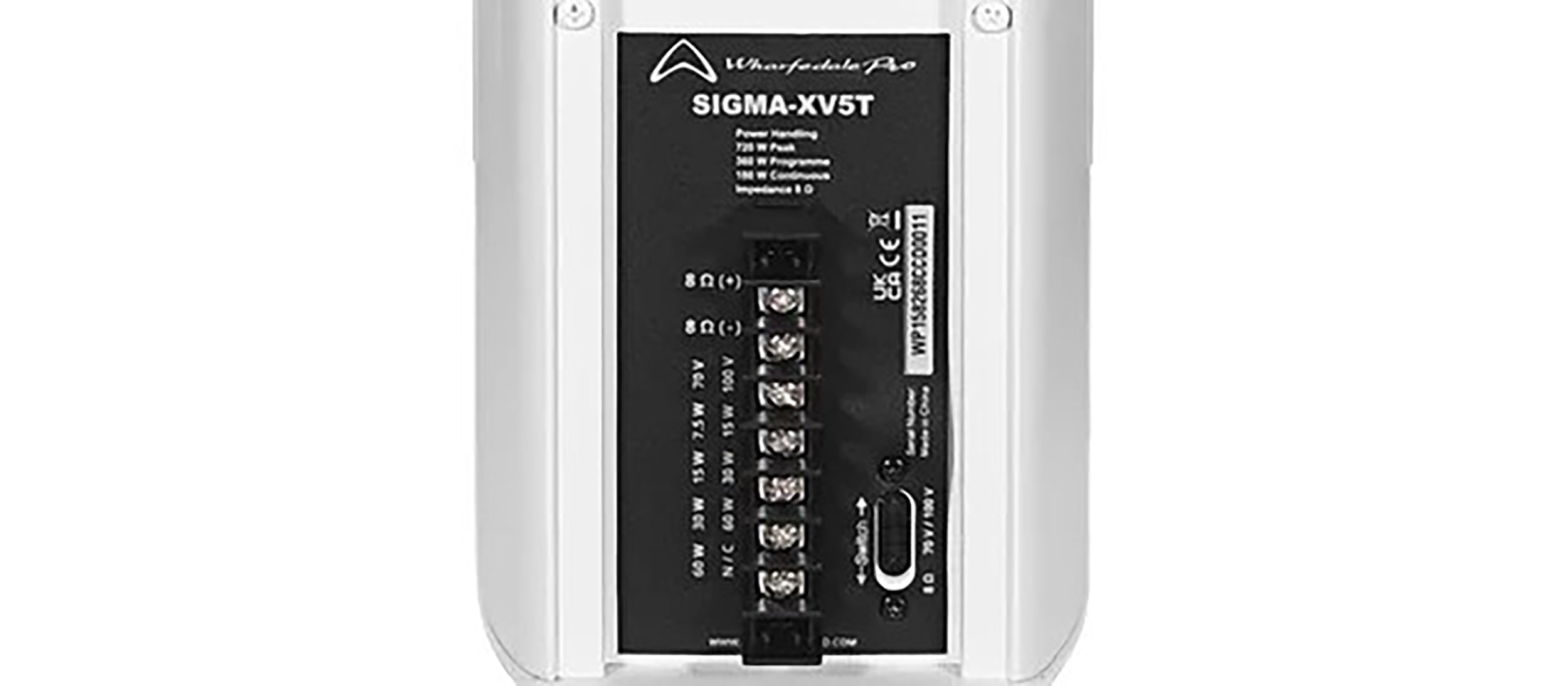

Input Connector: Barrier Strip

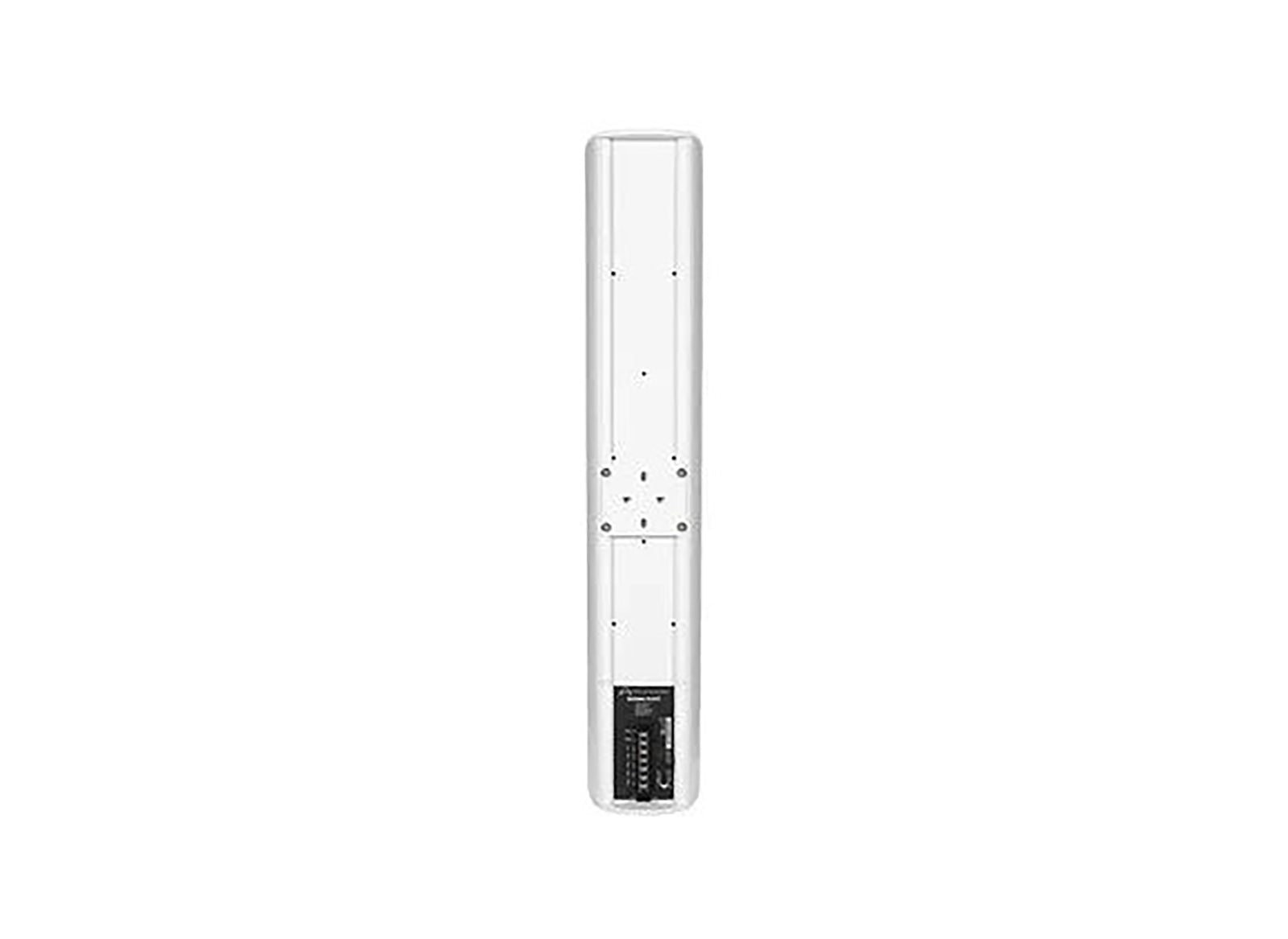

Hardware: U Bracket included

Enclosure:

Enclosure Material: Aluminum

Finish: White Paint

Grille Material & Finish: 1.2 mm steel, painted

Weight: 8.4 kg / 18.4 lbs.

Dimensions (L x W x H): 6" x 5" x 28"

Shipping Weight: 9.2 kg / 20.24 lbs.

Shipping Dimensions (L x W x H): 8" x 8" x 30"
