Description

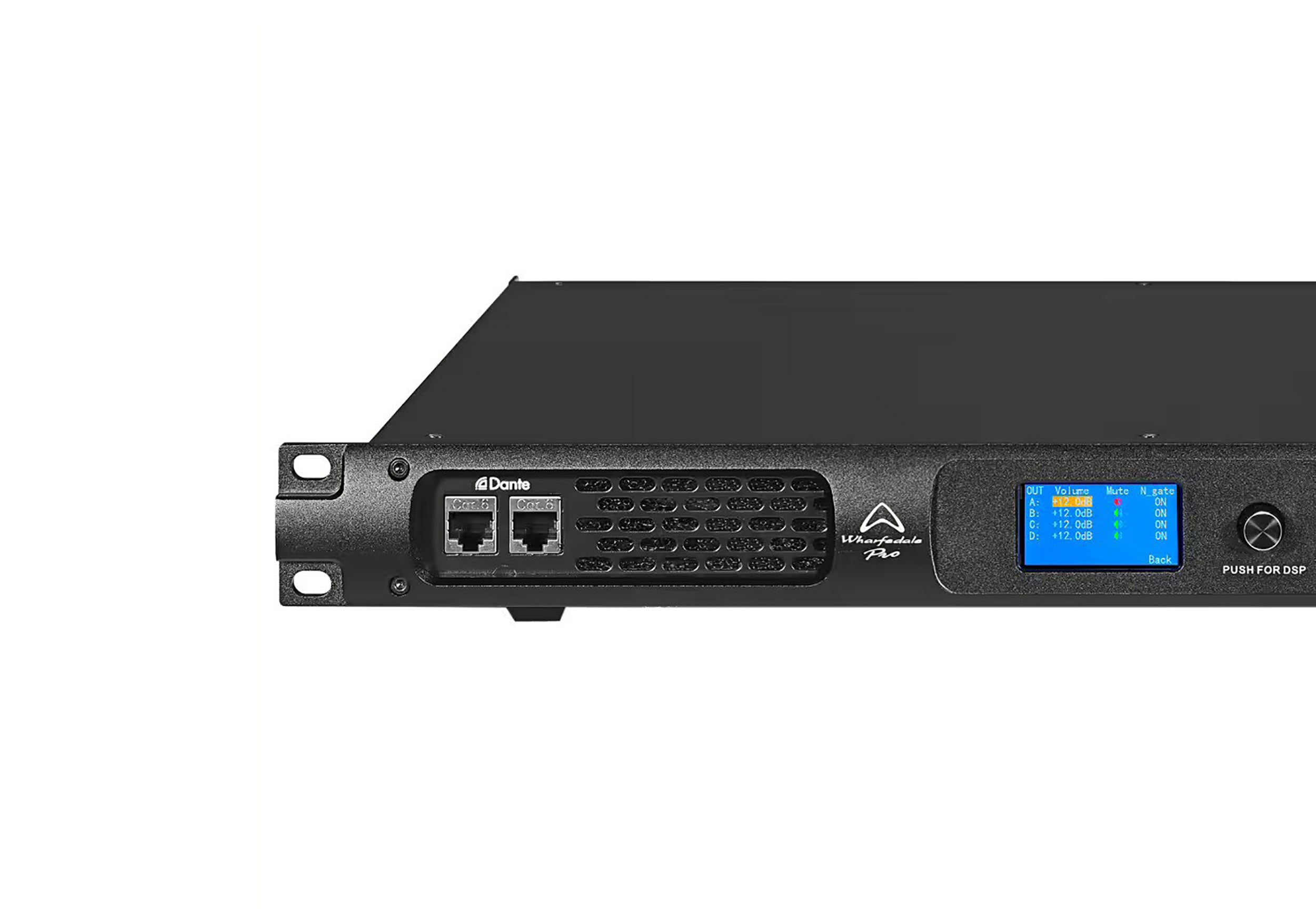

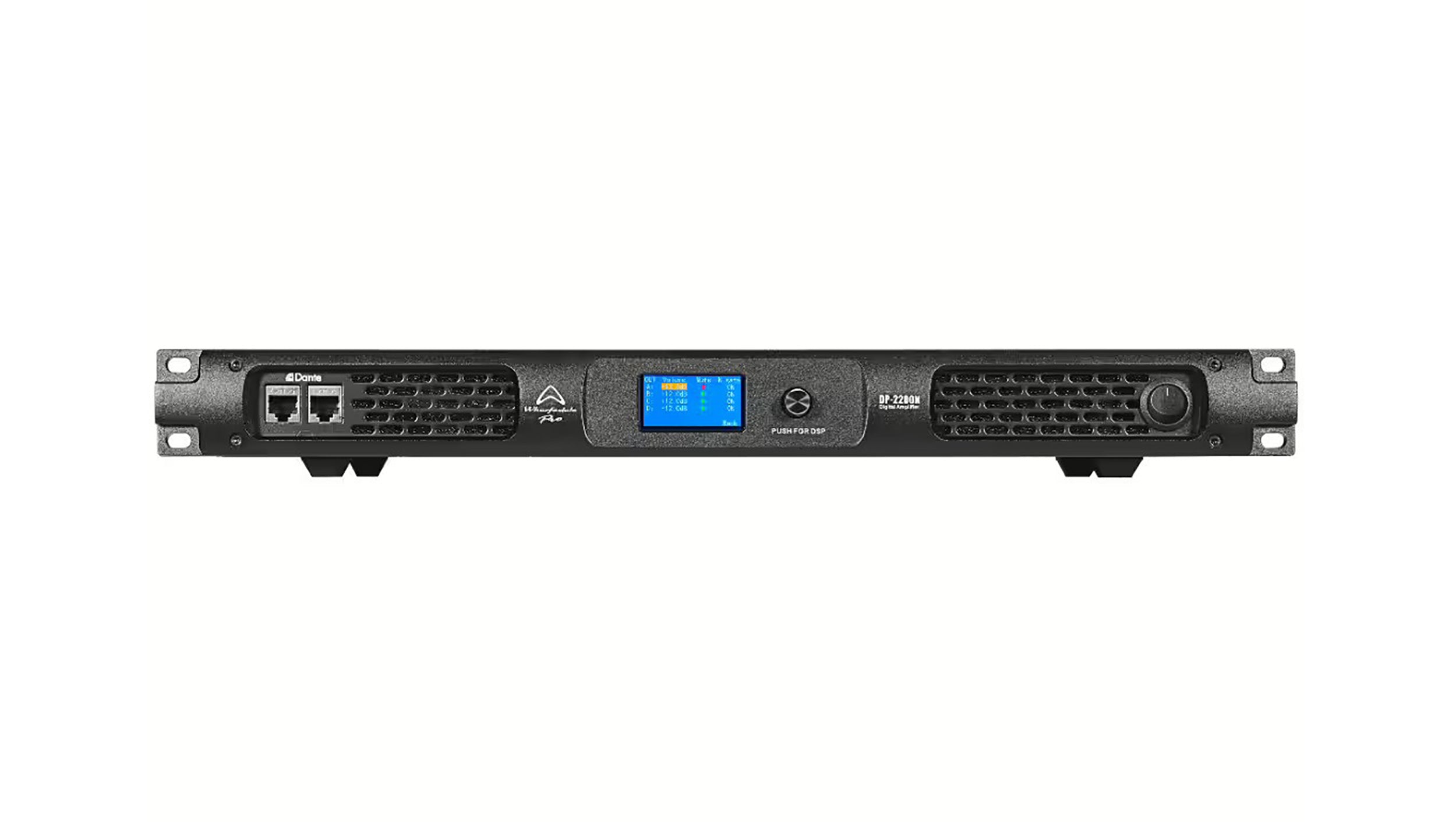

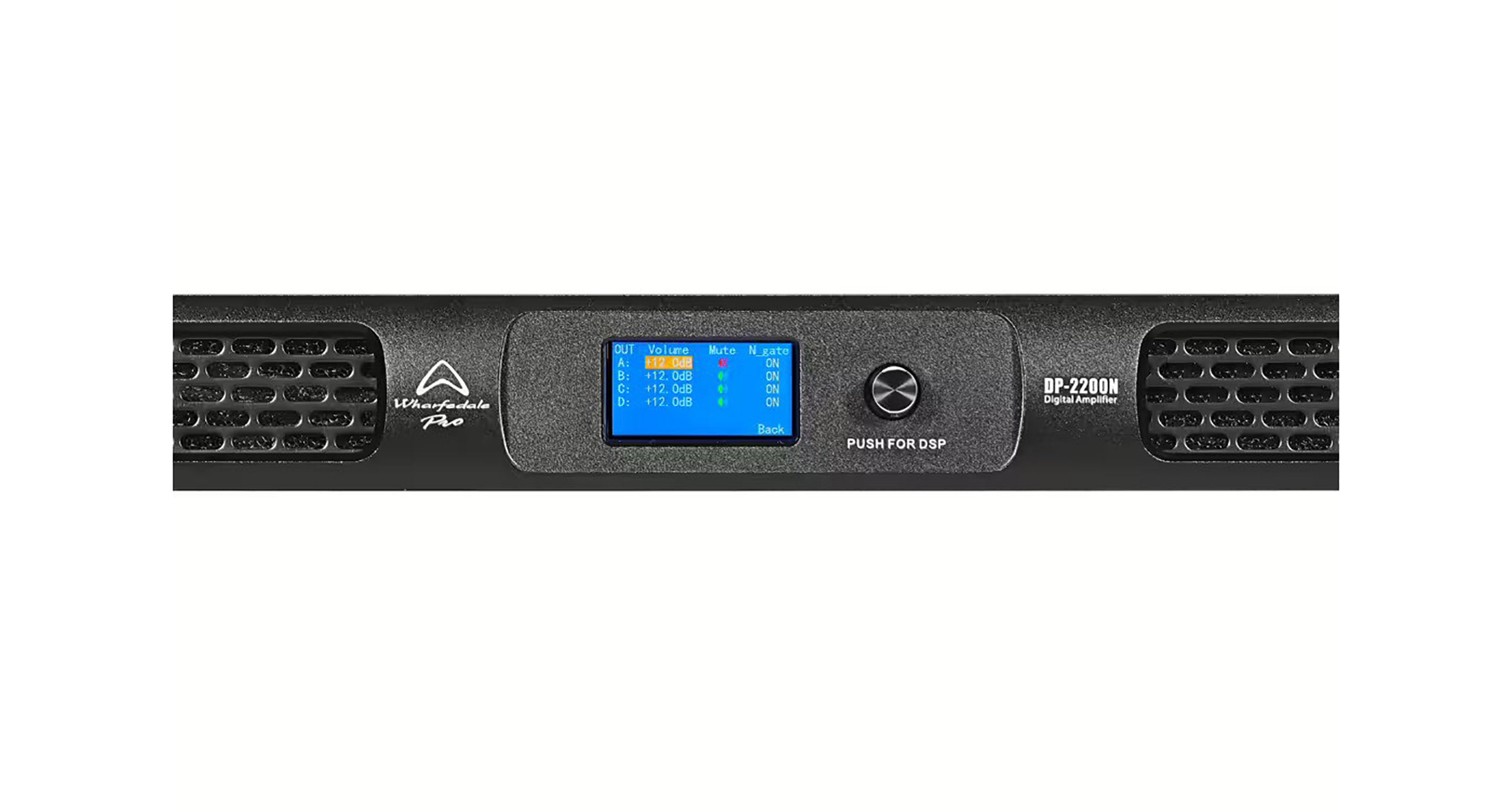

The Wharfedale WD-DP-2200N 8 Ohms Dual Channel Power Amplifier - 2000 Watt is a powerful and efficient dual-channel amplifier designed for professional audio applications. With a robust power output of 2000W per channel at 8 Ohms and Class D amplification technology, this amplifier delivers clean, high-quality audio performance. Ideal for live sound reinforcement, fixed installations, and large venues, the DP-2200N offers dependable performance with low heat generation and lightweight construction for easy transport and integration.
Product Specifications:
Rated Power:
8 Ω / Stereo: 2 x 2000 W
4 Ω / Stereo: 2 x 3400 W
2 Ω / Stereo: 2 x 4760 W
16 Ω / Bridge: 1 x 4000 W
8 Ω / Bridge: 1 x 6800 W
4 Ω / Bridge: 1 x 9520 W
100 V Hi-Z: 2 x 3400 W
70 V Hi-Z: 2 x 2400 W
Output RMS voltage: 126.5 V
Maximum Input Level: +21 dBu
Amp gain: 35 dB
THD+N: Typical value: 0.05% (10% Rated Power,8 Ω)
Cross-Talk: ≥90 dB (20 Hz-1 KHz, Below Rated Power,8 Ω)
Frequency Response: Typical value: +0, -0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω)
Input Impedance: 20 kΩ(Balanced),10 kΩ(Unbalanced)
Damping Factor: ≥1000(20 Hz-200 Hz,8 Ω)
SNR: ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω)
Main Power: 90~260 VAC,50/60 Hz
Protection:
Power under-voltage protection、
Amplifier output DC protection
Thermal Protection
Temperature Power Control
Overload Power Control
Net Weight: 9.3 kg
Dimensions (W×H×D): 483 x 45 x 376 mm
