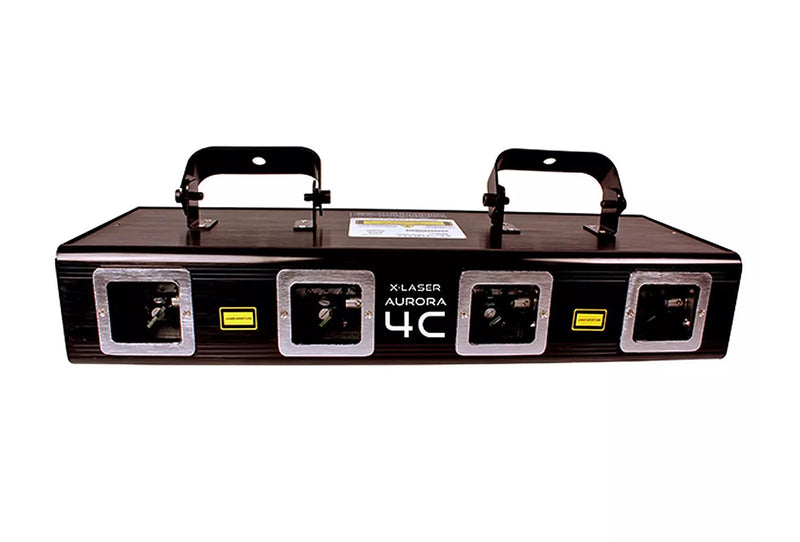

X-Laser Aurora 4C Quad Aperture RGBM Laser

The X-Laser Aurora 4C Quad Aperture RGBM Laser that can captivate audiences in an entirely new way. Re-engineered from the built-in patterns up, the 4C creates intense liquid sky and aerial effects while providing a safer, brighter and more cost-effective laser experience for users of any skill level. By removing the Y-Axis, Aurora 4C users can now create stunning, vividly bright, room-filling aerial effects more easily and affordably than ever before.

Bright, Vivid Beams

Easily fill the room with color, whether you want to generate a bold liquid sky or a dynamic beam show, in the easiest and most affordable way possible today.

Great for Beginners and Pros Alike

Aurora models are super easy to rig and can operate in demo mode via DMX or with your own custom 9-channel DMX programming.

Aurora Lasers Make Aerial Effects Safer Than Ever

Aurora quad-aperture lasers cannot scan up into the sky or down into an audience, so with proper rigging, you can be totally sure of a safe performance.

Create Laser Shows That Dominate Even the Biggest Venues

Quad-aperture Auroras have extremely wide sweep angles, so they can fill even the largest spaces with awesome effects, especially when using multiple units.

Certified to The World’s Toughest Quality Standards

All X-Laser projectors comply with U.S. FDA standards and with applicable IEC, UL, ETL, CSA & ROHS standards.

Product Specifications:

Control: 9-Channel DMX (3-Pin Input and Output) Recommended, Demo And Sound Active Modes Available Via DMX

Scanners: Open-Loop Micro Stepper Motors

Settings Interface: DIP Switches

Color Modulation: TTL

Laser Energy: 250mw (0.25W)

Wavelengths: 532nm Green, 650nm Red, 445nm Blue

Physical: 21.75” X 8.5” X 6”; 9.2lbs

Housing Type: Black Anodized 6061 Aluminum

Power Draw: 40W Typical, 60W Peak

Power: 110V/220V Auto Switching, 3-Pin IEC

Beam Divergence: 1.5-3 Mrad

Beam Source: Direct-Injection DPSS Diode

Cooling: Filtered Forced Air

FDA/IEC Hazard Class: Class 3B

International Safety: IEC 60825-1 Ed. 2007

FDA/CDRH: 21CFR1040.10 And 1040.11(C)

Canadian Safety: CSA C.22.2 No. 60950-1

EU Safety: EN 60825-1, EN 60950
