Description

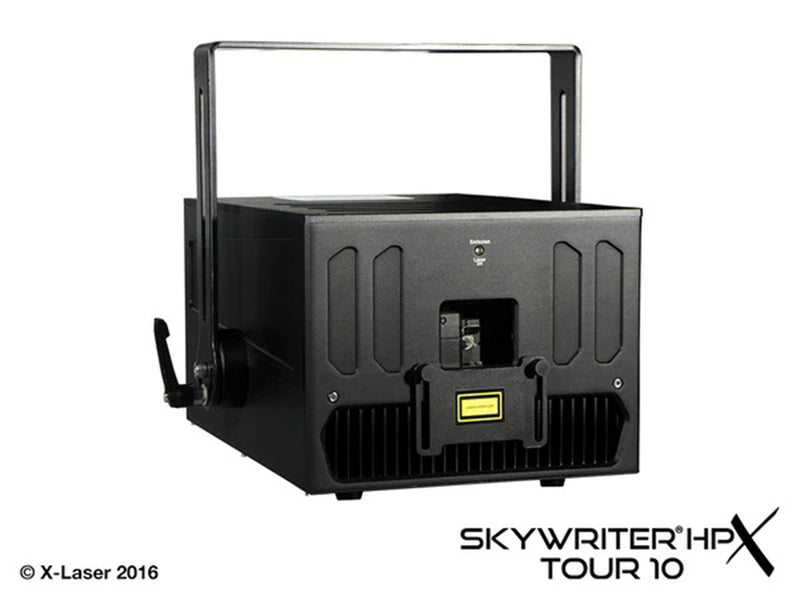

The X-Laser Skywriter HPX M-10 Aerial Effect Laser Projector with Mercury DMX – 10W is engineered to outmatch the competition by offering superior brightness, superior control and superior value. For the largest venues and audiences, indoors and out, X-Laser’s highest-powered lasers are the perfect solution for incredible laser effects. The Skywriter HPX M-10 boasts 10W of RGB full-color laser effects and is perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control featuring integrated X-Laser Mercury control for pro lighting consoles (DMX, sACN, Art-Net), the Skywriter HPX M-10 is an ultra-high-powered unit that makes a lasting impression. (The Skywriter HPX MF-10 is also available with X-Laser Mercury control and Pangolin FB4 integrated).
Direct compatibility with lighting consoles
With X-Laser’s Mercury laser projector control system, The Skywriter HPX M-10 functions just like any other moving-head fixture when connected to a pro console.
Big Power, Big Value
With 10W of laser power, The Skywriter HPX M-10 produce mind-blowing effects at a value that makes it accessible for venues, production companies and rental houses of all sizes.
Engineered for Efficiency
Series of robust external cooling fans and hundreds of square inches of heat sinking area keep the fixture cool, to help your rig produce awesome effects for longer.
Road Ready, Road Rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
Professional, Precision Graphics
With ILDA-standard 20K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.
Certified To The World’s Toughest Quality Standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.
Product Specifications:
Control: X-Laser Mercury Integrated
Scanners: High-Speed, Closed-Loop Galvanometers, Max Scan Angle 45 Degrees, 20K PPS At 8-Degrees
Settings Interface: Mercury LED
Wavelengths: 650nm Red, 532nm Green, 445nm Blue
Color Modulation: Analog, 1,000+ Colors
Beam Source: Direct-Injection Diode Modules
Physical: 16" L X 13.5" W X 13.5" H; 33lbs
Housing Type: Anodized 6061 Aluminum
Power Draw: 150W Typical, 300W Peak
Beam Divergence: 1-2 MRad
Cooling: External Heat Sink And Fan System
FDA/IEC Hazard Class: Class 4
International Safety: IEC 60825-1 Ed. 2007
FDA/CDRH: 21CFR1040.10 And 1040.11(C)
Canadian Safety: CSA C.22.2 No. 60950-1
EU Safety: EN 60825-1, EN 60950
