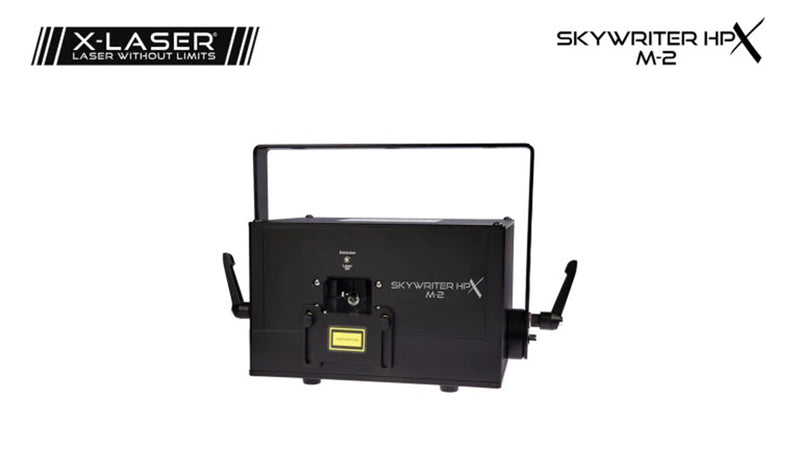

X-Laser Skywriter HPX M-2 Aerial Effect Laser Projector w/ Mercury DMX

The X-Laser Skywriter HPX M-2 Aerial Effect Laser Projector with Mercury DMX- 2W is the most affordable way to access X-Laser’s Mercury laser control system in a fixture that is truly road ready. The Skywriter HPX M-2 is ideal for small and medium-sized productions where vibrant laser effects can stand out on their own or be used to complement other effect lighting. Lighting professionals can easily integrate the M-2 into their lighting rigs and control it in unison with the rest of their lighting, from just about any major console or lighting controller. The Skywriter HPX M-2 has 2W of full RGB laser power and can be used indoors or outdoors, in venues with audiences of up to 1,000 guests.

The Skywriter HPX M-2 is the lower-power, lower-cost sibling of our most popular projector, the Skywriter HPX M-5, and combined with our Mercury control system allows for large arrays of lasers with incredible capabilities, all controlled from a lighting console to create amazing cascading movement, dimmer and color chases.

Direct Compatibility with Lighting Consoles

With X-laser’s Mercury laser projector control system, the Skywriter HPX M-2 functions just like any other moving-head fixture when connected to a pro console.

Huge Value Helps Make Huge Laser Arrays

The lower cost of the Skywriter HPX M-2 enables arrays controlled from a lighting console to create amazing cascading movement, dimmer and color chases.

Bold Beams. Crisp Graphics. No Compromises

With ILDA-standard 30K graphics scanners the Skywriter HPX M-2 can produce thick, vibrant aerial beams as well as sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.

Designed for Rentals and Production

With a rugged housing, sealed optical deck and wide-ranging effect flexibility, the Skywriter HPX M-2 was engineered specifically to serve the vast artistic possibilities demanded by rental houses, production companies and high-end installation applications.

Certified to the World’s Toughest Quality Standards

All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.

Product Specifications:

Control: X-Laser Mercury control, ILDA

Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30K PPS at 8-degrees

Settings Interface: Mercury LCD

Color Modulation: Analog, 1,000+ colors

Laser Energy: 2W raw (500mW R, 500mW G, 1W B)

Beam Source: Direct-injection diode modules

Wavelengths: 638nm red, 520nm green, 445nm blue

Physical: 15”W x 12.3”H x 9.4"L; 15lbs (381mm x 235mm x 260mm, 6.8kg)

Housing Type: Anodized 6061 aluminum

Power Draw: 40W typical, 85W peak

Power: 150W PowerCON compatible in/out, 5x20mm 250V 6.3A fast-acting fuse

Beam Divergence: <1.6 mRad

Cooling: Forced air through heat sink and TEC

FDA/IEC Hazard Class: Class 4

International Safety: IEC 60825-1 ed. 2007

FDA/CDRH:10 and 1040.11(c)

Canadian Safety: CSA C.22.2 No. 60950-1

EU Safety: EN 60825-1, EN 60950
