Description

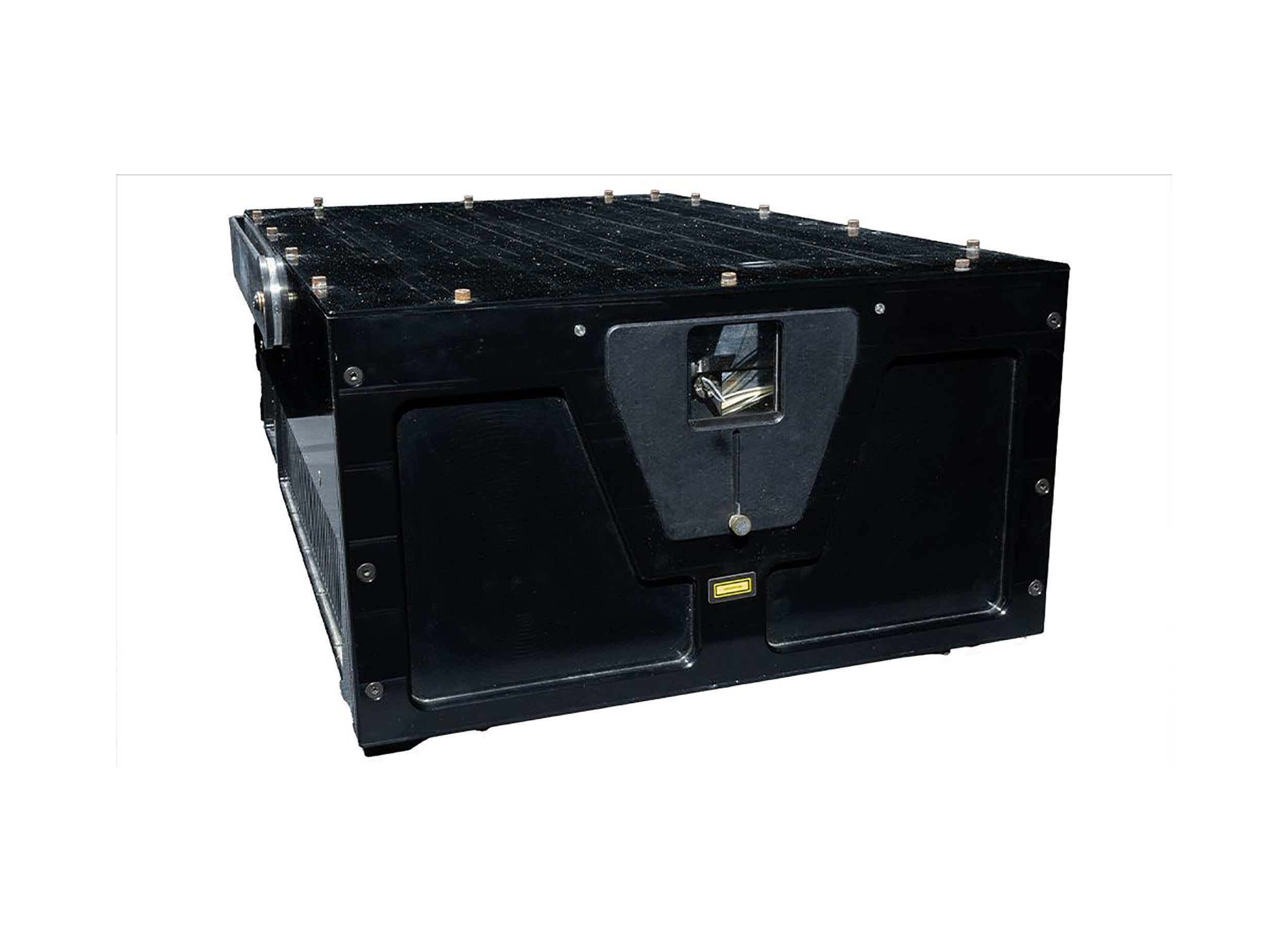

The X-Laser Triton T-10 is the first 10W RGB production-grade laser fixture to be engineered for IP64 durability and built in the United States. The Triton series lasers offer moderate power at a strong value, making them ideal for creating arrays of multiple systems in line with traditional moving lights. Specifically, these fixtures boast a compact form factor and a unique mounting solution that allows rapid deployment and IP64 durability when rigged both vertically and horizontally.
The Triton series lasers have full RGB direct-injection laser diode modules, tuned for ideal balance so they can color mix on par with - or better than - today's top-brand "traditional" fixtures. Creating looks with rich berry, vivid orange or intense lime colors is no problem for Triton. Designers also benefit from the creative power and flexibility of X-Laser's Mercury Laser Control System, which enables programming directly from the lighting console using the same show file and common signal protocols such as DMX, sACN, Art-Net as well as RDM configuration capability.
Designers using the Triton series lasers also benefit from laser-specific advantages such as an incredible zoom range of 0.1-degree to 45-degree and instantaneous zoom and digital "gobo" changes, making these fixtures an awesomely punchy complementary effect for all genres, venues and performances. And with an easy-to-understand large LCD live diagnostic readout and field-serviceable alignment, the Triton series unites reliability and laser effects like never before.
Built road-ready, the Triton series lasers ship individually in standard plastic Pelican-style cases and can also easily fit up to 4 units in a standard-size wheeled touring cart.
Product Specifications:
Source:
2W Balanced RGB Laser Engine
Direct-Injection Diode Modules
Wavelengths: 638nm Red, 520nm Green, 445nm Blue
Laser Energy: XXXmW Red, XXXmW Green, XXXmW Blue
Optics:
High-speed closed-loop galvanometers
45-Degree max scan angle
30K PPS Scanner speed at 8-degree scan angle
Beam divergence of <1.4 mRad
Fully sealed optical deck for IP64 usage
Electrical and Thermal:
AC 100-240V - 50/60hZ
200W
Neutrik PowerCON
0F to 115F operating temperature
120 cfm Cooling Fans
Control and Interface:
X-Laser Mercury integrated, 2.25" LCD with panel
Up to 8 layers of basic builder control
Profiles for all major console brands
EtherStop combined Remote Stop and Control Data in and thru
PowerCON in and thru
Colors and Effects:
Additive RGB Analog Color Mixing
1000+ Colors
50 Color Macros
11 Digital Prisms
450+ "Gobos" and digital patterns built-in
60 Motion Macros with variable speed and amplitude
Physical:
IP64 in both orientations (fans up/handle up)
Gasketed Seams (rope gaskets)
Weather-Sealed Recessed Keyswitch
Rugged 6061-T6 Aluminum Enclosure
Safety and Failsafes:
Shutter / Beam Block for both orientations
Mounts using standard stage clamps
Safety cable loops through front bumpers for predictable upward tilt in case of rigging failure
Dimensions and Weight:
Length: 13 inches
Width: 6.25 inches
Height: 5 inches
Weight: 21 lbs.
Other Information:
FDA / IEC Hazard Class IV
U.S. FDA Variance Required
