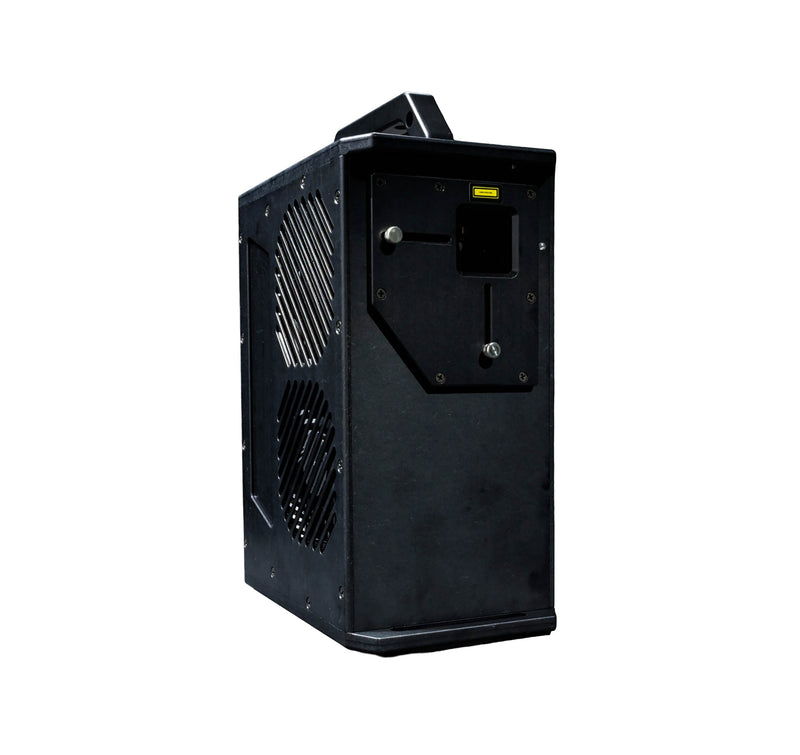

X-Laser Triton T-5, RGB Laser Fixture with Mercury Laser Control - 5 Watt

Save 23%
SKU: H-XLAS-TRITONT5

Price:
Sale price$6,799.00 Regular price$8,838.70
Stock:
Sold out

Notify me when available

Shop with Confidence

  • Extra 1 Year Warranty Free through us! (*consumables not included)
  • 2 Day Air Free or heavily discounted
  • Price match guarantee

Signature required shipping for your security.

Call us for package deal pricing anytime 800-700-4542.

Description

The X-Laser Triton T-5, RGB Laser Fixture with Mercury Laser Control - 5 Watt is the first production-grade laser fixture engineered for IP64 durability and built in the United States. The T-5 (5W, 5,000mW) offers moderate power at a strong value, making them ideal for creating arrays of multiple systems in line with traditional moving lights. Specifically, these fixtures boast a compact form factor (approx. 13" x 7" x 5", ~20 lbs.) and a unique mounting solution that allows rapid deployment and IP64 durability when rigged both vertically and horizontally. The T-5 has full RGB direct-injection laser diode modules, tuned for ideal balance so they can color mix on par with-or better than-today's top-brand "traditional" fixtures. Creating looks with rich berry, vivid orange or intense lime colors is no problem for Triton.

Designers also benefit from the creative power and flexibility of X-Laser's Mercury Laser Control System, which enables programming directly from the lighting console using the same show file and common signal protocols such as DMX, sACN, Art-Net as well as RDM configuration capability. Designers using the Triton T-5 also benefit from laser-specific advantages such as an incredible zoom range of 0.1º to 45º and instantaneous zoom and digital "gobo" changes, making these fixtures an awesomely punchy complementary effect for all genres, venues and performances. And with an easy-to-understand large LCD live diagnostic readout and field-serviceable alignment, the Triton series unites reliability and laser effects like never before. Built road-ready, the Triton T-5 ships individually in standard plastic Pelican-style cases and can also easily fit up to 4 units in a standard-size wheeled touring cart. Satisfy stagehands, delight designers and amaze audiences with the Triton T-5 from X-Laser


Product Specifications:

Source:

2W / 5W Balanced RGB Laser Engine

Direct-Injection Diode Modules

Red: 638 nm

Green: 520 nm

Blue: 445 nm

500mW red, 700mW green, 800mW blue

Photometrics/Optics:

High-Speed Closed-Loop Galvanometers, Max Scan Angle 45º

30,000 PPS Scanner Speed at 8º Scan Angle

Beam Divergence: <1.4 mRad

Fully Sealed Optical Deck for IP64 Usage

Electrical/Thermal:

AC 100-240V - 50/60hZ 200W

Neutrik PowerCON

0º F to 115º F (-17º C to 46º C)

120 cfm Cooling Fans

Control and Interfaces:

X-Laser Mercury Integrated, 2.25" LCD w/ panel

Up to 8 Layers of Basic Builder Control

Profiles for all major console brands

EtherStop Combined Remote Stop and Control Data in / thru

PowerCON in / thru

Color and Effects:

Additive RGB Analog Color Mixing

1,000+ Colors

50 Color Macros

11 Digital Prisms

450+ "Gobos" / Digital Patterns Built-In

60 Motion Macros with variable speed and amplitude

Dimensions/Physical/Materials:

13" x 6.25" x 5" (330 mm x 159 mm x 127 mm)

21.0 lbs. (9.52 kg) – Triton T-5

IP64 in both orientations (fans up / handle up)

Gasketed Seams (rope gaskets)

Weather-Sealed Recessed Key switch

Rugged 6061-T6 Aluminum Enclosure

Safety / Failsafe’s:

Shutter / Beam Block for both orientations

Mounts using standard stage clamps

Safety cable loops through front bumpers for predictable upward tilt in case of rigging failure

Other:

FDA / IEC Hazard Class IV

U.S. FDA Variance Required
