Description

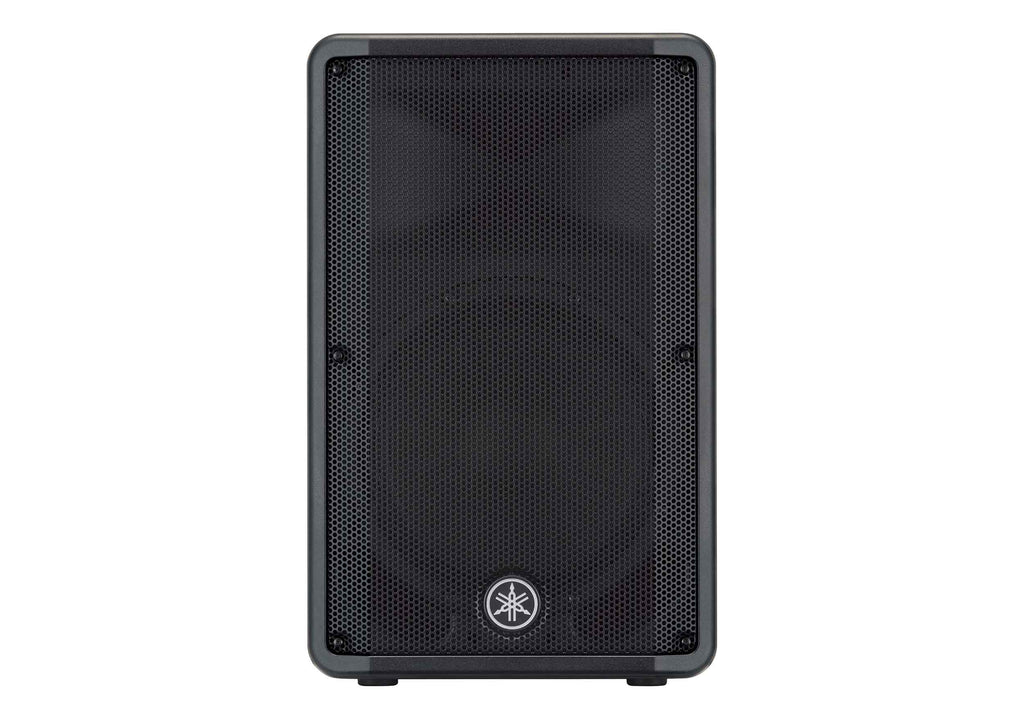

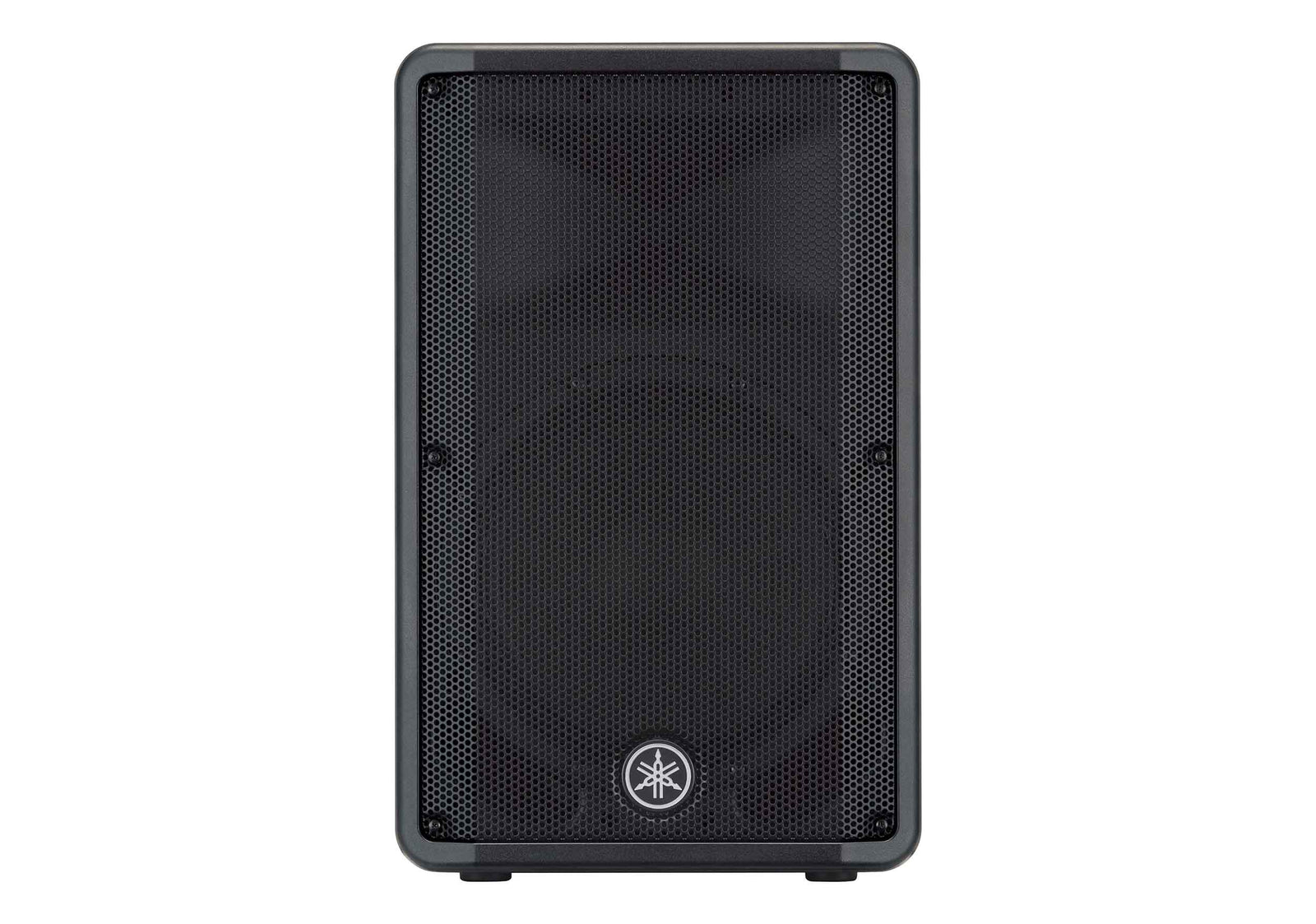

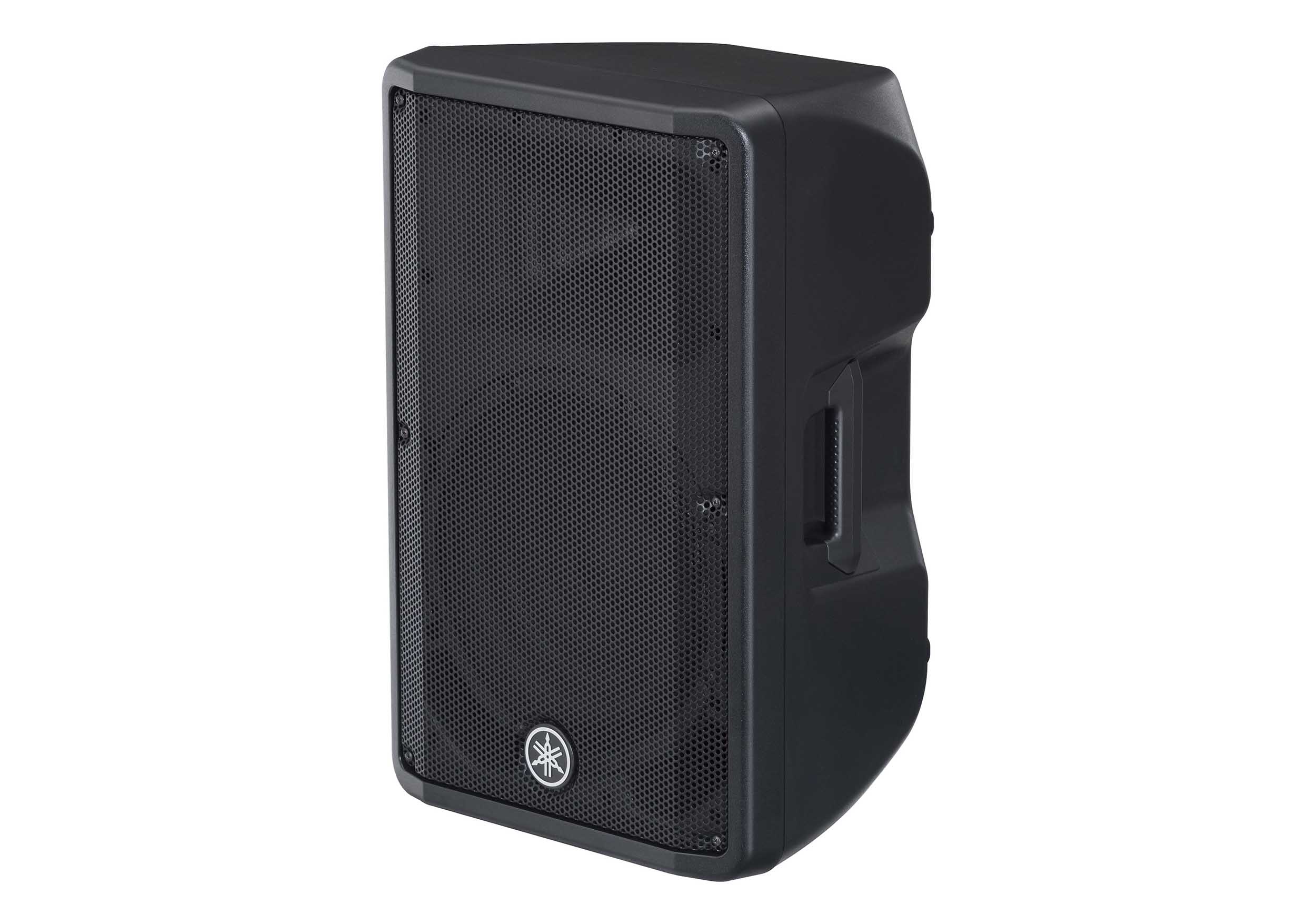

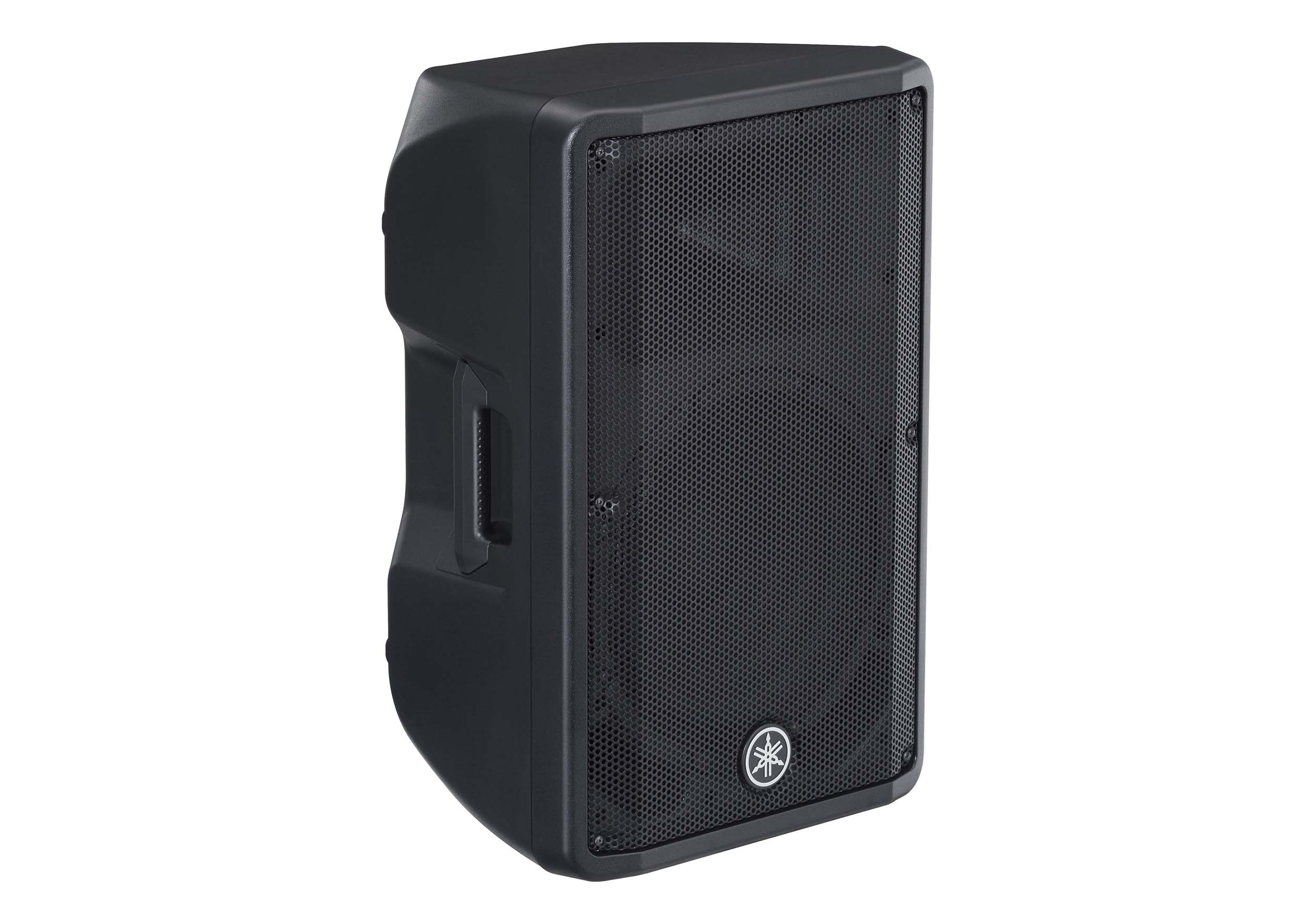

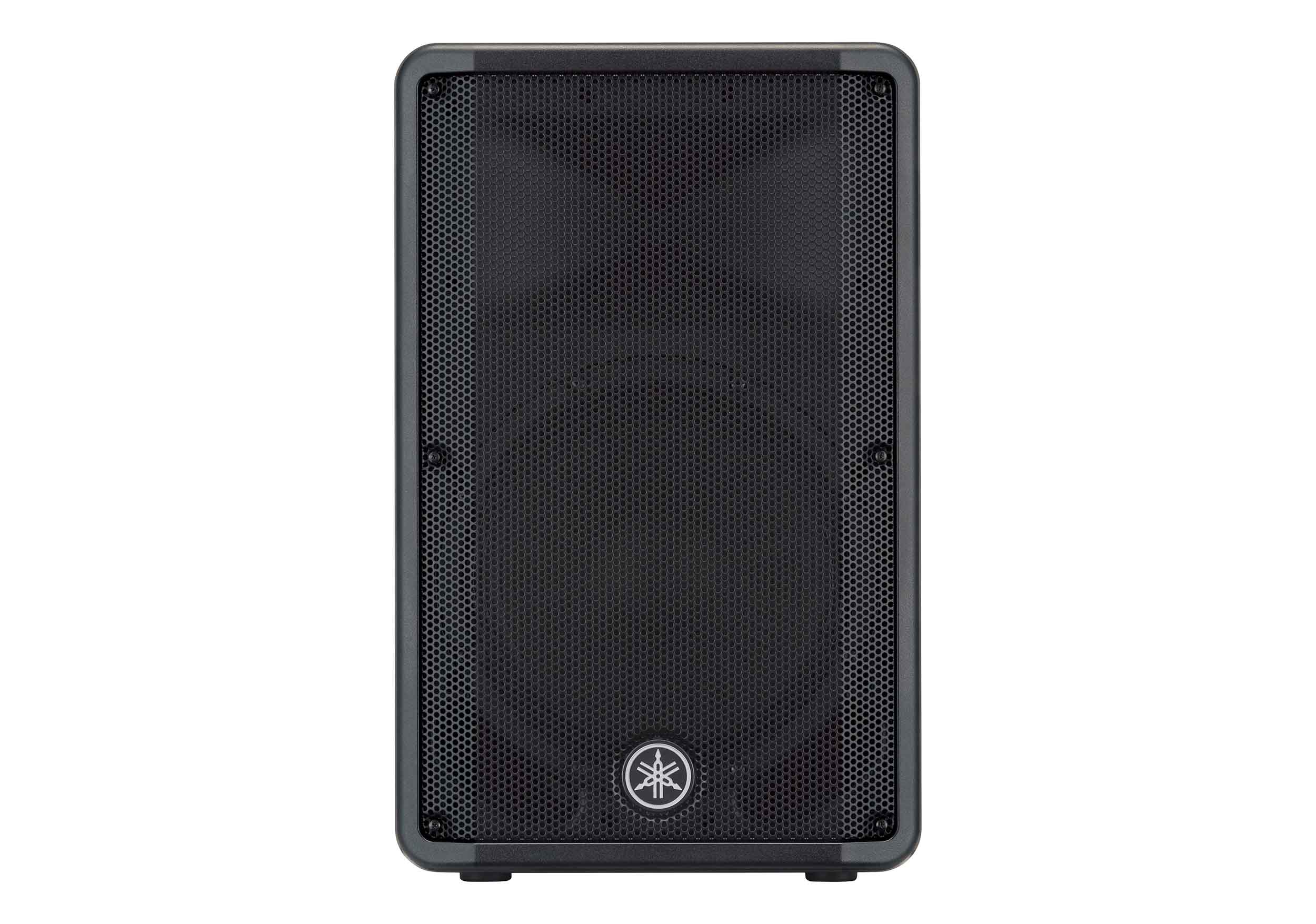

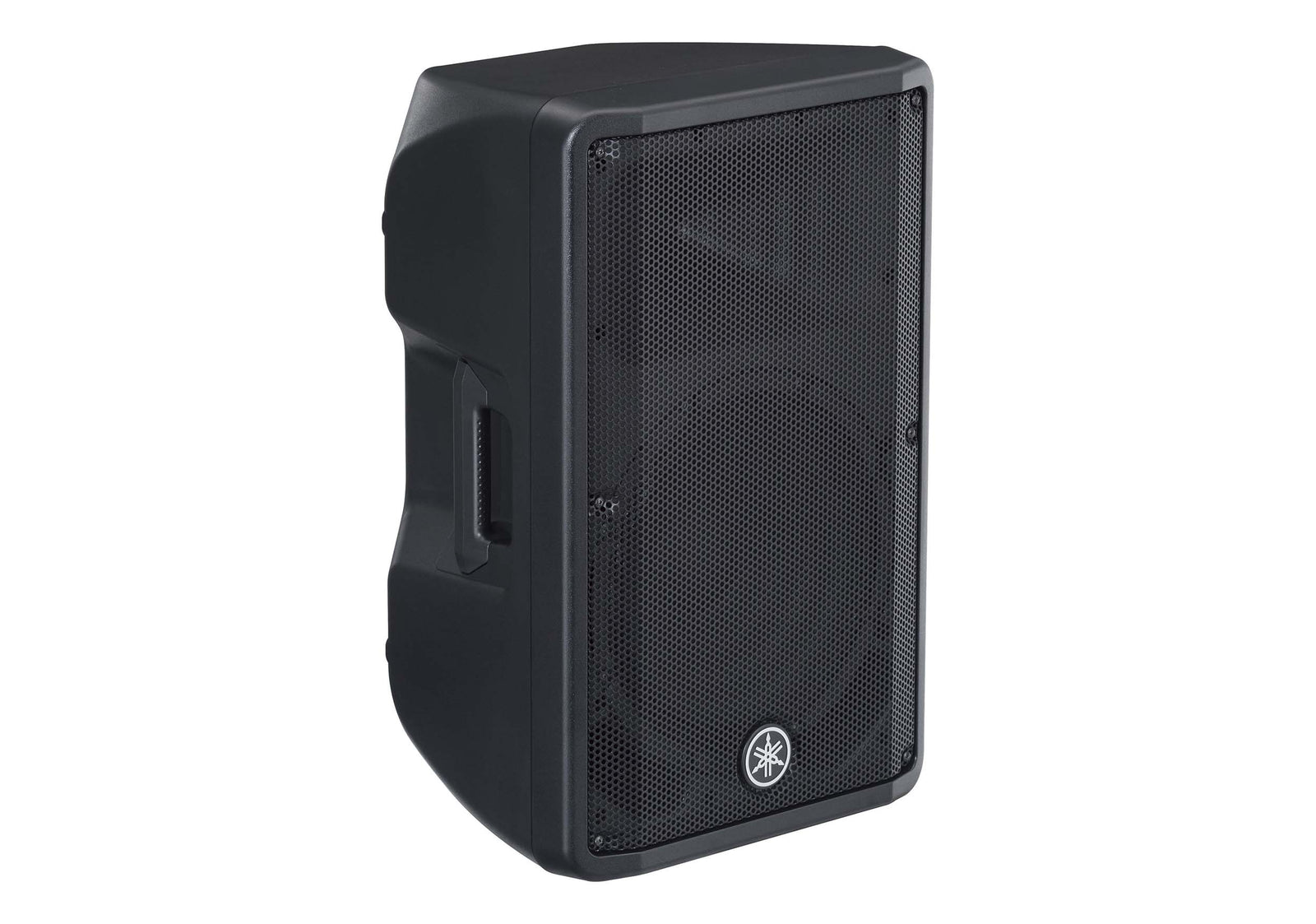

The Yamaha CBR12 features custom-designed transducers paired with a wide-dispersion constant directivity horn. Carefully selected materials and a precise horn design minimize radiation pattern deterioration in oblique directions, ensuring clear, consistent sound coverage across the listening area.
HF Protection Circuit:
Equipped with a high-frequency protection circuit, the CBR12 safeguards the speaker from excessive input that could otherwise cause damage. This feature ensures long-term reliability even in demanding live performance environments.
Rugged, Portable Enclosure Design:

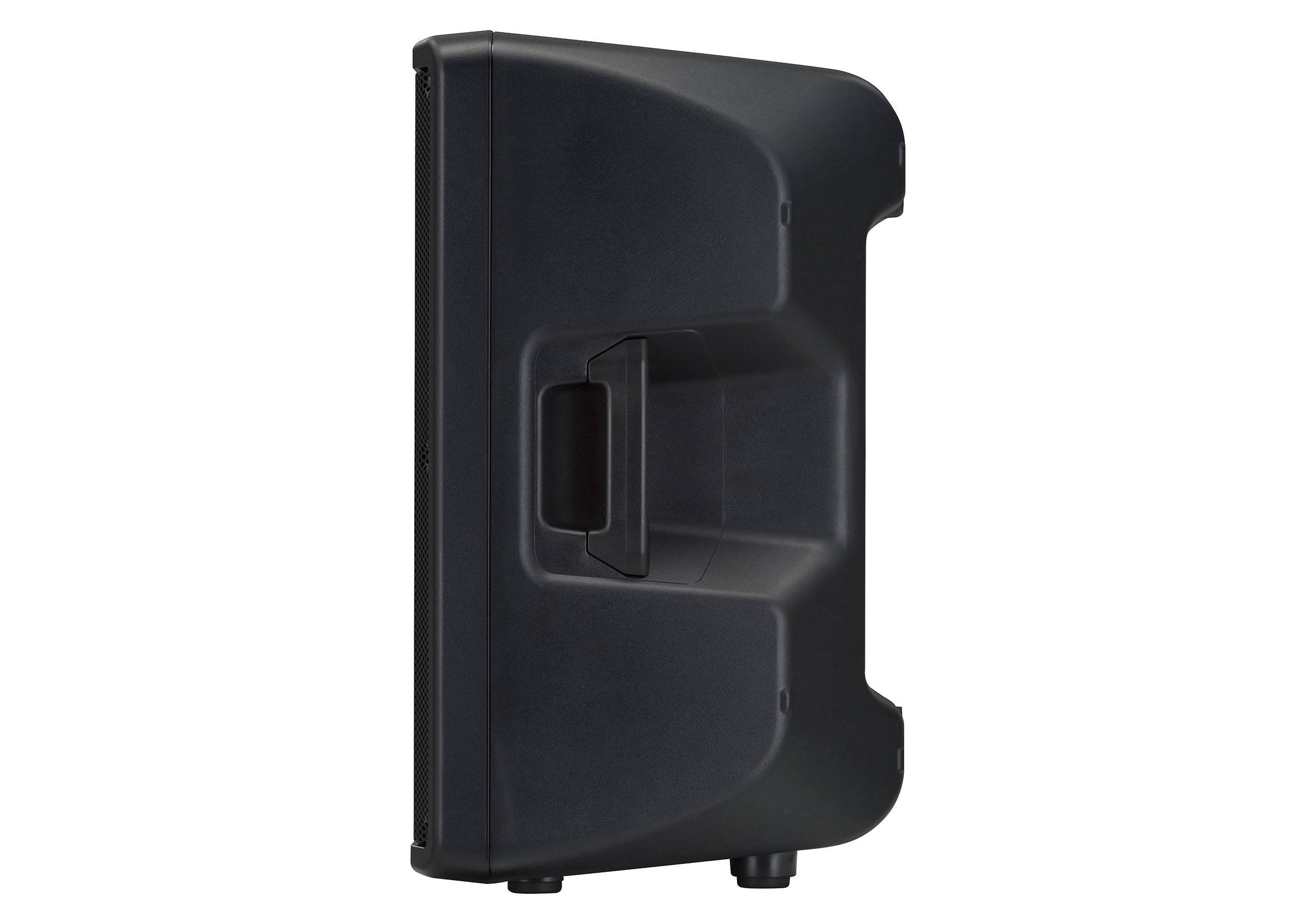

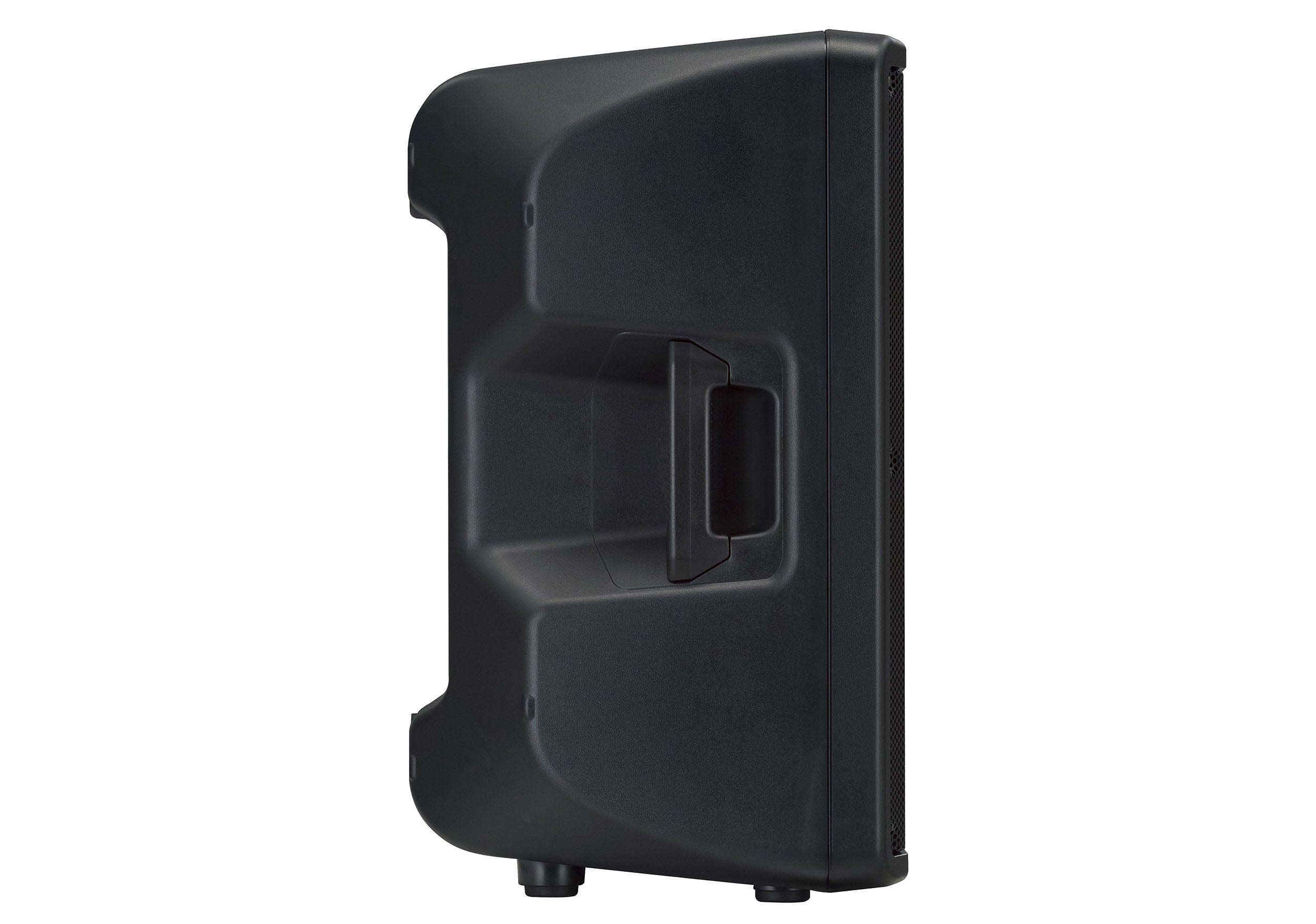

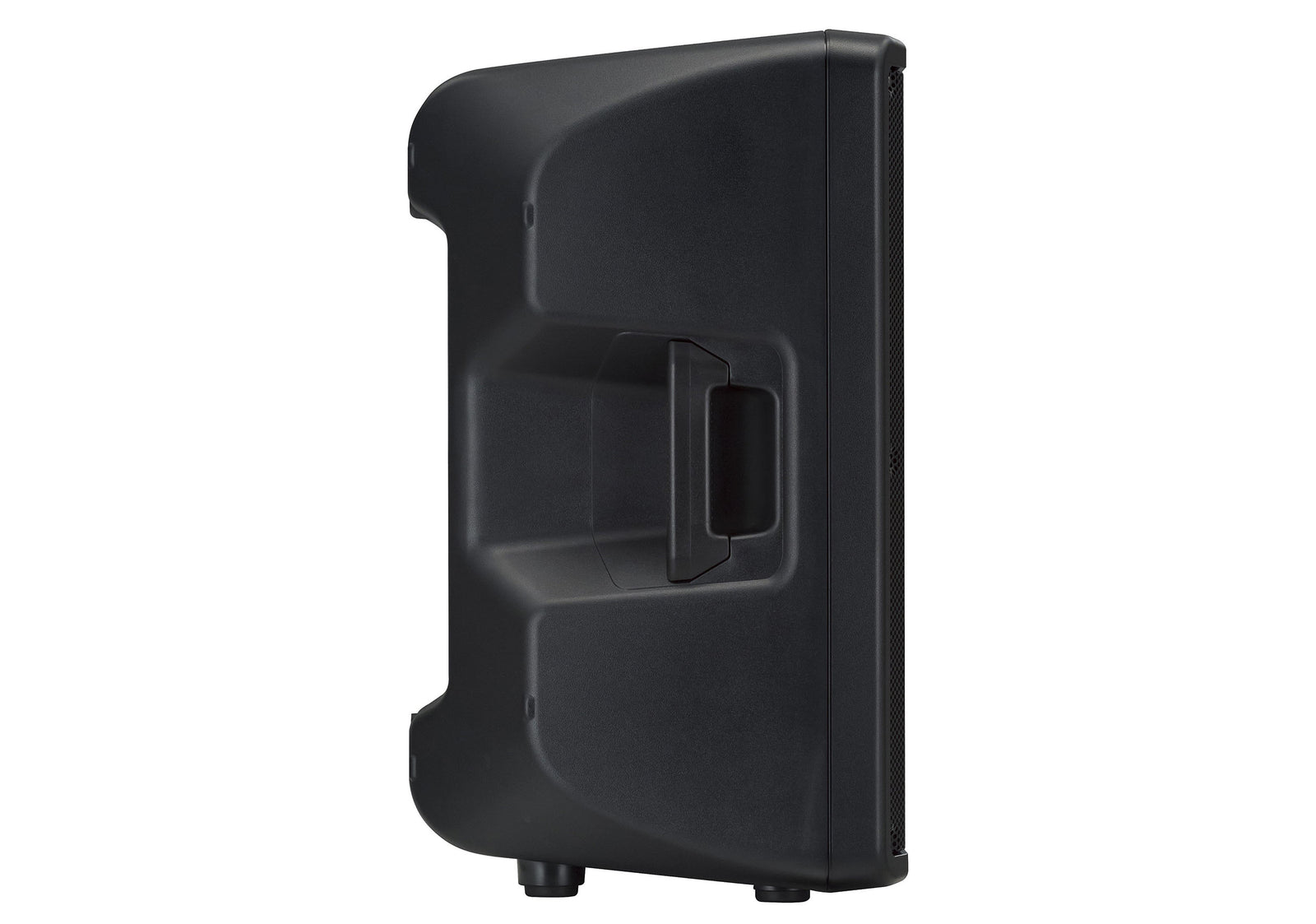

The speaker’s lightweight plastic cabinet is designed for portability and durability. Ergonomic handles make transport easy, while the functional speaker cover provides protection against unfavorable weather conditions, making the CBR12 suitable for both indoor and outdoor use.
Connectivity:

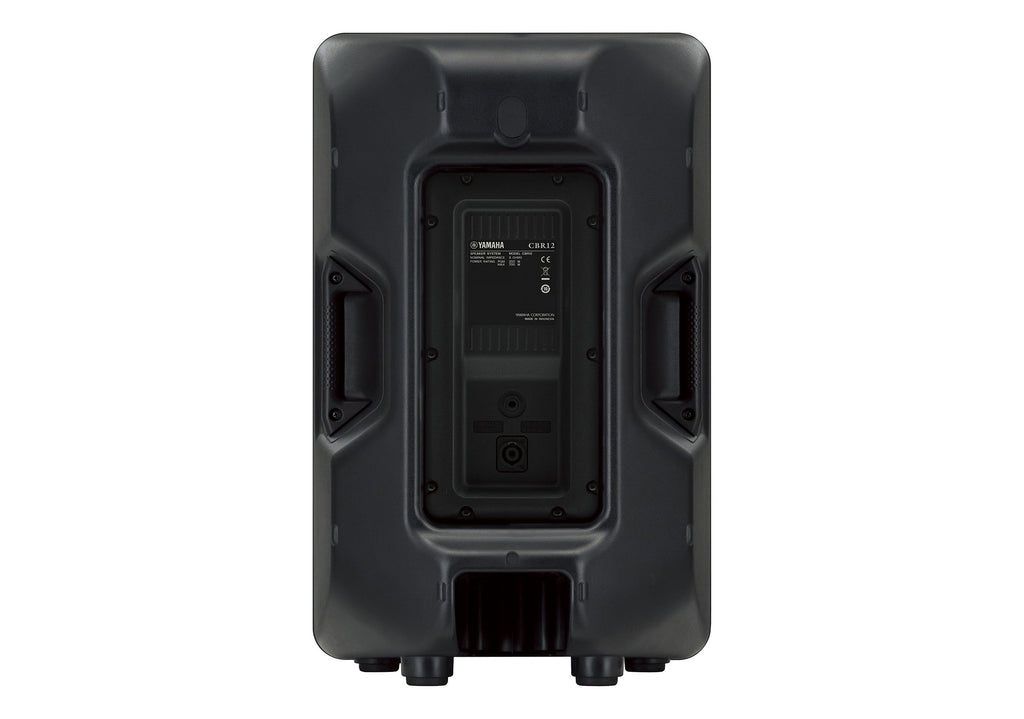

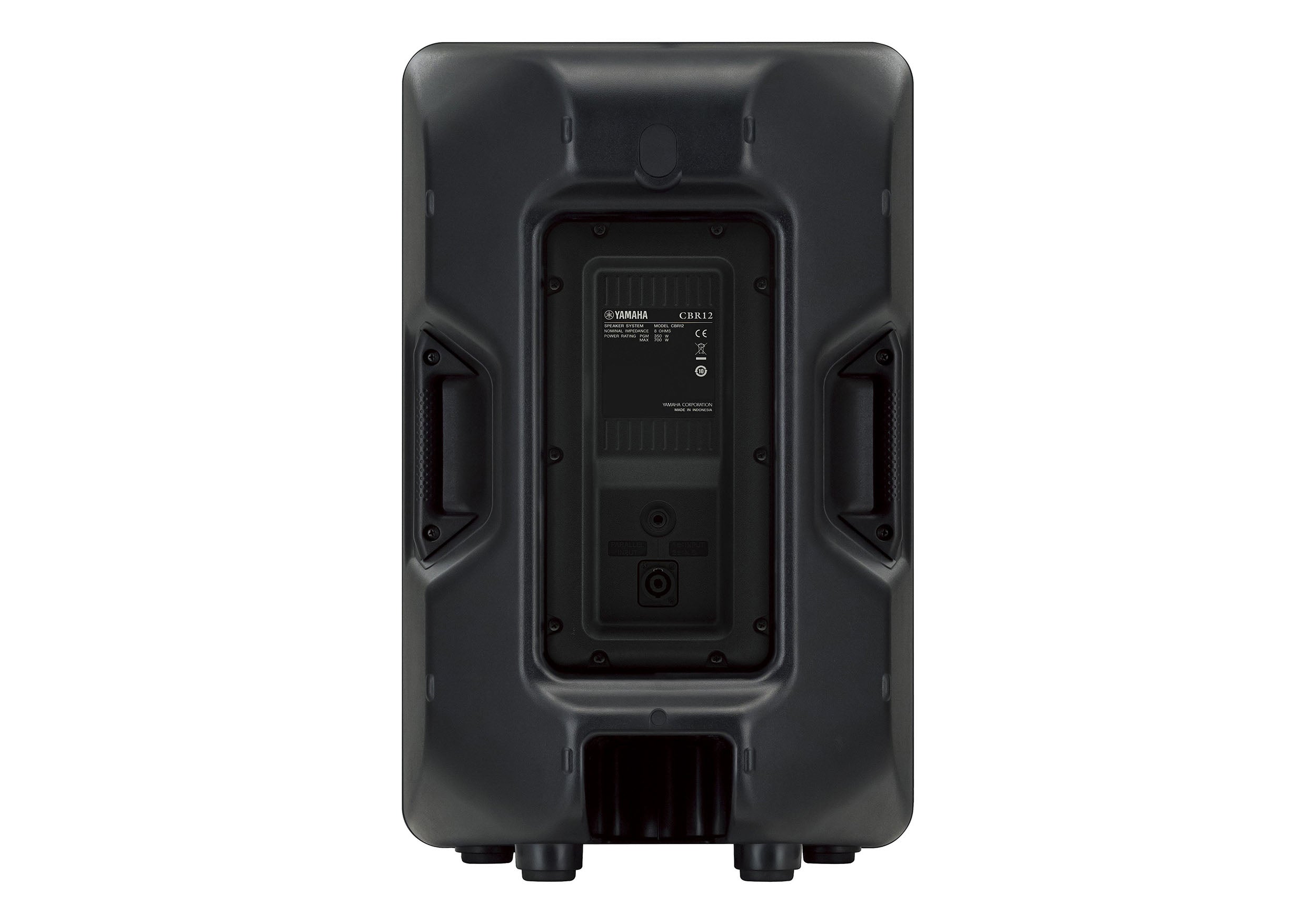

The CBR12 offers flexible connectivity options with one speakON jack and one 1/4" phone jack, allowing for fast and secure connections in any setup.
Enclosure Design for Floor Monitoring:

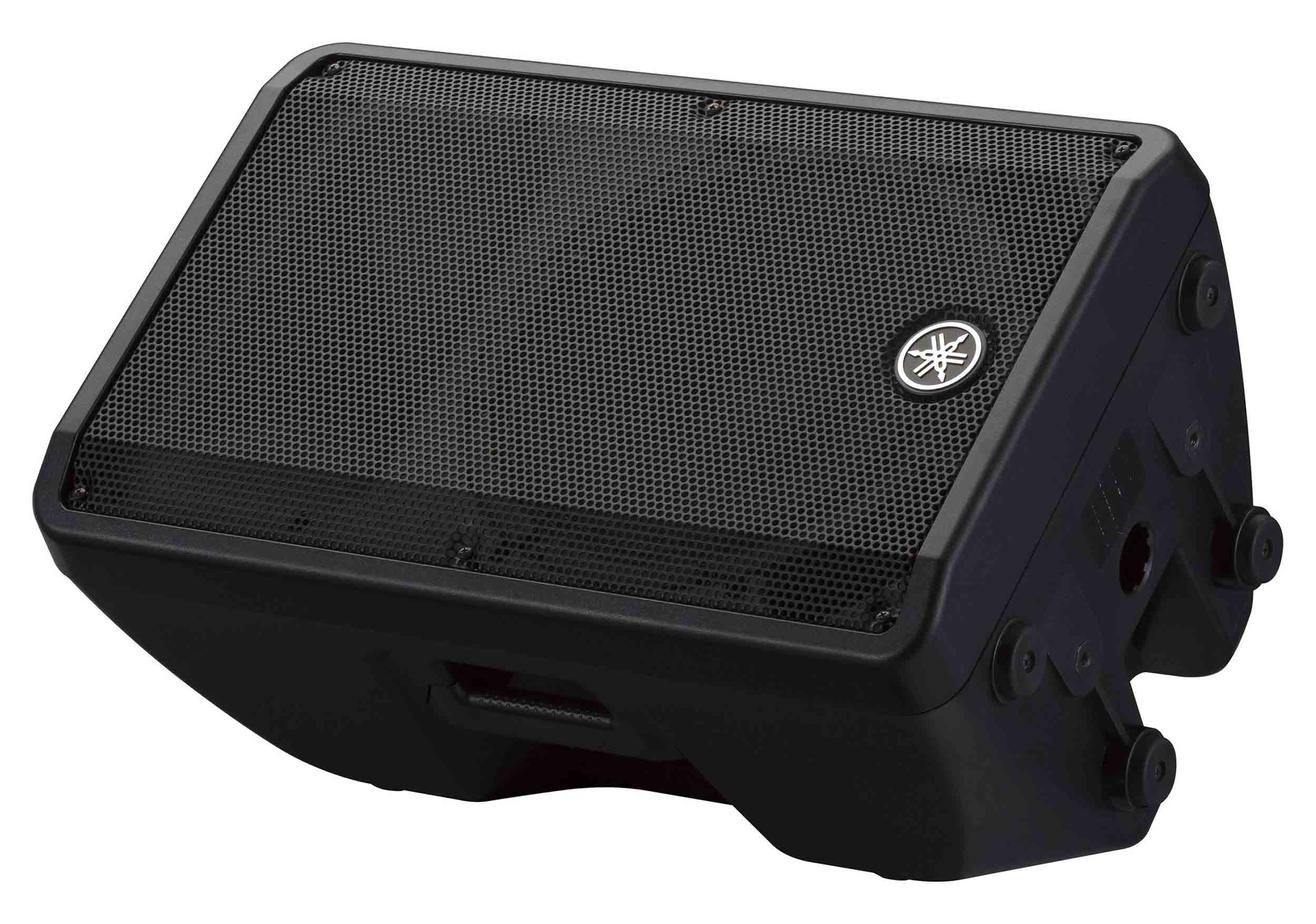

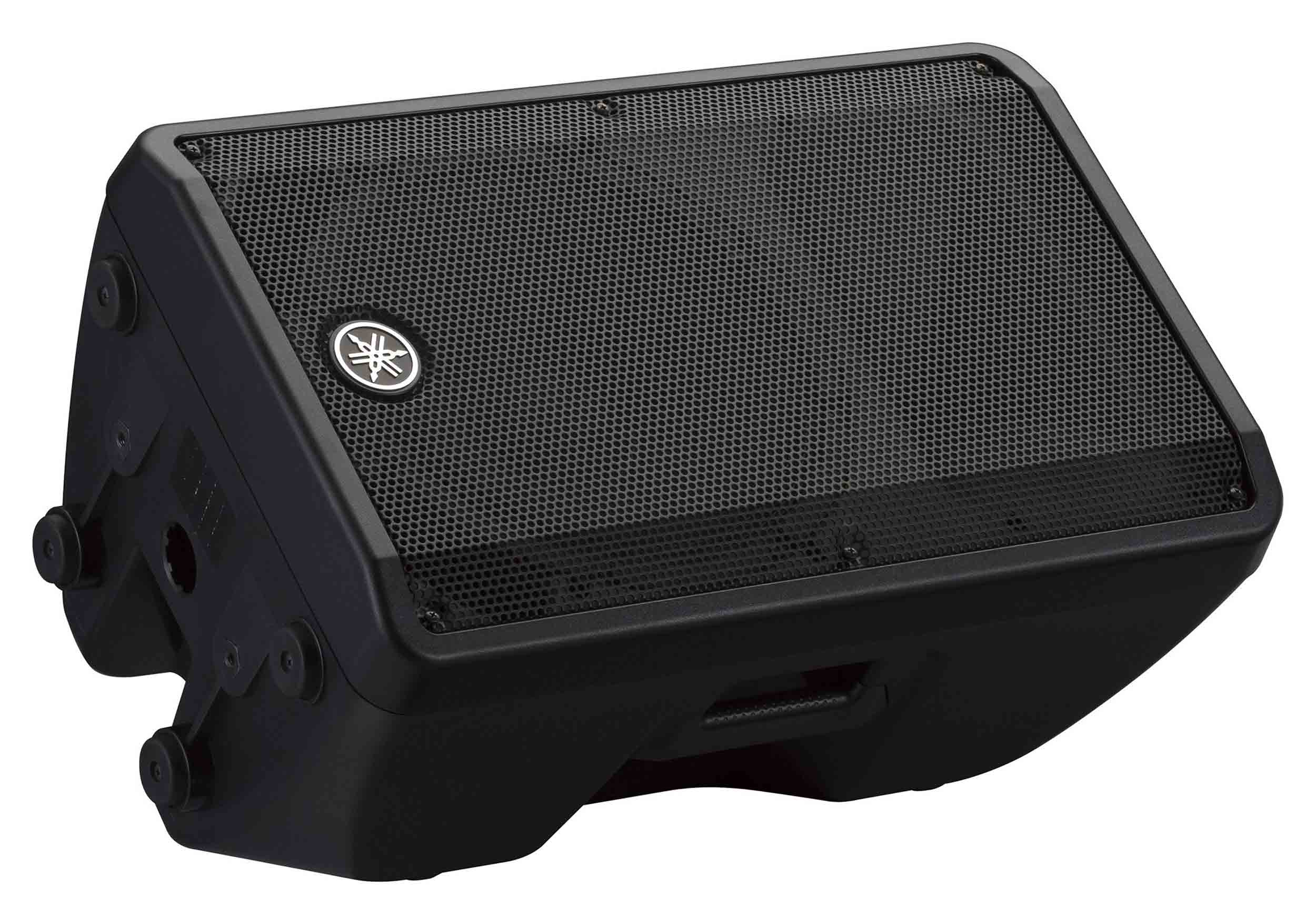

With a 50° wedge angle, the speaker is optimized for use as a floor monitor, giving performers accurate sound feedback on stage.
Rigging Points for Installation:
M8 rigging points are built into the enclosure, enabling secure installation in rigged configurations. Optional speaker brackets and standardized eye-bolts can be used for permanent or temporary setups.
Product Specifications:
Speaker Type: 2-way Speaker, Bass-reflex Type
Frequency Range (-10dB): 48 Hz – 20 kHz
Nominal Coverage: Horizontal 90°, Vertical 60°
Components: LF – 12" Cone, 2" Voice Coil (Ferrite Magnet); HF – 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover: 2.1 kHz
Power Rating:
Noise: 175W
Program: 350W
Peak: 700W
Nominal Impedance: 8Ω
Sensitivity (1W; 1m on axis): 96 dB SPL
Peak (Calculated): 125 dB SPL
Connectivity and Construction:
I/O Connectors: 1/4" Phone x 1, speakON NL4MP x 1
Cabinet Material: Plastic
Finish: Black
Handle: Side x 2
Flying & Mounting Hardware: Bottom x 2, Rear x 1 (fit for M8 x 15mm eyebolts)
Pole Socket: Φ35 mm Bottom x 1
Product Dimensions and Weight:
Width: 14.8"
Height: 23.7"
Depth: 13.7"
Weight: 30.6 lbs
