Description
The Yamaha CHR10 is a compact yet powerful 2-way loudspeaker designed for permanent installations requiring high-quality sound and long-term durability. Equipped with a 10-inch low-frequency driver and a 1.4-inch high-frequency compression driver, it delivers clear, balanced audio suitable for a wide range of environments. Drawing from the high-end design of Yamaha’s CZR Series, the CHR10 combines professional-grade components with exceptional build quality.
Built with a premium plywood cabinet, the CHR10 minimizes vibration and preserves sonic clarity even at higher output levels. Its rugged polyurea coating provides a tough, scratch-resistant exterior that withstands demanding installation environments. The rotatable HF horn allows the speaker to be mounted horizontally or vertically, offering flexibility for rooms with unique acoustics or space constraints. This adaptability makes it a reliable choice for restaurants, clubs, worship spaces, and multipurpose venues.
To support different installation needs, the CHR10 includes rigging points for eye bolts, a pole socket for stand use, and compatibility with the optional UB-DXRDHR10 U-bracket for vertical or horizontal mounting. When paired with Yamaha’s DSP-equipped amplifiers or compatible processors, the CHR10 benefits from dedicated tuning presets that enhance overall performance. Its combination of durability, controlled dispersion, and easy integration ensures consistent, professional sound in any installation.
Product Specifications:
Speaker type: 2-way Speaker, Bass-reflex
Frequency range (-10dB): 55 Hz – 20 kHz
Coverage area: H90° × V60° (Rotatable)
Crossover: 2.5 kHz
Nominal impedance: 8 Ω
SPL Sensitivity (1W, 1m): 93 dB SPL
Peak SPL (Calculated): 122 dB SPL

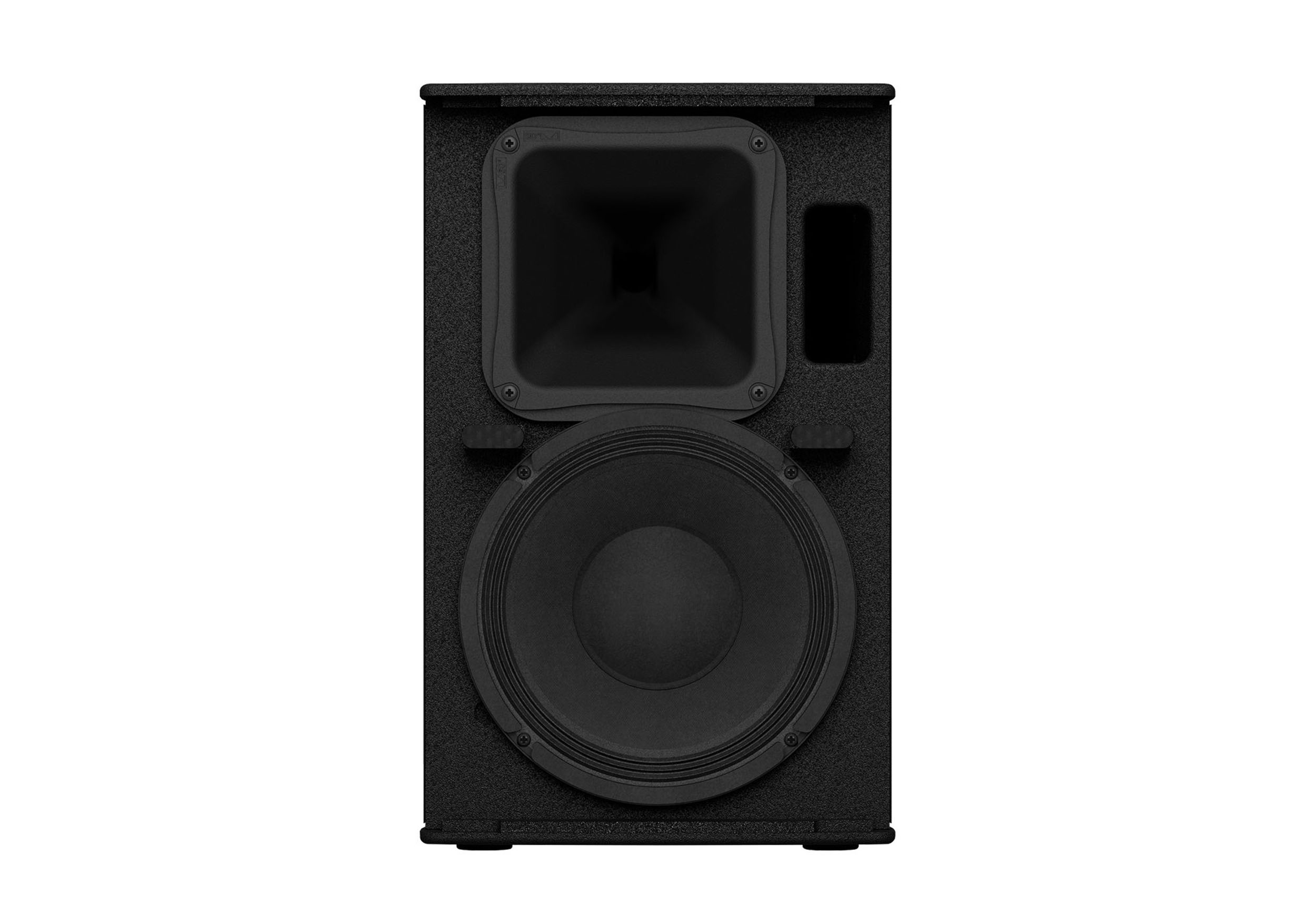

Components LF: 10" cone, 2" voice coil, ferrite magnet
Components HF: 1.4" diaphragm, 1" throat compression driver, ferrite magnet
Power rating (Noise): 175 W
Power rating (Program): 350 W
Power rating (Peak): 700 W

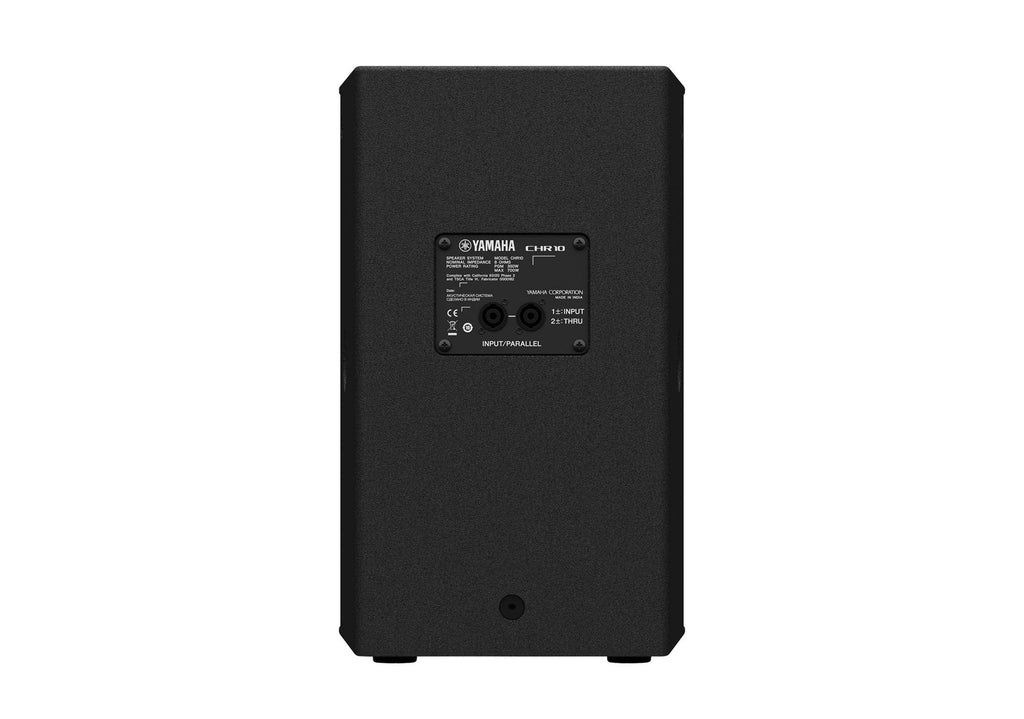

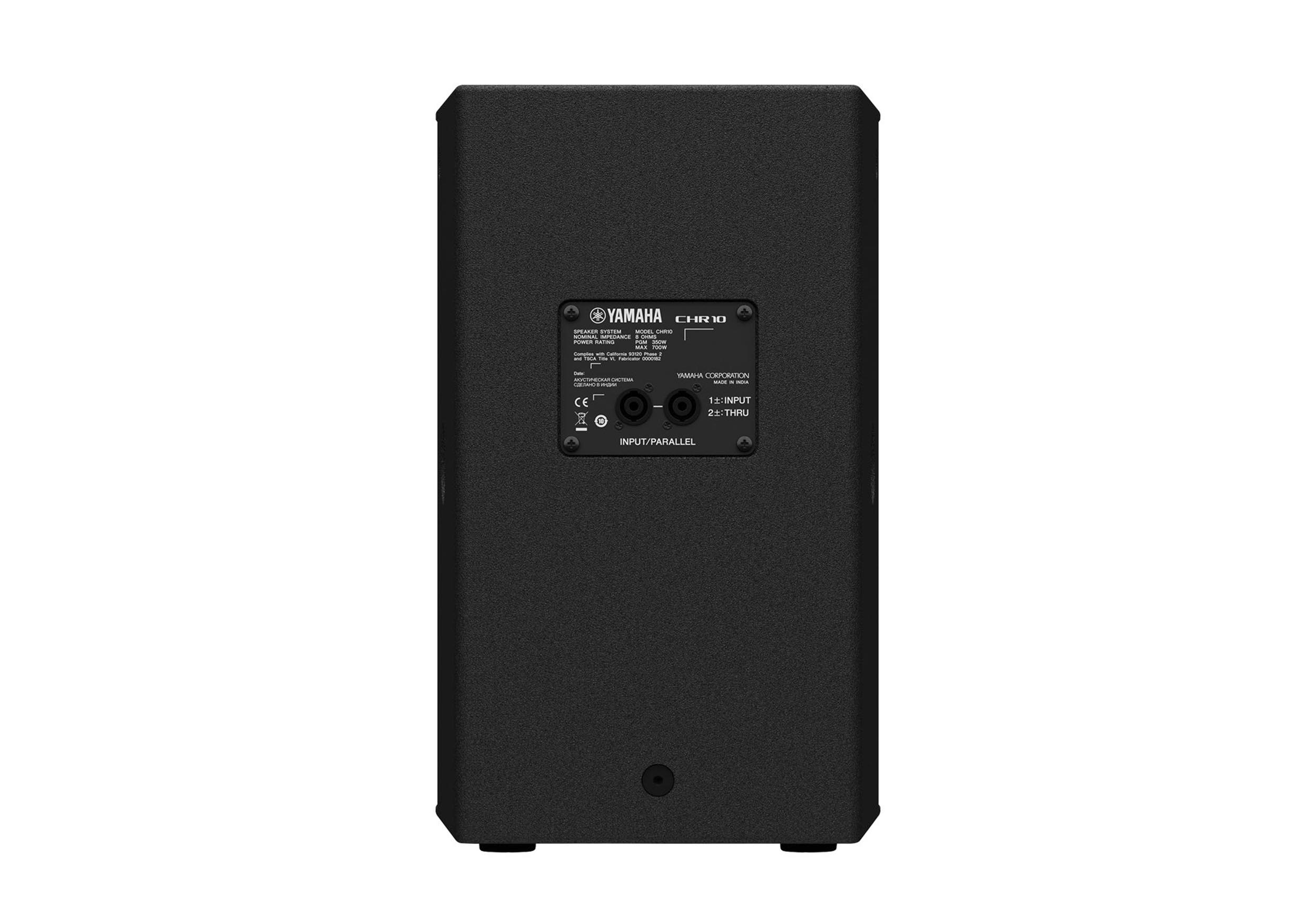

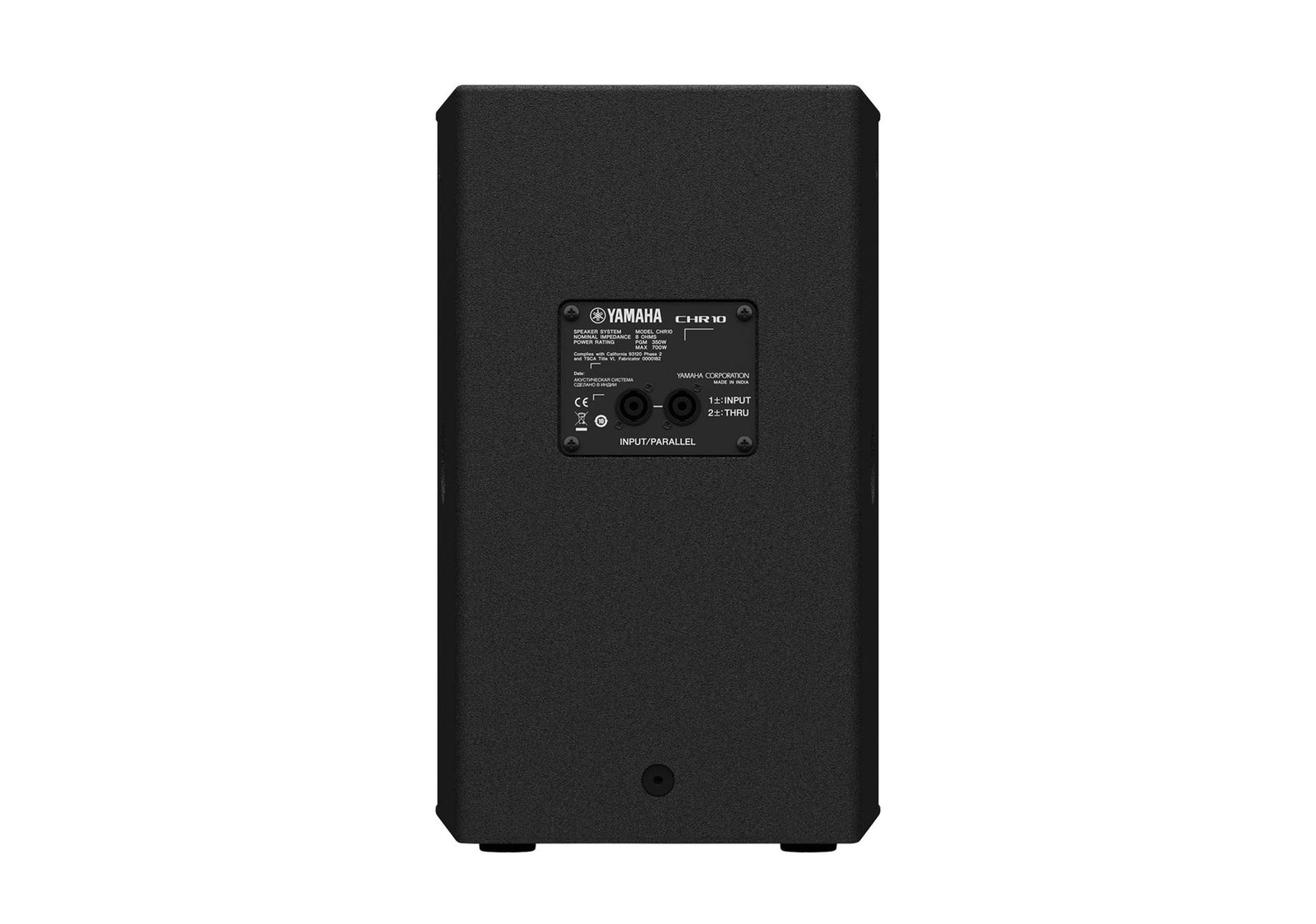

I/O connectors: SpeakON NL4MP × 2 (Parallel)
Cabinet material: Plywood
Finish: Durable polyurea painting, black
Handle: Top × 1
Pole socket: Φ35 mm × 1 (Bottom)
Rigging: Top × 2, Rear × 1 (Fit for M10 × 30–50 mm Eyebolts)
Floor monitor angle: Not applicable
Options: U-bracket UB-DXRDHR10
Product Weight: 30.2 lbs
Product Dimensions (L × W × H): 11.8" × 12.0" × 19.5"
