Description

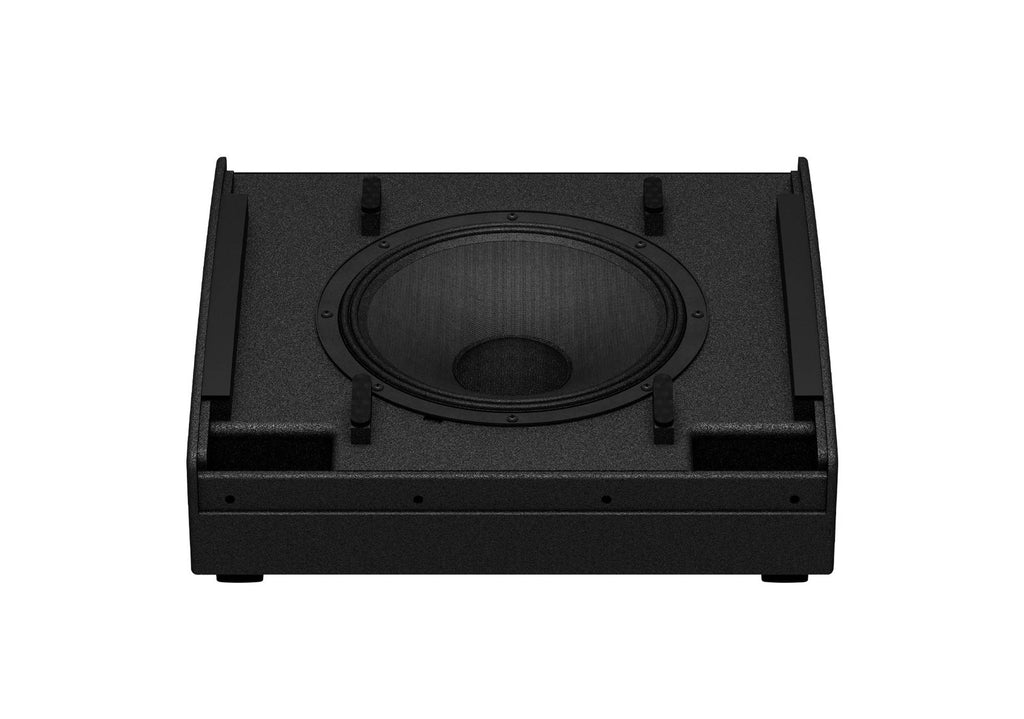

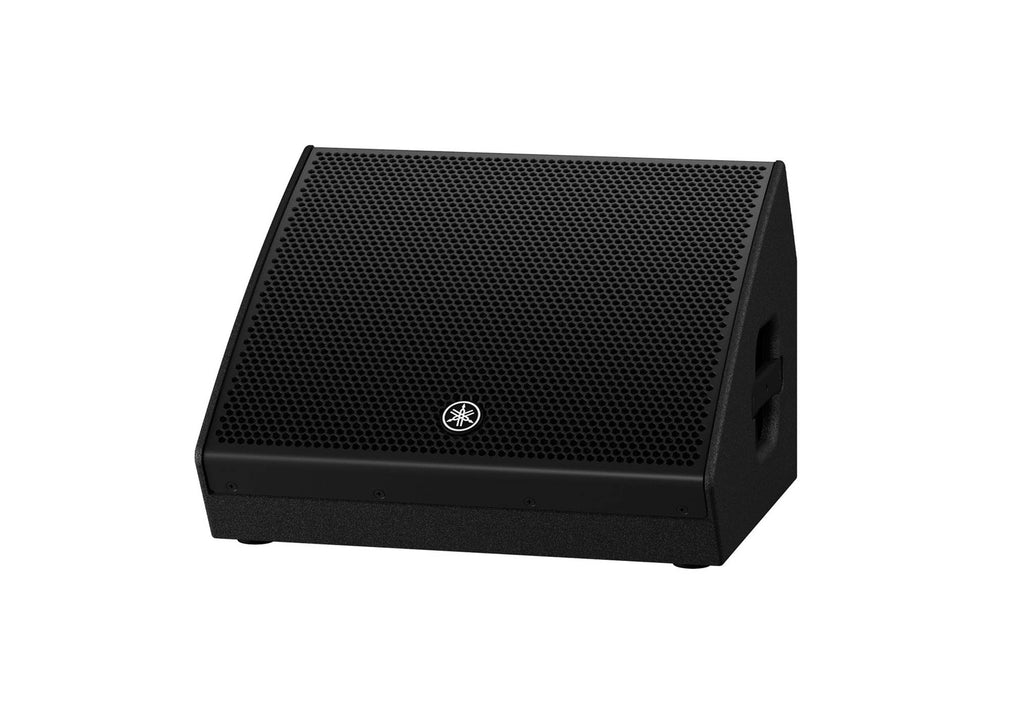

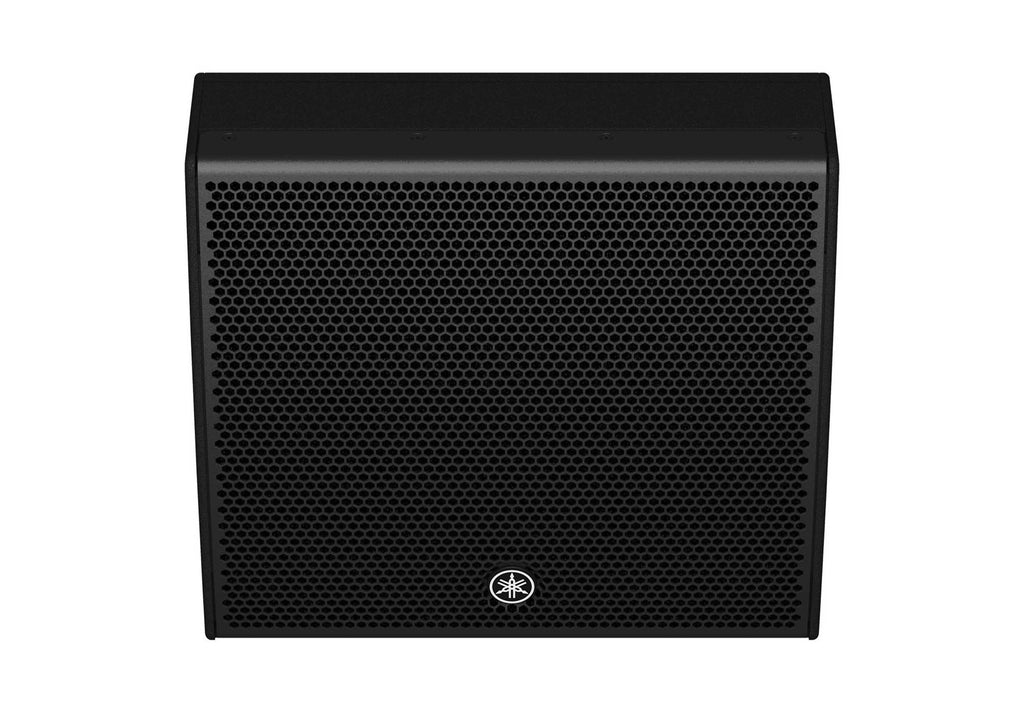

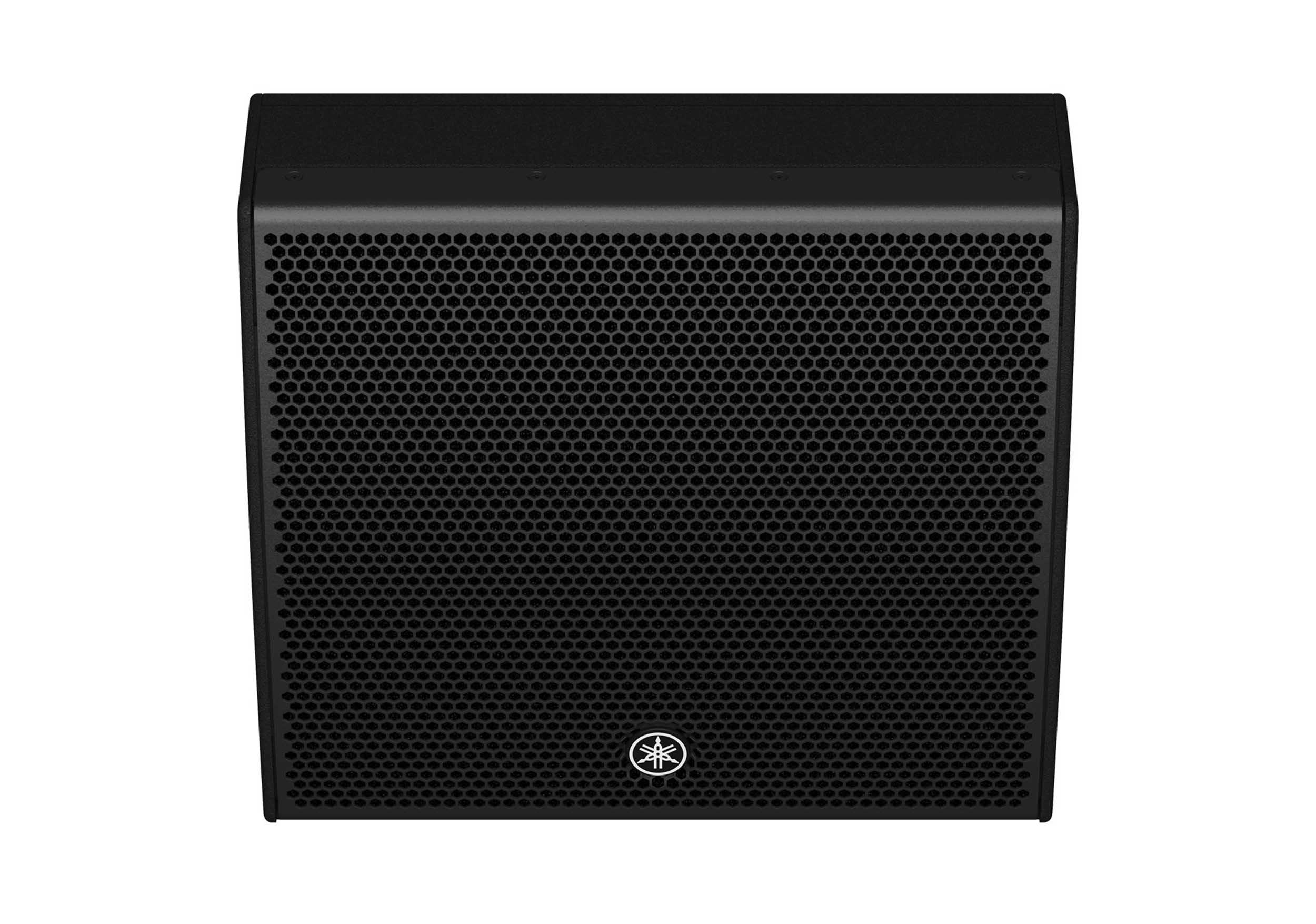

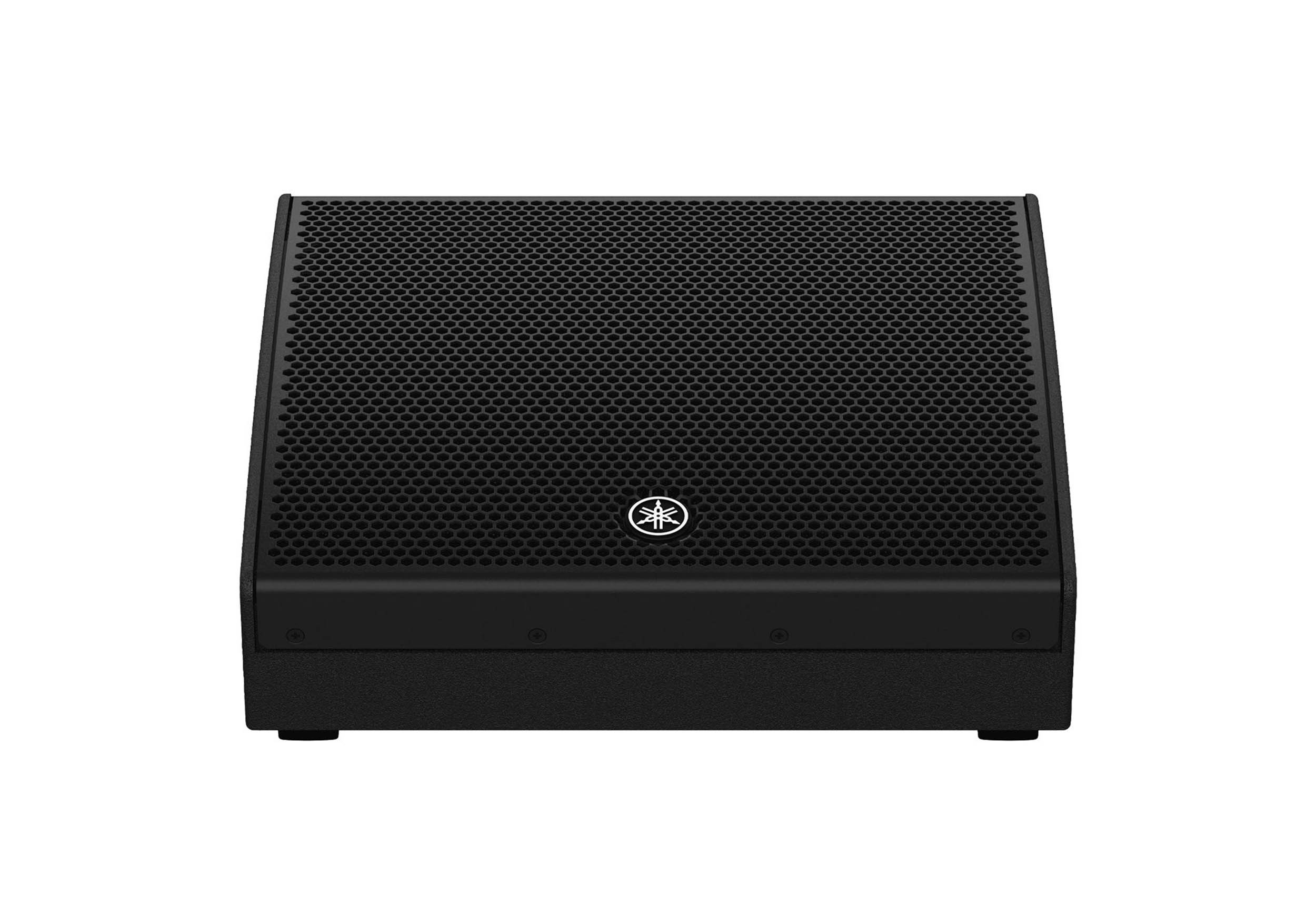

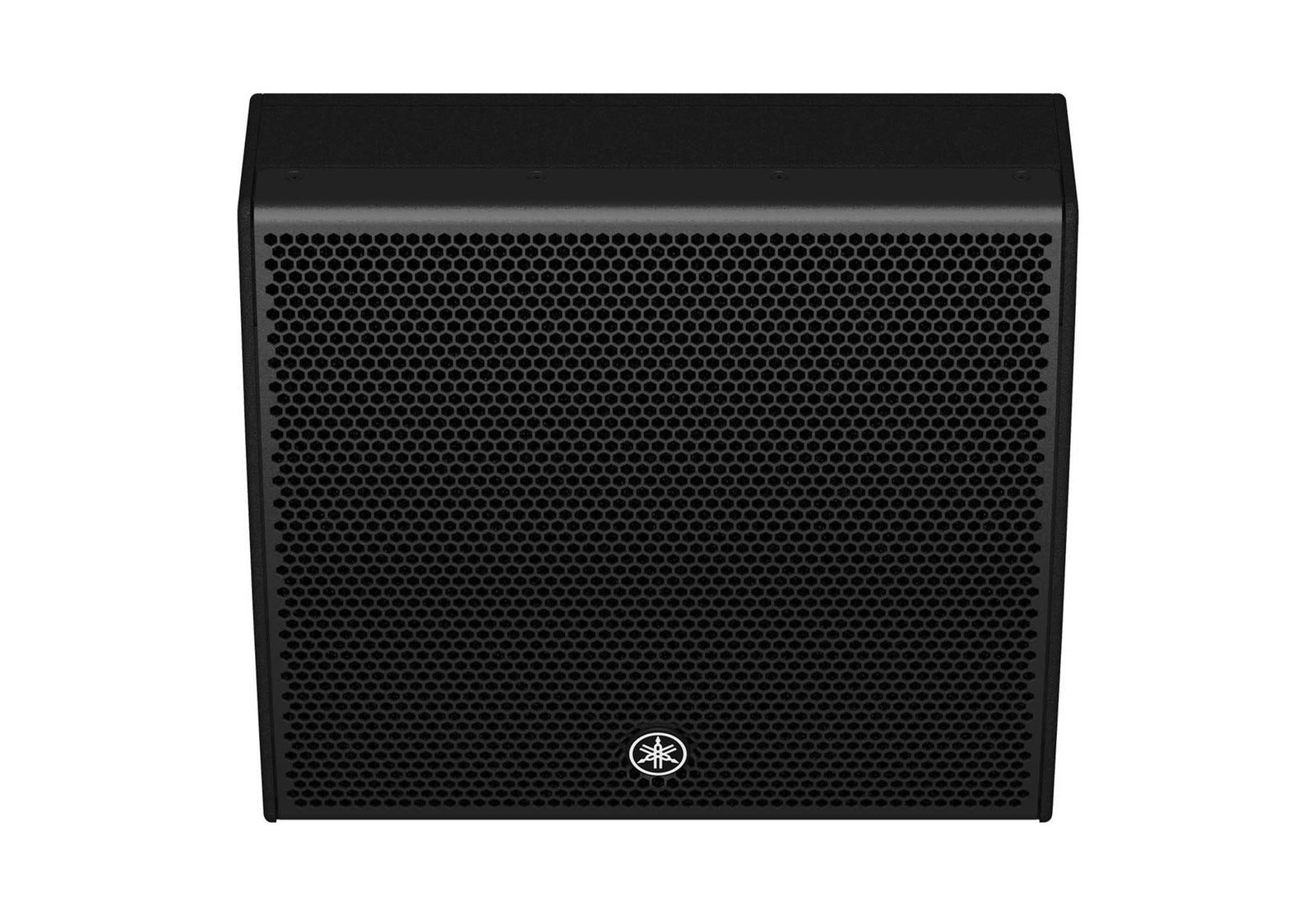

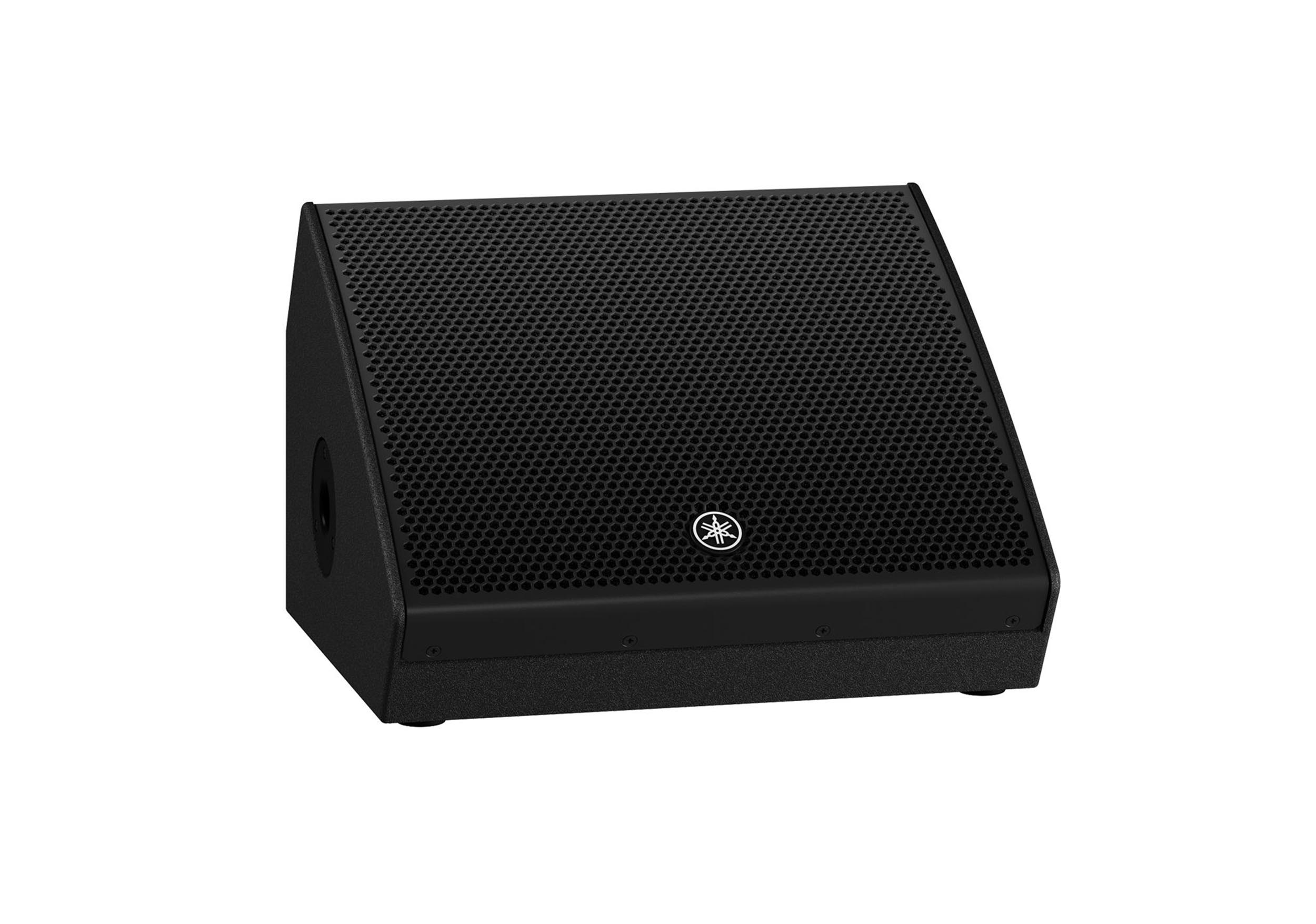

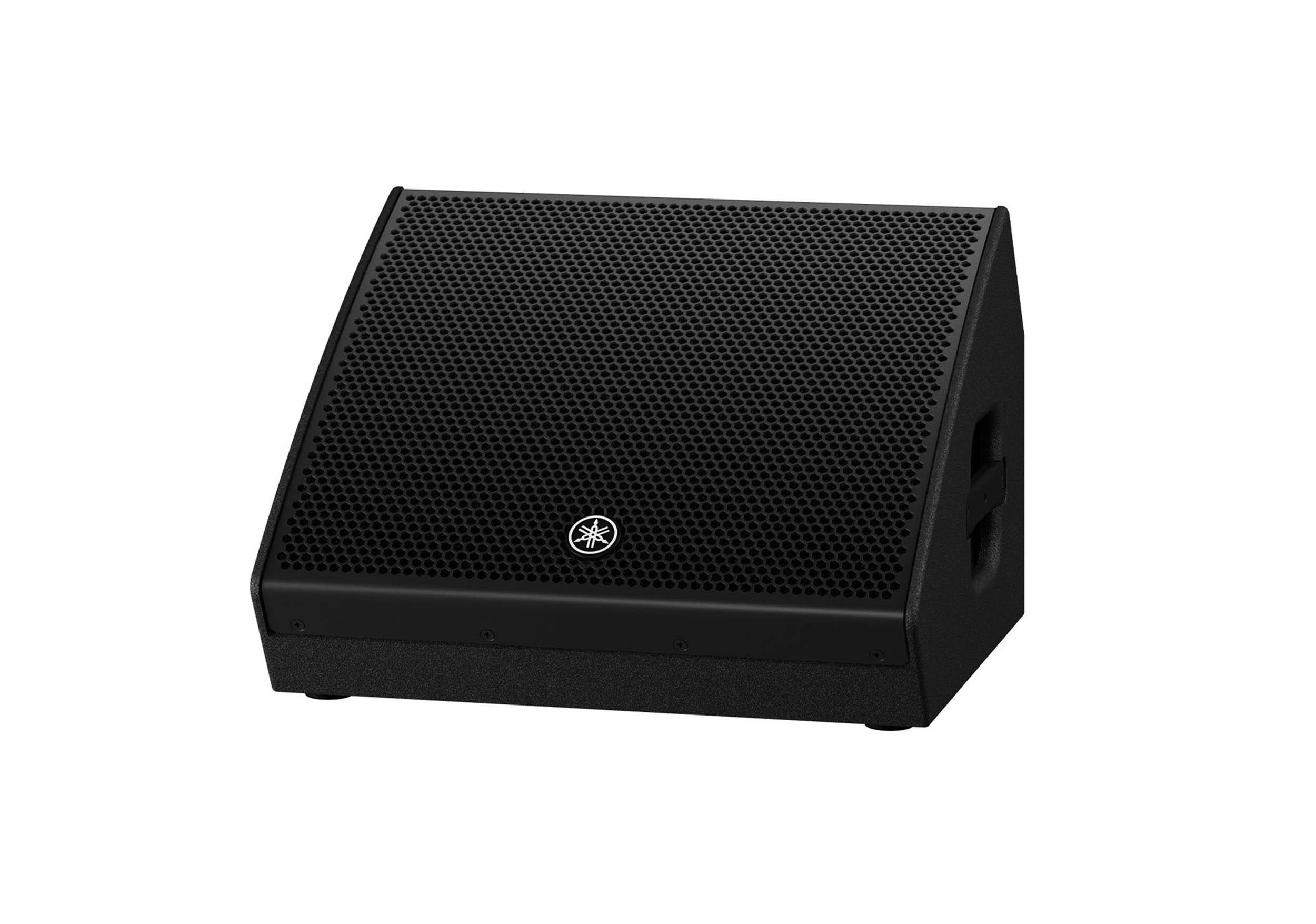

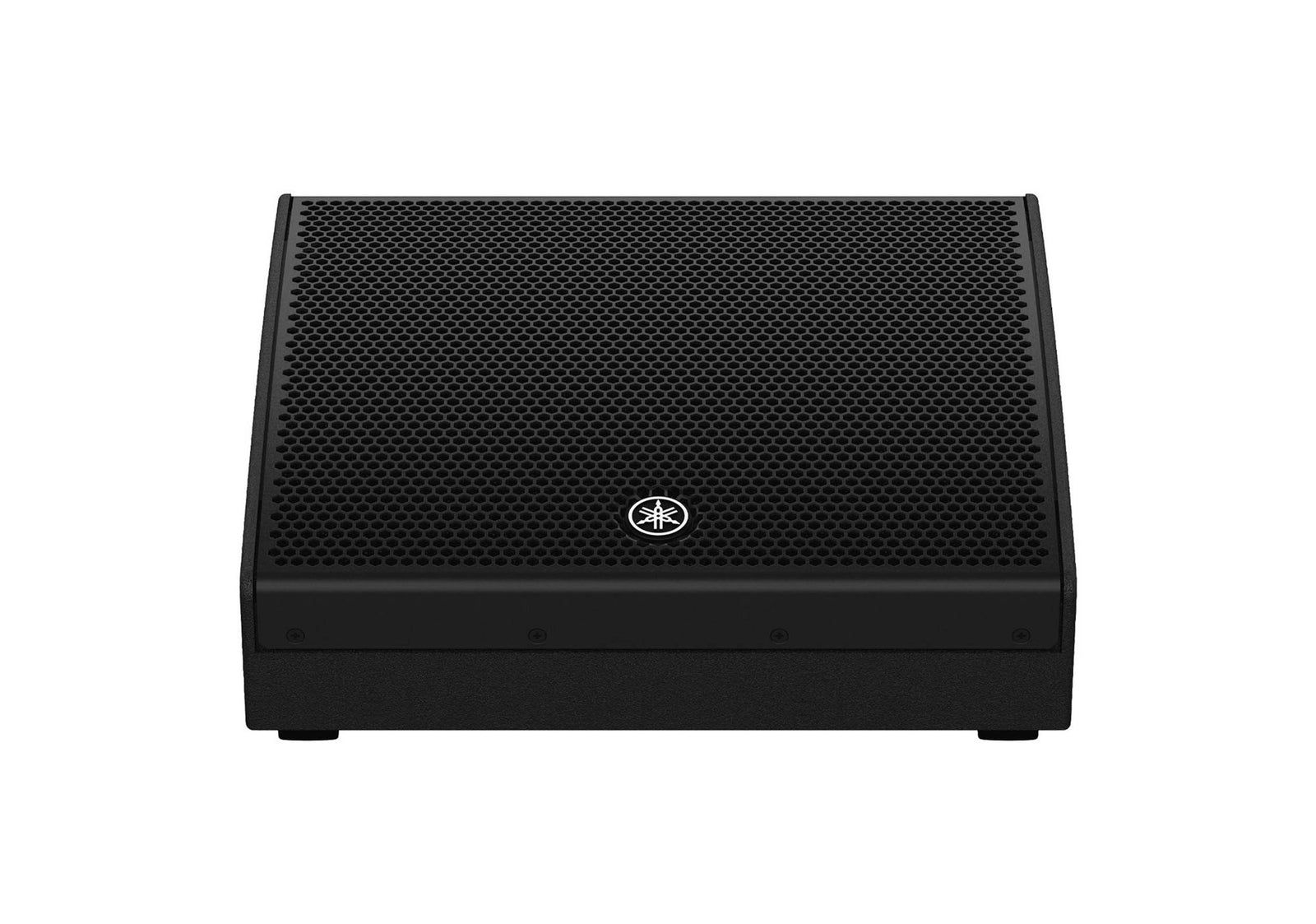

The Yamaha DHR12M is a professional 2-way bi-amp powered loudspeaker designed for floor monitoring applications. Its 12-inch woofer and 1.75-inch coaxial high-frequency driver deliver precise, consistent audio performance, with smooth phase and frequency response that ensures musicians hear every detail of their mix accurately.
Built with the same high-grade plywood as Yamaha’s premium DZR Series, the DHR12M features a compact, low-profile cabinet with a durable polyurea coating. This design reduces vibrations, delivers clear sound, and provides a robust, scratch-resistant surface suitable for rigorous stage use.
Equipped with a 1000W Class D amplifier and advanced DSP, the DHR12M incorporates FIR-X tuning for FIR filtering and corrective EQ, minimizing phase distortion. Its pole socket allows for easy mounting on stands, offering flexible placement options while maintaining professional-grade audio quality and reliability.
Product Specifications:
Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10 dB): 50 Hz – 20 kHz
Coverage Area: H65° × V75°
Crossover: 1.8 kHz FIR-X tuning (Linear Phase FIR Filter)
Maximum Output Level (Measured Peak, IEC Noise @1 m): 131 dB SPL
LF Component: 15" Cone, 3" Voice Coil, Ferrite Magnet
HF Component: 1.75" Diaphragm, 1" Throat Compression Driver Coaxial, Ferrite Magnet
Amplifier Class: Class-D
Power Rating (Dynamic): 1000 W (LF 800 W, HF 200 W)
Power Rating (Continuous): 465 W (LF 400 W, HF 65 W)
Cooling: Fan Cooling, 4 Speeds
Power Consumption: 74 W (1/8 Power), 18 W (Idle)
Power Requirements: 100 V, 100–120 V, 220–240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24-bit, 48 kHz Sampling
Processors: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR FOH/MAIN, MONITOR, OFF

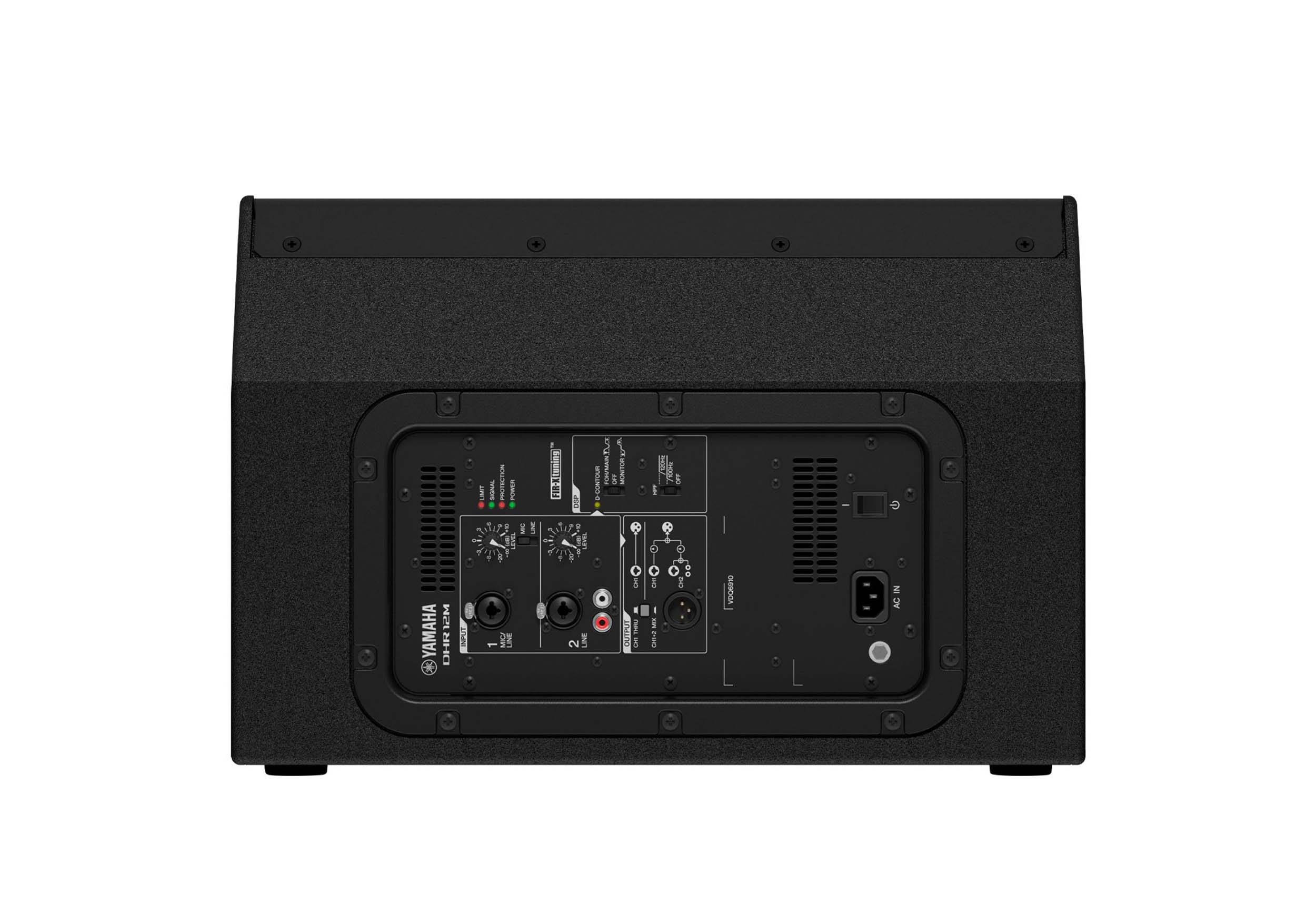

I/O Connectors: INPUT1 Combo ×1; INPUT2 Combo ×1 + RCA Pin ×2 (Unbalanced); OUTPUT XLR3-32 ×1
(CH1 Parallel Through or CH1 + CH2 Mix)
Cabinet Material: Plywood
Finish: Durable Polyurea Painting, Black
Handle: Side ×1
Pole Socket: Ø35 mm ×1 (Side)
Floor Monitor Angle: 57°
Product Weight: 50.7 lbs / 23.0 kg
Product Dimensions (L × W × H): 19.9" × 25.3" × 14.5"
