Yamaha DM3 Series Digital Mixing Consoles

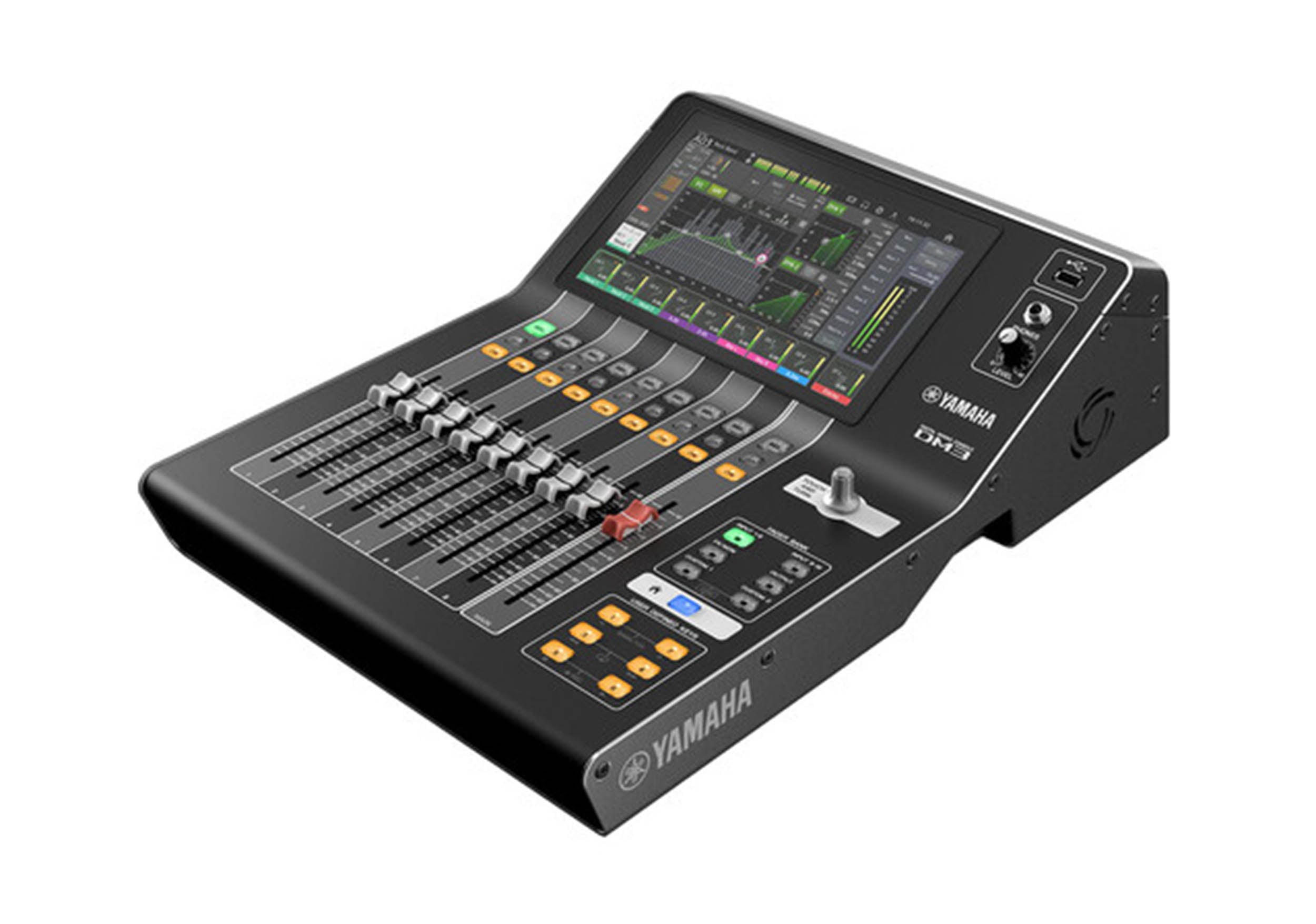

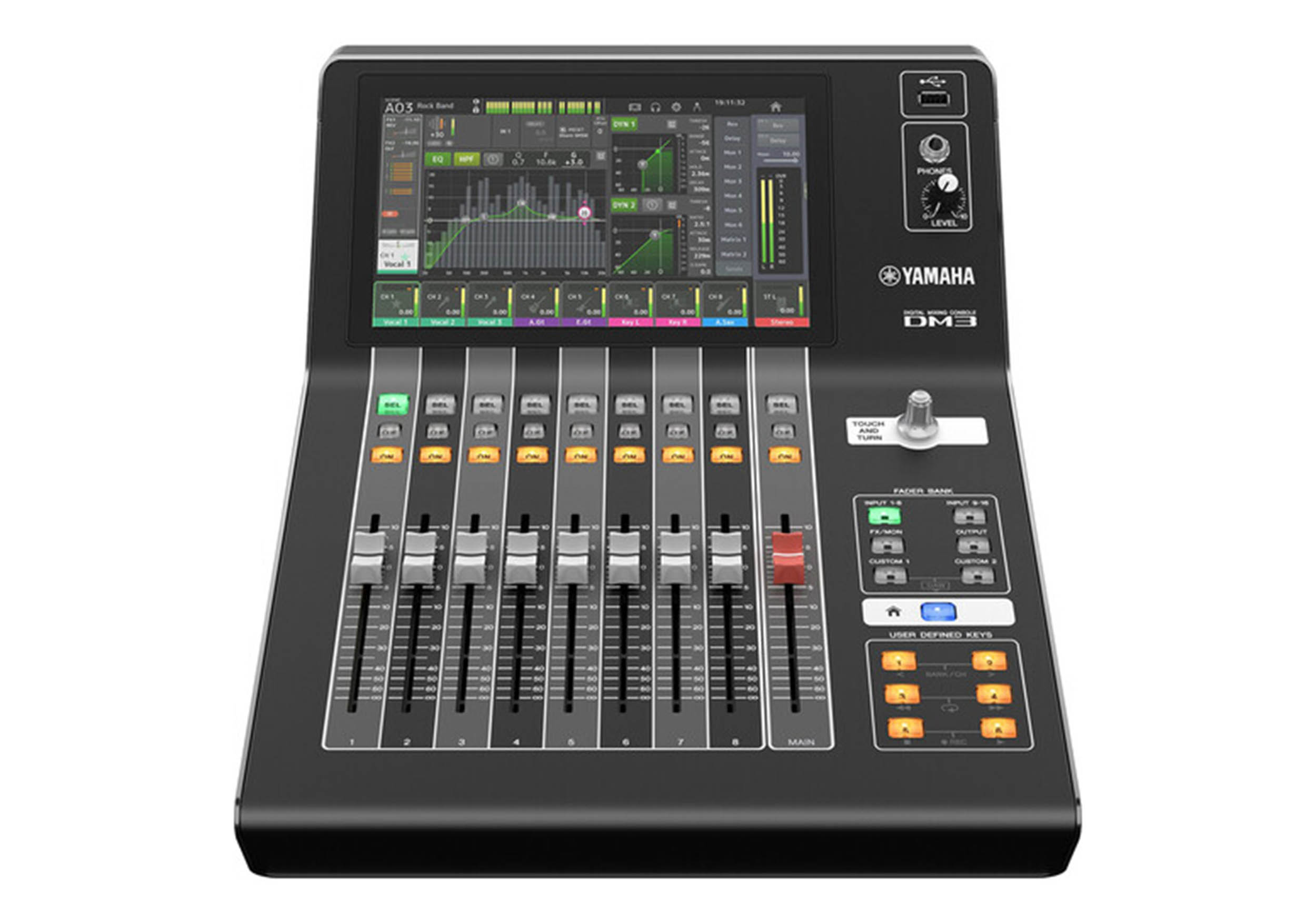

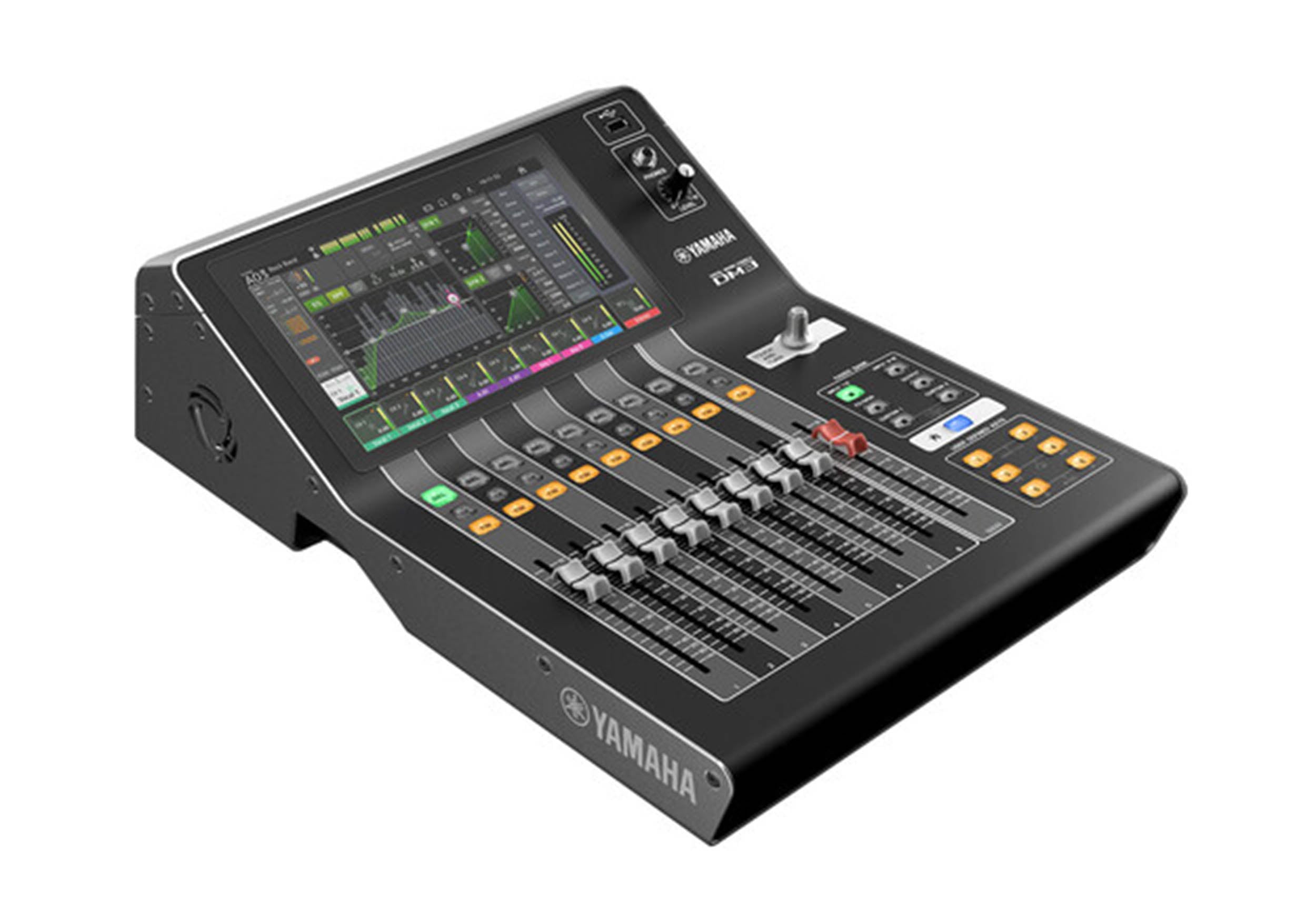

The Yamaha DM3S and DM3-D are ultracompact, full-featured digital mixing consoles designed for live sound, streaming, recording, and music production. Both models feature a 9" touchscreen with a streamlined interface, 8 + 1 motorized faders, and 16 high-quality mic preamps, providing professional-level mixing in a lightweight and portable design. The DM3-D adds Dante connectivity, allowing seamless integration into digital audio networks, making it ideal for broadcast and installed sound applications.

With support for 48/96 kHz sampling rates, QuickPro presets, and DAW remote control, these consoles offer intuitive operation and superior audio clarity. Each model includes built-in effects, graphic EQ, and flexible mix routing, ensuring versatility for small to mid-sized live performances, home studios, and production environments. The DM3 Editor iPad app allows for wireless remote control, enhancing convenience for modern workflows.

Product Specifications:

Max I/O Capacity: 20x Input / 12x Output

Mic Preamps: 16

Faders: 9x 100mm Motorized (Touch Sensitive)

Built-in Effects: 18x Multi-FX & Graphic EQ

Sample Rate: 48 kHz / 96 kHz

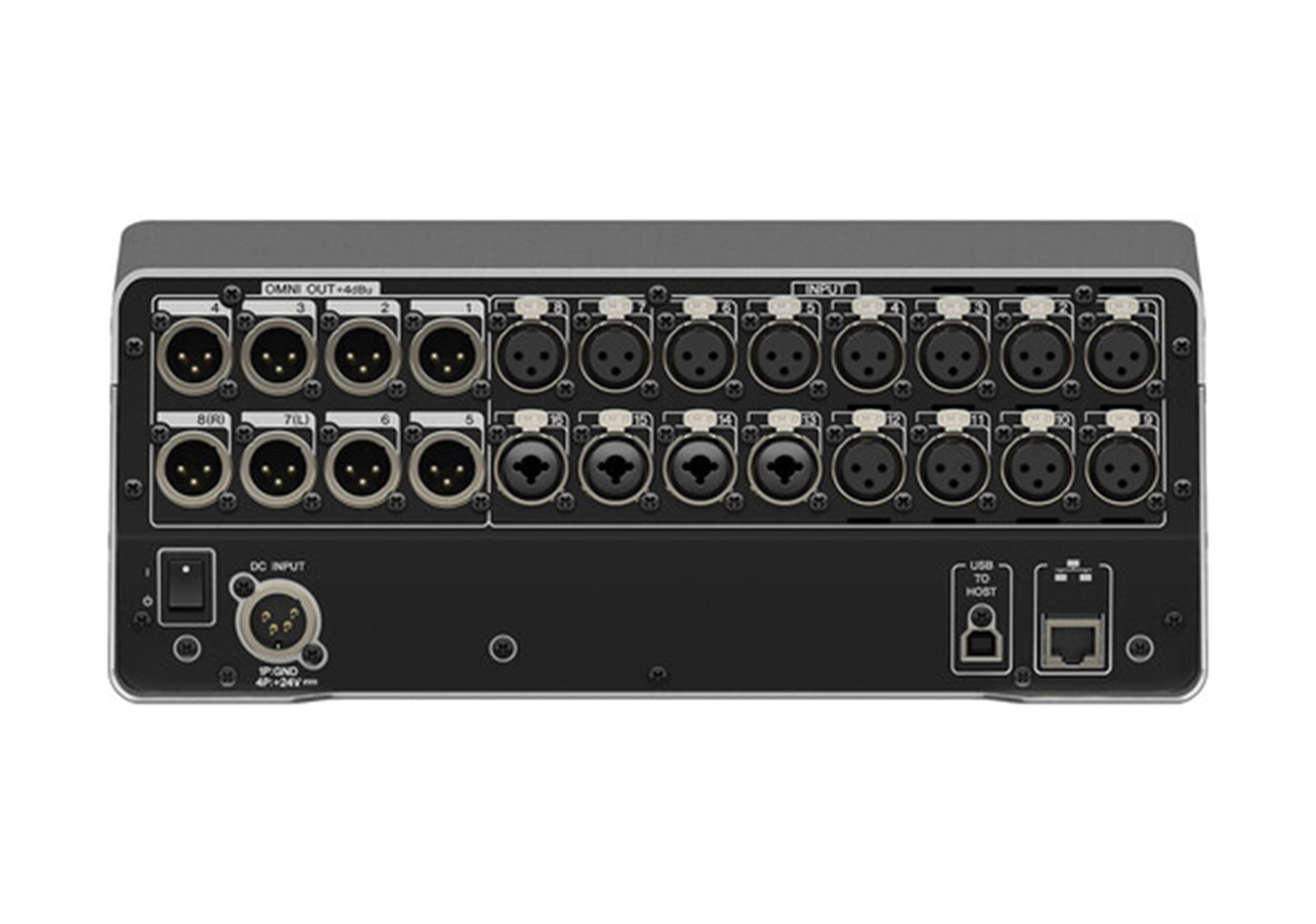

Inputs & Outputs

Analog Inputs: 12x XLR + 4x XLR-1/4" Combo (Balanced/Unbalanced)

Analog Outputs: 8x XLR (Balanced)

USB I/O: 1x USB-B (Multitrack) / 1x USB-A (Playback & Control)

Digital I/O (DM3-D only): 2x Dante etherCON, 1x RJ45 Network

Processing & Control

EQ: 4-Band Parametric & Graphic EQ on Mixes & Stereo Channels

Dynamics: Compressor, Gate

Mix Routing: 1x Stereo Main LRC, 6x Mix Bus, 2x FX, 2x Matrix

Remote Control: DM3 Editor iPad App

Physical & Power

Rack Mountable: Yes (4U)

Dimensions: 12.6" x 5.5" x 17.9"

Weight: 14.3 lbs (6.5 kg)

Power Supply: 100-240V AC, 24V DC Input
