Description

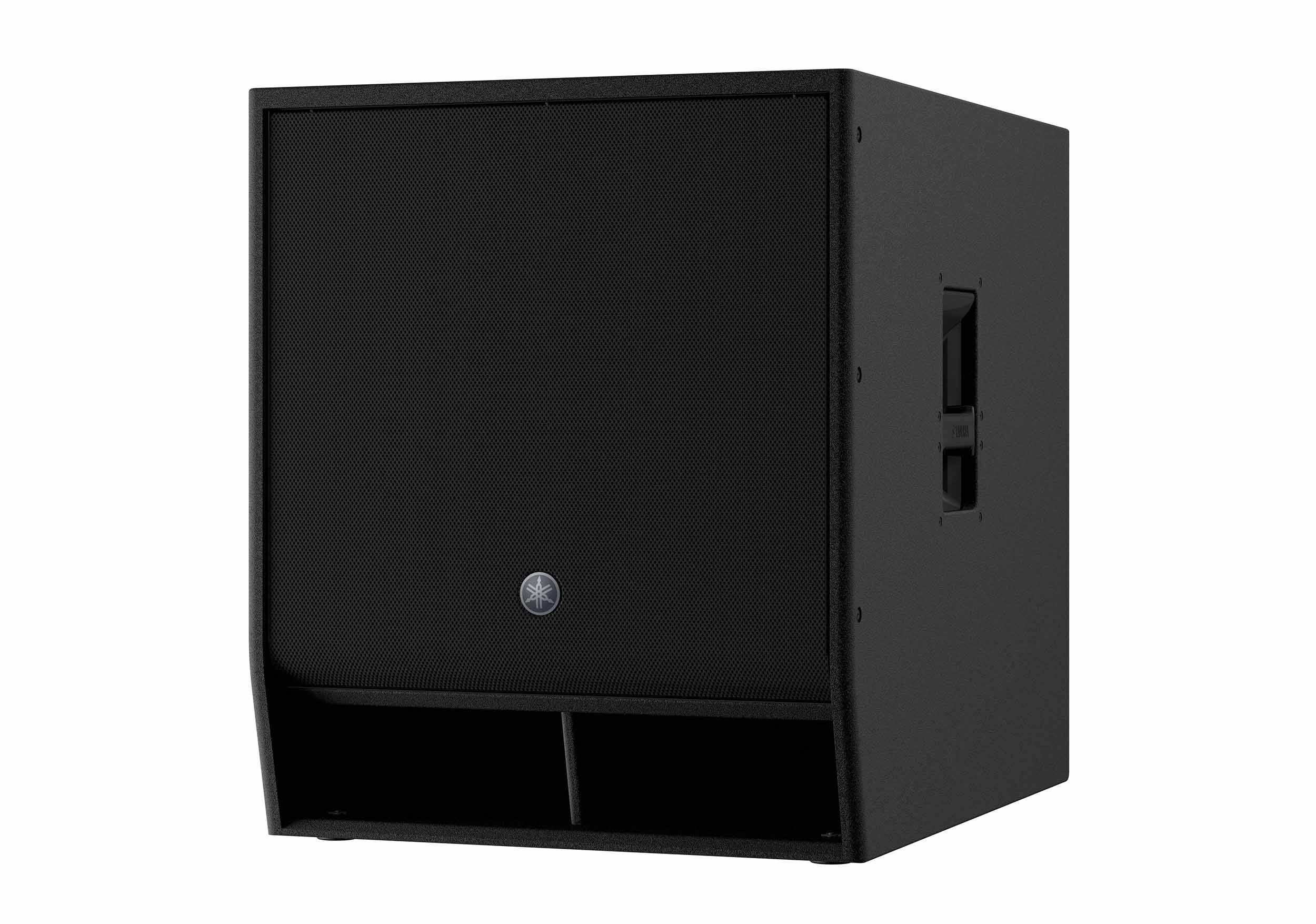

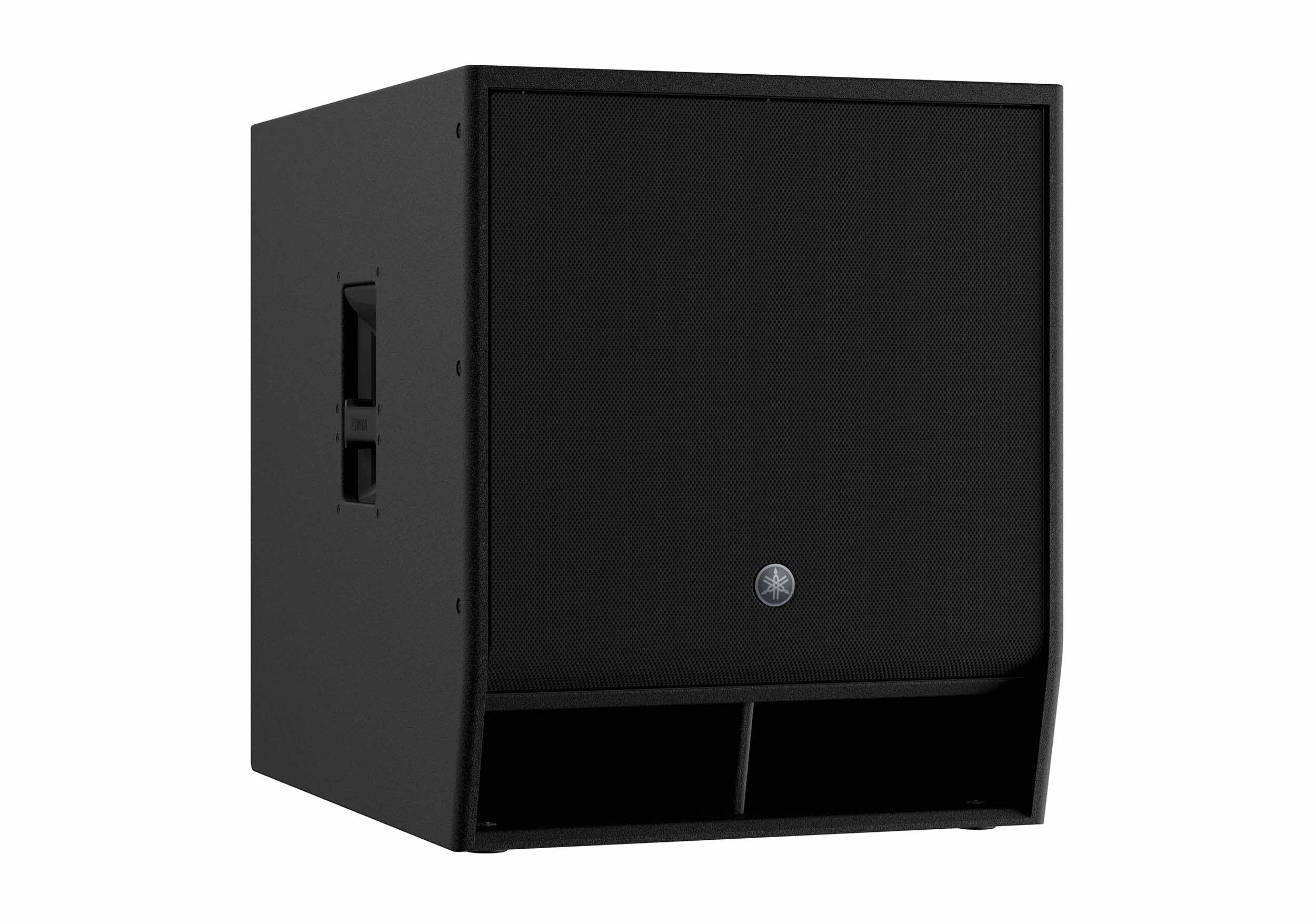

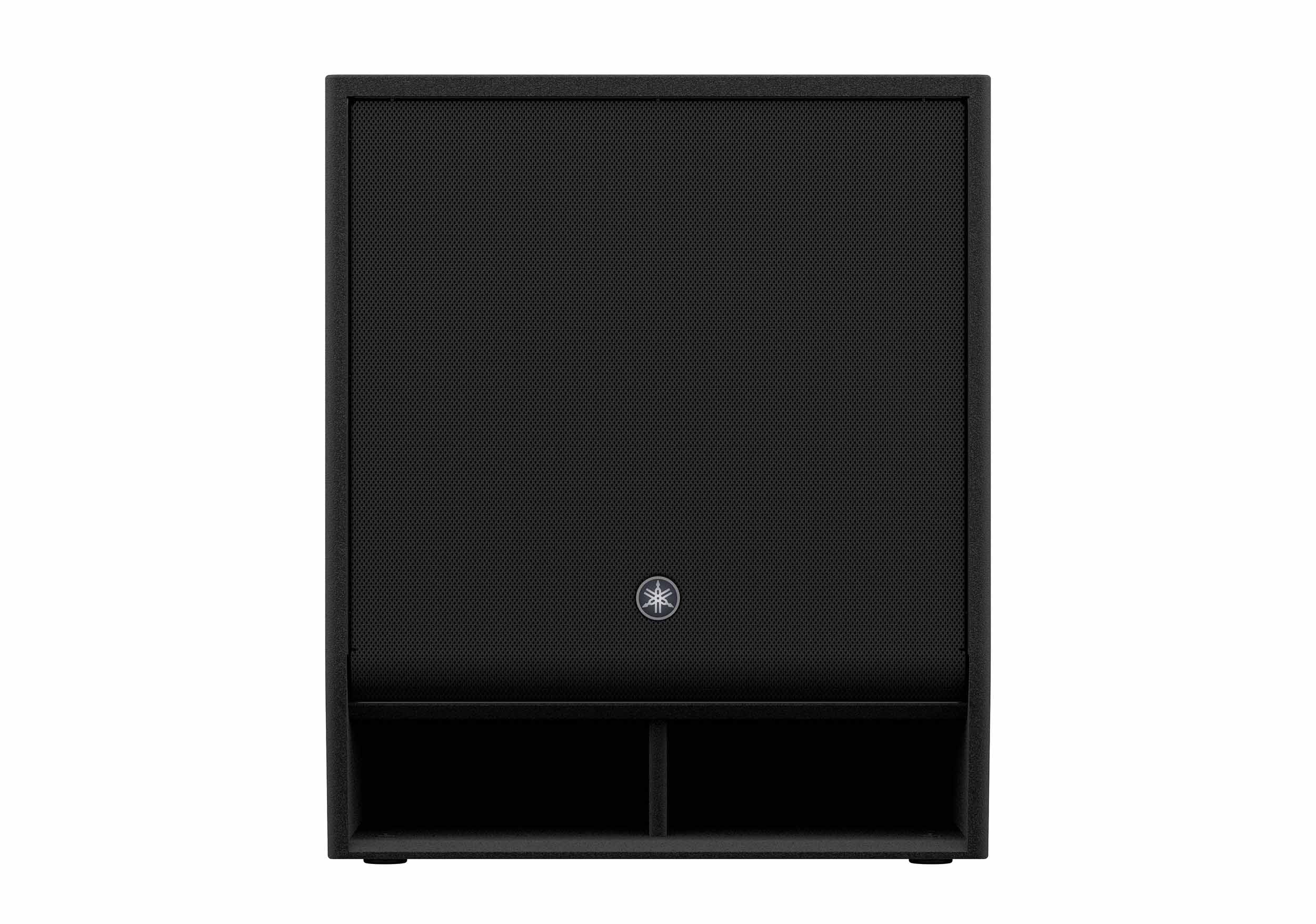

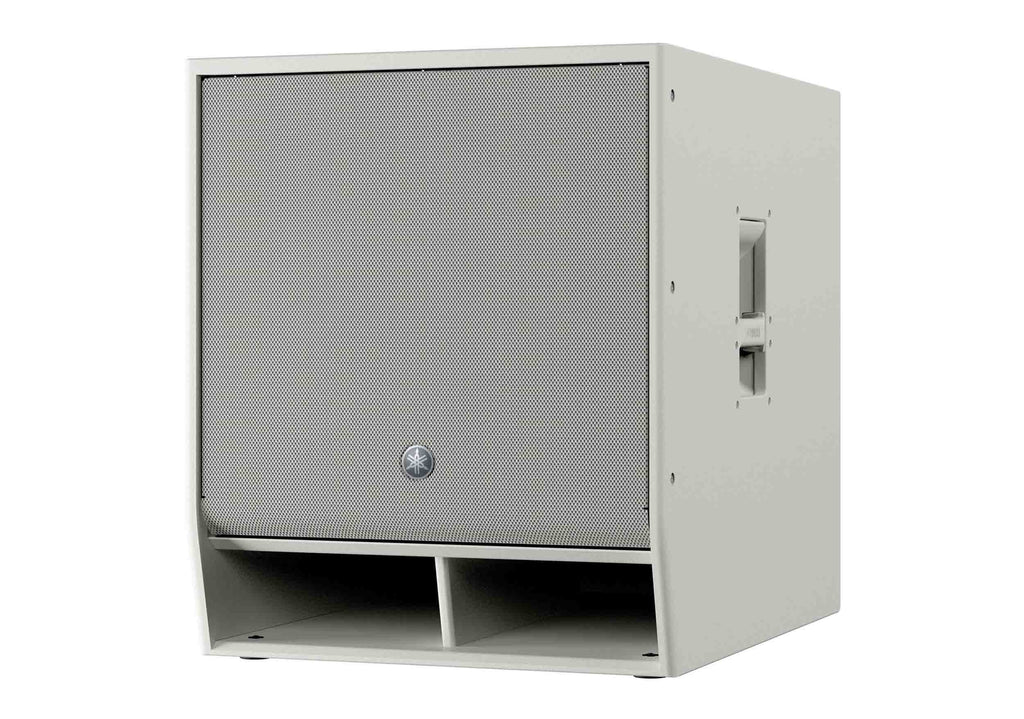

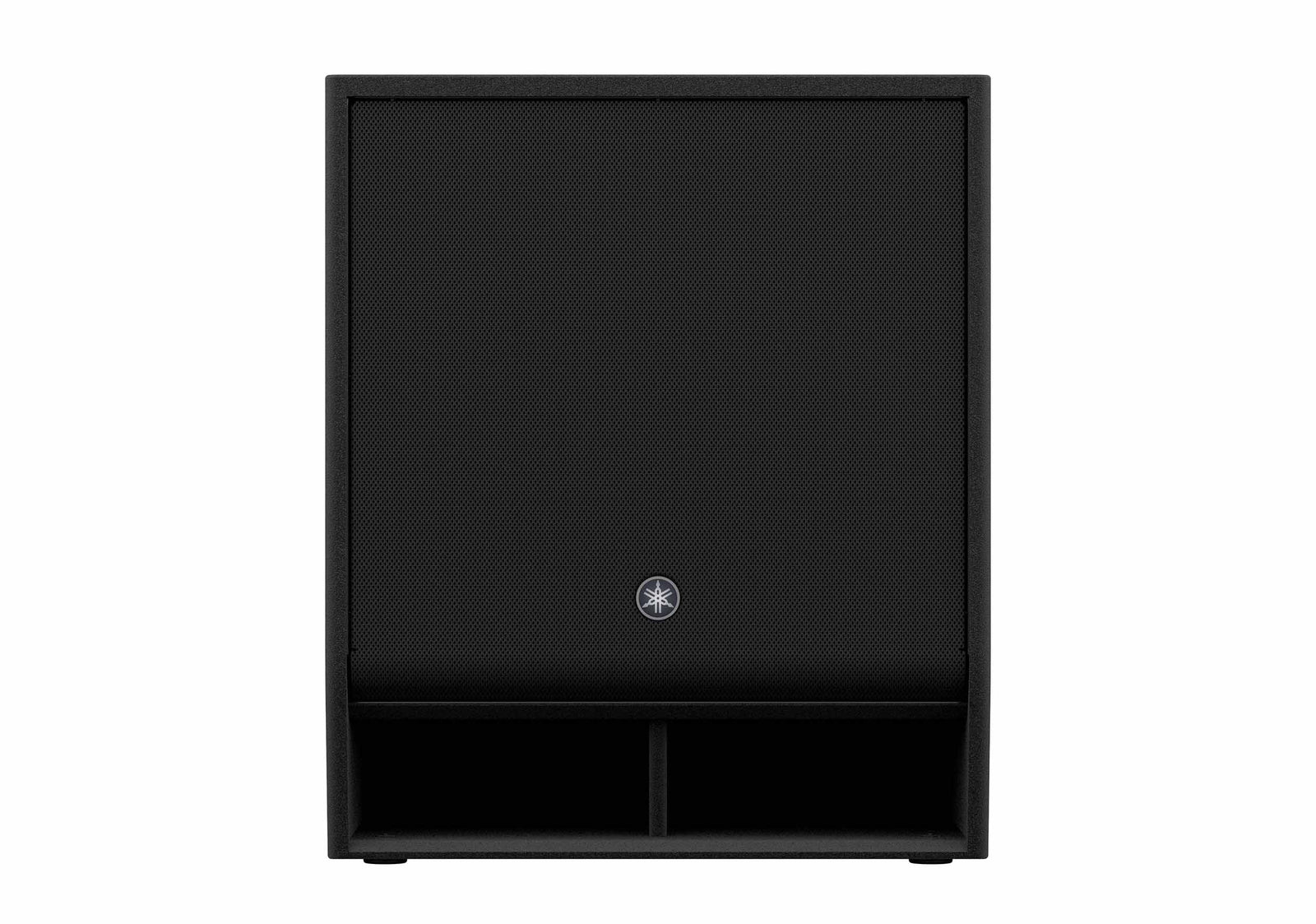

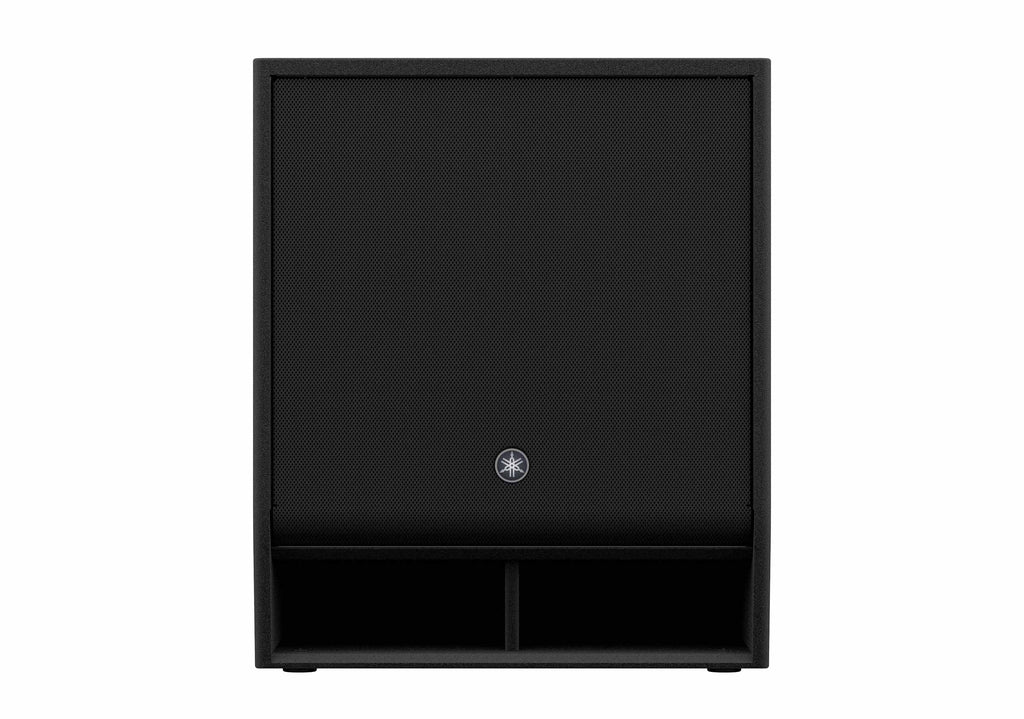

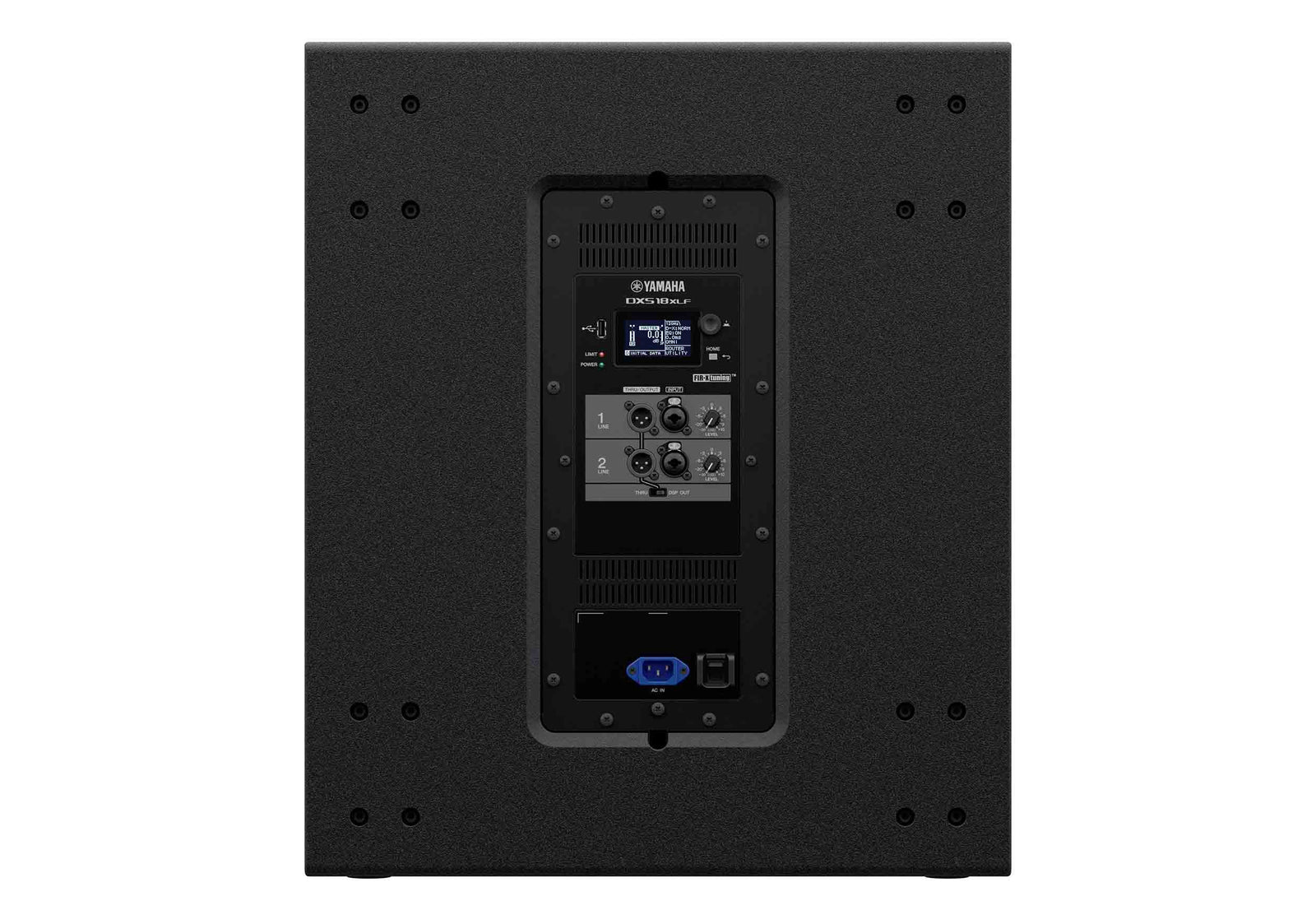

The Yamaha DXS18XLF is a high-performance powered 18" bass-reflex subwoofer engineered to perfectly complement DZR full-range loudspeakers. Featuring a high-output 4" voice coil and a powerful 1600W Class-D amplifier, it delivers a class-leading 136 dB SPL with an extended 30 Hz–150 Hz frequency range. The result is deep, authoritative low-end with exceptional clarity, ideal for large venues, touring systems, and high-impact live sound applications.
Advanced DSP & Bass Control:
Powered by 96 kHz high-resolution DSP, the DXS18XLF provides ultra-low latency processing and precise control over system performance. Yamaha’s D-XSUB processing allows flexible low-frequency management with NORMAL, BOOST, and XTENDED LF modes to suit different applications and musical styles. When using multiple subwoofers, cardioid mode effectively reduces unwanted stage-side bass while directing more low-frequency energy toward the audience, ensuring cleaner monitoring and tighter overall sound.
Professional Acoustics & System Integration:

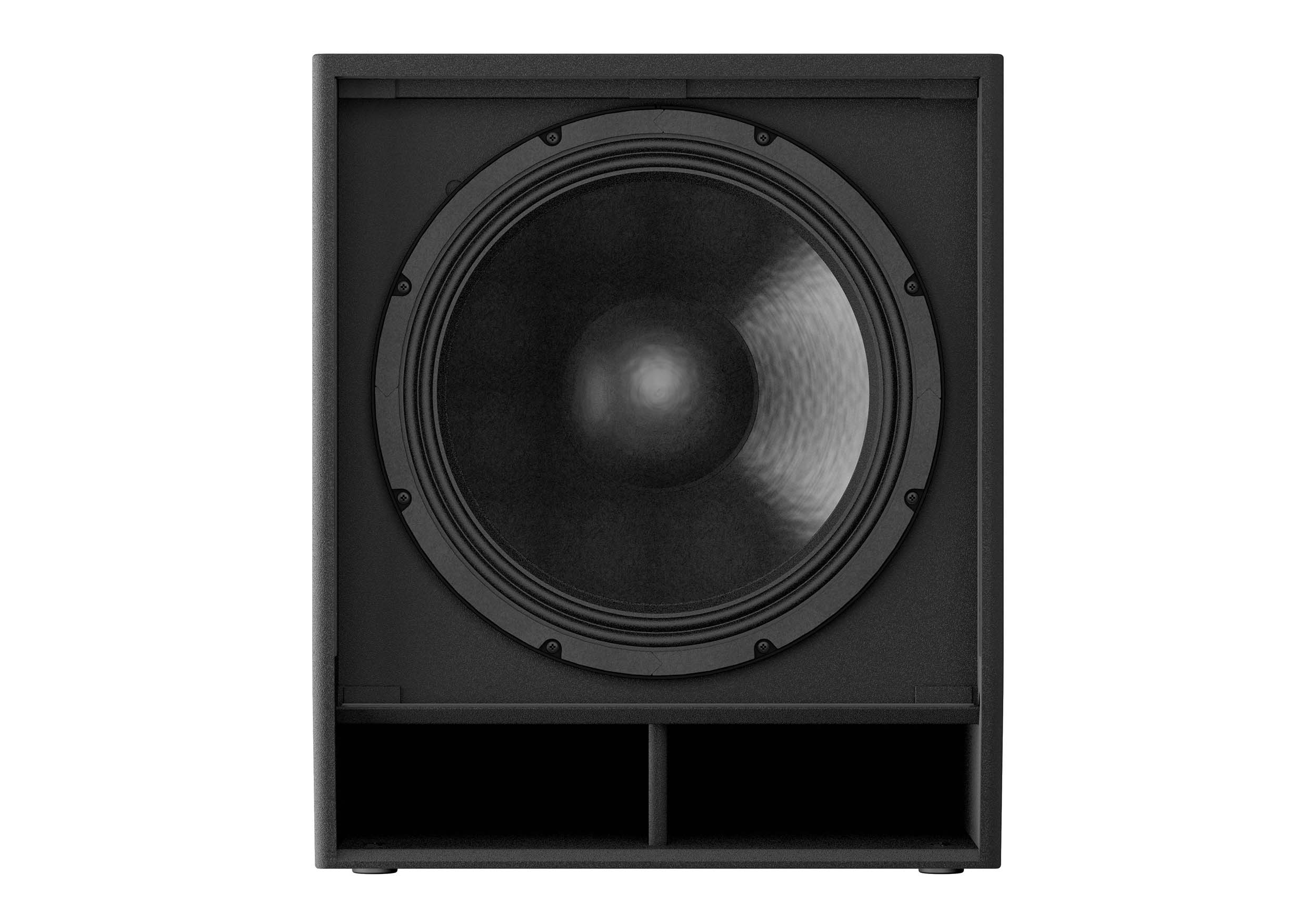

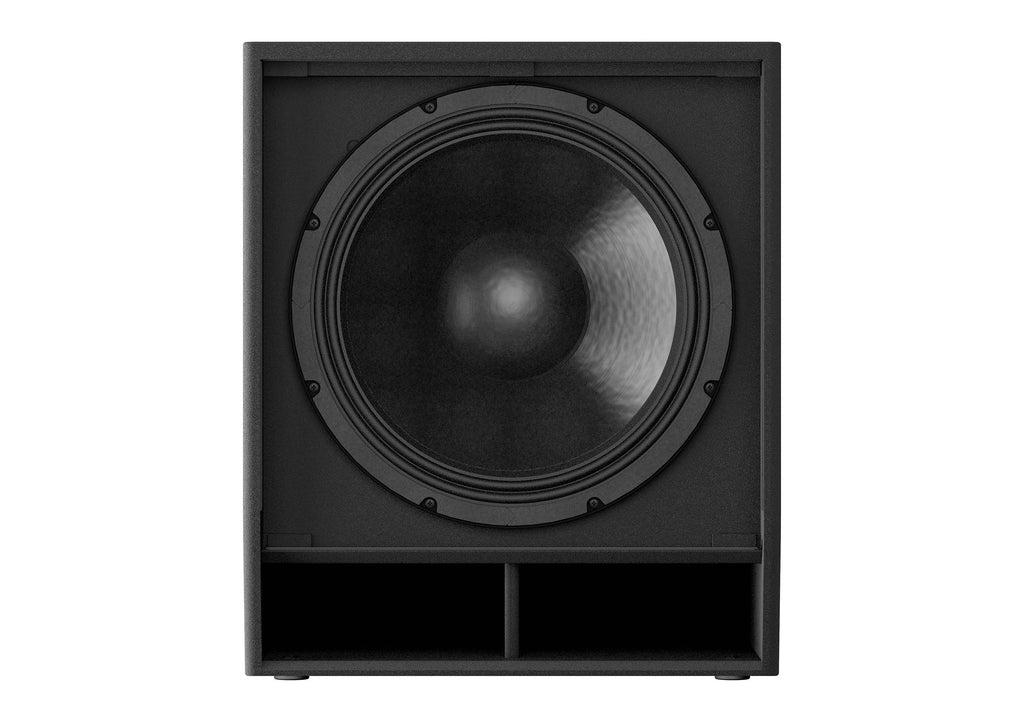

At the heart of the DXS18XLF is a Yamaha-designed 18" transducer with a durable die-cast aluminum frame and 4" voice coil, delivering powerful, controlled bass even at extreme output levels. A dual-damper design enhances linearity and minimizes distortion during high-power operation. This precision engineering allows the subwoofer to maintain consistent, musical low-frequency response in the most demanding professional environments.
Road-Ready Enclosure Design:

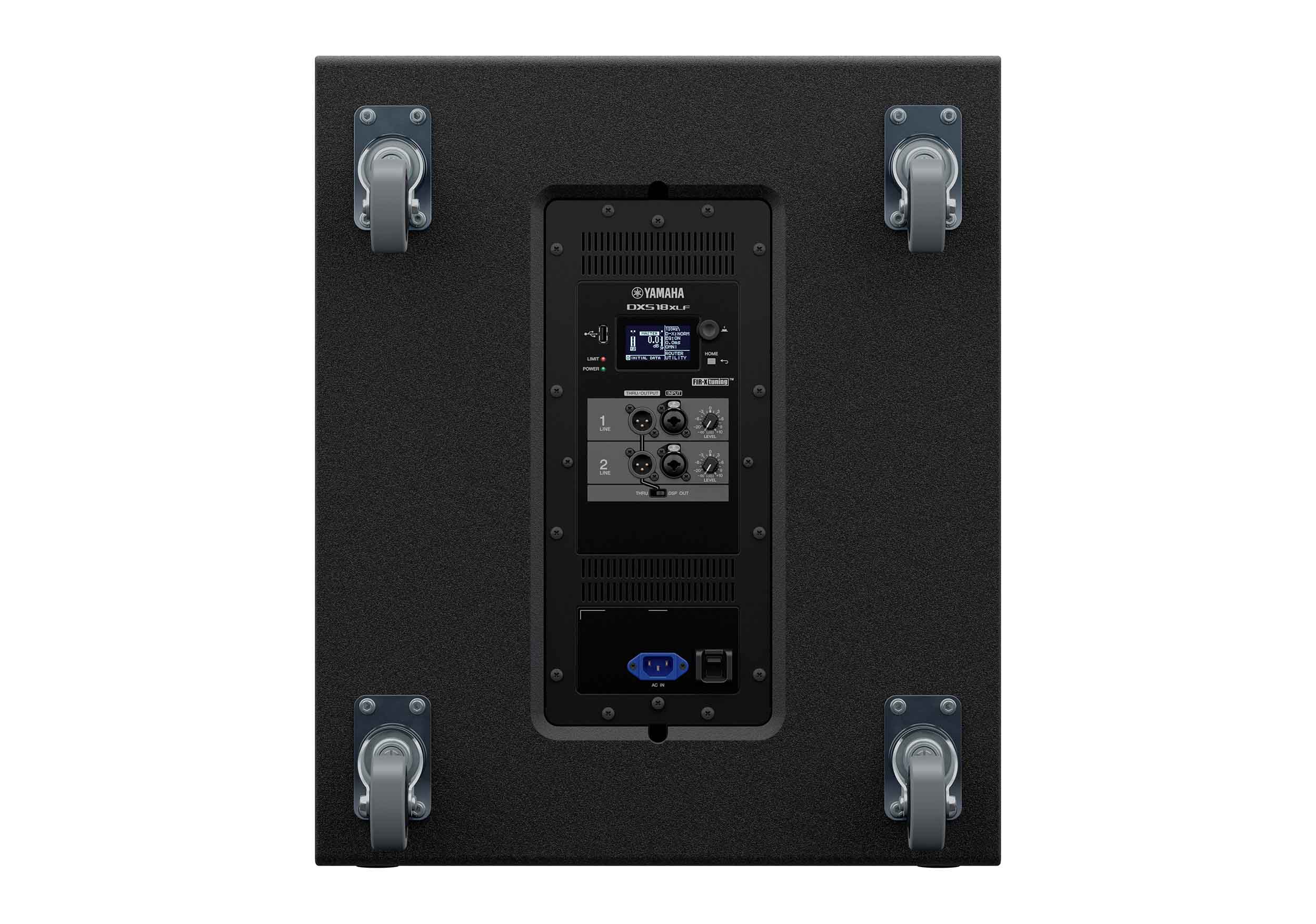

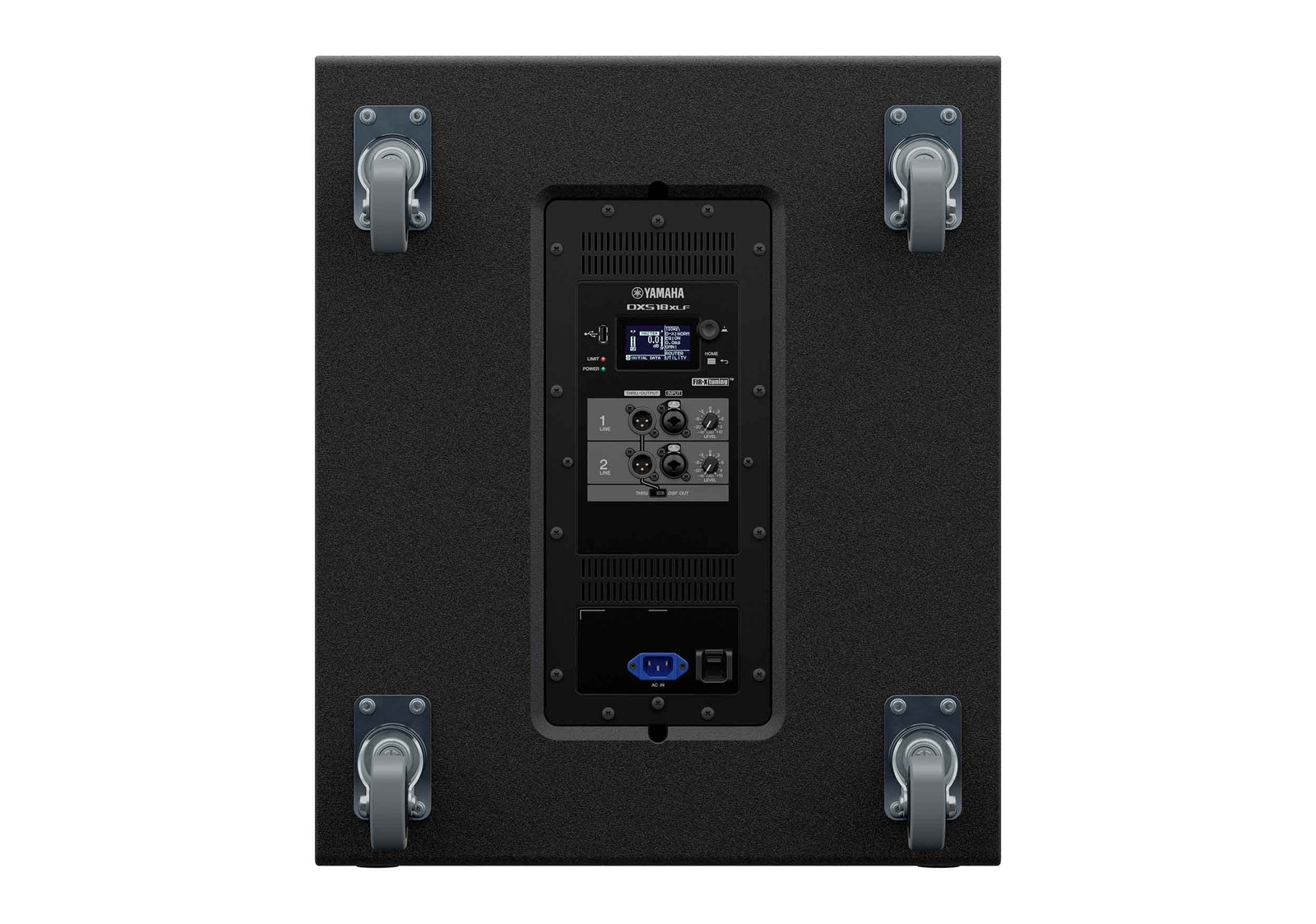

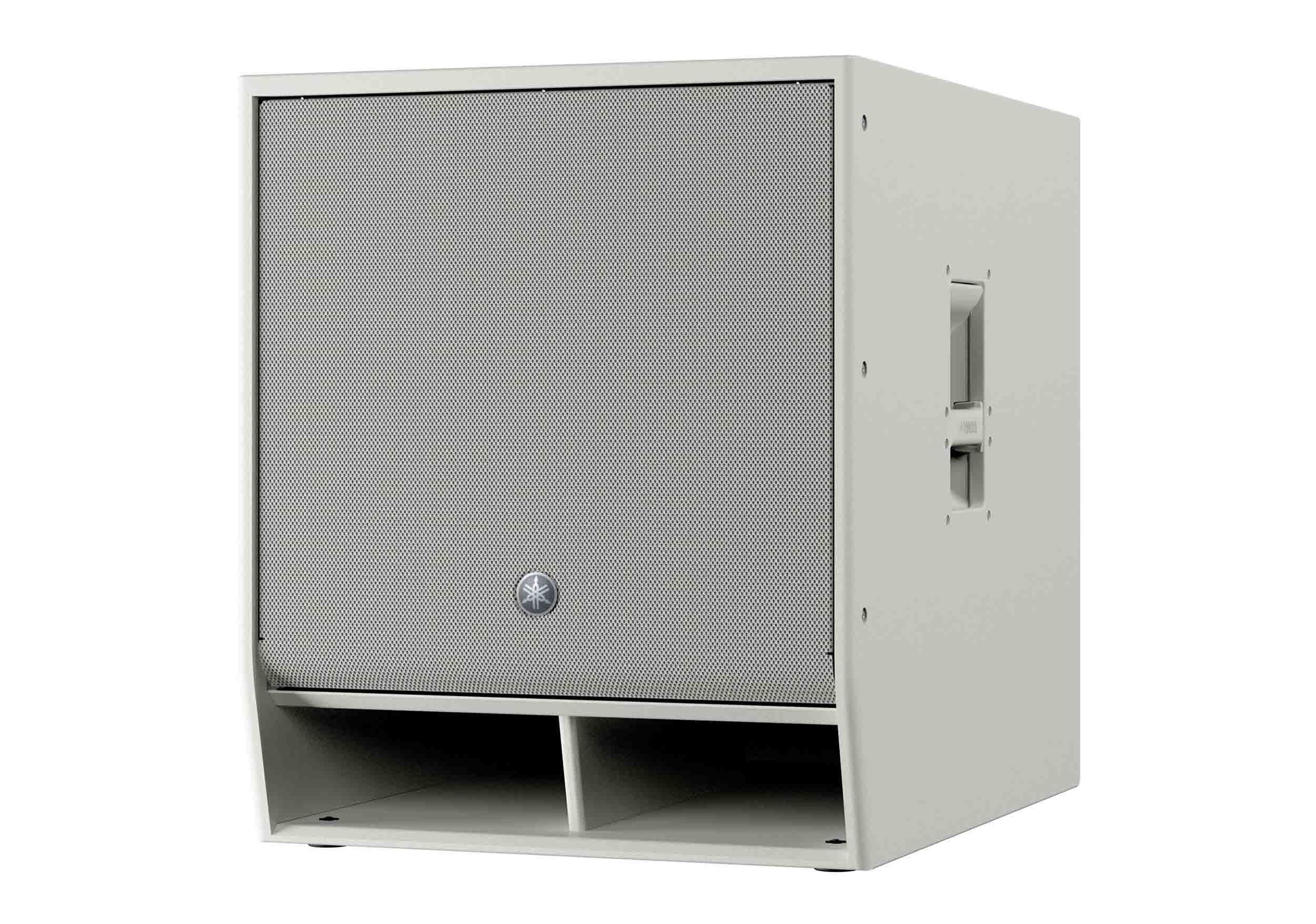

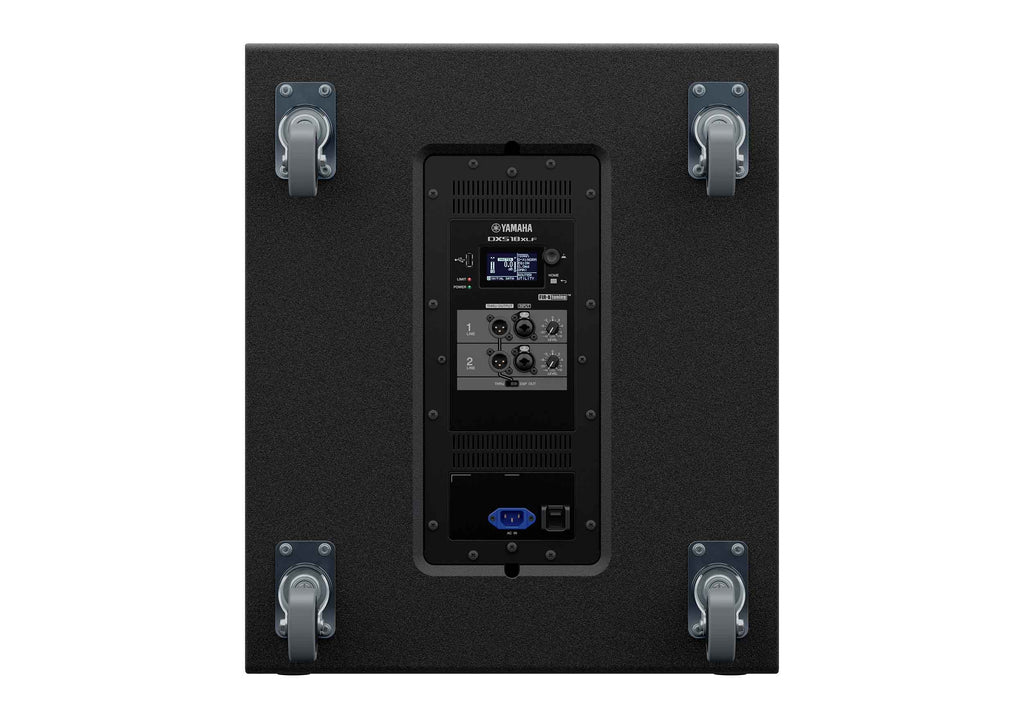

Built for durability and portability, the DXS18XLF features a lightweight yet rigid plywood cabinet finished in a premium Polyurea coating for superior resistance to scratches, impacts, and harsh conditions. An ergonomic aluminum handle simplifies handling, while optional wheel kits and padded speaker covers make transport and protection effortless. Designed for life on the road, the DXS18XLF maintains both its professional appearance and uncompromising performance show after show.
Product Specifications:
Speaker Type: Powered Subwoofer, Bass-reflex
Frequency Range (-10 dB): 30 Hz – 150 Hz
Component LF: 18" Cone, 4" Voice Coil, Ferrite Magnet
Maximum Output Level (1 m; On Axis): 136 dB SPL
Power Rating: Dynamic 1600 W
Sampling Frequency Rate: 96 kHz
A/D D/A Converters: 96 kHz AD/DA

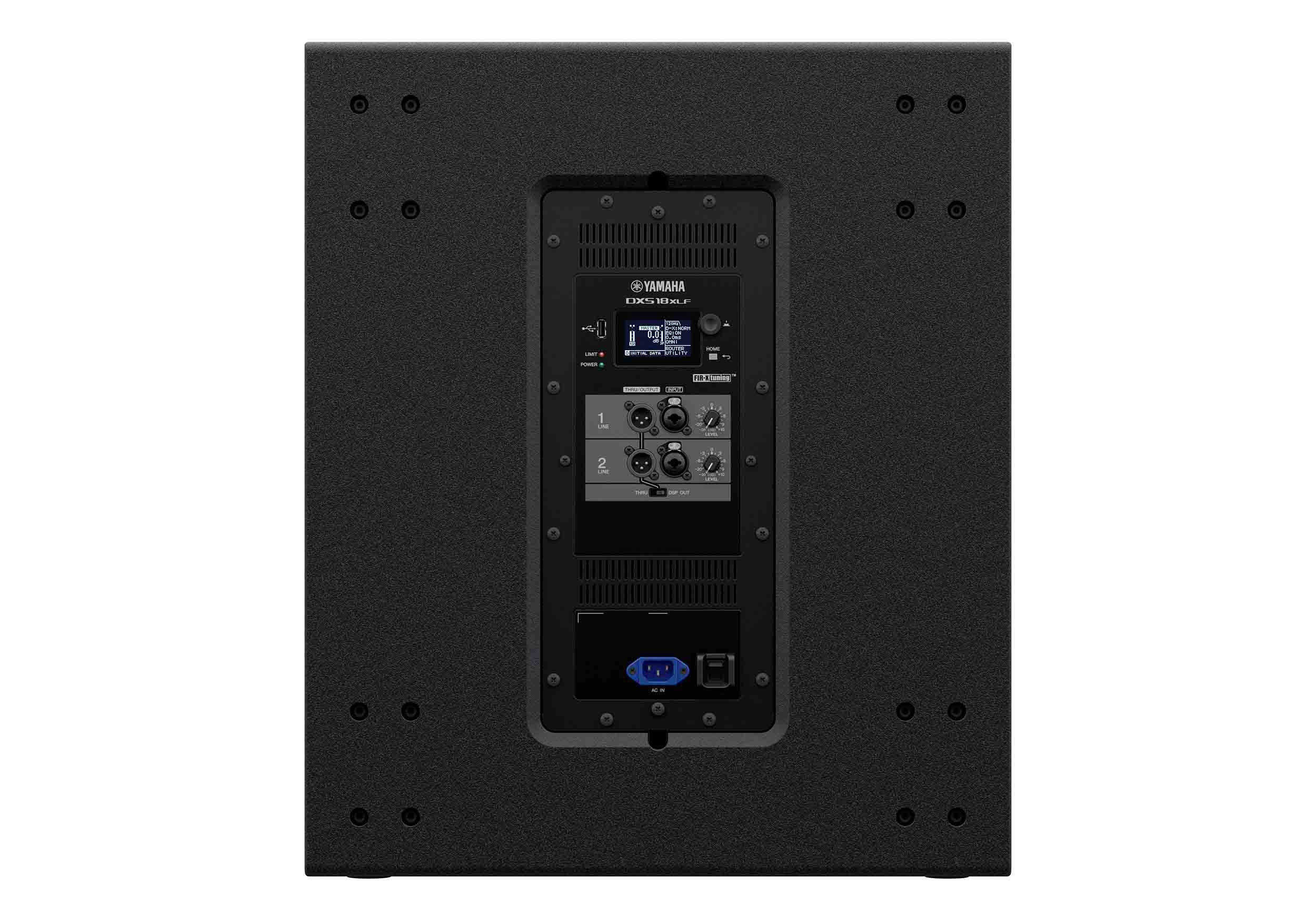

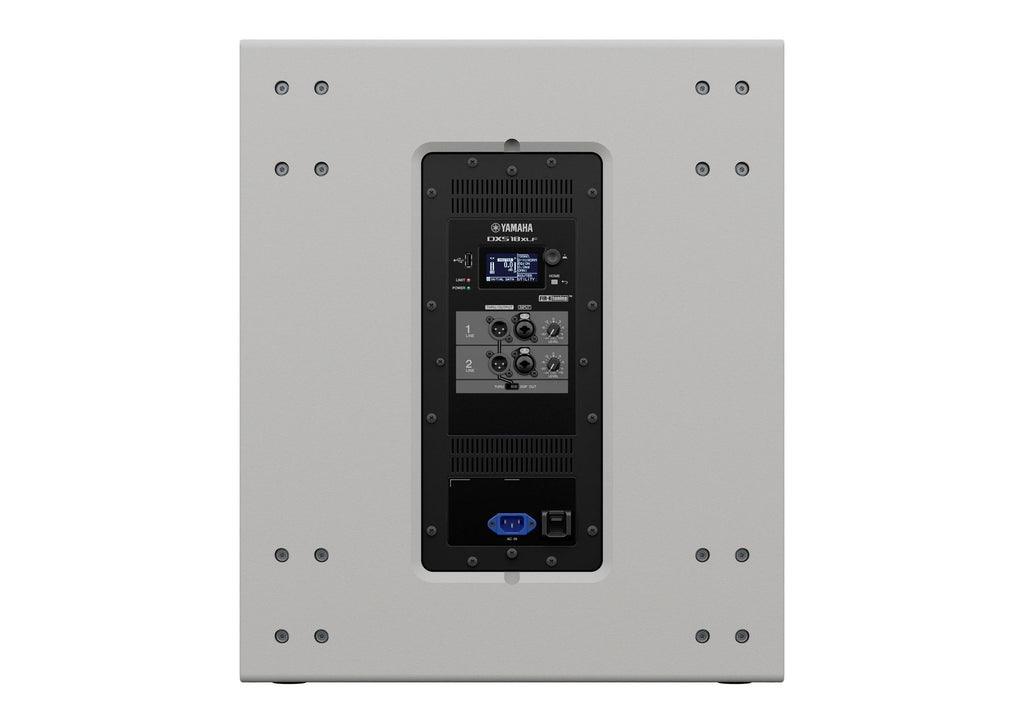

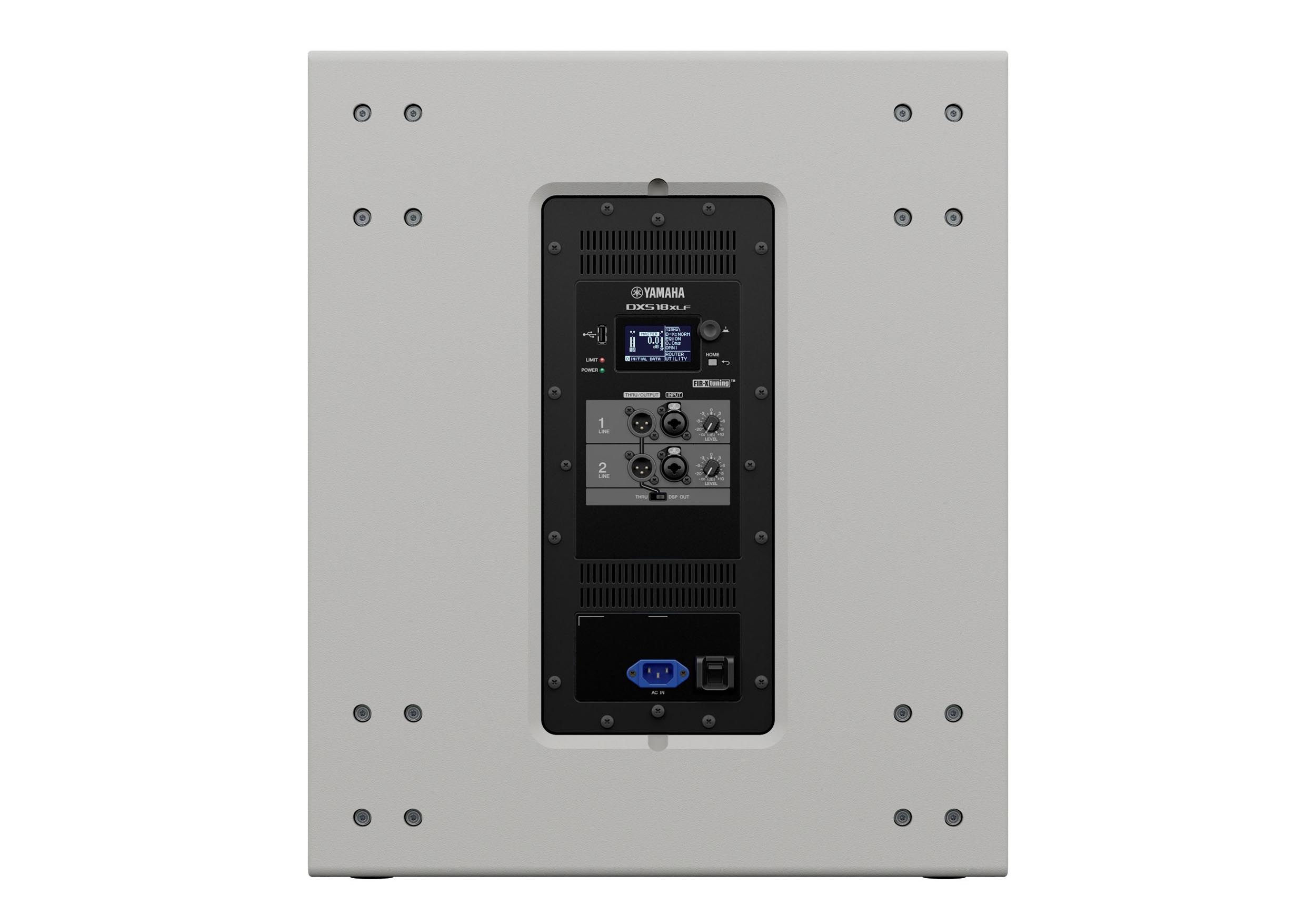

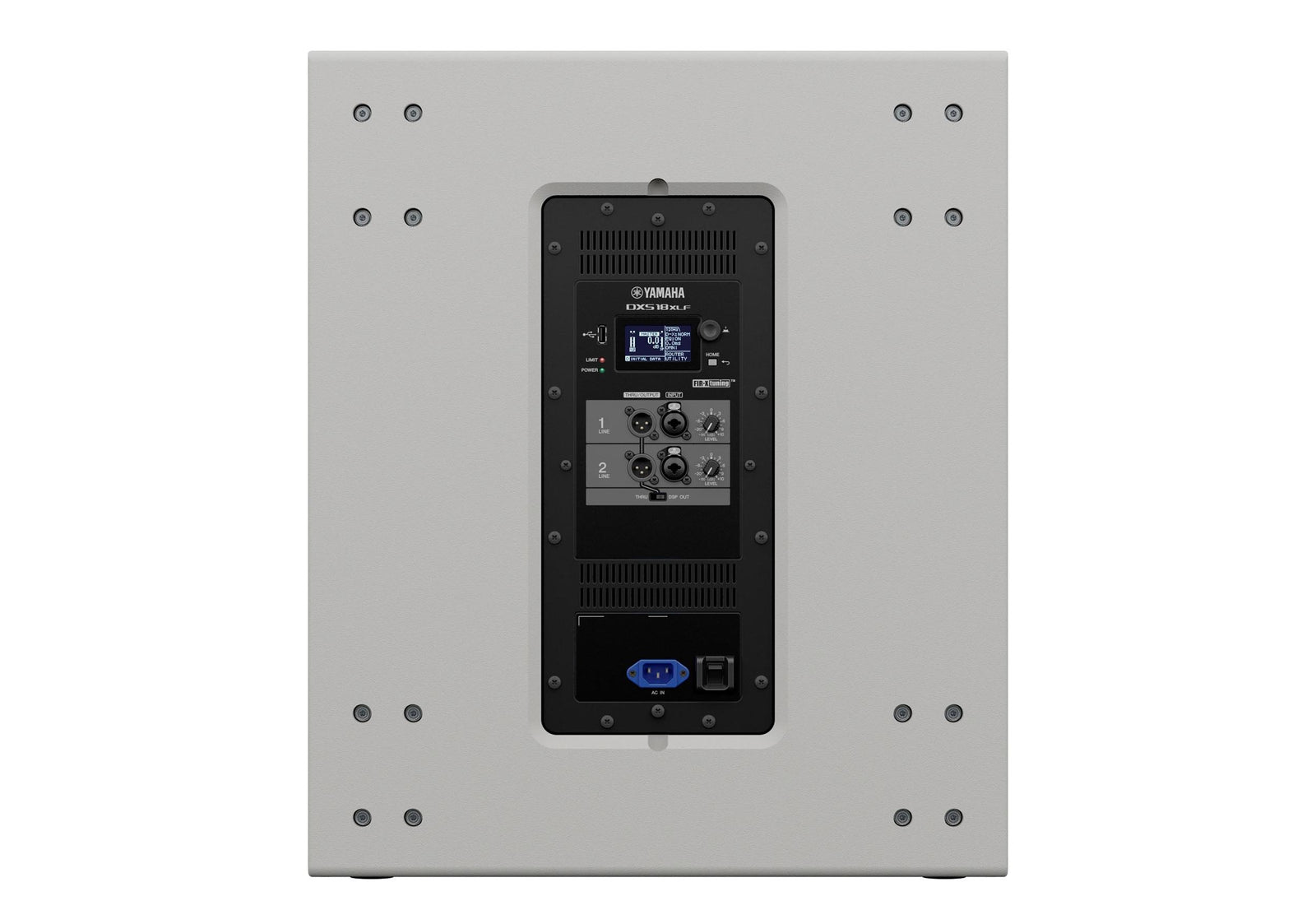

I/O Connectors: Combo IN ×2, XLR OUT ×2 (THRU or DSP OUT)
Cooling: Variable-speed Fan Cooling
Power Consumption: 40 W (Idle), 180 W (1/8 Power)
Handle: Aluminium Die-cast, Side ×2
Pole Socket: 35 mm (Depth 80 mm), M20 Threaded (Depth 25 mm)
Product Weight: 107.8 lbs / 48.9 kg
Product Dimensions (L × W × H): 28.3" × 21.7" × 25.9"
