Description
The Yamaha DZR10-D (Black) is a Dante-equipped 2-way bi-amped powered loudspeaker designed for professional audio applications. Featuring a 10" low-frequency driver and a 2" high-frequency compression driver, it delivers a maximum 137 dB SPL with a 44 Hz–20 kHz frequency range. This compact, lightweight speaker ensures clear, powerful sound suitable for live performances, portable PA setups, and fixed installations.
High-Definition DSP & FIR-X Tuning:
Equipped with a 2000W Class-D amplifier and 96 kHz DSP with FIR filtering, the DZR10-D delivers high-resolution, low-latency sound with minimal phase distortion. Advanced FIR-X tuning optimizes frequency and phase response, while the intuitive LCD display allows for precise adjustment of PEQ, delay, routing, and preset management for ultimate flexibility in sound control.
Intelligent Processing & Dynamic Protection:
The DZR10-D features D-Contour multi-band dynamic processing to maintain clarity and musicality across all output levels. Combined with highly reliable protection circuits, the speaker safeguards both the amplifier and transducers from overload or damage. A dedicated floor monitoring setting ensures optimal performance when used as a stage monitor.
Durable, Flexible, and Road-Ready:
Built in a rugged plywood cabinet with premium Polyurea coating, the DZR10-D is designed for durability and portability. Rotatable horn and various UB-DZR U-bracket rigging options provide versatile installation possibilities, while optional SPCVR-DZR10 cover and SPW1 wheel kit ensure safe transport and long-lasting protection, making it ideal for professional touring and installation use.
Product Specifications:
Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 44Hz - 20kHz
Coverage area: H90° x V60° (Rotatable)

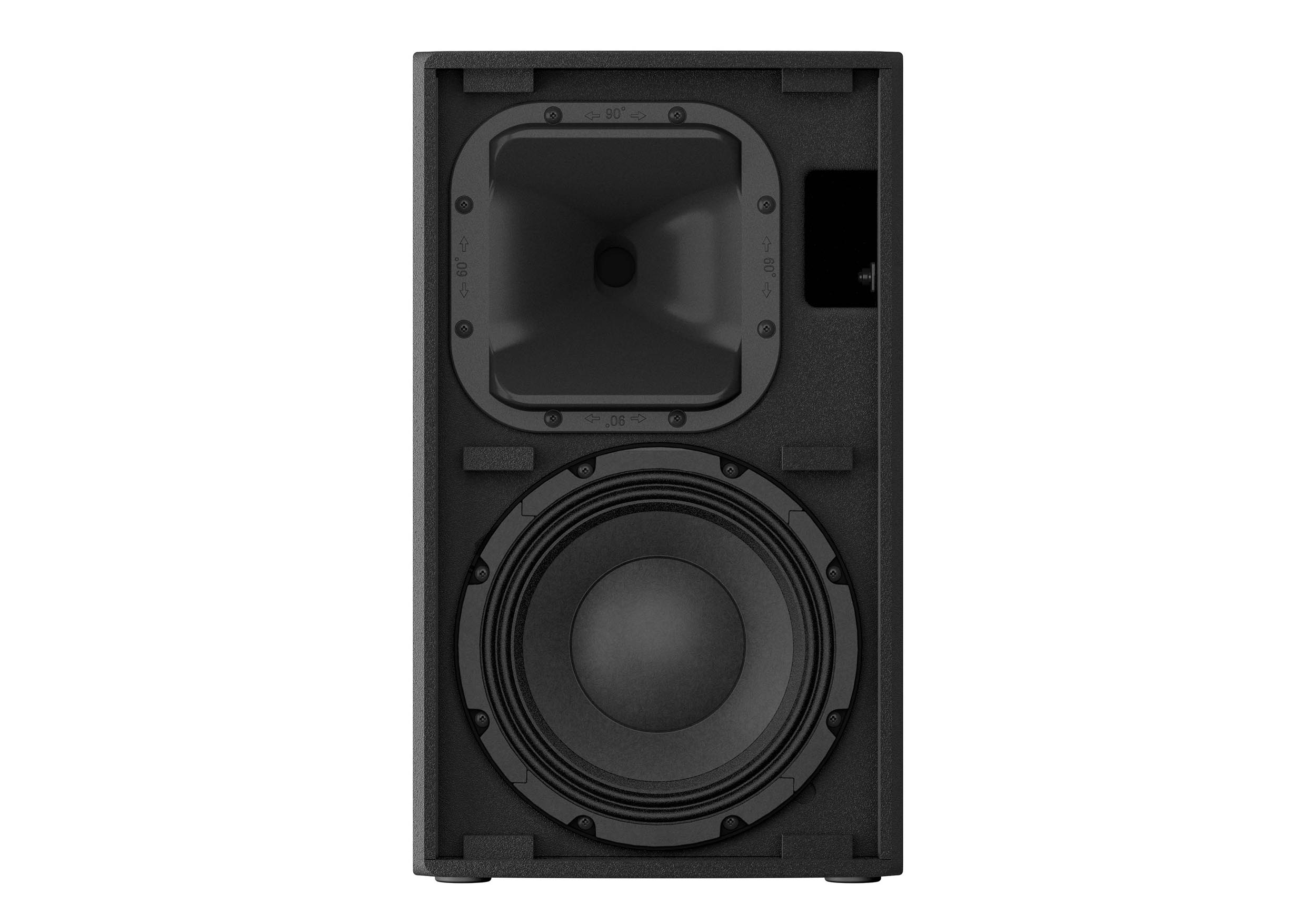

Components:
LF: 10" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 137dB SPL *1
SRC: Yes
Power rating:
Dynamic: 2000W; Burst (20ms): 1100W
Continuous: 950W

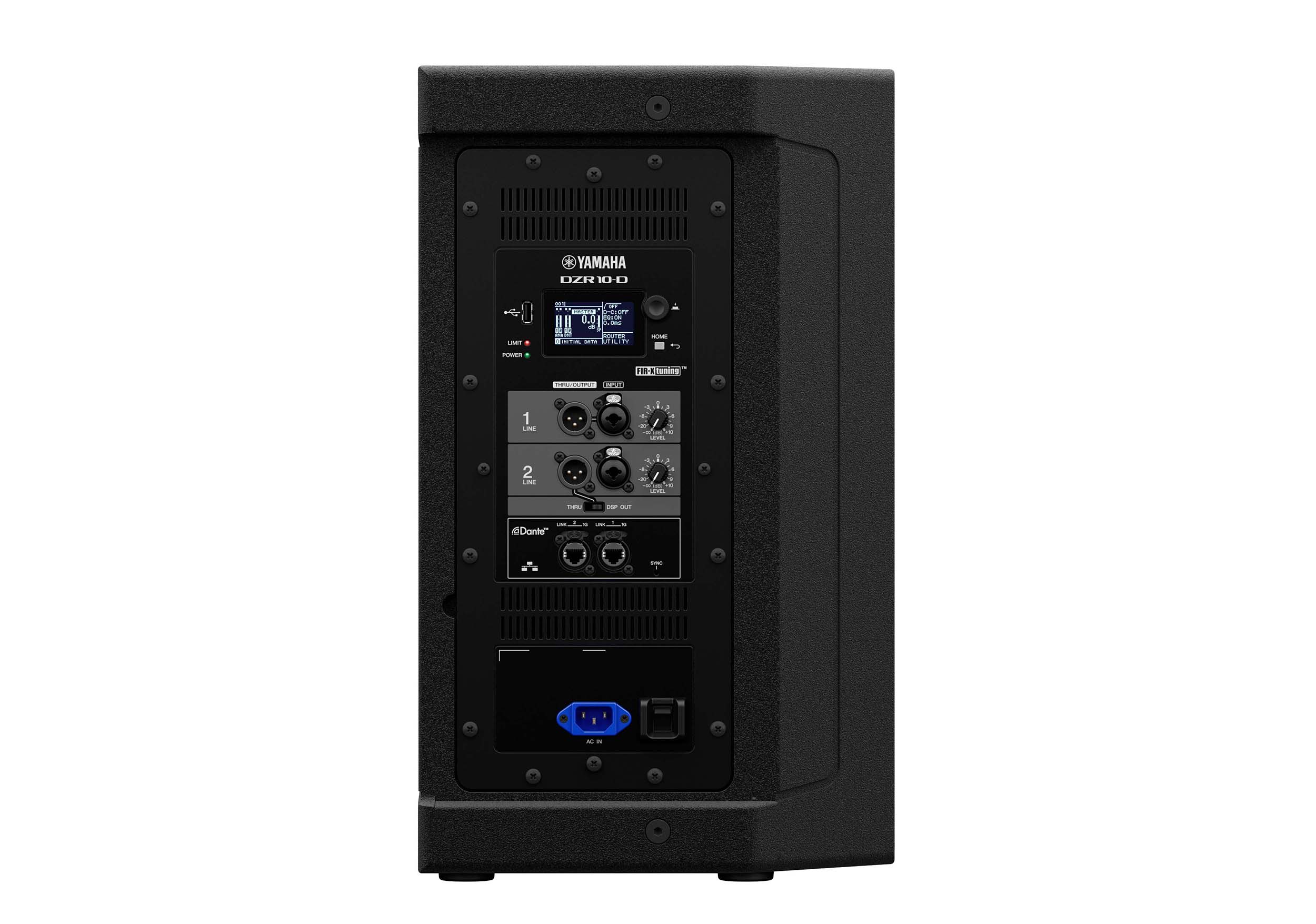

I/O Connectors:
Analog IN: Combo x2
Analog OUT: XLR3-32 x2
Digital I/O:
Dante: etherCON CAT5e x2, 2 IN / 2 OUT, Remote Control, 1000BASE-T
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 45W (Idle), 150W (1/8)
Handle: Aluminum die-cast, Top x1, Side x1
Rigging: M10 x8, M8 x2

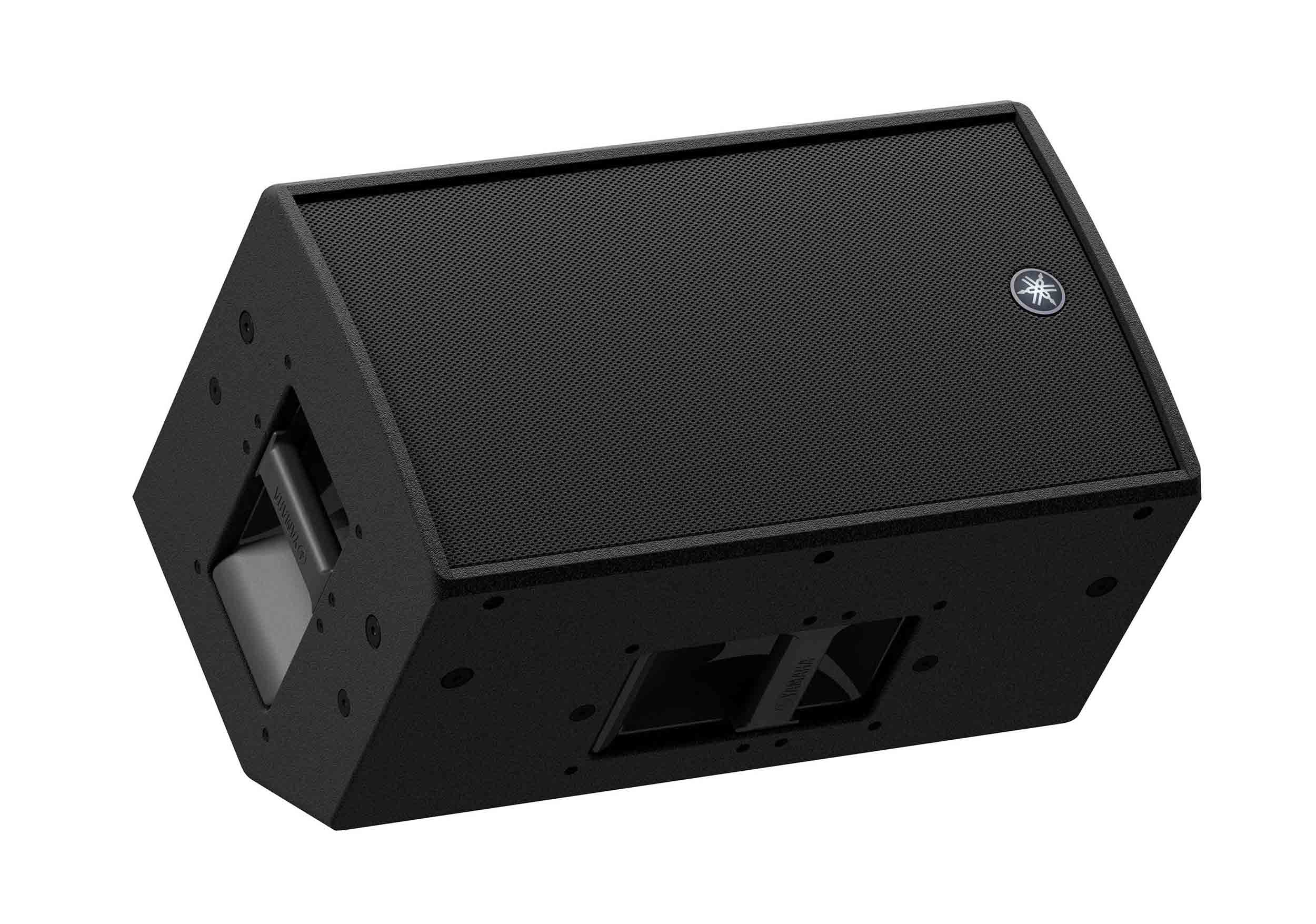

Floor Monitor Angle: 50°
Pole socket: Φ35 mm x2 (0° or -7°)
Product Weight: 39.5lbs / 17.9kg
Product Dimensions (L × W × H): 13.6" × 12.4" × 21.1"
