Description

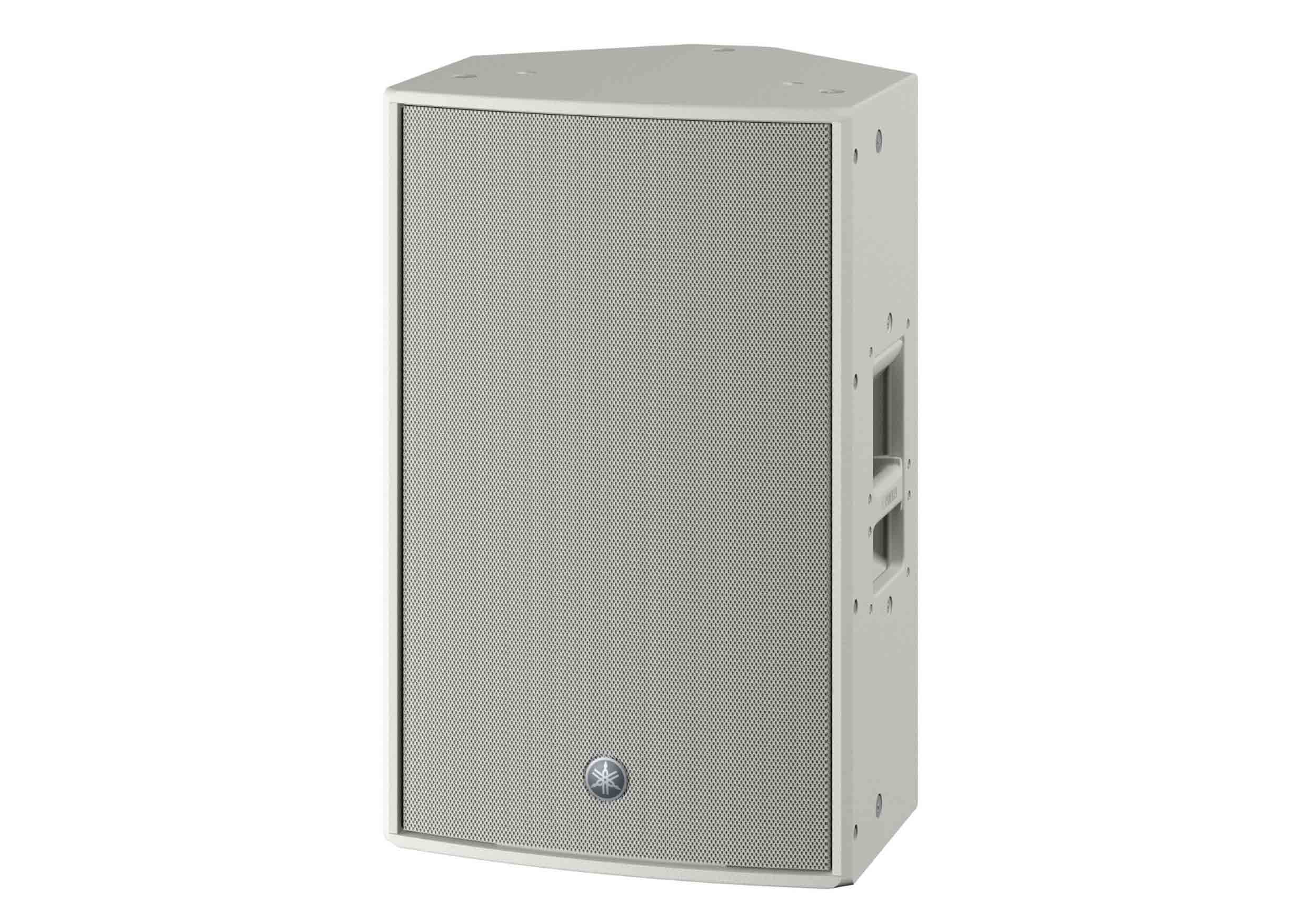

The Yamaha DZR12W (White) is a 2-way bi-amped powered loudspeaker engineered to deliver exceptional clarity and power in demanding professional environments. With a 12" low-frequency driver and 2" high-frequency compression driver, it achieves a class-leading 139 dB SPL and a wide 39 Hz–20 kHz frequency range, making it ideal for live sound, touring, and fixed installations where high output and accuracy are essential.
Advanced Amplification & DSP Processing:
Powered by a 2000W Class-D amplifier, the DZR12W combines massive headroom with efficiency and reliability. Its 96 kHz DSP with FIR filtering and Advanced FIR-X tuning ensures precise time alignment and minimal phase distortion, resulting in high-resolution sound with ultra-low latency. The intuitive LCD display provides easy access to presets and detailed control over PEQ, delay, and routing.
Intelligent Sound Control & Monitoring:
The DZR12W features D-Contour multi-band dynamic processing to maintain consistent tonal balance and clarity at any volume level. Highly reliable protection circuits safeguard performance even under extreme conditions. A dedicated floor monitoring mode with mirror configuration allows the speaker to perform equally well as a main PA or a stage monitor, offering outstanding versatility.
Rugged, Flexible, and Road-Ready Design:
Housed in a lightweight yet durable plywood cabinet with premium Polyurea coating, the DZR12W is built for long-term professional use. A rotatable horn and multiple UB-DZR U-bracket options allow flexible installation and precise coverage control. Optional accessories such as the SPCVR-DZR12 protective cover further enhance portability and protection, making the DZR12W a reliable choice for any professional sound system.
Product Specifications:
Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 39Hz - 20kHz
Coverage Area: H90° x V60° (Rotatable)
Components:
LF: 12" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling Frequency Rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 139dB SPL *1
Power Rating:
Dynamic: 2000W
Burst (20ms): 1100W
Continuous: 950W

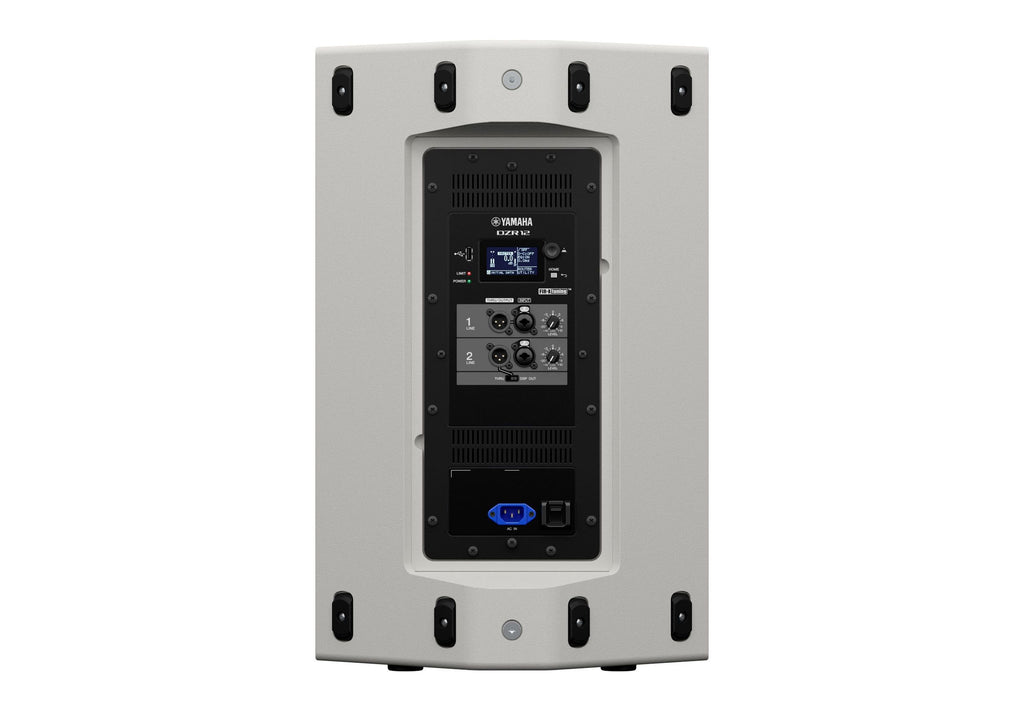

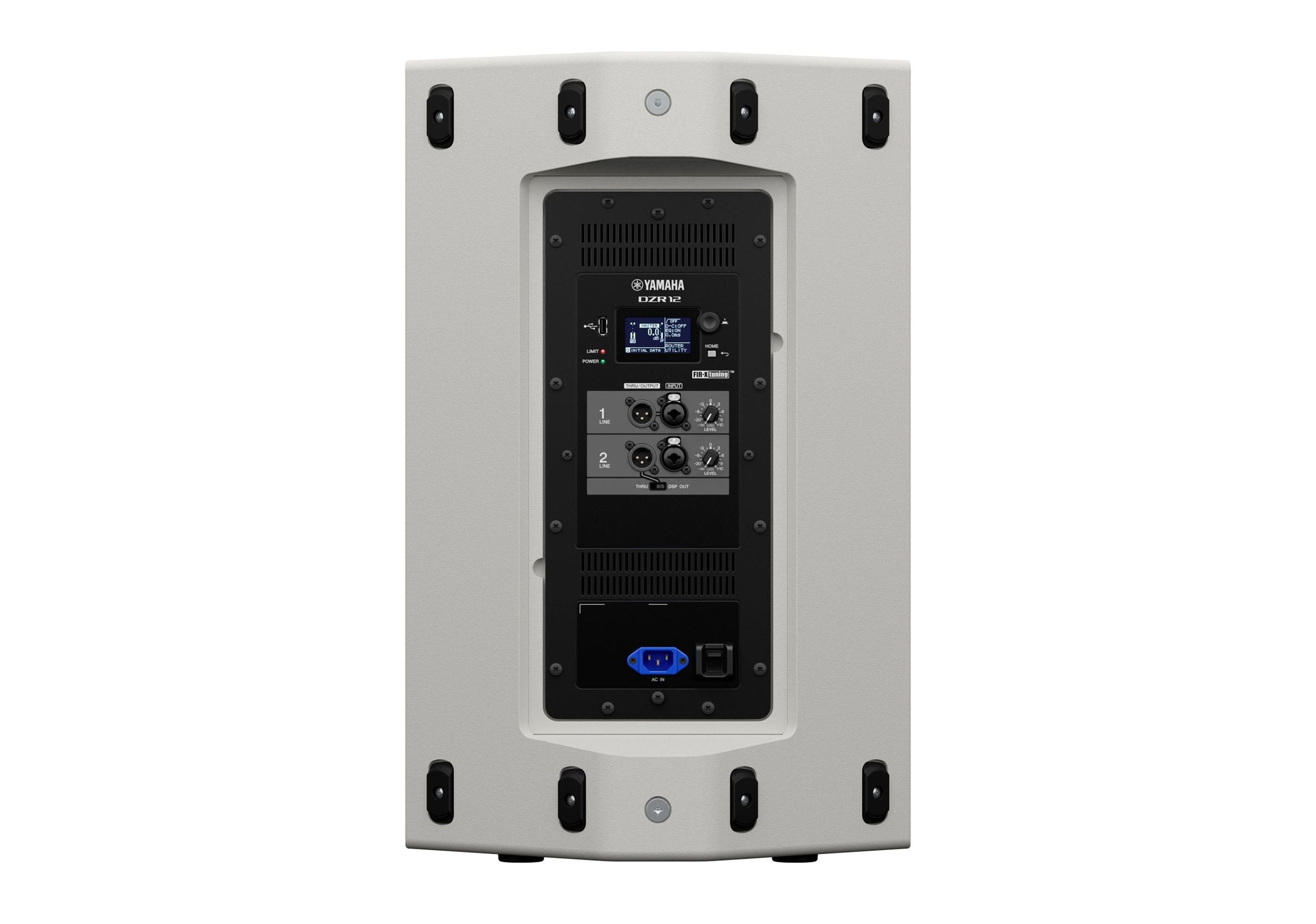

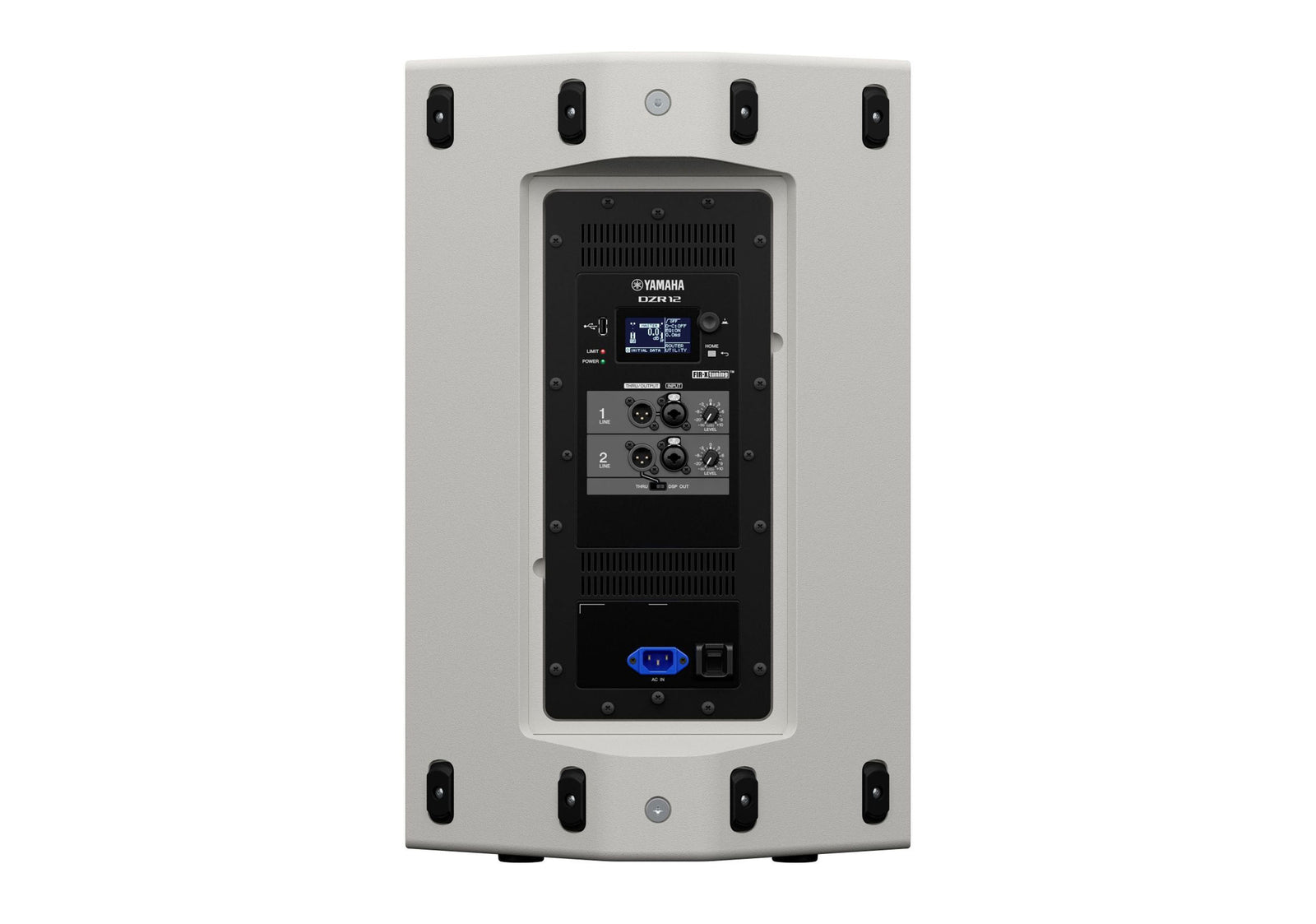

I/O Connectors:
Analog IN: Combo x2
Analog OUT: XLR3-32 x2
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)
Handle: Aluminum die-cast, Side x2
Rigging: M10 x12
Floor Monitor Angle: 50° Symmetrical
Pole Socket: Φ35 mm x2 (0° or -7°)
Product Weight: 47.2lbs / 21.4kg
Product Dimensions (L × W × H): 15.5" × 16.1" × 25.4"
