Description

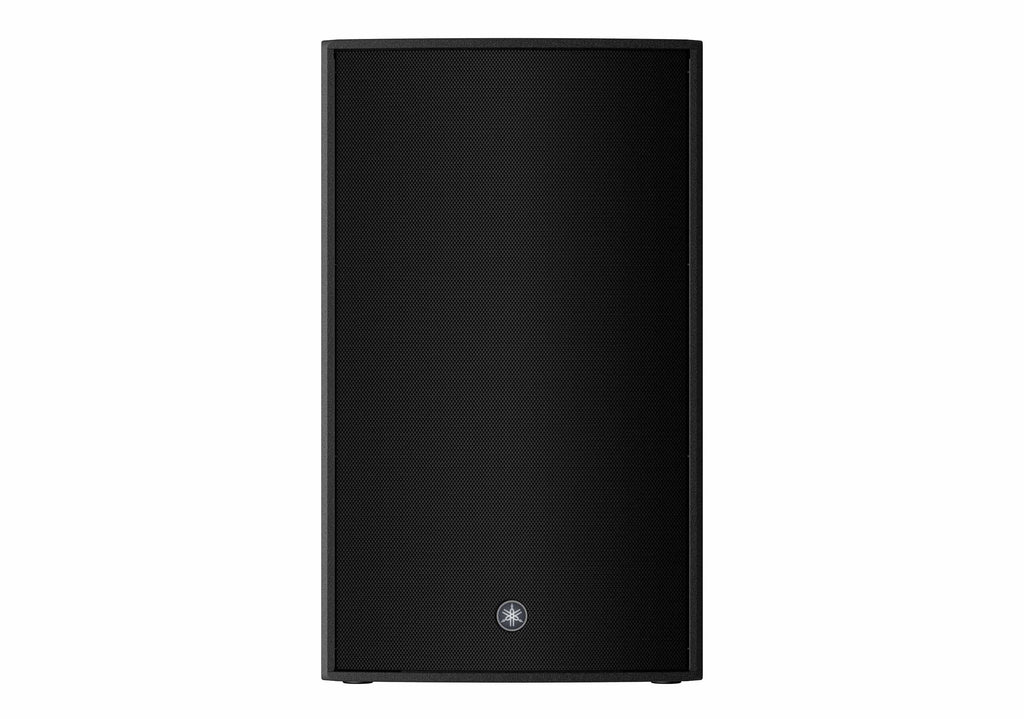

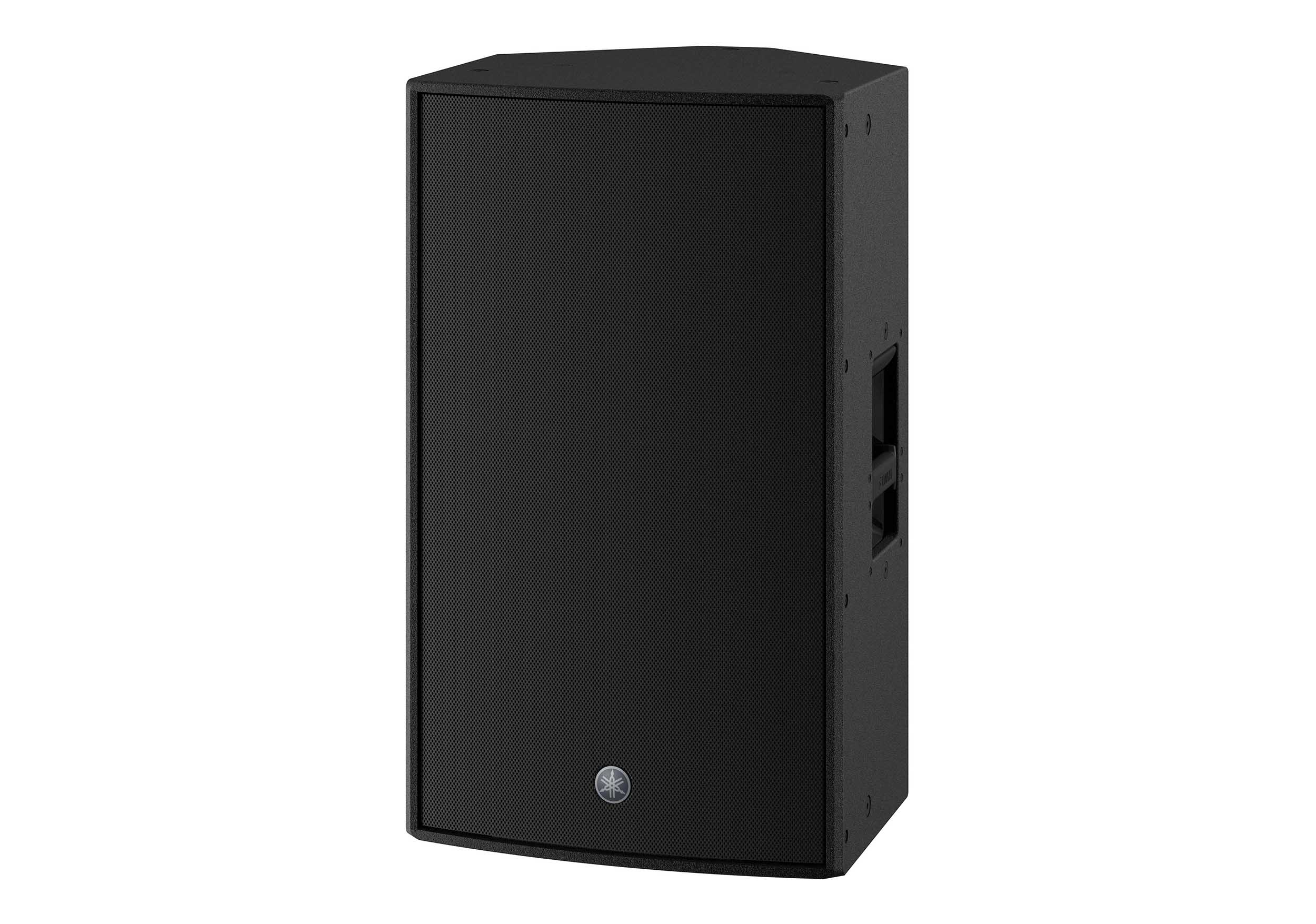

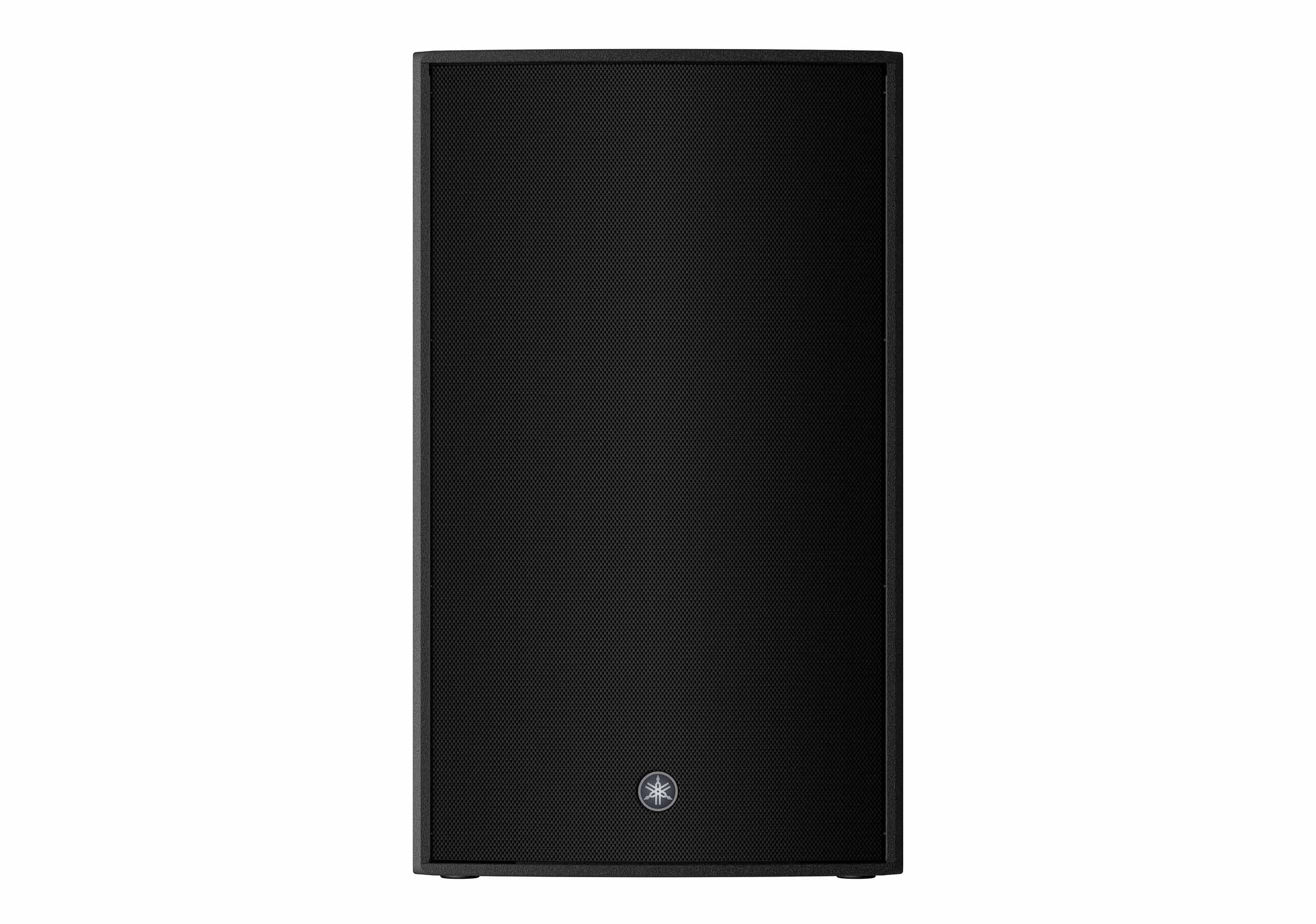

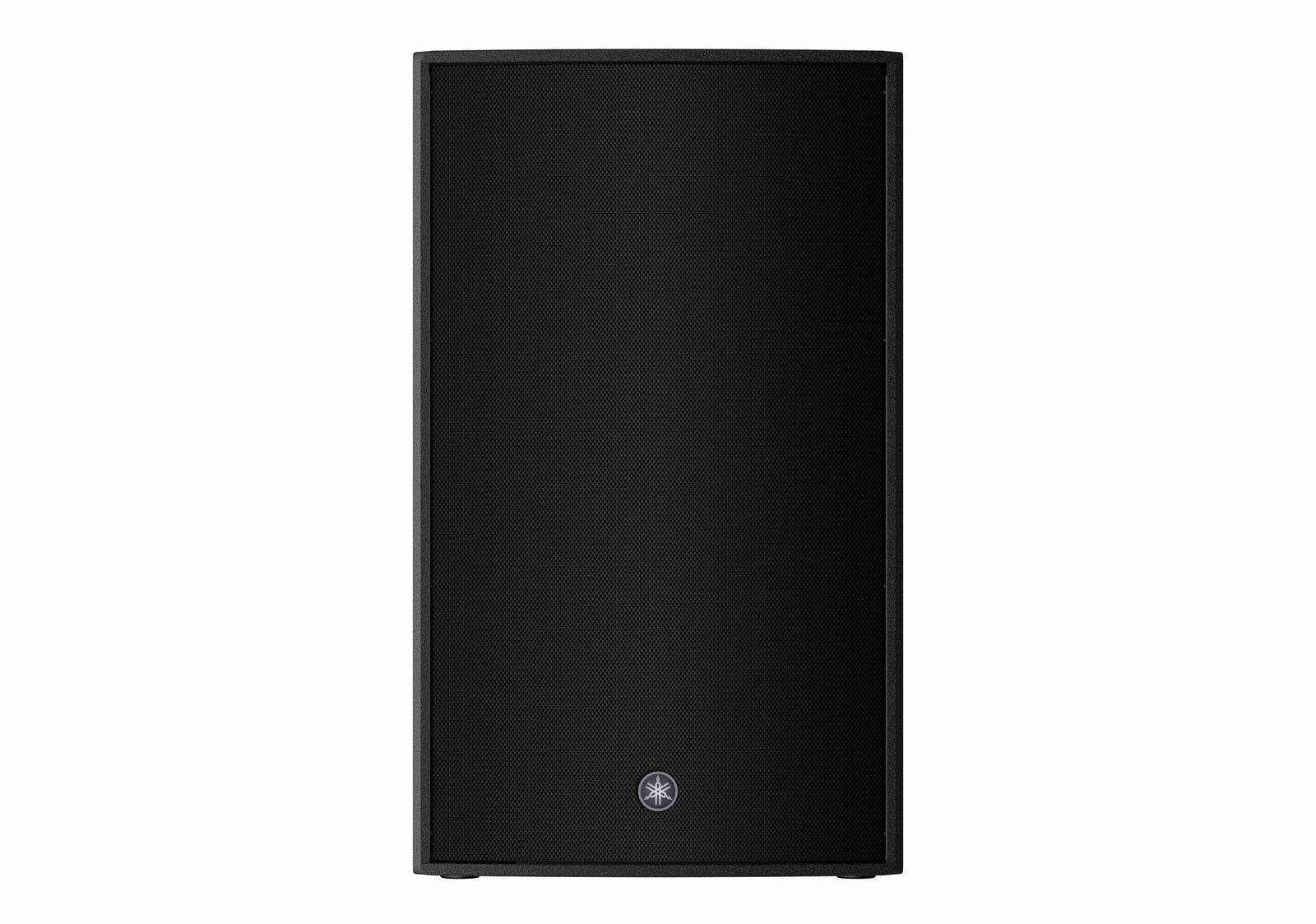

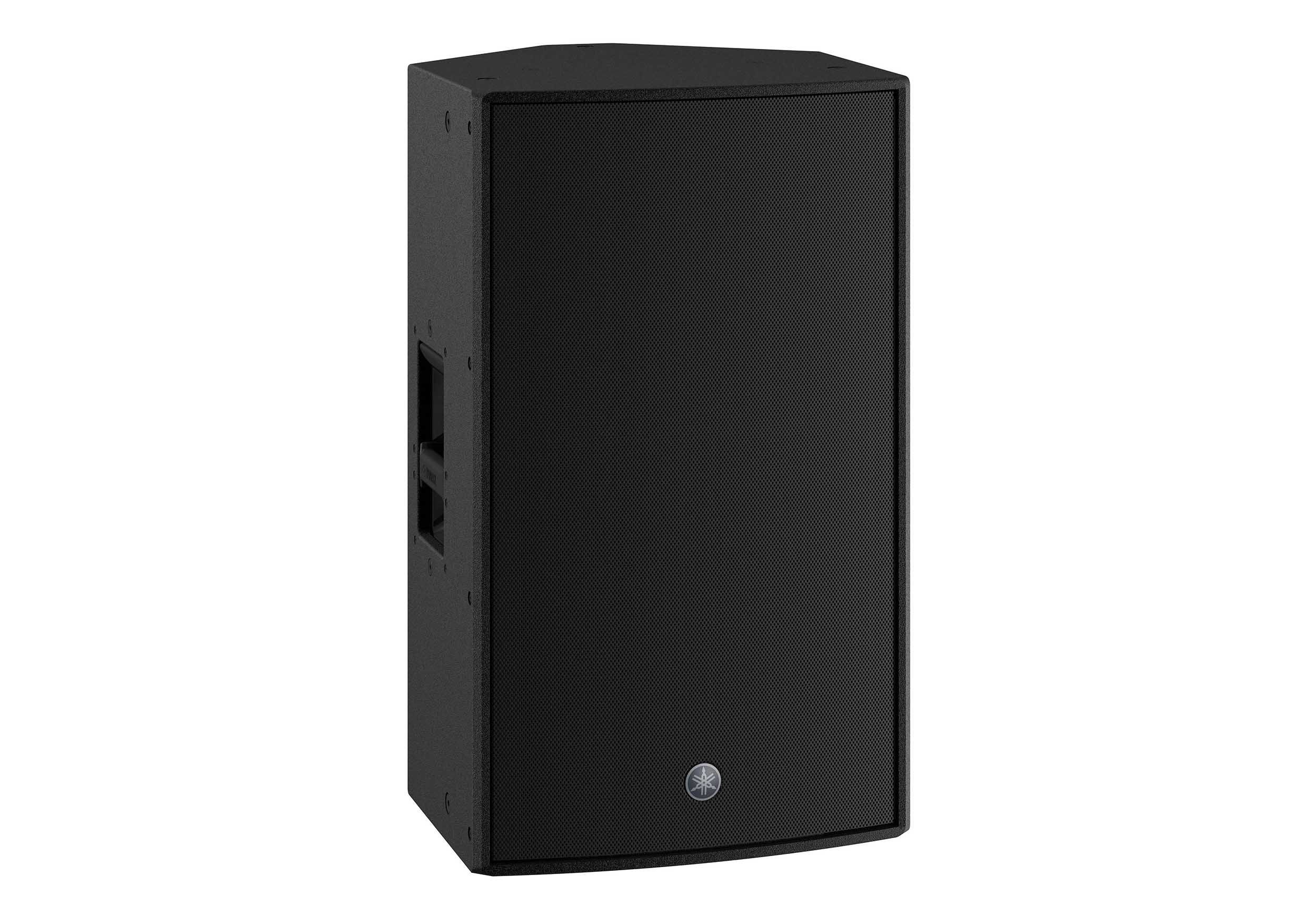

The Yamaha DZR15 (Black) is a high-output, 2-way bi-amped powered loudspeaker engineered for demanding professional sound applications. Featuring a 15" low-frequency driver and a 2" high-frequency compression driver, it delivers an impressive 139 dB maximum SPL with a wide 34 Hz–20 kHz frequency range. This makes the DZR15 ideal as a main PA speaker for live sound, touring, and fixed installations where deep low-end impact and crystal-clear highs are essential.
High-Power Amplification & Advanced DSP:
Powered by a 2000W Class-D amplifier, the DZR15 combines massive output with exceptional efficiency. Its 96 kHz DSP platform with FIR filtering and Advanced FIR-X tuning ensures precise phase alignment and a smooth, natural frequency response even at extreme volume levels. The intuitive LCD interface provides fast access to presets and detailed control of PEQ, delay, and routing, allowing engineers to fine-tune the system for any venue.
Intelligent Processing & System Protection:
Yamaha’s D-Contour dynamic processing automatically maintains tonal balance and clarity across all output levels, while highly reliable protection circuits safeguard the transducers and amplifier during intensive use. A dedicated floor-monitoring mode with mirror configuration further expands flexibility, making the DZR15 equally effective as a front-of-house speaker or a powerful stage monitor when required.
Rugged Design & Flexible Installation:
Built for the road, the DZR15 features a lightweight yet extremely durable plywood cabinet finished in a premium black Polyurea coating for superior resistance to scratches and impact. A rotatable horn, multiple UB-DZR U-bracket options, and rigging support allow flexible placement in flown, pole-mounted, or installed configurations. Optional accessories such as the SPCVR-DZR15 protective cover add extra protection, ensuring the DZR15 remains reliable and professional in any environment.
Product Specifications:
Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 34Hz - 20kHz
Coverage Area: H90° x V50° (Rotatable)

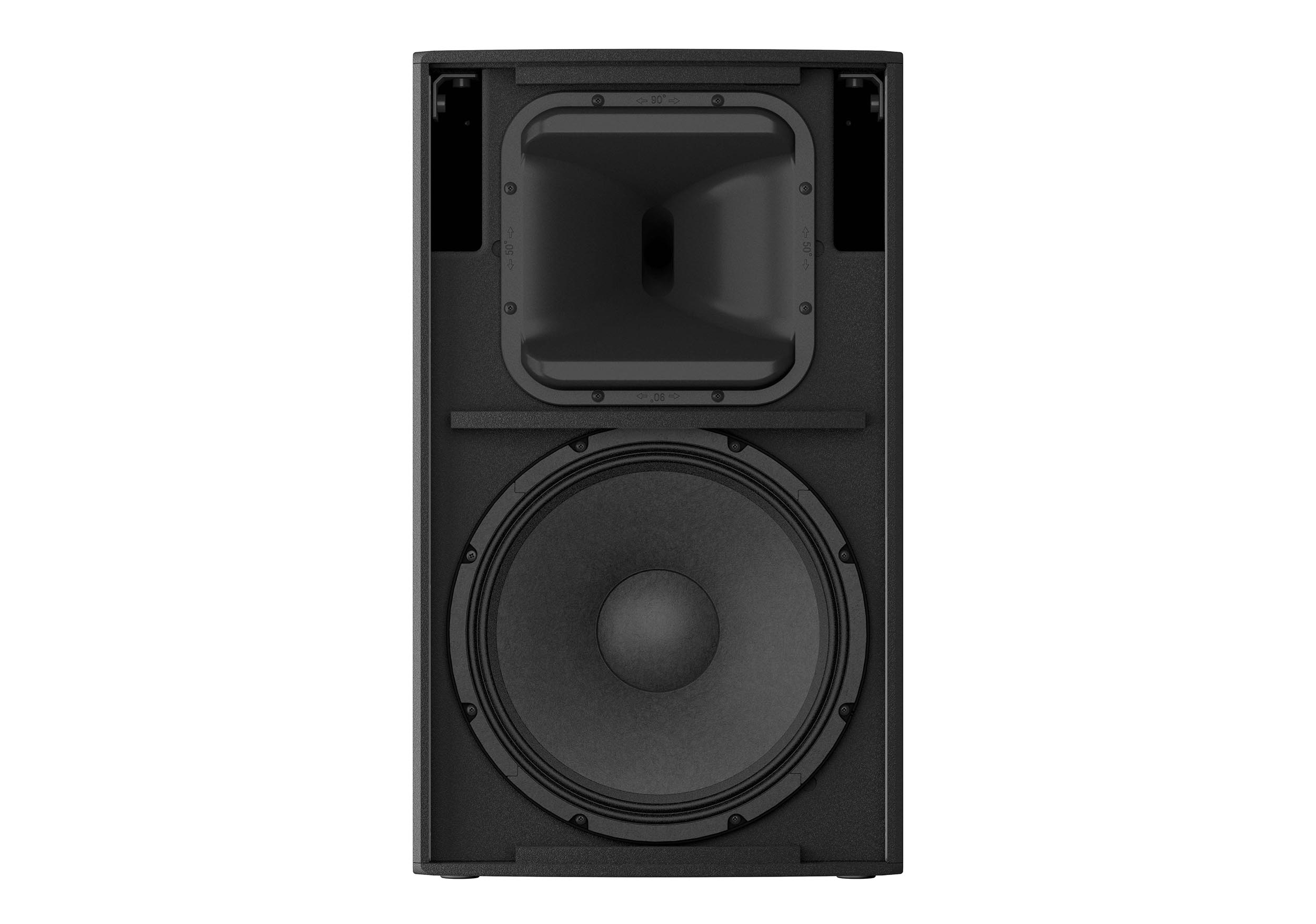

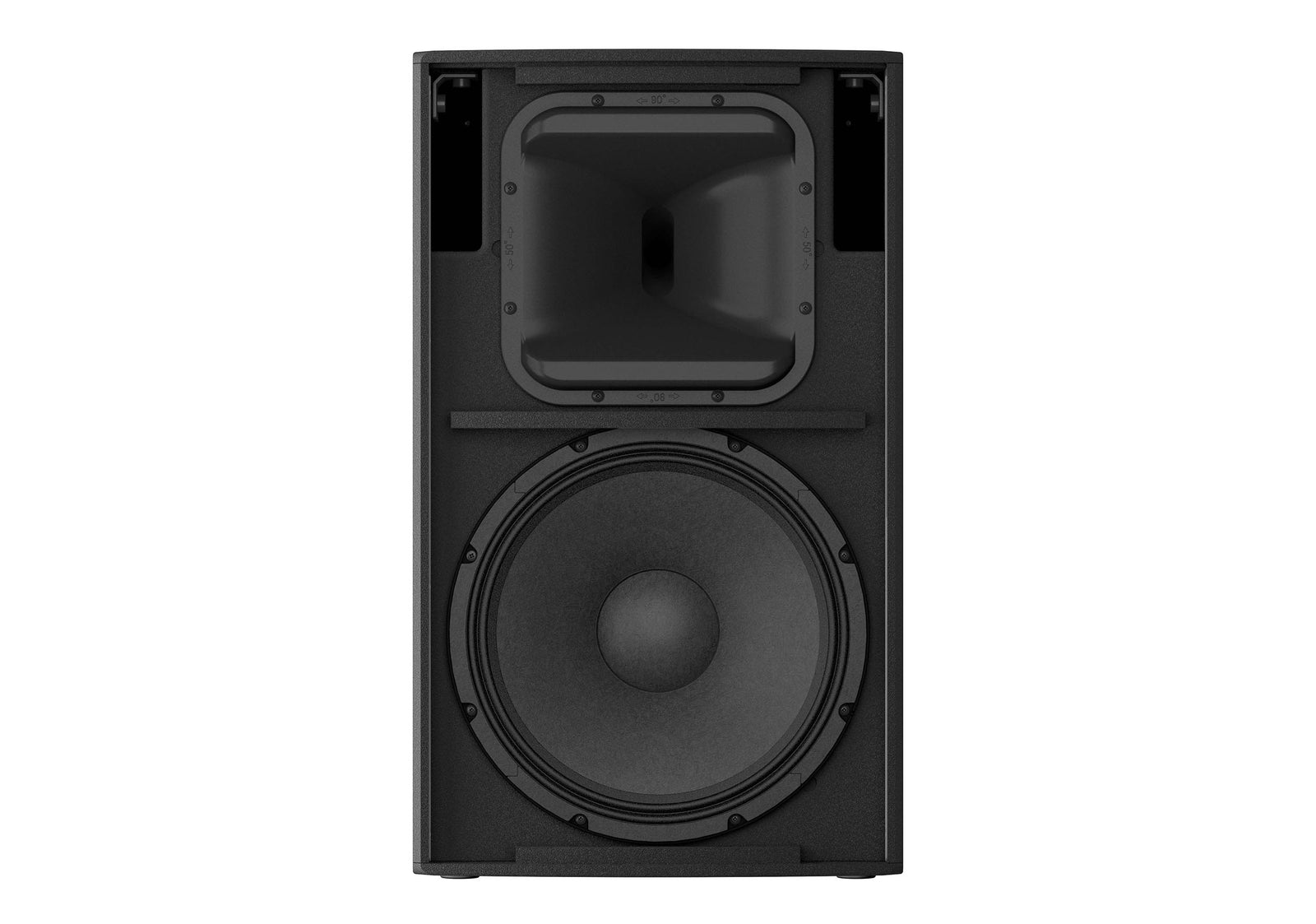

Components:
LF: 15" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.7kHz (FIR-X)
Sampling Frequency Rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 139dB SPL *1
Power Rating:
Dynamic: 2000W (LF: 1000W, HF: 1000W) *2
Burst (20ms): 1100W
Continuous: 950W

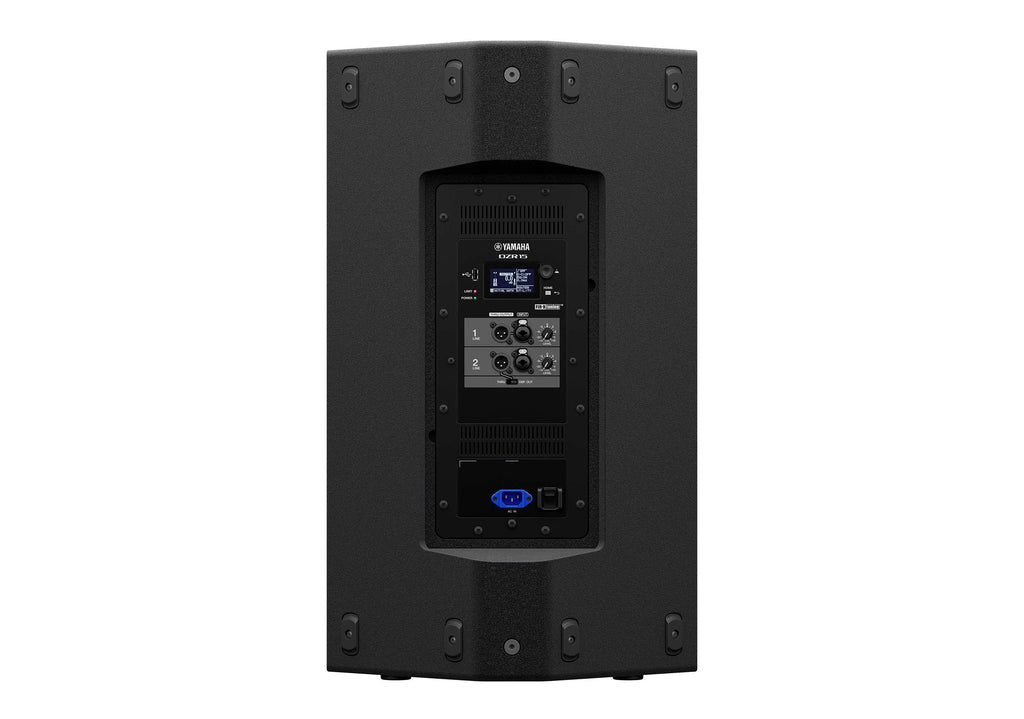

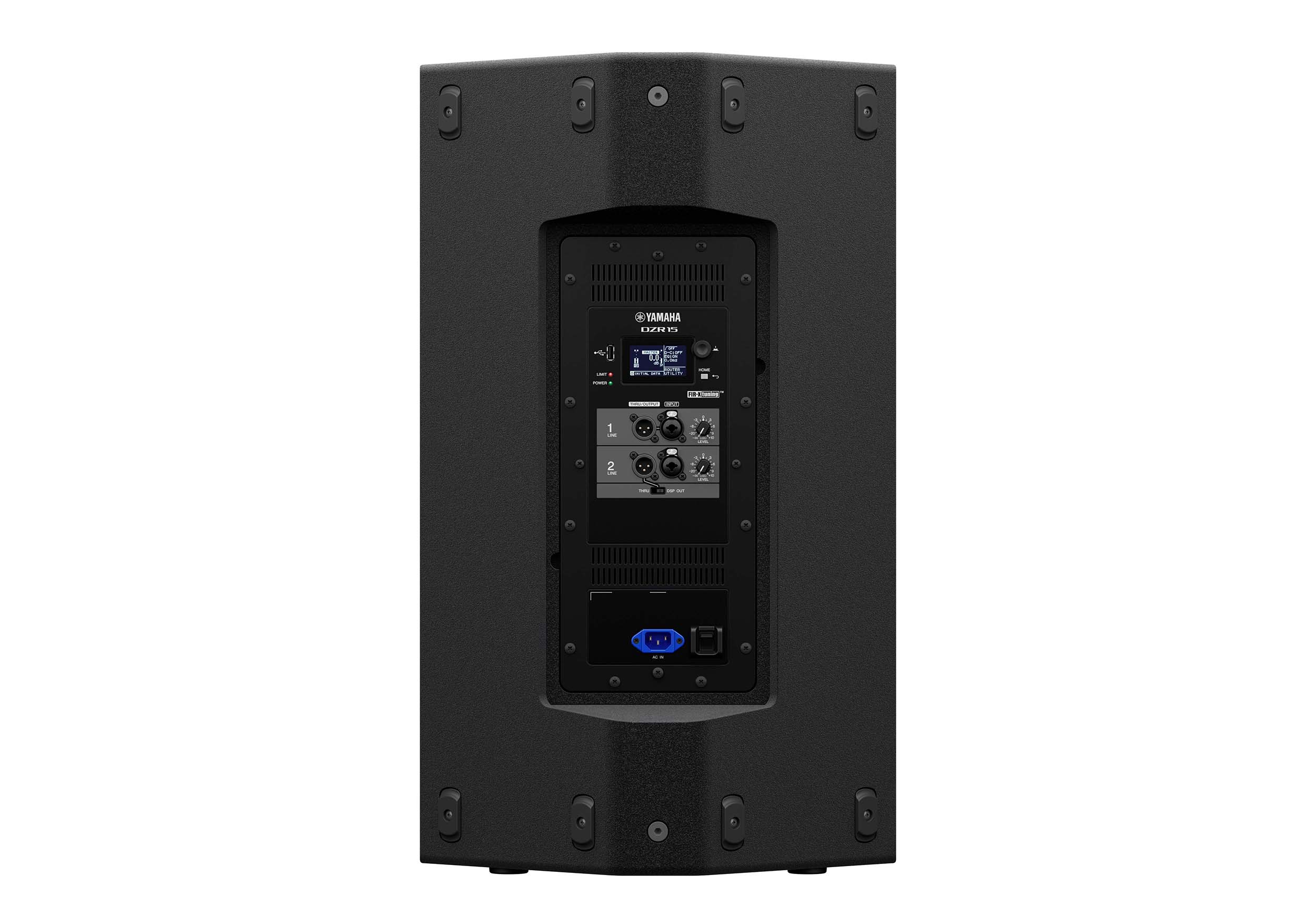

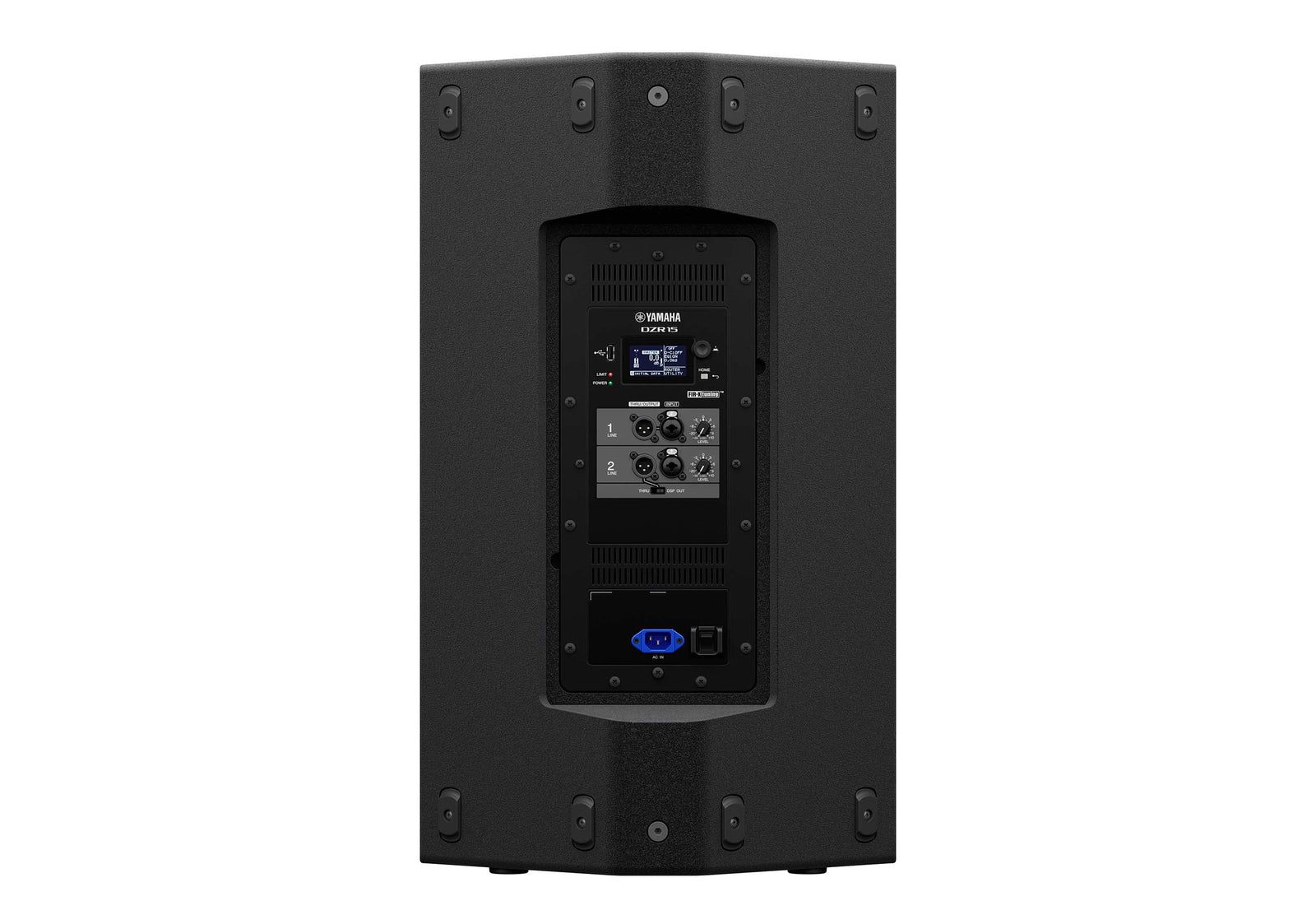

I/O Connectors:
Analog IN: Combo x2
Analog OUT: XLR3-32 x2
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)
Handle: Aluminum die-cast, Side x2
Rigging: M10 x12

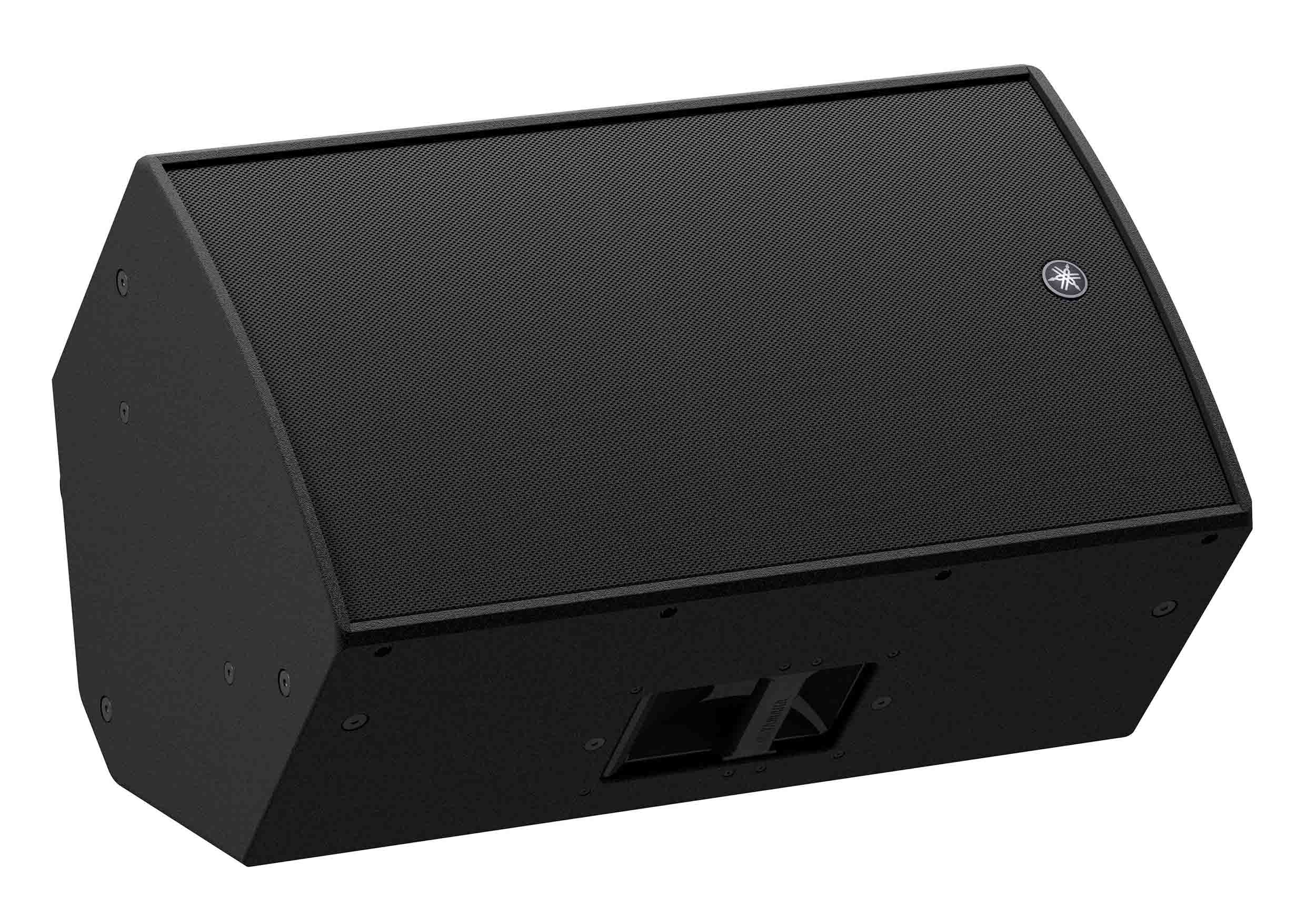

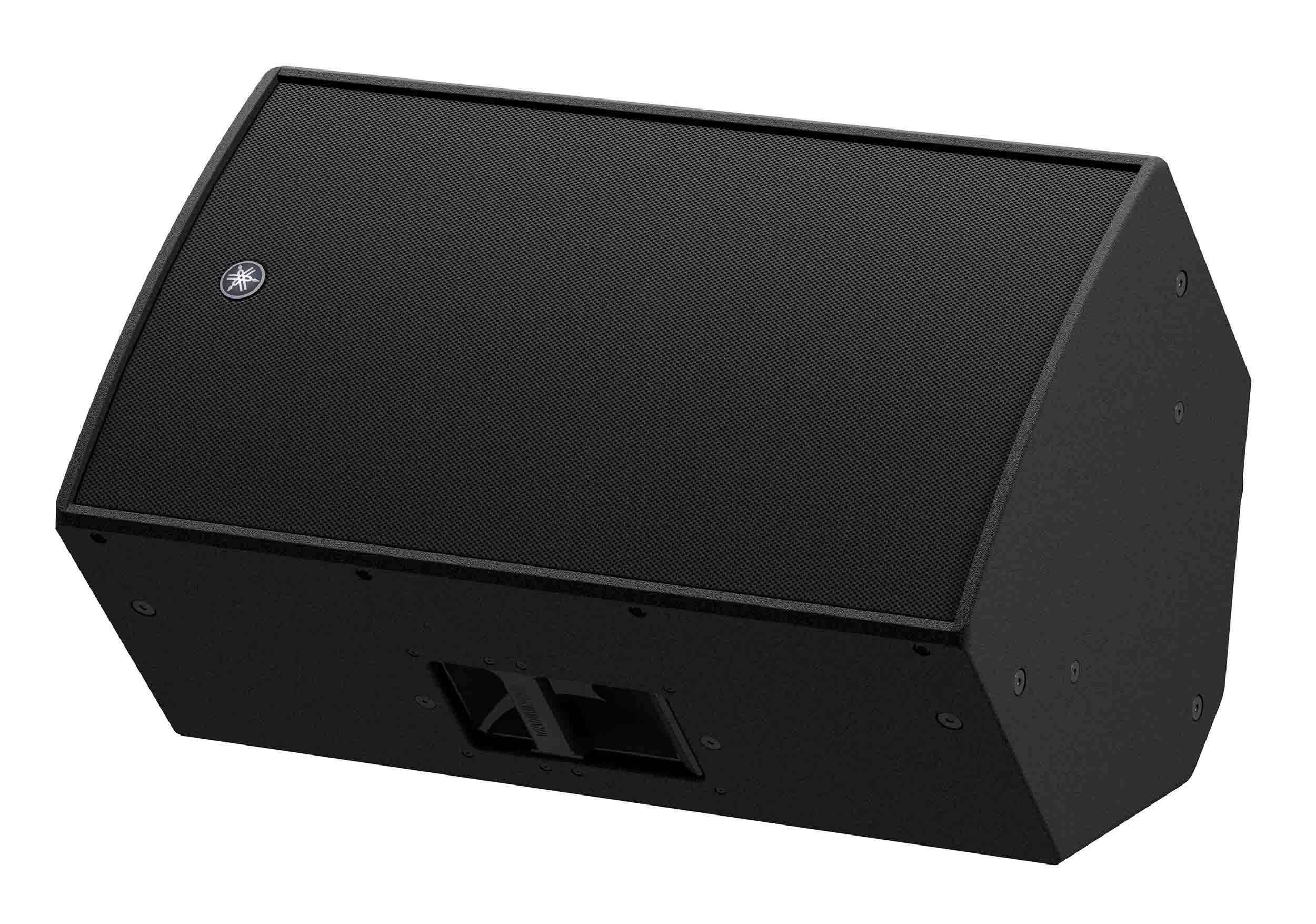

Floor Monitor Angle: 50° Symmetrical
Pole Socket: Φ35 mm x2 (0° or -7°)
Product Weight: 55.6lbs / 25.2kg
Product Dimensions (L × W × H): 18.1" × 17.7" × 30.0"
