Description

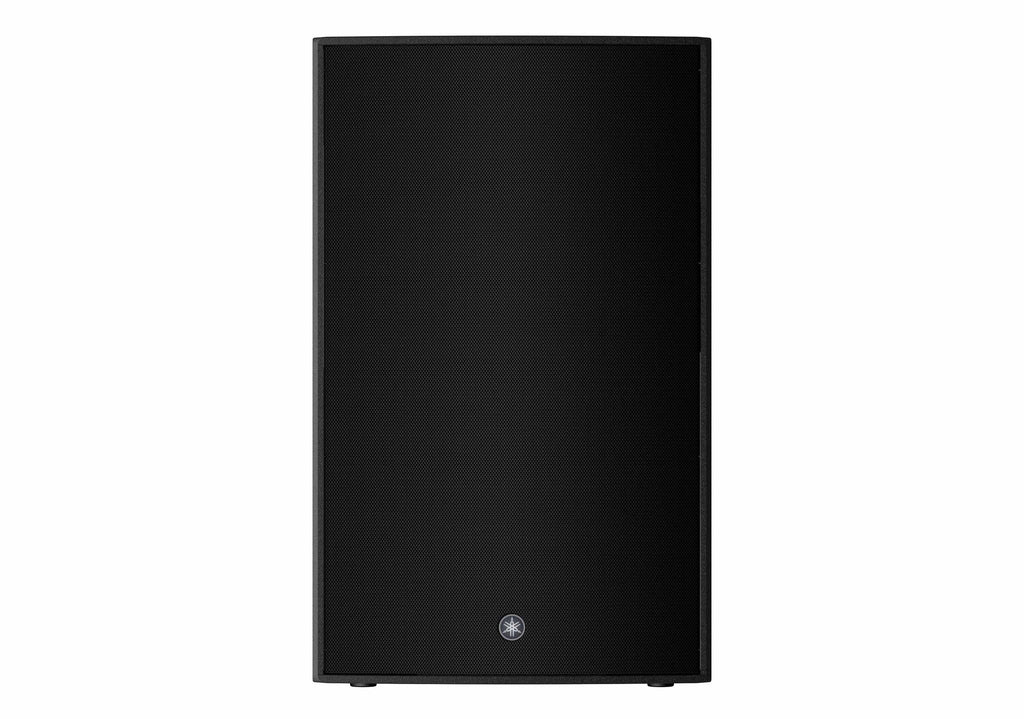

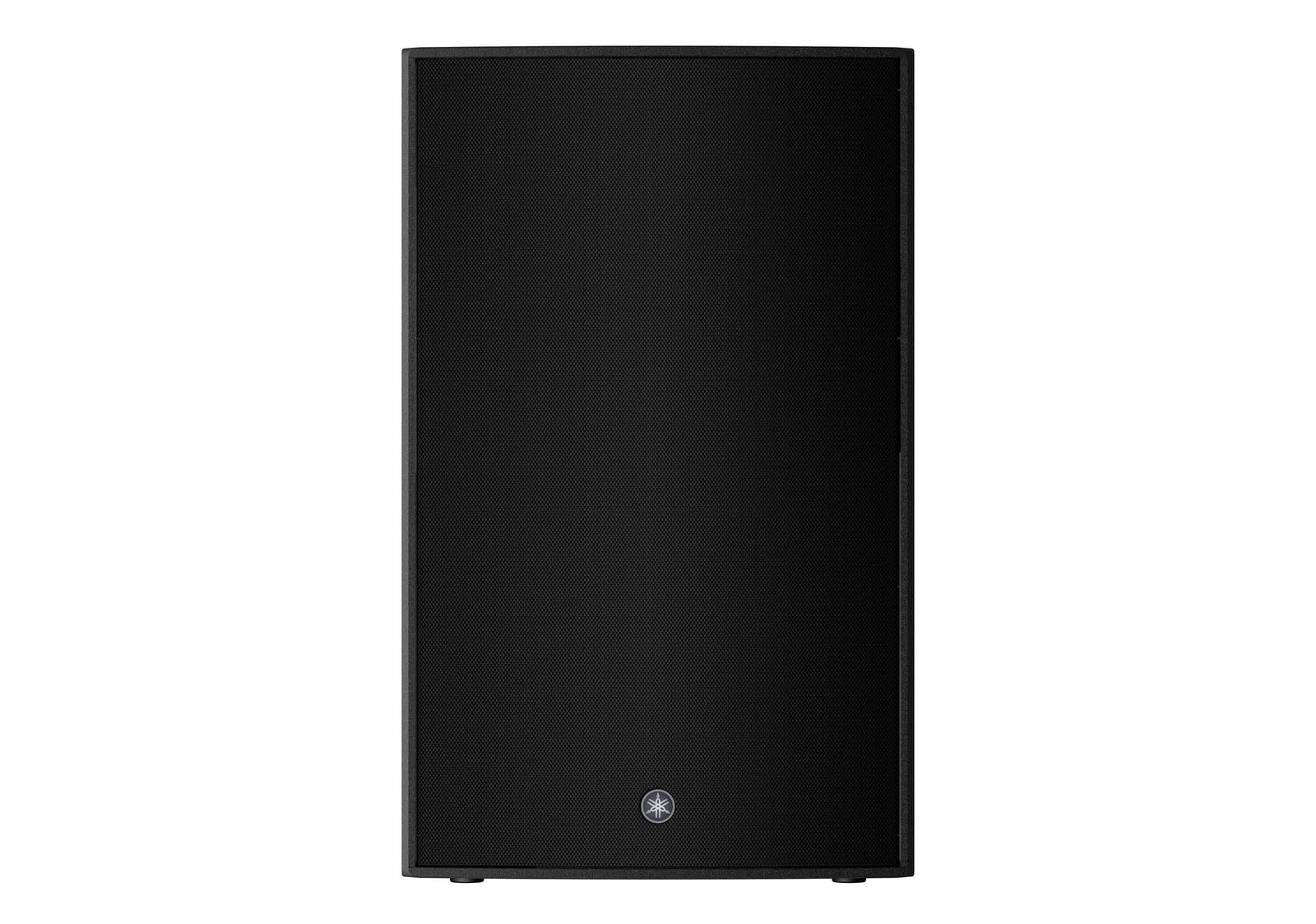

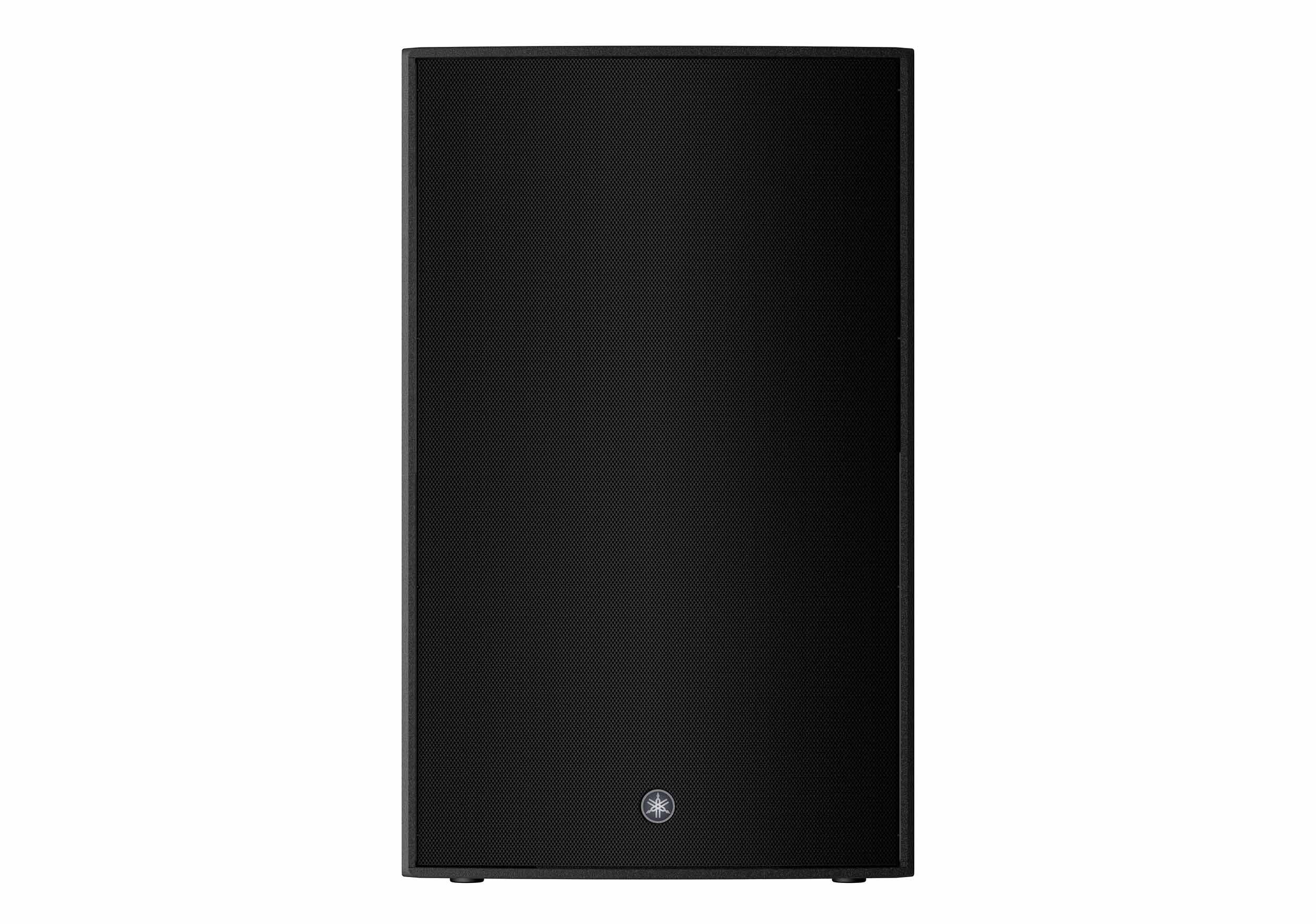

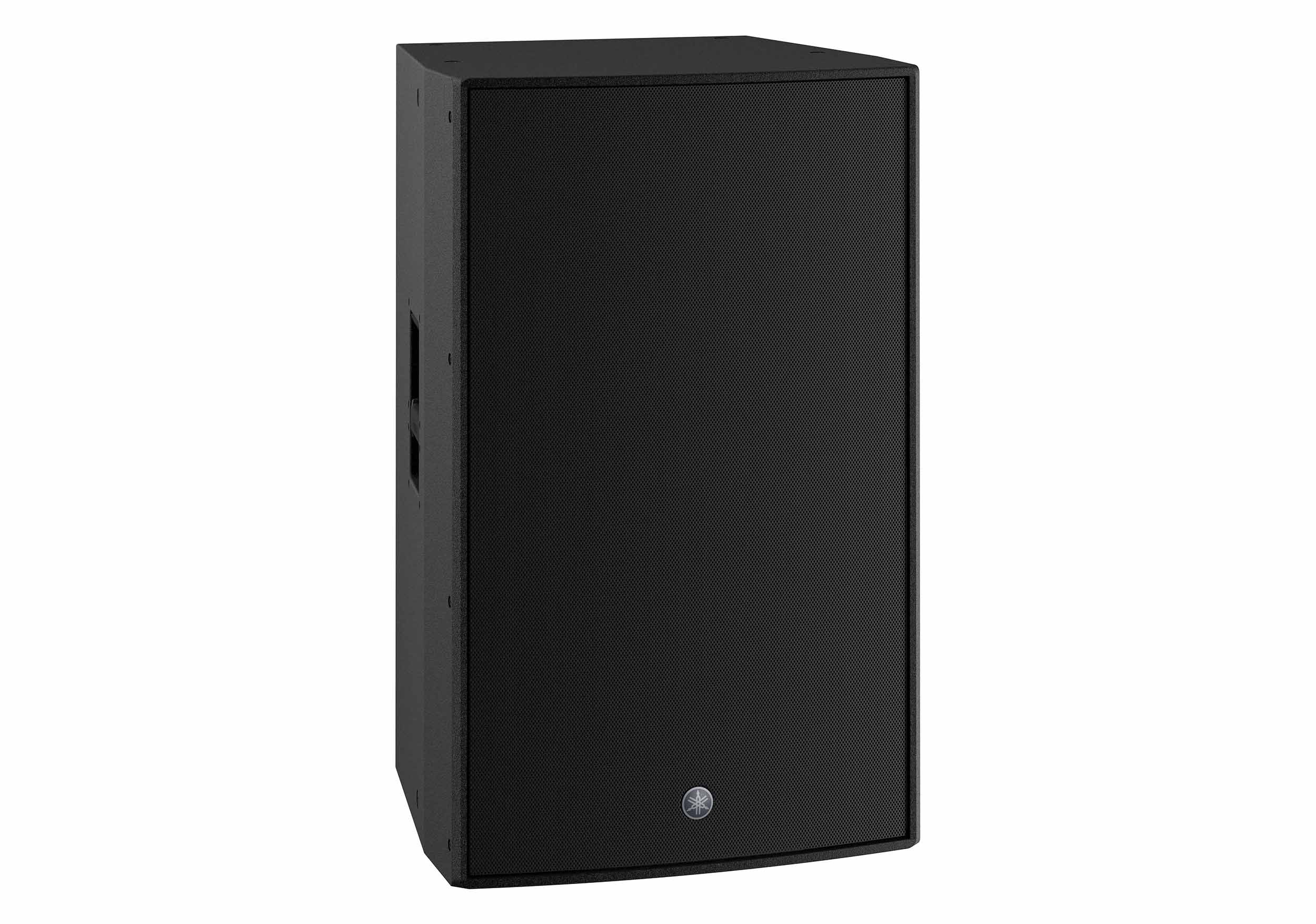

The Yamaha DZR315 (Black) is the most powerful model in the DZR Series, designed to deliver uncompromising performance for professional front-of-house applications. Its 3-way bi-amped design, featuring a 15" LF, 8" MF, and 2" HF compression driver, produces an extraordinary 143 dB maximum SPL with exceptional clarity. With a wide 31 Hz–20 kHz frequency range, the DZR315 provides massive output and detailed sound reinforcement suitable for large venues, festivals, and touring systems.
High-Power Amplification and Precision DSP:
Driven by a 2000W Class-D amplifier, the DZR315 combines raw power with refined control. Yamaha’s 96 kHz DSP engine with FIR filtering ensures ultra-low latency and high-resolution audio reproduction. Advanced FIR-X tuning minimizes phase distortion through precise frequency and time alignment, delivering a natural, coherent sound even at extreme volume levels. An integrated LCD interface provides easy access to presets and detailed adjustment of PEQ, delay, and signal routing.
Intelligent Processing and System Optimization:
The DZR315 includes Yamaha’s D-Contour dynamic processing, which intelligently maintains tonal balance across different output levels, along with highly reliable protection circuits for safe operation under demanding conditions. Designed to integrate seamlessly with Yamaha’s DZR and DXS systems, the DZR315 excels as a main PA loudspeaker, offering consistent performance and control for complex professional sound reinforcement setups.
Rugged Black Enclosure and Installation Flexibility:

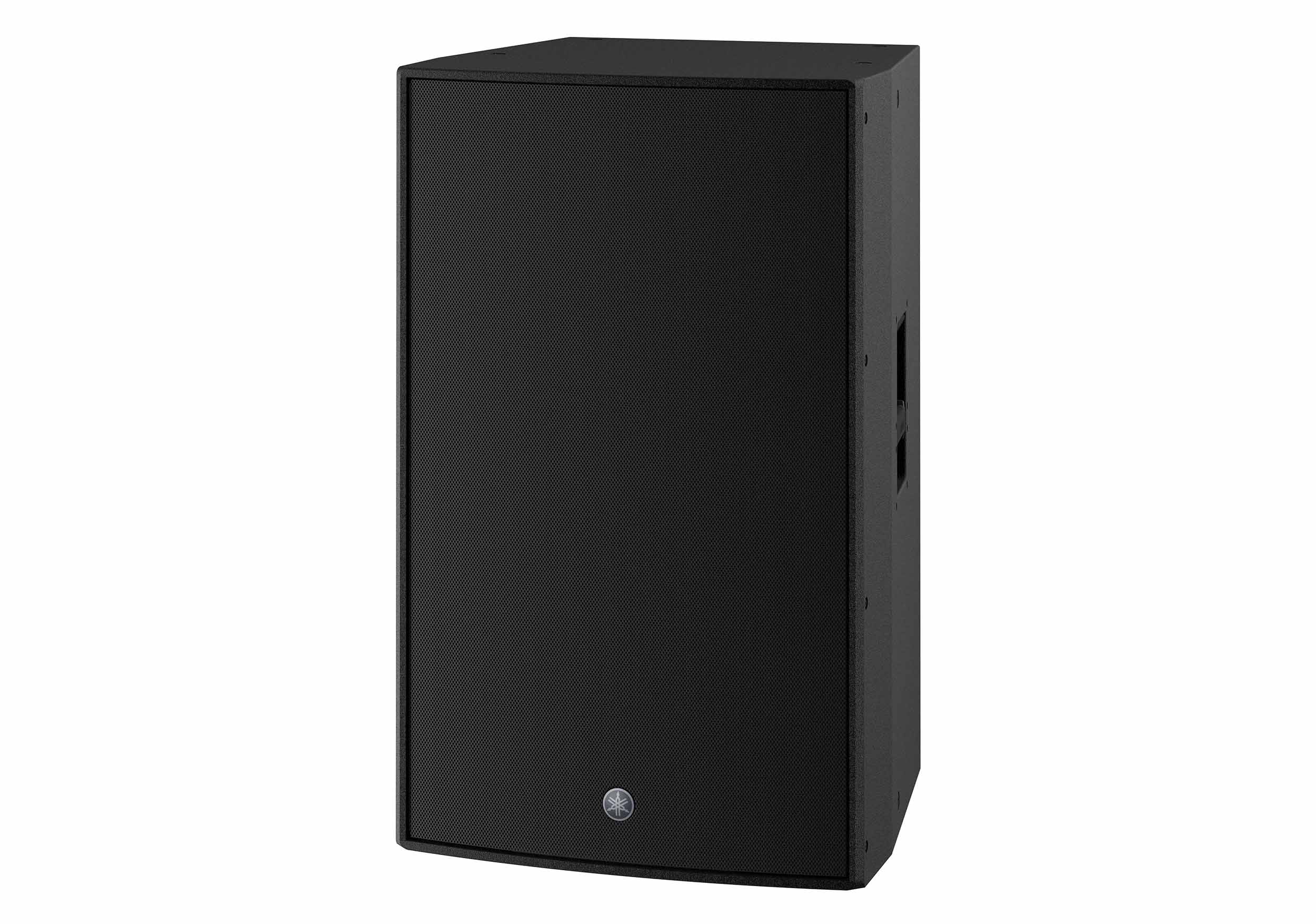

Housed in a lightweight yet extremely durable plywood cabinet, the DZR315 is finished in a premium black Polyurea coating that resists scratches, impact, and wear for long-term road and installation use. Integrated M10 rigging points allow for suspended installations, while its robust construction ensures reliability in touring environments. An optional SPCVR-DZR315 speaker cover adds extra protection, making the DZR315 a dependable, professional solution for high-output live sound applications.
Product Specifications:
Speaker Type: 3-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 31Hz - 20kHz
Coverage Area: H75° x V50°

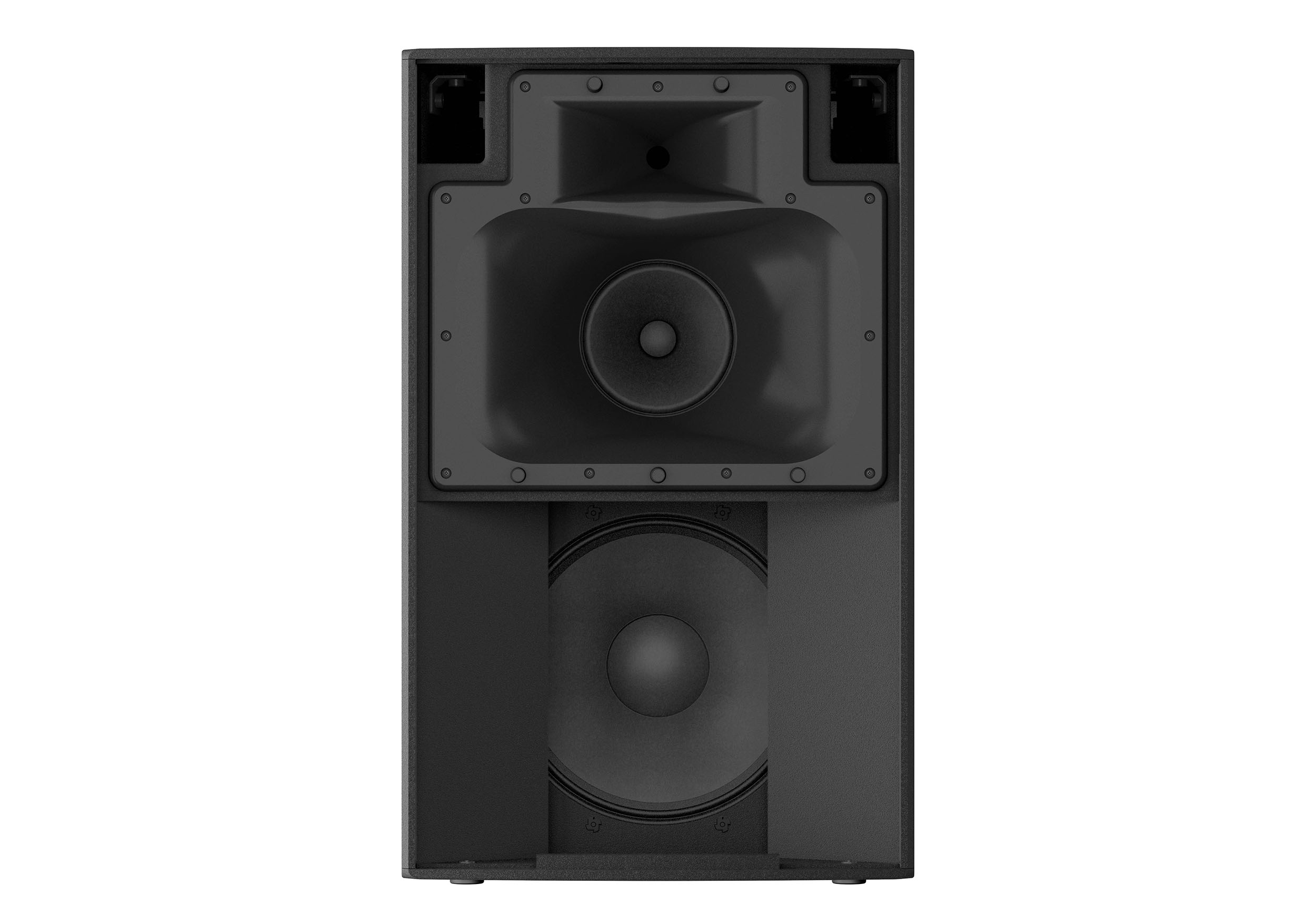

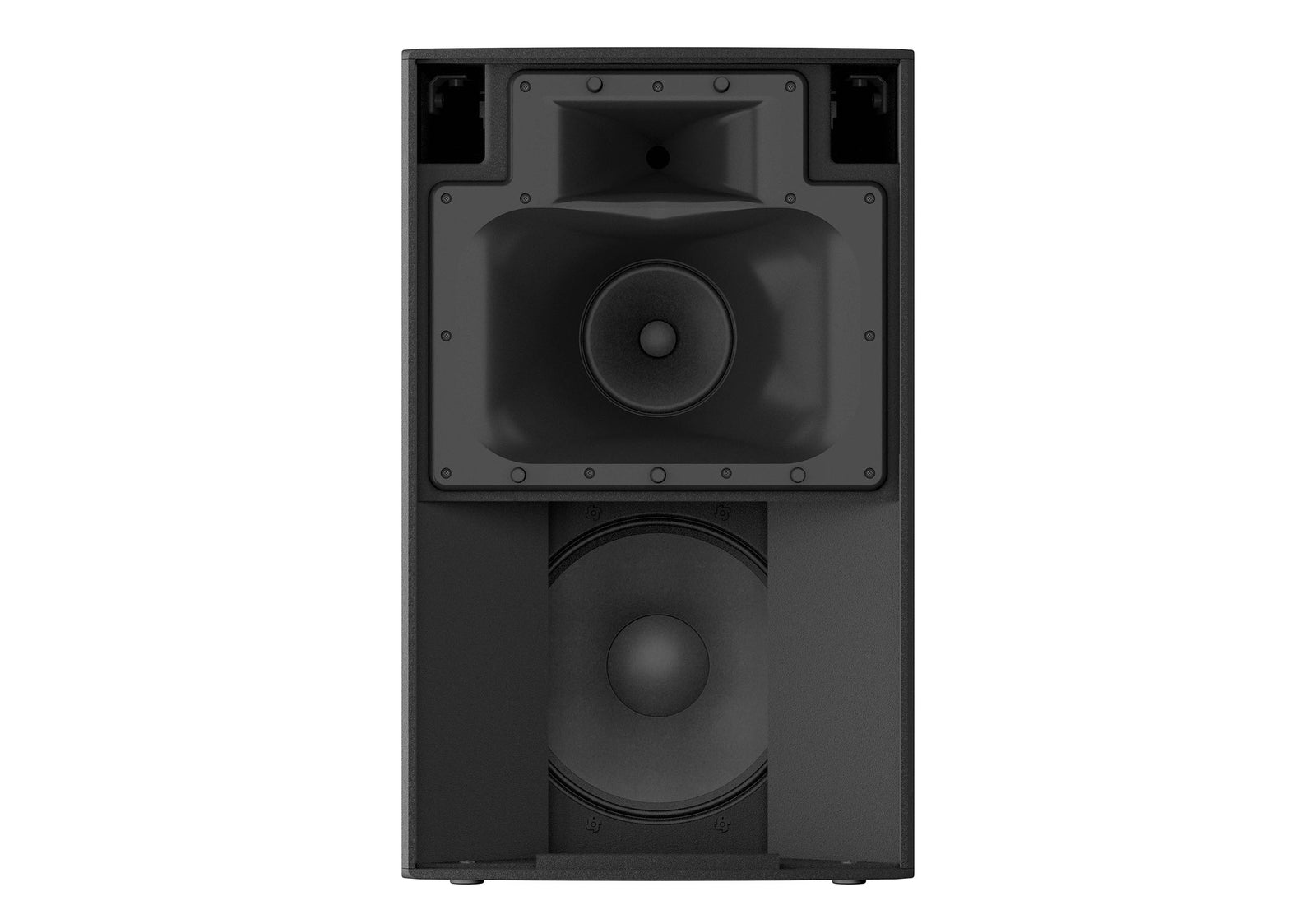

Components:
LF: 15" Cone, 3" Voice Coil, Neodymium magnet
MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
Sampling Frequency Rate: Internal 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 143dB SPL *1
Power rating:
Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
Continuous: 950W (LF: 850W, MF/HF: 100W)

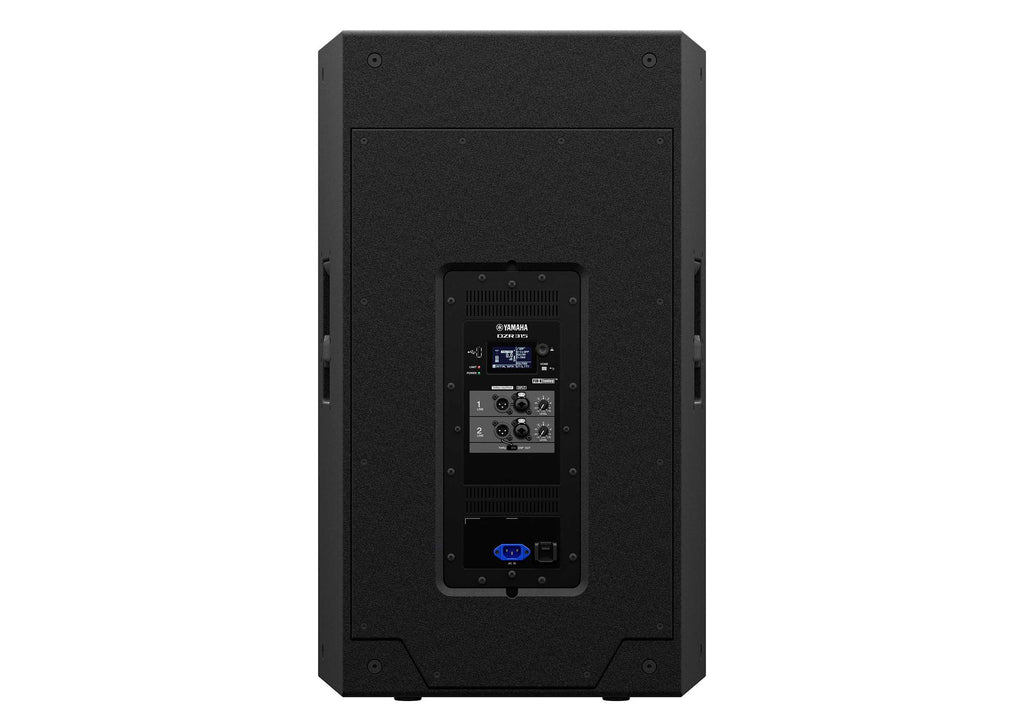

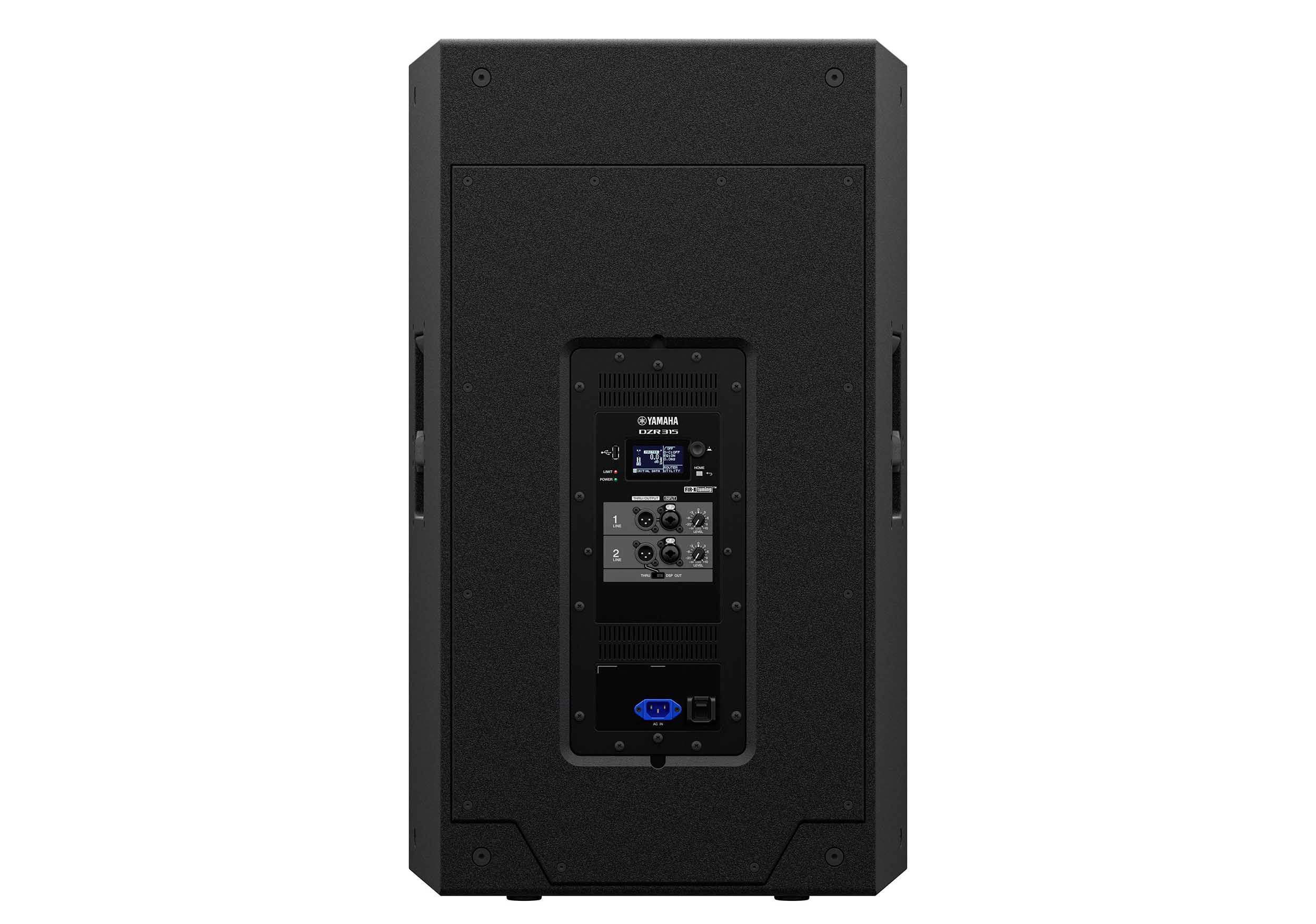

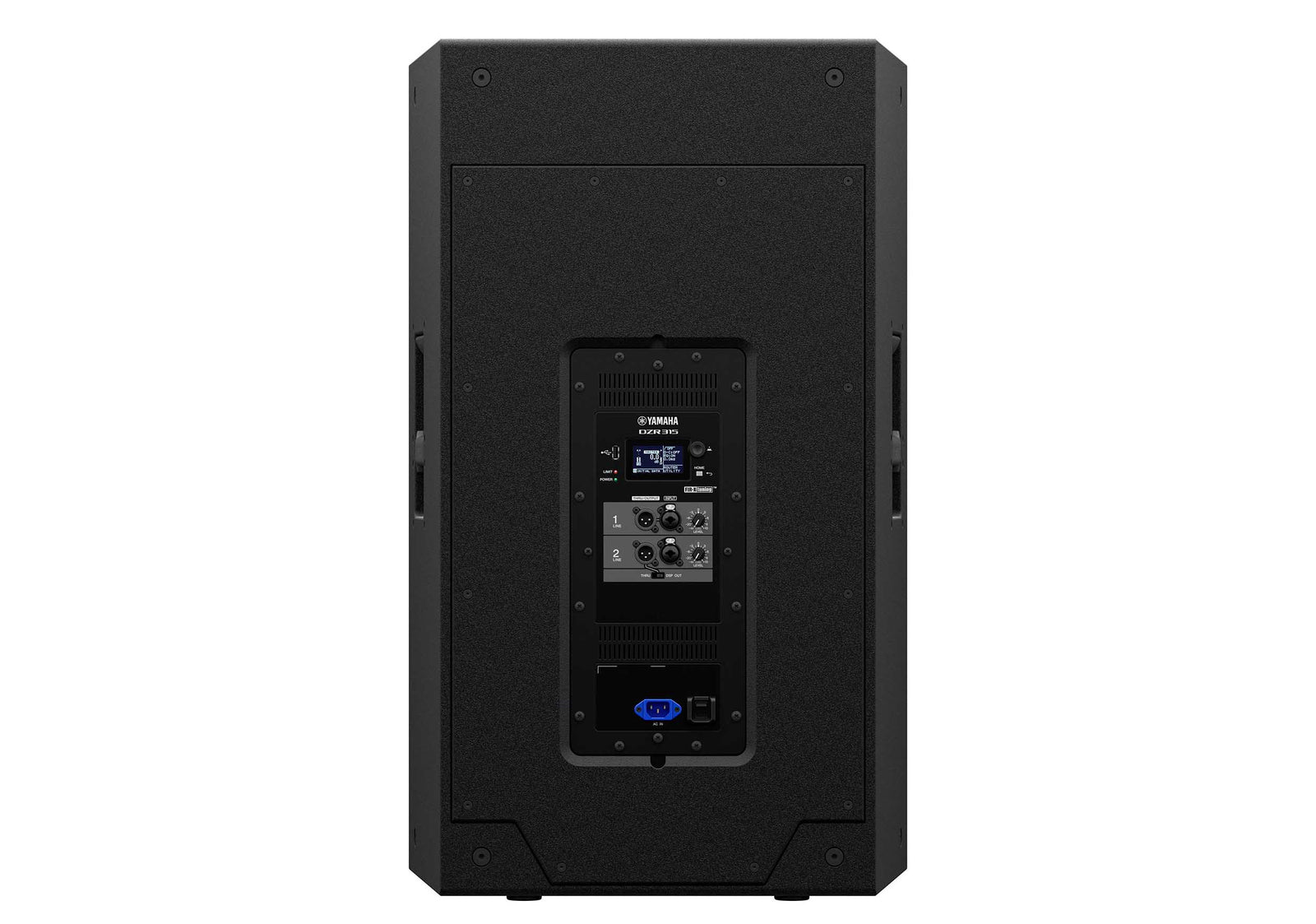

I/O Connectors:
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ
Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)
Handle: Aluminum die-cast, Side x2
Rigging: M10 x16
Product Weight: 91.7lbs / 41.6kg
Product Dimensions (L × W × H): 20.5" × 21.6" × 35.3"
