Description

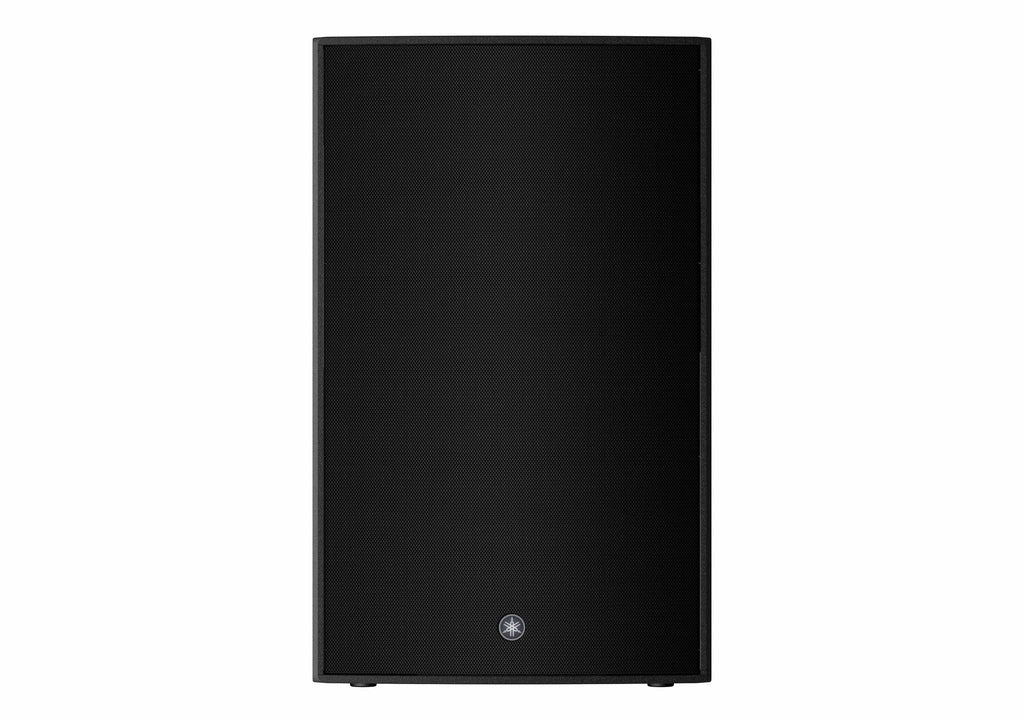

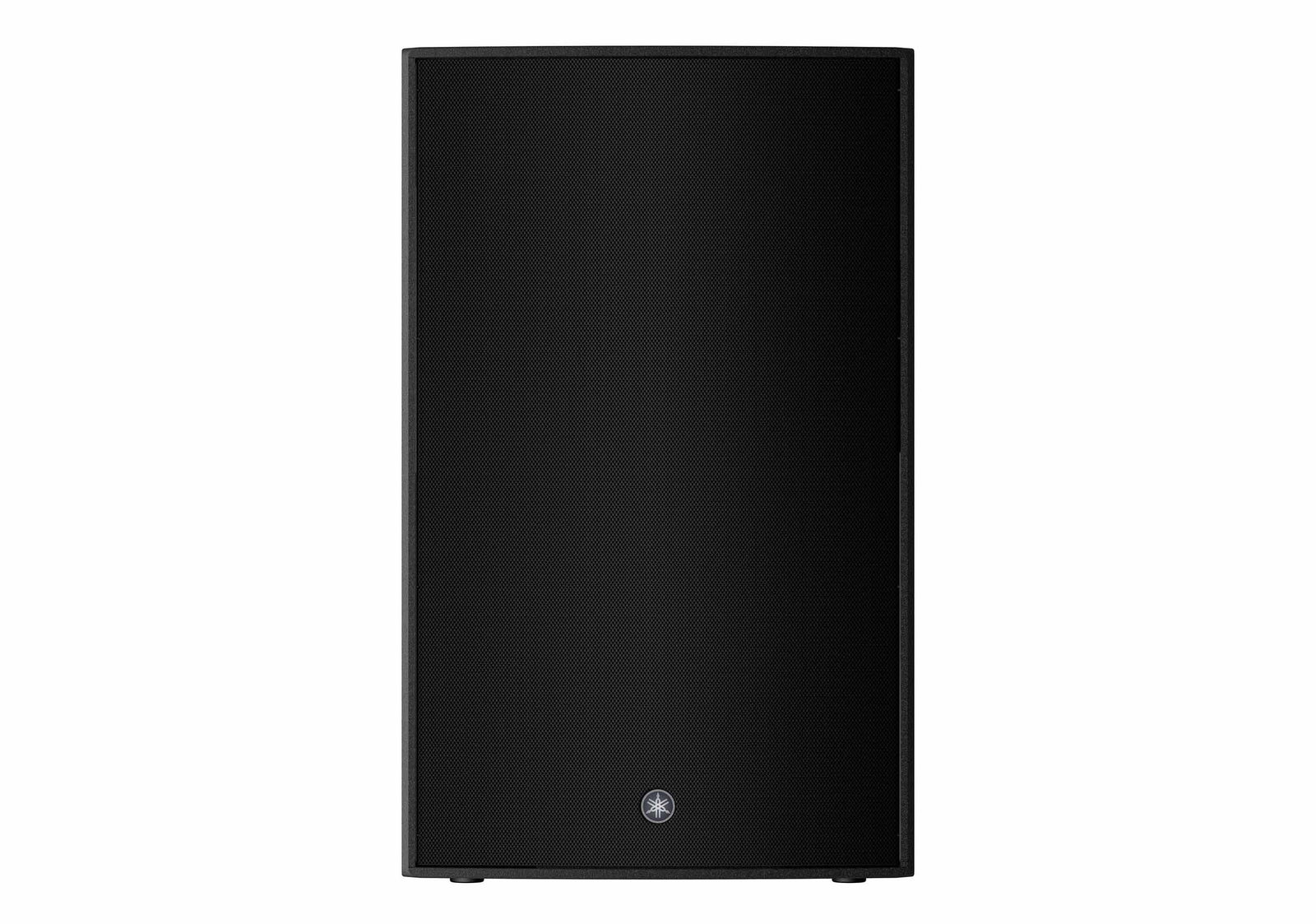

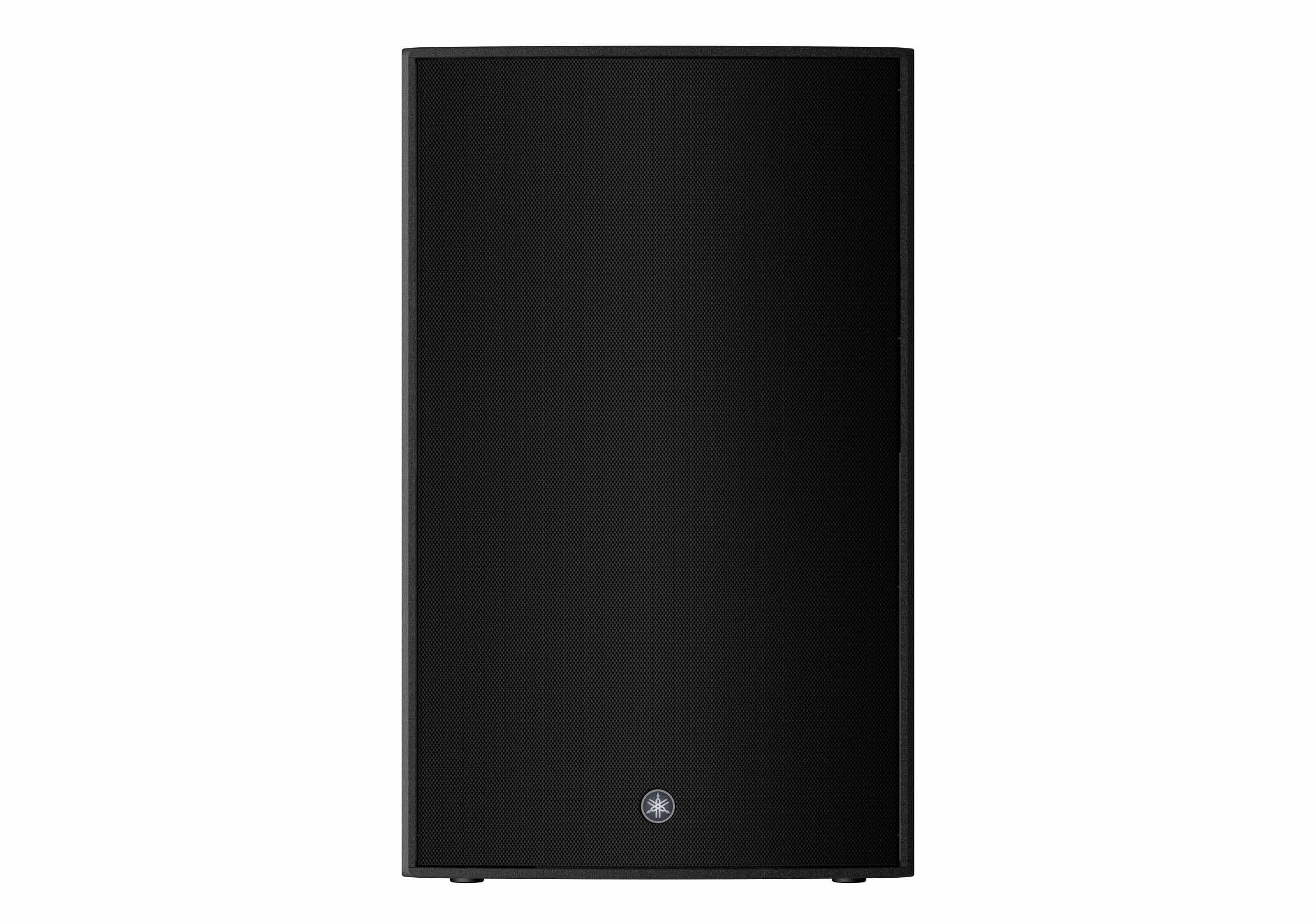

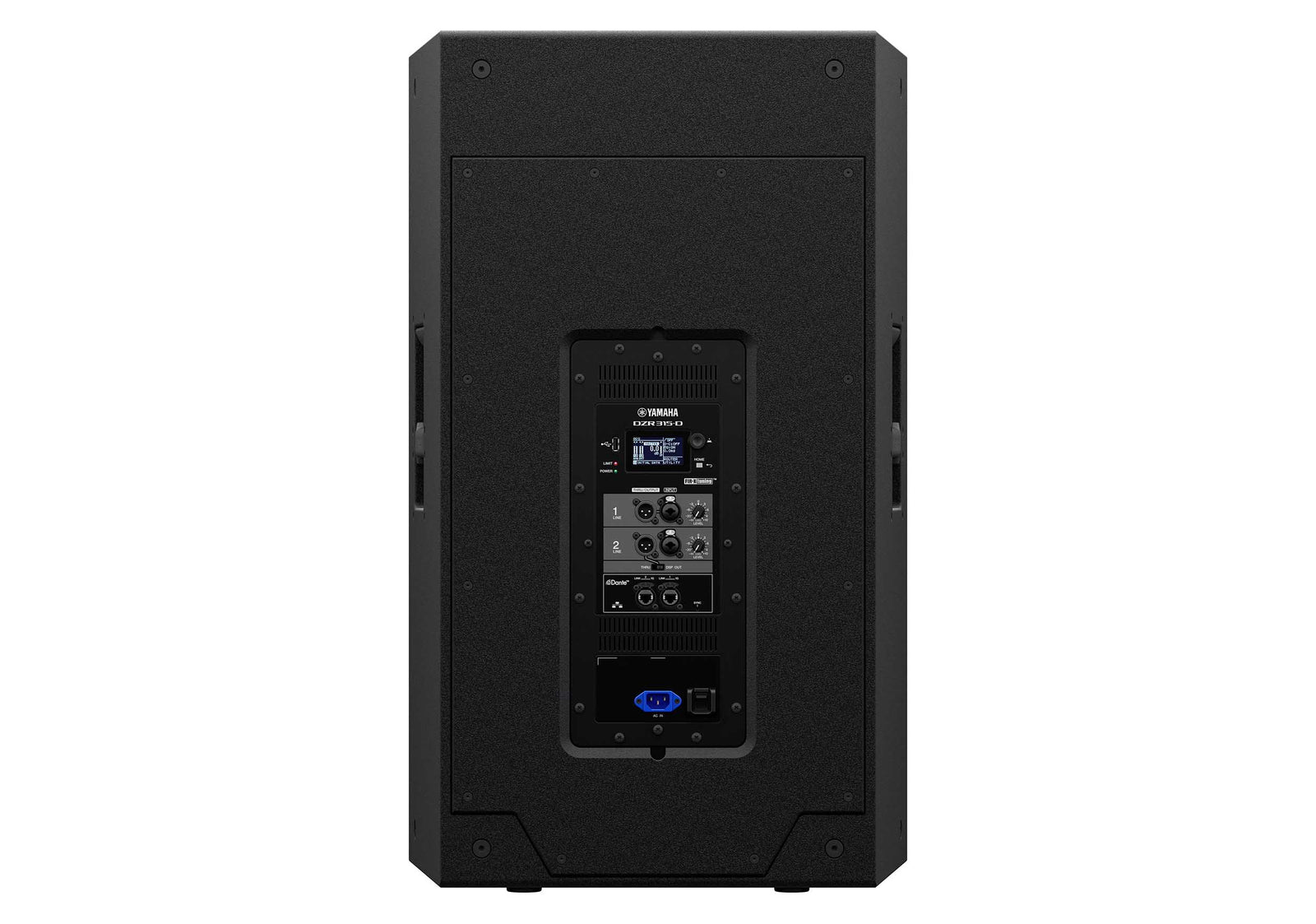

The Yamaha DZR315-D (Black) is the most powerful model in the DZR Series, designed for professional front-of-house applications where uncompromising clarity and output are essential. This 3-way bi-amped design, featuring a 15" LF, 8" MF, and 2" HF compression driver, delivers an impressive 143 dB maximum SPL with a wide 31 Hz–20 kHz frequency range. Ideal for FOH main PA or suspended installations, the DZR315-D combines high power with professional-grade portability and flexibility.
High-Power Amplification and Advanced DSP:
Equipped with a 2000W Class-D amplifier and 96 kHz DSP with FIR filtering, the DZR315-D offers ultra-low latency, high-resolution sound, and precise control over every aspect of the audio signal. Advanced FIR-X tuning ensures minimal phase distortion, providing coherent, natural sound even at maximum SPL. The intuitive LCD interface allows easy access to presets and precise adjustments for PEQ, delay, and routing, giving engineers full control over the system.
Dante Connectivity for Smart Integration:
The DZR315-D features Dante I/O (2 in/2 out) with SRC (sample rate conversion) for seamless integration into modern digital audio networks. This enables simplified patching with Yamaha CL/QL consoles and fast configuration with TF consoles. Combining analog and Dante I/O expands routing options and system flexibility, while optional ProVisionare Control software for PC or iPad provides convenient remote management of the entire setup.
Rugged Black Cabinet for Touring and Install:

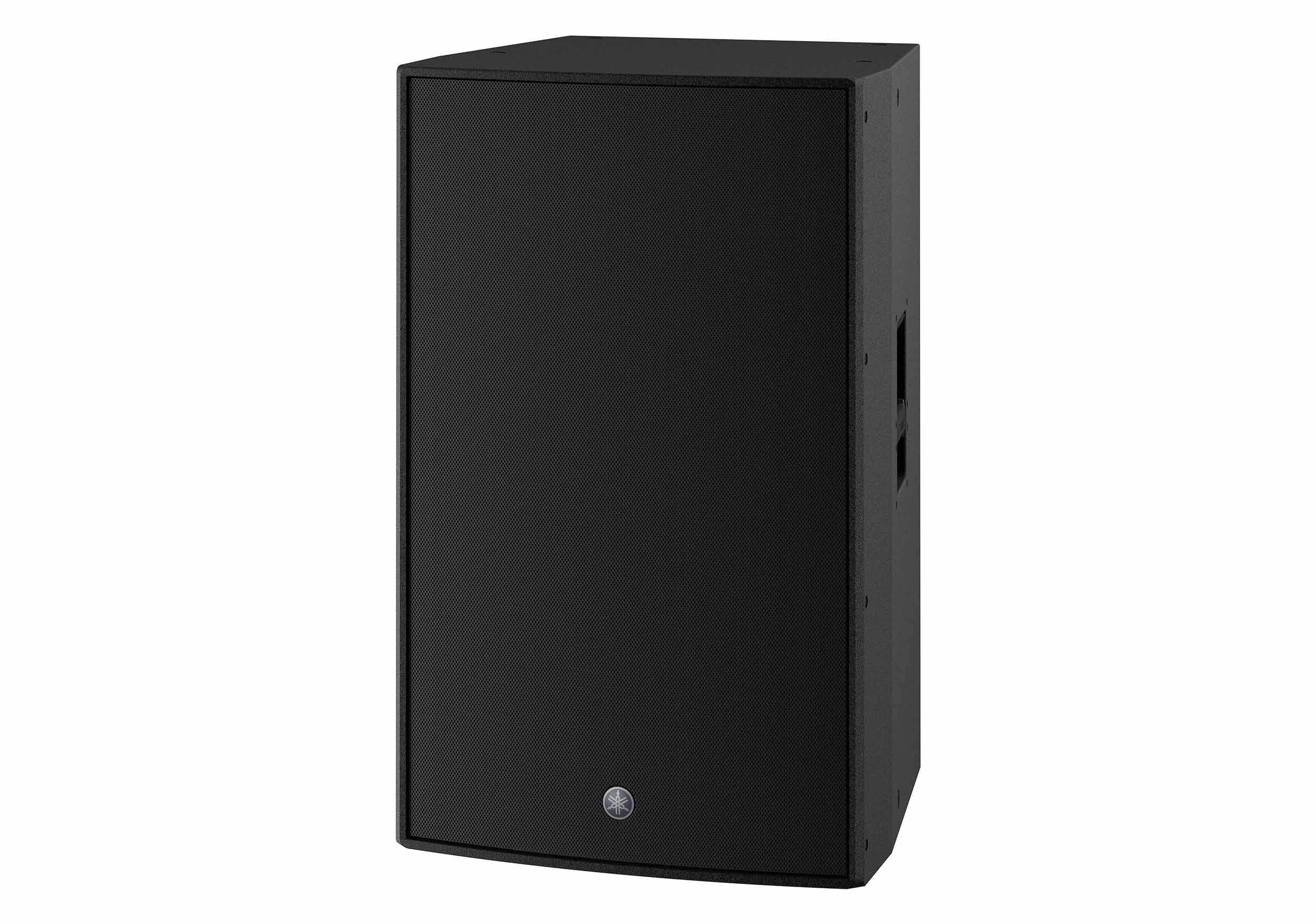

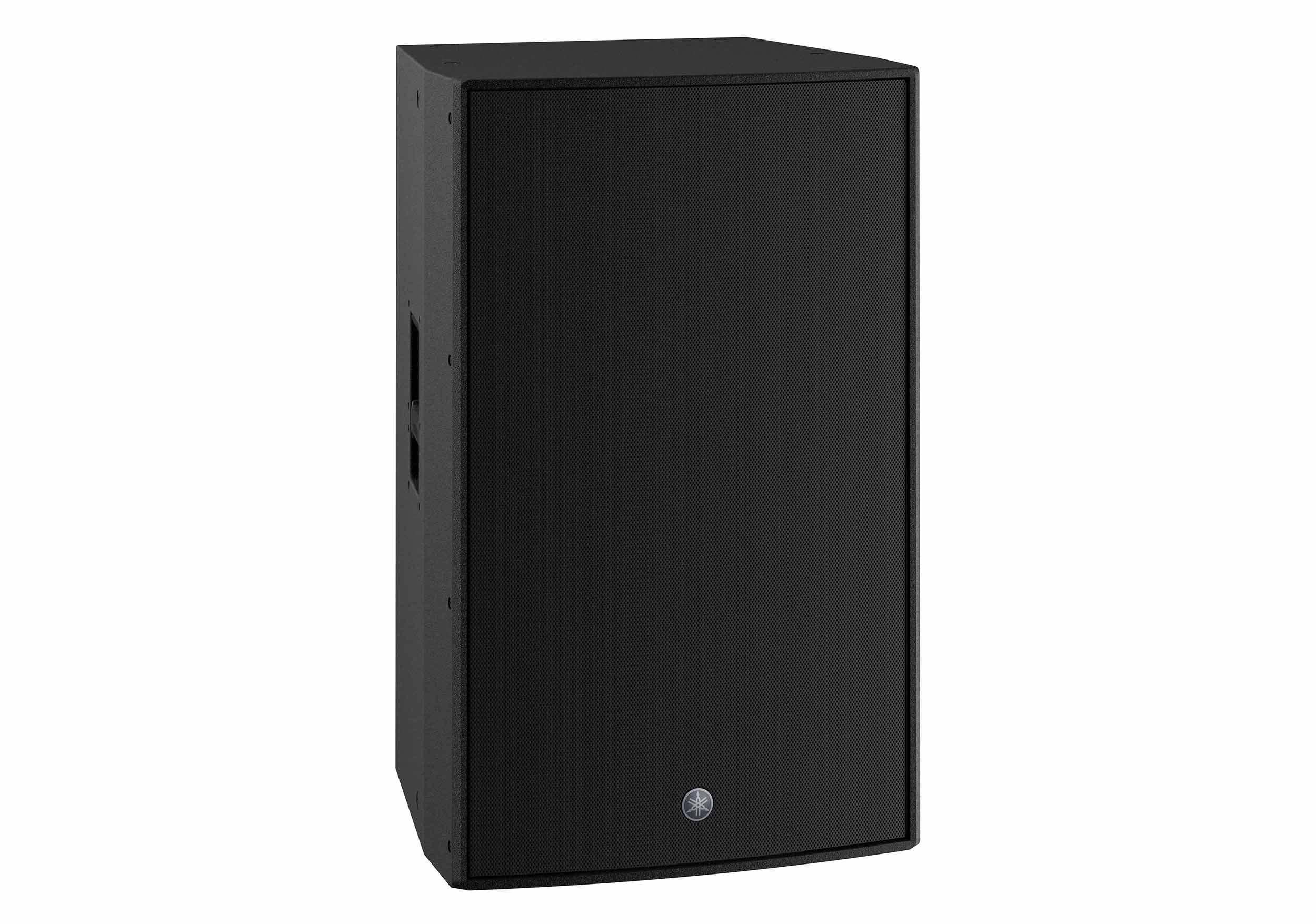

Housed in a durable plywood cabinet with a premium black Polyurea coating, the DZR315-D withstands the rigors of touring and heavy use. Integrated M10 rigging points allow for safe suspension, while optional SPCVR speaker cover provides extra protection. With its road-ready construction, ergonomic handles, and professional finish, the DZR315-D is a reliable, high-output solution for demanding live sound applications.
Product Specifications:
Speaker Type: 3-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 31Hz - 20kHz
Coverage Area: H75° x V50°

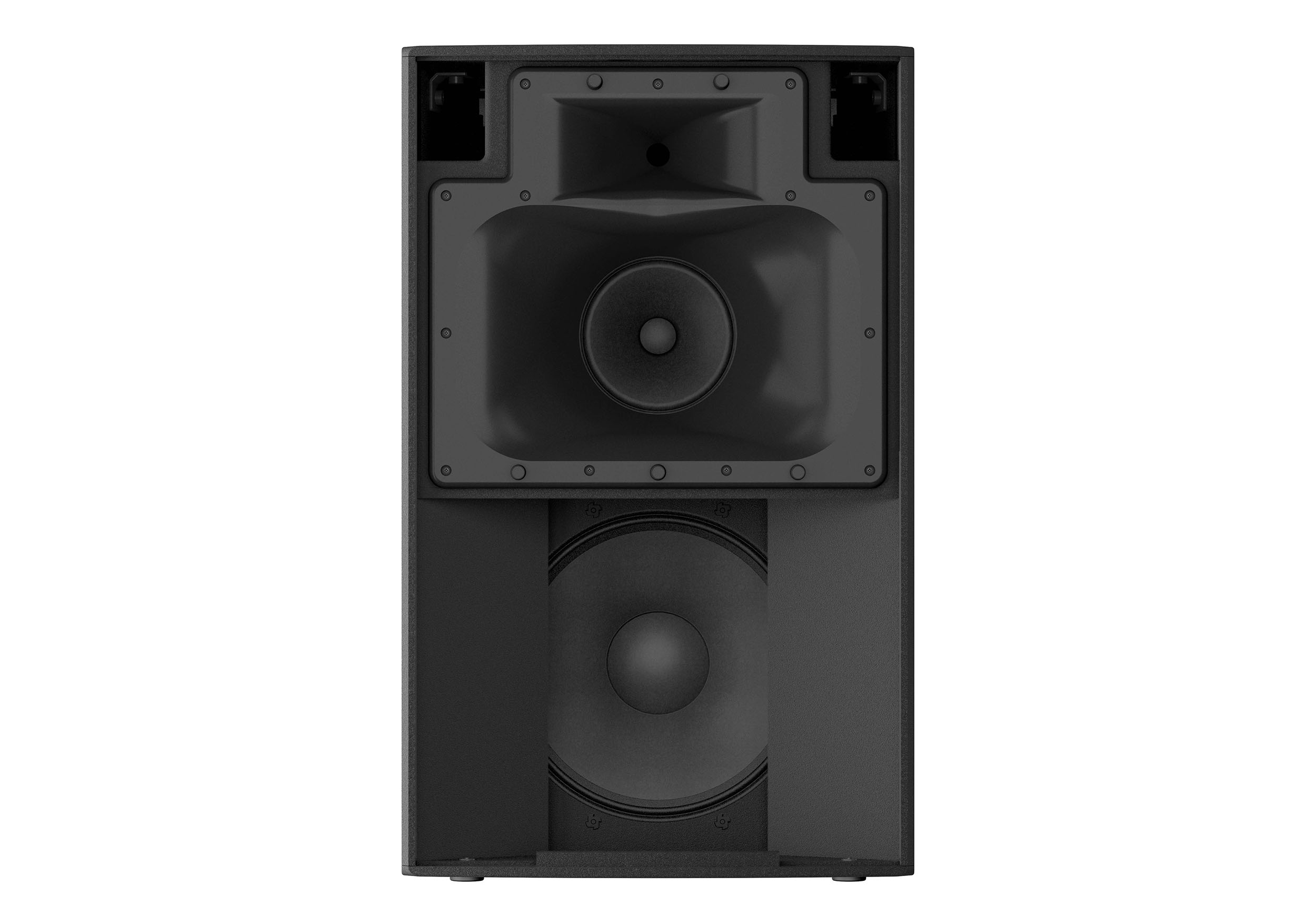

Components:
LF: 15" Cone, 3" Voice Coil, Neodymium magnet
MF: 8" Cone, 1.5" Voice Coil, Ferrite magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
Sampling Frequency Rate: Internal 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 143dB SPL *1
SRC: Yes
Power rating:
Dynamic: 2000W (LF: 1000W, MF/HF: 1000W) *2
Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
Continuous: 950W (LF: 850W, MF/HF: 100W)

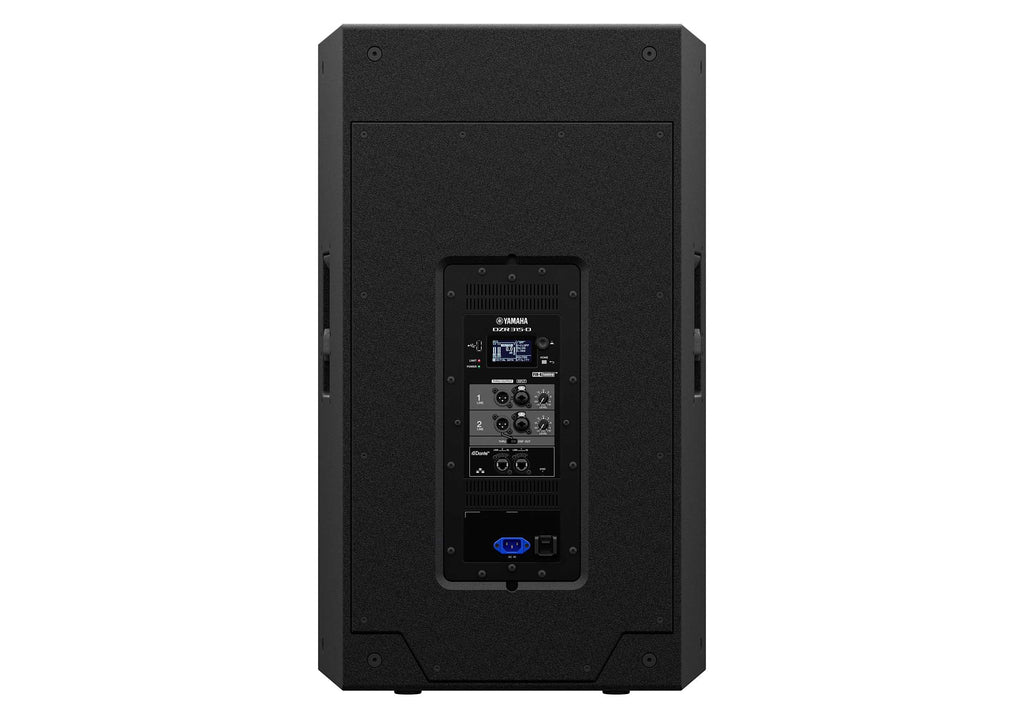

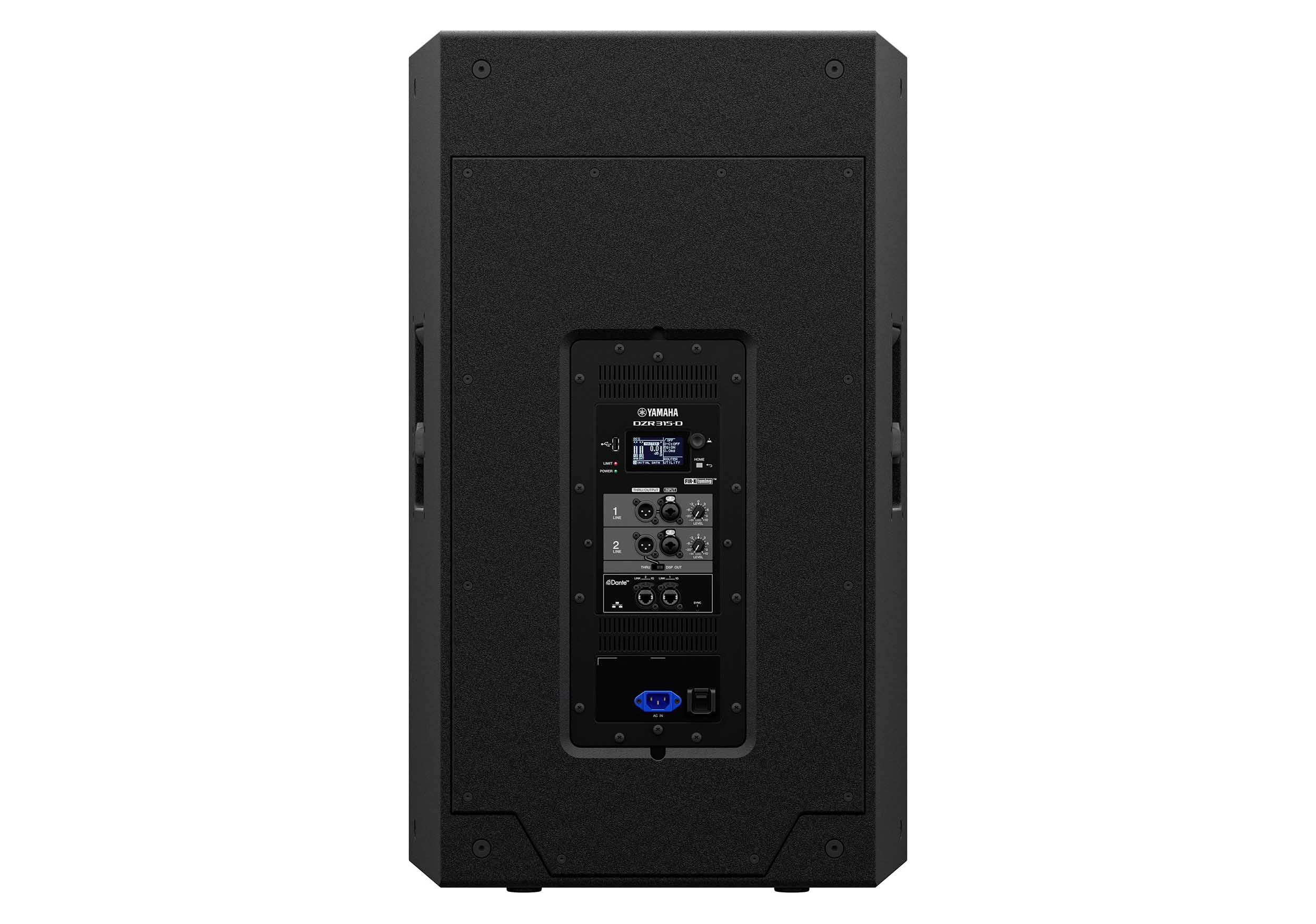

I/O Connectors:
Analog IN: Combo x2, Line level (Max +24dBu), Input impedance 20kΩ
Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Digital I/O:
Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT, Fs: 44.1k, 48k, 88.2k, 96k, Remote Control,
1000BASE-T
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: M10 x16
Product Weight: 91.7lbs / 41.6kg
Product Dimensions (L × W × H): 20.5" × 21.6" × 35.3"
