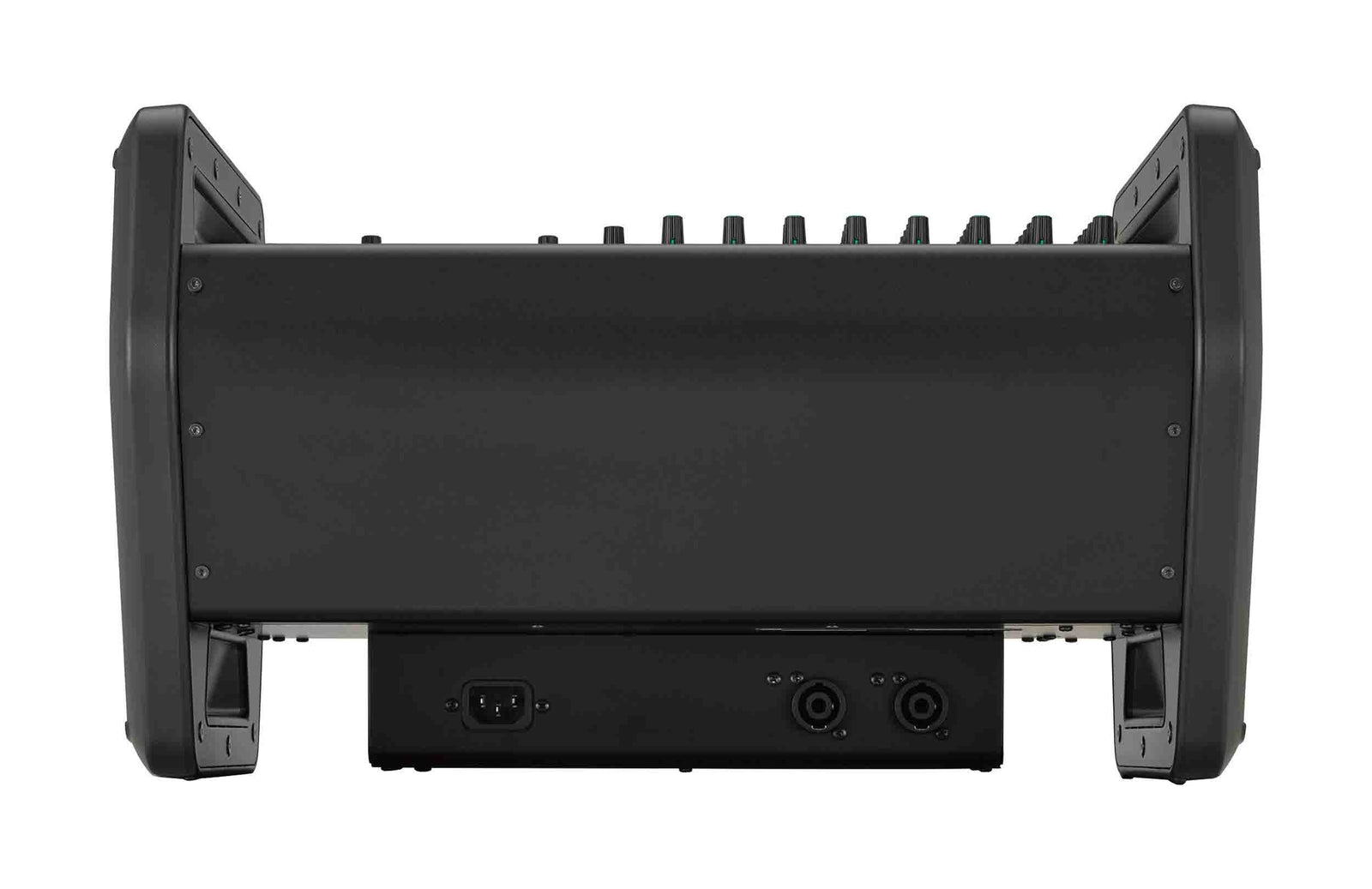

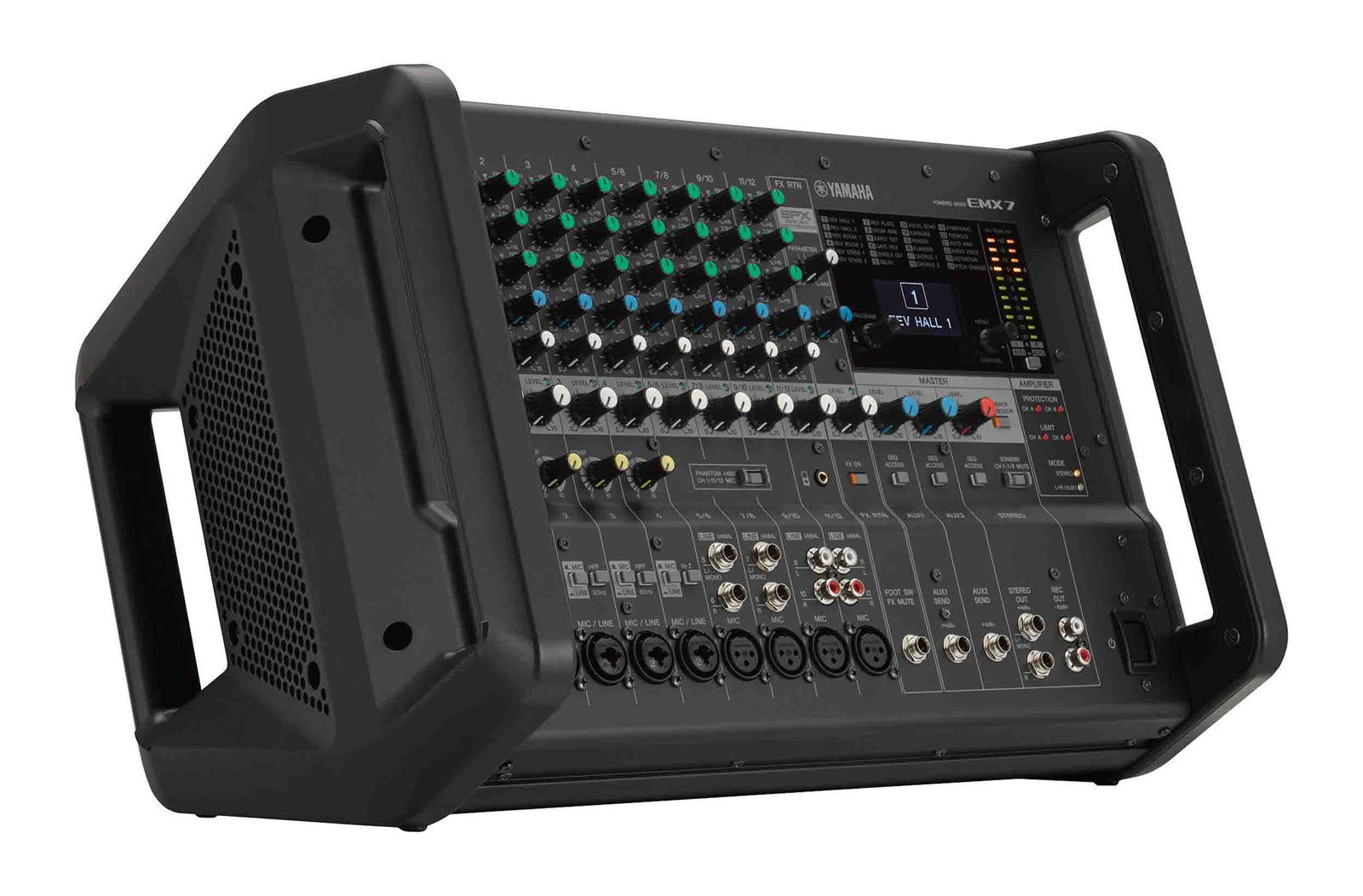

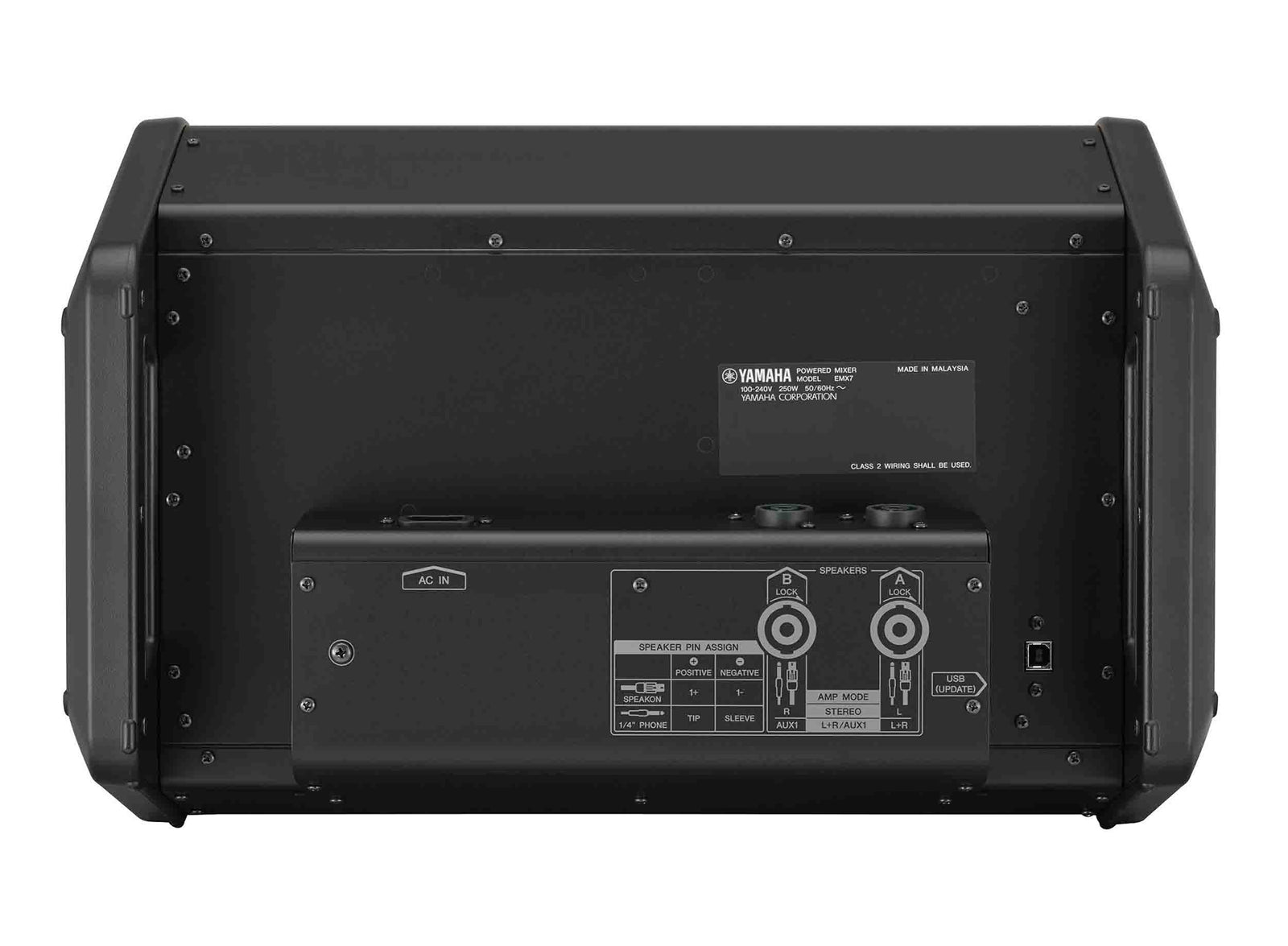

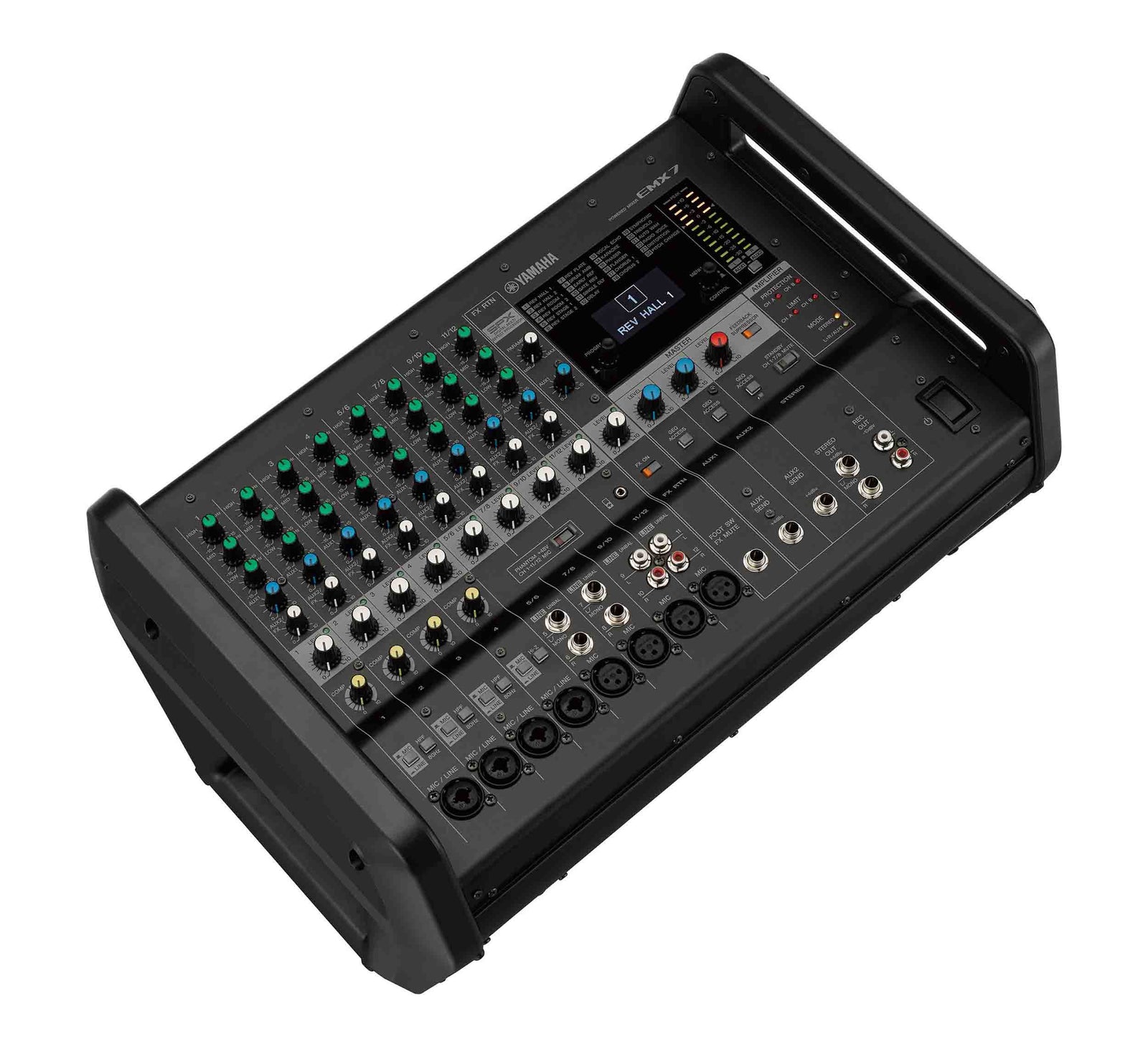

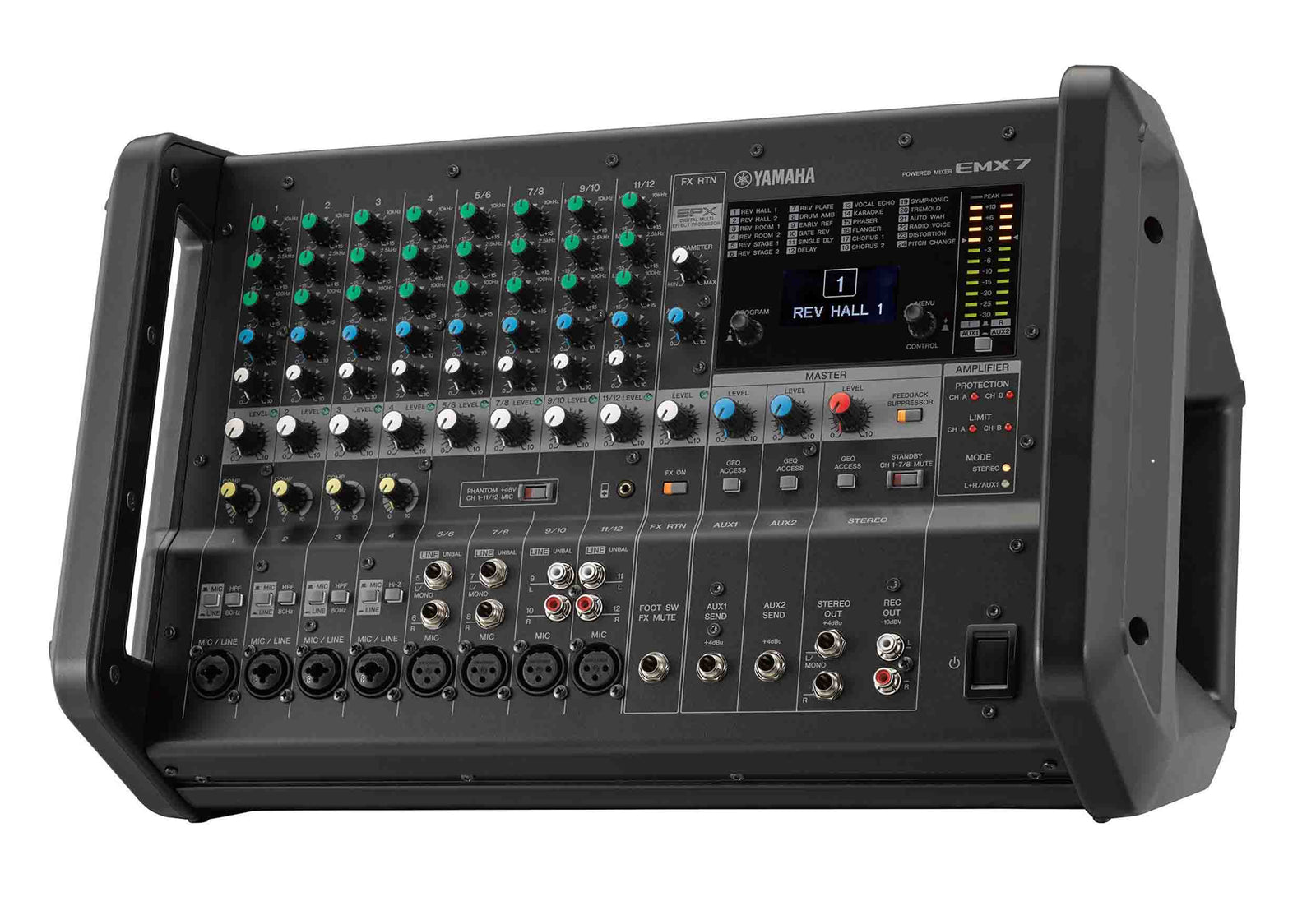

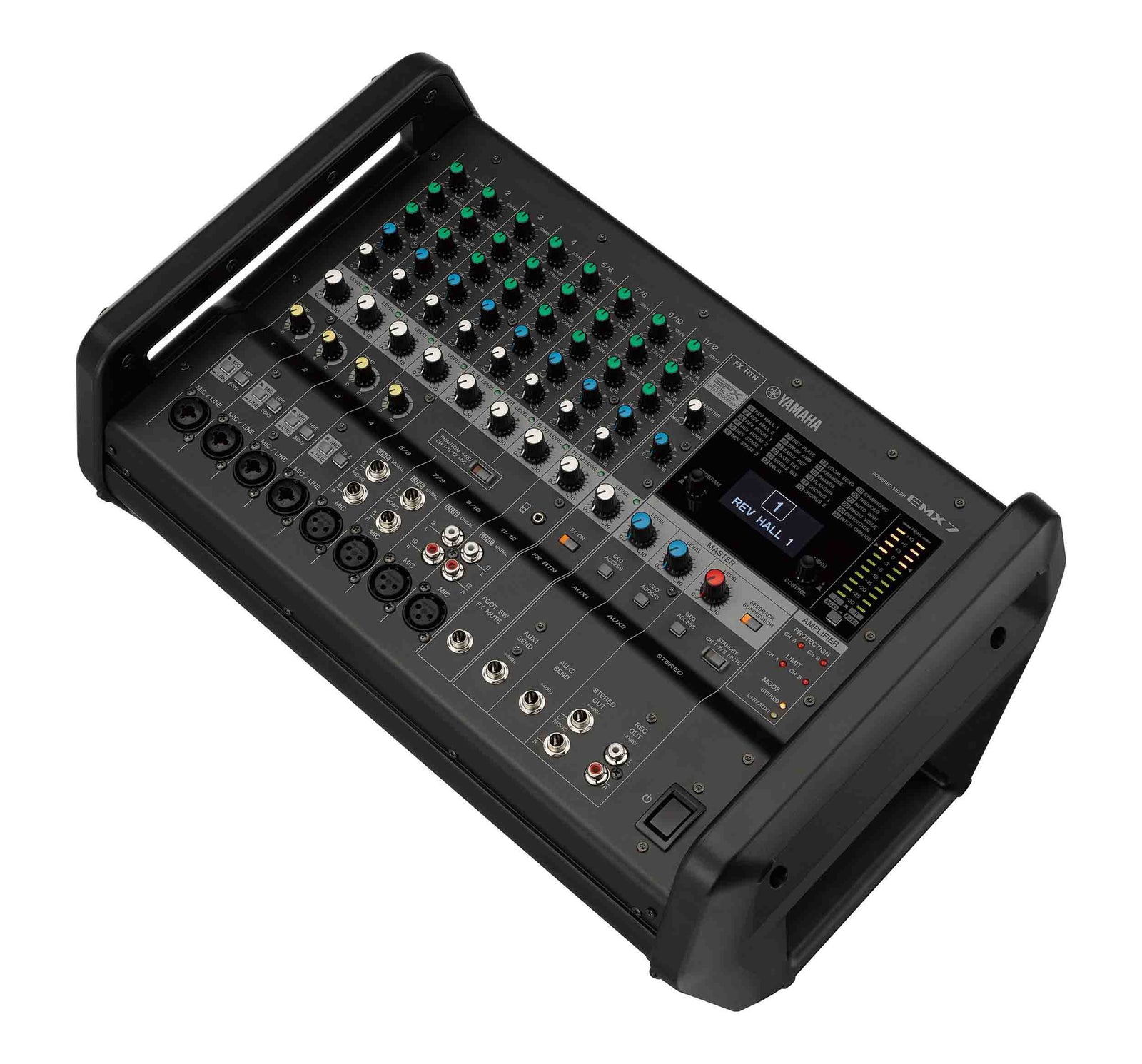

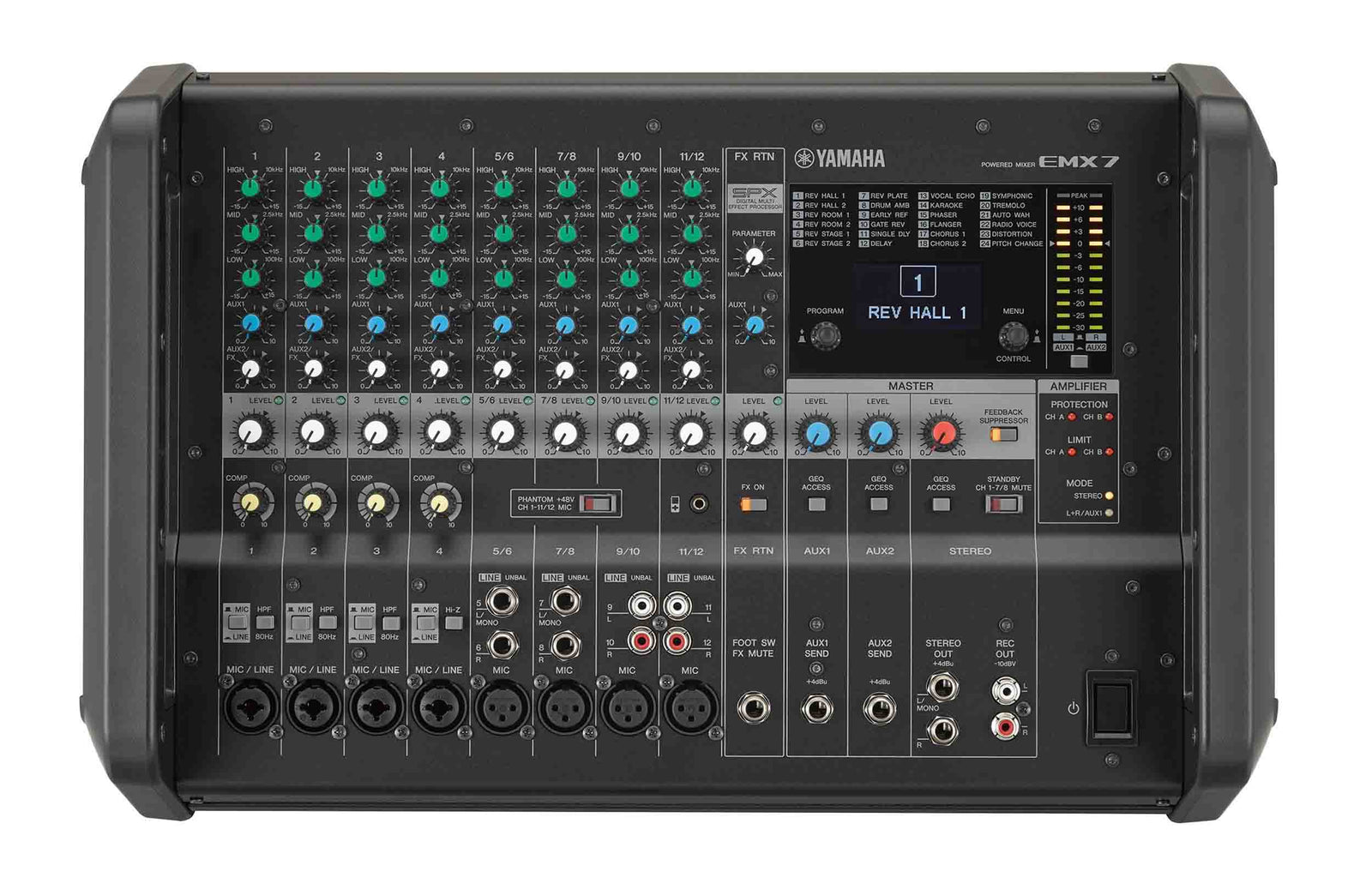

Yamaha EMX7, 12-channel Powered Mixer - 1420W

The Yamaha EMX7, 12-channel Powered Mixer - 1420W. Box-type robust and portable powered mixer featuring high efficiency power amplifier of 710W and mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor.

Powerful & High Efficiency Class-D Amplifier

The EMX7 models feature a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high-volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

Robust But Extremely Portable Design

The EMX7 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.

Easy Setup, Easy Operation

With their intuitive, user-friendly architecture, the EMX7 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor.

Speaker Processor and Preset (EMX7 only)

The speaker processor function allows you to select an appropriate setting to match the particular speakers you’re using. It features presets specifically tuned for each model in Yamaha’s extensive lineup of passive speakers, including CBR, Club, A and R series. This allows users to optimize speaker performance and save even more time during system setup. It also includes a bass boost function that can be enabled to significantly bring out the lower frequencies.

3-band Equalizer Control

With individual knobs you can adjust the [HIGH], [MID], and [LOW] audio frequencies. You can operate instantly turning the control to amplify (boost) and attenuate (cut) the corresponding frequency band.

Product Specifications:

Type: Powered

Channels: 12

Power: 2 x 710W @ 4 ohms, 2 x 500W @ 8 ohms

EQ Bands: 3-band

Inputs - Mic Preamps: 4 x XLR, 4 x XLR-1/4" combo

Phantom Power: 8 x XLR

Inputs - Line: 4 x 1/4", 2 x stereo RCA, 1 x 1/8" (stereo Line)

Aux Sends: 2 x Post

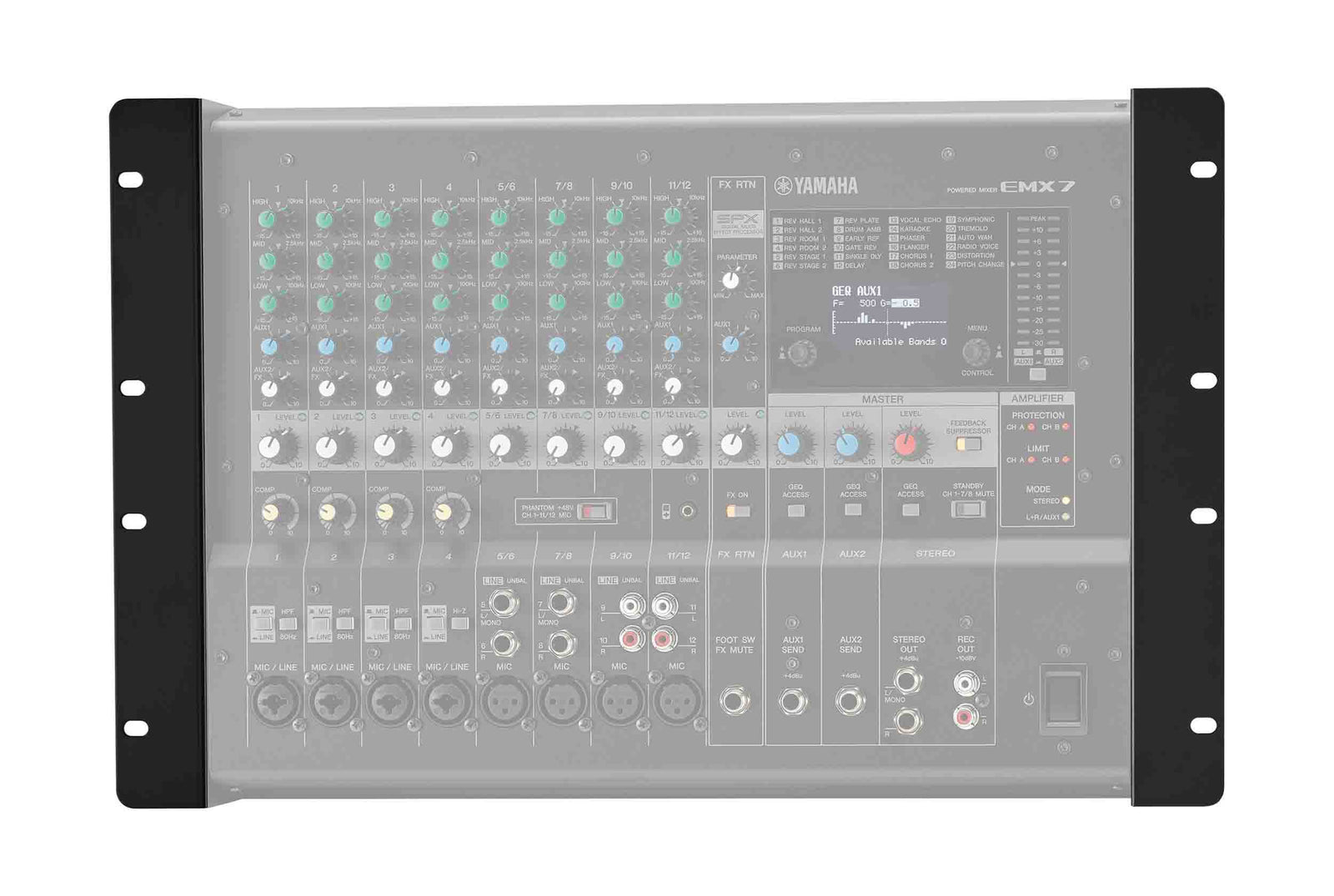

Rackmountable: Yes (kit sold separately)

Height: 12.12"

Width:  18.31"

Depth:  12.81"

Weight: 20.9 lbs.
