Yamaha MA2030A Lo-Z / Hi-Z Switchable Class-D Mixer Amplifier

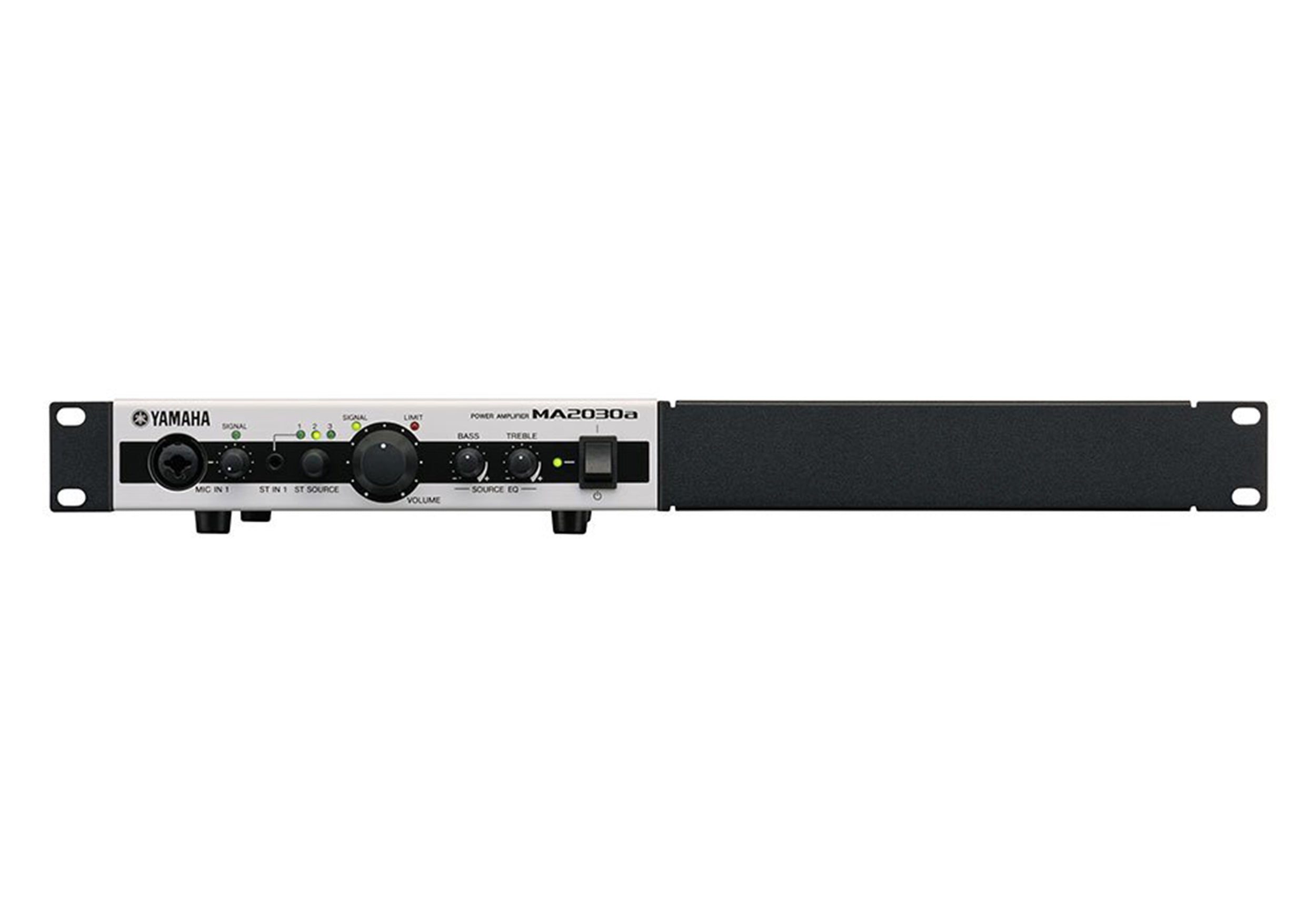

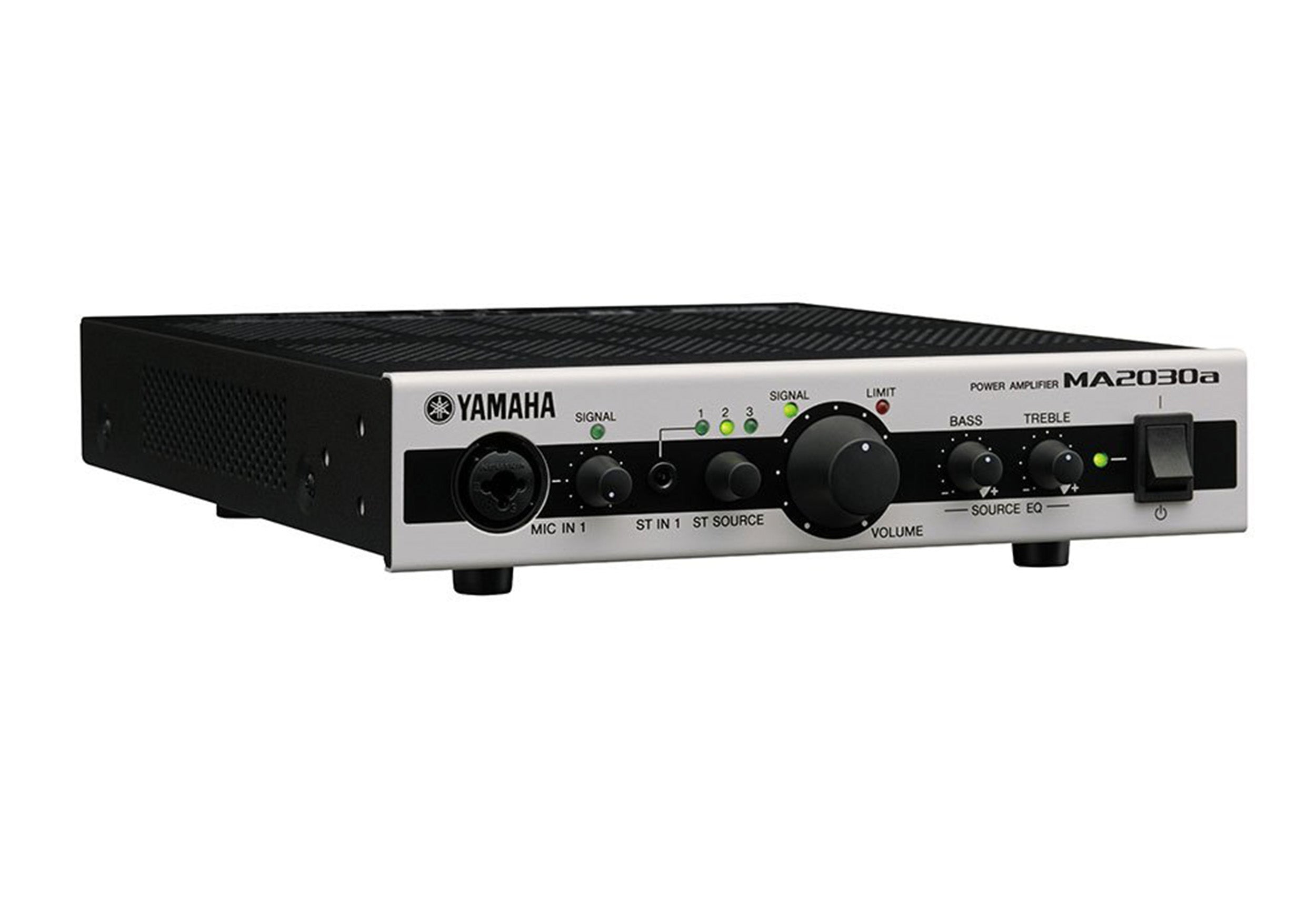

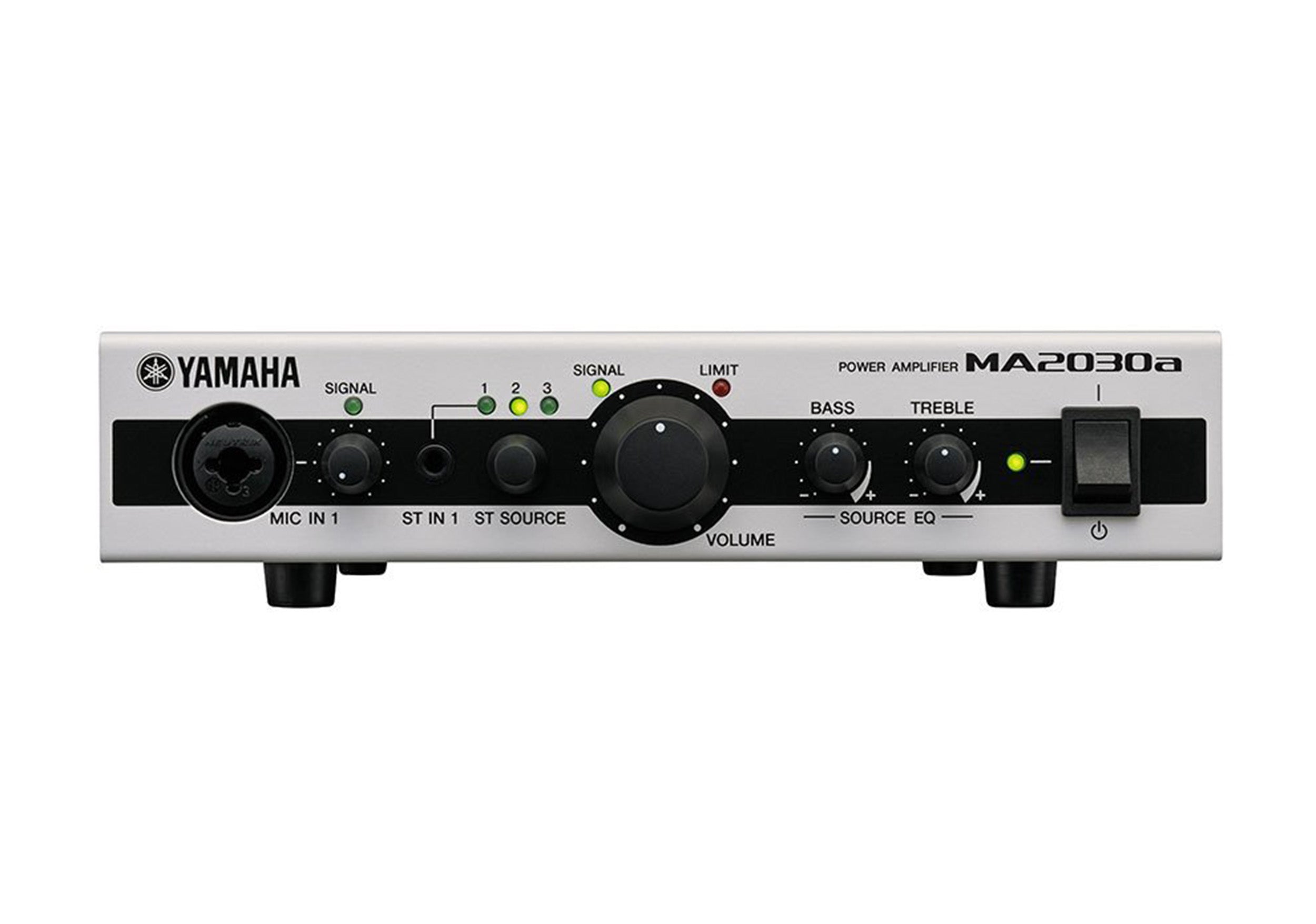

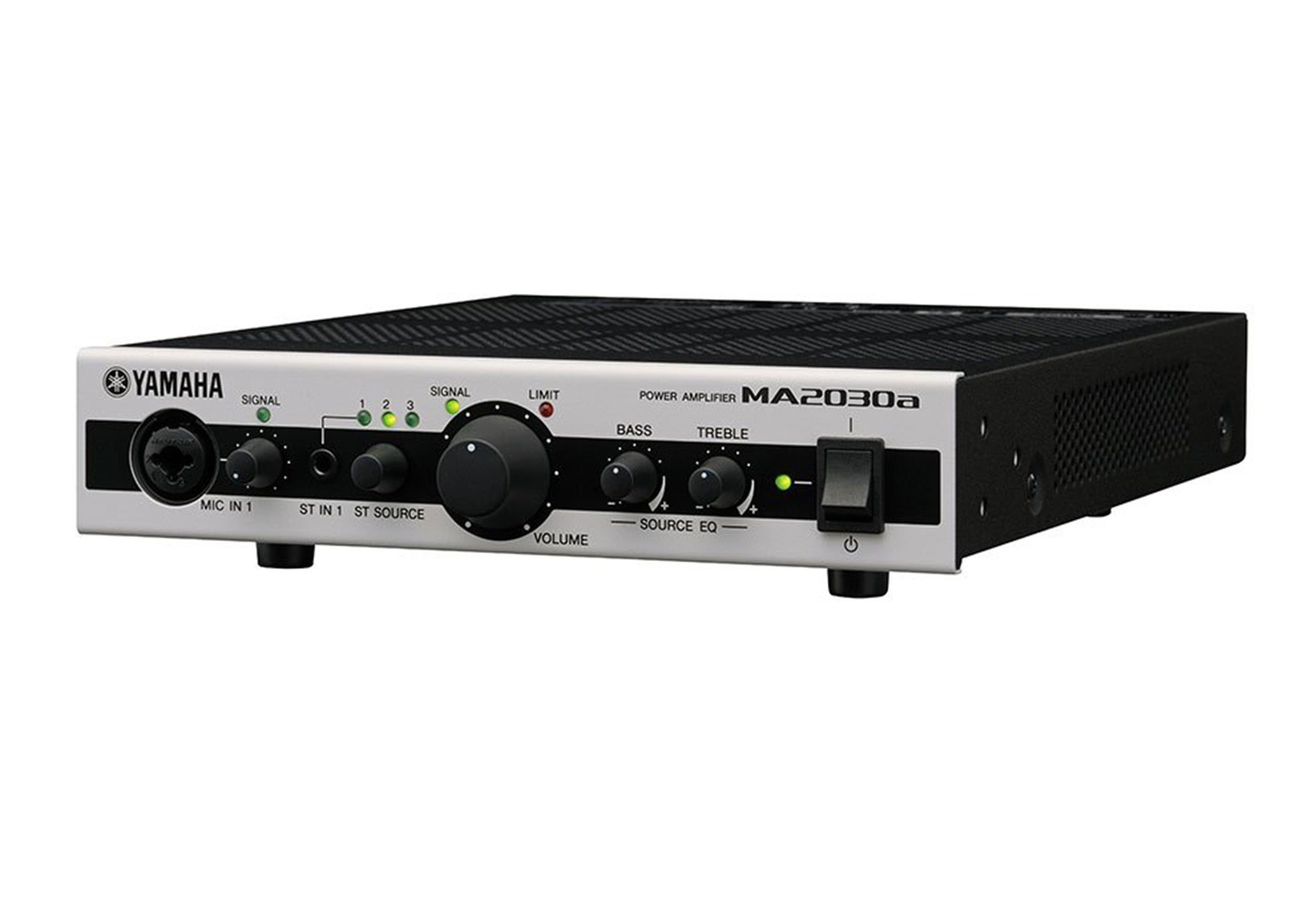

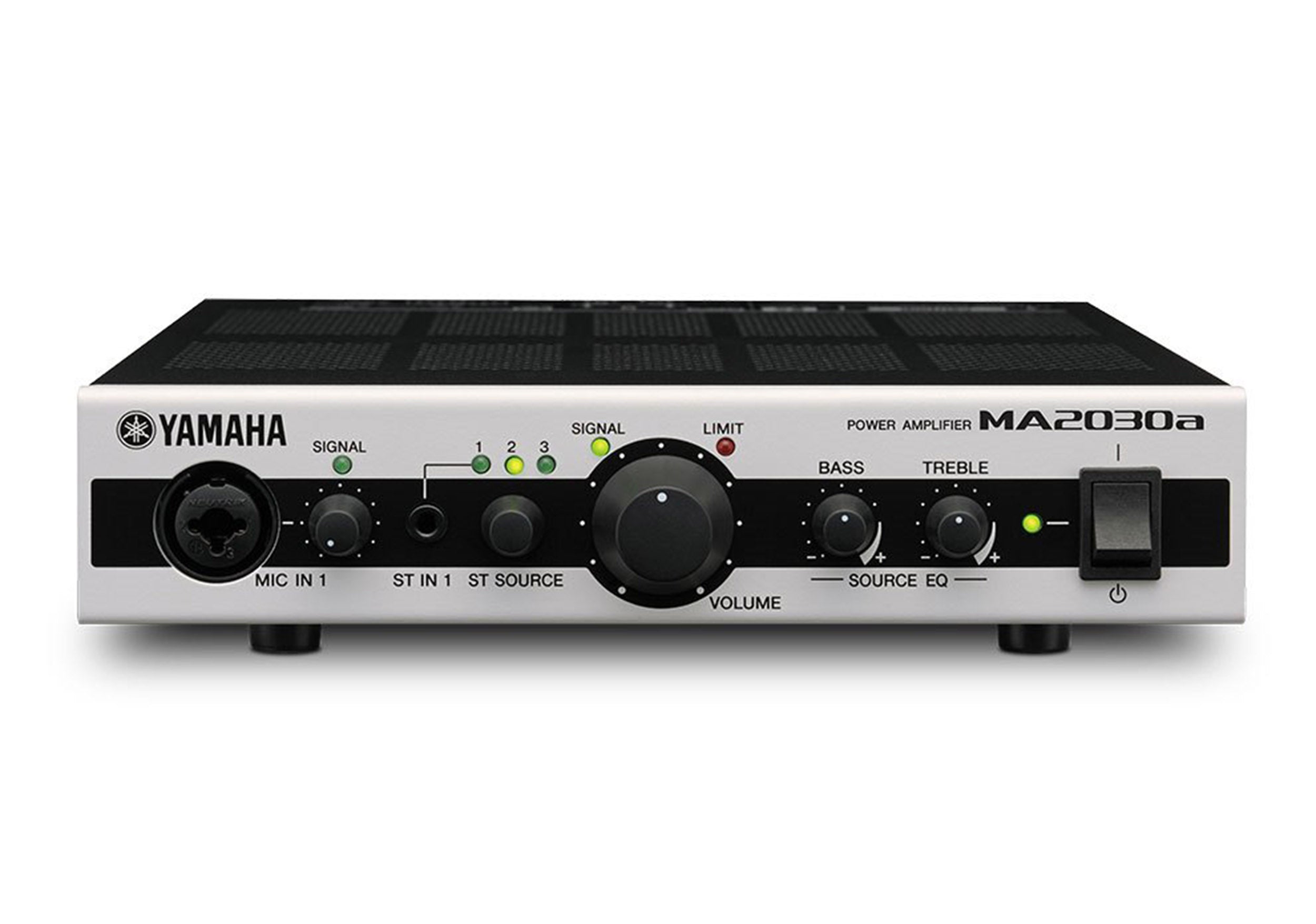

The Yamaha MA2030A is a Lo-Z / Hi-Z switchable Class-D mixer amplifier designed for background music and microphone applications in commercial environments. It delivers 30W x 2 channels in low-impedance mode and 60W x 1 channel in high-impedance mode (70V/100V), making it ideal for retail stores, restaurants, offices, and public spaces. Its compact 1U rack-mount design combines power efficiency with simple, intuitive operation.

Flexible Inputs and Built-In DSP Processing

The MA2030A offers versatile connectivity with 2 microphone inputs and 3 selectable stereo inputs, allowing easy integration of music sources and paging microphones. Advanced DSP functions enhance both music playback and speech clarity, including Feedback Suppressor, Priority Ducker, and Leveler. Bass and treble stereo source EQ with an enhancer function enables fine tonal adjustment, while the built-in high-pass filter ensures clean, controlled sound.

Optimized Speaker Support and Expandable Systems

Supporting both low-impedance (3Ω / 4Ω / 8Ω) and high-impedance (70V / 100V) speaker systems without external transformers, the MA2030A offers exceptional installation flexibility. It includes speaker EQ optimized for Yamaha VXC and VXS series speakers, ensuring consistent and balanced output. Service zones can be expanded by adding a PA2030a power amplifier, making the system scalable as needs grow.

Efficient, Reliable, and Environmentally Friendly Design

Powered by a highly efficient Class-D amplifier, the MA2030A delivers reliable performance with low power consumption and silent fan-less cooling. Intelligent protection circuitry safeguards both the amplifier and connected speakers, ensuring long-term stability. Certified as an ENERGY STAR® and Yamaha Eco Product, the MA2030A also features auto standby to reduce power usage, making it a dependable and eco-conscious choice for everyday commercial audio applications.

Product Specifications:

Output Power 1kHz (THD+N=1%: 3Ω): 30W x 2 (20ms Burst)

Output Power 1kHz (THD+N=1%: 4Ω): 30W x 2 (20ms Burst)

Output Power 1kHz (THD+N=1%: 8Ω): 30W x 2 (20ms Burst)

High Impedance 100V Line: 60W x1

High Impedance 70V Line: 60W x1

Total Harmonic Distortion: ≤0.1% (Stereo in to Speaker out @1kHz, Half power, 3Ω/4Ω/8Ω), ≤0.2%

(Stereo in to Speaker out @1kHz, Half power, 70V/100V)

Frequency Response: 0dB, -2.5dB, +1.0dB (Stereo in to Line out, 20Hz–20kHz), 0dB, -3.0dB, +1.0dB

(Stereo in to Speaker out, 50Hz–20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out,

90Hz–20kHz, 1W, 70V/100V)

Crosstalk: ≤ -70dB (Stereo in to another Stereo in)

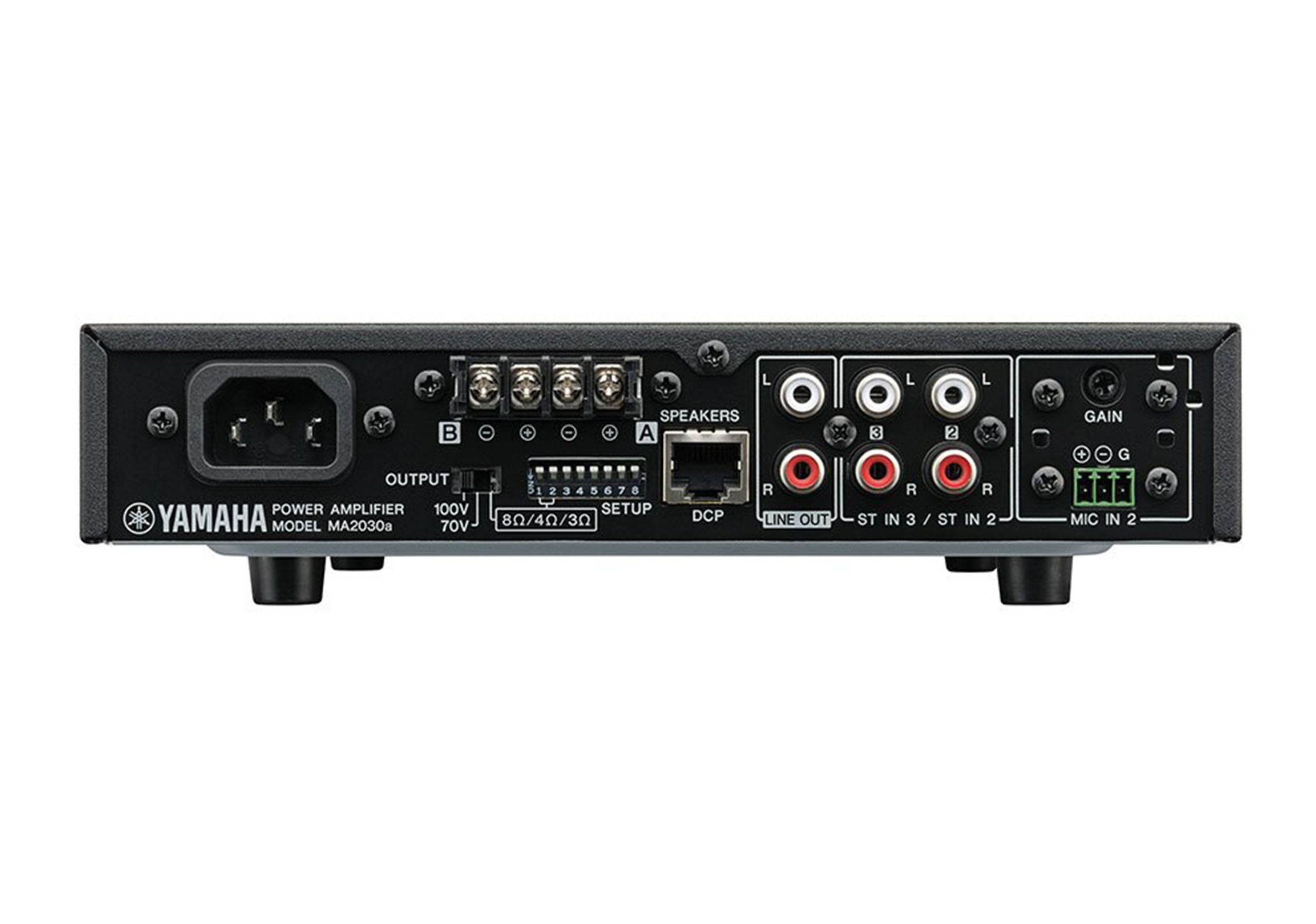

Speaker Output: Barrier strip x2 pairs

Line Out: Stereo RCA pin (unbalanced)

Control Ports: RJ-45 (for DCP1V4S)

Mic Input:

MIC IN 1: XLR combo jack (balanced)

MIC IN 2: 3.5mm Euroblock (3-pin, balanced)

Stereo Input:

ST IN 1: 3.5mm stereo mini phone (unbalanced)

ST IN 2 / ST IN 3: Stereo RCA pin (unbalanced)

Input Level:

Mic input: -76dBu (Sensitivity), -66dBu (Nominal), -22dBu (Max before clip)

Line input: -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip)

Output Level: -10dBV (LINE OUT, Nominal)

Processors: Speaker EQ (VXS: Full Range, VXC), HPF (150Hz)

Load Protection: Power switch on/off mute, Output voltage protection (compress), DC-fault power supply

shutdown (auto restore)

Amplifier Protection: Thermal limit → mute → shutdown, over current mute, Integrated power limit (auto

restore)

Power Supply Protection: Thermal shutdown, Over voltage shutdown, Over current shutdown

Amplifier Class: Class D

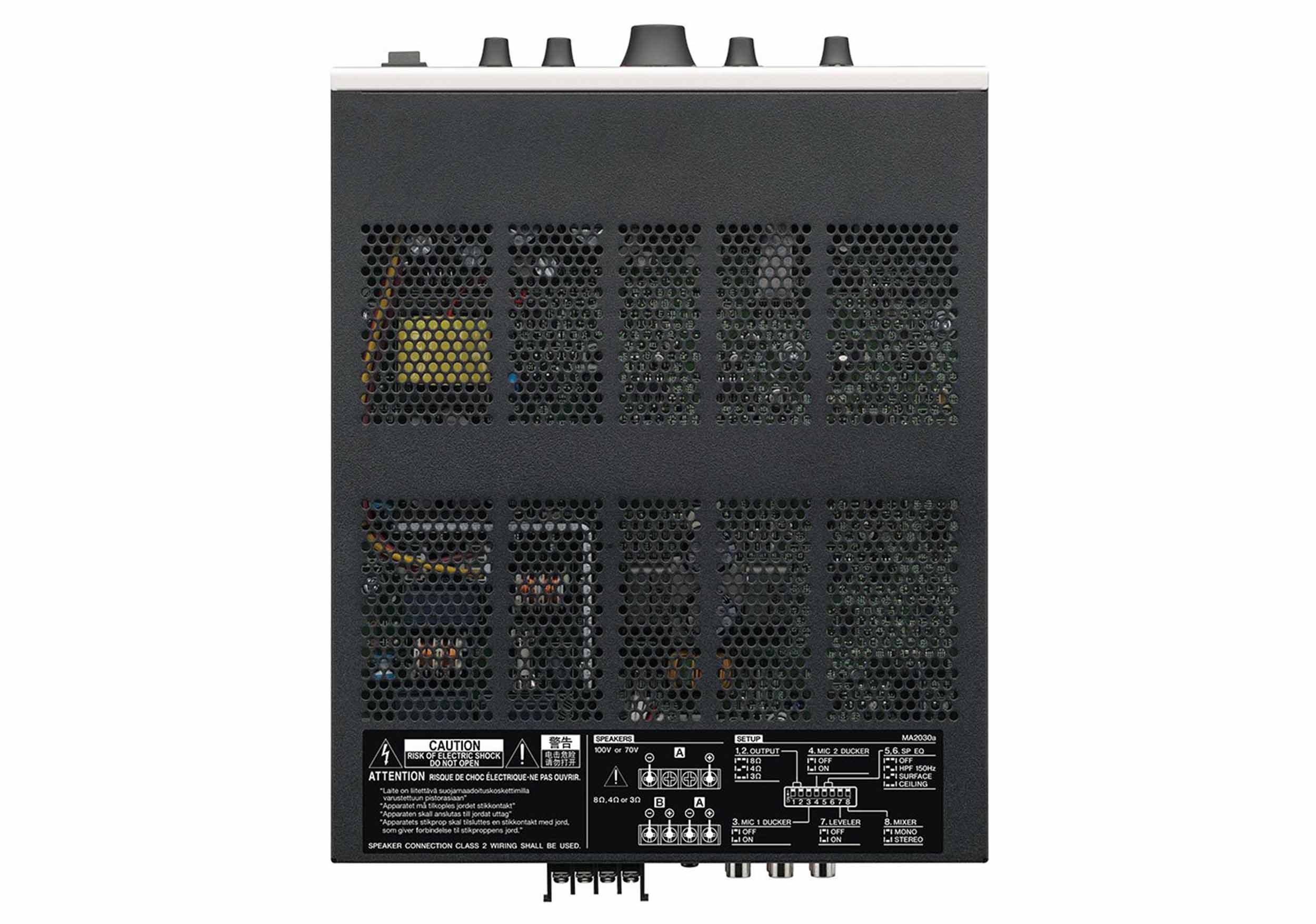

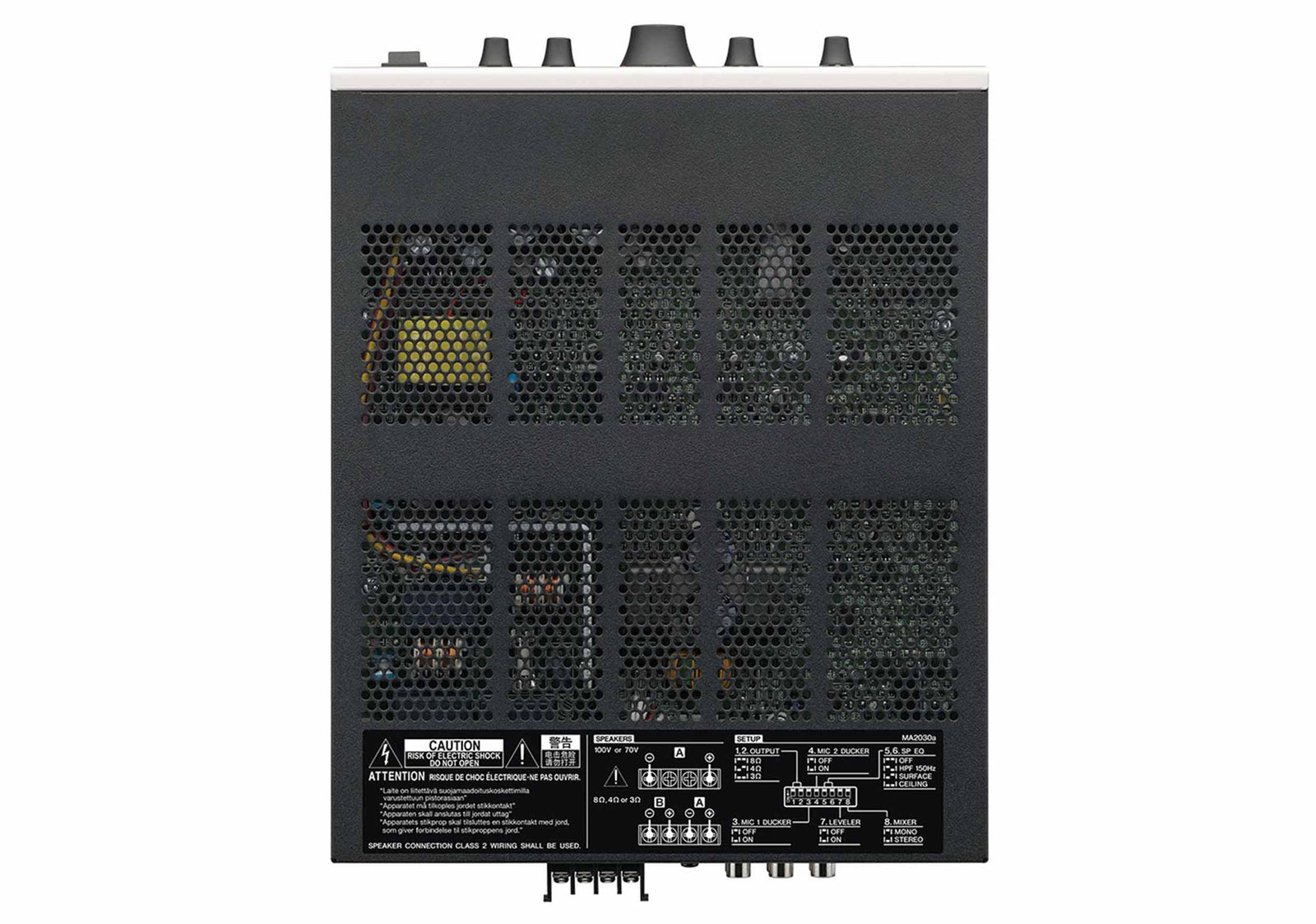

Cooling: Conventional cooling, bottom-to-up airflow

Power Requirements: 100V, 120V, 230V–240V, 50Hz/60Hz

Power Consumption: 30W (1/8 max power, 3Ω, AC100V, pink noise, all channels)

Product Weight: 4.0lbs / 1.8kg

Product Dimensions (L × W × H): 11.4" × 8.5" × 2.1"
