Description

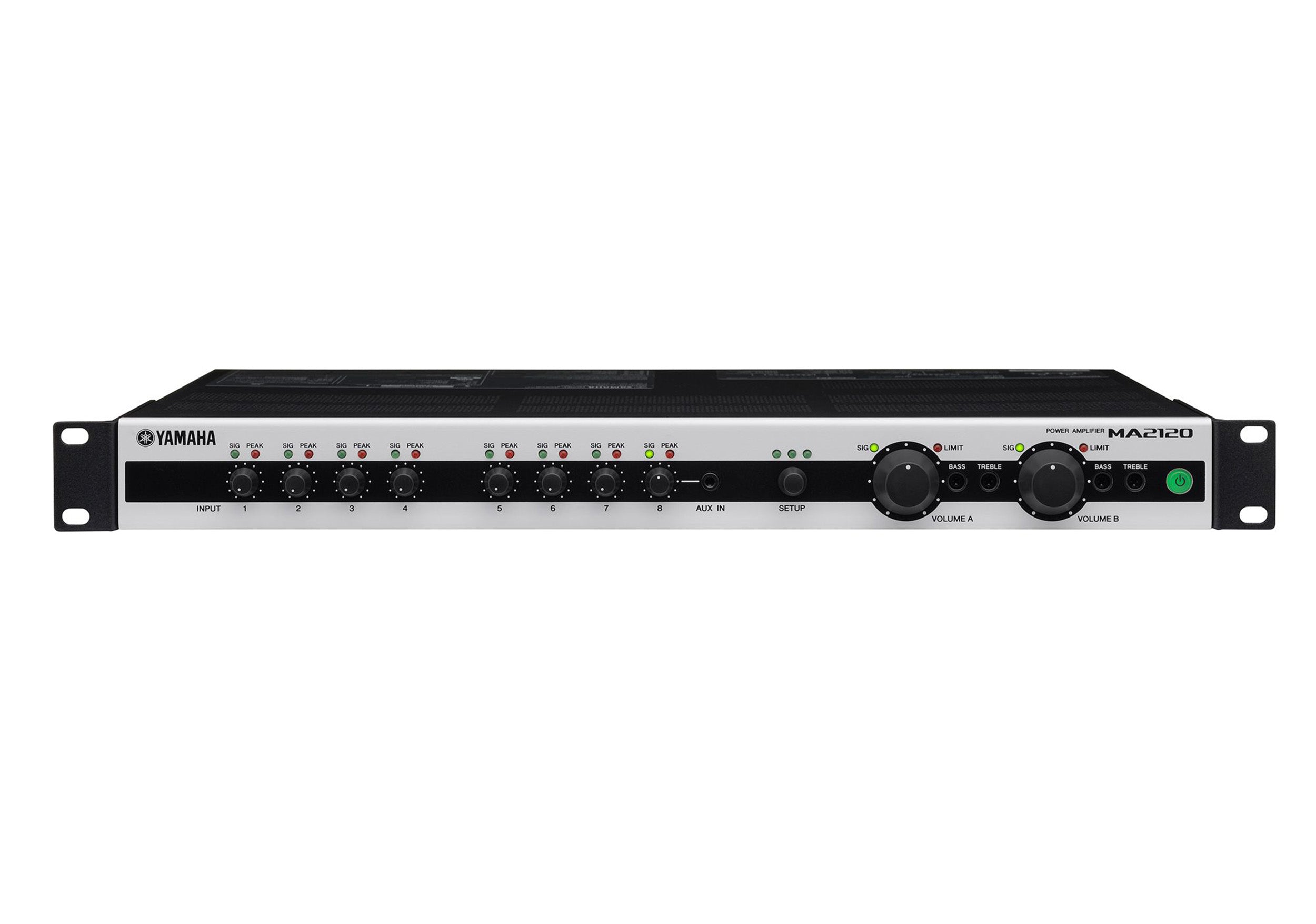

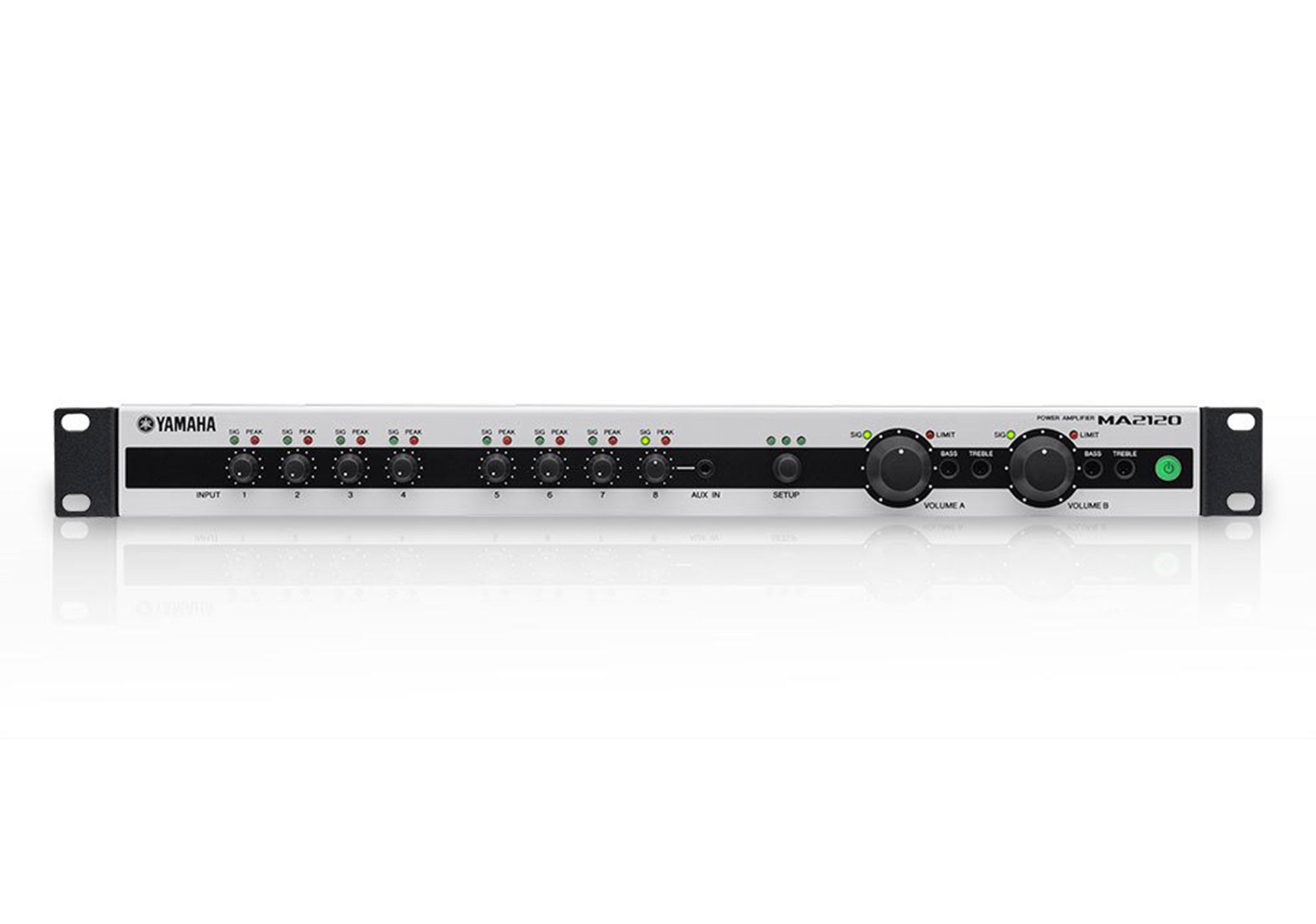

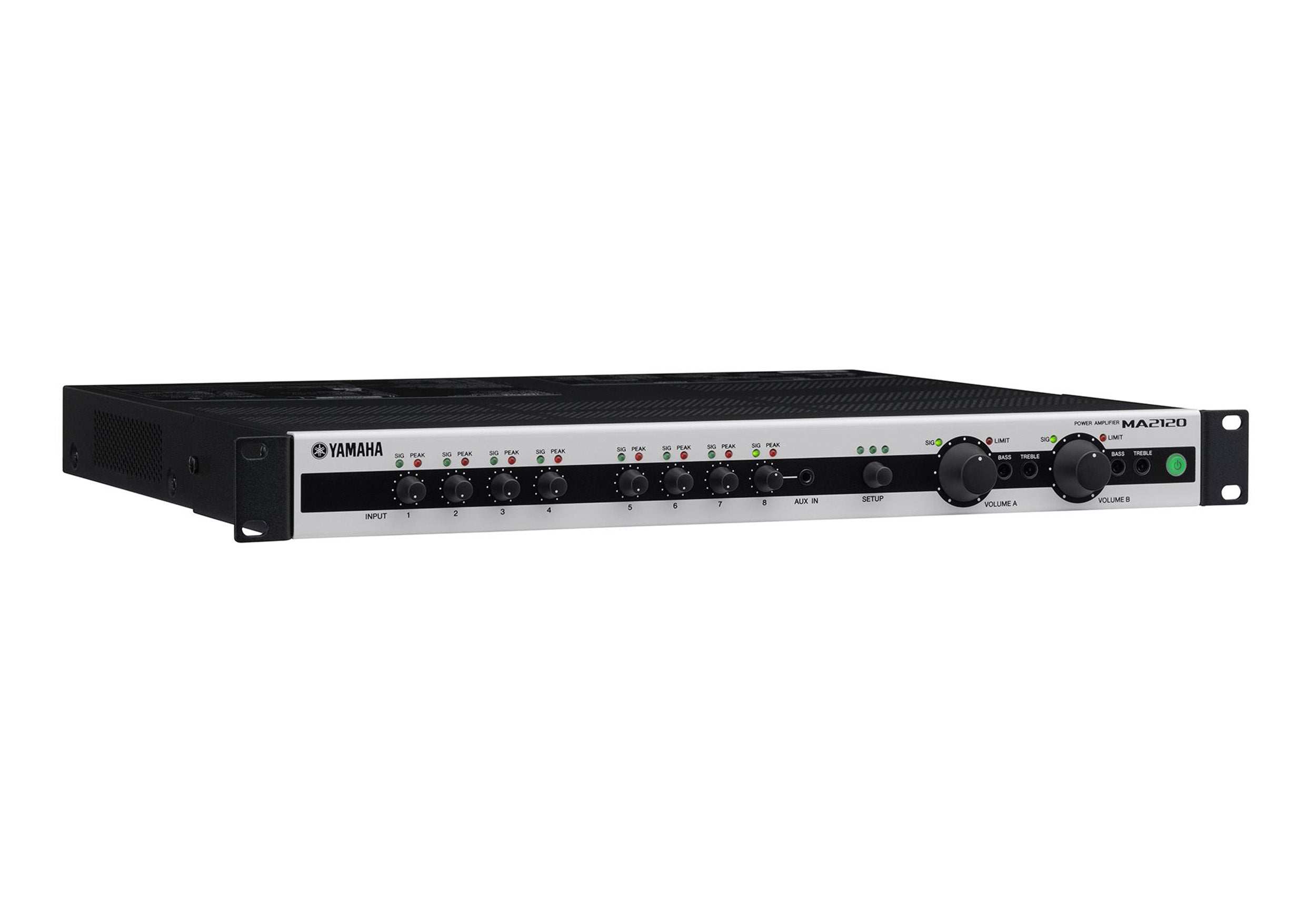

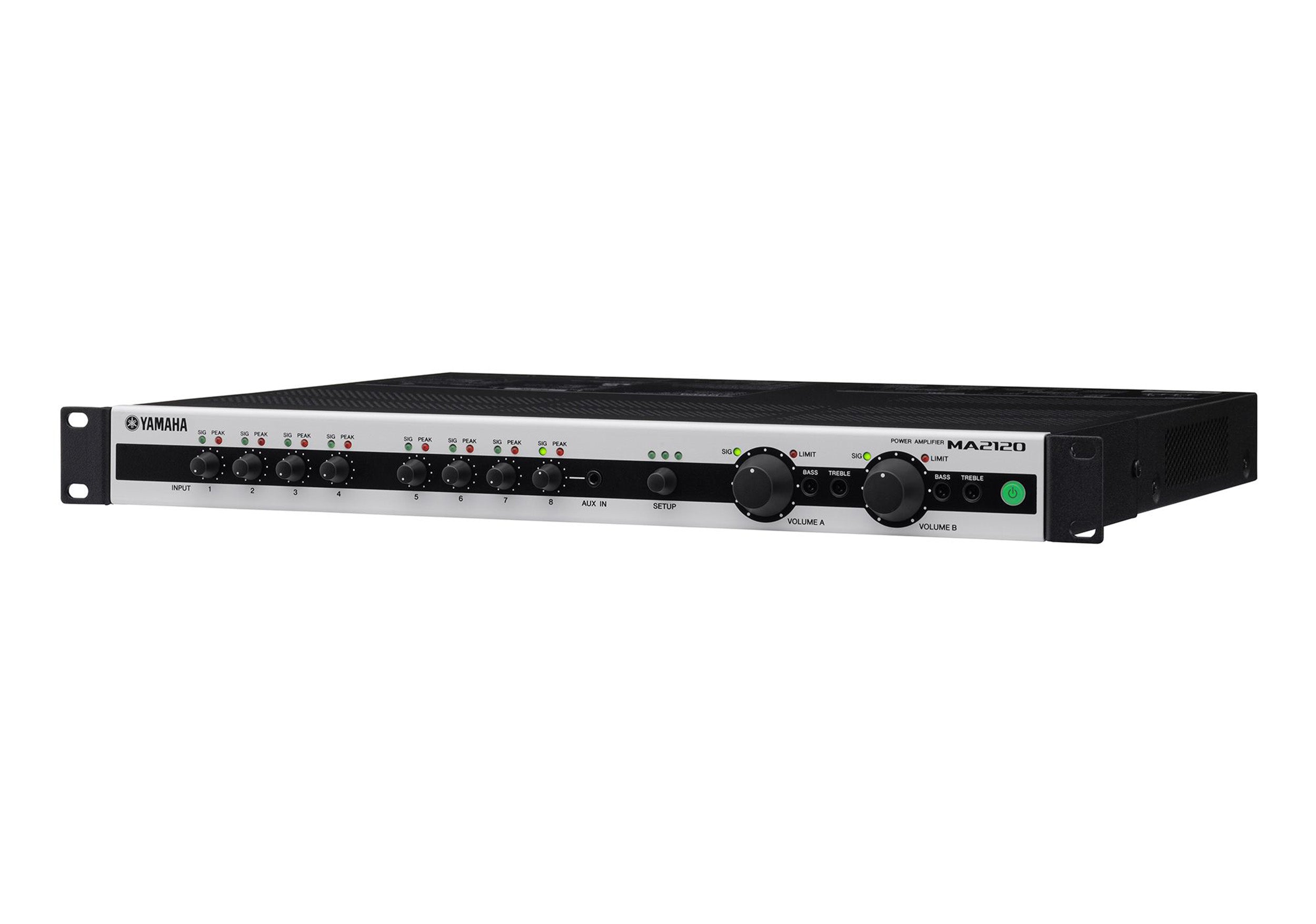

The Yamaha MA2120 is a Lo-Z / Hi-Z switchable Class-D mixer amplifier designed for medium-scale commercial audio systems that require power, flexibility, and reliability. It delivers up to 120W x 2 channels at 4Ω or 100W x 2 channels at 3Ω/8Ω in low-impedance mode, and up to 200W in high-impedance 70V/100V systems. Housed in a compact 1U rack-mount chassis, the MA2120 combines high output with energy-efficient performance.
Extensive Inputs and Advanced DSP Processing
Equipped with 6 mic/line inputs and 2 stereo inputs, the MA2120 offers exceptional connectivity for background music and paging applications. All six microphone inputs feature switchable 24V phantom power, supporting a wide range of microphones. Built-in DSP functions enhance both music and speech clarity, including Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb, and Echo. Bass and treble stereo source EQ with an enhancer function, along with per-channel output EQ, allow precise tonal control.
Flexible Speaker Support and Zoning Capability
The MA2120 supports both low-impedance and high-impedance speaker systems without the need for external transformers. Built-in speaker EQ optimized for Yamaha VXC and VXS series speakers, along with HPF and selectable LPF settings, ensures consistent sound quality across installations. With true two-channel output, the MA2120 enables independent source and volume control for two separate zones, making it ideal for multi-area venues. System expansion is easily achieved by adding a PA2120 power amplifier.
Reliable, Energy-Efficient, and Installer-Friendly Design
Powered by a highly efficient Class-D amplifier, the MA2120 delivers strong output with low power consumption and silent fan-less cooling. Intelligent protection circuitry safeguards both the amplifier and connected speakers, ensuring long-term reliability. Certified by ENERGY STAR® and recognized as a Yamaha Eco Product, the MA2120 also features an auto-standby function to reduce energy usage, making it a dependable and environmentally responsible choice for everyday commercial audio applications.
Product Specifications:
Output Power 1kHz (THD+N=1%: 3Ω): 100W x 2 (20ms Burst)
Output Power 1kHz (THD+N=1%: 4Ω): 120W x 2 (20ms Burst)
Output Power 1kHz (THD+N=1%: 8Ω): 100W x 2 (20ms Burst)
High Impedance 100V Line: 120W x 2 or 200W x 1
High Impedance 70V Line: 120W x 2 or 200W x 1
Total Harmonic Distortion: ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in
to Speaker out, Half power @1kHz, 70V/100V, 120W/200W)
Frequency Response: 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz–20kHz), 0dB, -3.0dB, +1.0dB (Line
in to Speaker out, 50Hz–20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz–20kHz,
1W, 70V/100V, 120W/200W)
Crosstalk: ≤ -70dB (MIC/LINE input to other MIC/LINE input)

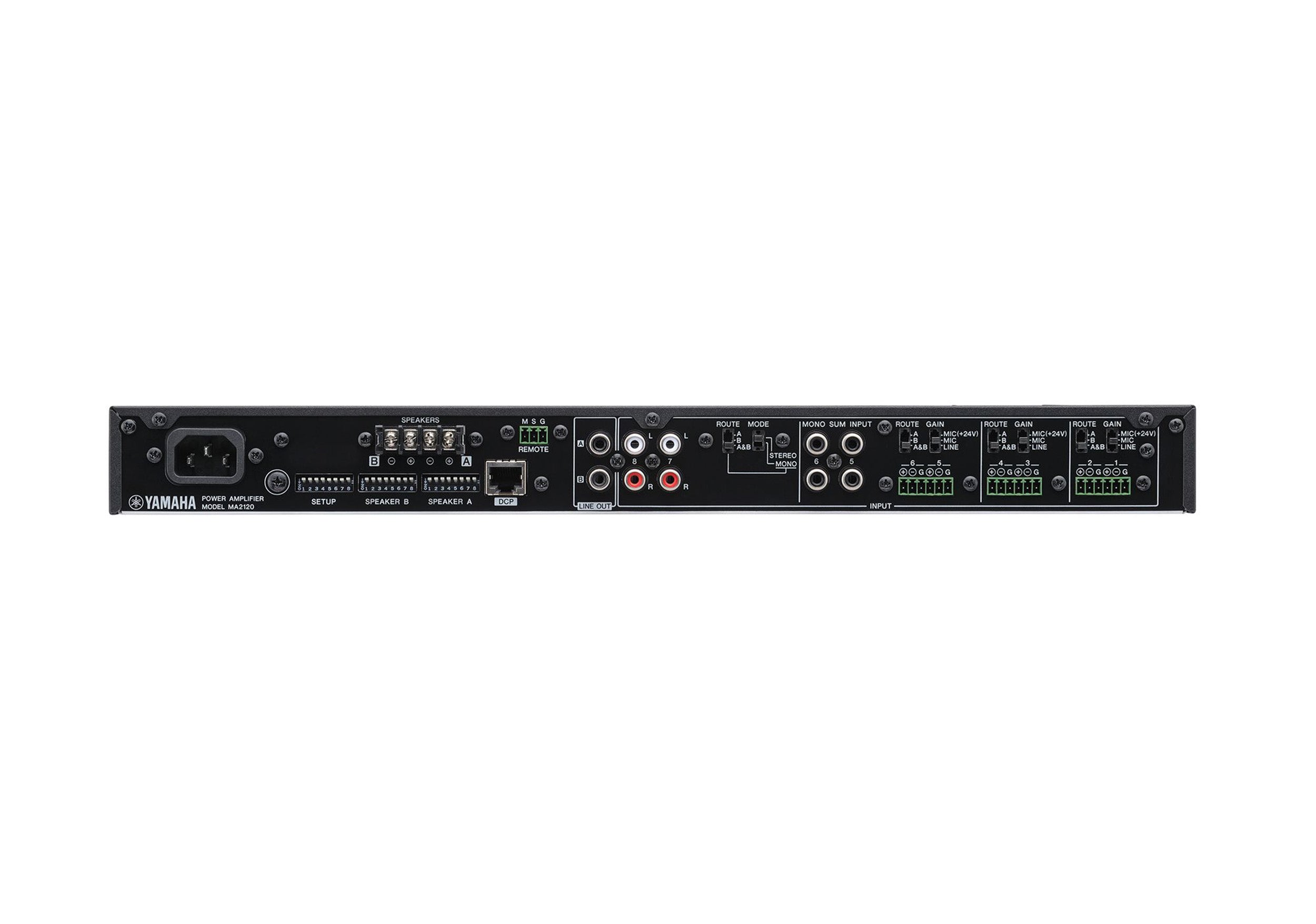

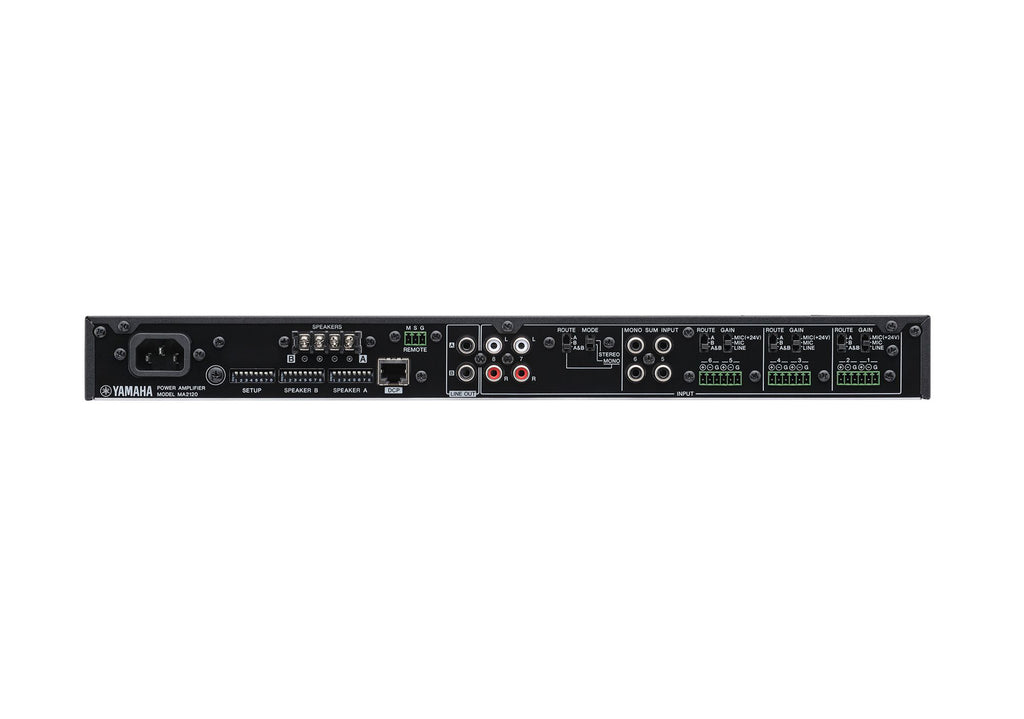

Mic/Line Input:
Input 1–6: 3.5mm Euroblock (6-pin, balanced) x3
Line Input:
Input 7–8: Stereo RCA pin (unbalanced) x2
Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5–6: RCA pin (MONO SUM, unbalanced) x4
Speaker Output: Barrier strip x2 pairs
Line Out: LINE OUT: MONO RCA pin x2 (unbalanced)
Control Ports: RJ-45 (for DCP4V4S, DCP1V4S, DCP4S), Remote (3.5mm Euroblock 3-pin)
Input Level:
Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip)
Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip)
Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip)
Output Level: -10dBV (LINE OUT, Nominal)
Processors: Speaker EQ (VXS: Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz)
Load Protection: Power switch on/off mute, Output voltage protection (compress), DC-fault power supply
shutdown (auto restore)
Amplifier Protection: Thermal limit → mute → shutdown, over current mute, Integrated power limit (auto
restore)
Power Supply Protection: Thermal shutdown, over voltage shutdown, over current limit → shutdown
(auto restore)
Amplifier Class: Class D

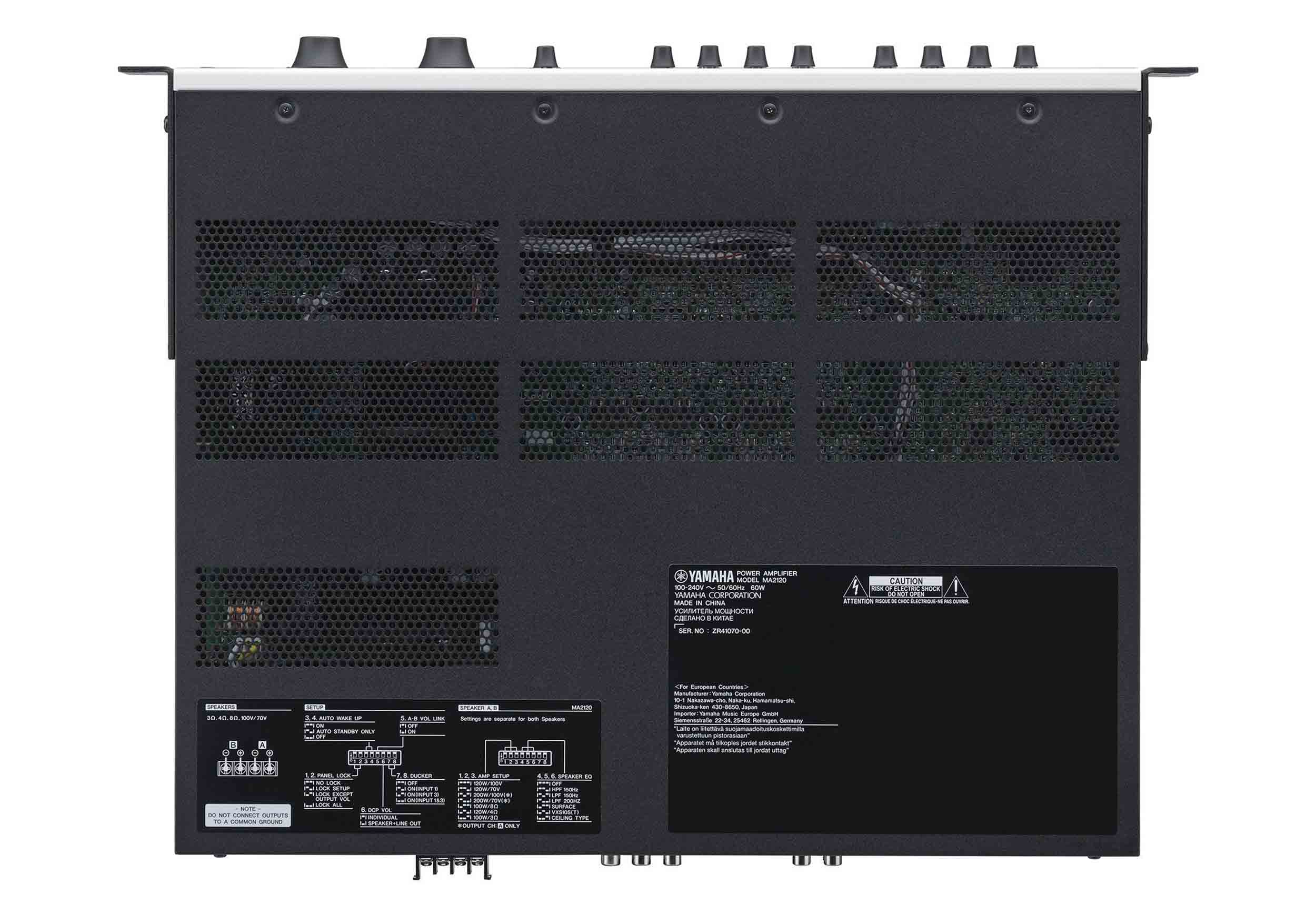

Cooling: Conventional cooling, bottom-to-up airflow
Power Requirements: 100V, 120V, 230V–240V, 50Hz/60Hz
Power Consumption: 60W (1/8 max power, 4Ω, AC100V, pink noise, all channels)
Product Weight: 10.8lbs / 4.9kg
Product Dimensions (L × W × H): 14.9" × 18.9" × 1.8"
