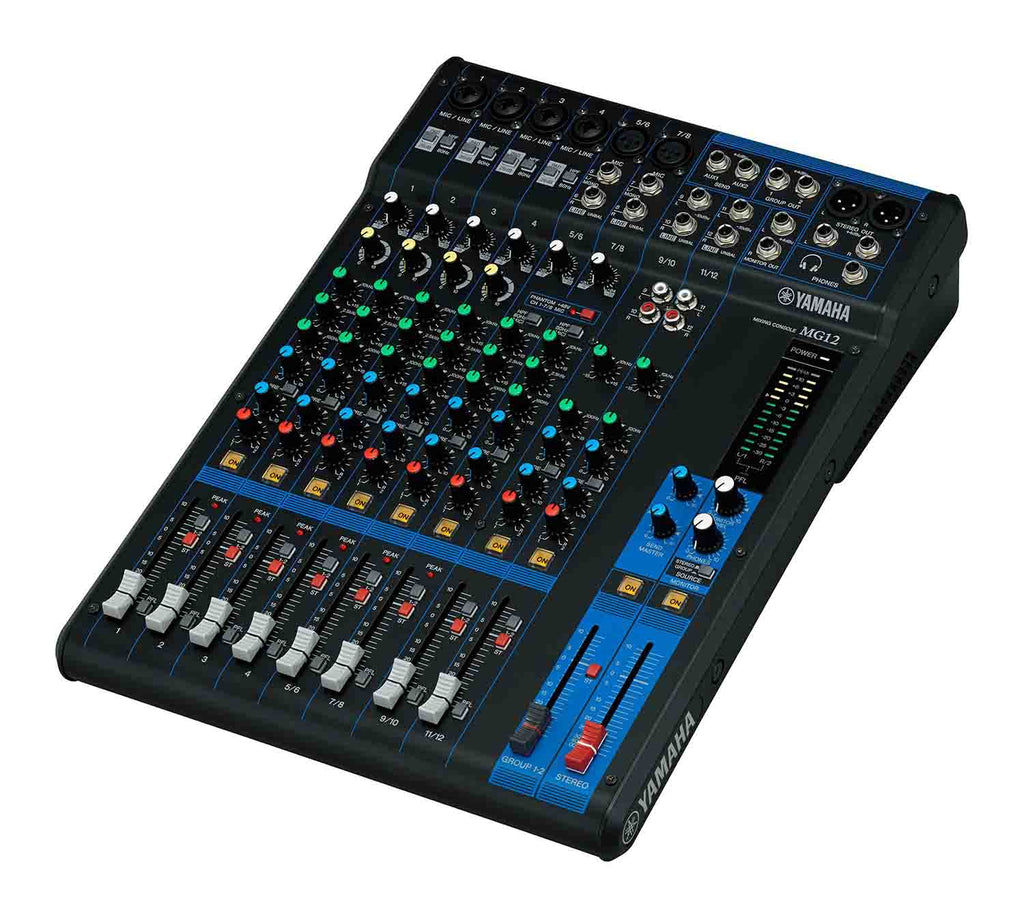

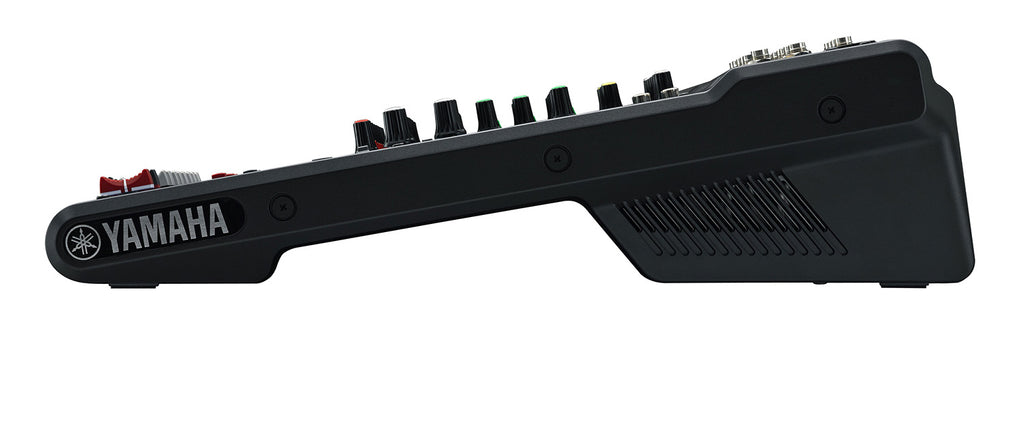

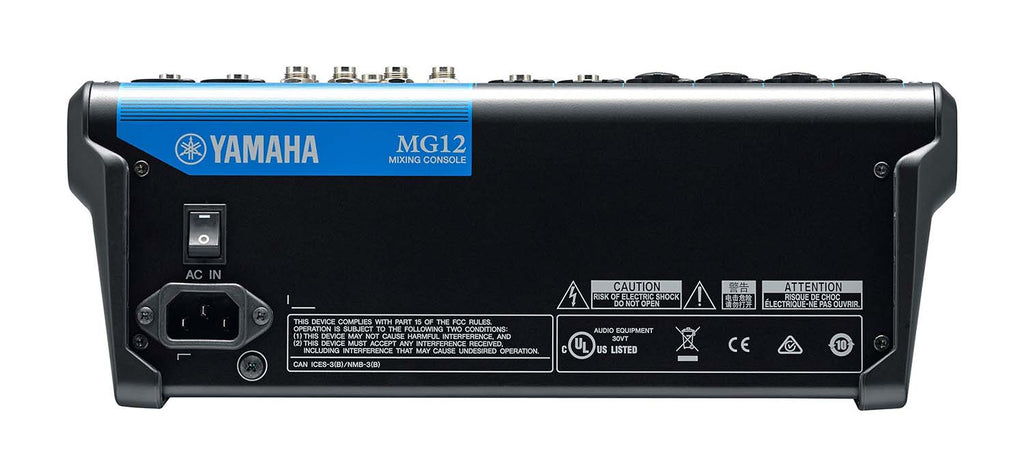

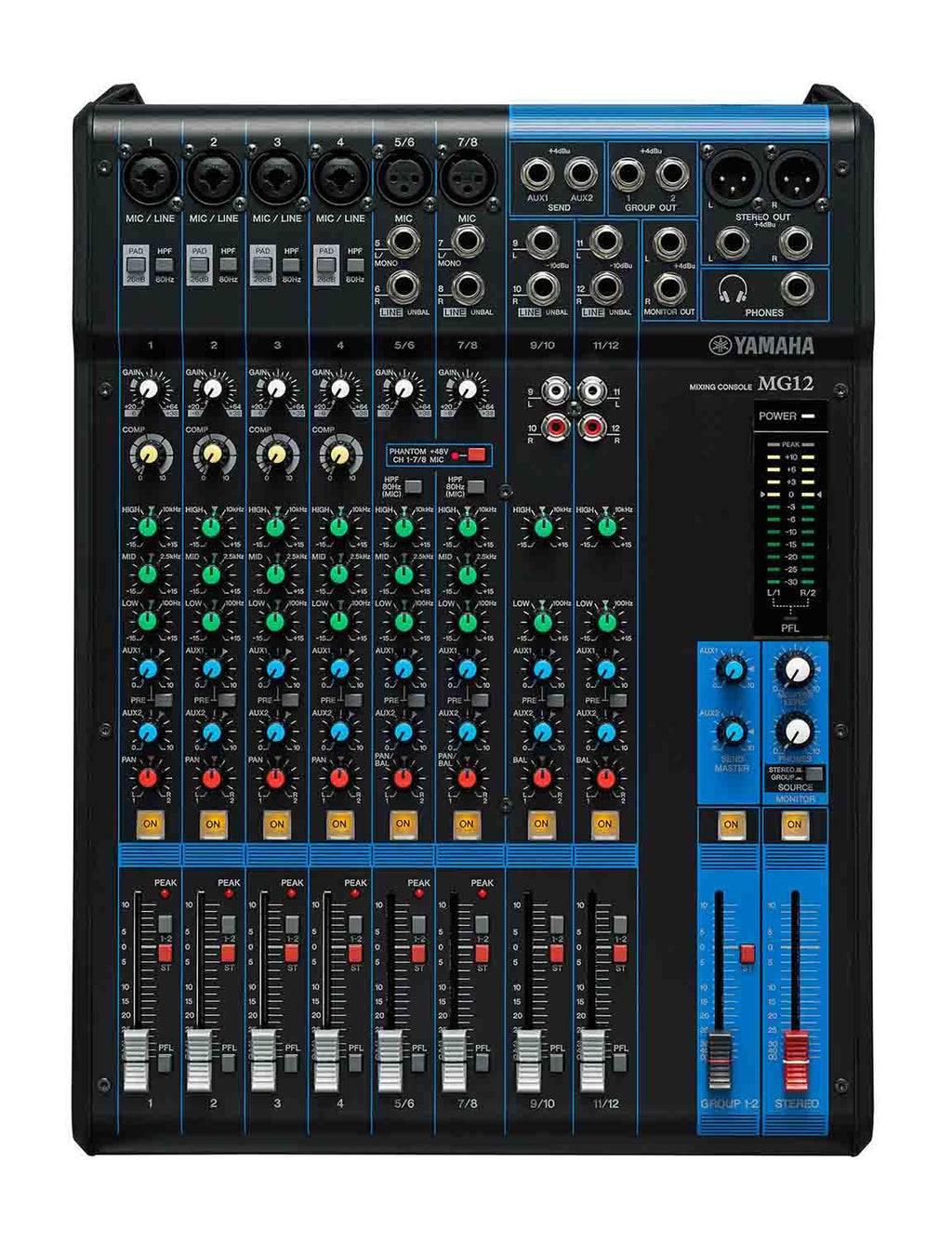

Yamaha MG12-12-channel Analog Mixer

 The Yamaha MG12-12-channel Analog Mixer is well-suited for portable mixing rigs or permanent installations. The MG12's quality op-amp ensures that your mix sounds transparent and articulate. The MG12's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG12 can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG12 is ready to work for you.

High Quality Op-Amp Ensures Transparent Sound Reproduction

We know that few things will kill tone as quickly as sub-par op-amps. The Yamaha MG Series utilizes new, high-quality MG01 op-amps, ensuring that your mix sounds its best. When designing these op-amps, Yamaha focused on sound quality, rather than prioritizing electrical design and efficiency. Yamaha has always strived to deliver the purest possible signal instead of imparting their "signature" to your sound, and the MG Series is no exception. You can count on a transparent, natural, and articulate sound when you mix through a MG Series analog mixer.

D-PRE Discrete Class-A Mic Preamps Deliver Clean And Natural Sound

Nobody wants to hear mics that are plugged into thin, distorted, or underpowered preamps. MG Series mixing consoles employ Yamaha's transparent D-PRE preamps, which provide more power with lower impedance, delivering natural-sounding bass and smooth highs. D-PREs simply sound good - without hyping any specific elements of your mix. The D-PRE's pure sound will ensure that you won't need to spend hours EQ-ing just to get a barely-acceptable sound, like you would with low-quality mic preamps.

One-Knob Compressors Provide Easy-To-Use Dynamics Control

When you're in the midst of a live event, you don't have time to tweak a large number of complex outboard units. To resolve this issue, the Yamaha MG Series of analog mixers features simple, time-saving one-knob compressors. Simply twist a single rotary control and you can dial in livelier guitars, punchier basses, tighter drums, and well-defined vocals.

EQ And Highpass Filter Allow For Effective Sound-Shaping

Whether you're tweaking your sound to perfection or whether you're removing some unwanted frequencies, effective and powerful EQ is necessary for building a successful mix. Featuring equalizers on all mono channels, the Yamaha MG Series mixing consoles provide you with ample control over the tonal balance of your mix. Additionally, a highpass filter allows you to get rid of any mud that might be present in your mix by eliminating unwanted low-frequency noise.

Product Specification:

Phantom Power: +48 V switchable, channels 1 - 8

Input Channels: 4x mono [mic/line],2x mono/stereo [mic/line],2x stereo [line]

Output Channels: 2x stereo out,1x monitor out,1x headphone out,2x aux out 2x group out

Bus Stereo: 1

AUX: 2

GROUP: 2

Pad: 26 dB (mono)

HPF: 80 Hz, 12 dB/oct (mono/stereo: MIC only)

Compressor Threshold: +22 dBu to -8 dBu,Ratio: 1:1 to 4:1,Output level: 0 dB to 7 dB,Attack time: approx. 25 msec,Release time: approx. 300 msec

Equalizer: EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving,EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking,EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

LED: Peak LED turns on when post EQ signal reaches 3 dB below clipping

Level Metering: 2 x 12 - segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

Total Harmonic Distortion: 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.005 % @ +24 dBu (1 kHz), GAIN knob: Min

Frequency Response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Equivalent Input Noise: -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max)

Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: min)

Crosstalk: -78 dB

Power Requirement: AC 100 - 240 V, 50 / 60 Hz

Power Consumption: 22 W

Dimensions: 12.1 x 4.6 x 16.6" (308 x 118 x 422 mm)

Net Weight: 8.8 lb (4.0 kg)

Package Weight: 12.65 lb

Box Dimensions: 19.1 x 15.5 x 8"
