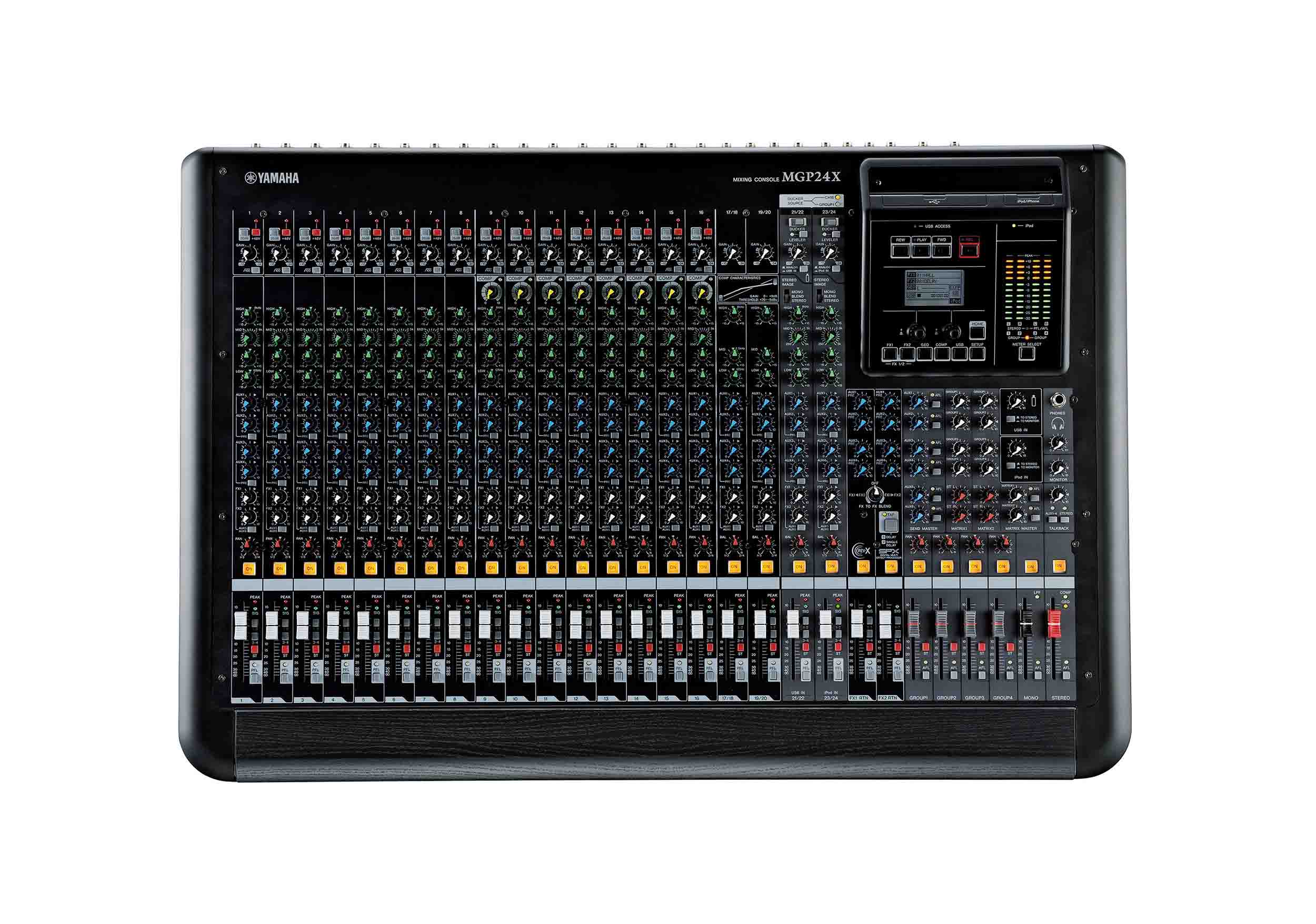

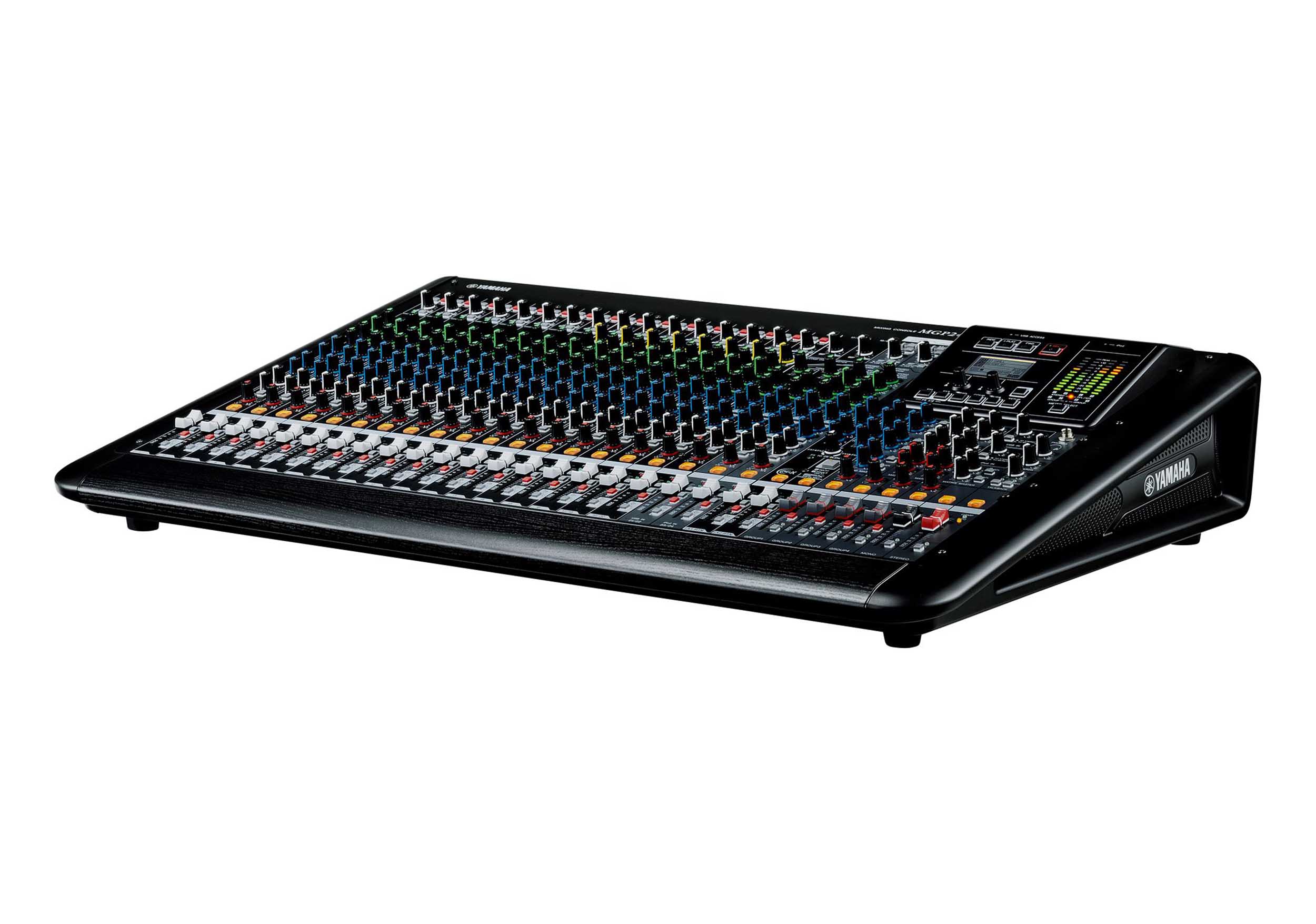

Yamaha MGP24X, 24-Channel Analog Mixing Console with DSP Effects

The Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects is a versatile and powerful mixer designed for live sound environments such as clubs and houses of worship. It features 16 D-Pre mic preamps, 24-line inputs, 6 auxiliary inputs, and 2 effects sends, offering extensive connectivity and control. Each channel is equipped with a 3-band equalizer and 1-Knob compressor, providing optimal frequency and dynamic control with ease.

The MGP24X integrates advanced DSP technology, including 16 effects, 3 types of reverbs, and functions like auto-ducker and auto-leveler for hands-off monitoring. The digital section also allows control via the free MGP Editor app on iPhone or iPod touch. This mixer offers direct music playback from iTunes and the ability to record live performances to external USB devices in WAV or MP3 formats.

With its X-pressive EQ and Hybrid Channel system, the MGP24X combines analog feel with digital precision, providing tools like priority ducking, auto-leveling, and dual digital effects processors for superior sound shaping. It also features a 14-band graphic EQ, a multi-band compressor, and USB device recording/playback for seamless integration into any live audio setup.

Product Specifications:

Inputs:

16x Mic Level XLR

16x Line Level 1/4" (6.35 mm) TRS

4x Stereo Line Level 1/4" (6.35 mm) TRS

16x 1/4" (6.35 mm) TRS Inserts

1x 1/4" (6.35 mm) Stereo Return

Input Sensitivity:

Mono Inputs (3 kΩ Impedance):

Mic Level @ -60 dB: -80 dBu (0.078 mV), for 50-600 Ω Mics

Mic Level @ -16 dB: -36 dBu (12.3 mV), for 50-600 Ω Mics

Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines

Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines

Stereo Inputs (10 kΩ Impedance):

Line Level @ -34 dB: -54 dBu (1.55 mV), for 600 Ω Lines

Line Level @ 10 dB: -10 dBu (245 mV), for 600 Ω Lines

Mono Channel Inserts (10 kΩ Impedance): -20 dBu (77.5 mV), for 600 Ω Lines

Stereo Channel Insert Inputs (L, R, 10 kΩ Impedance): -20 dBu (77.5 mV)

Talkback Input (10 kΩ Impedance): -66 dBu (0.389 mV), for 50-600 Ω Mics

Nominal Input Level:

Mono Inputs (3 kΩ Impedance):

Mic Level @ -60 dB: -60 dBu (0.775 mV), for 50-600 Ω Mics

Mic Level @ -16 dB: 16 dBu (123 mV), for 50-600 Ω Mics

Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines

Line Level @ 10 dB: +10 dBu (2.45 V), for 600 Ω Lines

Stereo Inputs (10 kΩ Impedance):

Line Level @ -34 dB: -34 dBu (15.5 mV), for 600 Ω Lines

Line Level @ 10 dB: 10 dBu (2.45 V), for 600 Ω Lines

Mono Channel Inserts (10 kΩ Impedance): 0 dBu (0.775 V), for 600 Ω Lines

Stereo Channel Insert Inputs (L, R, 10 kΩ Impedance): 0 dBu (0.775 V), for 600 Ω Lines

Talkback Input (10 kΩ Impedance): -50 dBu (245 mV), for 50-600 Ω Mics

Maximum Input Level:

Mono Inputs (3 kΩ Impedance):

Mic Level @ -60 dB: -40 dBu (7.75 mV), for 50-600 Ω Mics

Mic Level @ -16 dB: 4 dBu (1.23 V), for 50-600 Ω Mics

Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines

Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines

Stereo Inputs (10 kΩ Impedance):

Line Level @ -34 dB: -14 dBu (155 mV), for 600 Ω Lines

Line Level @ 10 dB: 30 dBu (24.5 V), for 600 Ω Lines

Mono Channel Inserts (10 kΩ Impedance): 20 dBu (7.75 V), for 600 Ω Lines

Stereo Channel Insert Inputs (L, R, 10 kΩ Impedance): 20 dBu (7.75 V), for 600 Ω Lines

Talkback Input (10 kΩ Impedance): -30 dBu (24.5 mV), for 50-600 Ω Mics

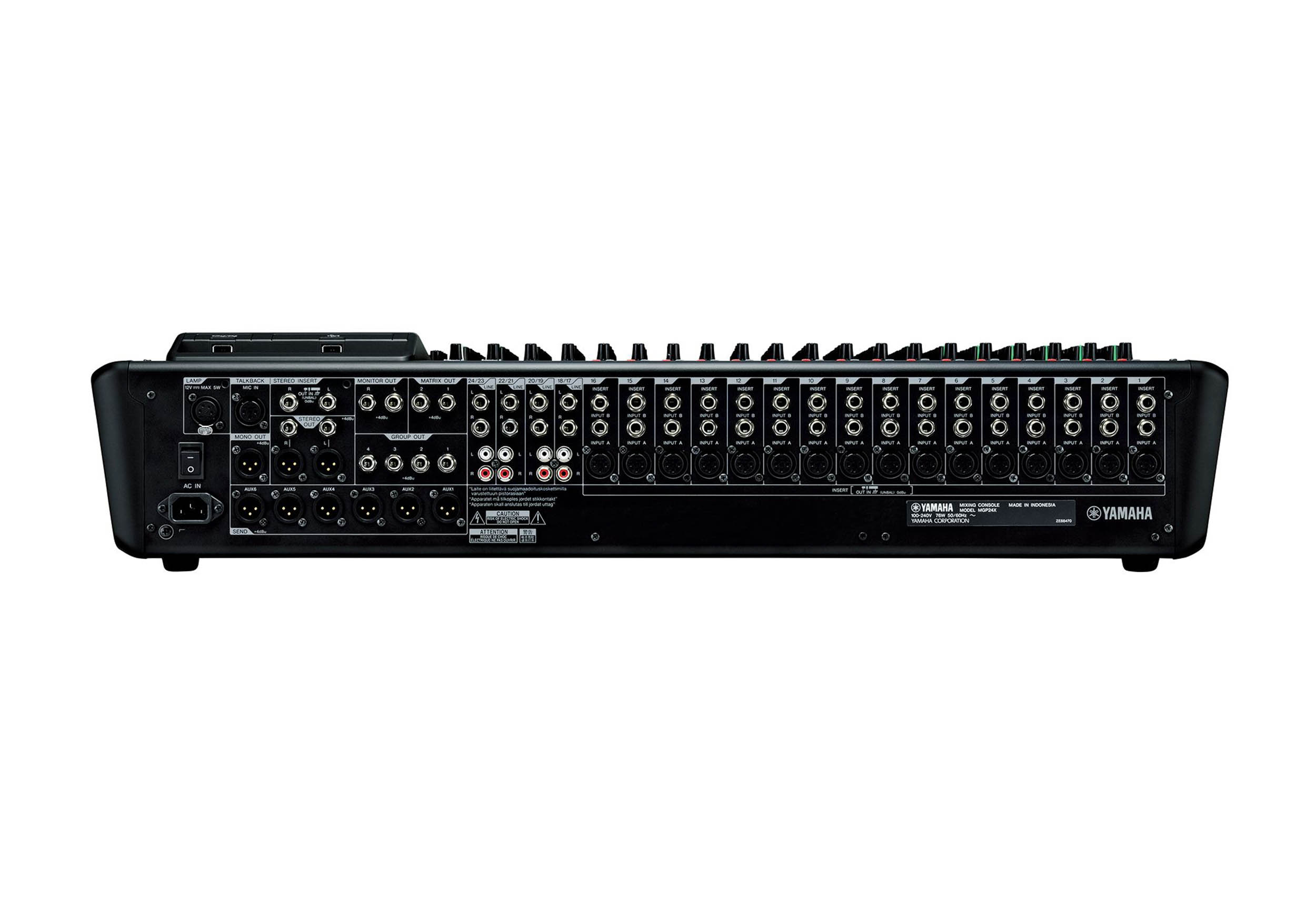

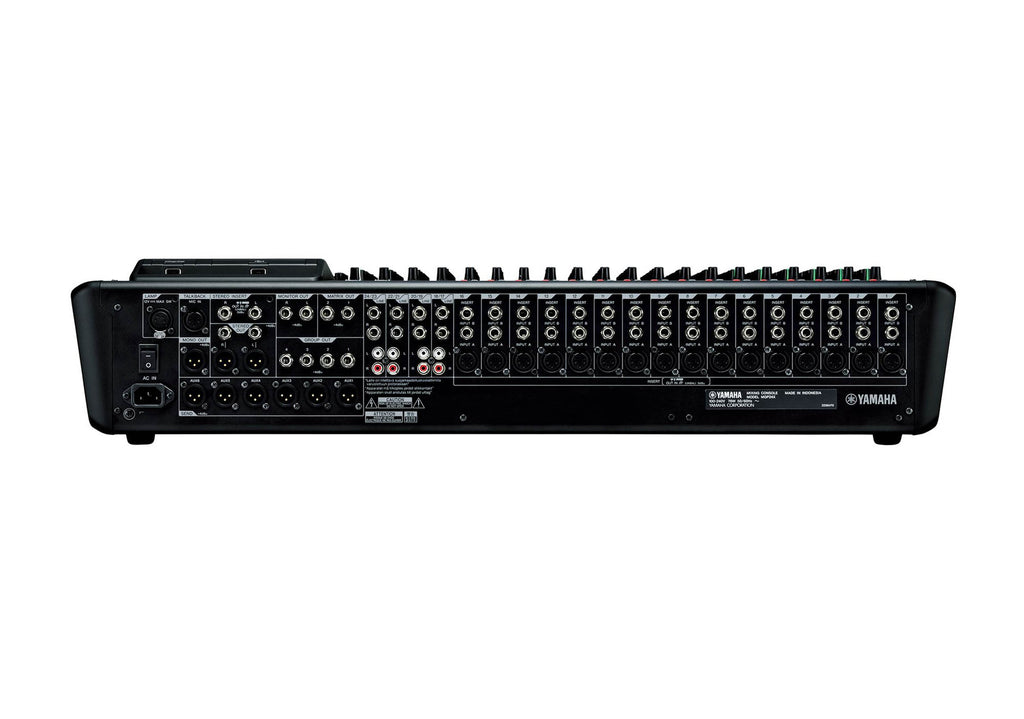

Outputs:

1x XLR Stereo Out (L, R)

6x XLR Auxiliary Sends

16x 1/4" (6.35 mm) Channel Insert Outputs

1x 1/4" (6.35 mm) Monitor Out (L, R)

4x 1/4" (6.35 mm) Group Out

1x 1/8" (3.5 mm) Headphones Out

1x 1/4" (6.35 mm) Stereo Insert (L, R)

2x 1/4" (6.35 mm) Matrix Outs

1x XLR Mono Out

Nominal Output Level:

Stereo Out (L, R): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)

Mono Out: 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)

Group Out (1 to 4): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Aux Send (1 to 6): 4 dBu (1.23 V) @ 75 Ω (for use with nominal 600 Ω lines)

Matrix Out (1,2): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Mono Channel Insert Out (1 to 16): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)

Stereo Channel Insert Out (L, R): 0 dBu (0.775 V) @ 75 Ω (for use with nominal 10 kΩ lines)

Monitor Out (L, R): 4 dBu (1.23 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Phones Out: 3mW @ 150 Ω (for use with nominal 40 Ω phones)

Maximum Output Level:

Stereo Out (L, R): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)

Mono Out: 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)

Group Out (1 to 4): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Aux Send (1 to 6): 24 dBu (12.3 V) @ 75 Ω (for use with nominal 600 Ω lines)

Matrix Out (1, 2): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Mono Channel Insert Out (1 to 16): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)

Stereo Channel Insert Out (L, R): 20 dBu (7.75 V) @ 75 Ω (for use with nominal 10 kΩ lines)

Monitor Out (L, R): 20 dBu (7.75 V) @ 150 Ω (for use with nominal 10 kΩ lines)

Phones Out: 75 mW @ 150 Ω (for use with nominal 40 Ω phones)

General

Total Harmonic Distortion: 0.02% (20 Hz to 20 kHz, 14 dBu)

Frequency Response: 20 Hz to 20 kHz, +0.5/-1.0 dB, refer to the nominal output level @ 1 kHz

Crosstalk: -74 dB @ 1 kHz

Power Supply: 100 to 240 V, 50/60 Hz

Power Consumption: 76 W (maximum)

Dimensions: 32.2 x 6.7 x 22.2" (819 x 169 x 565 mm)

Weight: 34.2 lbs (15.5 kg)

Shipping Weight: 49.4 lbs

Shipping Dimensions (L x W x H): 37" x 27.5" x 10"
