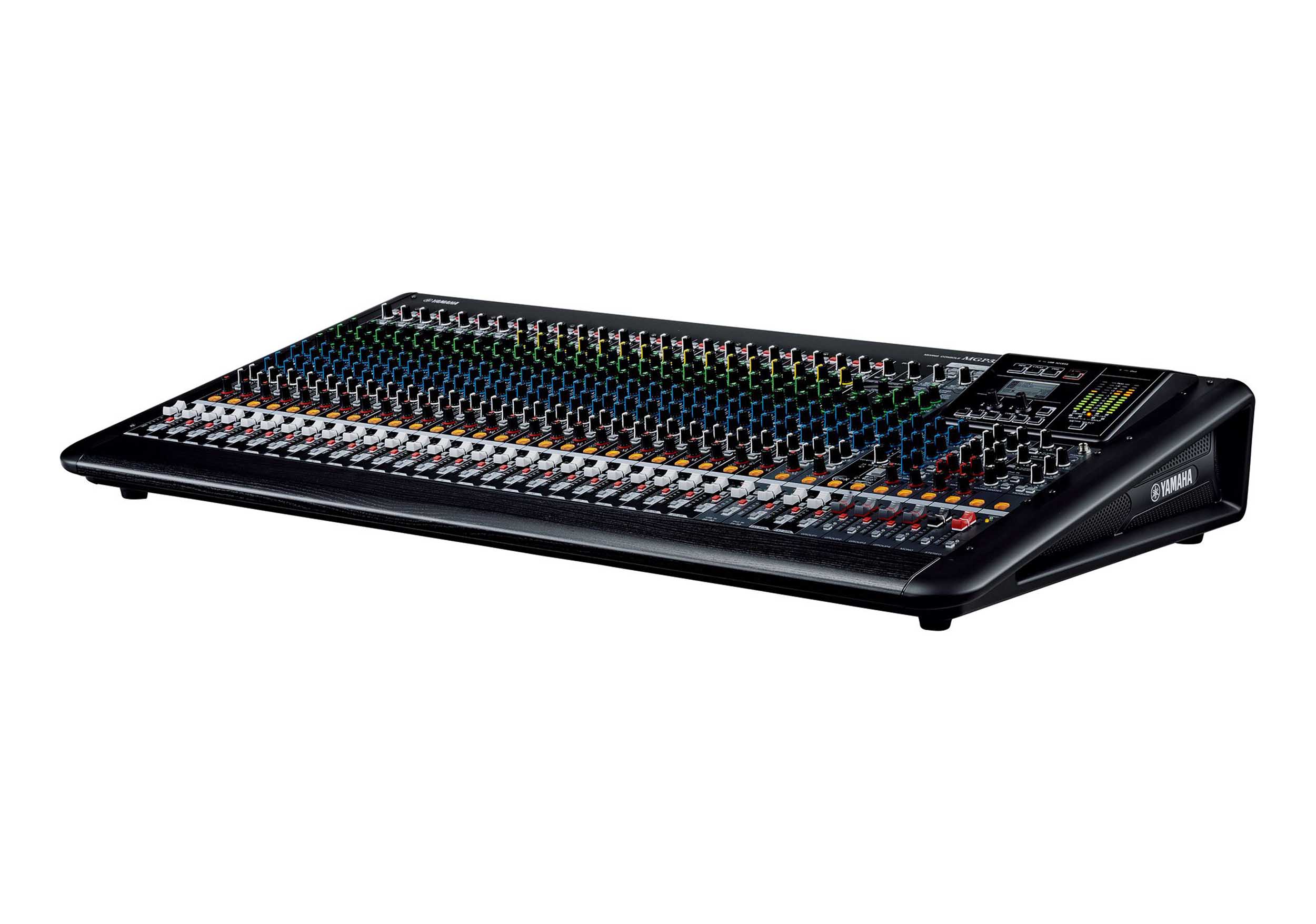

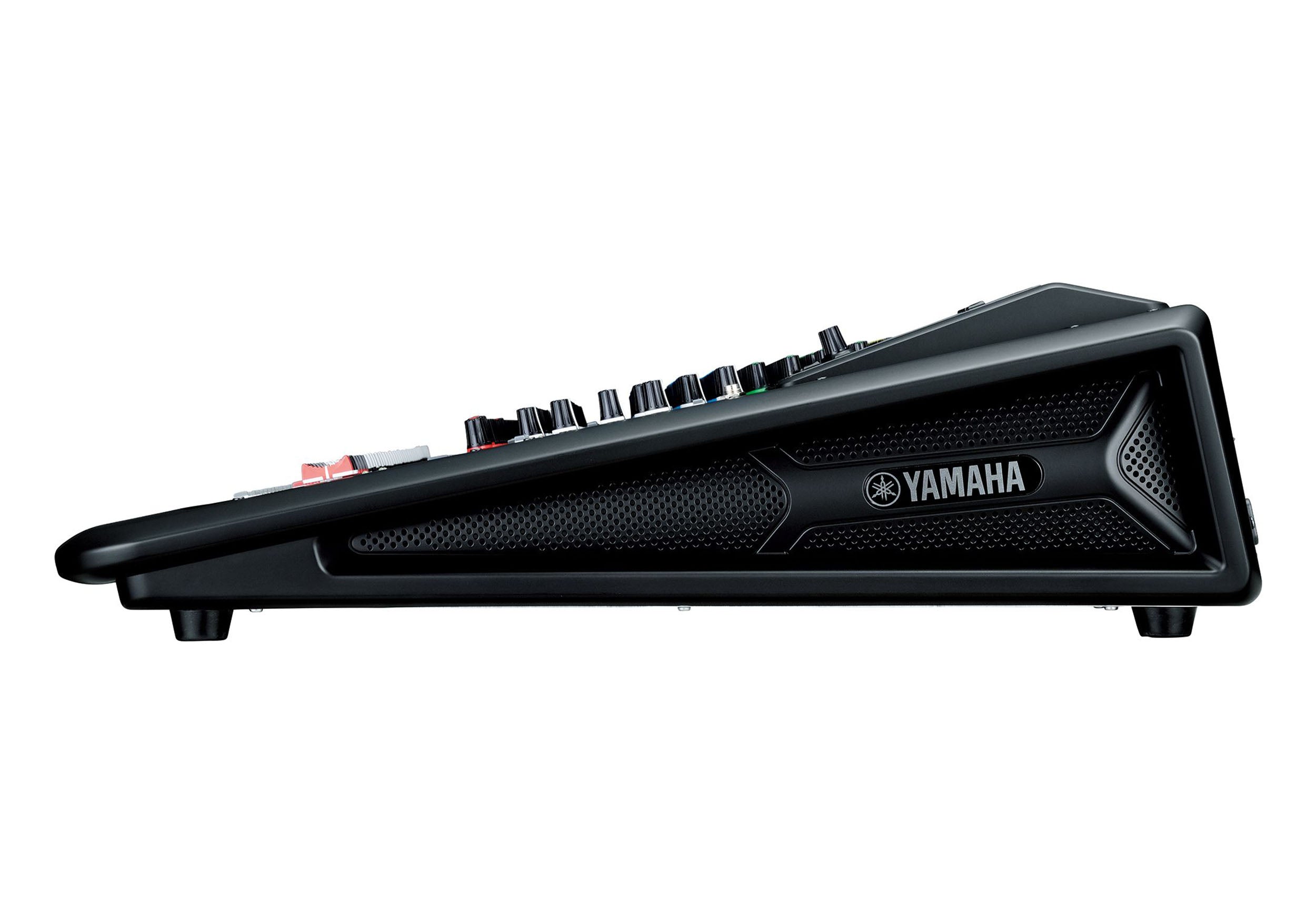

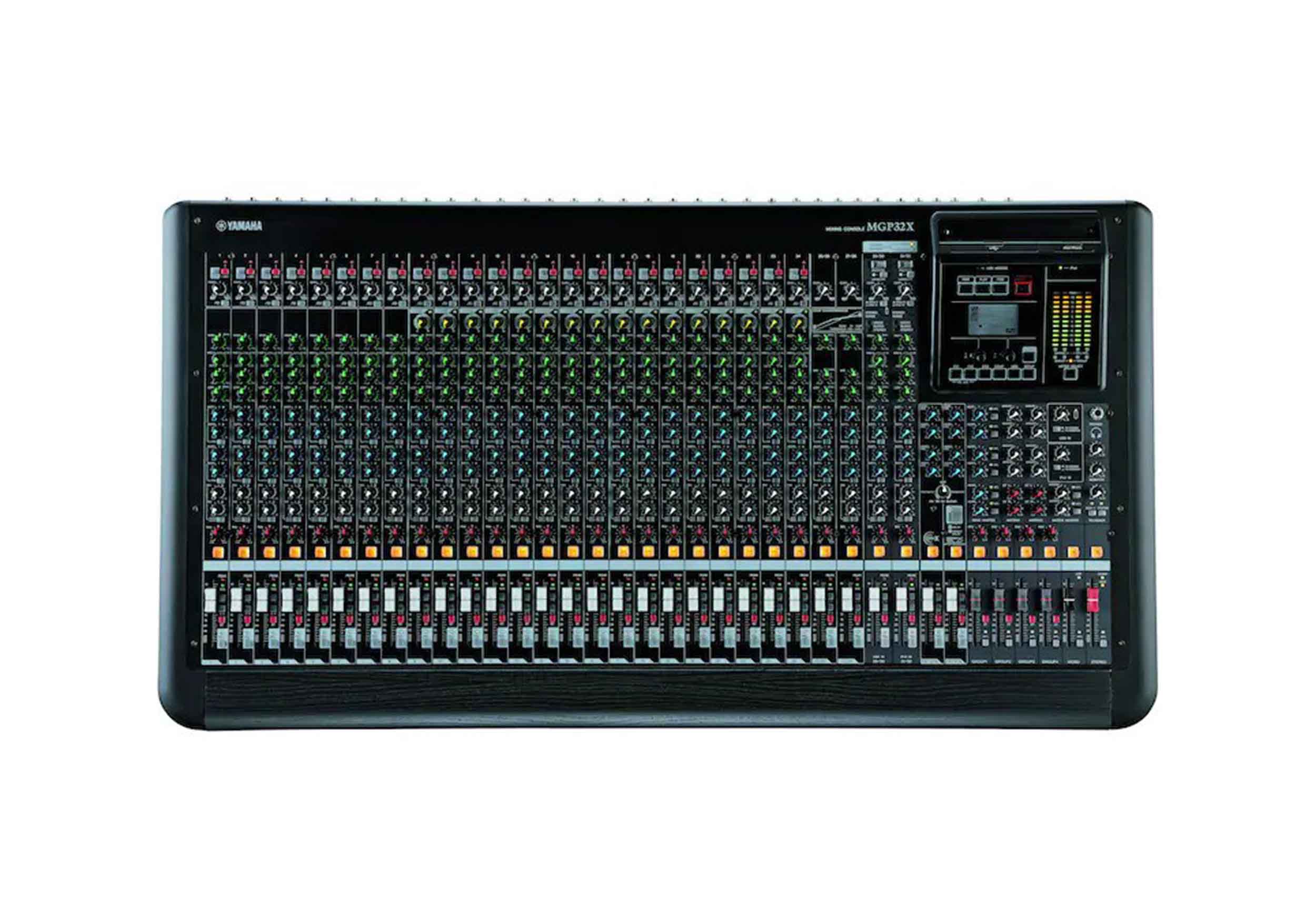

Yamaha MGP32X 32-Channel Analog Mixing Console with DSP Effects

The Yamaha MGP32X combines analog warmth with advanced digital control, making it ideal for live sound applications such as clubs and houses of worship. It offers 32 channels, including 24 premium D-PRE mic preamps and 32-line inputs, ensuring pristine audio quality and versatile connectivity.

Each channel is equipped with Yamaha’s X-pressive EQ and 1-Knob compression for precise tonal and dynamic control. The integrated Hybrid Channel DSP system provides advanced functions like auto-ducking, auto-leveling, and stereo image adjustments, simplifying complex mixing tasks.

The MGP32X features dual digital effects processors: Yamaha’s REV-X reverb with three settings (Hall, Room, Plate) and the SPX multi-effects processor with 16 editable effects. Together, these provide a wide range of options for sound enhancement.

Connectivity and Integration

With iPhone/iPod compatibility, the MGP32X allows seamless playback, charging, and control using the MGP Editor app. This app also enables detailed configuration of DSP settings and effects, adding a layer of flexibility to your workflow.

Recording and Playback

The mixer includes a USB port for direct recording of performances in WAV or MP3 formats. Playback from USB devices is equally straightforward, offering additional flexibility for live and installed sound applications.

Enhanced Feature

Priority Ducker: Automatically lowers background audio when a microphone is used.

Leveler: Normalizes varying audio levels for consistent output.

Stereo Image Adjustment: Ensures optimal audio coverage for wide spaces.

Graphic EQ & Multi-Band Compressor: Fine-tune your mix and protect your system from overloads.

Built to Last

With an internal universal power supply, the MGP32X operates reliably in any region without the need for adapters, ensuring durability and simplicity in installed and touring setups.

The Yamaha MGP32X is a professional-grade mixing console that seamlessly blends analog authenticity with cutting-edge digital innovation, delivering unmatched performance and flexibility.

Product Specifications:

Inputs:

24x Mic Level: XLR connectors

24x Line Level: 1/4" (6.35 mm) TRS connectors

4x Stereo Line Level: 1/4" (6.35 mm) TRS connectors

16x Inserts: 1/4" (6.35 mm) TRS connectors

1x Stereo Return: 1/4" (6.35 mm) connector

Input Sensitivity:

Mono Inputs (3 kΩ):

Mic @ -60 dB: -80 dBu (0.078 mV)

Mic @ -16 dB: -36 dBu (12.3 mV)

Line @ -34 dB: -54 dBu (1.55 mV)

Line @ 10 dB: -10 dBu (245 mV)

Stereo Inputs (10 kΩ):

Line @ -34 dB: -54 dBu (1.55 mV)

Line @ 10 dB: -10 dBu (245 mV)

Mono Inserts (10 kΩ): -20 dBu (77.5 mV)

Talkback Input (10 kΩ): -66 dBu (0.389 mV)

Nominal Input Level:

Mono Inputs (3 kΩ):

Mic @ -60 dB: -60 dBu (0.775 mV)

Mic @ -16 dB: 16 dBu (123 mV)

Line @ -34 dB: -34 dBu (15.5 mV)

Line @ 10 dB: +10 dBu (2.45 V)

Stereo Inputs (10 kΩ):

Line @ -34 dB: -34 dBu (15.5 mV)

Line @ 10 dB: 10 dBu (2.45 V)

Mono Inserts (10 kΩ): 0 dBu (0.775 V)

Talkback Input (10 kΩ): -50 dBu (2.45 mV)

Maximum Input Level:

Mono Inputs (3 kΩ):

Mic @ -60 dB: -40 dBu (7.75 mV)

Mic @ -16 dB: 4 dBu (1.23 V)

Line @ -34 dB: -14 dBu (155 mV)

Line @ 10 dB: 30 dBu (24.5 V)

Stereo Inputs (10 kΩ):

Line @ -34 dB: -14 dBu (155 mV)

Line @ 10 dB: 30 dBu (24.5 V)

Mono Inserts (10 kΩ): 20 dBu (7.75 V)

Talkback Input (10 kΩ): -30 dBu (24.5 mV)

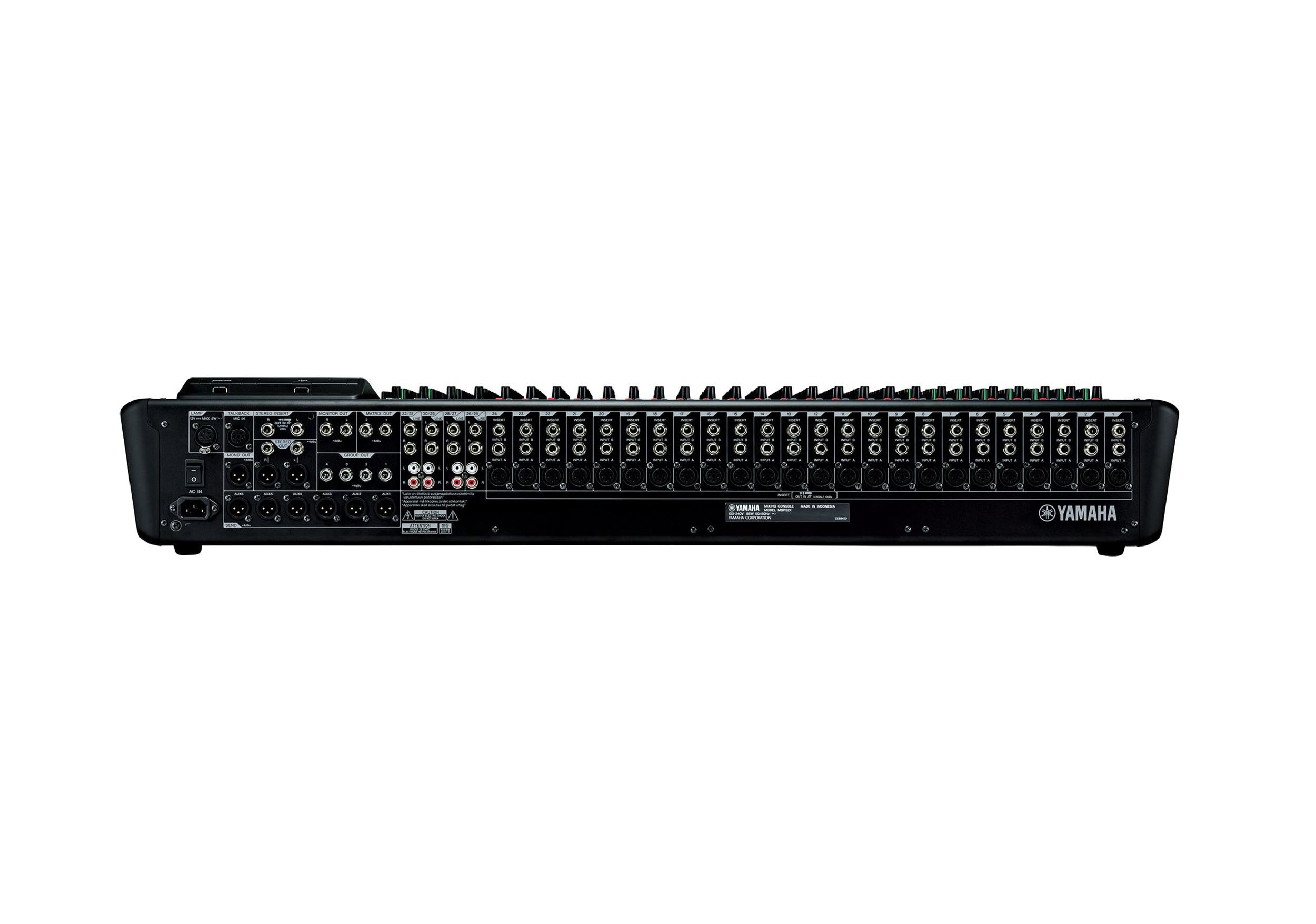

Outputs:

1x Stereo Out: XLR (L, R)

6x Auxiliary Sends: XLR connectors

24x Channel Inserts: 1/4" (6.35 mm) TRS connectors

1x Monitor Out: 1/4" (6.35 mm) TRS (L, R)

4x Group Outs: 1/4" (6.35 mm) TRS connectors

1x Stereo Insert: 1/4" (6.35 mm) TRS (L, R)

2x Matrix Outs: 1/4" (6.35 mm) TRS connectors

1x Mono Out: XLR connector

1x Headphones Out: 1/8" (3.5 mm) connector

Nominal Output Level:

Stereo Out (L, R): 4 dBu (1.23 V)

Mono Out: 4 dBu (1.23 V)

Group Outs: 4 dBu (1.23 V)

Aux Sends: 4 dBu (1.23 V)

Monitor Out (L, R): 4 dBu (1.23 V)

Headphones Out: 3 mW @ 150 Ω

Maximum Output Level:

Stereo Out (L, R): 24 dBu (12.3 V)

Mono Out: 24 dBu (12.3 V)

Group Outs: 20 dBu (7.75 V)

Aux Sends: 24 dBu (12.3 V)

Monitor Out (L, R): 20 dBu (7.75 V)

Headphones Out: 75 mW @ 150 Ω

Total Harmonic Distortion: 0.02% (20 Hz to 20 kHz, 14 dBu)

Frequency Response: 20 Hz to 20 kHz (+0.5/-1.0 dB)

Crosstalk: -74 dB @ 1 kHz

Power Supply: 100 to 240 V, 50/60 Hz

Power Consumption: 86 W (max)

Shipping Weight: 58.6 lbs

Shipping Dimensions (L x W x H): 45" x 27.2" x 10"
