Description

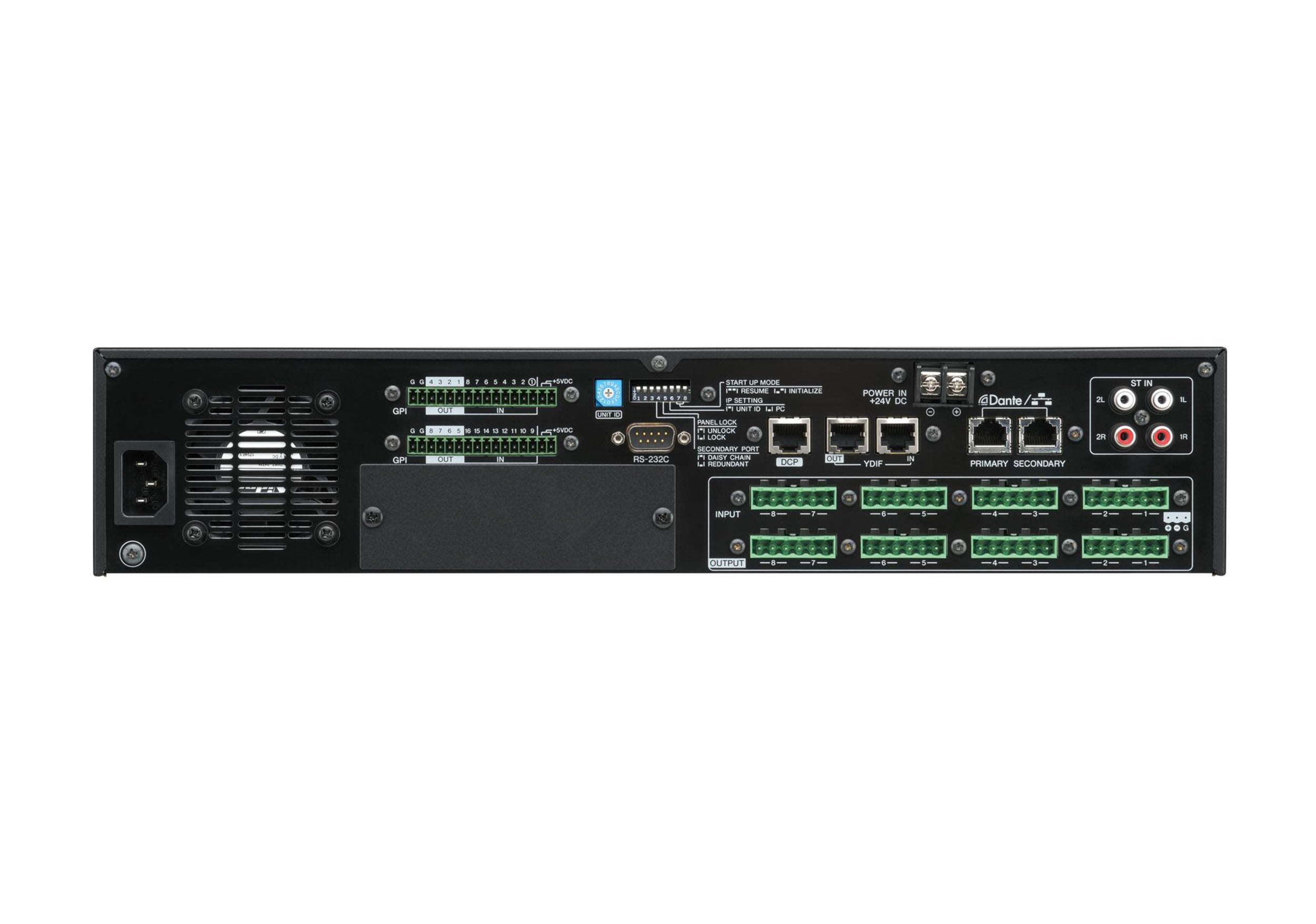

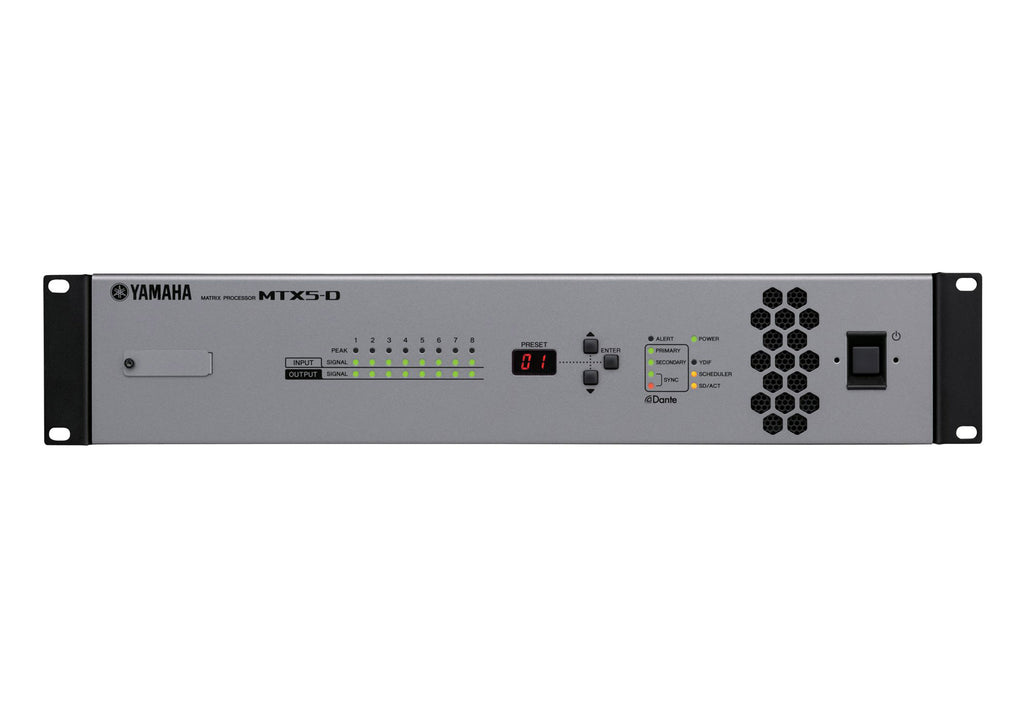

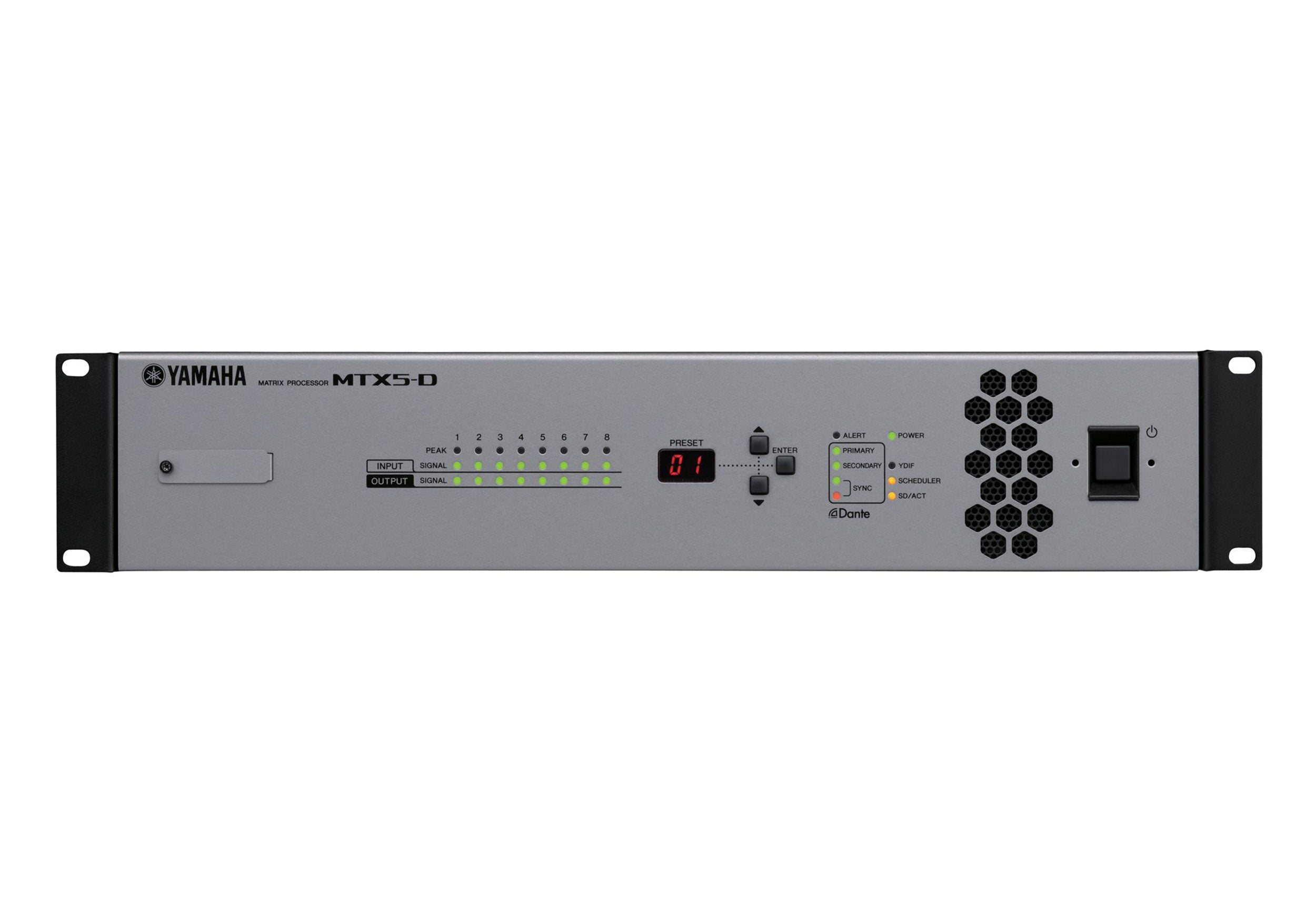

The Yamaha MTX5-D is a professional 34 x 16 matrix mixer and signal processor designed for multi-zone commercial installations. With 8 mic/line inputs, 8 analog outputs, 16 channels of YDIF digital I/O, 16 channels of Dante digital I/O, an SD card slot, and a MY Card slot for expansion, the MTX5-D provides the processing backbone for retail stores, restaurants, bars, banquet halls, and other midsized installations. It enables precise configuration, programming, and management of your entire sound system through the intuitive MTX-MRX Editor software.
Powerful Audio Processing Functions
Equipped with a wide array of processing features, the MTX5-D ensures high-quality sound in any environment. It includes 3-band parametric EQ, compressor/gate, auto gain control, eight priority duckers, and eight feedback suppressors for input channels. For outputs, high-performance processors such as 4-band parametric EQ, delay, and speaker processing ensure accurate sound distribution and optimal performance for each zone. These functions allow installers to fine-tune every aspect of the system to match the unique acoustic environment.
Flexible Networking and Expansion
The MTX5-D supports both Dante and Yamaha’s proprietary YDIF digital audio formats for seamless integration and flexible routing across multiple devices. Dante enables audio distribution over long distances, while YDIF allows up to 16 channels of audio and word clock over Ethernet. A Mini-YGDAI card slot further expands the system with additional analog or digital inputs/outputs, making it easy to scale the system for larger installations.
Easy Control and Management
End users can easily manage the MTX5-D via Yamaha’s DCP series wall-mounted control panels, with up to eight panels daisy-chained over 200 meters of cable, powered directly from the processor. The dedicated MTX-MRX Editor software simplifies system setup and configuration, while a dedicated iPhone app allows convenient remote control of volume levels and presets. With built-in support for external controllers such as AMX or Crestron, the MTX5-D offers unparalleled flexibility for modern commercial audio environments.
Product Specifications:
Mixing Channels: 16 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
Input Channel Functions: Mono CH: 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor
(available in Ch. 1–8)
Output Channel Functions: Room Delay, Room EQ, Speaker Processor, X-Over (1-way, 2-way), Delay, 6
band PEQ, Limiter
I/O Phantom Power: +48V
Internal Processing: Priority Ducking, Ambient Noise Compensator
Sampling Frequency Rate (Internal): 48kHz/44.1kHz
Signal Delay: Less than 3.0ms (AD-DA @48kHz)
Total Harmonic Distortion: <0.05% (+4dBu, Gain: -6dB), <0.1% (+4dBu, Gain: +66dB)
Frequency Response: 20Hz to 20kHz, +0.5dB, -1.5dB
Dynamic Range: 107dB (Gain: -6dB)
Hum & Noise Level Equivalent Input Noise: -60dBu (Gain: +66dB), -83dBu (Gain: -6dB)
Crosstalk: -100dB
Heat Dissipation: 55.9 kcal/h max
Power Requirements: AC100V–240V 50Hz/60Hz
Power Consumption: 65W
Analog Input Specifications
Input Terminal: INPUT 1–8
Gain: +66dB / -6dB
Actual Load Impedance: 10kΩ
For Use with Nominal: 50–600Ω Mics & 600Ω Lines
Input Level Nominal: -62dBu / +10dBu
Input Level Max Before Clip: -42dBu / +30dBu
Connector: Euroblock
ST IN 1,2: 10kΩ, 600Ω Lines, -10dBV (Nominal), +10dBV (Max before clip), RCA Pin Jack
Analog Output Specifications
Output Terminal: OUTPUT 1–8
Actual Source Impedance: 75Ω
For Use with Nominal: 10kΩ Lines
Output Level Nominal: +4dBu
Output Level Max Before Clip: +24dBu
Connector: Euroblock
Digital Input/Output Specifications
YDIF In: Format YDIF, Level RS-422, IN 16, Connector RJ45
YDIF Out: Format YDIF, Level RS-422, OUT 16, Connector RJ45
Primary: Dante, 1000BASE-T, 16IN/16OUT, Connector RJ45
Secondary: Dante, 1000BASE-T, 16IN/16OUT, Connector RJ45
Control I/O Specifications
Terminal: GPI 16 IN / 8 OUT
IN: 1–15ch: 0–5V; 16ch: 2.5–24V High, 2.5V or less, Allowable input +24V, Connector Euroblock
OUT: Open Collector
+V: DC5V
Product Weight: 13.9 lbs. / 6.3kg
Product Dimensions (L × W × H): 13.9" × 18.9" × 3.4"
