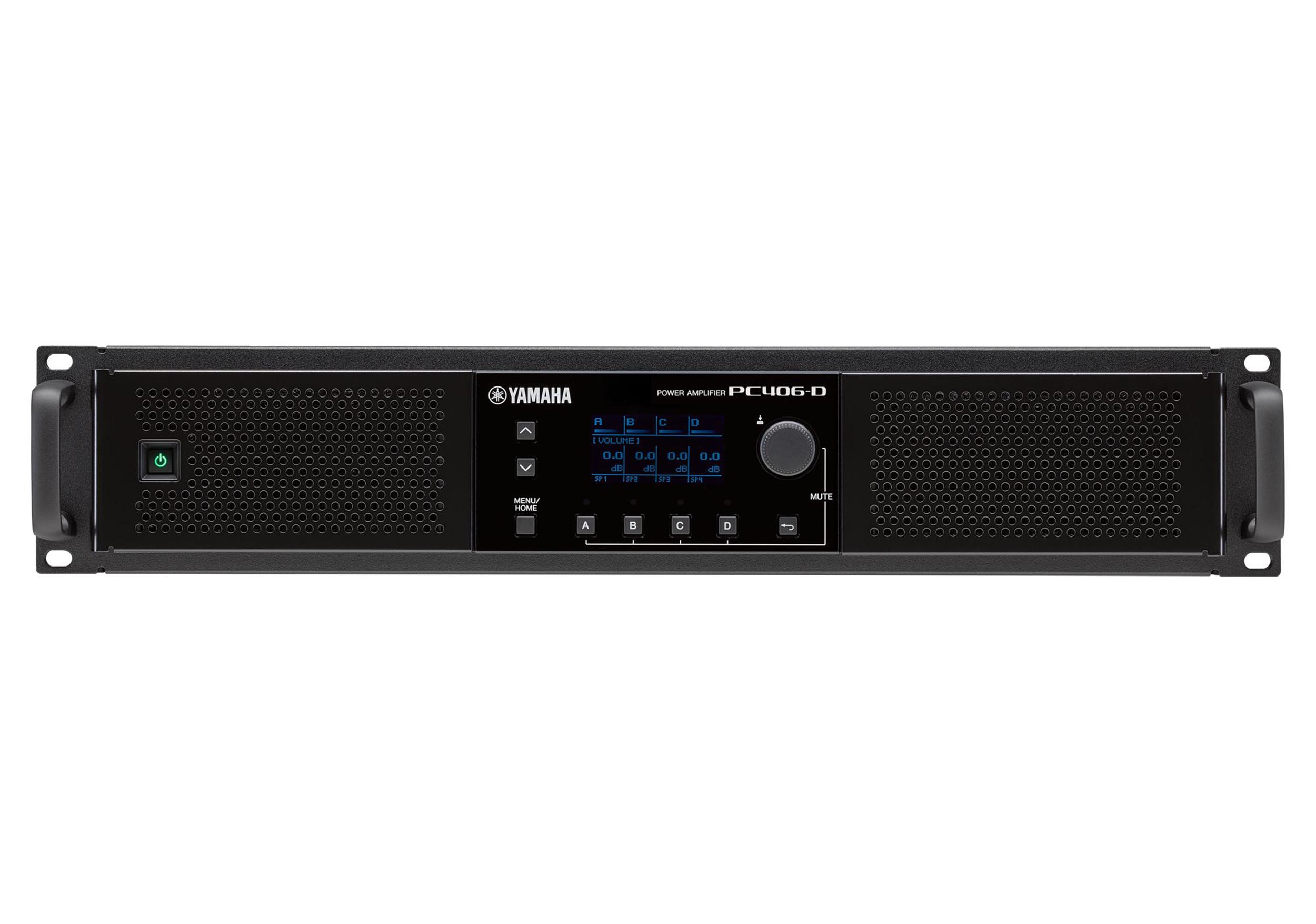

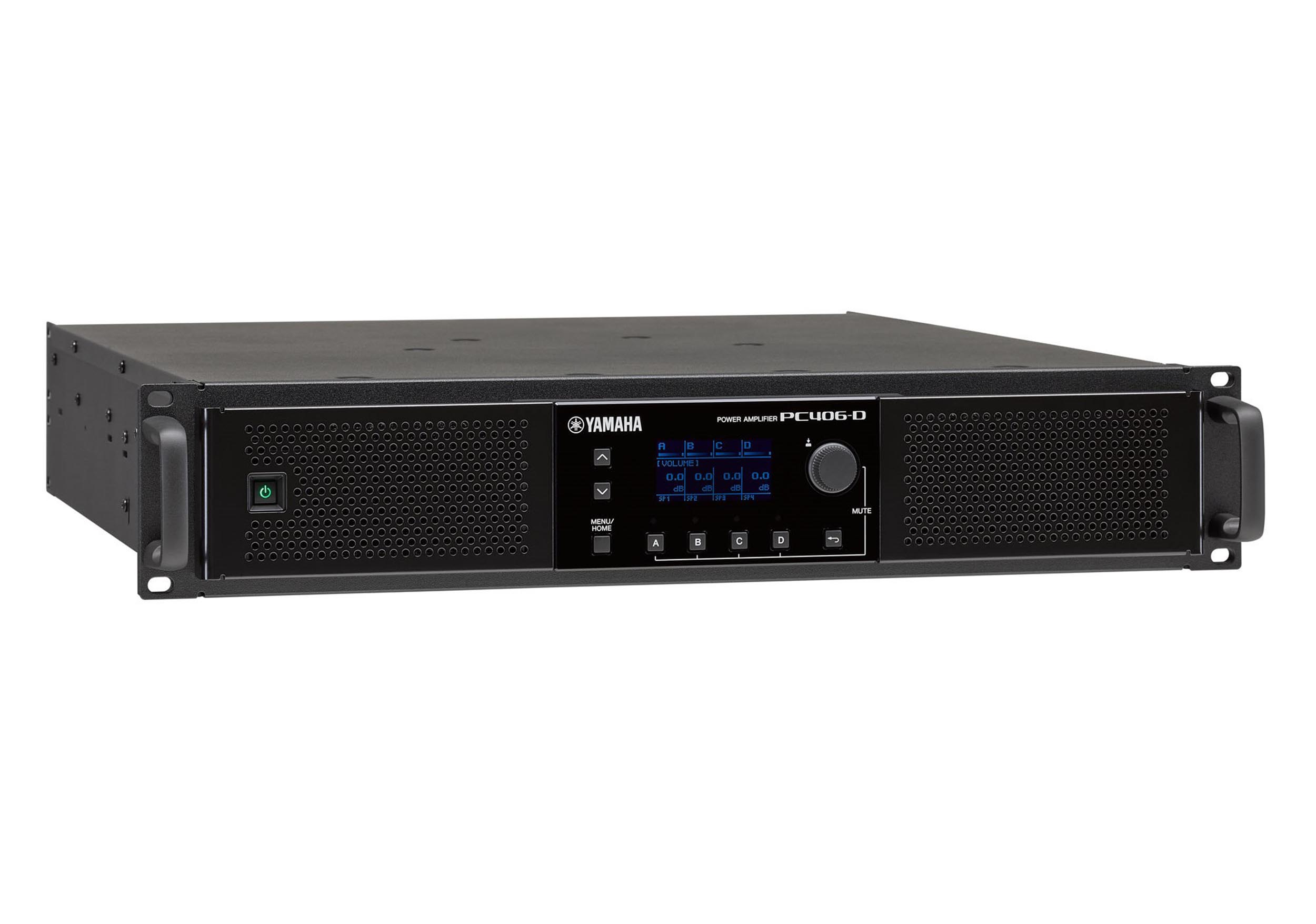

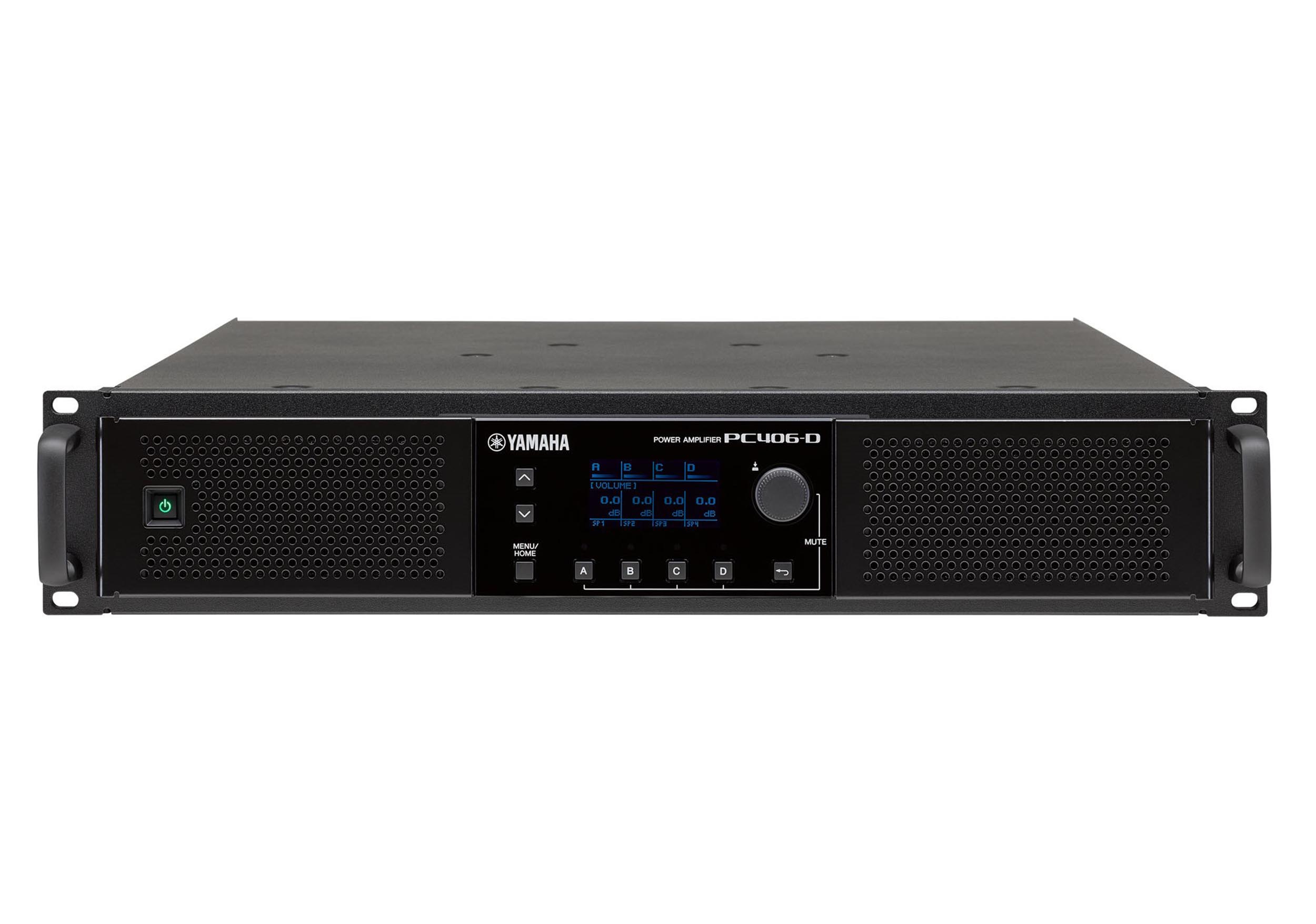

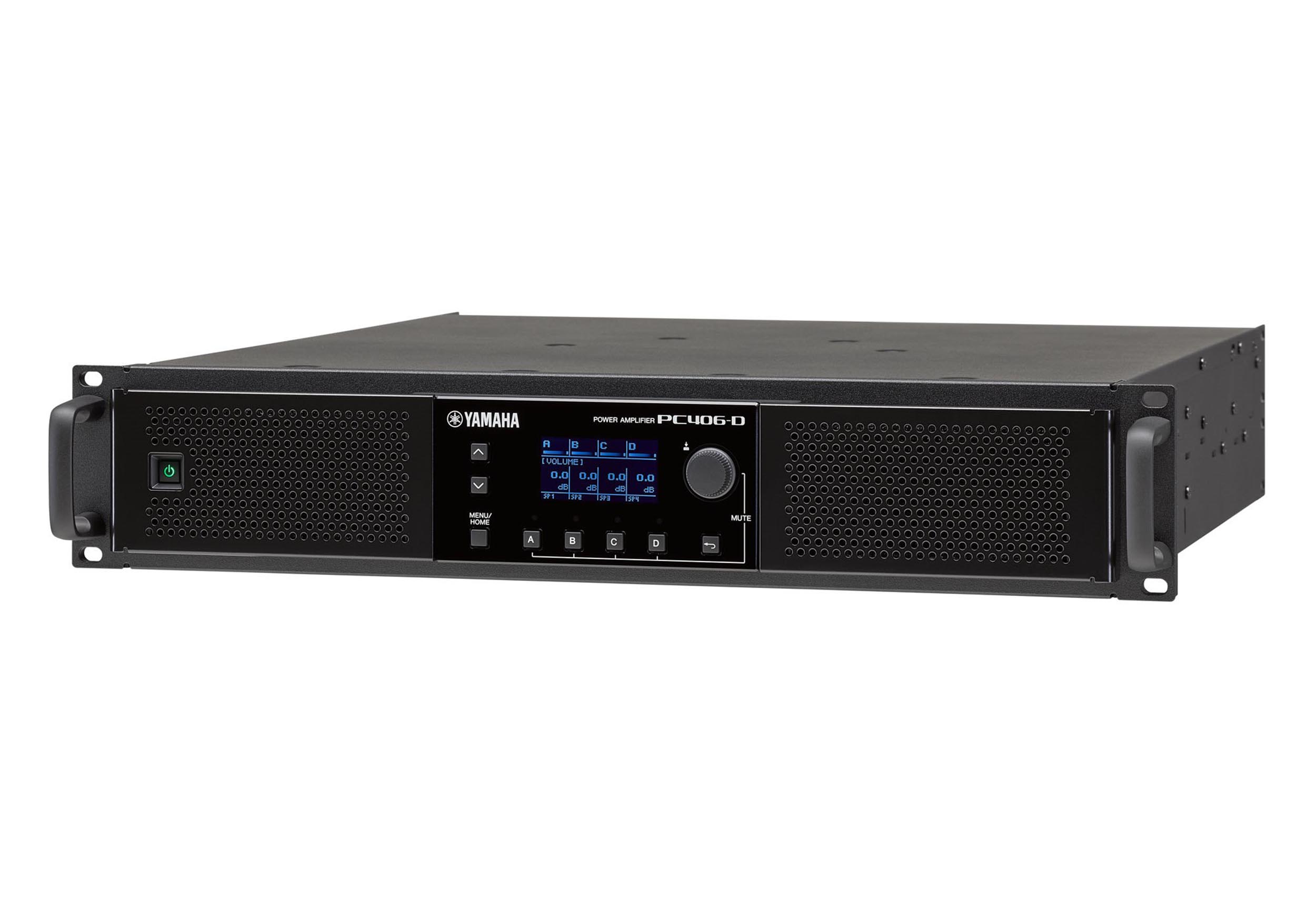

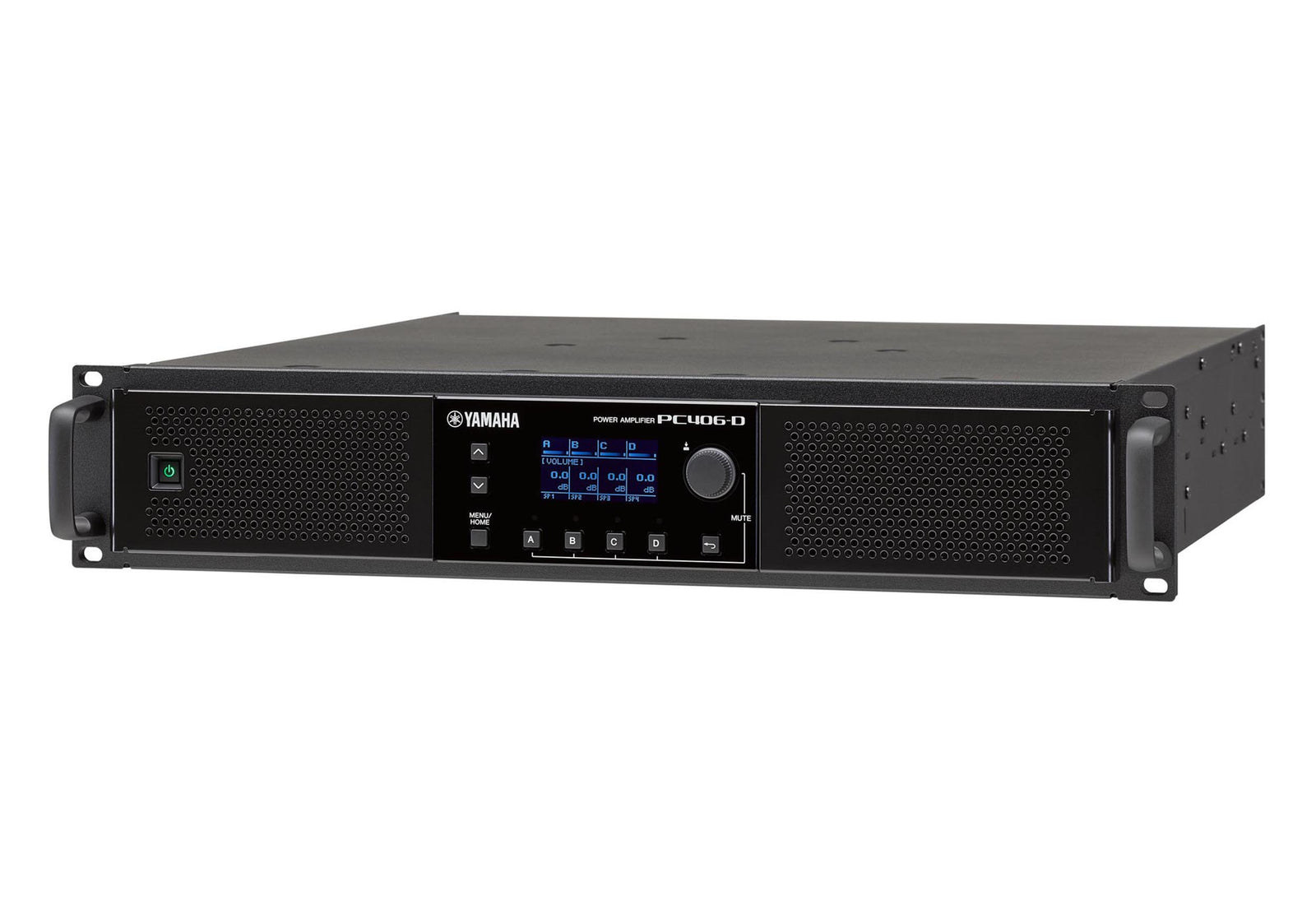

Yamaha PC406-D Class-D Power Amplifier with Dante Input / Output

The Yamaha PC406-D is a high-performance Class-D amplifier delivering 600W x 4 at 8Ω, designed for professional touring and installation applications. More than just a power amplifier, it features a 20 x 8 input matrix, allowing flexible routing of audio signals from multiple sources. With onboard Dante I/O, it supports 16-channel Dante input/output at up to 96 kHz, enabling low-latency, high-quality digital audio distribution across a networked system.

Flexible System Integration with Matrix and Dante

The PC406-D excels in both mixer-assisted and mixer-less configurations. Its matrix functionality enables the combination of analog and digital signals for output to speakers or other Dante-enabled devices, while the Dante outputs allow further signal distribution with EQ and processing applied. This flexibility allows integrators to expand system matrices, construct multi-zone setups, and route audio with precision without requiring additional DSP or mixers.

Advanced Onboard Speaker Processing

Equipped with powerful onboard DSP, the PC406-D provides 16-band PEQ, crossover, delay, FIR filtering, and RMS/peak limiting for precise speaker tuning. Yamaha-optimized speaker presets, including those for the CZR Series, make setup fast and reliable, ensuring the best performance for a wide range of commercial and live sound applications. These processing capabilities can also be shared via Dante outputs, enabling centralized EQ control across multiple amplifiers.

Intuitive Control and Remote Operation

Control and configuration are streamlined through ProVisionaire Amp Editor, with compatibility for ProVisionaire Touch and ProVisionaire Control for remote operation. Custom remote panels can also be provided if needed. Detachable handles, replaceable filters, and high-efficiency design make the PC406-D not only powerful but reliable and easy to maintain, even in demanding professional environments.

Product Specifications:

Output Power

16Ω: 300W x4

8Ω: 600W x4

4Ω: 900W x4

2Ω: 1300W x4

8Ω (BRIDGE mode): 1800W x2

4Ω (BRIDGE mode): 2600W x2

Amplifier Class: Class D, Single ended output

Total Harmonic Distortion: 0.01% (8Ω,1kHz,10W, all channels driven) 0.1% (4Ω,1kHz, half power, all

channels driven)

Frequency Response: +0.5, -1.5dB @8Ω, 1W, 20Hz–20kHz (HPF Thru)

Crosstalk: ≦ -60dB (8Ω,1 kHz, Half power, Input 150Ω shunt A-weighted)

S/N Ratio: 109dB (8Ω, Gain setting = 32dB, A-weighted)

Voltage Gain/Sensitivity

8Ω Volume Max: 32.0dB/+7.0dBu (Gain setting: 32dB); 26.0dB/+13.0dBu (Gain setting: 26dB);

35.0dB/+4.0dBu (Gain setting: +4dBu); 25.0dB/+14.0dBu (Gain setting: +14.0dBu)

Protection Circuit; Load protection: POWER switch on/off Output mute

Output Voltage Protection

DC-Fault: Power supply shutdown (NOT restored automatically)

Amplifier Protection: Thermal Output limiter → Output mute; Over current Output mute; Over voltage

Output limiter; Integrated Power Limit Output limiter (Restored automatically)

Power Supply Protection: Thermal Output limiter → Power supply shutdown; Over voltage Power supply

shutdown; Over current Power supply shutdown

Cooling: 7 step variable speed fan x3, front to rear airflow

Maximum Input voltage: +25dBu

Input Impedance: 20kΩ (balanced)

Sampling Frequency rate: 96kHz

A/D D/A Converters: AD 24-bit linear; DA 24-bit linear

Dante Interface

Channel count: 16 IN with Dante Redundancy, 16 OUT

Sampling frequency: 96/88.2/48/44.1kHz

Dante latency: 0.25/0.5/1/2/5ms

Bit depth: 32/24bit

Processors: 20 x 8 input matrix mixer

Room EQ: 16 band IIR EQ

Room Delay: 0–1000msec

Speaker Processor: X-Over (IIR/FIR*) PEQ (16 band IIR/FIR*) Delay; Peak Limiter; RMS Limiter

Analog Input to Speakers: 1.5msec

Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz); 1.9msec

(fs=88.2kHz); 2.5msec (fs=48kHz); 2.7msec (fs=44.1kHz)

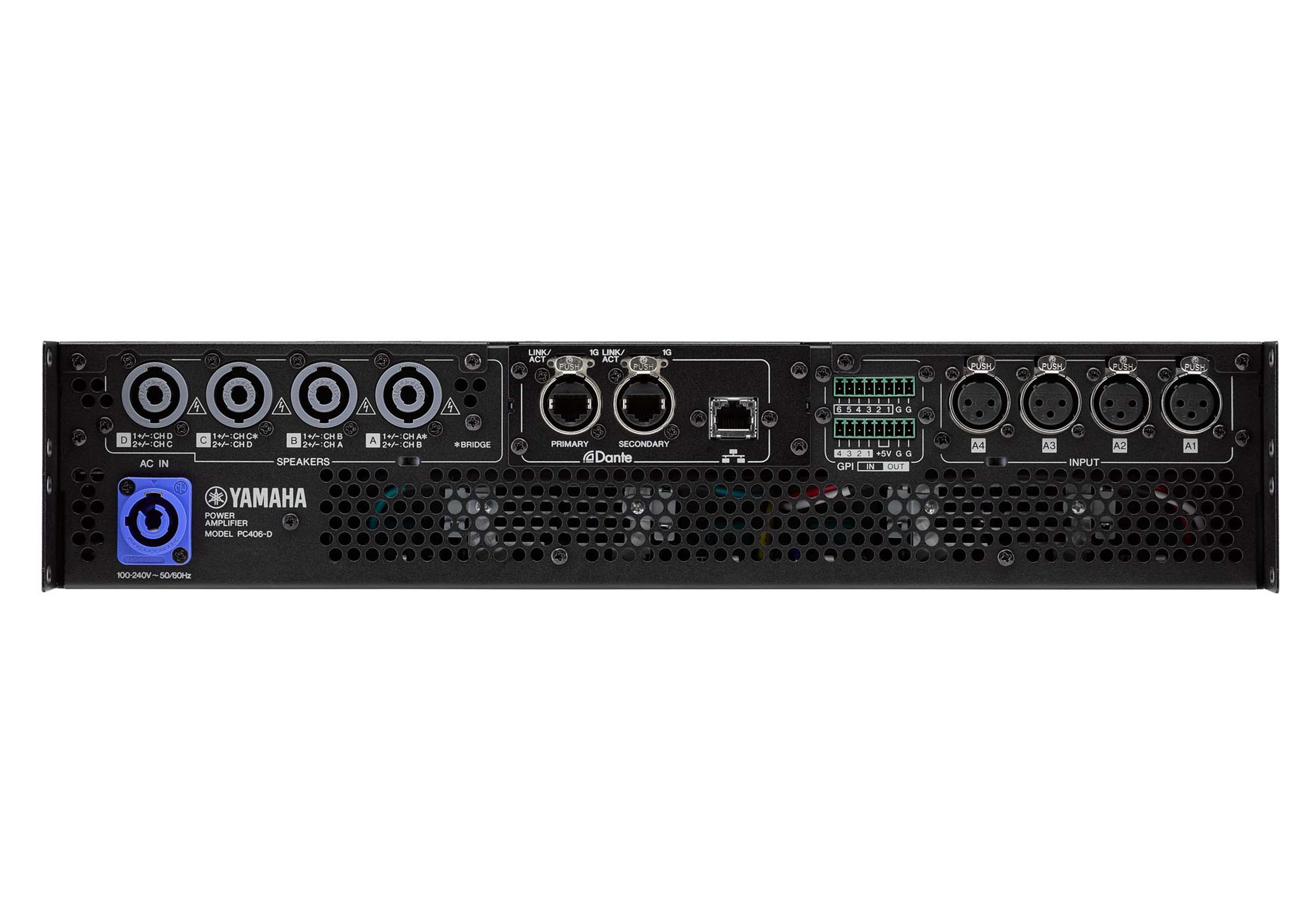

I/O Connectors

Analog Input: XLR-3-31 x4

Digital I/O: Dante Interface etherCON x2 (Redundant/Daisy Chain)

Speaker Output: Neutrik speakON NL4 x4

Control Ports: RJ45 x1; AC: AC inlet (powerCON 20A) x1

Others: Remote, Fault Output Euro block 8pin (mini) x2 (GPI x4, GPO x6, +5V x2)

Indicators: Power (Green) x1; Channel Status x4 Signal (Green), Limit (Yellow), Protect/Mute (Red);

Auto LED off and dimmer feature (except POWER LED)

Power Requirements: 100V–240V 50/60Hz

Power Consumption: 1050W (1/8 MAX power, 2Ω, Pink noise at all channels); 165W (Idle); 100W (Sleep,

all channels); 9W (Standby 100V/120V); 12W (Standby 230V)

Operating Temperature: 0°C–40°C

Storage Temperature: -20°C–60°C

Product Weight: 34.4 lbs / 15.6 kg

Product Dimensions(L × W × H): 20.79" × 18.90" × 3.46"
