Description

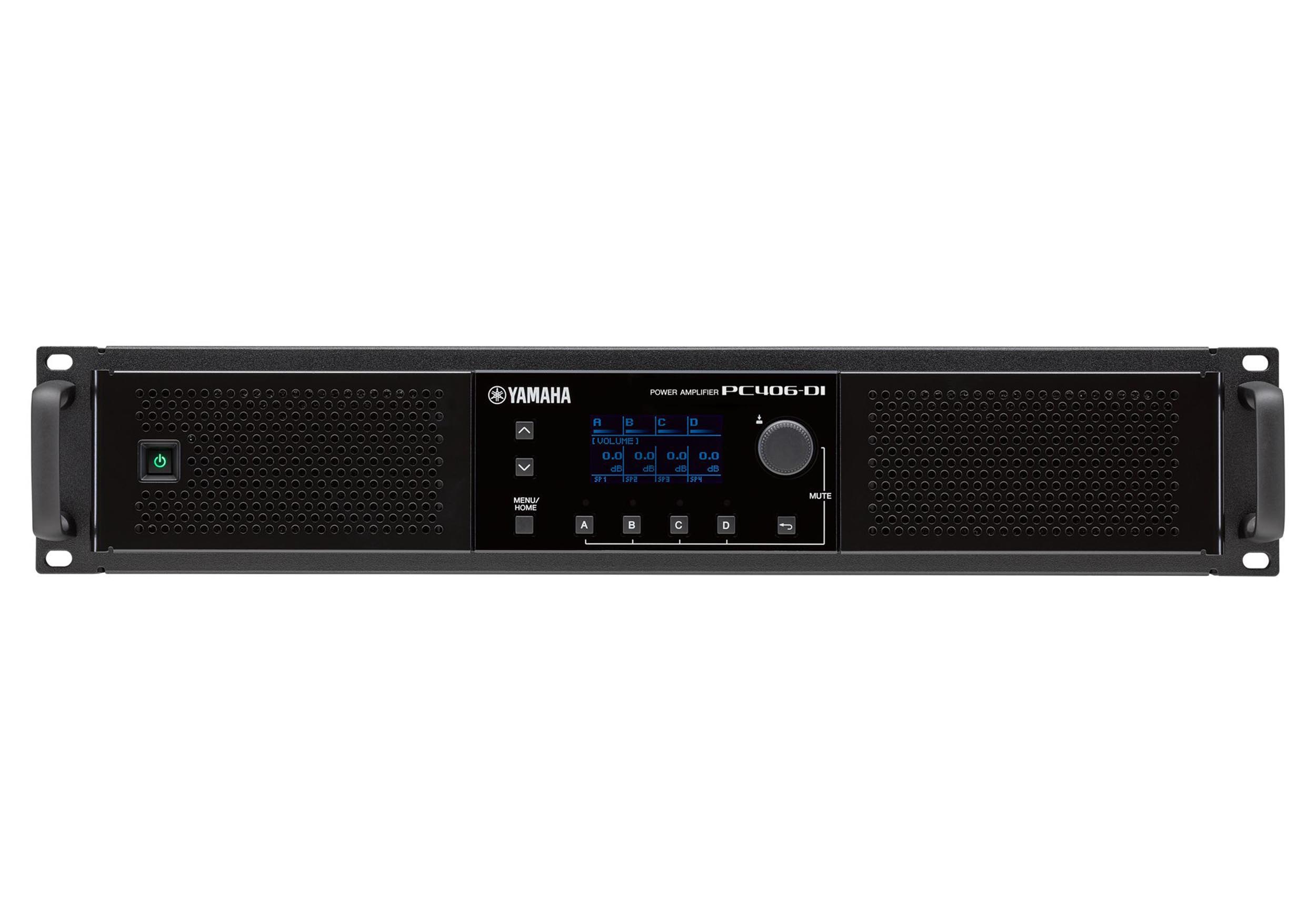

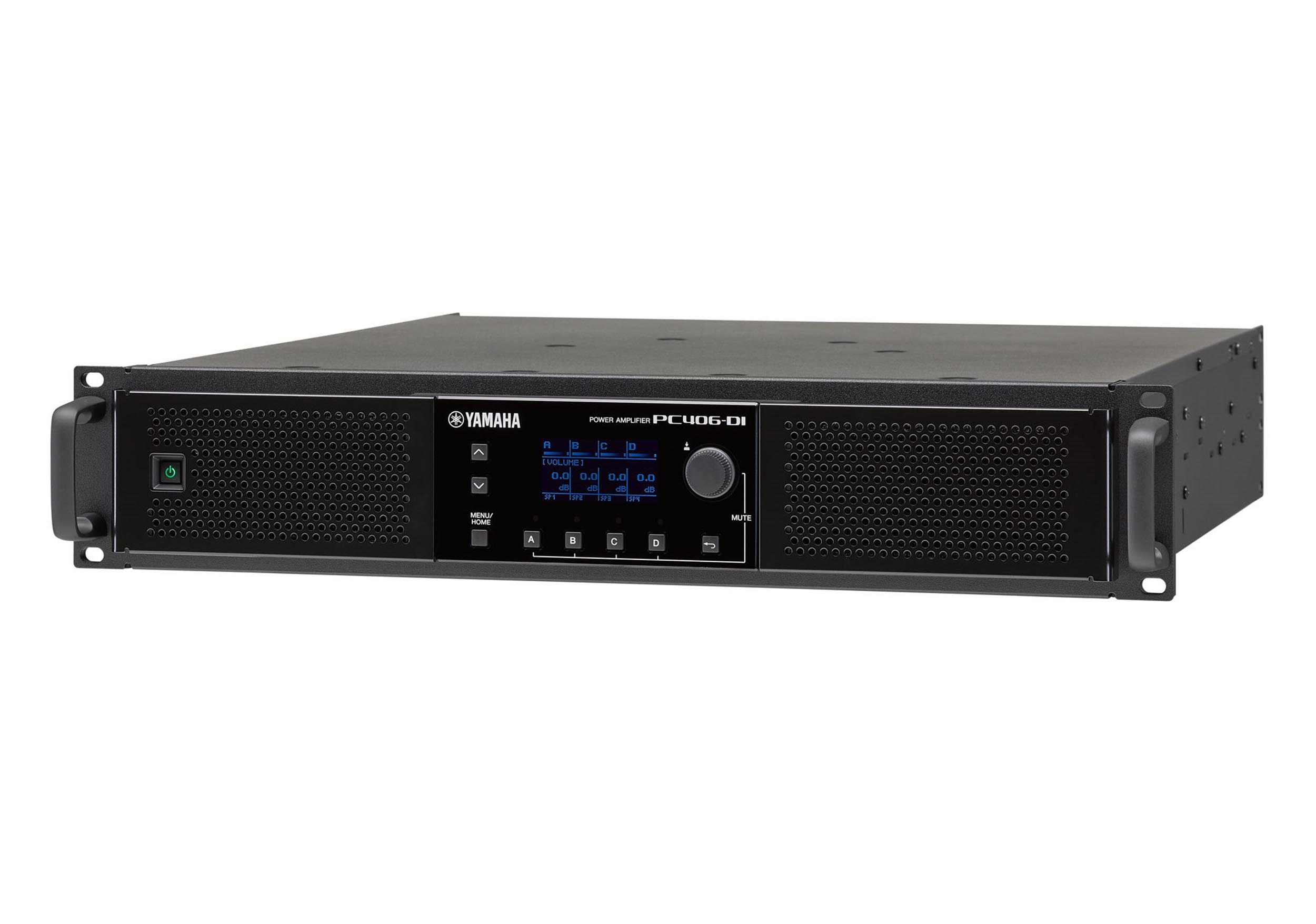

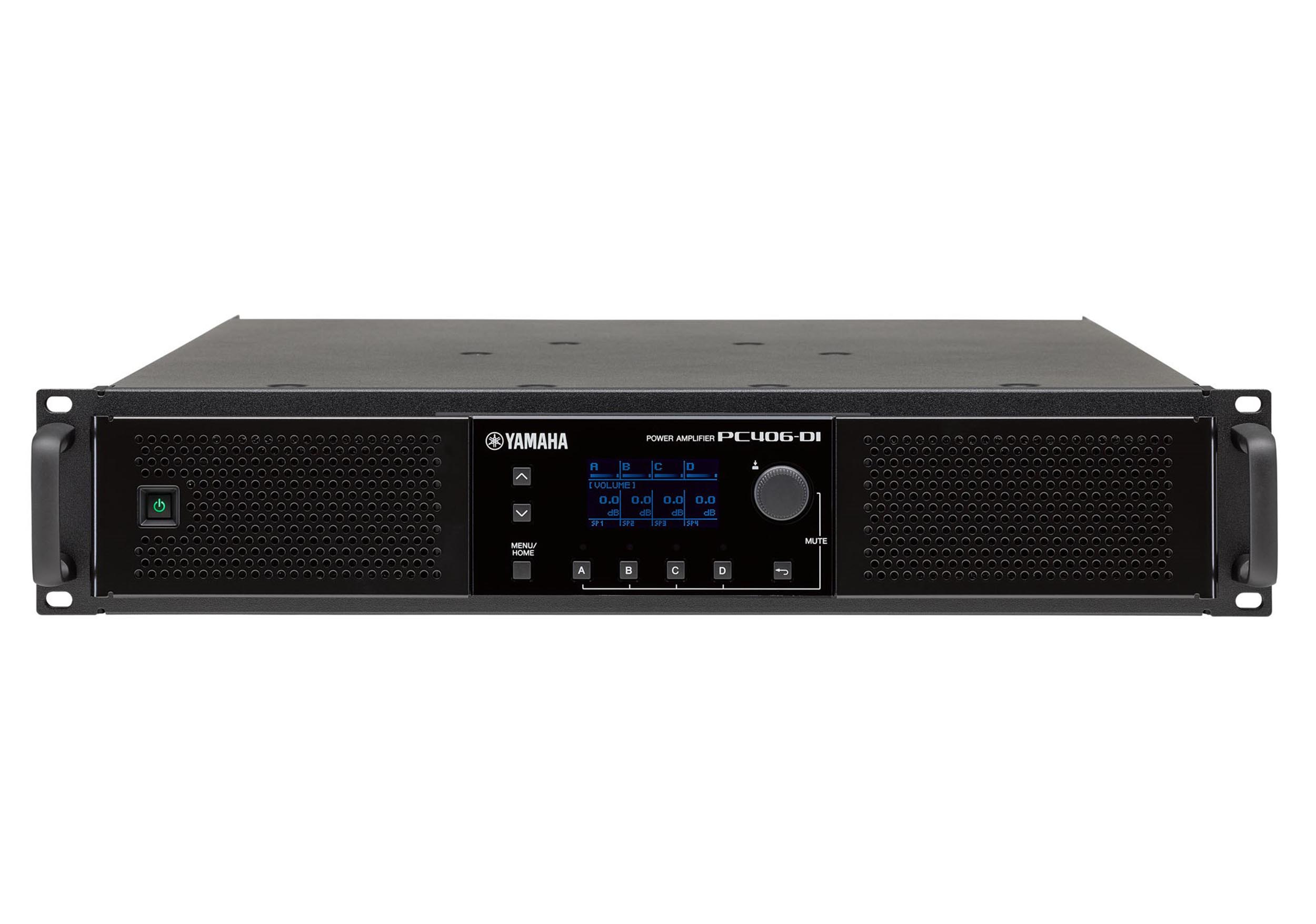

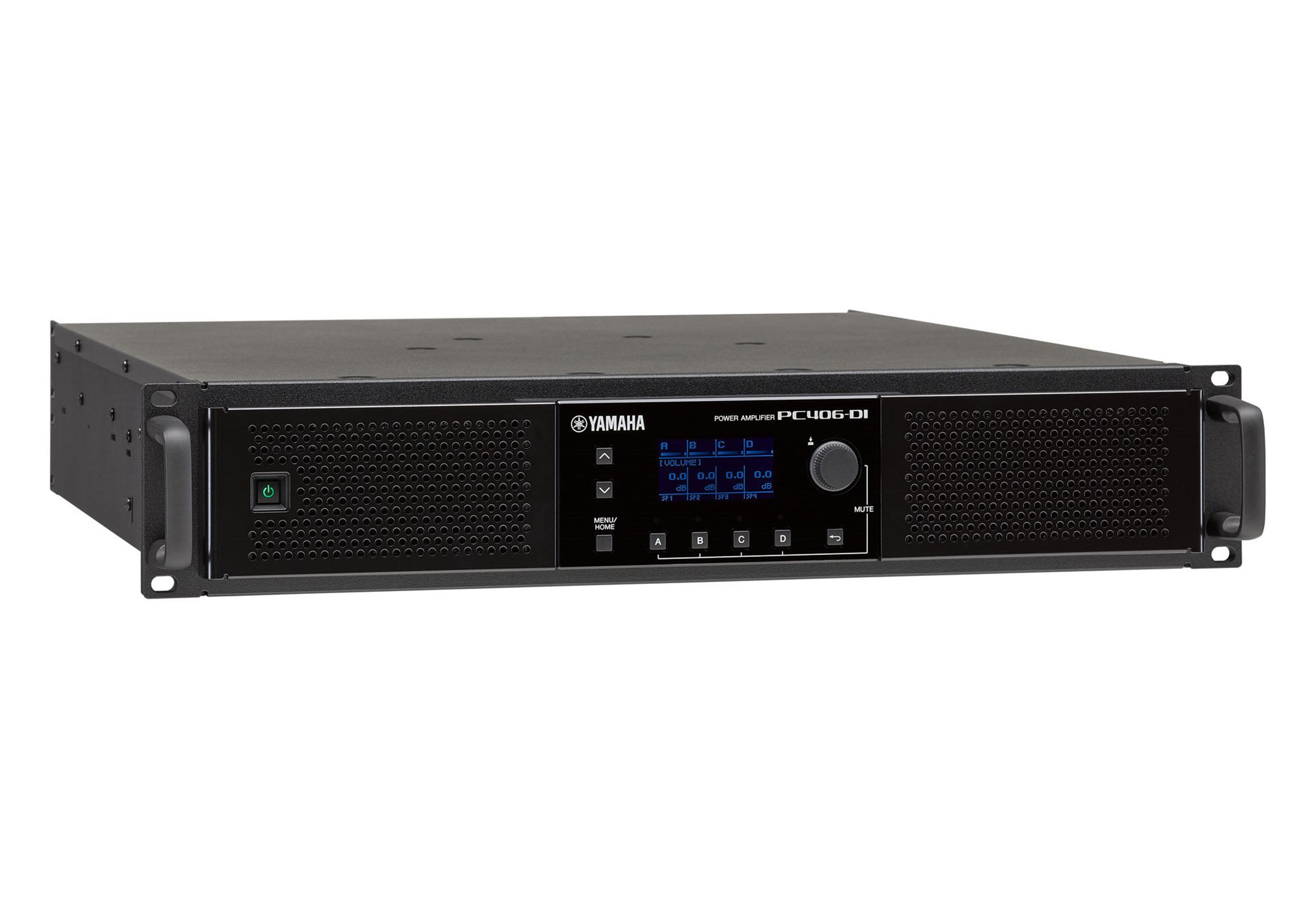

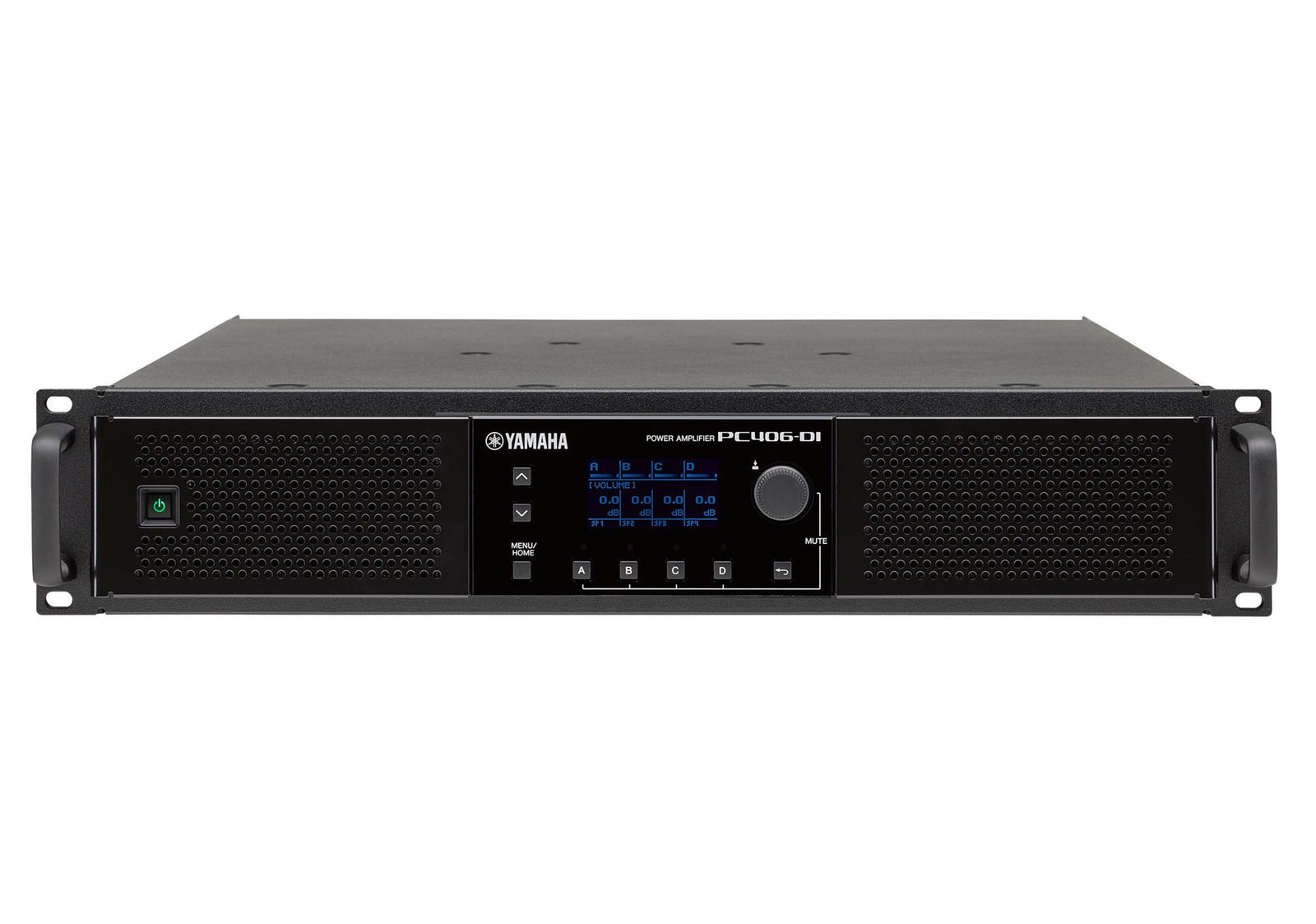

The Yamaha PC406-DI is a high-performance Class-D power amplifier designed for professional installation applications, delivering 4 × 600W at 8Ω and 4 × 600W at 70V/100V, making it fully compatible with both low- and high-impedance speaker systems. Its versatile output options allow integrators to drive multiple speaker zones with precision and confidence, whether in retail environments, corporate facilities, or performance spaces. Compact yet powerful, the PC406-DI ensures reliable, high-quality audio performance while maintaining efficient operation, even in demanding setups.
At the heart of the PC406-DI is its 20 × 8 input matrix, which provides unmatched flexibility in routing multiple audio sources. Combined with 16-channel Dante input and output at up to 96 kHz, the amplifier can seamlessly handle digital audio distribution with low latency, integrating both analog and Dante-enabled devices. This allows the amplifier to function as a standalone system controller, expand existing matrices, or deliver complex multi-zone audio setups without requiring additional mixers or DSP units. Such capabilities make it ideal for both large-scale installations and flexible, zone-specific audio configurations.
The PC406-DI also features powerful onboard DSP tools to ensure every speaker in the system performs optimally. It includes 16-band PEQ, crossover, filters, delay, and limiter functions, alongside Yamaha-optimized speaker presets, which simplify system setup and ensure consistent audio quality. For control and management, it is fully compatible with ProVisionaire Touch and ProVisionaire Control, allowing remote operation and centralized adjustments of volume, EQ, and routing. Custom remote panels can also be provided if needed, making the PC406-DI a complete, professional solution for modern commercial audio systems that demand both power and precision.
Product Specifications:
Power Output 16Ω: 300W x 4
Power Output 8Ω: 600W x 4
Power Output 4Ω: 900W x 4
Power Output 2Ω: 1300W x 4
Power Output 8Ω Bridge Mode: 1800W x 2
Power Output 4Ω Bridge Mode: 2600W x 2
Power Output Hi-Z 70V: 600W x 4
Power Output Hi-Z 100V: 600W x 4
Amplifier Class: Class D single-ended output
Total Harmonic Distortion: 0.01% 8Ω 10W all channels 0.1% 4Ω half power all channels 0.01% 100V 70V
10W all channels 0.1% 100V 70V half power all channels
Frequency Response: +0.5 -1.5 dB 8Ω 1W 20Hz to 20kHz HPF Thru
Crosstalk: ≤ -60 dB 8Ω 1kHz half power
Signal-to-Noise Ratio: 109dB 8Ω Gain 32dB A-weighted
Gain / Sensitivity 8Ω Volume Max: 32dB +7.0dBu 26dB +13.0dBu 35dB +4.0dBu 25dB +14.0dBu
Gain / Sensitivity Hi-Z 100V: 32dB +10.2dBu 26dB +16.2dBu 38.2dB +4.0dBu 28.2dB +14.0dBu
Gain / Sensitivity Hi-Z 70V: 32dB +7.2dBu 26dB +13.2dBu 35.2dB +4.0dBu 25.2dB +14.0dBu
Protection Circuits: Load Protection output mute on POWER switch off overvoltage limiter DC-fault
shutdown manual reset Amplifier Protection Thermal limiter output mute overcurrent mute overvoltage
limiter Integrated Power Limit Power Supply Protection Thermal overvoltage overcurrent shutdown
Cooling: 3 x 7-step variable speed fans front to rear airflow
Maximum Input Voltage: +28dBu
Input Impedance: 20kΩ balanced
Sampling Frequency Rate: 96kHz
A/D & D/A Converters: 24-bit linear
Dante Channel Count: 16 IN 16 OUT with redundancy
Dante Sampling Frequency: 96 88.2 48 44.1kHz
Dante Latency: 0.25 0.5 1 2 5ms
Dante Bit Depth: 32 24-bit
Processors: 20 x 8 input matrix mixer Room EQ 16-band IIR EQ Room Delay 0-1000ms Speaker Processor
X-over IIR FIR PEQ 16-band IIR FIR Delay Peak Limiter RMS Limiter
Latency Input to Output: Analog Input to Speakers 1.5ms Dante Input to Speakers 1.8ms 96kHz 1.9ms
88.2kHz 2.5ms 48kHz 2.7ms 44.1kHz

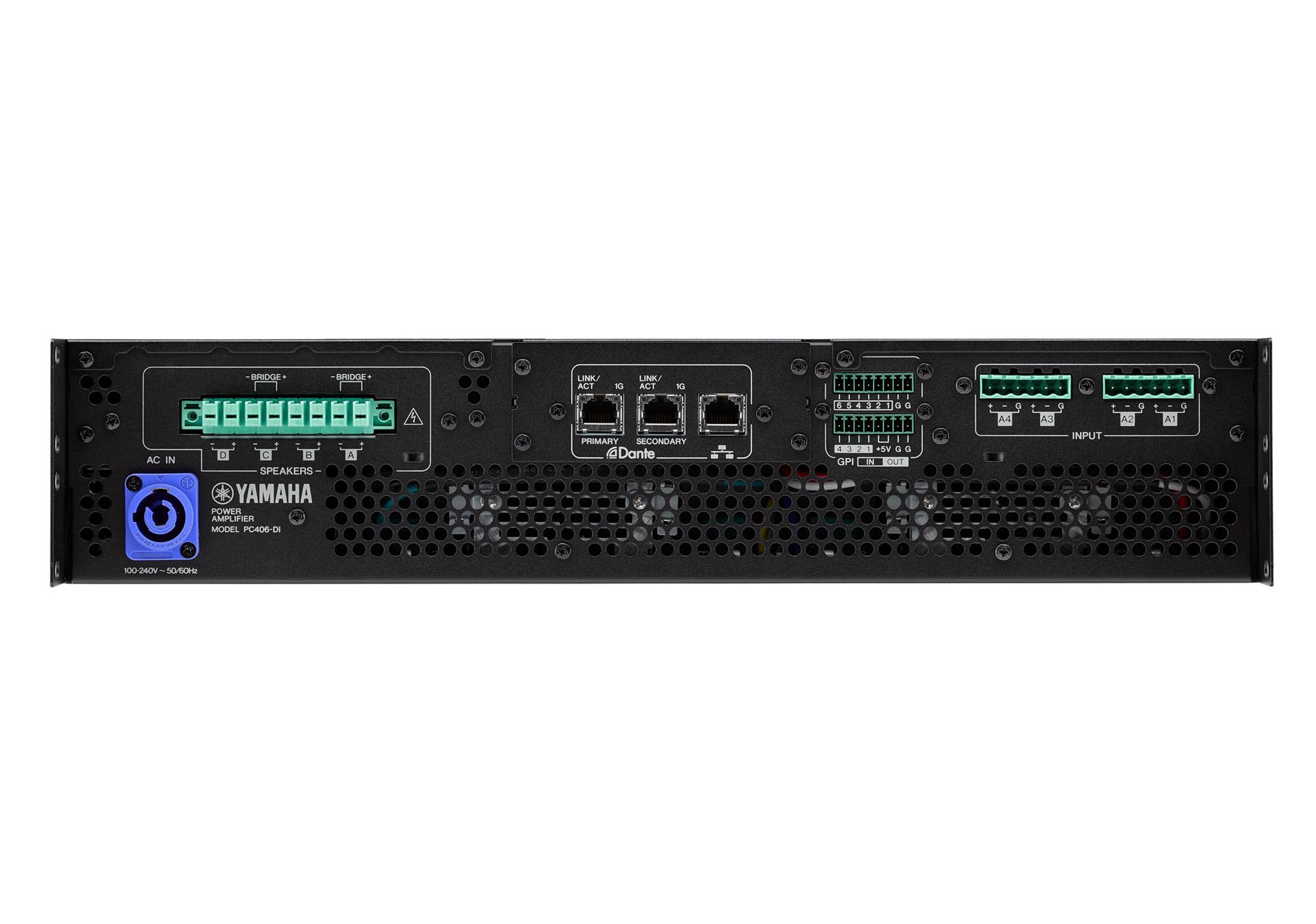

Analog Input: Euro block 6-pin x 2 4-channel balanced
Digital I/O: Dante RJ45 x 2 redundant daisy chain
Speaker Output: 7.62mm Euro block 8-pin x 1
Control Ports: RJ45 x 1
AC Input: powerCON 20A x 1
Other: Remote and Fault Output Euro block mini x 2 GPI x 4 GPO x 6 +5V x 2
Indicators: Power LED Green x 1 Channel Status LEDs Signal Green Limit Yellow Protect Mute Red x 4 Auto
LED off dimmer feature
Power Requirements: 100-240V AC 50/60Hz
Power Consumption: 1/8 Max Power 2Ω pink noise all channels 1100W Idle 190W Sleep all channels 100W
Standby 9-12W
Operating Temperature: 0°C-40°C
Storage Temperature: -20°C-60°C
Product Weight: 35.1lbs / 15.9kg
Product Dimensions (L × W × H): 20.79" × 18.90" × 3.46"
