Description
The Yamaha PC412-D is a high-power Class-D amplifier delivering 4 × 1200W at 8Ω, designed for professional touring and installation applications. Beyond raw power, it features an impressive 20 × 8 input matrix combined with 16-channel Dante input/output at up to 96 kHz, allowing flexible routing of multiple audio sources with low latency. This combination of matrix functionality and Dante connectivity dramatically increases system versatility, enabling integrators to expand existing matrices or construct complex multi-zone setups without the need for additional mixers or DSP.
Equipped with powerful onboard DSP, the PC412-D provides advanced audio processing including 16-band PEQ, crossover, filters, delay, FIR filtering, and RMS/peak limiting. Yamaha-optimized speaker presets, including support for the CZR Series, simplify system setup and tuning, while Dante outputs allow EQ and Room adjustments to be shared across multiple amplifiers. Whether handling sound from analog mixers, digital mixers, or Dante-enabled devices, the input matrix ensures precise routing and output to speakers or other amplifiers, making it a highly flexible solution for a wide range of professional audio systems.
Designed for reliability and efficiency, the PC412-D incorporates detachable handles and replaceable filters, ensuring easy maintenance even in demanding environments. The amplifier is fully compatible with ProVisionaire Touch and ProVisionaire Control, while the dedicated ProVisionaire Amp Editor software allows fine-tuning of EQ, delay, and volume for individual units or grouped amplifiers from a single interface. Custom remote-control panels are also supported, making the PC412-D a complete, professional solution for high-performance commercial and touring audio systems.
Product Specifications:
Power Output 16Ω: 600W x 4
Power Output 8Ω: 1200W x 4
Power Output 4Ω: 1900W x 4
Power Output 2Ω: 2500W x 4
Power Output 8Ω Bridge Mode: 3800W x 2
Power Output 4Ω Bridge Mode: 5000W x 2
Amplifier Class: Class D single-ended output
Total Harmonic Distortion: 0.01% 8Ω 10W all channels 0.1% 4Ω half power all channels
Frequency Response: +0.5 -1.5 dB 8Ω 1W 20Hz to 20kHz HPF Thru
Crosstalk: ≤ -60 dB 8Ω 1kHz half power
Signal-to-Noise Ratio: 112dB 8Ω Gain 32dB A-weighted
Gain / Sensitivity 8Ω Volume Max: 32dB +10.0dBu 26dB +16.0dBu 38dB +4.0dBu 28dB +14.0dBu
Protection Circuit: Load Protection POWER switch on/off Output mute Output voltage protection Over
voltage limiter DC-fault Power supply shutdown
Amplifier Protection: Thermal Output limiter Output mute Over current Output mute Over voltage Output
limiter Integrated Power Limit Output limiter
Power Supply Protection: Thermal Output limiter Power supply shutdown Over voltage Power supply
shutdown Over current Power supply shutdown
Cooling: 7 step variable speed fan x 3 front to rear airflow
Maximum Input Voltage: +28dBu
Input Impedance: 20kΩ balanced
Sampling Frequency Rate: 96kHz
A/D & D/A Converters: AD 24-bit linear DA 24-bit linear
Dante Channel Count: 16 IN with Dante Redundancy 16 OUT
Dante Sampling Frequency: 96 88.2 48 44.1kHz
Dante Latency: 0.25 0.5 1 2 5ms
Dante Bit Depth: 32 24-bit
Processors: 20 x 8 input matrix mixer Room EQ 16 band IIR EQ Room Delay 0 - 1000msec Speaker
Processor X-Over IIR/FIR PEQ 16 band IIR/FIR Delay Peak Limiter RMS Limiter
Latency Input to Output: Analog Input to Speakers 1.5msec Dante Input to Speakers 1.8msec 96kHz
1.9msec 88.2kHz 2.5msec 48kHz 2.7msec 44.1kHz

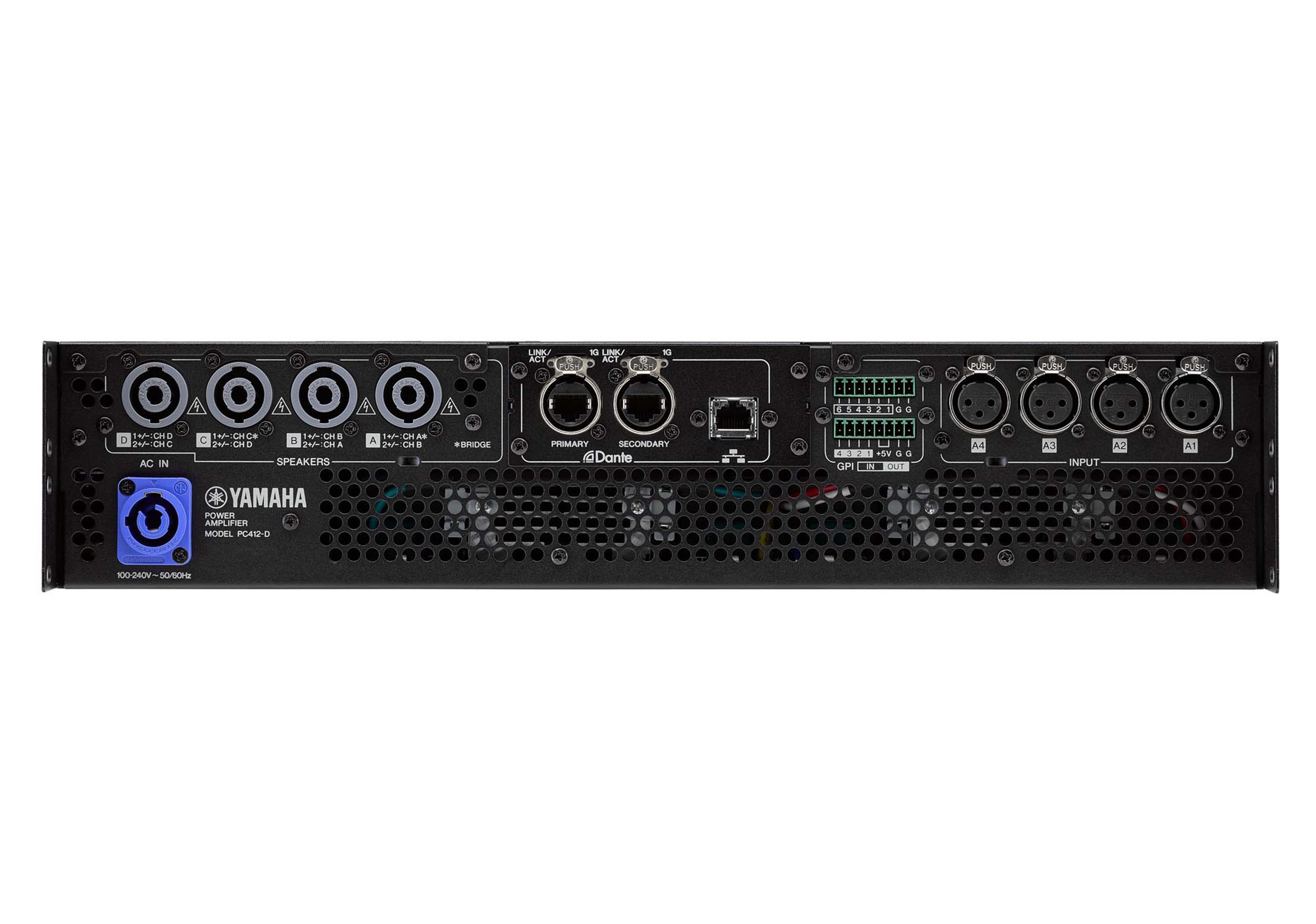

Analog Input: XLR-3-31 x 4
Digital I/O: Dante Interface etherCON x 2 Redundant/Daisy Chain
Speaker Output: Neutrik speakON NL4 x 4
Control Ports: RJ45 x 1
AC Input: AC inlet powerCON 20A x 1
Other: Remote Fault Output Euro block 8pin mini x 2 GPI x 4 GPO x 6 +5V x 2

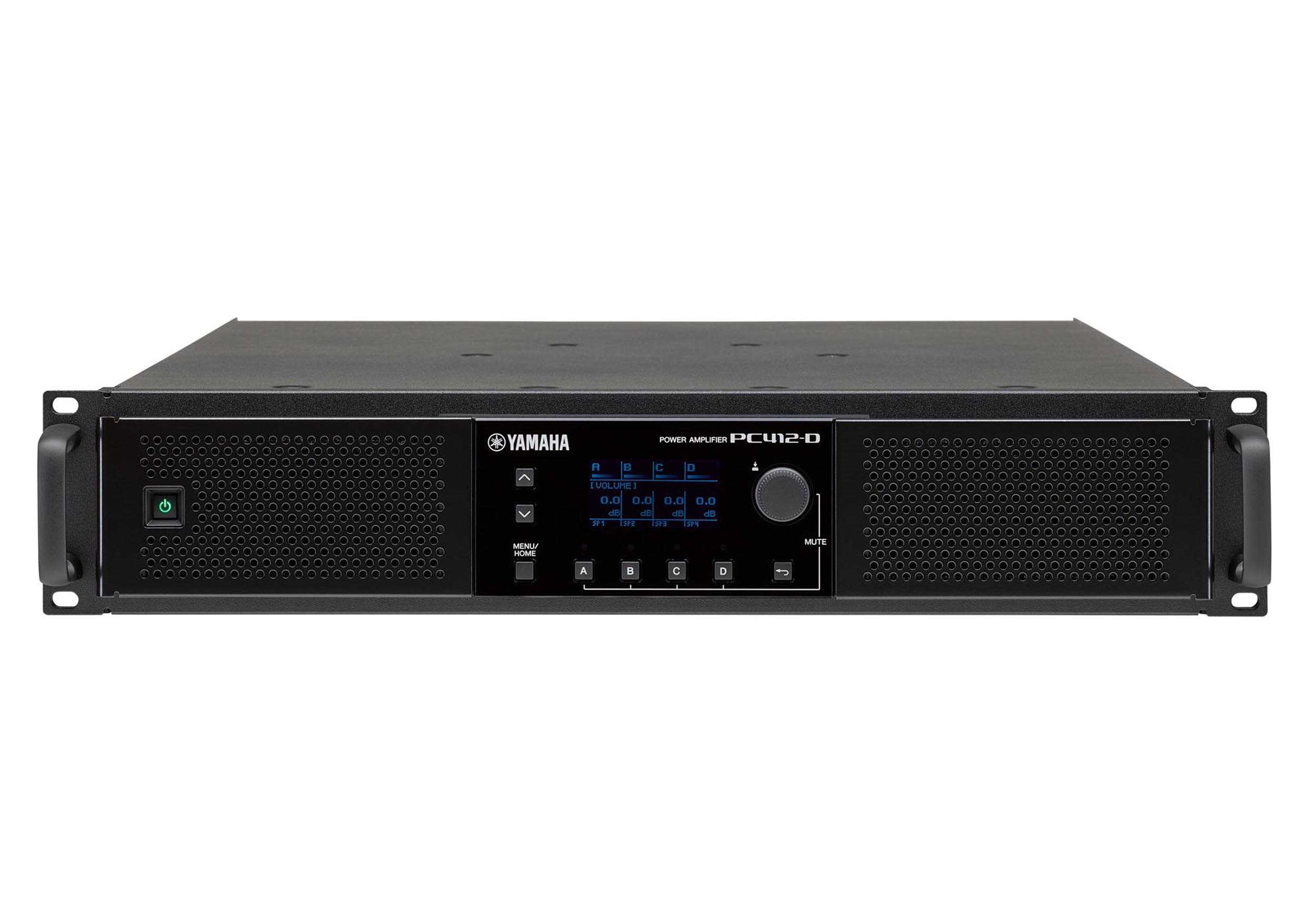

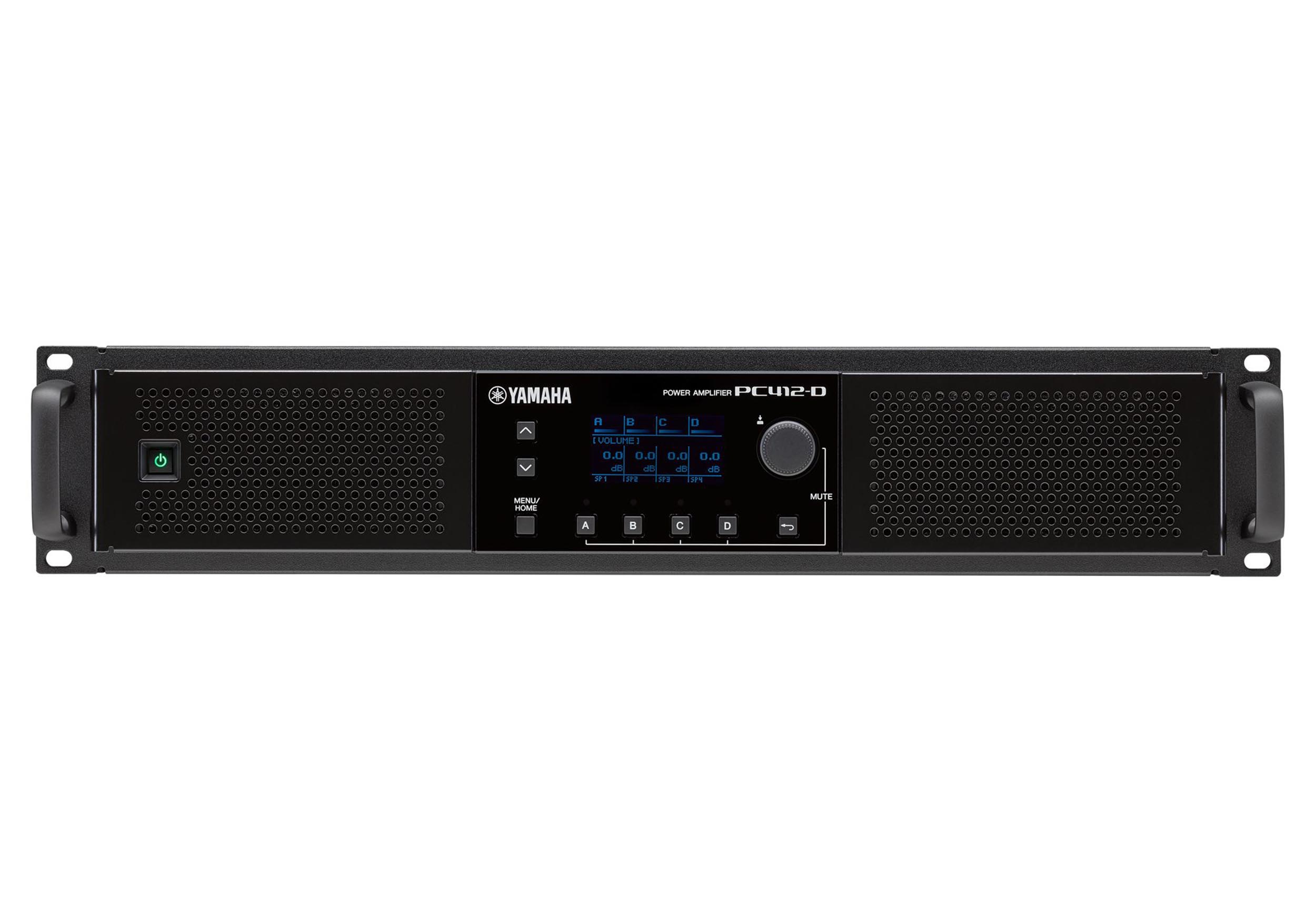

Indicators: Power Green x 1 Channel Status LEDs Signal Green Limit Yellow Protect/Mute Red x 4 Auto LED
off dimmer feature
Power Requirements: 100V - 240V 50Hz/60Hz
Power Consumption: 1850W 1/8 MAX power 2Ω Pink noise all channels 190W Idle 105W Sleep all
channels 9W Standby 100V/120V 12W Standby 230V
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +60°C
Product Weight: 35.3 lbs / 16.0 kg
Product Dimensions (L × W × H): 20.79" × 18.90" × 3.46"
