Description

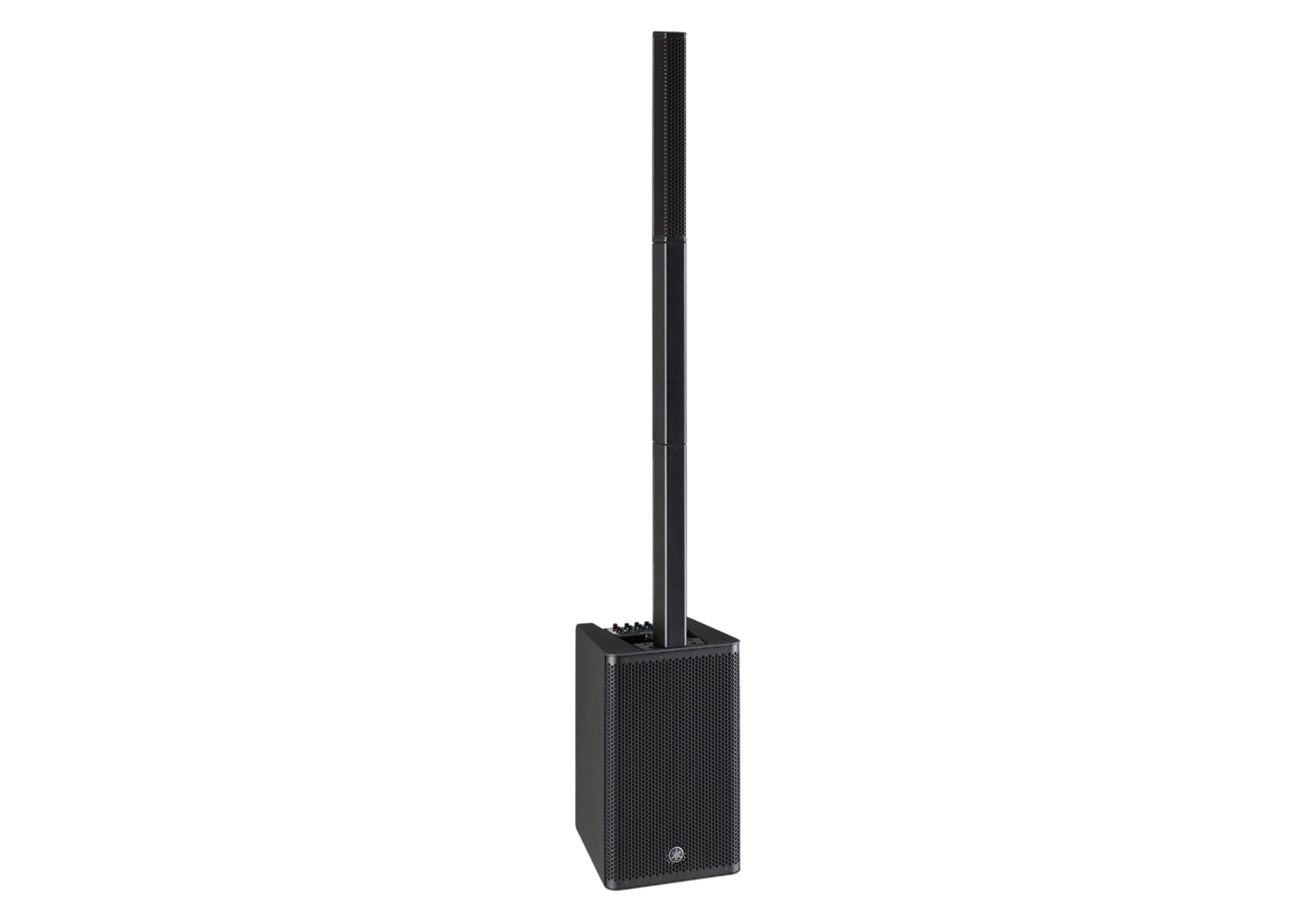

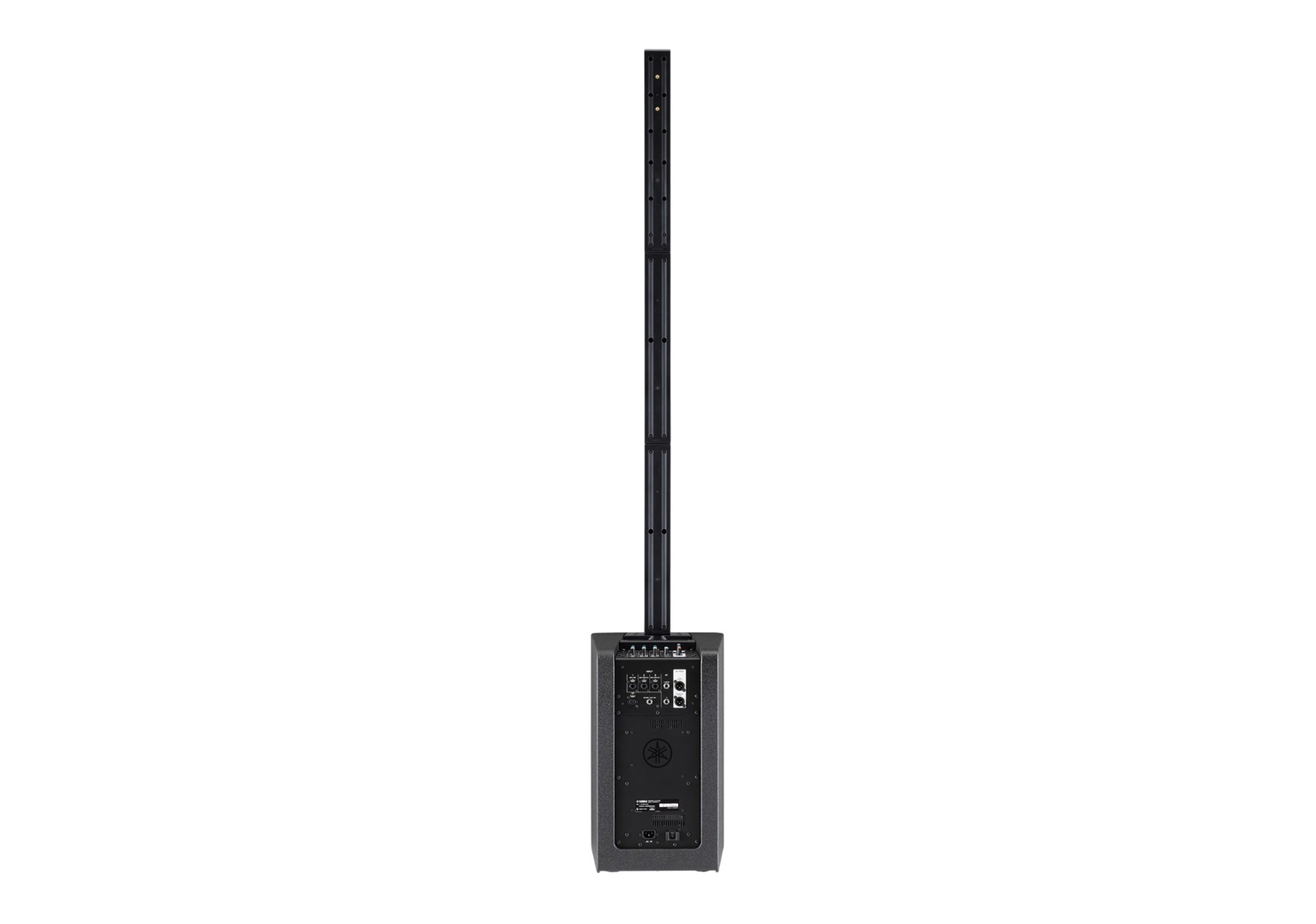

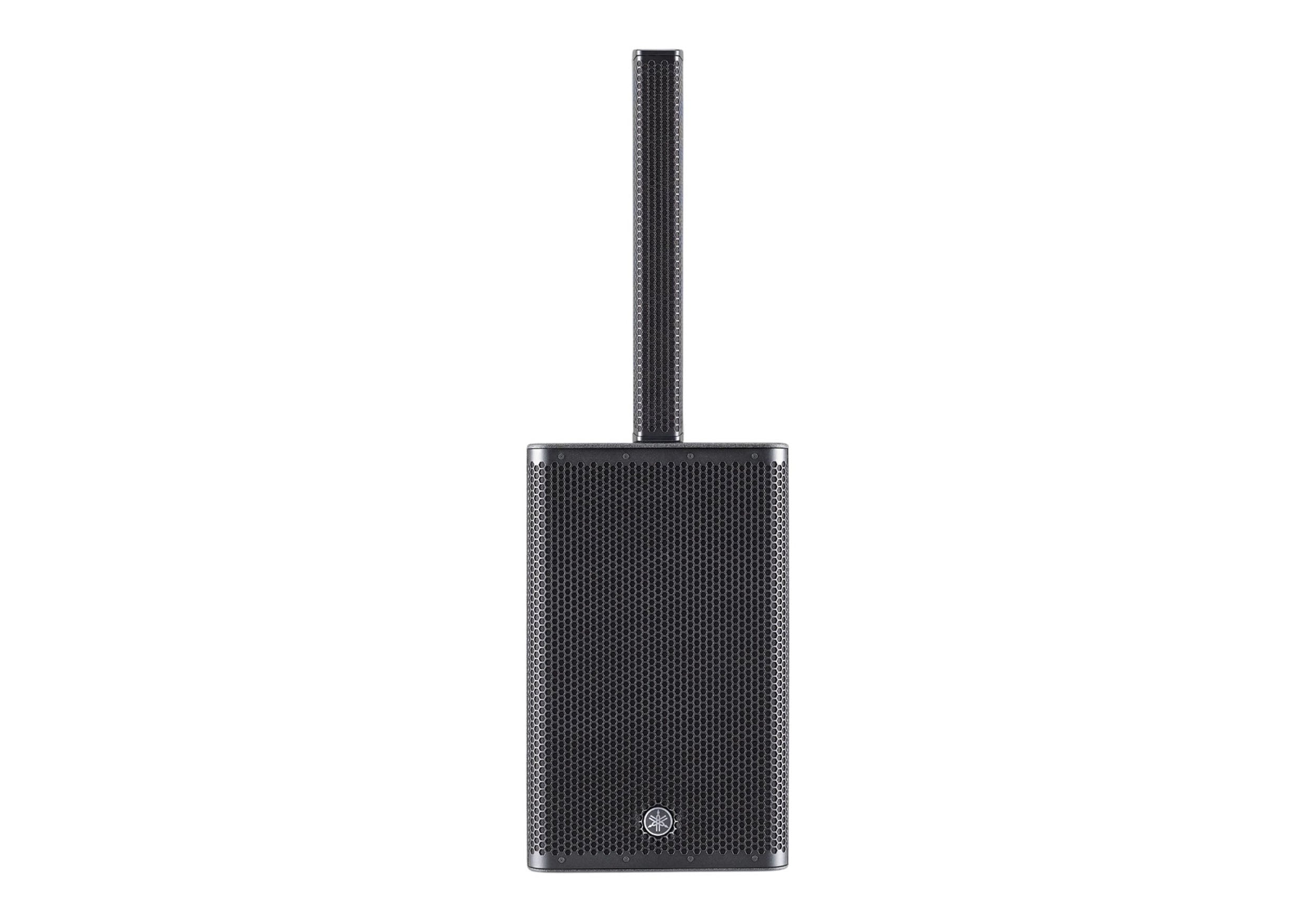

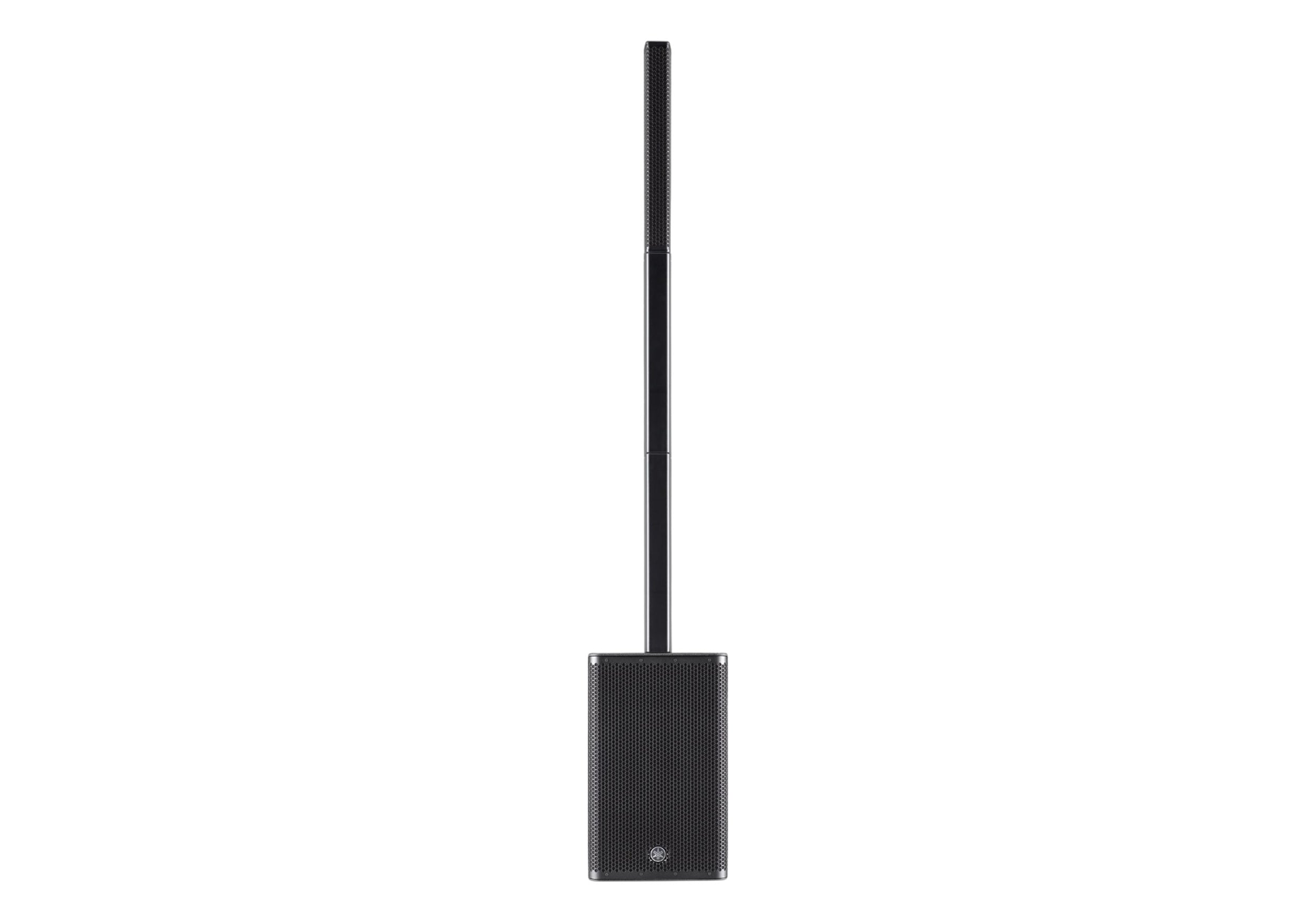

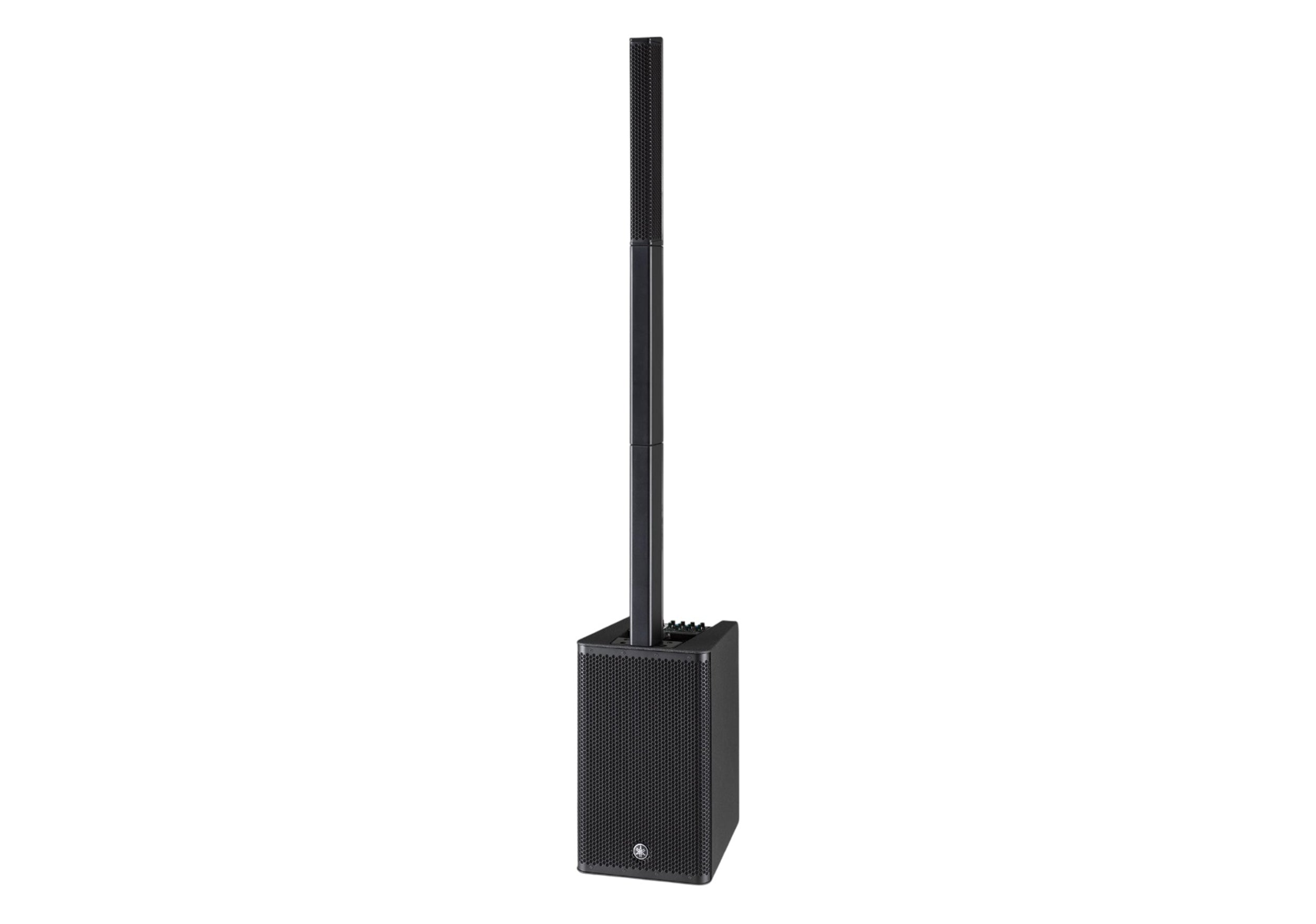

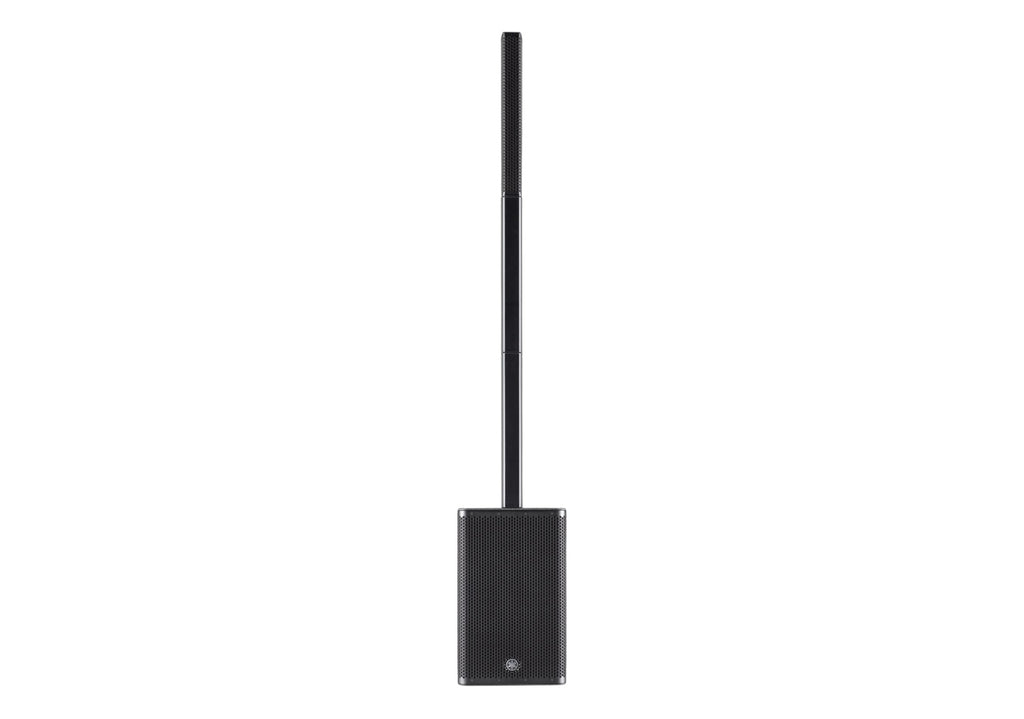

The Yamaha STAGEPAS 1K is a complete, portable PA solution that combines a powerful 1000W amplifier, a 12" subwoofer, and a 10 x 1.5" driver slim line array speaker into a single, easy-to-transport system. Equipped with a 5-channel digital mixer, the unit supports 3 mono mic/line inputs and 1 stereo line input, along with Bluetooth connectivity for wireless streaming. With high-resolution SPX digital reverbs, the STAGEPAS 1K delivers professional-quality sound for any performance or event.
Simple Setup and Intuitive Control

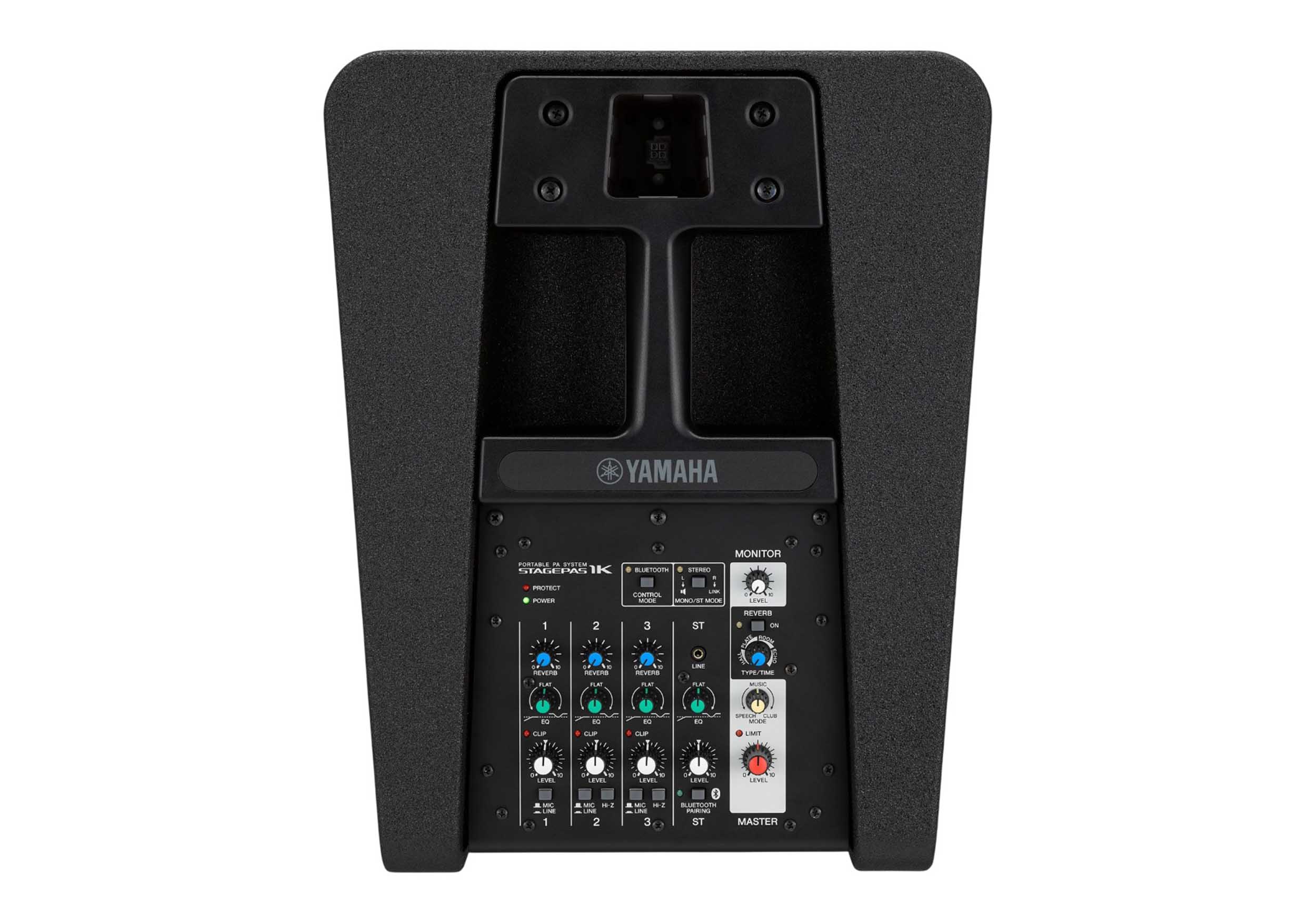

Designed for effortless operation, the STAGEPAS 1K features Yamaha’s 1-knob EQ for per-channel adjustments and a multi-band compressor MODE for optimized master output settings like “Speech” or “Music.” Two high-impedance (Hi-Z) inputs, along with link-out and monitor-out options, give users flexible connectivity. These controls allow musicians and presenters to achieve the perfect mix quickly without complicated workflows, letting you focus entirely on your performance.
Powerful, Compact Performance
Despite its lightweight and compact design, the STAGEPAS 1K delivers exceptional audio performance. The combination of a 12" high-output subwoofer and 10 small-diameter 1.5" drivers provides a wide 170° horizontal and 30° vertical coverage, ensuring clear, uniform sound from front to back of the audience. This makes it ideal for small to medium venues, providing both high sound pressure and pristine audio quality in a portable package.
Product Specifications:
Speaker Type: Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency Range (-10dB): 37 Hz - 20 kHz
Coverage Area: H 170° x V 30°
LF:
Powered Subwoofer: 12” (30 cm) Cone
HF:
Line Array Speaker: 1.5” (3.8 cm) Cone x 10
Mixing Channels: 5 (3 mono + 1 ST)
Input Channel Functions:
Hi-Z: CH2/3, 1-knob
EQ: CH1-3/ST
Output Channel Functions: MODE (SPEECH - MUSIC - CLUB)
Inputs: 3 mono mic/line + 1 stereo line/2 mono line
Outputs: 1 Link out, 1 Monitor out
Bluetooth: Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and Others: Reverb foot switch, STAGEPAS Editor (iOS/Android app)
DSP: SPX digital reverb (4 program, parameter control)
Power Rating Dynamic: 1000W (Powered subwoofer: 810W, Line array speaker: 190W)
Maximum Output Level (1m; on axis): 119 dB SPL
Power Requirements: 100V 50Hz/60Hz, 110V/120V 60Hz, 220V-240V 50Hz/60Hz
Power Consumption: 25 W (Idle), 85 W (1/8 power)

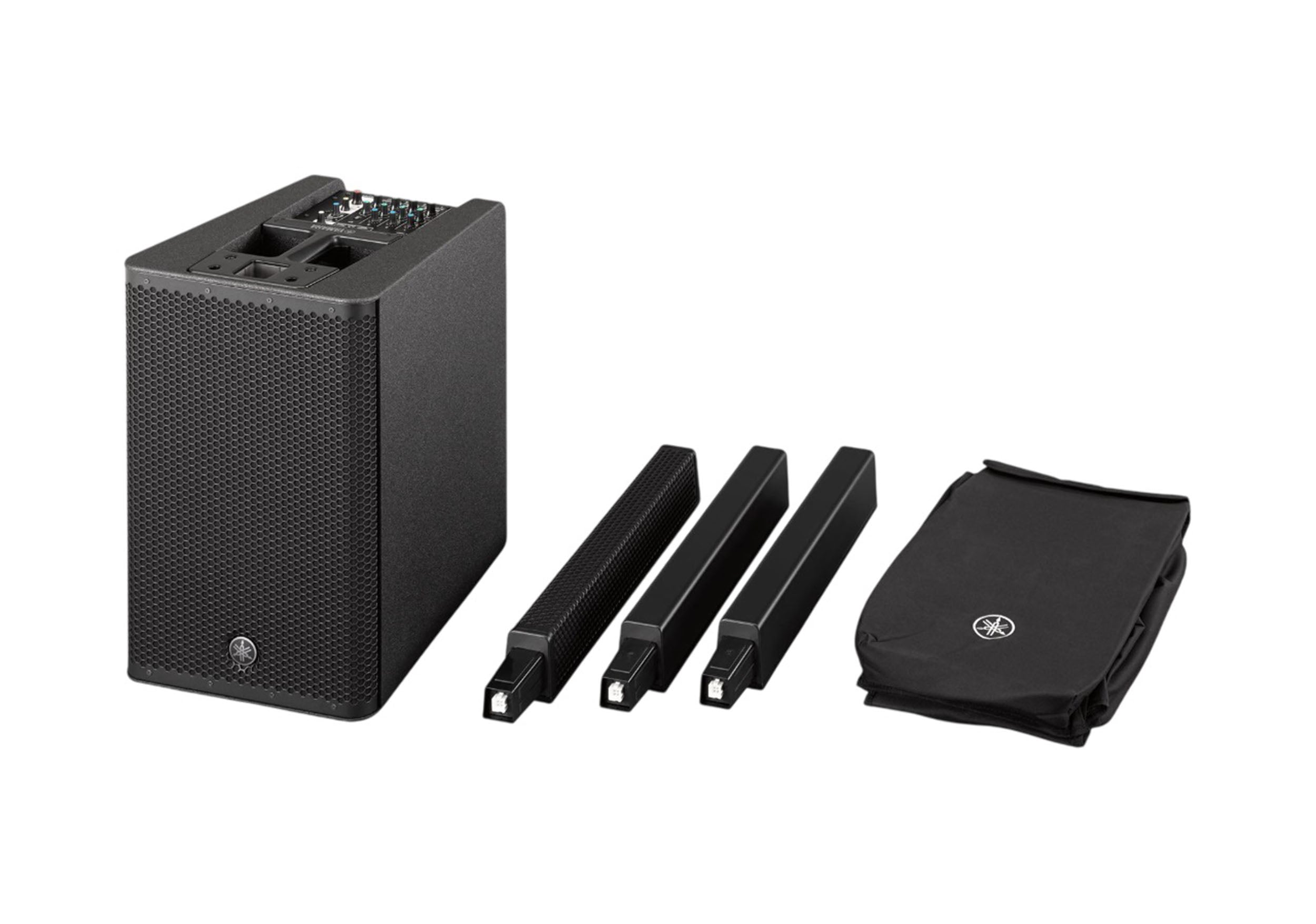

Accessories: Power cord x 1, Cover x 1
Handle: Top of powered subwoofer x1
Product Weight: 50.7 lbs / 23.0 kg
Product Dimensions (L × W × H): 16.46" × 13.15" × 78.74"
