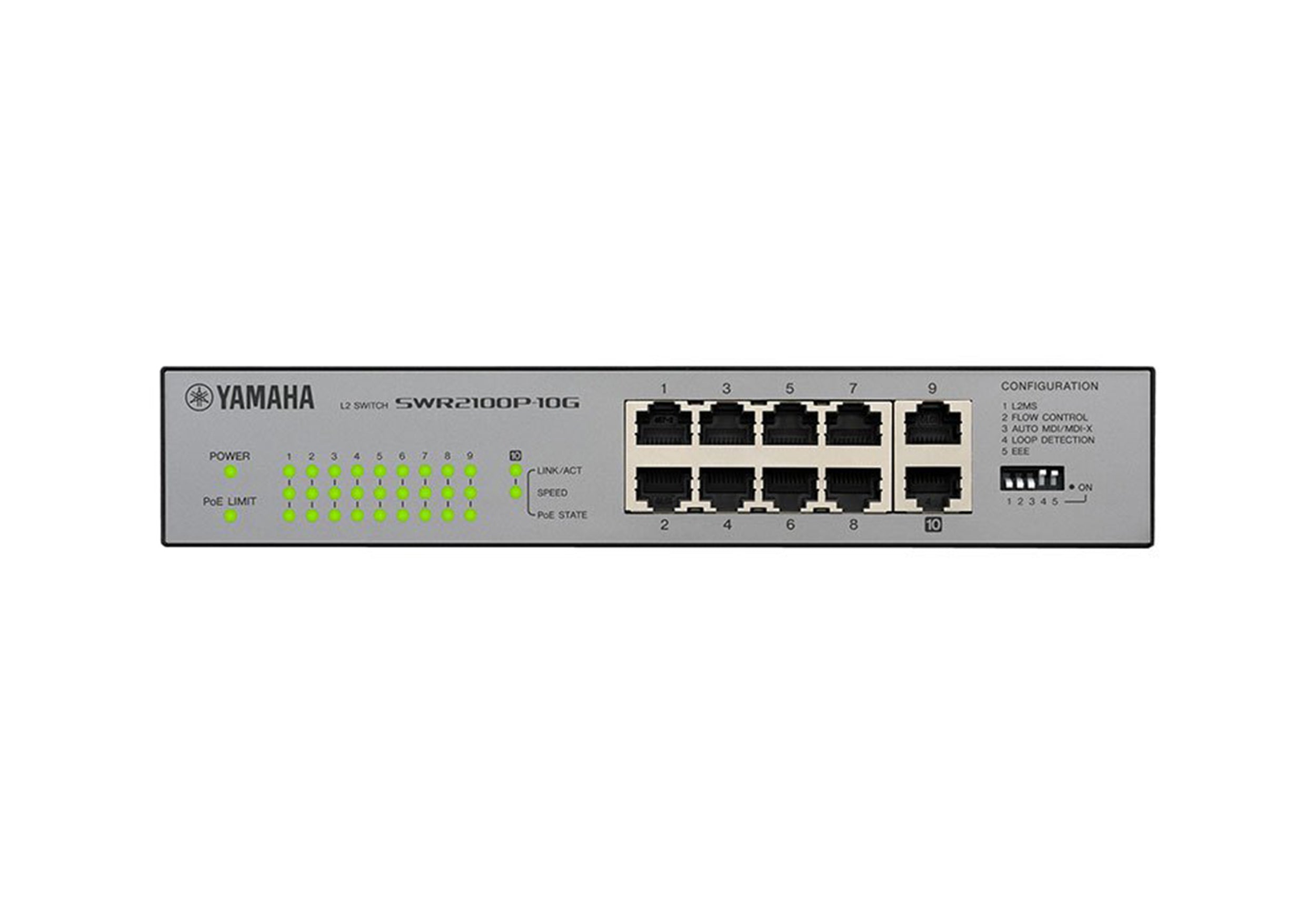

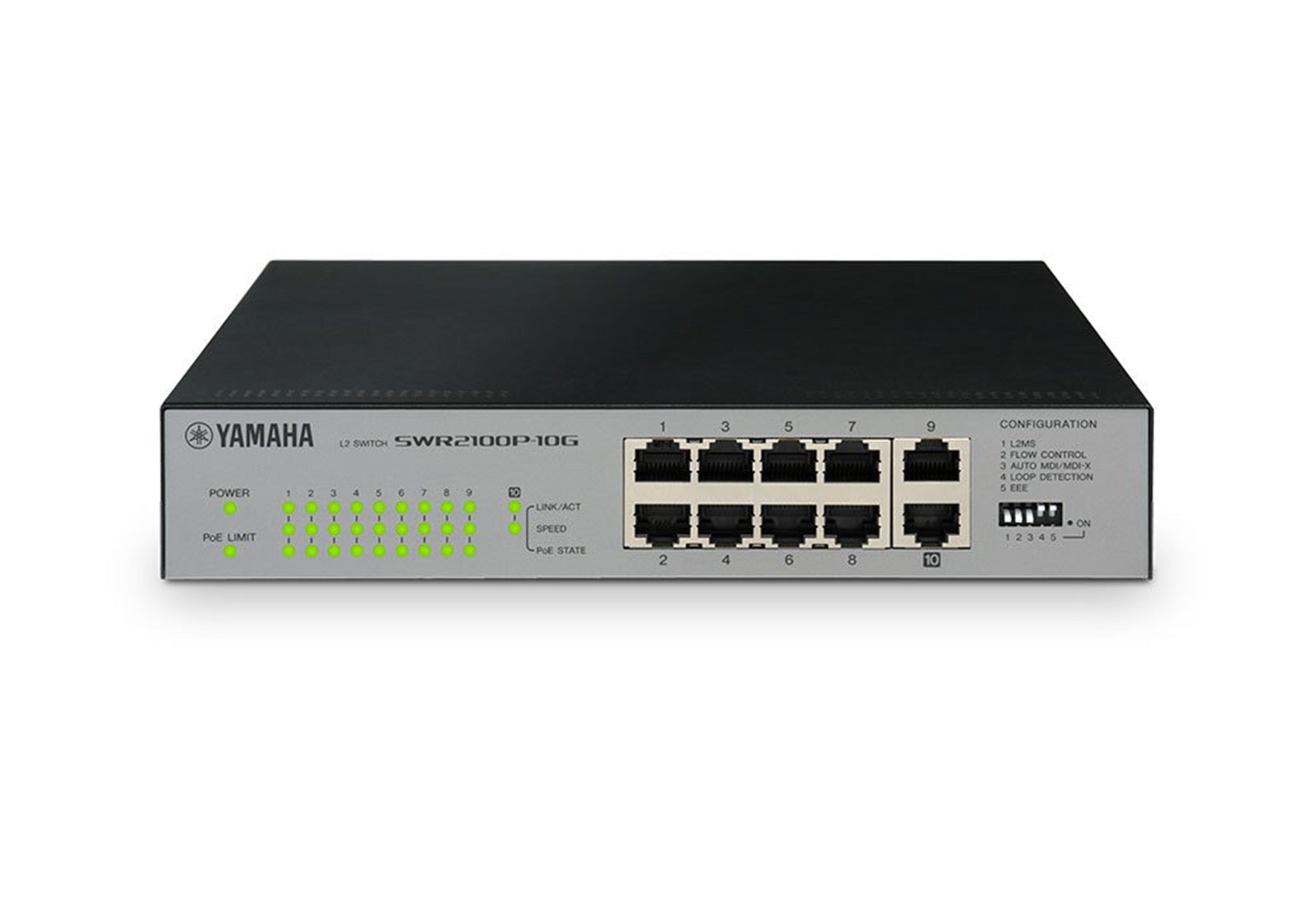

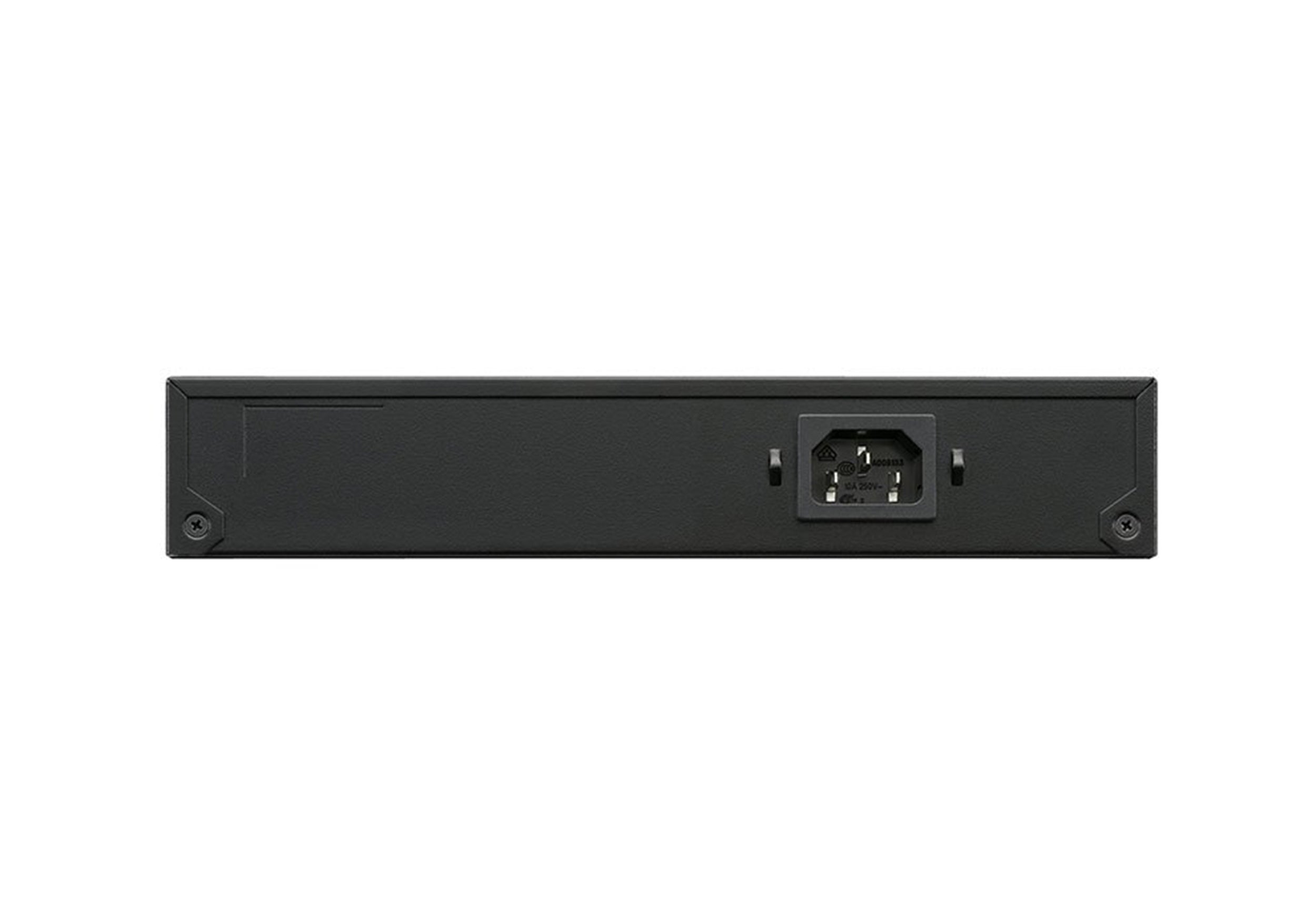

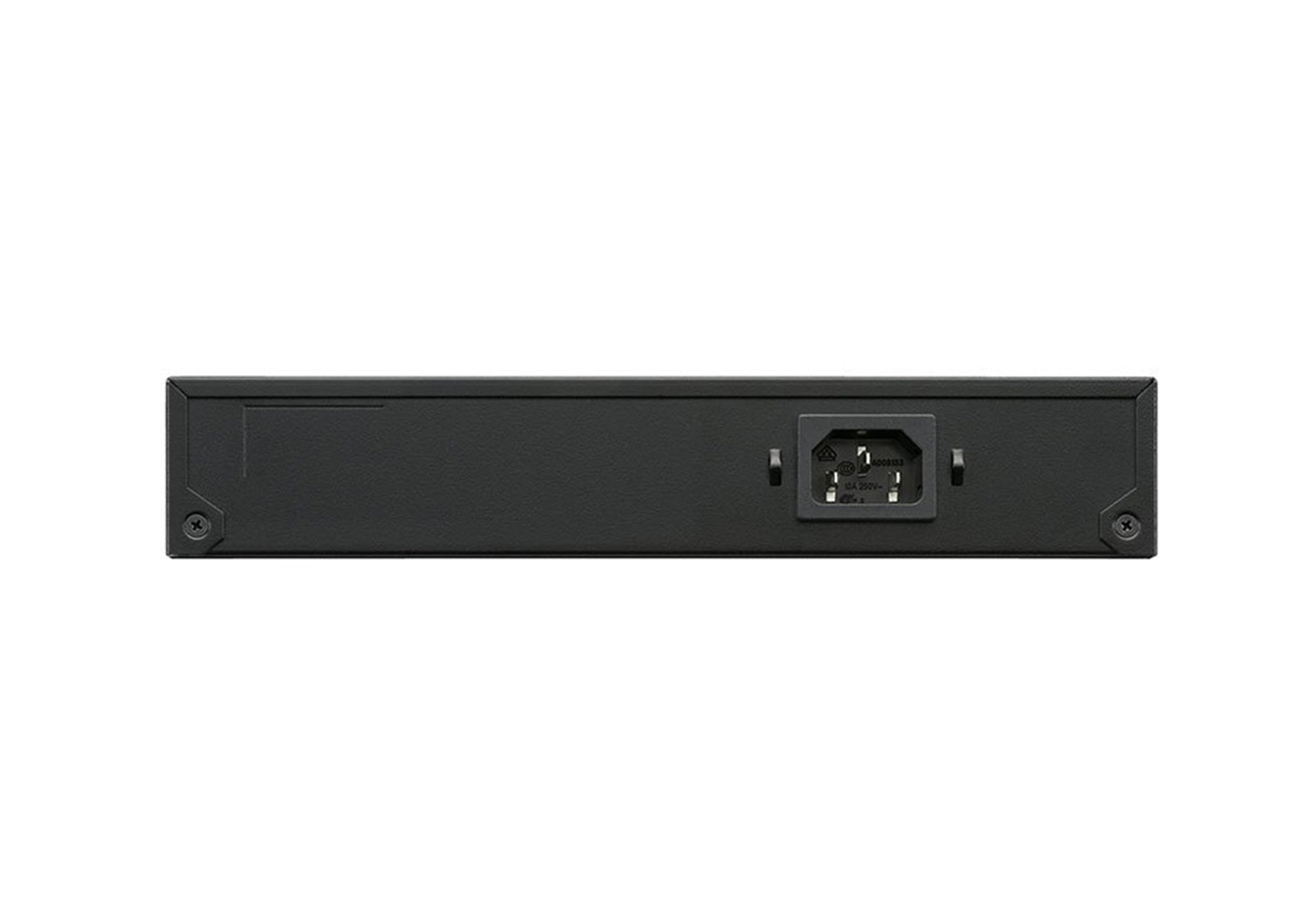

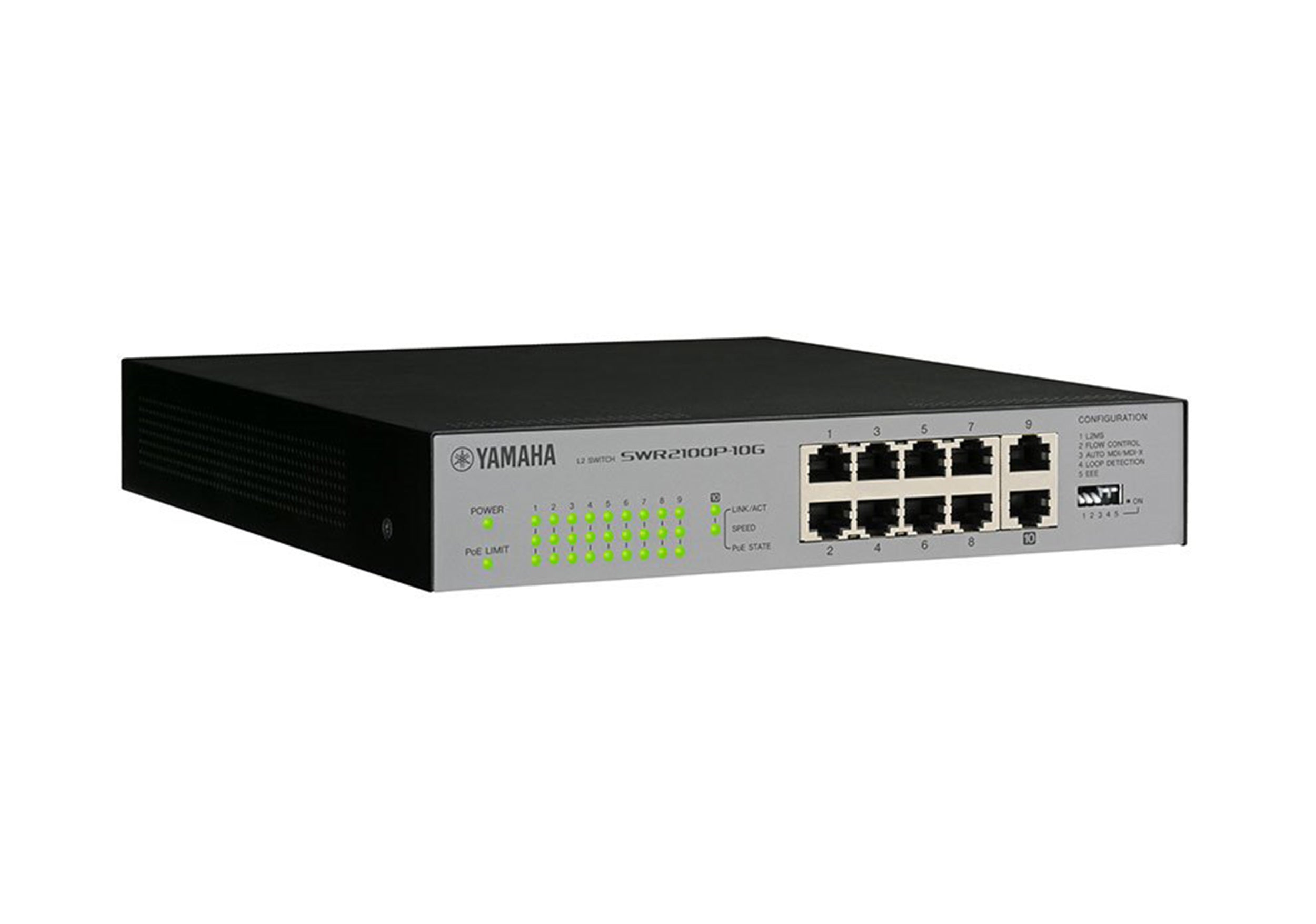

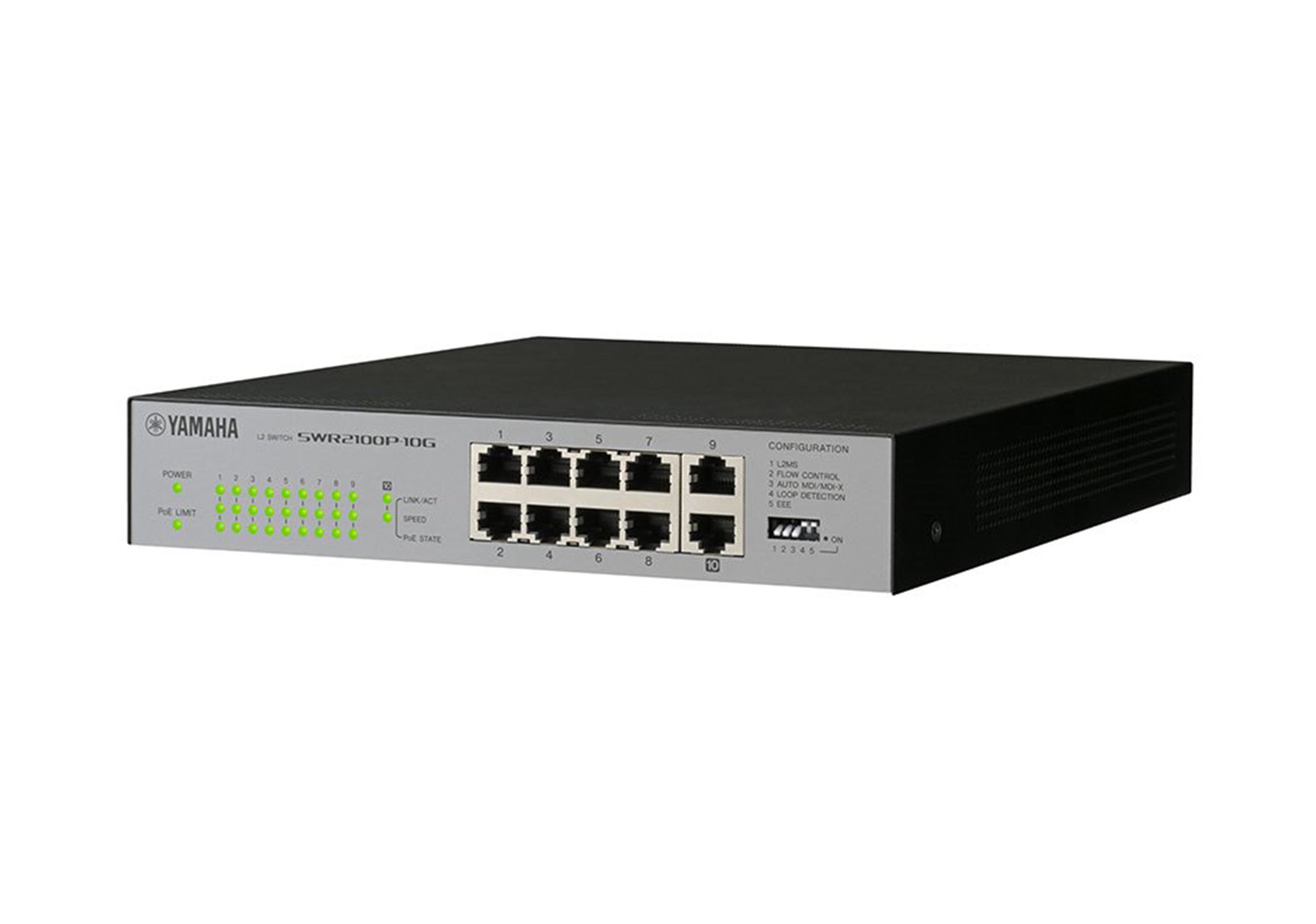

Yamaha SWR2100P-10G 10-Port L2 Network Switch with PoE for Dante Audio

The Yamaha SWR2100P-10G is a 10-port L2 network switch designed specifically for Dante-enabled audio networks, offering nine PoE-compliant ports and one uplink port. Each PoE port can supply up to 30W of power, allowing connected Dante devices, such as the PGM1 paging microphone, to receive both audio signals and power through a single Ethernet cable. This integration reduces cabling, extends connection distance, and provides greater flexibility for installing Dante devices in complex audio systems.

Beyond simple connectivity, the SWR2100P-10G allows comprehensive network monitoring via the dedicated Yamaha LAN Monitor software. Users can view the overall network topology, check PoE power status, and even remotely turn ports on or off. The snapshot function makes setup and troubleshooting easier by capturing the network status and alerting users to any changes, such as a disconnected cable or a powered-off device, helping ensure system reliability before and during performances.

Device identification is simplified through Dante icons, user-defined device IDs, and optional labels and comments for each connected unit. The SWR2100P-10G also supports collective monitoring and remote restarts: if a device stops responding, the switch can automatically cycle PoE power to attempt recovery. This capability ensures smooth, stable operation across large, distributed audio networks while minimizing downtime and simplifying network management.

Product Specifications:

LAN Ports Standard: IEEE802.3 (10BASE-T/100BASE-TX/1000BASE-T)

Number of Ports: 10 ports

Ports Available for PoE Power Supply: 9 ports (port 1–9)

PoE Standards: IEEE 802.3at

Power Supply System: Alternative A

Maximum Power Supply Per Port: 30 W (Varies depending on the power consumption class of each

connected device)

Maximum Power Supply All Ports: 70 W

Compatible PoE Powered Devices: PoE powered devices that comply IEEE 802.3af standards or IEEE

802.3at standards

Switches: CONFIGURATION switches for modifying the settings (L2MS switch, Flow control switch, Auto

MIDI/MIDI-X switch, Loop detection switch, energy save mode switch)

Indicators: POWER, PoE LIMIT, LINK/ACT, SPEED, PoE STATE (x31)

Operating Environment: Ambient temperature: 0 to 40 °C, Ambient humidity: 15 to 80% (no

condensation)

Storage Environment: Ambient temperature: -20 to 50 °C, Ambient humidity: 10 to 90% (no

condensation)

Power Supply Voltage, Frequency: AC100 V to 240 V, 50 Hz/60 Hz

Power Consumption: 90 W

Product Weight: 4 lbs / 1.8 kg

Product Dimensions (L × W × H): 9.8" × 8.66" × 1.6"
