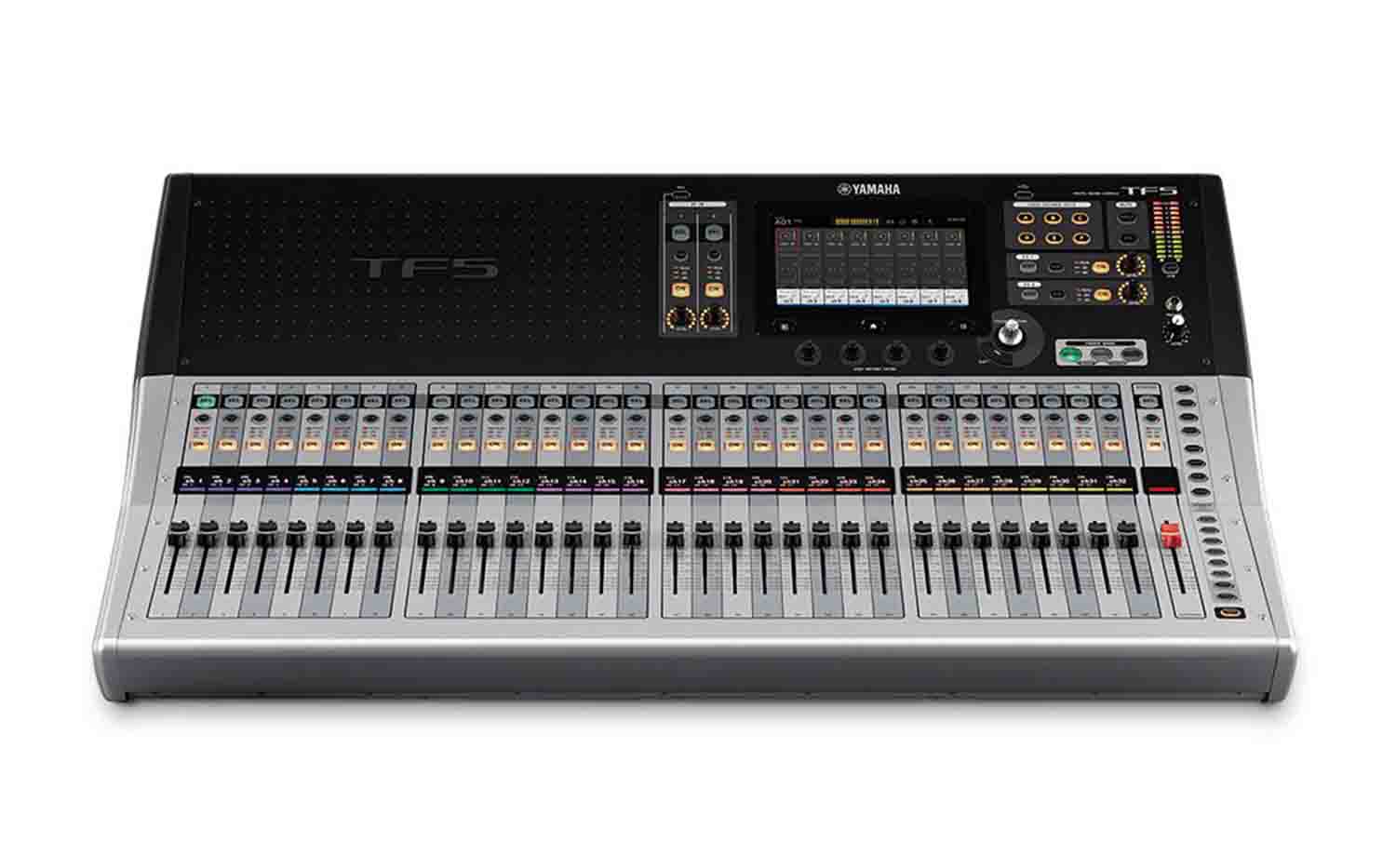

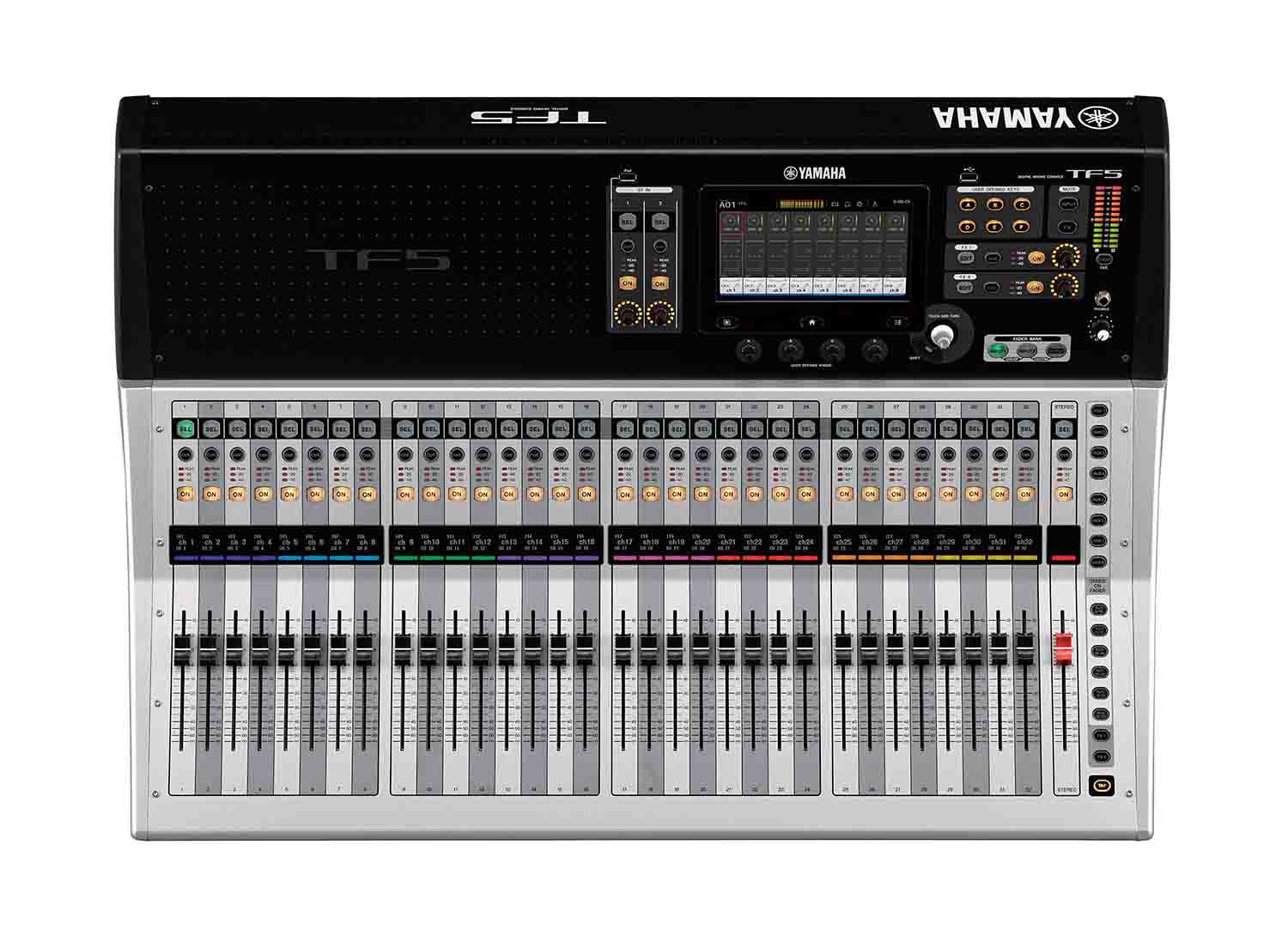

Yamaha TF5 TouchFlow Digital Mixing Console - 32 Inputs

The Yamaha TF5 is a TouchFlow Digital Mixing Console with 32 Inputs. Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user's intuition even freer rein. TouchFlow Operation introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers and newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.

TouchFlow Operation - Smooth, Natural Control Flow

Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

Product Specifications:

Type: Digital

Channels: 32 - expandable to 48 mixing channels (40 mono + 2 stereo + 2 returns)

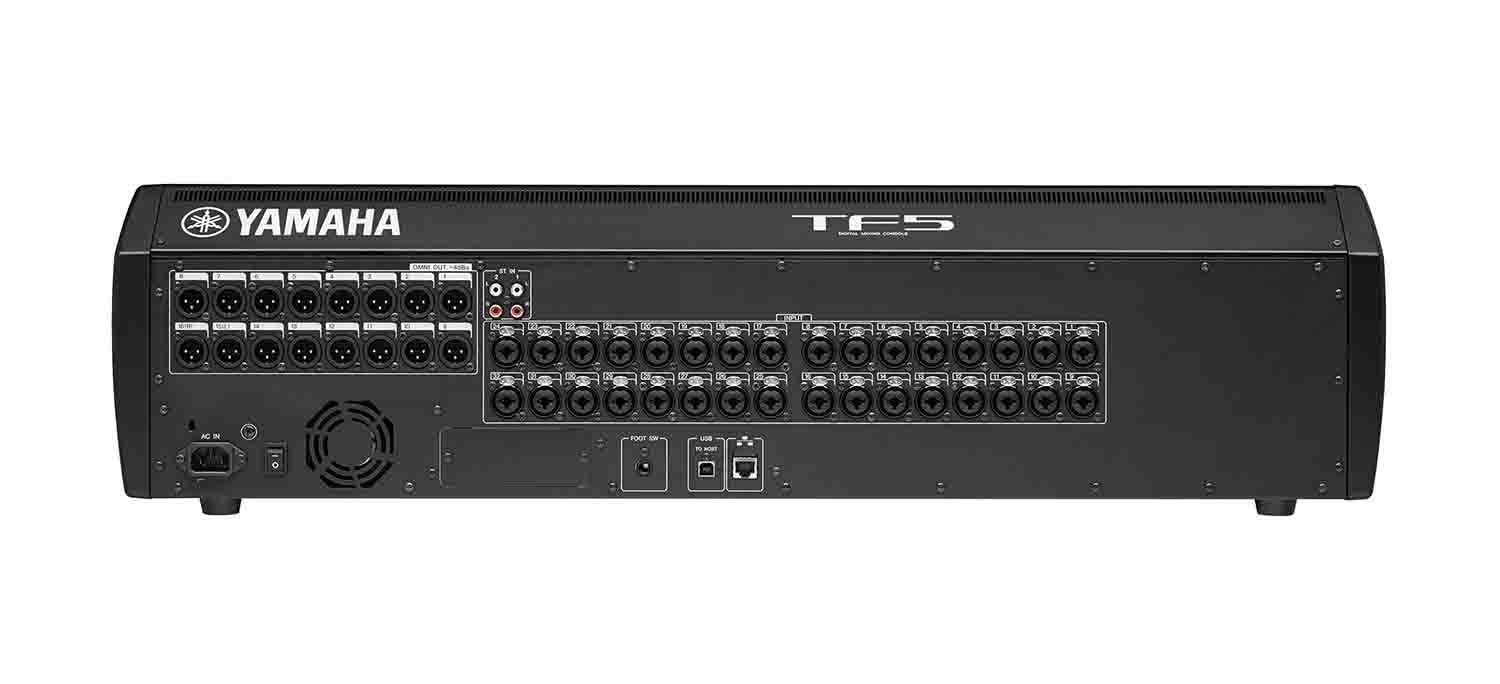

Inputs - Mic Preamps: 32 x XLR-1/4" combo

Phantom Power: 32 x Channels

Inputs - Other: 2 x Stereo (RCA), 1 x 1/4" (Footswitch)

Outputs - Main: 16 x XLR

Aux Sends: 8 x mono, 6 x stereo

Data I/O: Ethernet (remote control of Tio1608-D for additional 16 channels)

Headphones: 1 x 1/4"

USB: 2 x Type A, 1 x Type B

Computer Connectivity: USB (34 x 34)

I/O Expansion Slots: NY64-D audio interface card

Faders: 33 x 100mm Throw

EQ Bands: 4-band

Effects: 8 Effects + 10 GEQ

Rackmountable: No

Height: 8.9"

Depth: 23.6"

Width: 34.1"

Weight: 44.1 lbs.
