Description

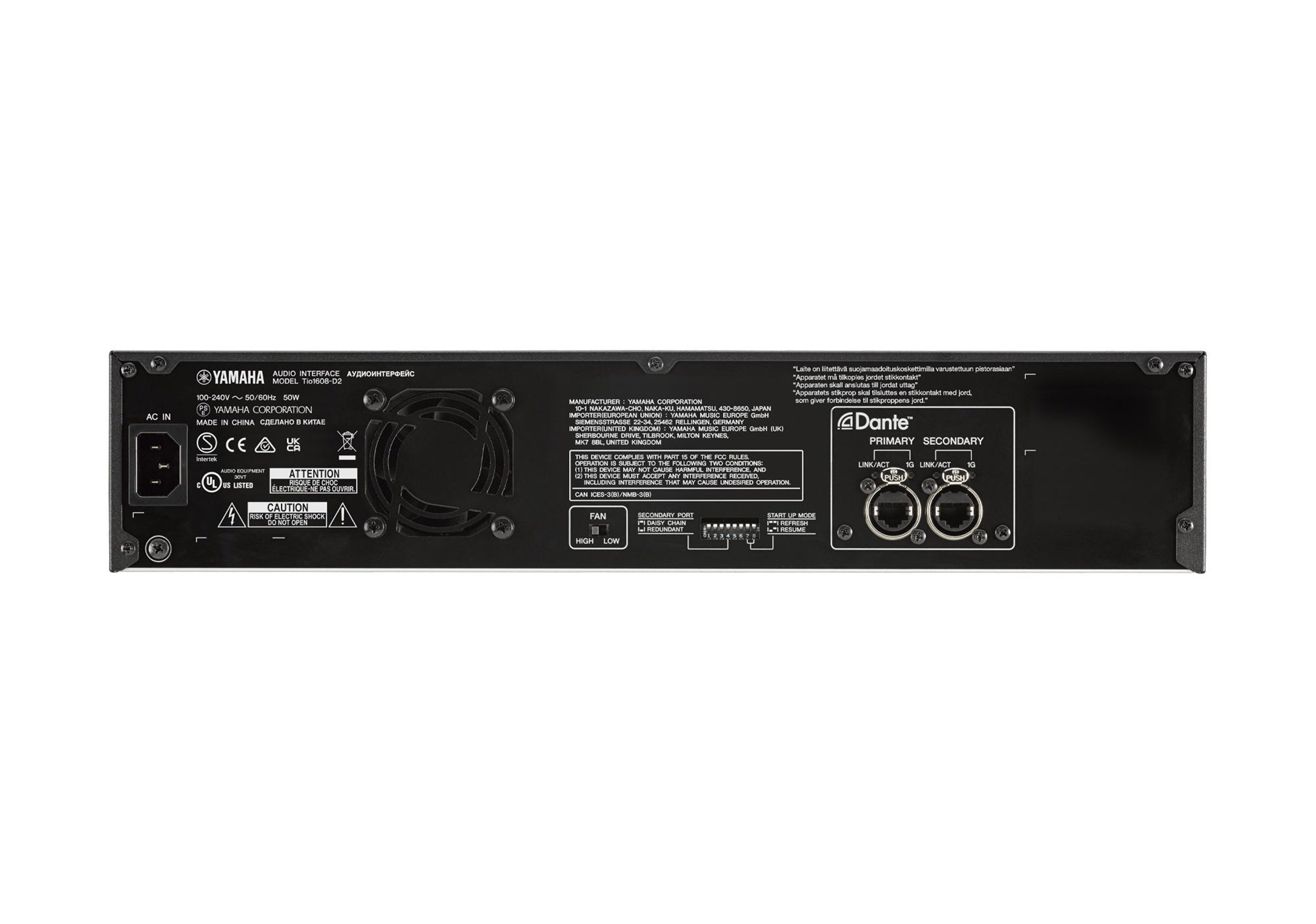

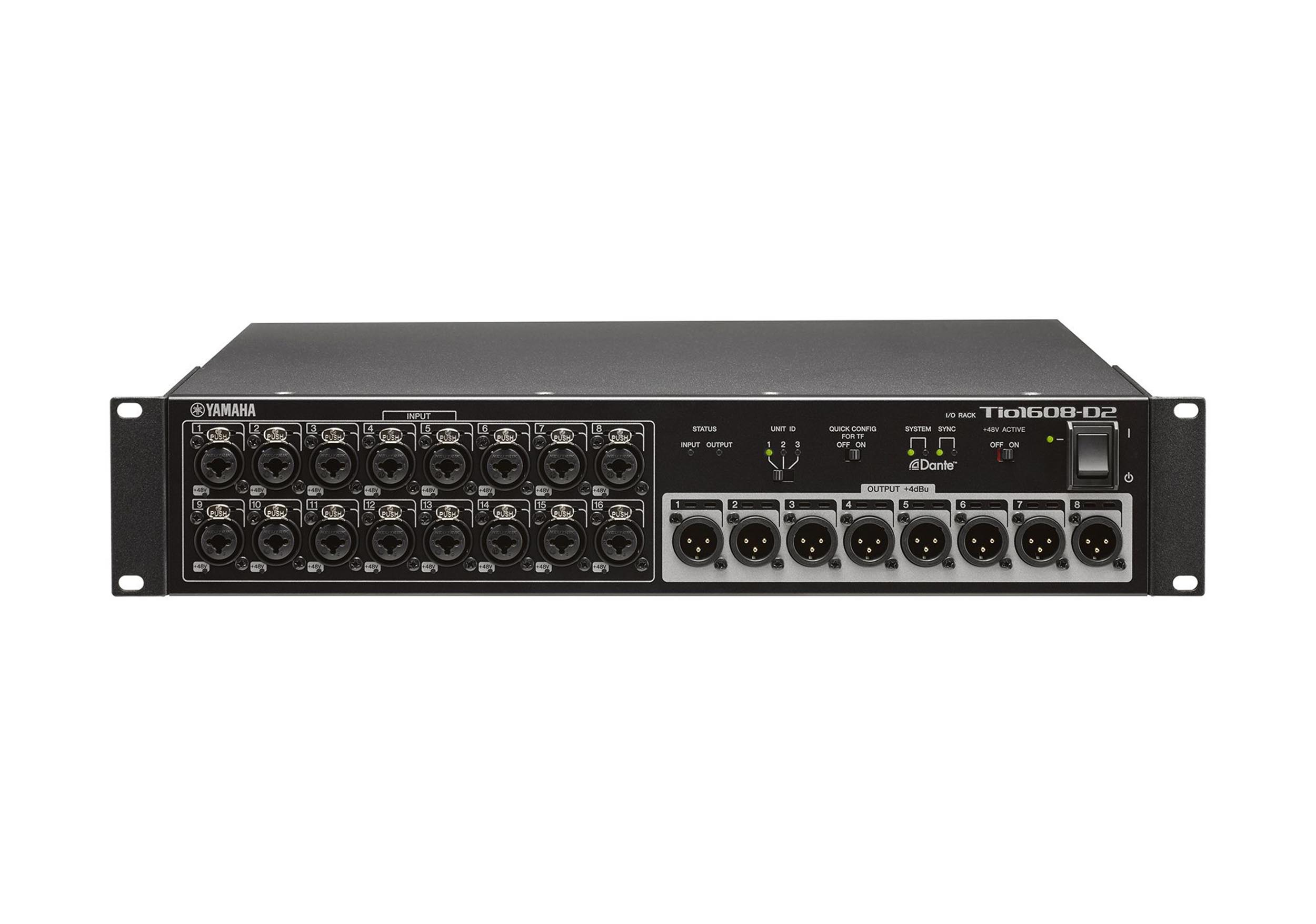

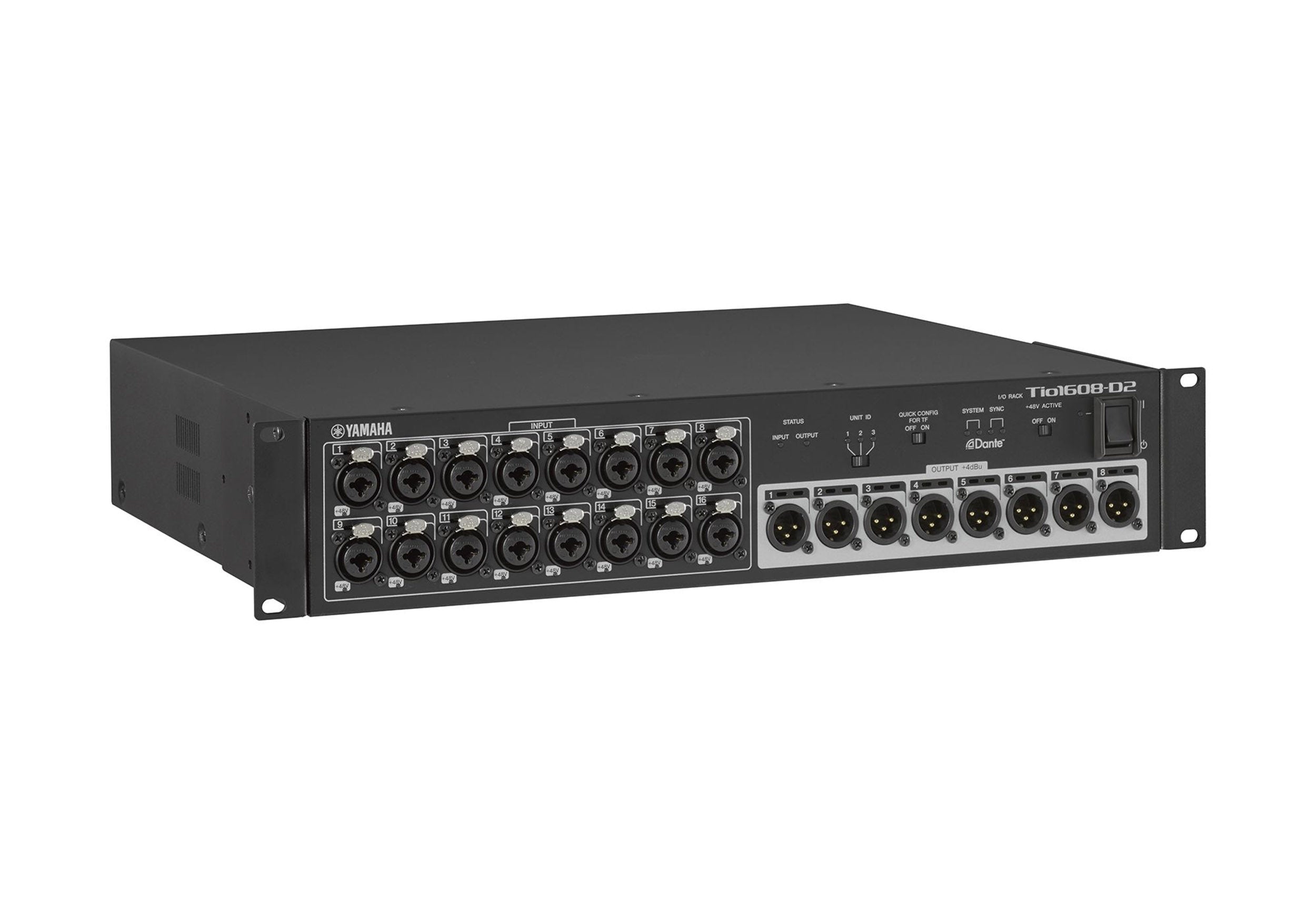

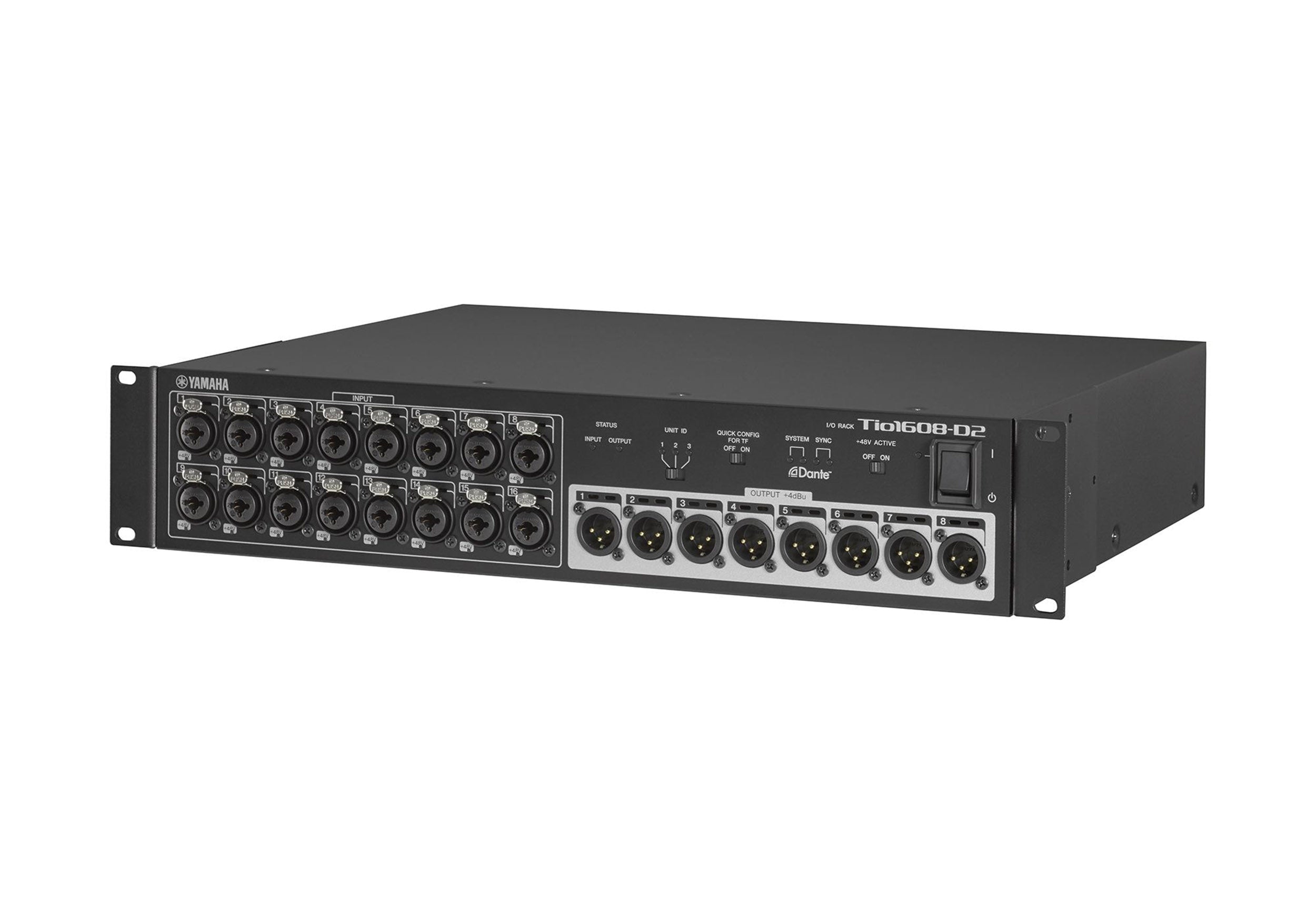

The Yamaha TIO1608-D2 is a versatile, Dante-compatible I/O rack designed for seamless integration with Yamaha digital mixers such as the TF Series and DM3. It features 16 mic/line inputs and 8-line outputs, allowing gain control directly from the connected console. Ideal for constructing a simple yet high-quality stagebox system, the Tio1608-D2 also supports 96 kHz audio, making it suitable for large-scale installations alongside RIVAGE PM or DME7 systems. Its compact, durable design ensures reliable performance in live or installed environments.
Scalable Dante Network Integration
Leveraging the Dante audio network protocol, the Tio1608-D2 allows for low-latency, high-fidelity audio transmission over a single CAT5e Ethernet cable. It can be combined with multiple consoles or additional R-series I/O racks to create scalable systems that match the requirements of any venue or budget. Automatic configuration features like QUICK CONFIG for TF Series and AUTO CONFIG for DM3 simplify setup, while patching and routing can be easily managed via the TF Series input screen or DM3 PATCH menu.
Premium Sound with Recallable D-PRE-Preamps
The Tio1608-D2 inherits Yamaha’s recallable D-PRE microphone preamplifiers, providing consistent, natural, and musical sound across all inputs. Its meticulous design-from circuit layout and grounding to component selection-ensures a high-quality sonic foundation. The unit supports Remote HA control, allowing gain adjustments from the console, and works seamlessly with StageMix app for wireless remote control, giving engineers flexible operation from the stage, audience, or control area.
Product Specifications:
Sampling Frequency Rate (External): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Signal Delay: Less than 1.3 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25 ms
(one way), Fs=96 kHz; Less than 2.6 ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to
0.25 ms (one way), Fs=48 kHz
Total Harmonic Distortion: Less than 0.2% +4 dBu @20Hz–20kHz into 600Ω, Gain=+66 dB / Less than
0.05% +4 dBu @20Hz–20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2/96 kHz; Less than 0.1%
+4 dBu @20Hz–20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBu @20Hz–20kHz into 600Ω,
Gain=-6 dB, INPUT to OUTPUT, Fs=44.1/48 kHz
Frequency Response: +0.5, -1.5 dB 20Hz–20kHz, refer to nominal output level @1kHz, INPUT to OUTPUT
Dynamic Range: 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96 kHz; 108 dB, INPUT
to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48 kHz
Hum & Noise Level – Equivalent Input Noise: -128 dBu, Gain=+66 dB, Fs 96/48 kHz, measured with A
weighting filter
Hum & Noise Level – Residual Output Noise: -86 dBu, Fs 96 kHz / -88 dBu, Fs 48 kHz, ST main off,
measured with A-weighting filter
Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain=-6 dB, measured with -30 dB/octave
filter @22 kHz
Heat Dissipation: 100–240V, 50/60Hz, 43.5 kcal/h
Power Requirements: 100–240V, 50/60Hz
Power Consumption: 50 W
Product Weight: 12.6 lbs / 5.7 kg
Product Dimensions (L × W × H): 14.4" × 18.9" × 3.5"
