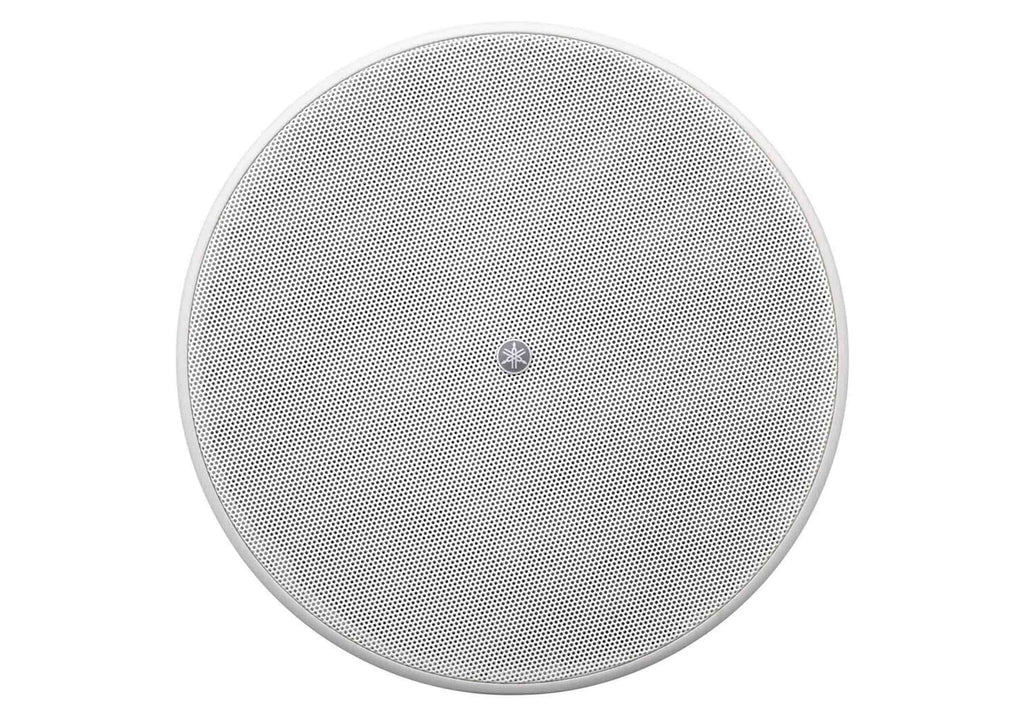

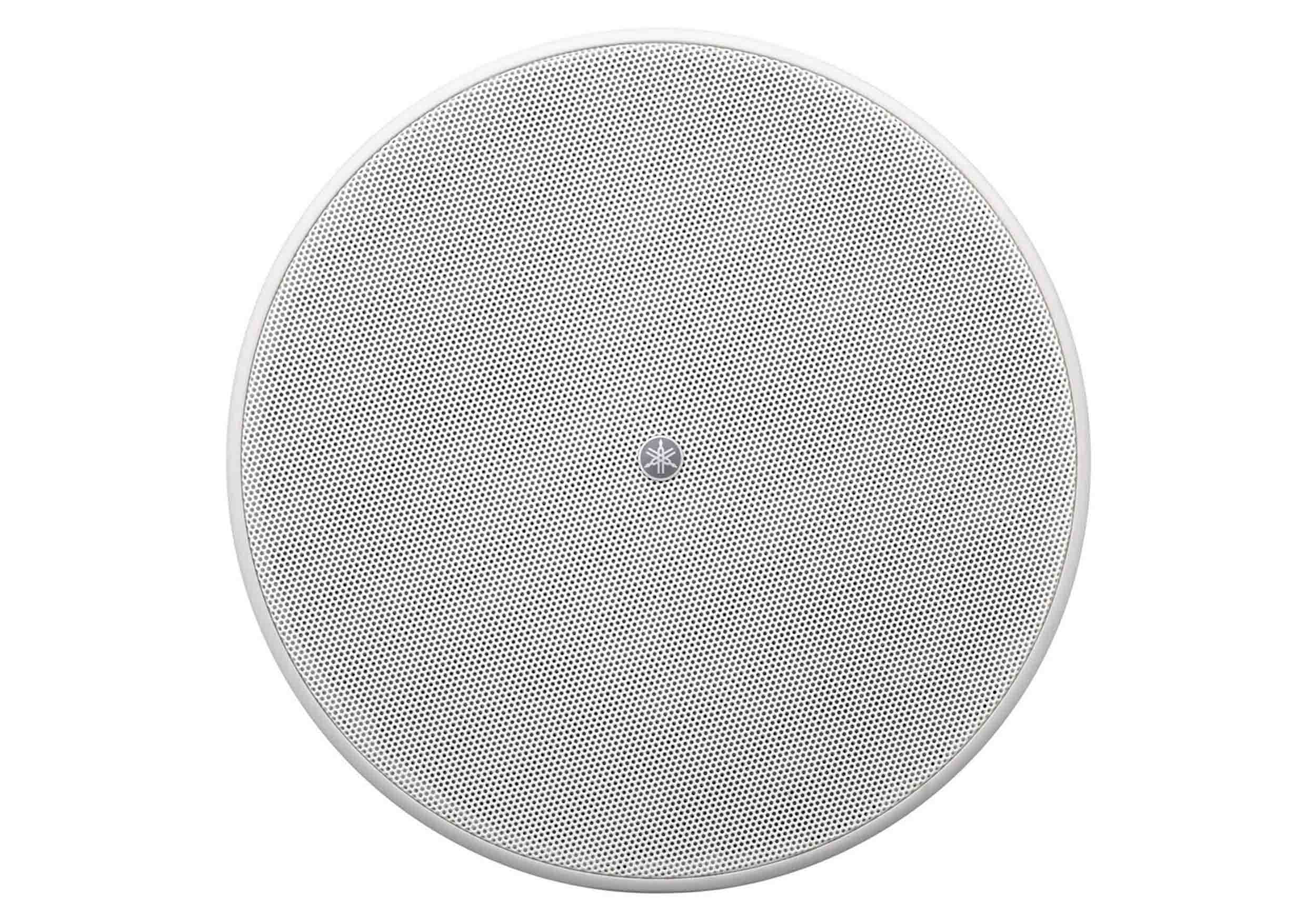

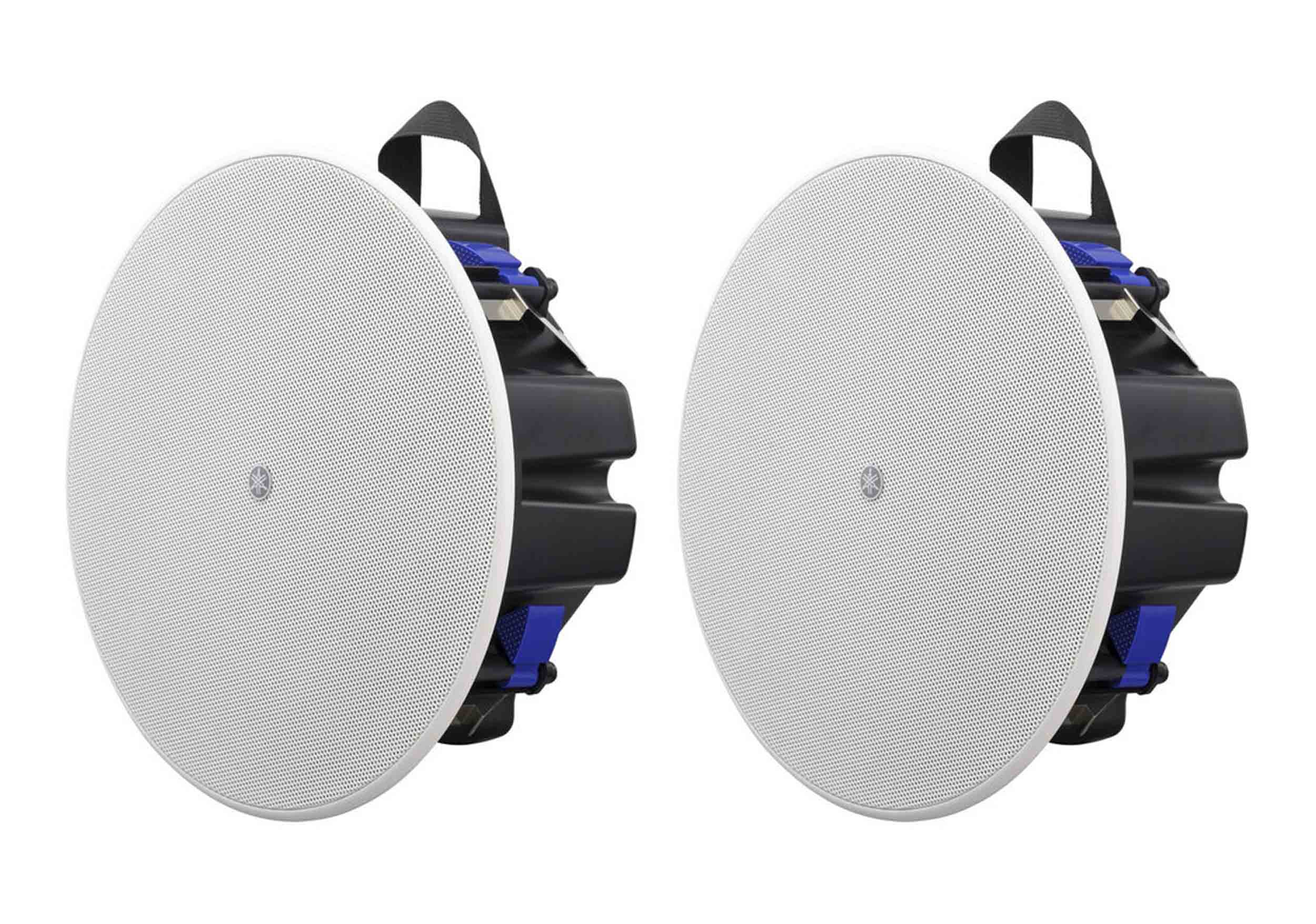

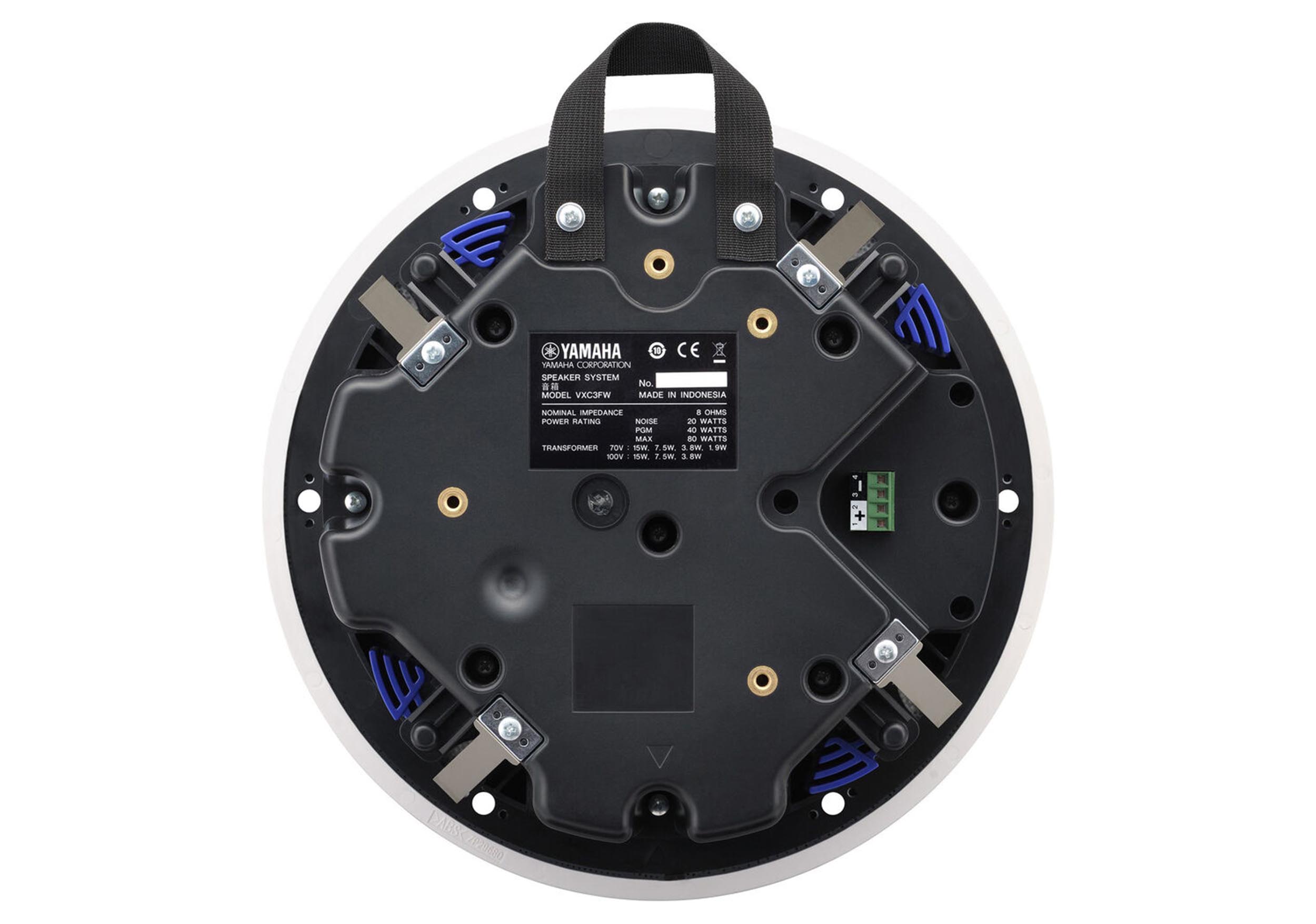

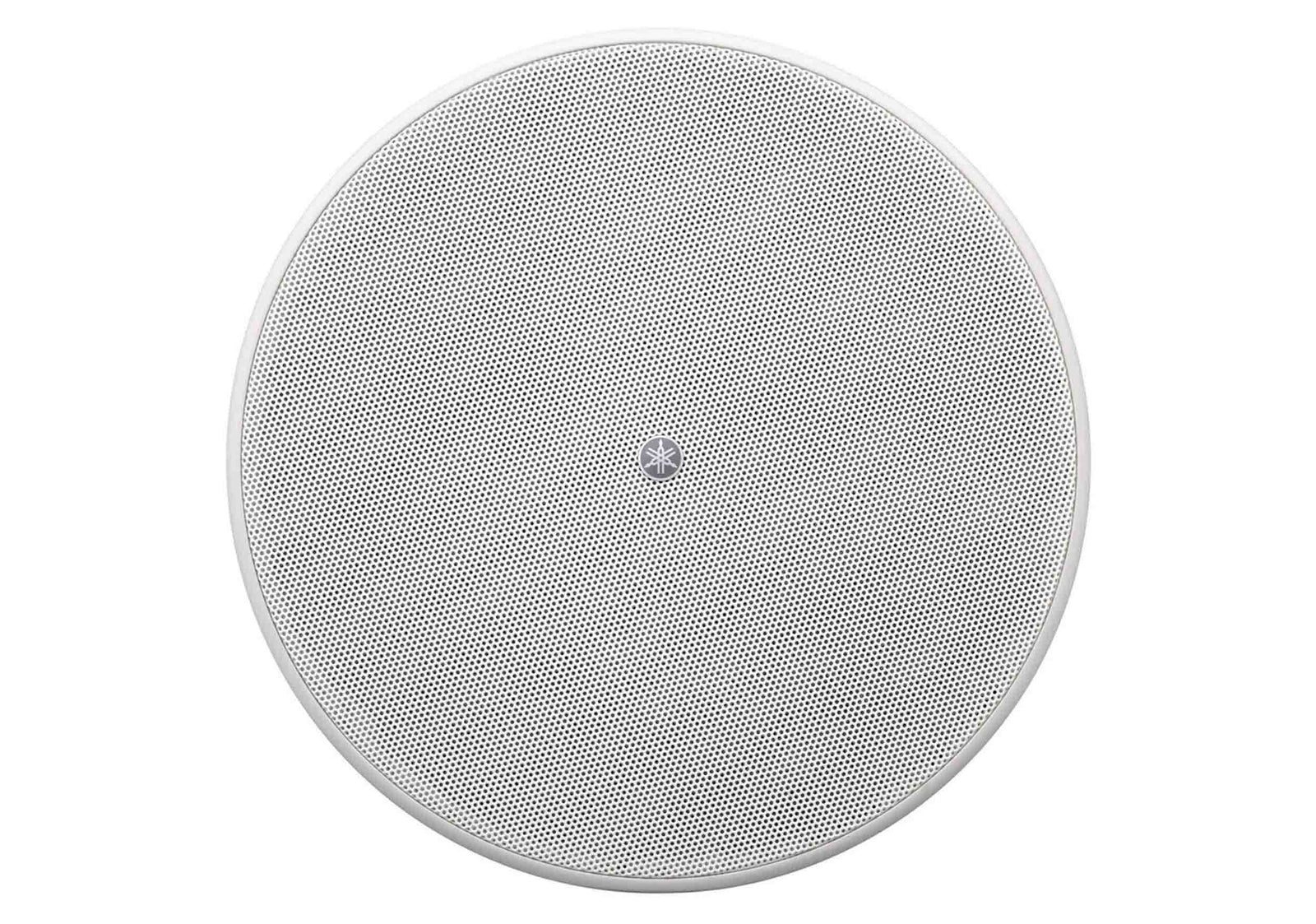

Yamaha VXC3FW 3.5" Full-Range Low-Profile Ceiling Speaker - White Pair

The Yamaha VXC3FW is a 3.5" full-range, low-profile ceiling speaker designed for high-quality background music in commercial environments. Engineered with a newly developed speaker unit and a shallow, lightweight enclosure, it delivers natural, well-balanced audio reproduction across the frequency spectrum, even at low volume levels. Its low-profile back can, measuring less than 76.2 mm (3 inches) deep, allows installation in ceilings with limited space, making it ideal for restaurants, cafés, retail stores, hotels, museums, and similar venues.

The VXC3FW supports both low-impedance and high-impedance connections, giving system designers flexibility and reducing the need for additional inventory. Installation is safe and efficient thanks to the built-in carrying band, anti-drop tab mechanism, and double-threaded speaker clamp screws for fast tightening. The lightweight design also reduces the physical burden during installation, while the anti-drop tab securely holds the speaker in place, allowing smooth removal when necessary.

Designed with aesthetics and functionality in mind, the VXC3FW comes with a white magnetic grille that can be painted to match interior décor. The grilles are held securely in place while providing easy access for maintenance. Combining Yamaha’s expertise in musical instrument sound and professional audio technology, the VXC3FW delivers superior background music performance while offering a streamlined, safe, and flexible installation solution for commercial spaces.

Product Specifications:

Speaker Type: Full range, bass reflex

Frequency Range (-10 dB): 71 Hz – 20 kHz (Half-space: 2π)

Nominal Coverage: 140° conical (Half-space: 2π)

Components: 3.5" full-range unit

Power Rating (Noise): 20 W

Power Rating (PGM): 40 W

Power Rating (Peak): 80 W

Nominal Impedance: 8 Ω

Transformer Taps (100 V): 15 W, 7.5 W, 3.8 W

Transformer Taps (70 V): 15 W, 7.5 W, 3.8 W, 1.9 W

Sensitivity (1 W / 1 m, on axis): 87 dB SPL (Half-space: 2π)

Peak SPL (Calculated): 106 dB SPL (1 m)

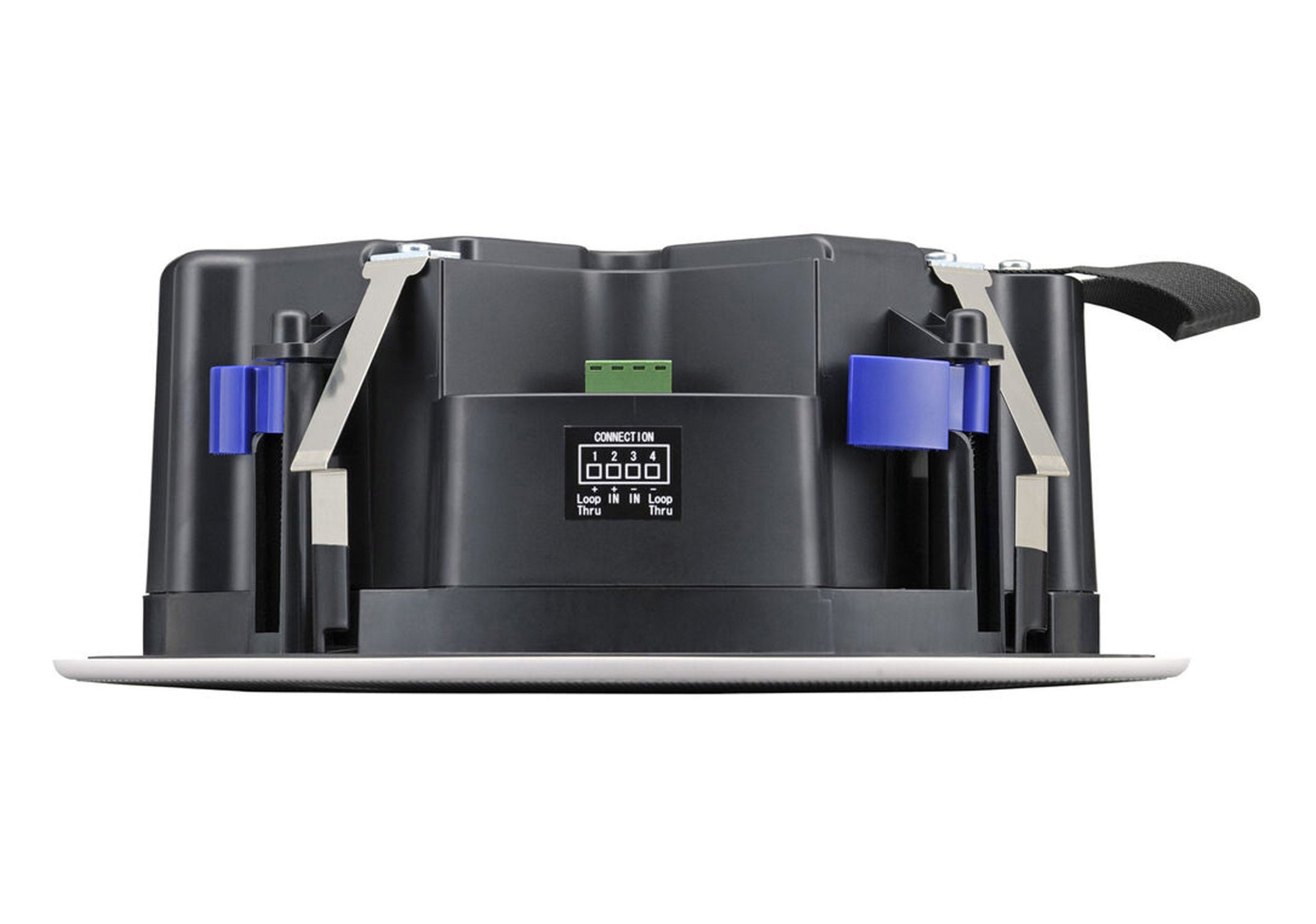

I/O Connectors: Euroblock (4-pin) × 1 (input +/-, loop-thru +/-)

Protection Circuit: Full-range power limiting to protect network and transducers

Finish: VXC3FW White (approx. Munsell N9.3)

Cutout Size: Ø247 mm (Ø9-3/4 in)

Required Ceiling Board Thickness: 5 mm – 37 mm

Product Weight: 5.5 lbs / 2.5 kg

Product Dimensions (L × W × H): 11.25” × 11.25” × 4.44”
