Description

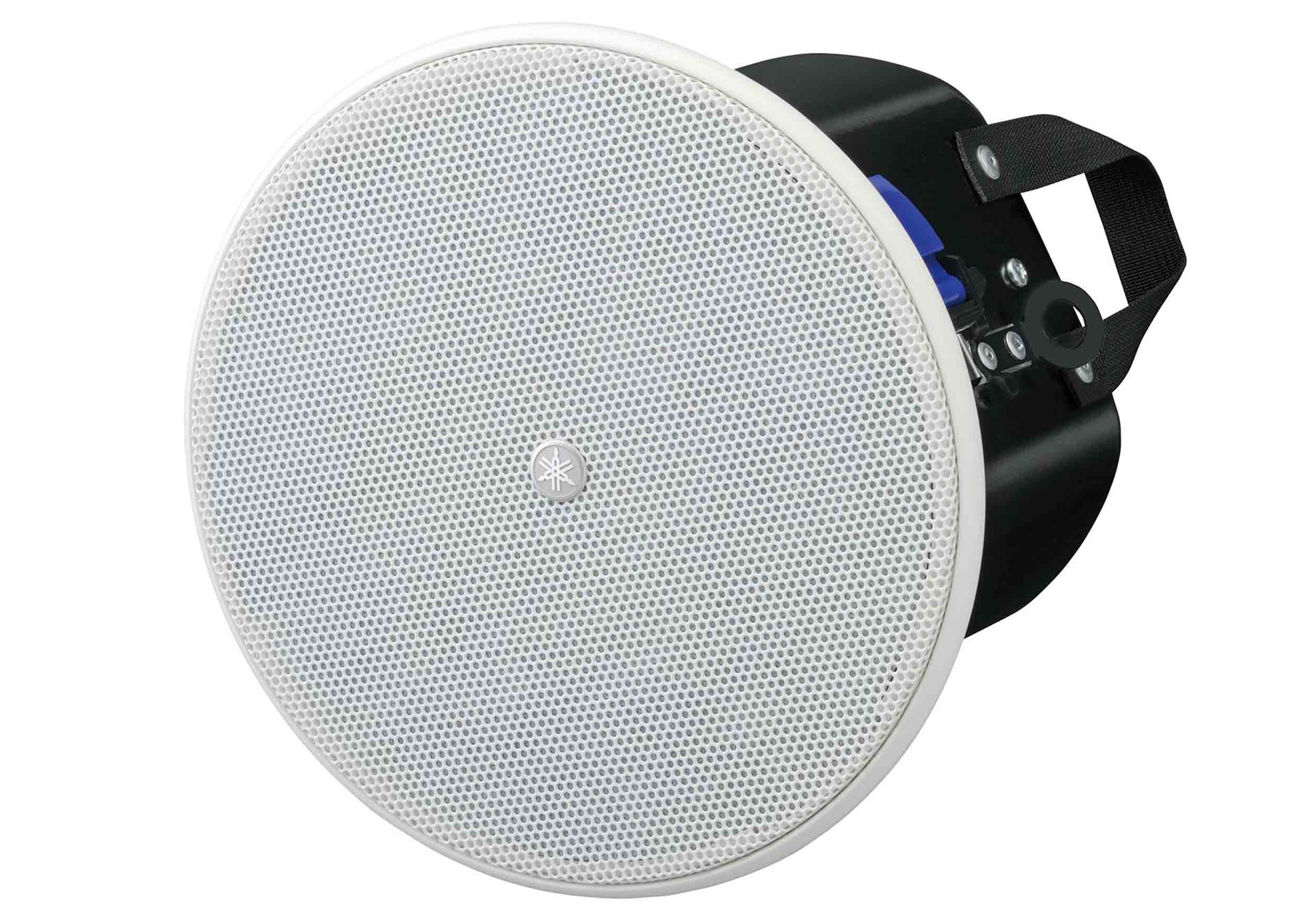

The Yamaha VXC4W is a full-range 4" in-ceiling loudspeaker designed to deliver premium audio performance across a variety of commercial applications. Engineered for superior music reproduction and clear speech intelligibility, it is ideal for restaurants, retail spaces, hotels, museums, and other venues. As part of the VXC Series, the VXC4W features plenum-listed (UL 1480) construction, a high-quality internal transformer for high-impedance operation, and an 8-ohm bypass switch for low-impedance functionality, providing integrators with flexible system design and simplified inventory management.

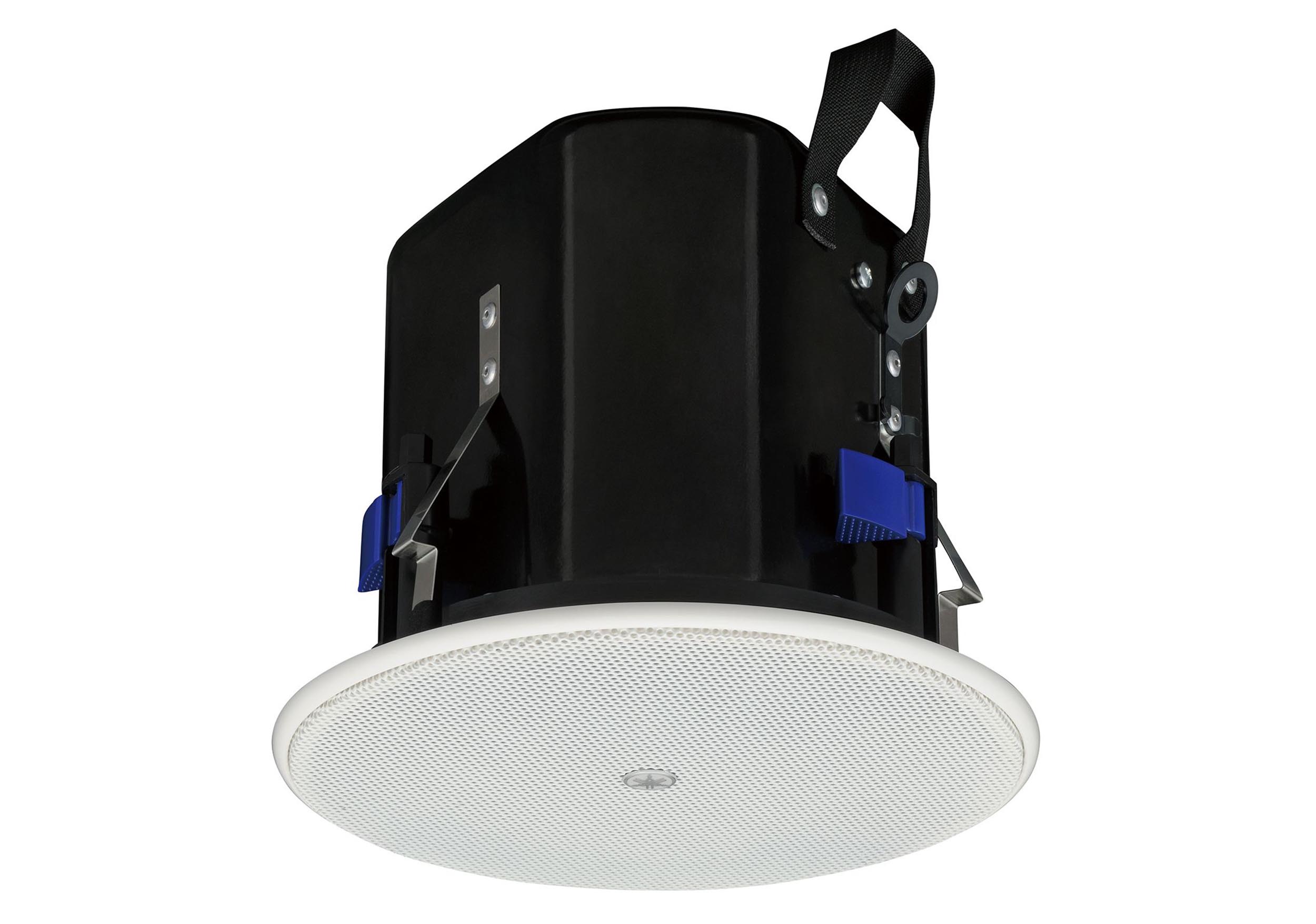

Installation is safe, seamless, and efficient with features such as anti-drop tabs that allow the speaker to be temporarily secured in place, and a built-in carrying handle for easy transport or attachment to a work belt. The lightweight, low-profile design ensures quick, single-person handling and reduces strain during setup, while maintaining secure placement in ceilings. These features make the VXC4W an ideal choice for professional installers seeking safety, speed, and reliability.

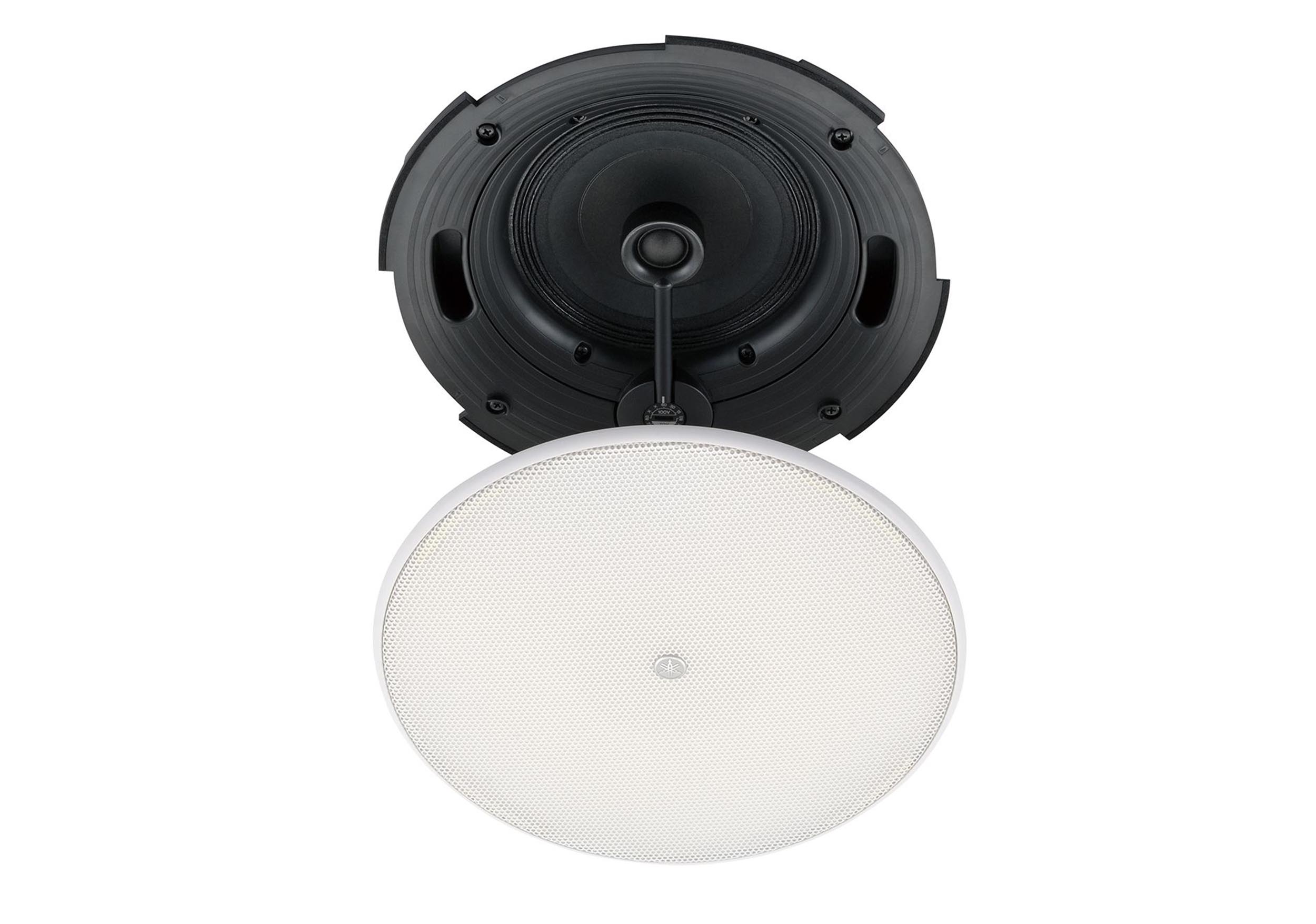

Designed with both sound quality and aesthetics in mind, the VXC4W’s hexagonal grille enhances acoustic performance by increasing the aperture ratio, while the innovative tweeter design improves clarity without restricting woofer movement. The magnetic grille is fully paintable, allowing it to blend seamlessly with any interior décor. With Yamaha’s meticulous attention to acoustic design, materials, and construction, the VXC4W delivers natural, well-balanced sound in a sleek, unobtrusive package.
Product Specifications:
Speaker Type: Full-range, bass reflex
Frequency Range (-10 dB): 80 Hz – 20 kHz (Half-space: 2π)
Nominal Coverage: 130° conical (Half-space: 2π)
LF-HF: 4" full-range
Power Rating (Noise): 30 W
Power Rating (PGM): 60 W
Power Rating (Peak): 120 W
Nominal Impedance: 8 Ω
Transformer Taps (100 V): 30 W (330 Ω), 15 W (670 Ω), 7.5 W (1.3 kΩ)
Transformer Taps (70 V): 30 W (170 Ω), 15 W (330 Ω), 7.5 W (670 Ω), 3.8 W (1.3 kΩ)
Sensitivity (1 W / 1 m, on axis): 87 dB SPL (Half-space: 2π)
Peak SPL (Calculated): 108 dB SPL (1 m, based on power rating and sensitivity)

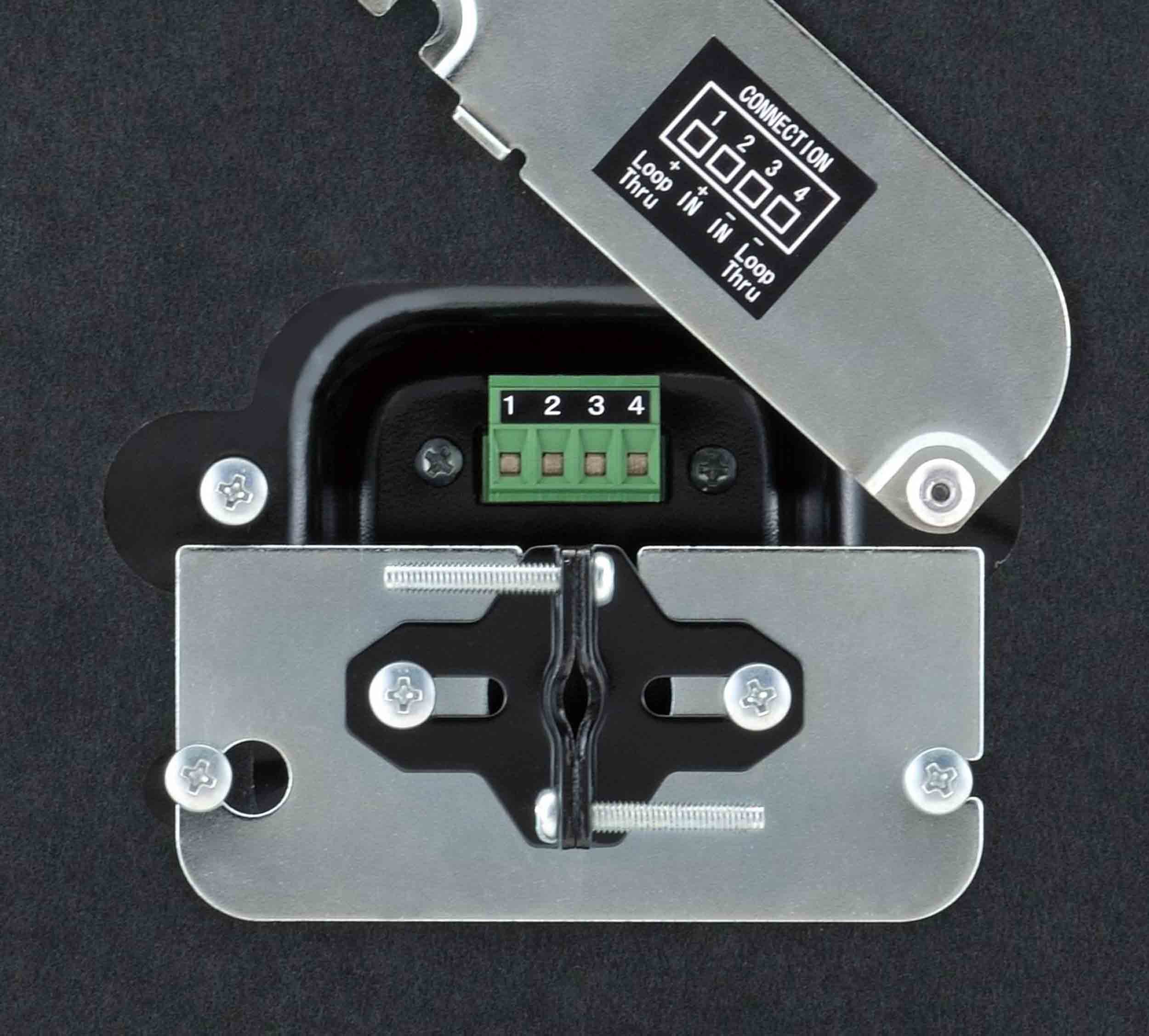

I/O Connectors: 1 × Euroblock (4P) (Input +/-, Loop Thru + / -)
Finish: VXC4W White
Cutout Size: Ø186 mm (Ø7-5/16 in)
Required Ceiling Board Thickness: 5 mm - 35 mm
Product Weight: 5.7 lbs / 2.6 kg
Product Dimensions (L × W × H): 8.9” × 8.9” × 7.7”
