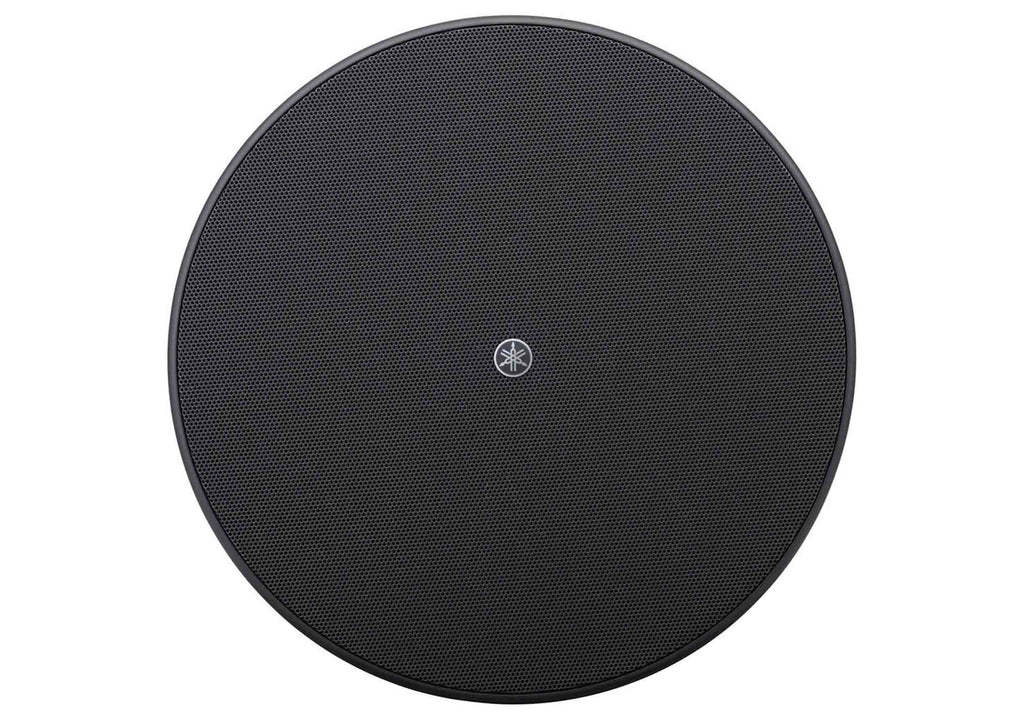

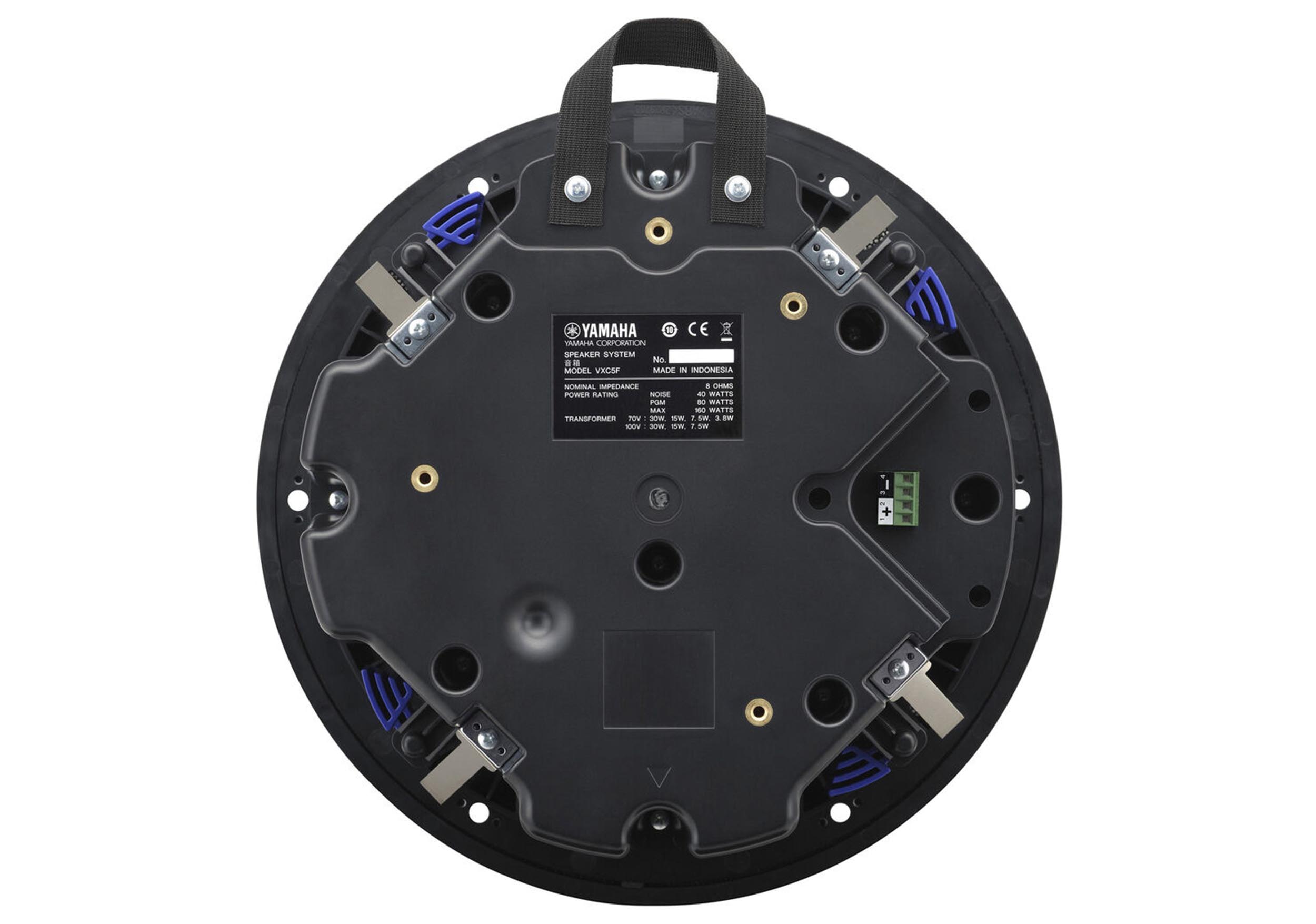

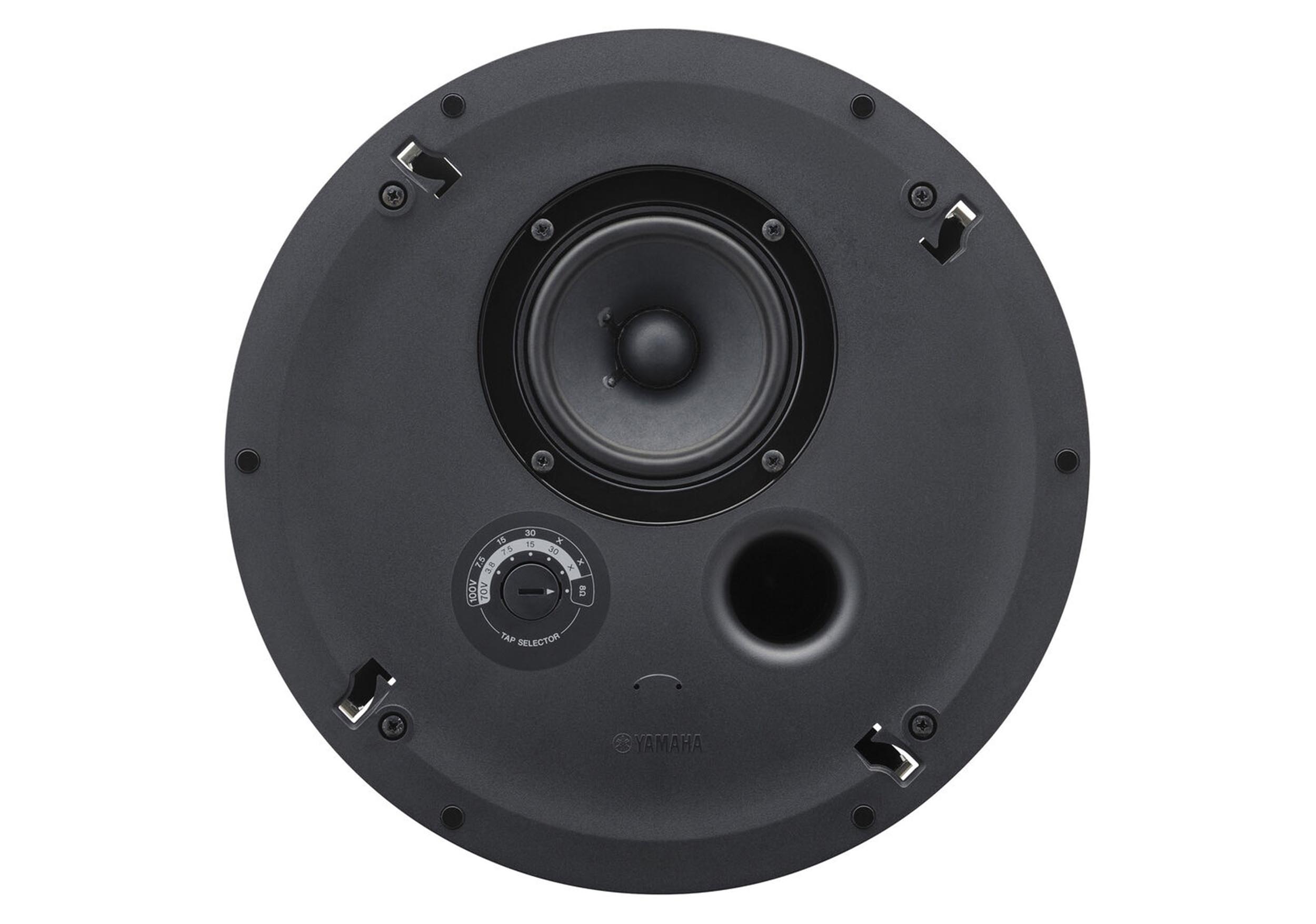

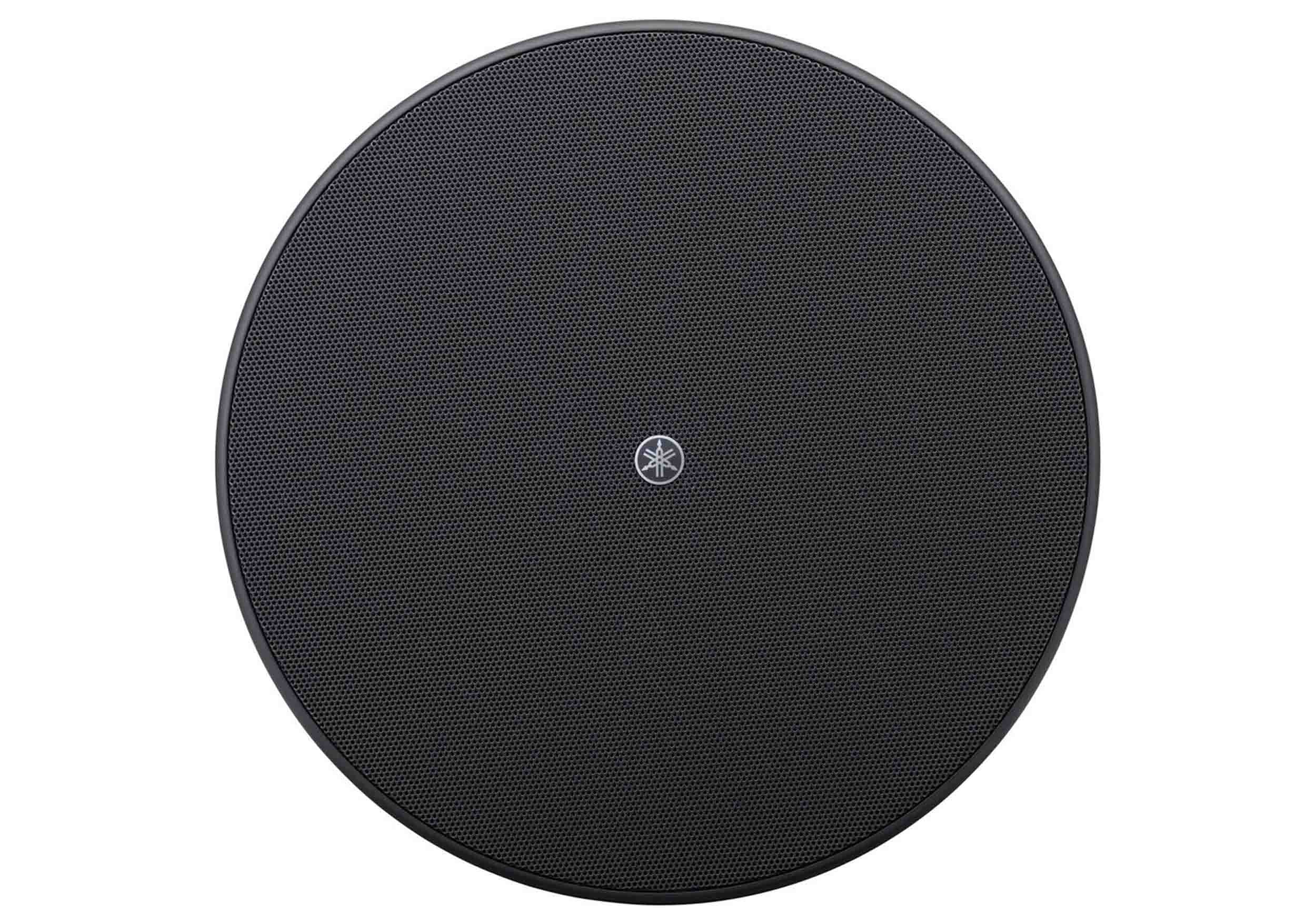

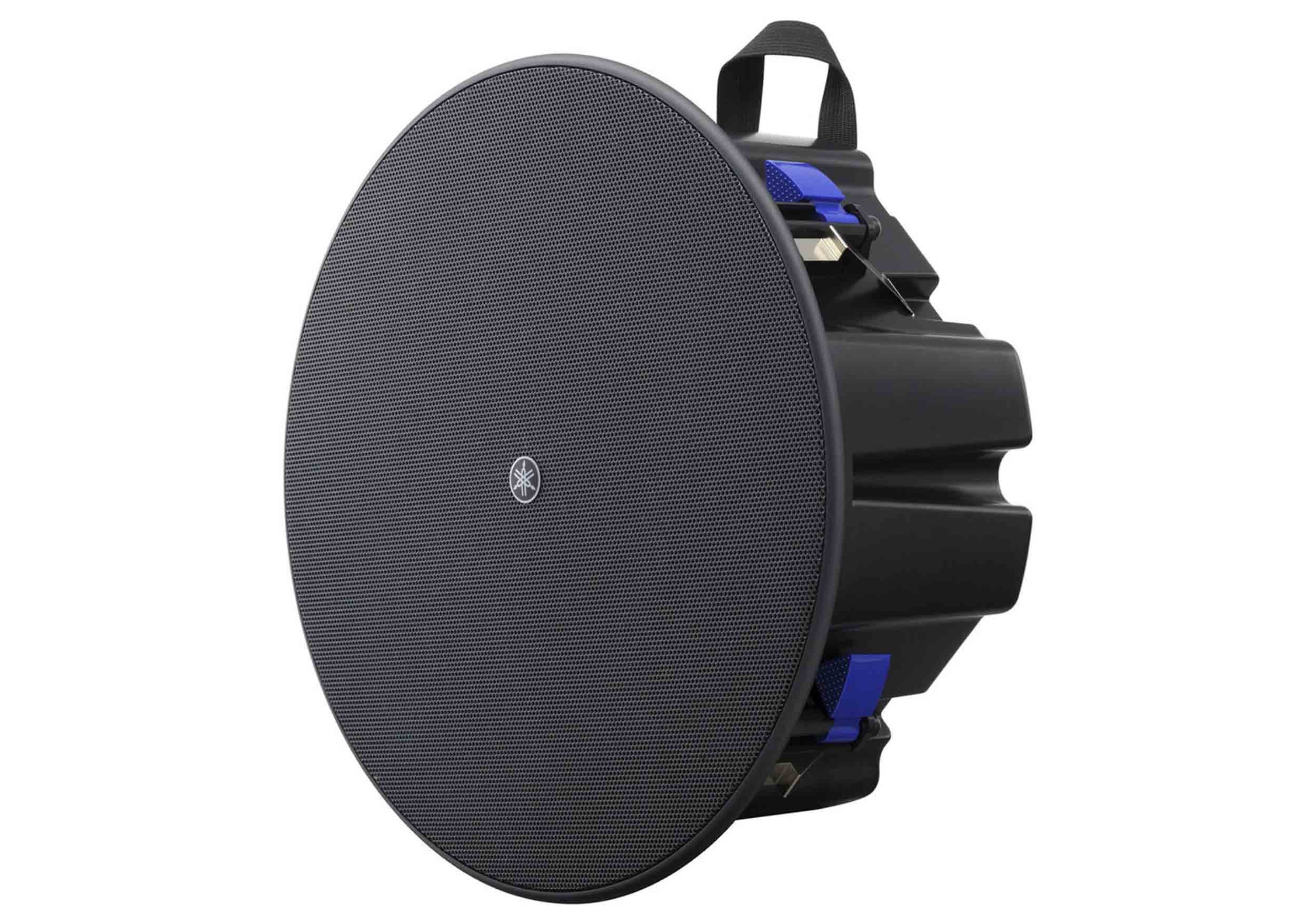

Yamaha VXC5F 4.5" Full-Range Low-Profile Ceiling Speaker - Pair

The Yamaha VXC5F is a 4.5" full-range, low-profile ceiling speaker designed to deliver refined, natural background music in commercial environments. Engineered with Yamaha’s deep expertise in musical instrument and professional audio design, it provides well-balanced reproduction across low and high frequencies, maintaining clarity and warmth even at low volume levels. This makes it an ideal choice for restaurants, cafés, bars, retail stores, hotels, museums, spas, and ballrooms where consistent, high-quality background music is essential.

Designed to meet modern installation challenges, the VXC5F features a low-profile, lightweight enclosure that allows it to fit easily into ceilings with limited depth. It supports both low-impedance and high-impedance operation, giving system designers flexibility while reducing inventory requirements. The speaker’s optimized back box volume and precisely matched driver ensure smooth, distortion-free performance, avoiding the midrange harshness often found in ceiling speakers of this class.

Installation is faster and safer thanks to a range of practical design features. A built-in carrying band improves handling and safety during overhead work, while the anti-drop tab mechanism securely holds the speaker in place for temporary positioning during installation. Double-threaded speaker clamp screws allow for quicker tightening, and the magnetic grille snaps firmly into place while remaining easy to remove for service. Finished in black with a paintable grille, the VXC5F blends seamlessly into a wide variety of interior designs while delivering dependable performance and streamlined installation.

Product Specifications:

Speaker Type: Full range, bass reflex

Frequency Range (-10 dB): 60 Hz – 20 kHz (Half-space: 2π)

Nominal Coverage: 130° conical (Half-space: 2π)

Components LF-HF: 4.5" full-range unit

Power Rating (Noise): 40 W

Power Rating (PGM): 80 W

Power Rating (Peak): 160 W

Nominal Impedance: 8 Ω

Transformer Taps (100 V): 30 W, 15 W, 7.5 W

Transformer Taps (70 V): 30 W, 15 W, 7.5 W, 3.8 W

Sensitivity (1 W / 1 m, on axis): 89 dB SPL (Half-space: 2π)

Peak SPL (Calculated): 111 dB SPL (1 m)

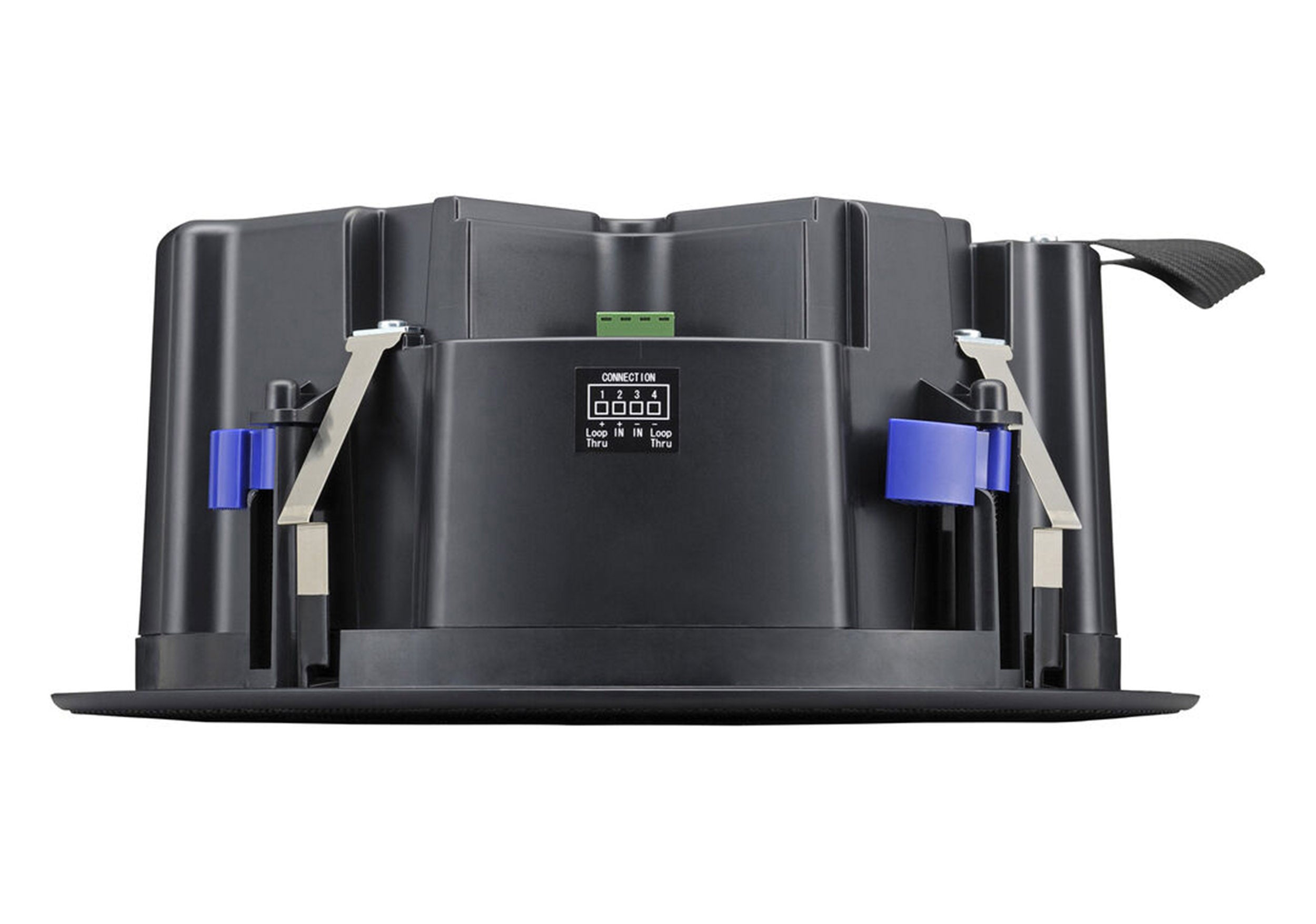

I/O Connectors: Euroblock (4-pin) × 1 (input +/-, loop-thru +/-)

Protection Circuit: Full-range power limiting to protect network and transducers

Finish: VXC5F Black (approx. Munsell N3)

Cutout Size: Ø285 mm (Ø11-1/4 in)

Required Ceiling Board Thickness: 5 mm – 37 mm

Product Weight: 6.8 lbs / 3.1 kg

Product Dimensions (L × W × H): 12.81 × 12.81 × 5.69 in
