Description

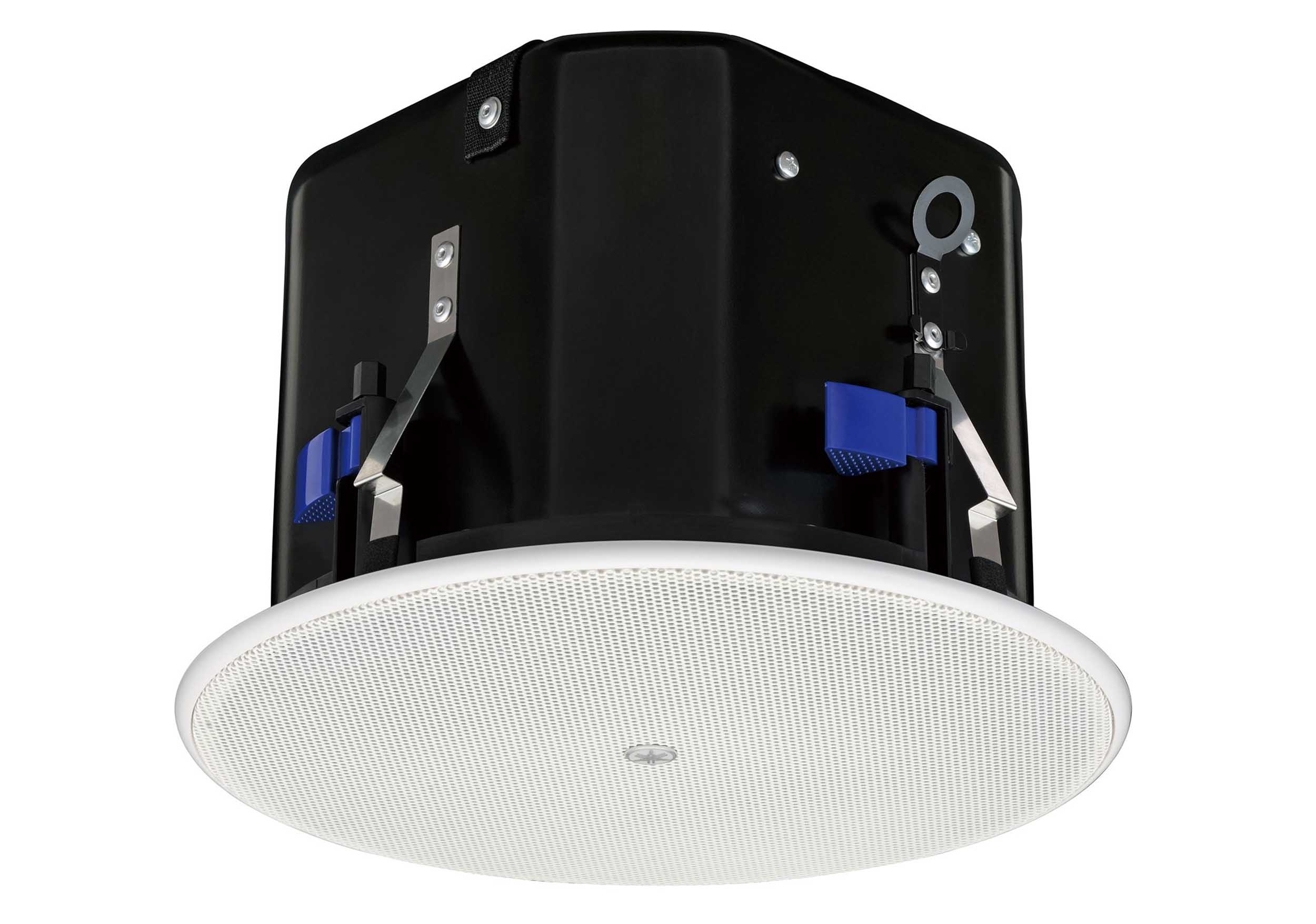

The Yamaha VXC6FW is a 2-way in-ceiling loudspeaker designed for premium audio performance in commercial and professional environments. Featuring a 6.5" low-frequency driver paired with a 0.75" soft-dome tweeter, it delivers clear, well-balanced sound with up to 300W power handling and a 110° conical dispersion pattern. The speaker supports both low-impedance (8 Ω bypass) and high-impedance operation via a 60W 70/100V multi-tap transformer, providing flexible options for a variety of installation scenarios including restaurants, retail spaces, hotels, and conference rooms.
Installation is safe, fast, and convenient thanks to integrated anti-drop tabs and a built-in carrying handle. These features allow temporary positioning and single-person handling, reducing installation risk and effort. The VXC6FW’s low-profile design ensures it fits seamlessly into ceilings, while careful attention to driver and enclosure design ensures natural, distortion-free reproduction of both music and speech.

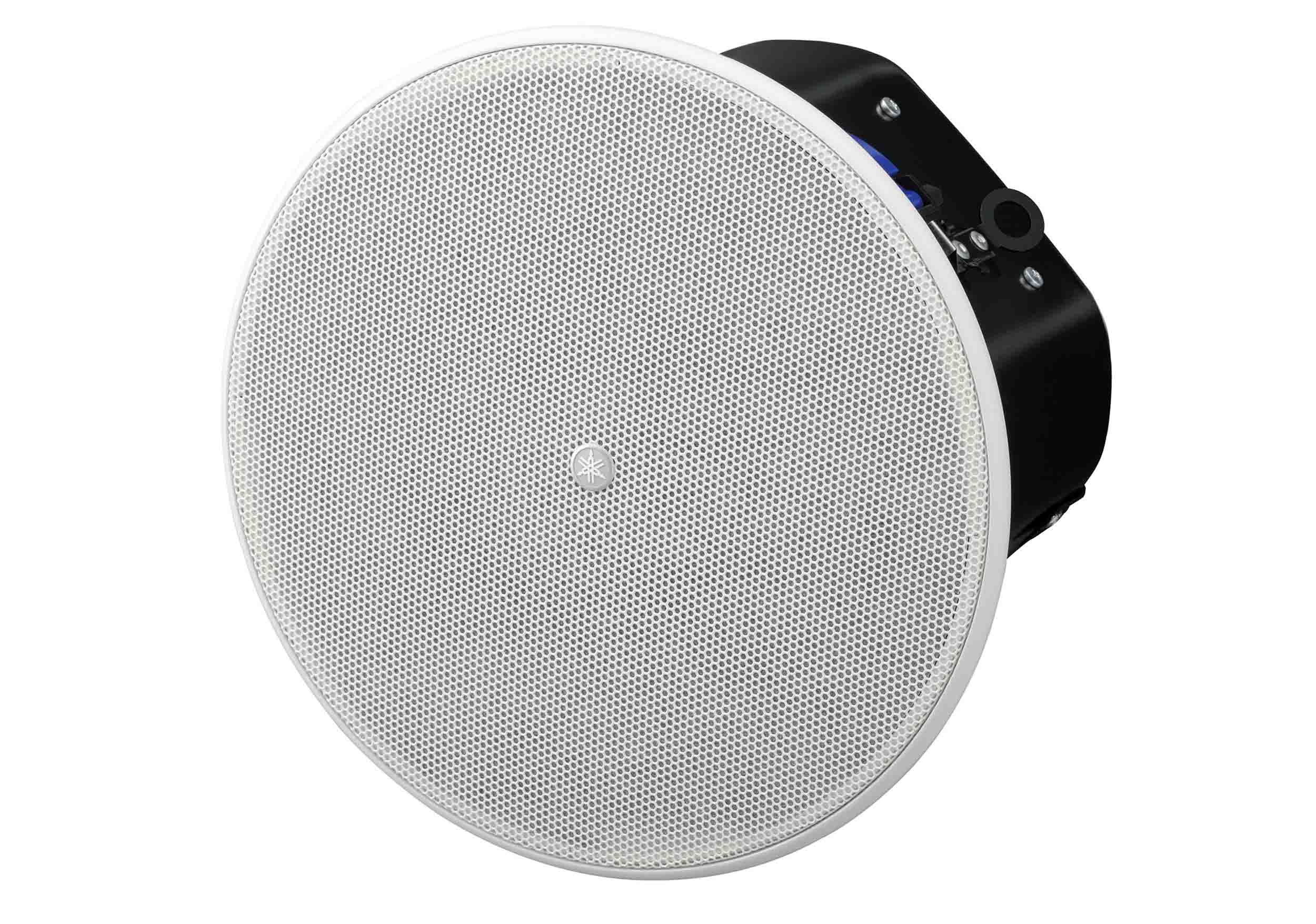

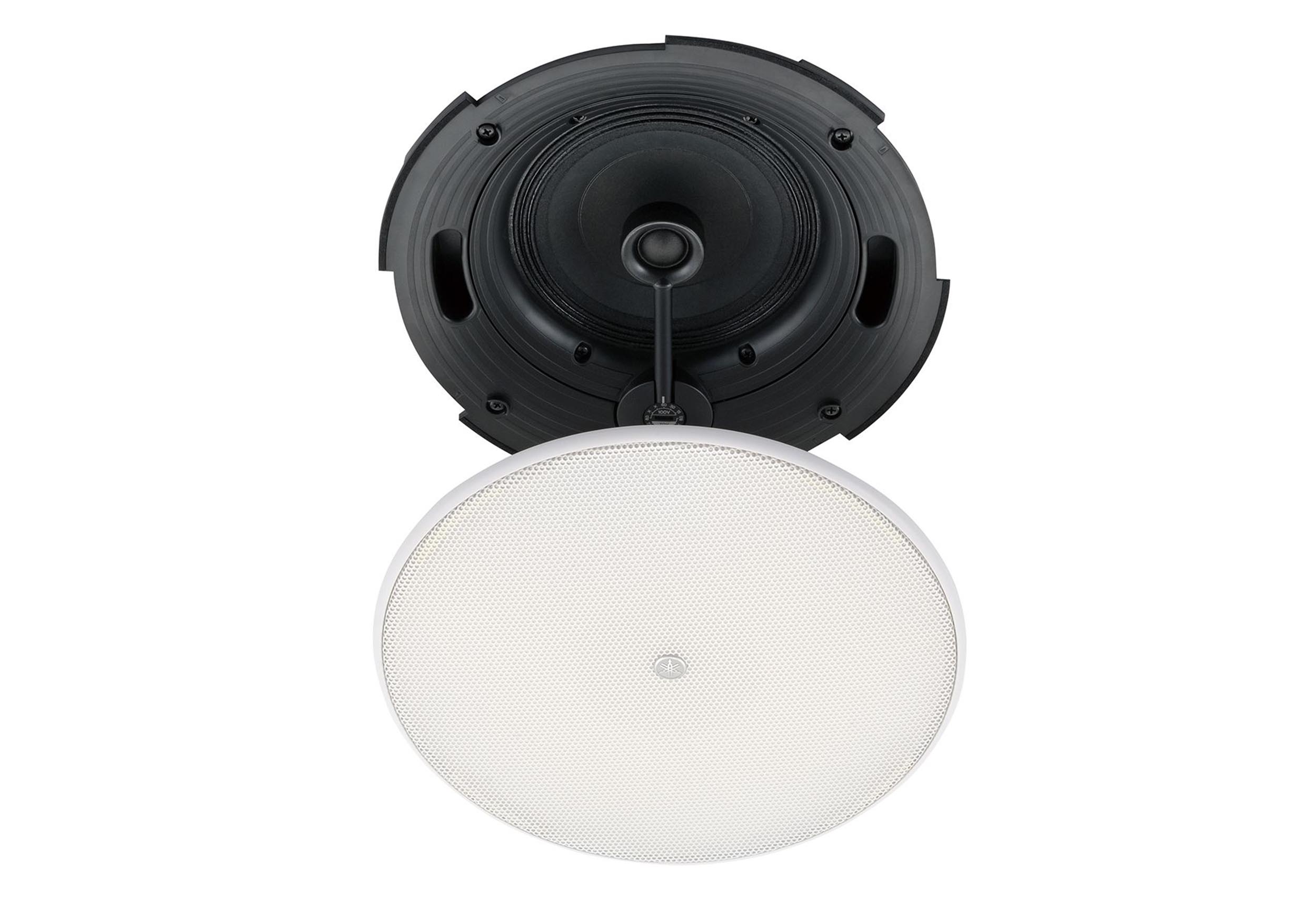

Functionality is paired with elegance through its hexagonal, paintable grille. The grille design improves sound clarity by increasing the aperture ratio, and the tweeter’s innovative engineering allows unrestricted woofer movement for superior audio fidelity. Fully paintable to match any décor, the VXC6FW blends seamlessly into interior spaces while delivering high-quality, professional-grade sound performance.
Product Specifications:
Speaker Type: 2-way, acoustic suspension
Frequency Range (-10 dB): 56 Hz – 20 kHz (Half-space: 2π)
Nominal Coverage: 110° conical (Half-space: 2π)
Components LF: 6.5" cone
Components HF: 0.75" soft dome
Power Rating (Noise): 75 W
Power Rating (PGM): 150 W
Power Rating (Peak): 300 W
Nominal Impedance: 8 Ω
Transformer Taps (100 V): 60 W (170 Ω), 30 W (330 Ω), 15 W (670 Ω)
Transformer Taps (70 V): 60 W (83 Ω), 30 W (170 Ω), 15 W (330 Ω), 7.5 W (670 Ω)
Sensitivity (1 W / 1 m, on axis): 86 dB SPL (Half-space: 2π)
Peak SPL (Calculated): 111 dB SPL (1 m, based on power rating and sensitivity)

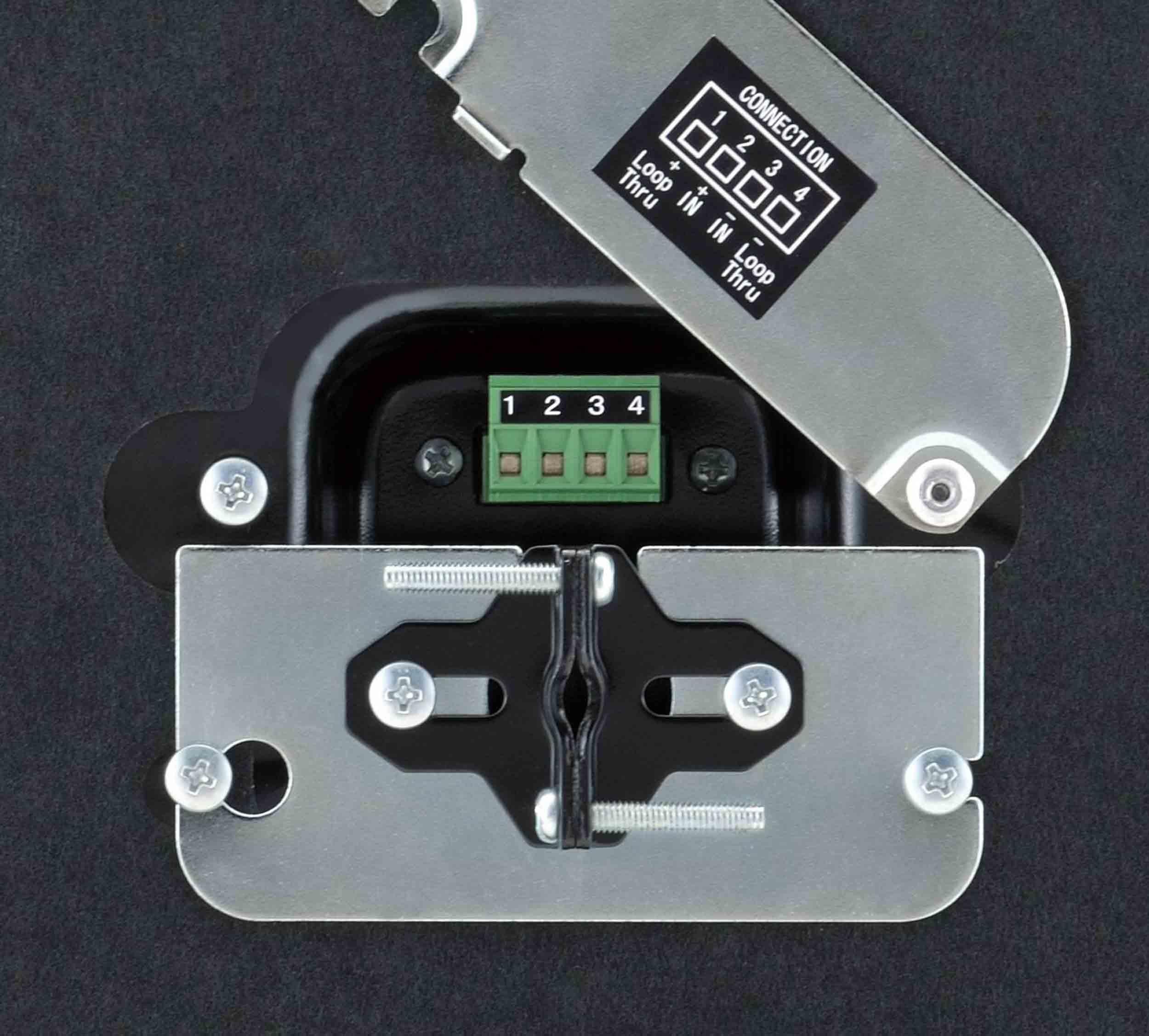

I/O Connectors: 1 × Euroblock (4P) (Input +/-, Loop Thru + / -)
Finish: VXC6W White
Cutout Size: Ø247 mm (Ø9 3/4 in)
Required Ceiling Board Thickness: 5 mm – 35 mm
Product Weight: 9.7 lbs / 4.4 kg
Product Dimensions (L × W × H): 11.3 × 11.3 × 8.1 in
