Description

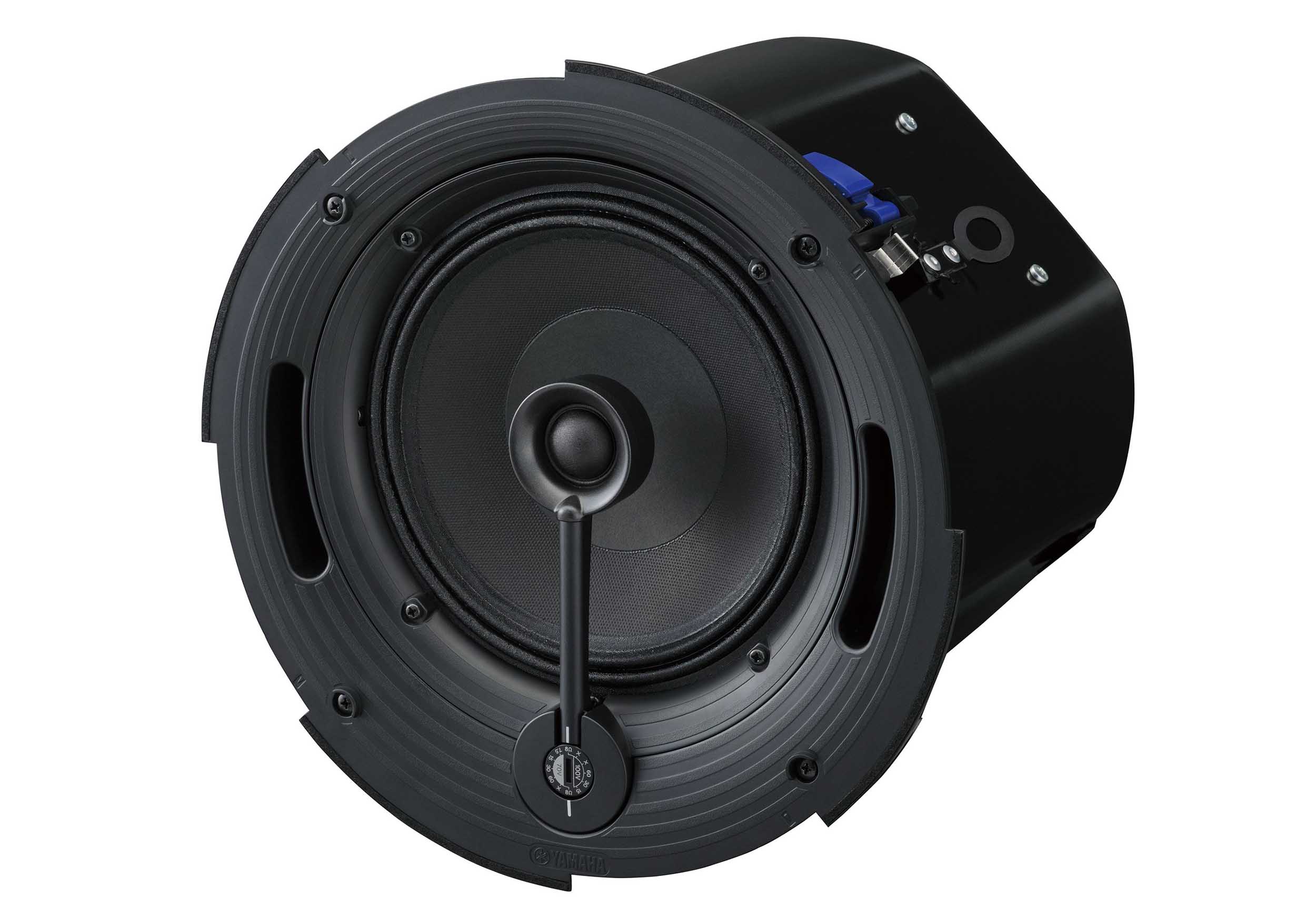

The Yamaha VXC8 is a 2-way in-ceiling loudspeaker featuring an 8" low-frequency driver and a 1" soft-dome tweeter, engineered to deliver high-quality background music and clear speech intelligibility. With up to 360W power handling and a 100° conical sound dispersion, it provides full, natural audio coverage for commercial spaces such as restaurants, retail stores, hotels, museums, and conference rooms. The speaker supports both low-impedance setups via its 8 Ω bypass and high-impedance operation through a 60W 70/100V multi-tap transformer, offering maximum flexibility for a wide range of installations.

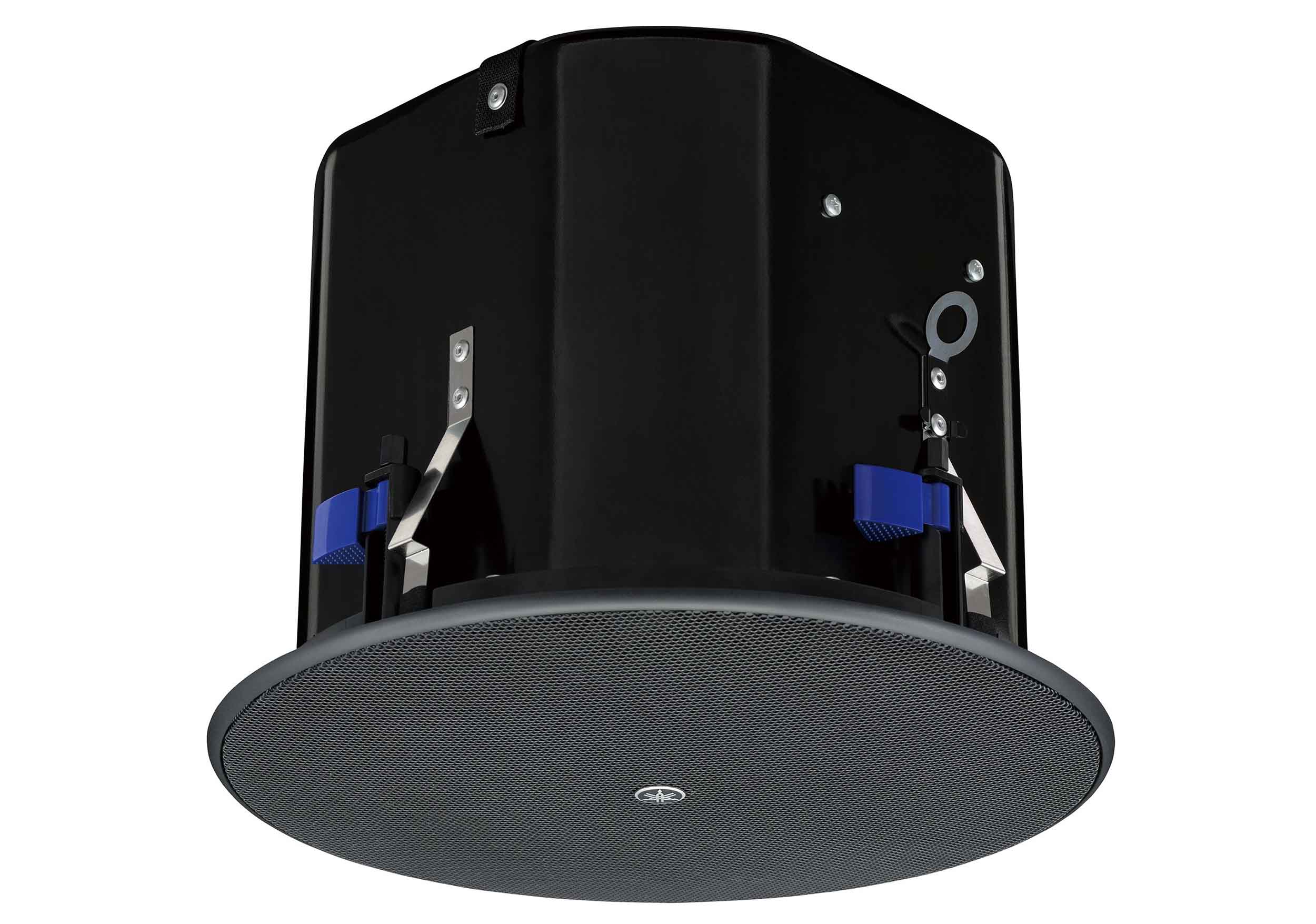

Installation is safe, simple, and efficient thanks to integrated anti-drop tabs and a built-in carrying handle, which allow the speaker to be temporarily secured and easily positioned by a single installer. Its low-profile, lightweight design ensures it fits discreetly into ceilings while reducing installation effort. Every detail, from transducer selection to acoustic absorption placement, has been carefully optimized to achieve refined, balanced audio reproduction without distortion, even at lower output levels.

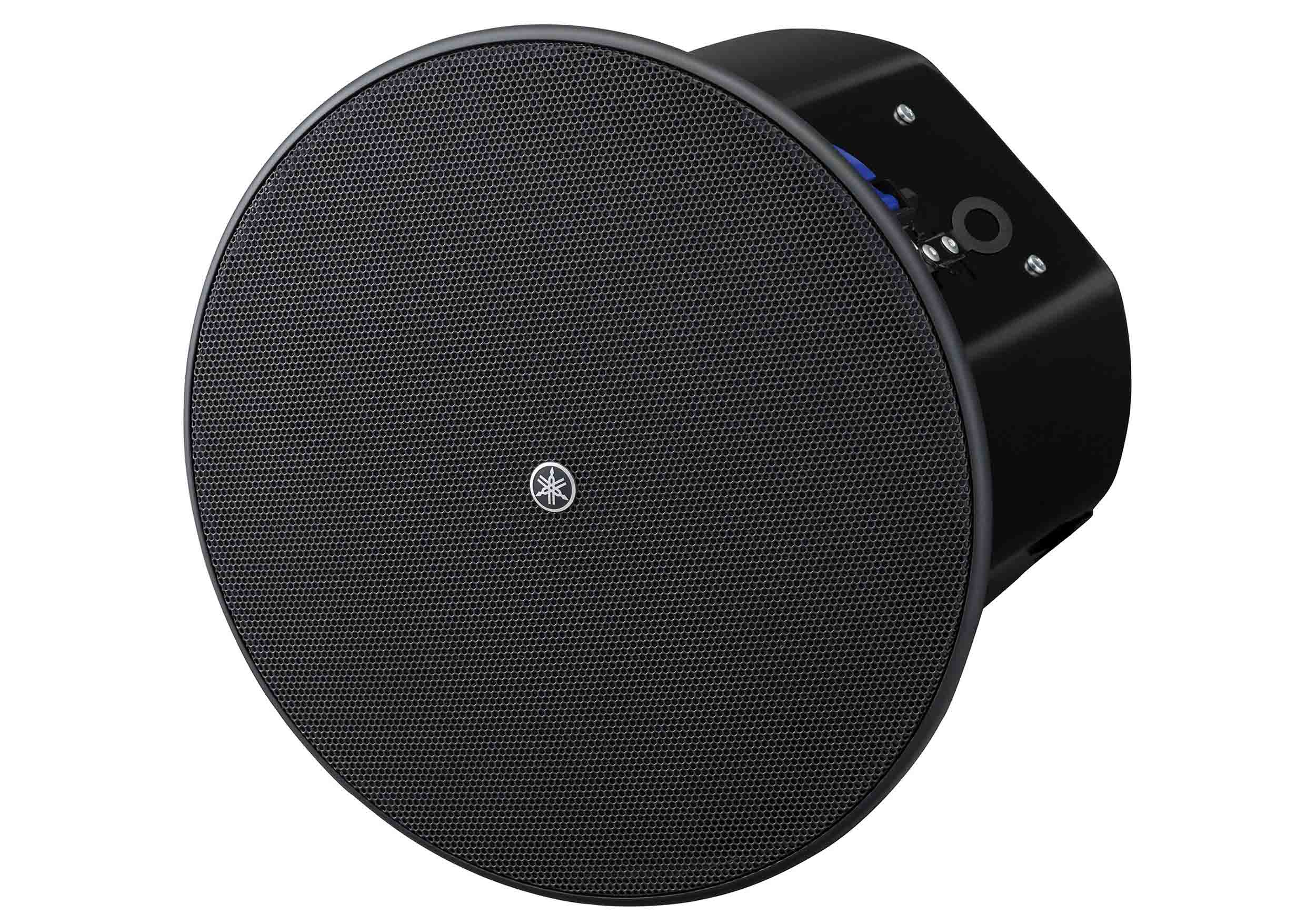

Functionality meets aesthetic design with the VXC8’s hexagonal, paintable grille. The grille not only enhances visual appeal but also improves sound clarity by increasing the aperture ratio, while the tweeter design ensures unrestricted woofer movement for superior fidelity. Fully paintable to match any interior décor, the black VXC8 seamlessly integrates into professional or commercial environments, delivering exceptional audio performance with a sleek, streamlined installation solution.
Product Specifications:
Speaker Type: 2-way, acoustic suspension
Frequency Range (-10 dB): 55 Hz – 20 kHz (Half-space: 2π)
Nominal Coverage: 100° conical (Half-space: 2π)
Components LF: 8" cone
Components HF: 1" soft dome
Power Rating (Noise): 90 W
Power Rating (PGM): 180 W
Power Rating (Peak): 360 W
Nominal Impedance: 8 Ω
Transformer Taps (100 V): 60 W (170 Ω), 30 W (330 Ω), 15 W (670 Ω)
Transformer Taps (70 V): 60 W (83 Ω), 30 W (170 Ω), 15 W (330 Ω), 7.5 W (670 Ω)
Sensitivity (1 W / 1 m, on axis): 90 dB SPL (Half-space: 2π)
Peak SPL (Calculated): 116 dB SPL (1 m, based on power rating and sensitivity)

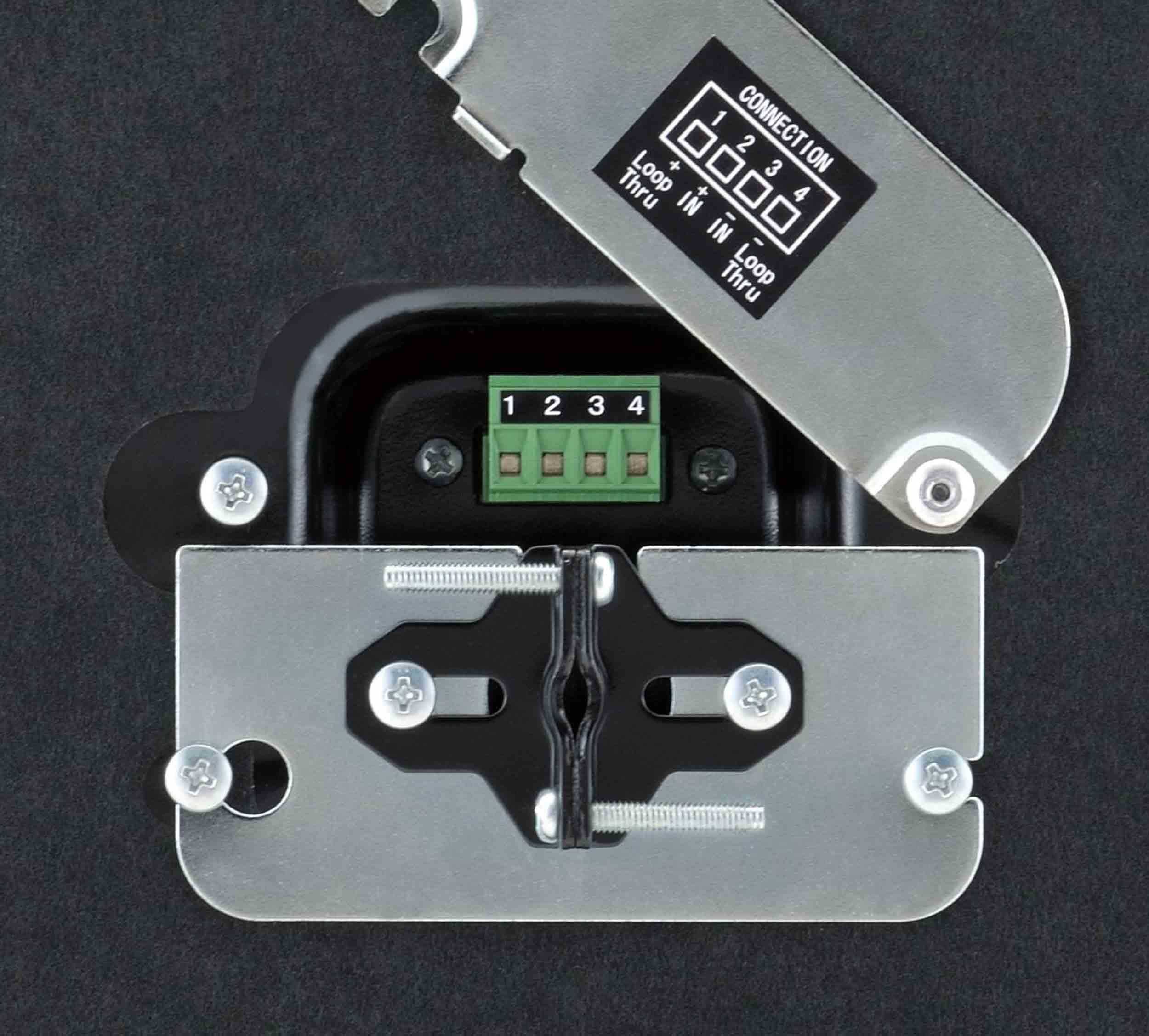

I/O Connectors: 1 × Euroblock (4P) (Input +/-, Loop Thru + / -)
Finish: VXC8 Black
Cutout Size: Ø285 mm (Ø11 1/4 in)
Required Ceiling Board Thickness: 5 mm – 35 mm
Product Weight: 14.6 lbs / 6.6 kg
Product Dimensions (L × W × H): 12.8 × 12.8 × 10.2 in
