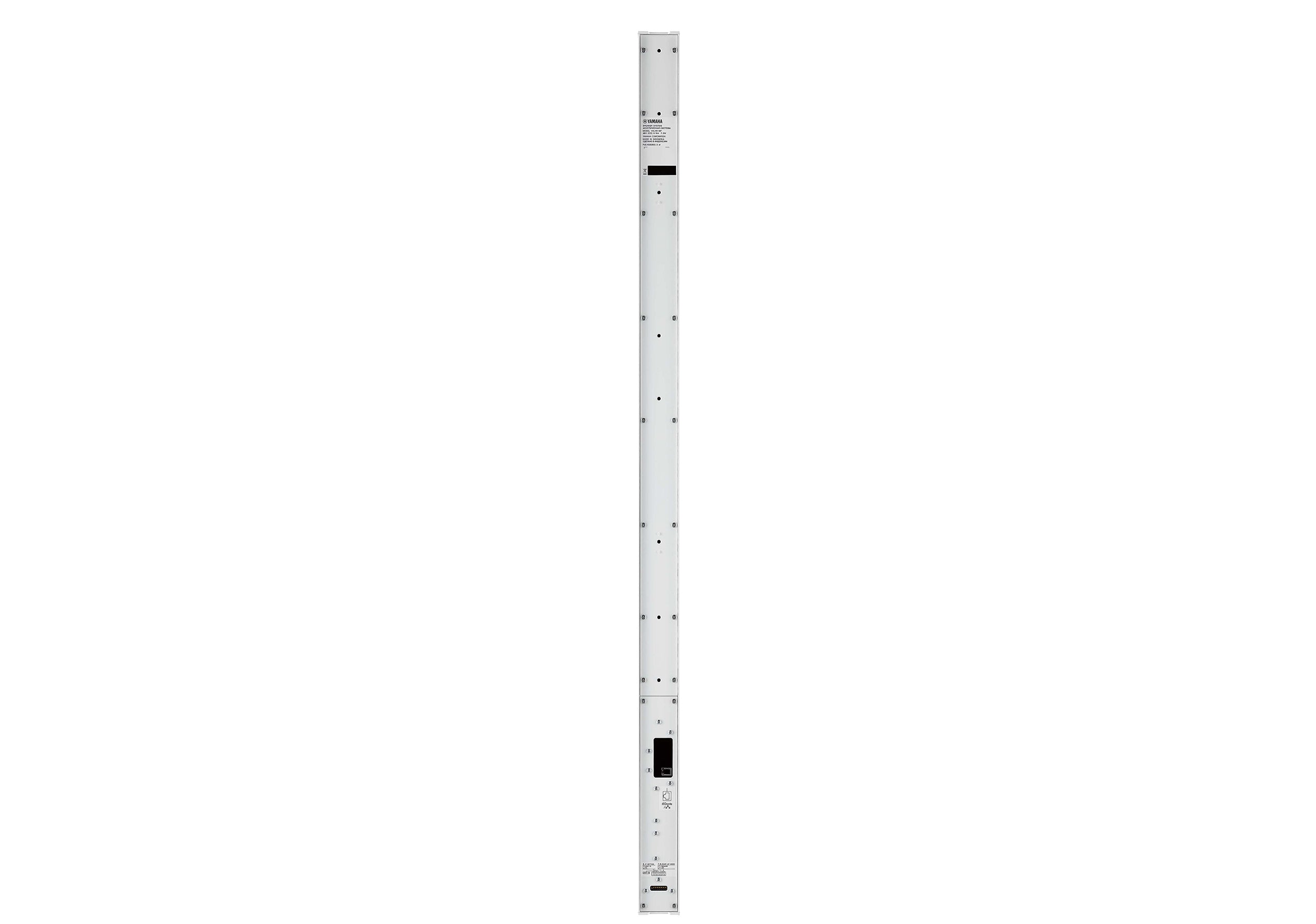

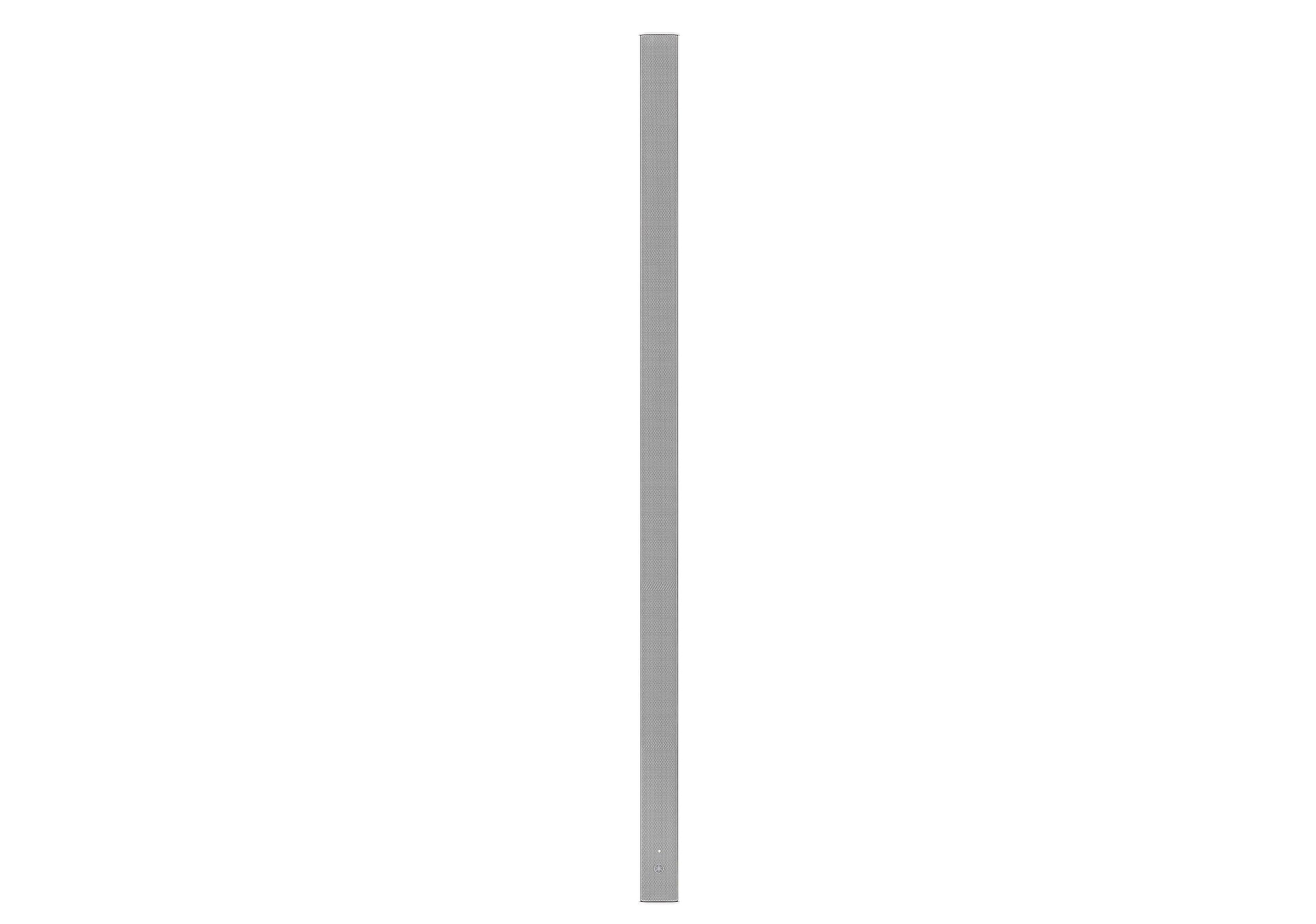

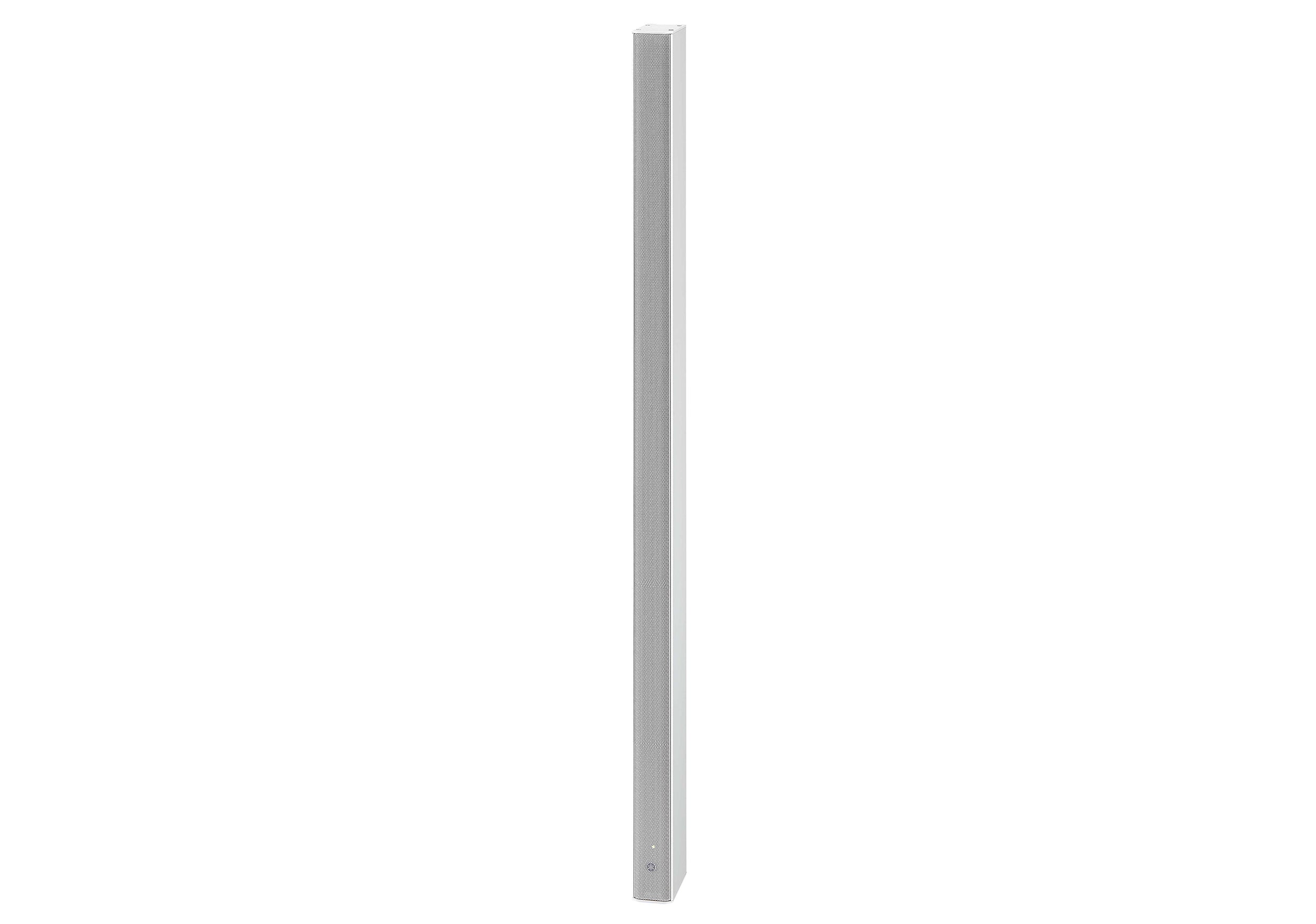

Yamaha VXL1W-16P Slim Line Array Wallmount Speaker - 15W, White Finish

The Yamaha VXL1W-16P is a Dante-enabled, PoE-powered line array speaker designed for professional conference rooms and commercial installations. Featuring 16 high-performance 1.5" full-range drivers with neodymium magnets, the slim 5.4 cm (2.1") enclosure delivers clear, focused sound over long distances while minimizing reflections from walls and ceilings. Its sleek white design complements modern interiors, and the paintable enclosure allows for seamless integration into any space. With PoE power, the system eliminates the need for separate amplifiers, simplifying installation and reducing clutter.

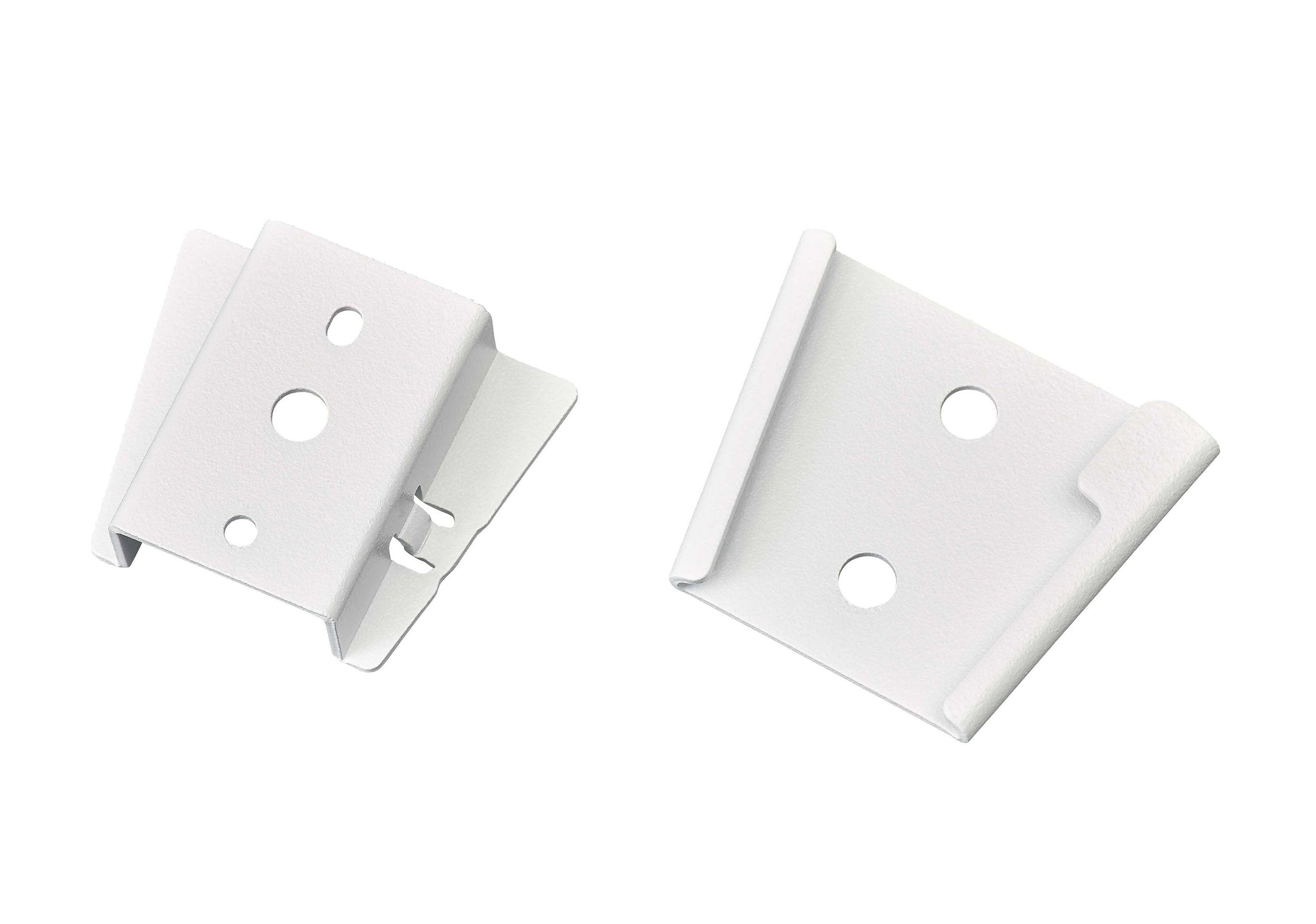

Installation is highly flexible, with a supplied wall-mount bracket and a wide range of optional mounting hardware, including horizontal coupling brackets (HCB-L1B) and pole mount adapters (PA-L1B). The line array configuration ensures vertical sound dispersion is minimized, while the networked design via a Dante-enabled L2 switch allows simple LAN cabling and easy integration with existing IT infrastructure. Whether mounted on a wall, coupled with additional speakers, or positioned on a pole, the VXL1W-16P offers reliable, professional audio performance in any layout.

Advanced network control is available through Yamaha’s ProVisionaire Touch app for iPad, allowing users to adjust volume, balance, and other parameters remotely. When paired with intelligent Dante switches, such as the SWR2311P-10G, the system automatically optimizes network and PoE settings, while Yamaha LAN Monitor software provides real-time monitoring and troubleshooting. Combined with the MRX7-D Dante-enabled signal processor, the VXL1W-16P can form the core of a fully intelligent, high-quality conference audio system.

Product Specifications:

Speaker Type: Full-range, powered speaker, bass reflex

Frequency Range (-10 dB): 80 Hz – 20 kHz

Nominal Coverage H: 170°

Nominal Coverage V: 25° (+12.5° / -12.5°)

Effective Coverage H (-10 dB): 180°

Effective Coverage V (-10 dB): 30° (+15° / -15°)

Components LF-HF: 1.5" (3.75 cm) Cone × 16

Maximum Output Level (1 m; on axis): 102 dB SPL (using PoE+ IEEE 802.3at)

Power Rating (Dynamic): 15 W (PoE+ IEEE 802.3at), 6 W (PoE IEEE 802.3af)

Power Rating (Continuous): 15 W (PoE+ IEEE 802.3at), 6 W (PoE IEEE 802.3af)

I/O Connectors: RJ-45 (Dante) × 1

Protection Circuit – Speaker Processing: Clip limiting, integral power protection

Protection Circuit – Amplifier: Over current, over temperature, under voltage lock out, DC detection,

clock detection

Protection Circuit – Power Supply: Overload, over voltage, under voltage lock out

Cooling: Natural convection

Power Requirements: PoE+ (IEEE 802.3at), PoE (IEEE 802.3af)

Power Consumption: Idle 3 W; 1/8 Pink Noise: 6 W (PoE+), 4.3 W (PoE)

Finish: VXL1W-16P White (Munsell N9.0)

Magnetic Shielding: No

Dust and Water Resistant: No

Product Weight: 11.0 lbs / 5.0 kg

Product Dimensions (L × W × H): 4.1 × 2.13 × 44.1 in
