Description

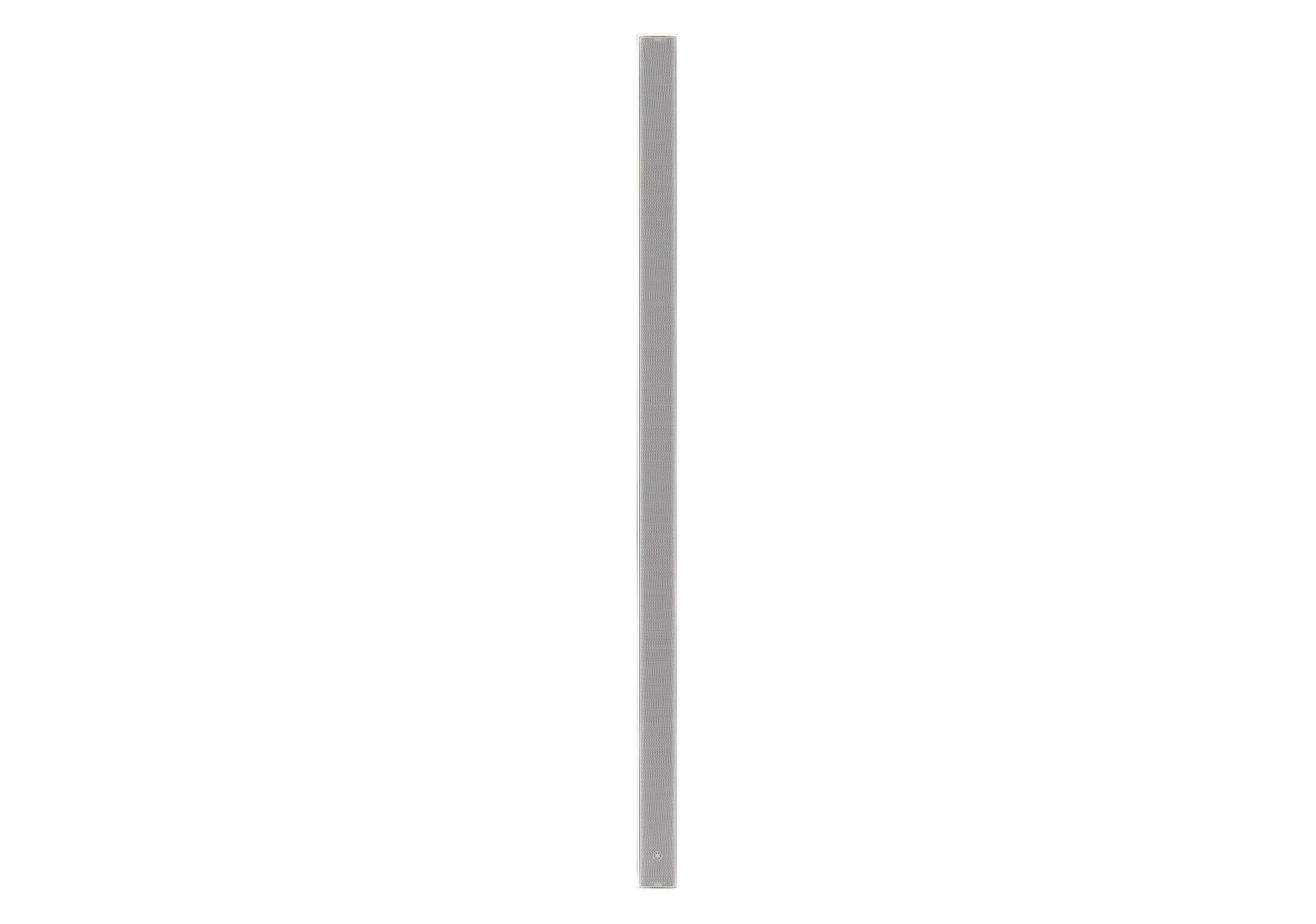

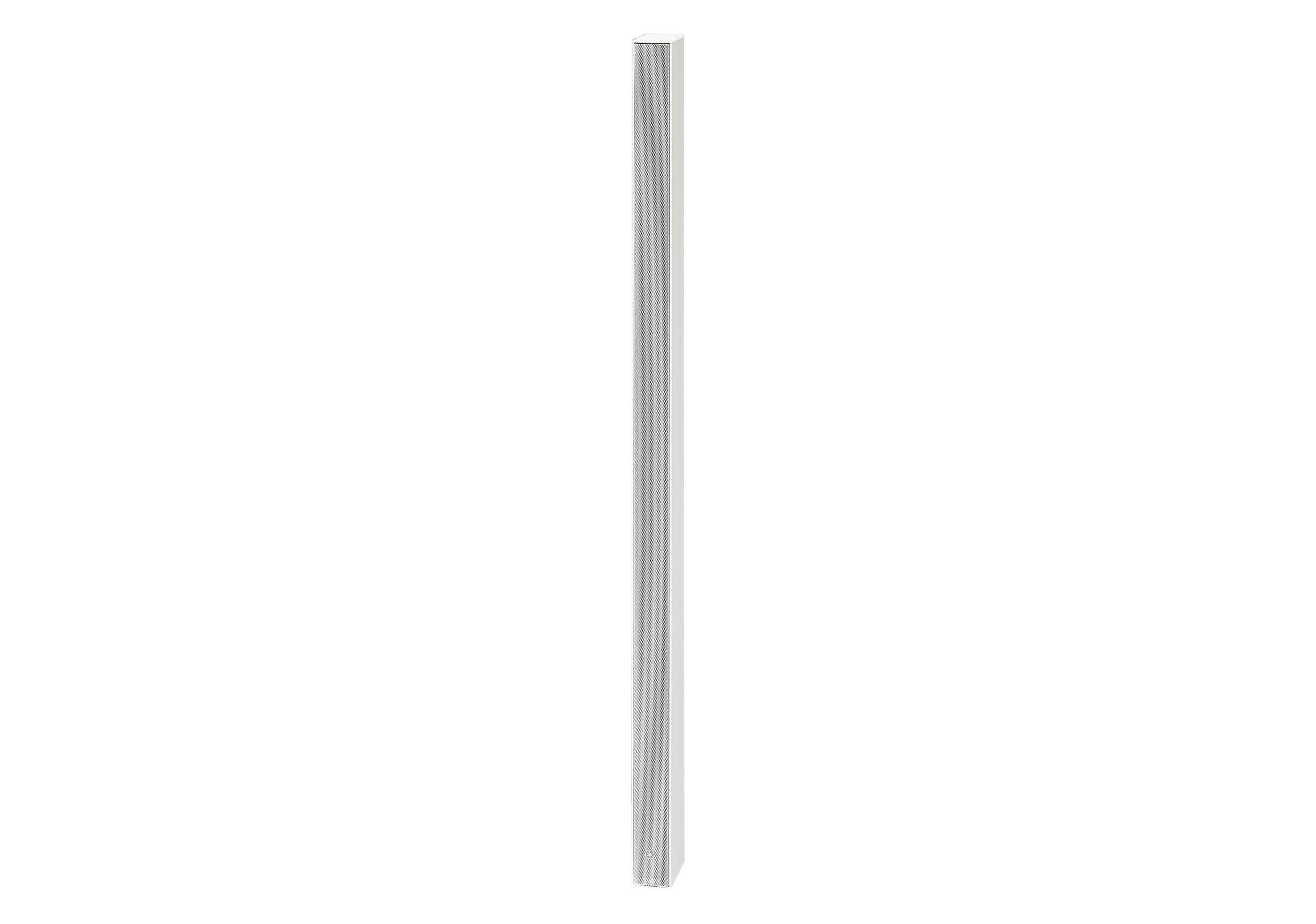

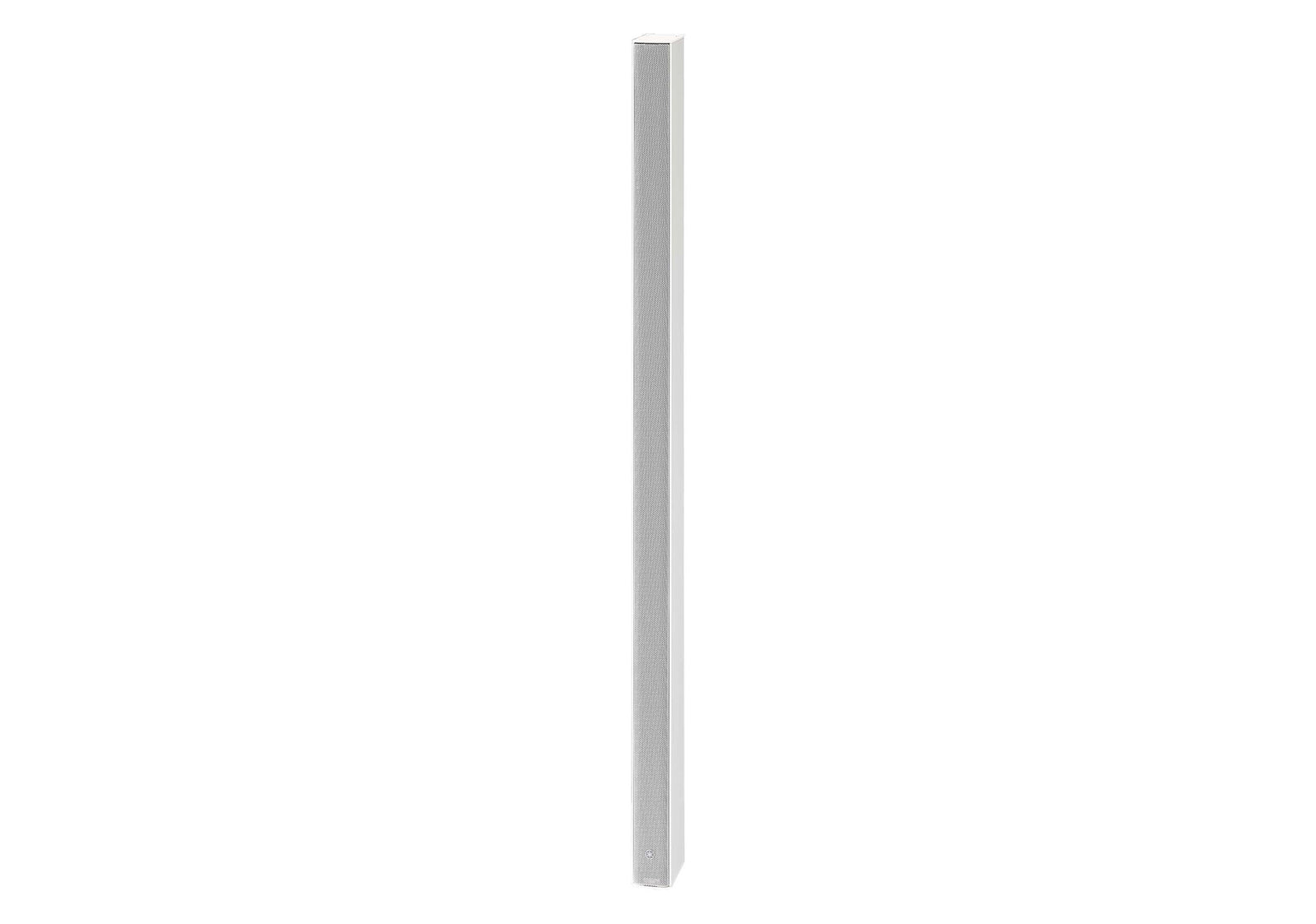

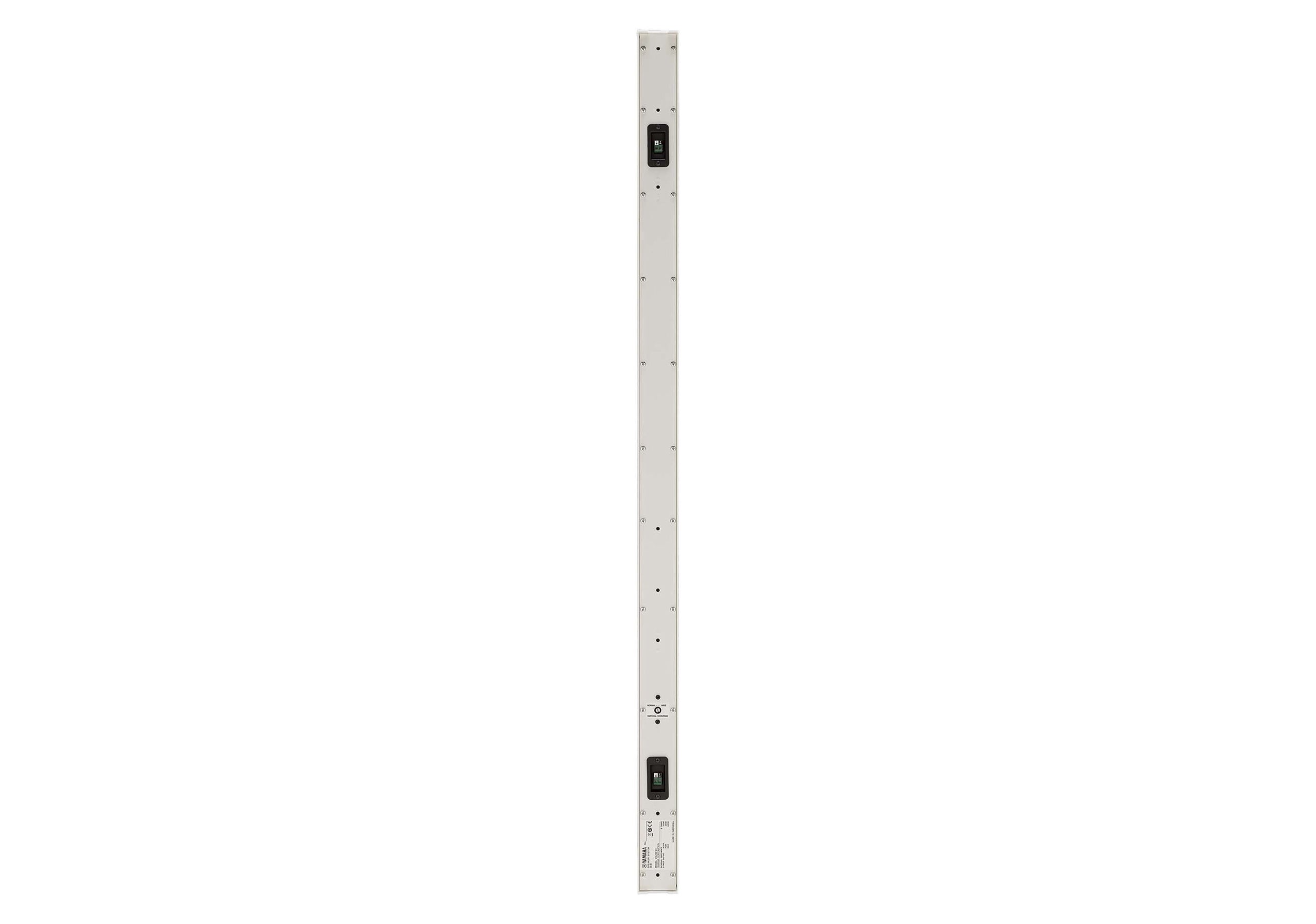

The Yamaha VXL1W-24 is a 1.5-inch full-range, slim line source loudspeaker designed to deliver natural and uniform sound across large listening areas. Its 2.1-inch (54 mm) wide enclosure, sleek profile, and elegant curved grille blend seamlessly into any décor, making it ideal for high-clarity music and speech applications. The speaker features 170° horizontal dispersion and selectable vertical coverage of 20° (standard) or 40° (wide), ensuring consistent SPL throughout the audience area. High-performance neodymium drivers and a vertical line-source configuration minimize reflections while providing precise, articulate audio from front to back.
Engineered for flexible installation and scalability, the VXL1W-24 can be combined with other VXL1 models to extend coverage for larger venues. Its wide vertical dispersion setting allows sound to reach the front of the listening area more effectively, while multiple units can be coupled vertically to achieve distances of over 150 feet. The system is perfect for lecture halls, conference rooms, houses of worship, and other spaces where uniform sound coverage and high intelligibility are critical.
Durability and outdoor capability are also prioritized with weather-resistant versions that achieve IP55 protection, offering UV, rust, and rain resistance for safe outdoor use. With its compact yet powerful design, the VXL1W-24 delivers premium audio performance without compromising aesthetics, making it a versatile solution for both indoor and sheltered outdoor applications where clear, even sound reproduction is required.
Product Specifications:
Speaker Type: Full-range, Bass reflex
Frequency Range (-10dB): 77 Hz – 20 kHz
Coverage Area:
Horizontal: 170°
Vertical: 20° (+10° – -10°) (NORMAL), 40° (+10° – -30°) (WIDE)
Components (LF-HF): 1.5" (3.75 cm) Cone × 24
Power Rating:
NOISE: 110 W
PGM: 220 W
PEAK: 440 W
Nominal Impedance: 8 Ω
SPL:
Sensitivity (1W; 1m on axis): 91 dB SPL
Peak (Calculated): 117 dB SPL
I/O Connectors: Euroblock (2 pin) × 2 (input: +/-); Max. wire size AWG 12 (3.3 mm²)
Protection Circuit / Load Protection: Full-range power limiting to protect network and transducers
Finish: White painting (approx. Munsell N9.0)
IP-Rating: IP35
Packaging: Packaged in 1 pc
Product Weight: 12.1 lbs / 5.5 kg
Product Dimensions (L × W × H): 4.1 × 2.1 × 47.7 in
