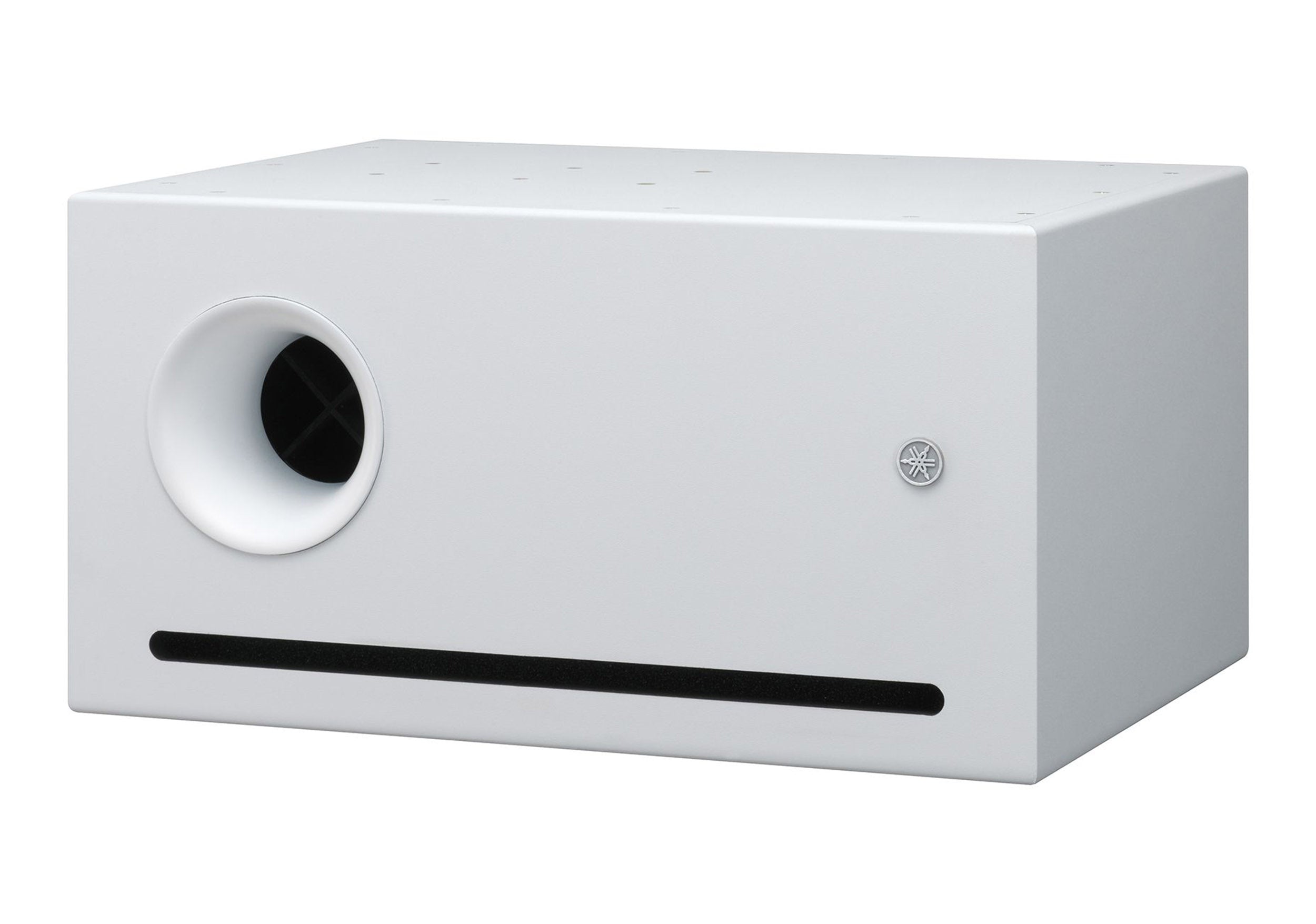

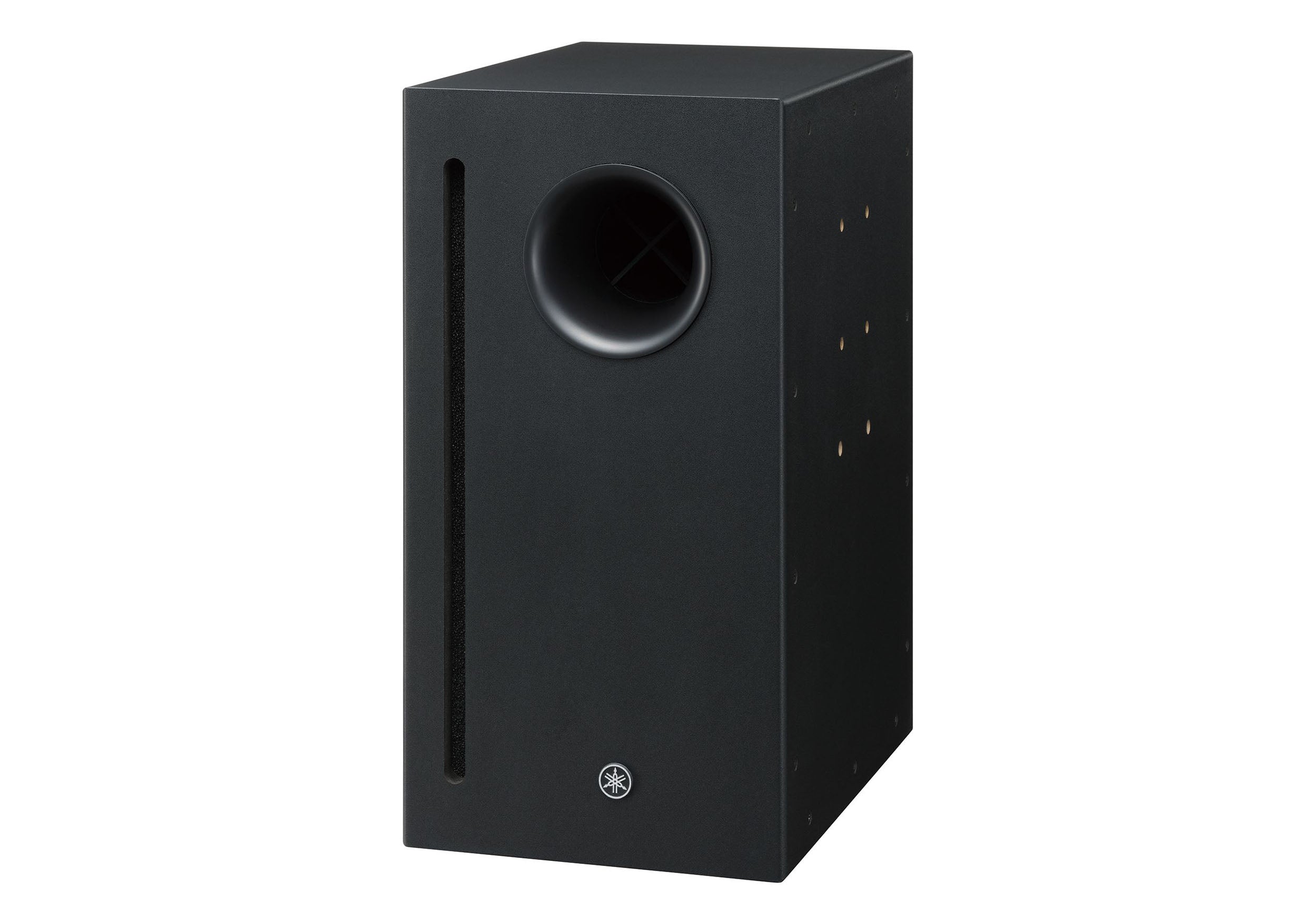

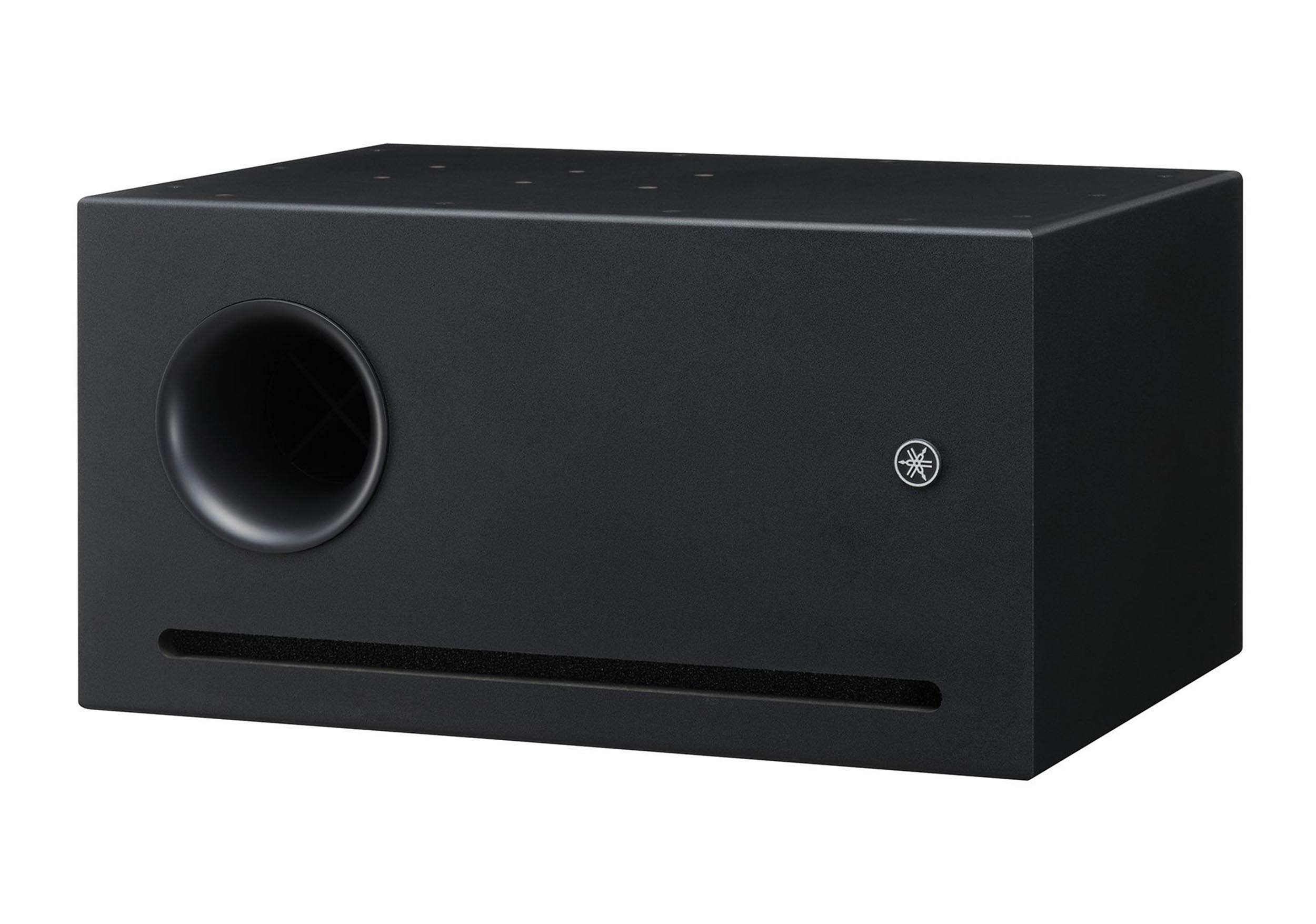

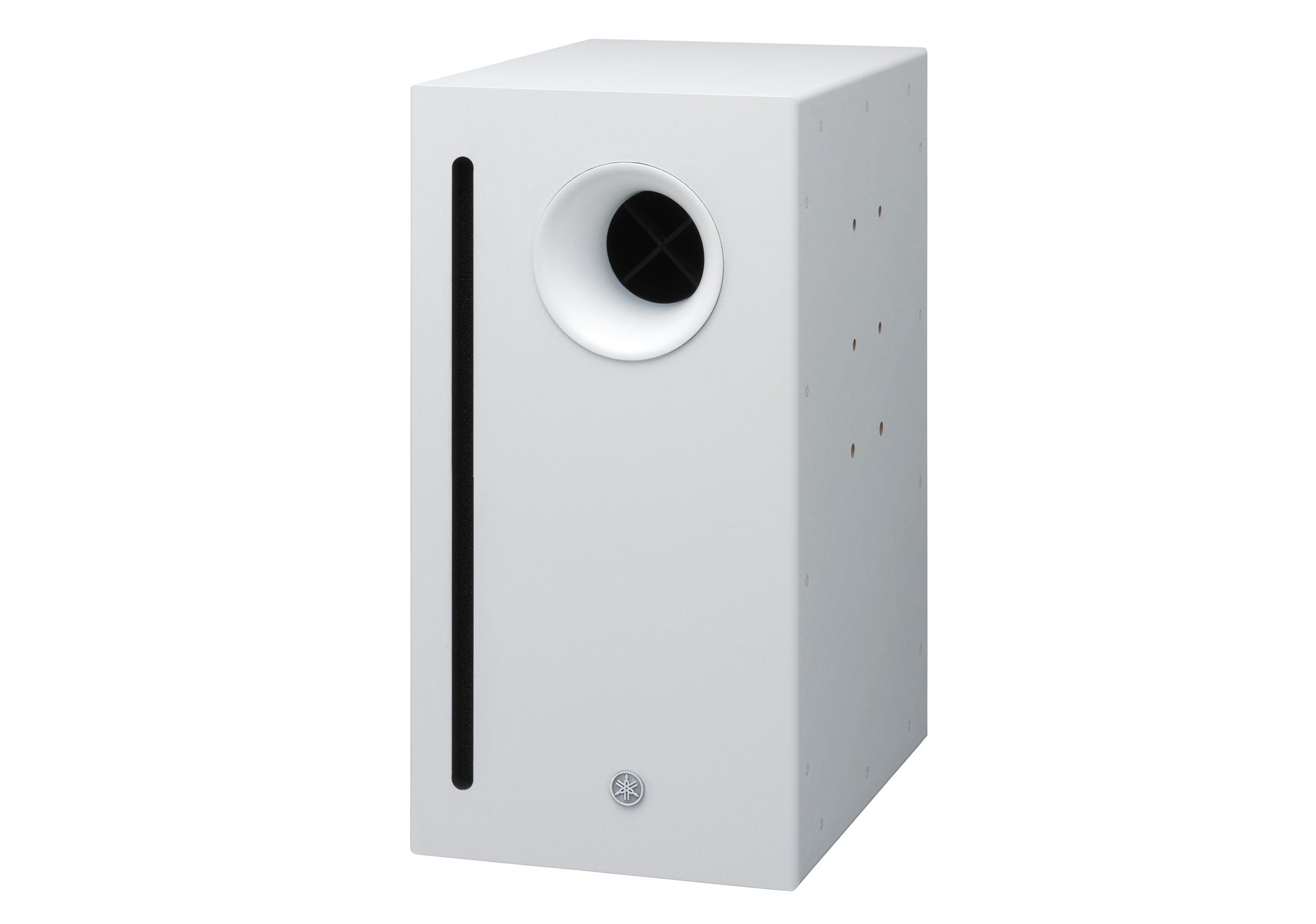

Yamaha VXS10S 10" Surface-Mounted Subwoofer - Black and White

The Yamaha VXS10S Series is a versatile low-impedance subwoofer designed to deliver powerful, musical low-frequency reinforcement for commercial audio systems. Its bass-reflex enclosure provides smooth, distortion-free low-end extension, adding depth and realism to music playback. Acoustically and visually matched to Yamaha’s VXS and VXC full-range speakers, it integrates seamlessly into modern interiors, making it ideal for restaurants, cafés, retail spaces, and other background music applications.

Engineered for flexible system integration, the VXS10S features a dual voice-coil design that supports stereo input sources while reducing the number of amplifier channels needed. Rear-panel satellite connectors simplify wiring and automatically apply a built-in high-pass filter to connected full-range speakers, ensuring a natural and well-balanced crossover for clean, cohesive sound.

Installation is simple and adaptable. The VXS10S includes dedicated wall-mount hardware and can also be floor- or ceiling-mounted using optional brackets, allowing it to fit a wide range of spaces and layouts. Its compact design ensures professional-grade bass without compromising room aesthetics.

Available in Black and White, the Yamaha VXS10S Series provides reliable performance, elegant integration, and deep, controlled bass for commercial and professional audio applications.

Product Specifications:

Speaker Type: Bass-reflex type subwoofer

Frequency Range (-10dB): 45 Hz – 250 Hz

Components LF: 10" dual voice coil

Power Rating NOISE: 100 W + 100 W

Power Rating PGM: 200 W + 200 W

Nominal Impedance: 8 Ω + 8 Ω

Satellite Impedance: 8 Ω load per satellite output recommended

SPL Sensitivity (1W; 1m on axis): 96 dB SPL

Peak SPL (calculated): 125 dB SPL

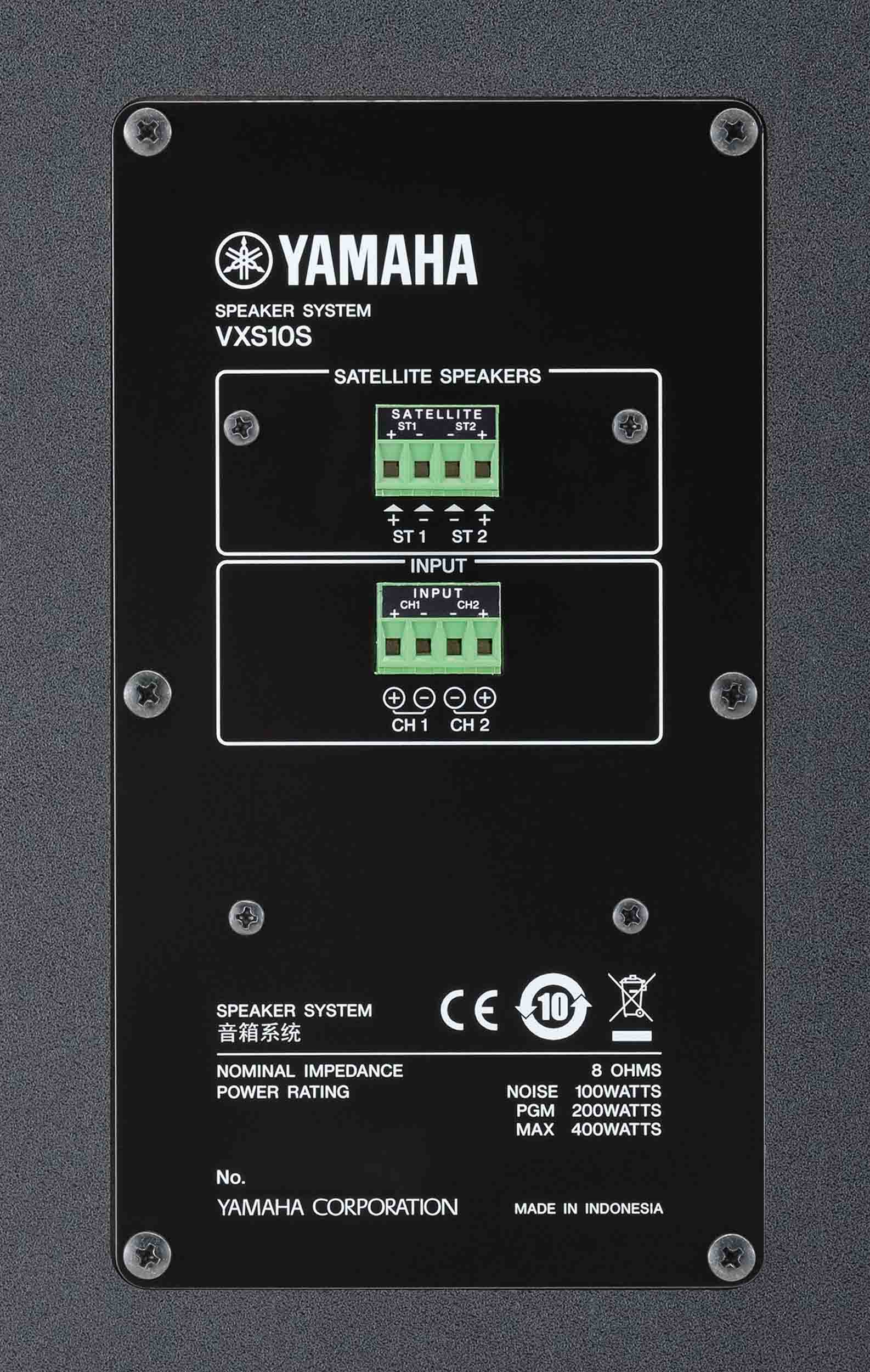

I/O Connectors: Input 1x Euroblock 4-pin CH1 +/-, CH2 +/-; Satellite output 1x Euroblock 4-pin ST1 +/-,

ST2 +/-

Protection Circuit Load Protection: Full-range power limiting to protect network and transducers

Shape: Rectangular

Cabinet Material: MDF

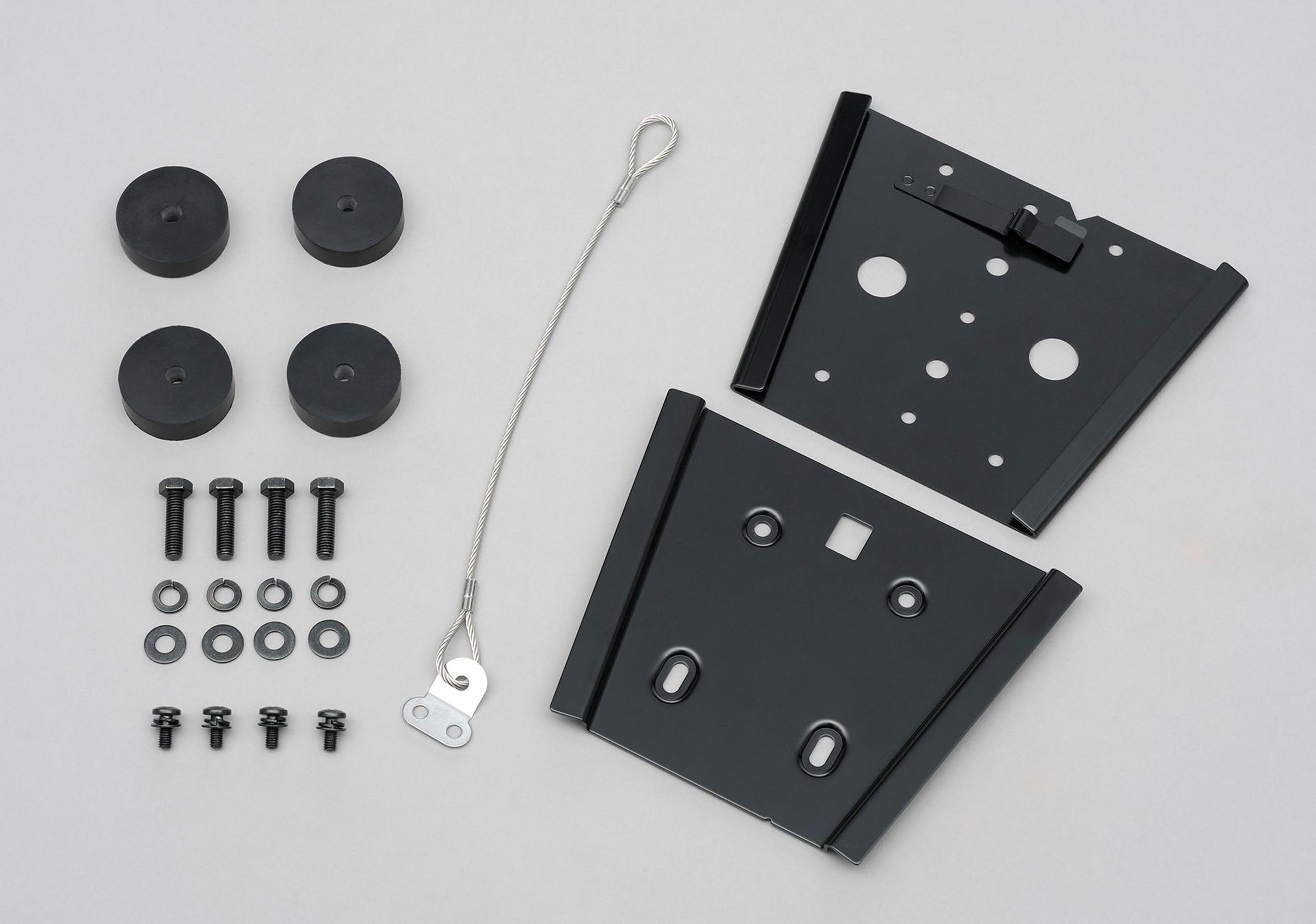

Accessories: Wall mount bracket

Finish: Black (VXS10S, approx. Munsell N3), White (VXS10SW, approx. Munsell 3.5PB9.0/1)

Product Weight: 16.5 kg (36.4 lbs)

Product Dimensions (L × W × H): 15.3 × 10.2 × 19.7 in
