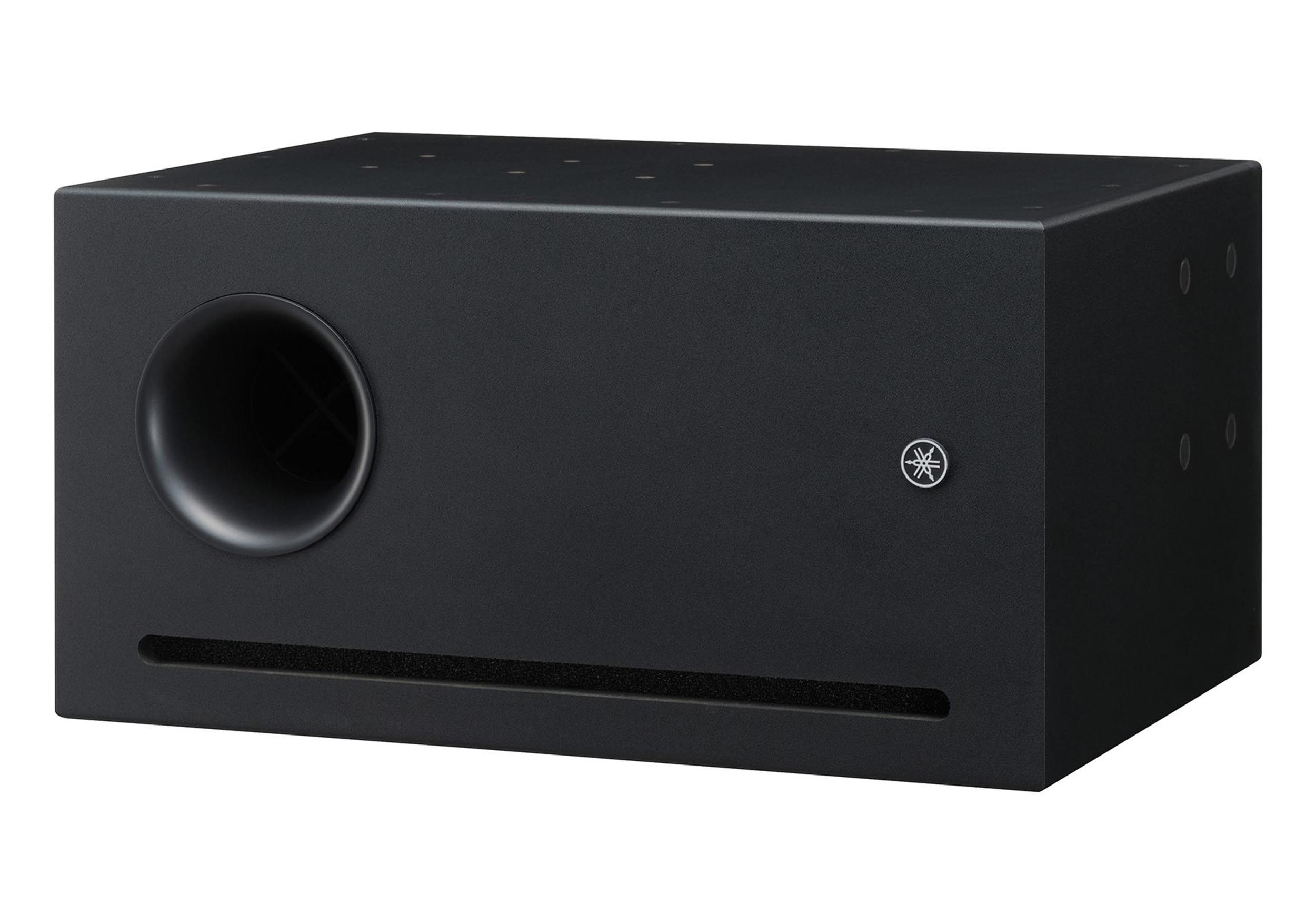

Yamaha VXS10ST 10" Surface-Mounted High-Impedance - Black and White

The Yamaha VXS10ST Series is a high-impedance subwoofer engineered to deliver powerful, professional-grade low-frequency impact for commercial audio systems. Its bass-reflex design ensures smooth, distortion-free bass reproduction, providing rich, immersive low-end performance that enhances music, presentations, and overall sound presence. Acoustically and visually matched to Yamaha’s VXS and VXC full-range speakers, it integrates seamlessly into restaurants, retail spaces, cafés, and other commercial environments.

Equipped with dual voice coils and rear-panel satellite connectors, the VXS10ST supports stereo input sources while minimizing the number of amplifier channels required. A built-in high-pass filter automatically applies to connected full-range speakers, ensuring a natural, well-balanced crossover and simplifying system setup for optimal audio performance.

Installation is highly flexible. The subwoofer can be floor-mounted, wall-mounted with included hardware, or ceiling-mounted using optional brackets, making it adaptable to a wide range of spaces and layouts. Whether used as a standalone low-frequency solution or paired with multiple satellites for large-scale coverage, the VXS10ST delivers consistent, controlled bass.

Available in Black and White, the Yamaha VXS10ST Series combines professional-grade low-frequency performance, versatile installation options, and sleek, unobtrusive design for commercial and professional audio applications.

Product Specifications:

Speaker type: Bass-reflex type subwoofer

Frequency range (-10dB): 45 Hz – 250 Hz

Components LF: 10" dual voice coil

Satellite impedance: 8 Ω load per satellite output recommended

Transformer taps 100V: 200 W (50 Ω), 100 W (100 Ω), 50 W (200 Ω)

Transformer taps 70V: 200 W (25 Ω), 100 W (50 Ω), 50 W (100 Ω), 25 W (200 Ω)

SPL sensitivity (1W; 1m on axis): 96 dB SPL

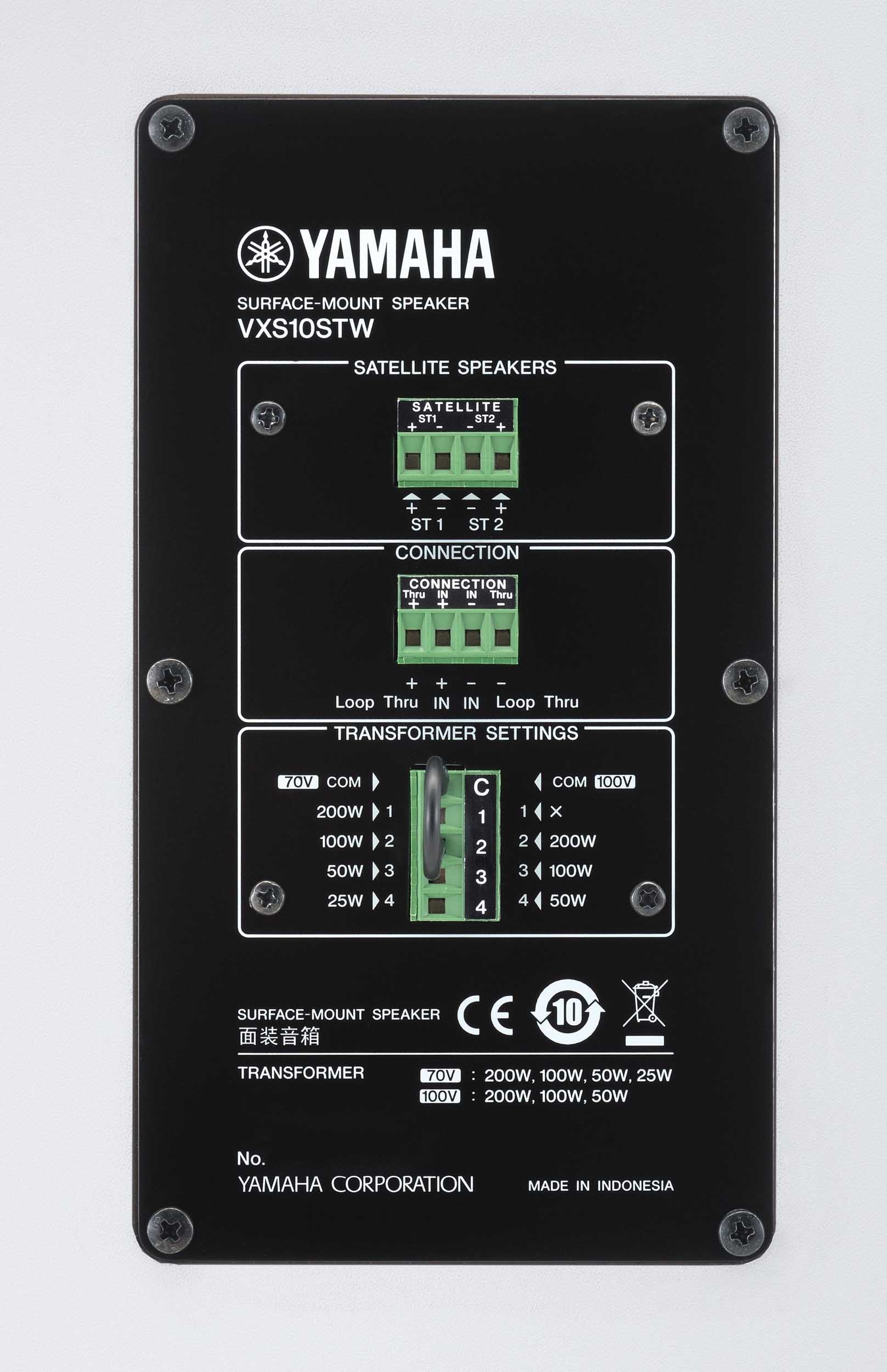

I/O connectors: Input 1x Euroblock 4-pin input +/-, loop thru +/-; Satellite output 1x Euroblock 4-pin ST1 +/-, ST2 +/-

Protection circuit load protection: Full-range power limiting to protect network and transducers

Shape: Rectangular

Cabinet material: MDF

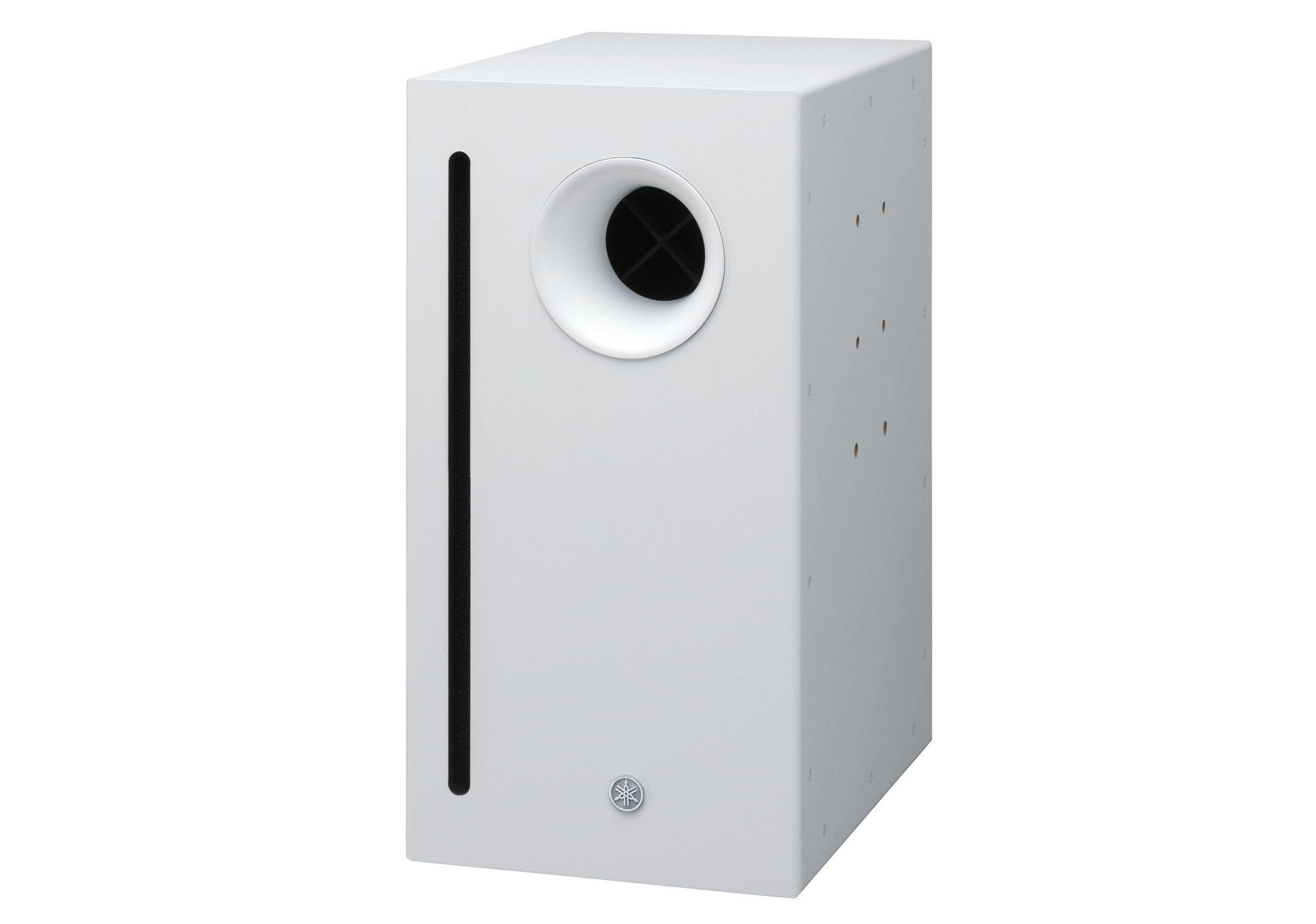

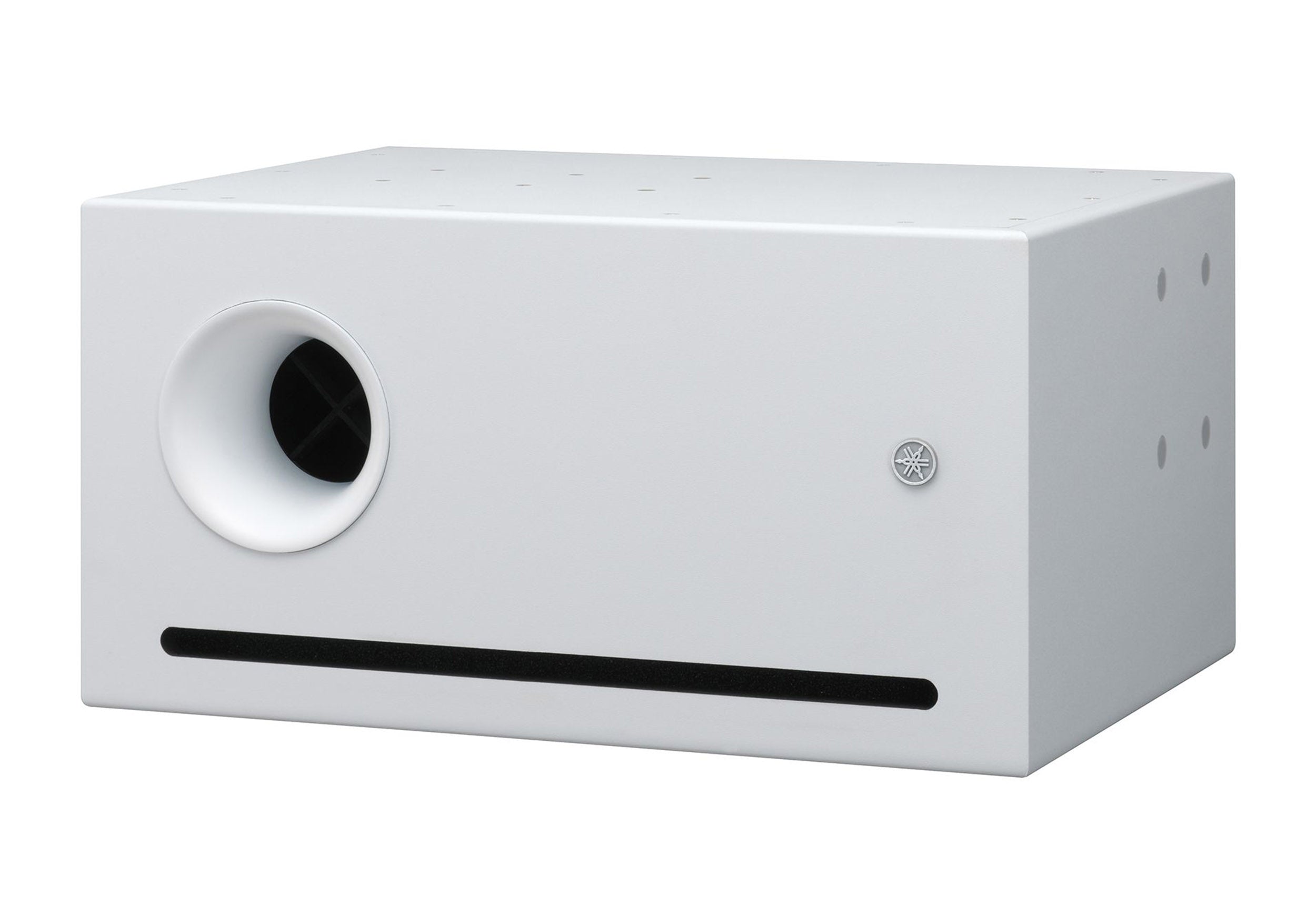

Finish: Black (VXS10ST, approx. Munsell N3), White (VXS10STW, approx. Munsell 3.5PB9.0/1)

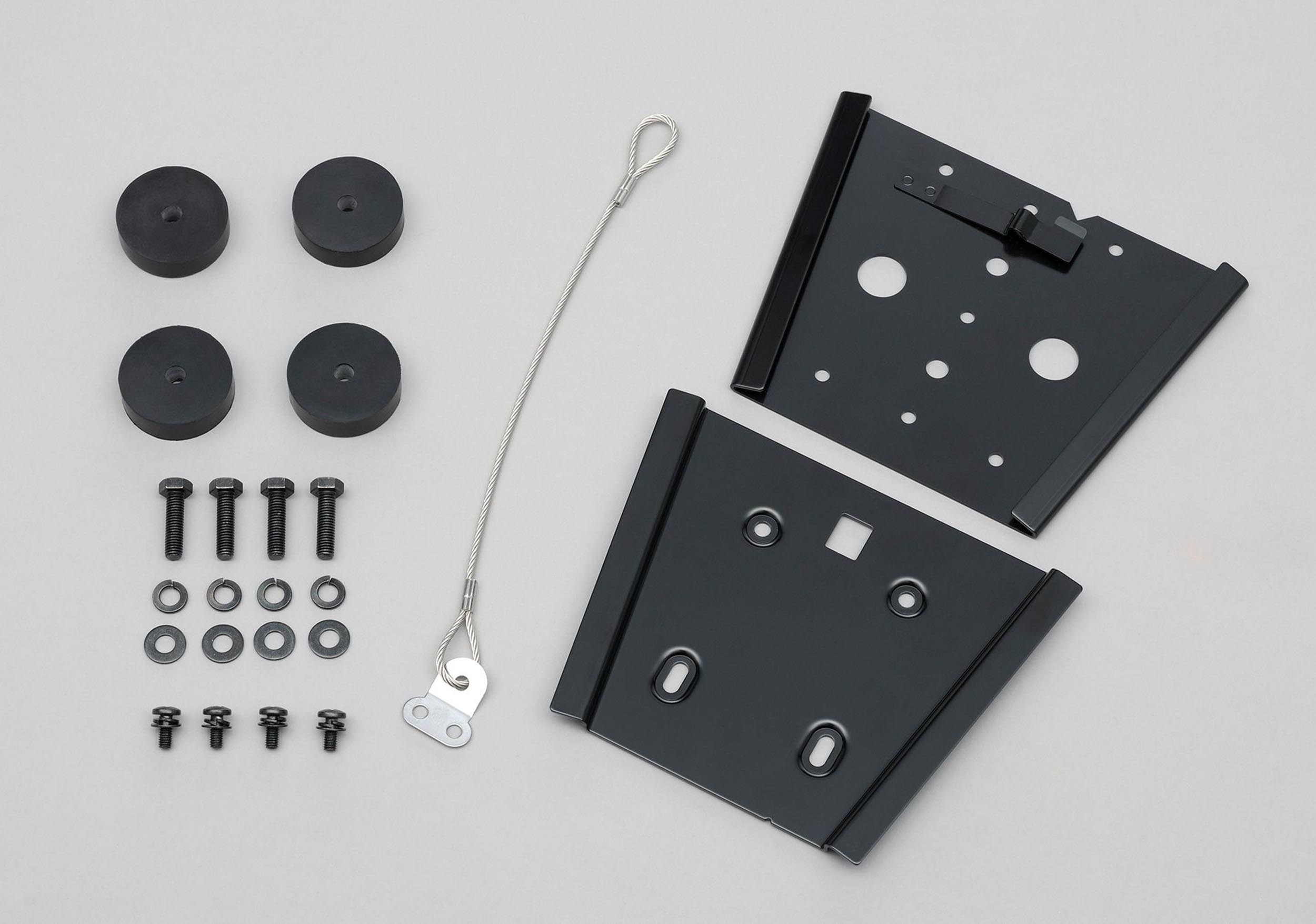

Accessories: Wall mount bracket

Product Weight: 43.0 lbs / 19.5 kg

Product Dimensions (L × W × H): 15.3 × 10.2 × 19.7 in
